BSNOVT Engine Timing Tool Kit for Ford EcoBoost 2.0L/2.3L — Precision alignment, durable OE replacement

BSNOVT's Engine Timing Tool Kit is a precision alignment set made to accurately lock and time Ford EcoBoost 2.0L and 2.3L engines, replacing OE tools 303-507, 303-1521, and 303-1565.

This comprehensive tool kit is engineered for technicians and home mechanics working on Ford and Lincoln EcoBoost engines. Each piece in the kit fits the factory service specifications to ensure camshaft and crankshaft alignment, simplify timing-chain locking, and reduce guesswork during belt or chain service. Built from durable materials, the kit delivers repeatable accuracy so you can complete timing work faster and with confidence.

How does the kit ensure correct engine timing?

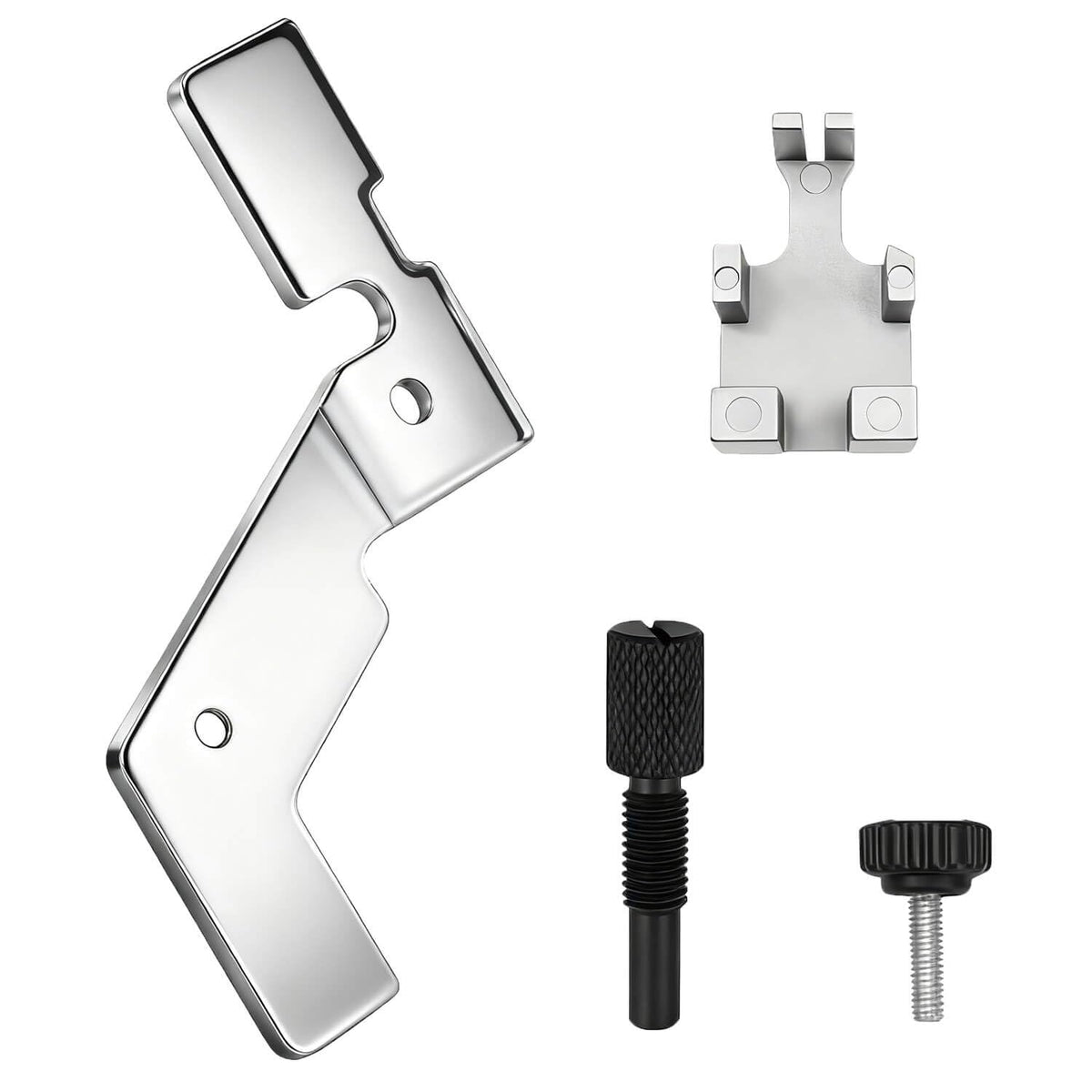

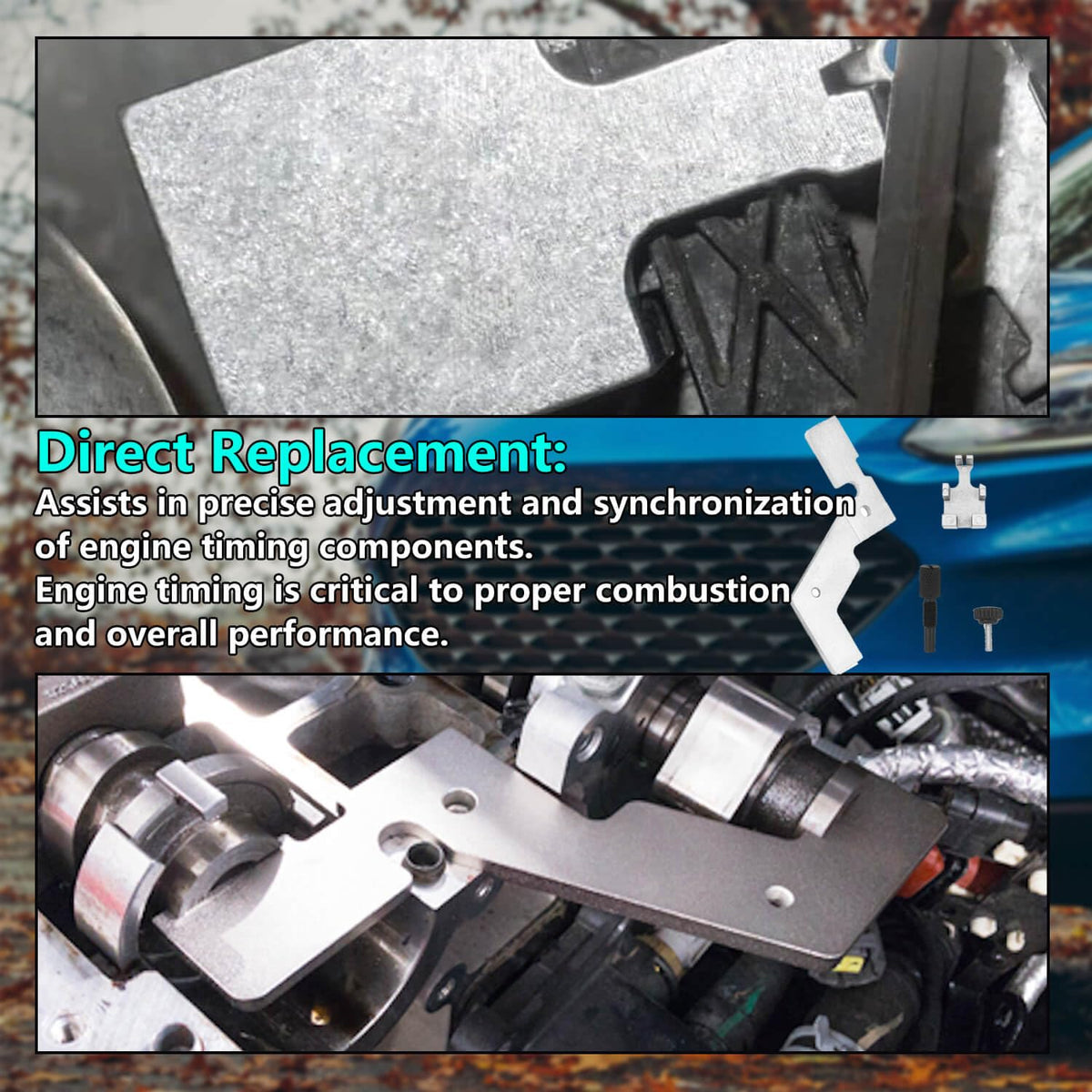

The BSNOVT kit includes specific pins and alignment tools that register with factory timing positions on EcoBoost 2.0L and 2.3L engines. By holding the camshaft and crankshaft in their service positions, the tools prevent rotation during removal or installation of timing components.

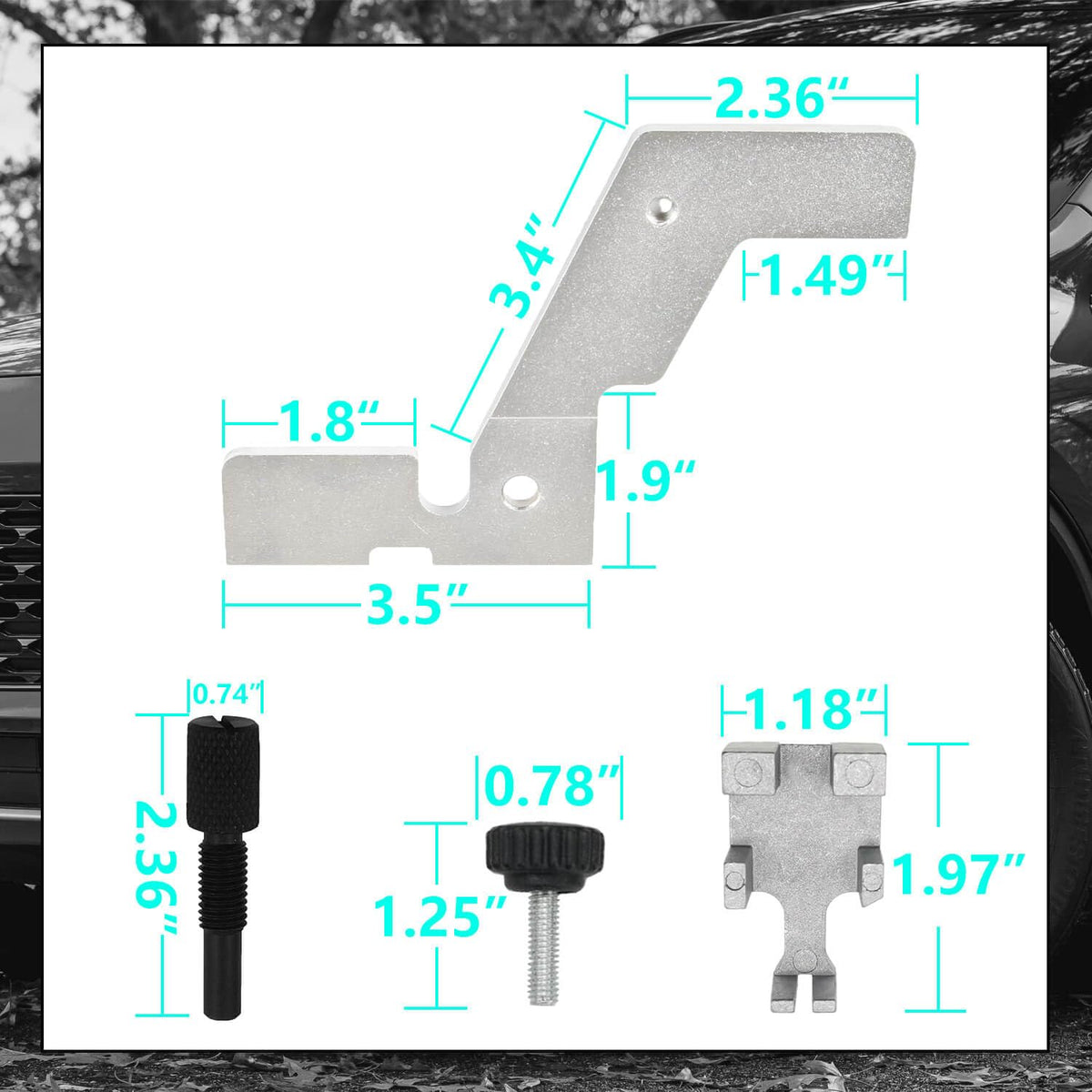

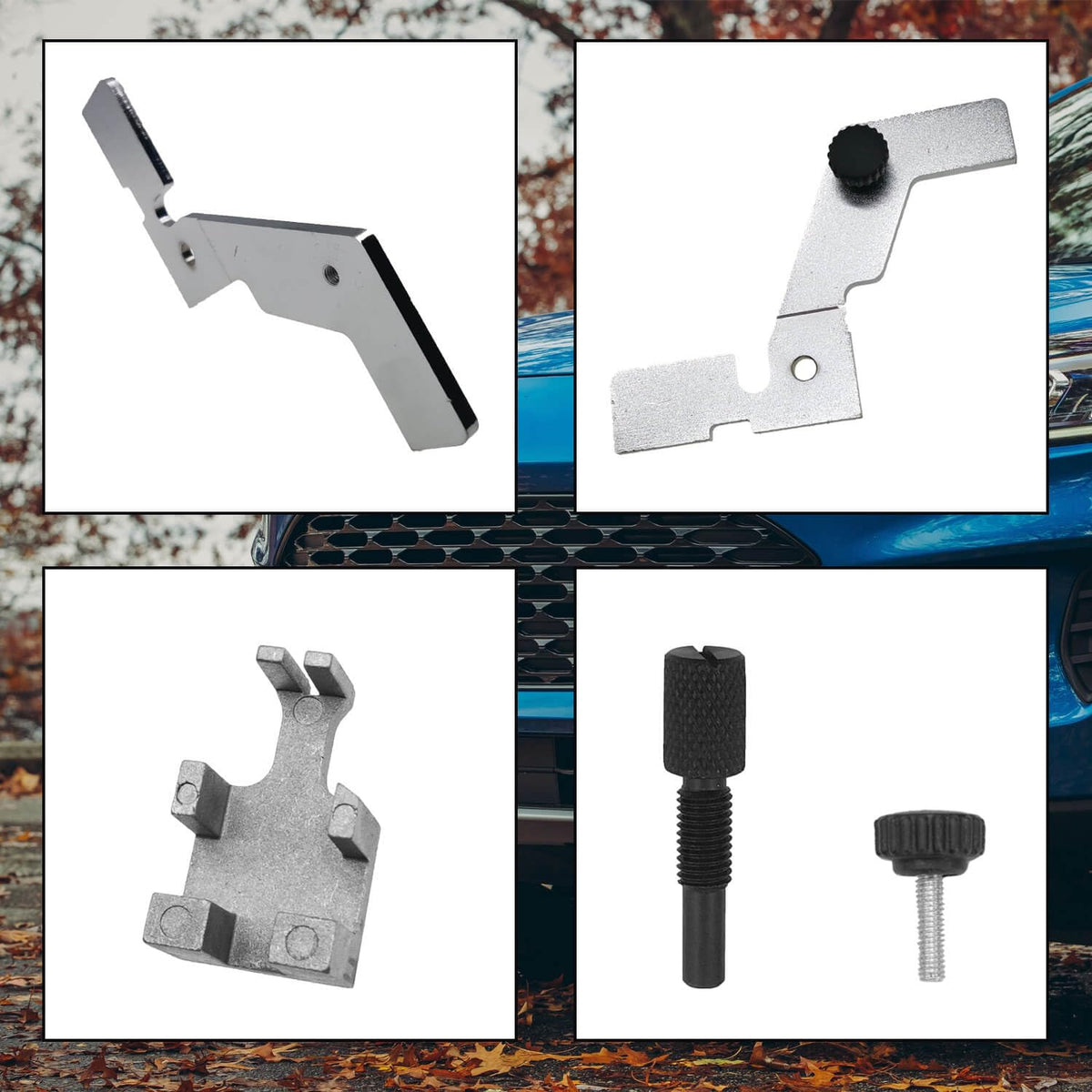

• Crank timing pin secures crankshaft at TDC for accurate reference.
• Camshaft alignment tool sets cam gears in factory position.
• Crankshaft locating tool prevents unwanted movement during service.

Which vehicles and original tools does this replace?

This kit is compatible with a wide range of Ford and Lincoln models equipped with EcoBoost 2.0L or 2.3L engines, intended as a direct replacement for the OE service tools 303-507, 303-1521, and 303-1565. It provides the same mounting points and reference locations as the original tools to match manufacturer procedures.

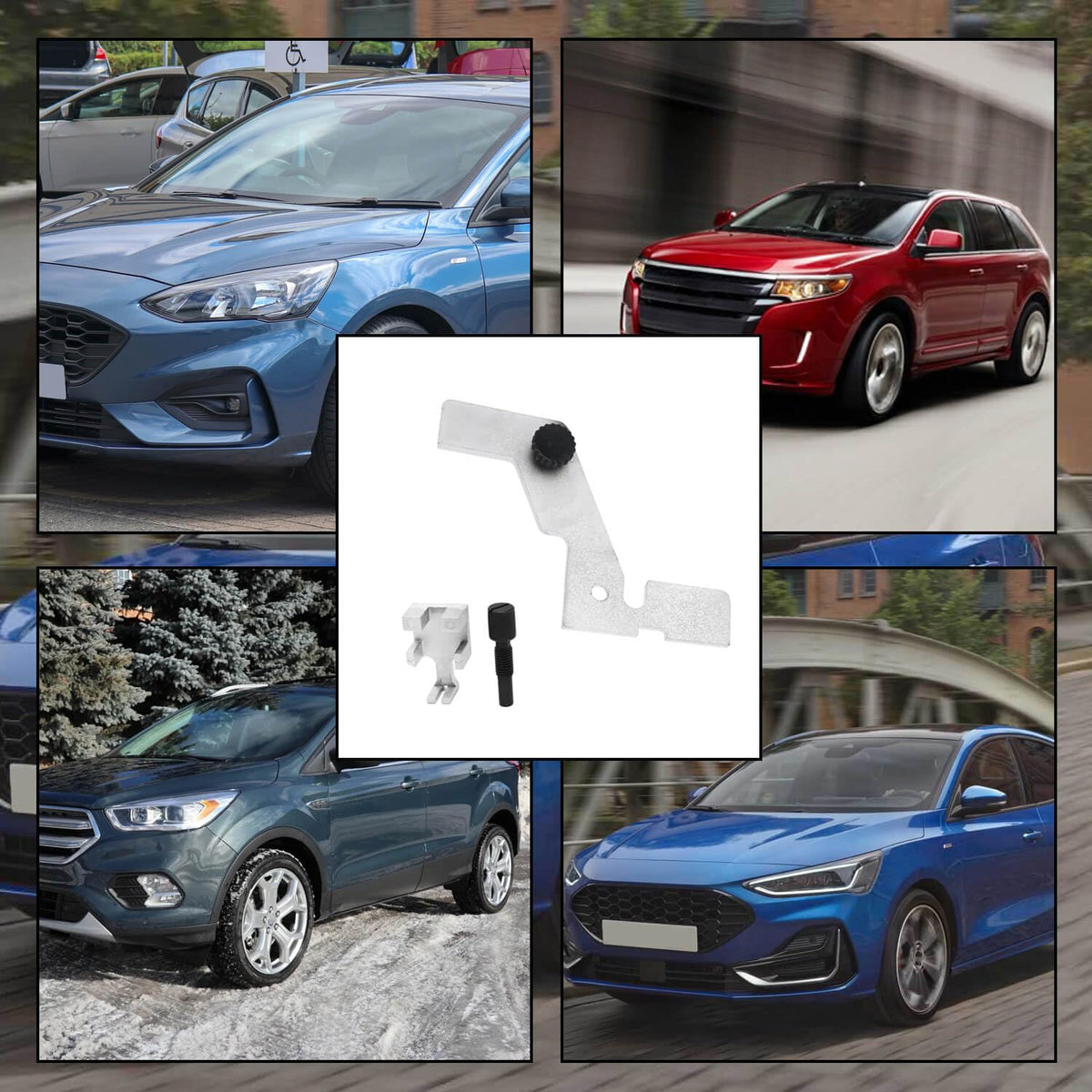

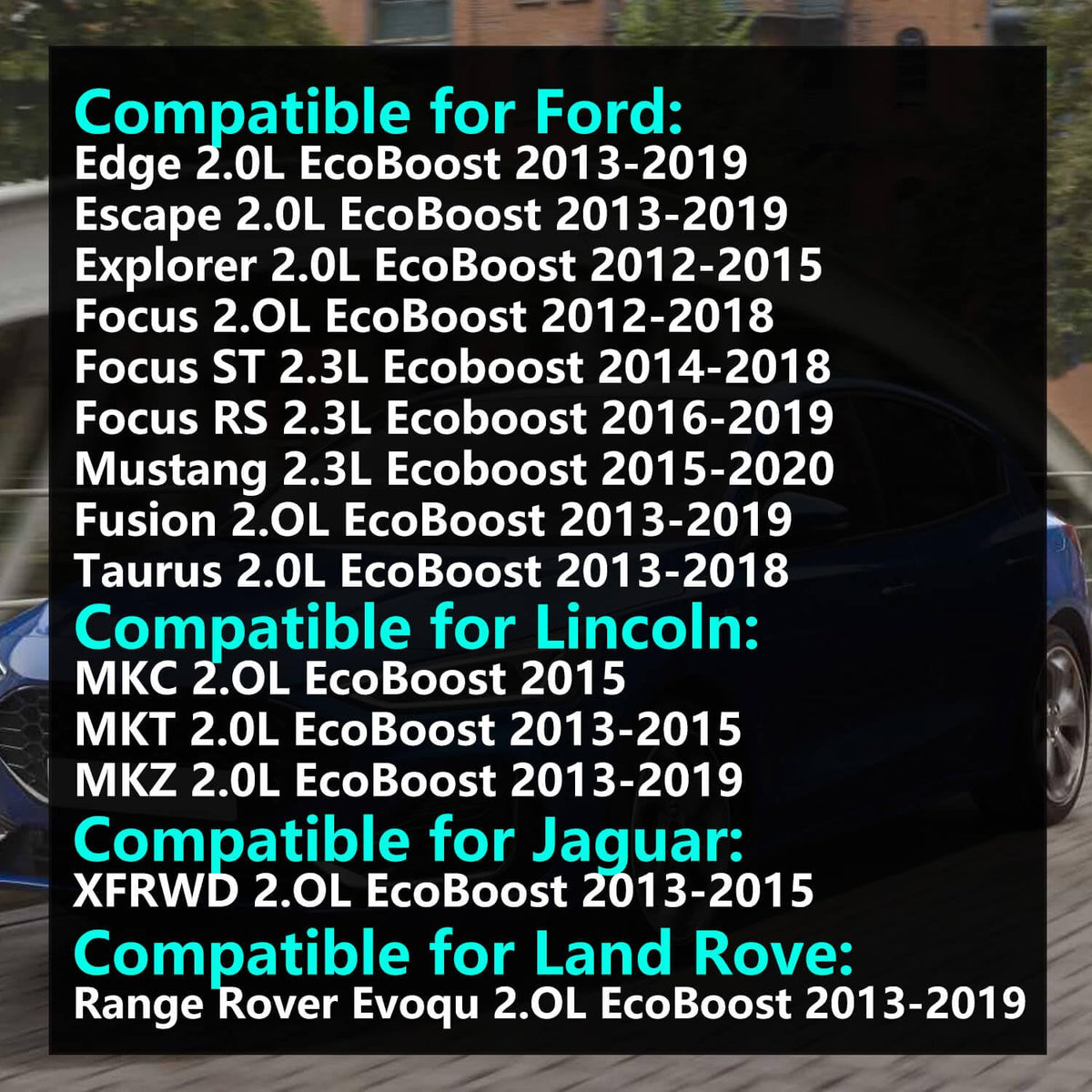

• Fits Ford Escape, Explorer, Fusion, Focus, Edge, Mustang, Taurus and more.
• Works with Lincoln MKC, MKT, MKZ and related EcoBoost platforms.

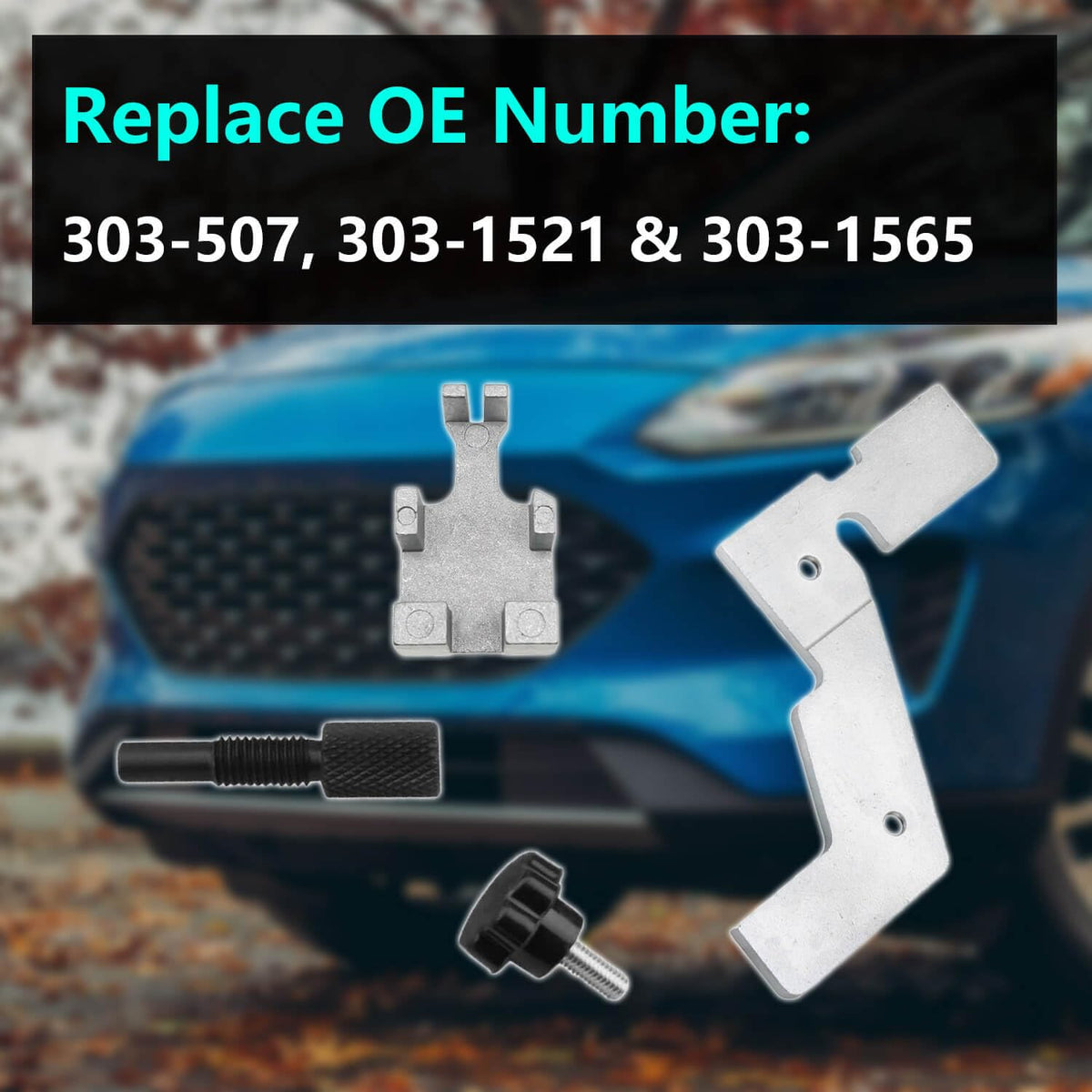

• Replaces OE tool numbers 303-507, 303-1521, 303-1565 for service parity.

What materials and quality standards are used?

BSNOVT manufactures the kit from high-strength metals and precision-machined components to withstand workshop use. Each item is produced to meet or exceed OEM tolerances so alignment remains reliable over repeated jobs.

• Durable, fatigue-resistant metals for long service life.
• Precision machining for tight engagement with engine timing features.
• Corrosion-resistant finishes for dependable storage and field use.

How does this kit improve workshop efficiency?

Using factory-fitting alignment tools reduces trial-and-error and slashes the time needed for timing-chain or belt jobs. Clear engagement points and robust hold mean fewer restarts, less risk of misalignment, and a smoother workflow for both pros and experienced DIYers.

• Reduces time spent finding factory timing marks by holding components in place.
• Minimizes rework risk from slipped cam or crank gears during service.
• Streamlines procedures for repeatable, faster maintenance cycles.

Who is this for: The BSNOVT Engine Timing Tool Kit is aimed at professional mechanics, independent shops, and skilled DIY enthusiasts who service Ford and Lincoln vehicles with EcoBoost 2.0L or 2.3L engines. If you perform timing-chain or timing-belt replacements, head gasket service, or any repair requiring accurate cam and crank positioning, this kit delivers the fit and durability needed to match OEM timing procedures without purchasing costly original tools.
