BUSIDN 3 HP 9‑Tooth Mini Starter for Chevrolet 153/168‑Tooth Flywheels — OSGR, 3.75:1 Reduction

BUSIDN's 3 HP 9-tooth mini starter is a compact, high-torque replacement designed to crank Chevrolet small- and big-block V6/V8 engines with 153- or 168-tooth flywheels.

This mid-size, gear-reduction starter delivers 3.0 horsepower with a 3.75:1 reduction ratio and a durable cast-aluminum housing. Built to replace common OEM and aftermarket part numbers (JM7001R, JM7001BK, 18493N, PP106, PE106 and others), it suits a wide range of Chevy engines from 262 to 454 cubic inches. The unit features a 9-tooth OSGR pinion (0.988 in / 25.1 mm gear OD), standard clockwise rotation (CW), and an adjustable billet-aluminum mounting block for fitment flexibility.

Will this starter fit my Chevrolet engine and flywheel?

Yes—this starter is engineered for many Chevrolet small- and big-block V6 and V8 engines using 153- or 168-tooth flywheels, for either automatic or manual transmissions. Confirm your engine family and tooth count before ordering to ensure compatibility.

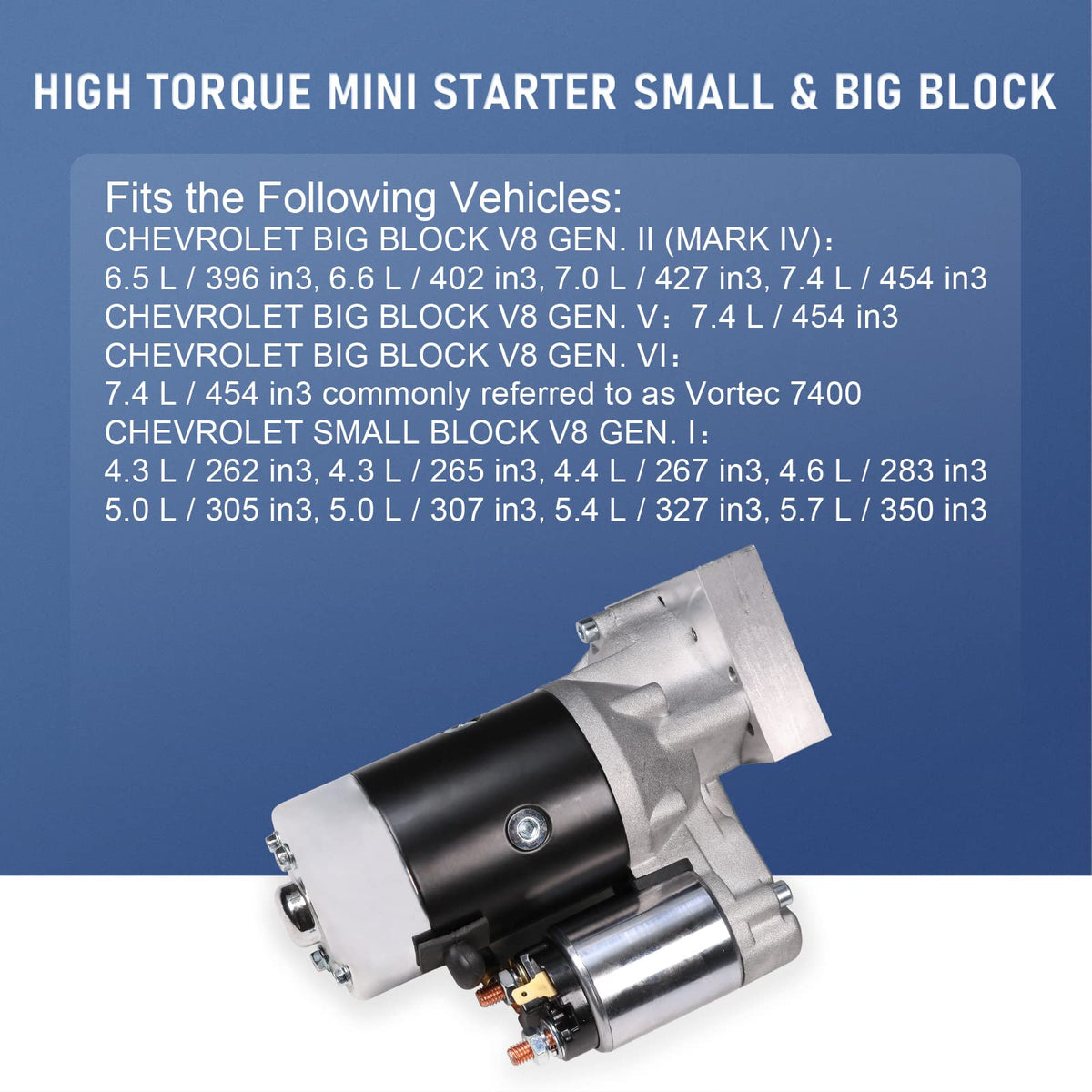

• Fits Chevrolet 262–454 CID engines, including Big Block 396–454 and Small Block 262–350 series.
• Compatible with 153-tooth and 168-tooth flywheels/flexplates.
• Works with both AT (automatic) and MT (manual) transmissions.
• Adjustable mounting block helps adapt to mid-size starter locations.

How does the gear reduction and torque translate to starting performance?

The 3.75:1 gear reduction multiplies motor torque to the pinion, enabling stronger cranking current from a compact motor. That means faster, more reliable engine turnover under higher compression ratios up to the rated 11.0:1, without the bulk of full-size starters.

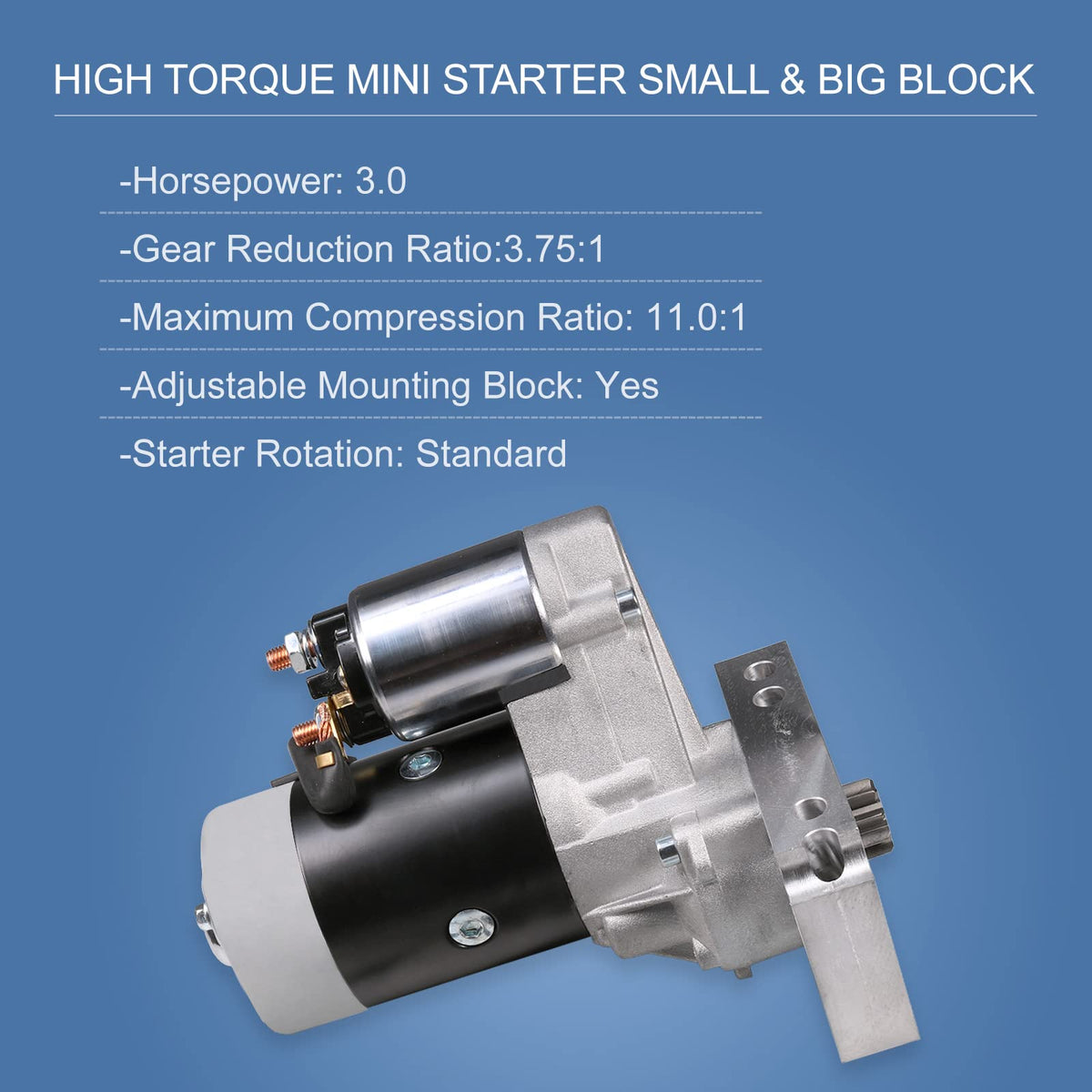

• 3.0 HP (2.0 kW) motor for improved cranking power.
• 3.75:1 reduction ratio increases output torque to the 9-tooth pinion.
• Rated for engines with compression ratios up to 11.0:1.
• OSGR design provides quick engagement and smoother starts.

What materials and build details affect durability and installation?

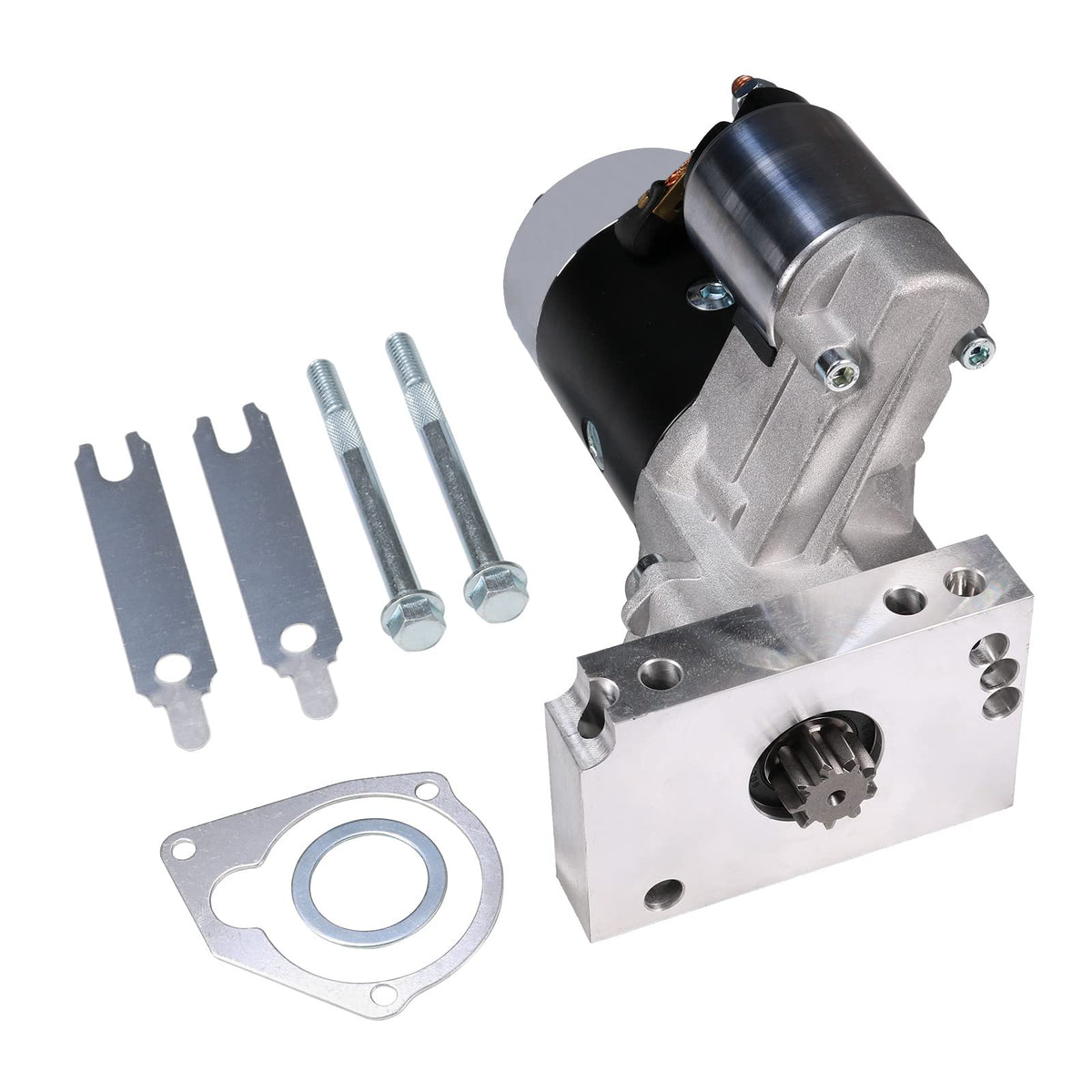

The starter housing is cast aluminum for strength while keeping weight down; the mounting block is billet aluminum for precise alignment and corrosion resistance. The adjustable mounting block helps installers achieve the correct pinion-to-ring gear mesh, but professional installation is recommended to set the gap properly.

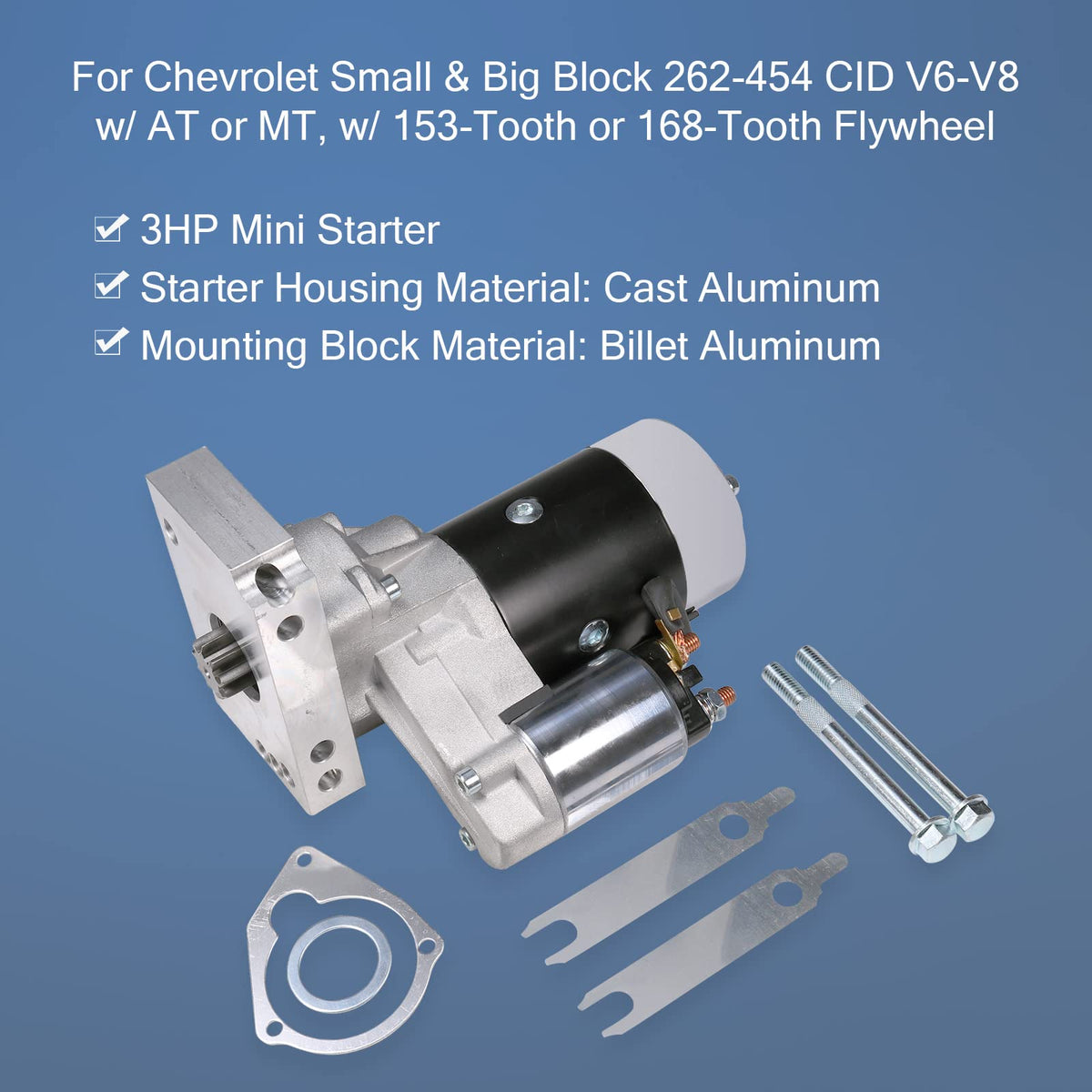

• Cast-aluminum housing reduces weight and resists corrosion.
• Billet-aluminum adjustable mounting block for secure fitment.
• Standard CW rotation matches most Chevy starter requirements.
• Instructions are not included—professional installation suggested.

Which part numbers and replacements does this unit cover?

This BUSIDN starter replaces many common OEM and aftermarket references, simplifying sourcing when rebuilding or upgrading classic Chevy engines. Cross-reference your existing part number with the listed alternatives before purchasing.

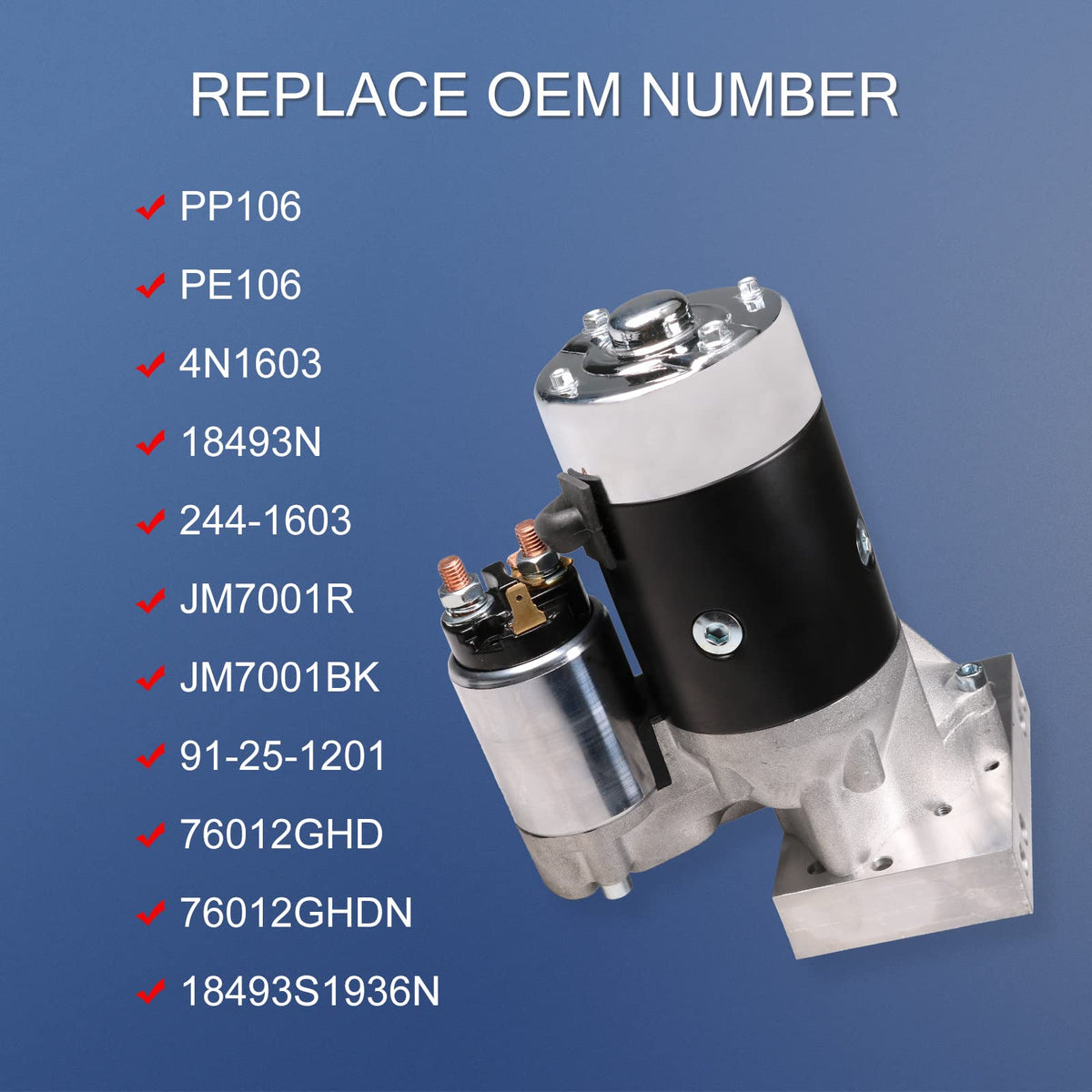

• Common replacement part numbers: JM7001R, JM7001BK, 18493N, PP106, PE106.
• Additional references: 91-25-1201, 18493S1936N, 244-1603, 76012GHDN, 76012GHD, 4N1603.
• Specification label: 12V, 9-tooth, OSGR, 0.988 in (25.1 mm) gear OD.
• Mid-size starter style for a wide range of classic Chevy applications.

Who is this for? Enthusiasts and mechanics restoring, rebuilding, or upgrading Chevrolet small- and big-block V6/V8 engines who need a compact, high-torque starter that fits 153- or 168-tooth flywheels. It's suitable for race-prep builds, street restorations, and projects where space, weight, and reliable cranking matter. If you lack installation experience, have a shop or professional technician mount and set the starter to ensure correct gear mesh and electrical hookup.
