BUSIDN 55A RV Power Converter Charger WF 8955-AD – 12V Smart 3‑Stage Charging, Lead‑Acid & Lithium Support

BUSIDN WF 8955-AD is a 55-amp RV power converter charger that combines a smart three-stage charging algorithm with a built-in power distribution hub to reliably charge 12V batteries and power onboard systems.

Designed for motorhomes, travel trailers, and towables, the WF 8955-AD converts AC shore power into a stable DC source while actively managing battery health. It handles a wide AC input range and delivers up to 55 amps of regulated charging, supports both lead-acid and lithium battery chemistries, and integrates multiple safety features to protect electrical systems during operation.

How does the charger maintain battery health?

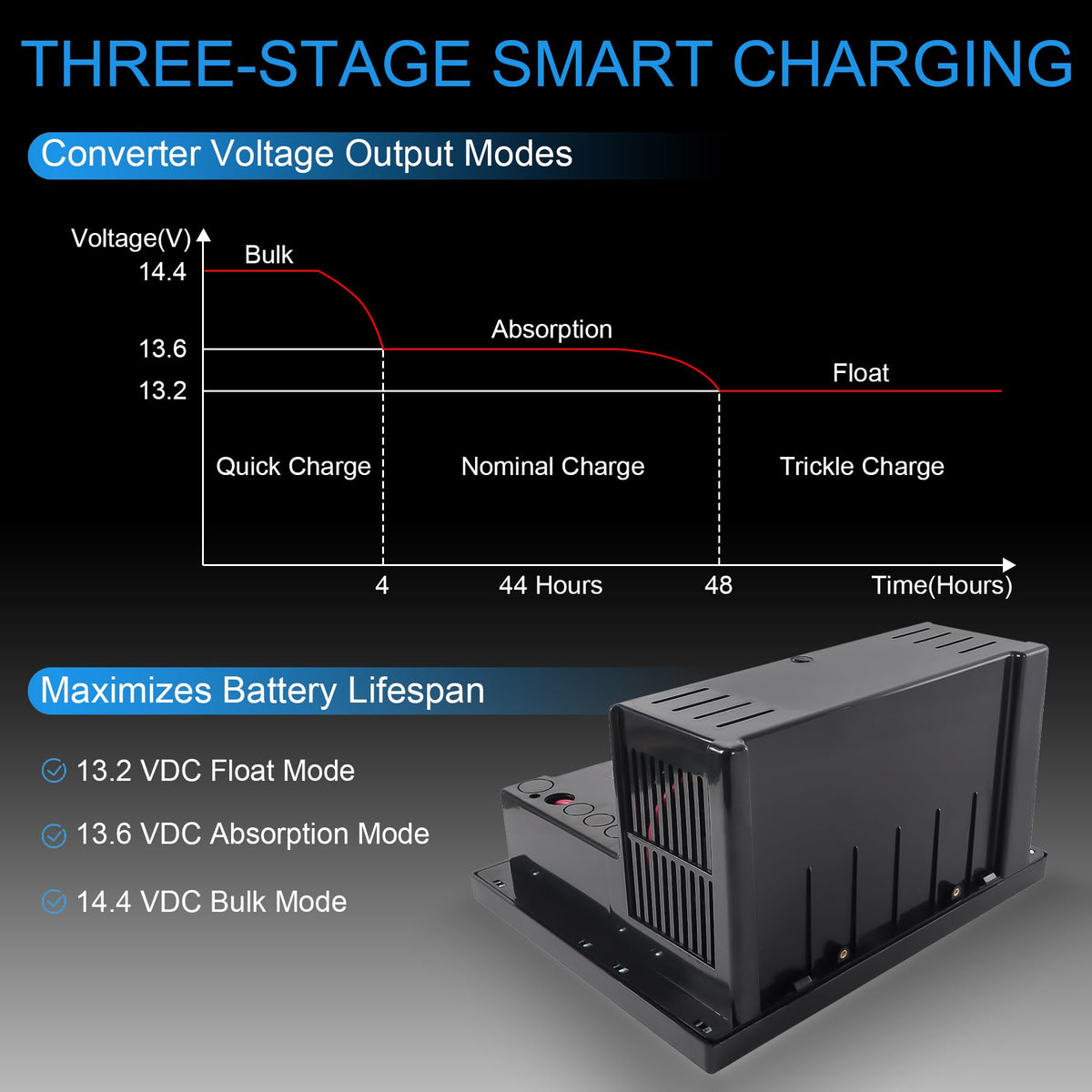

The unit uses a smart 3-stage charging routine—Bulk, Absorption, and Float—that adjusts voltage and current to match battery needs as they change. This staged approach reduces stress on batteries, helping avoid overcharging and sustaining capacity over time.

• Bulk stage: fast-charge at 14.4V to replenish depleted charge
• Absorption stage: 13.6V to finish charging without overheating
• Float stage: 13.2V to maintain full charge safely

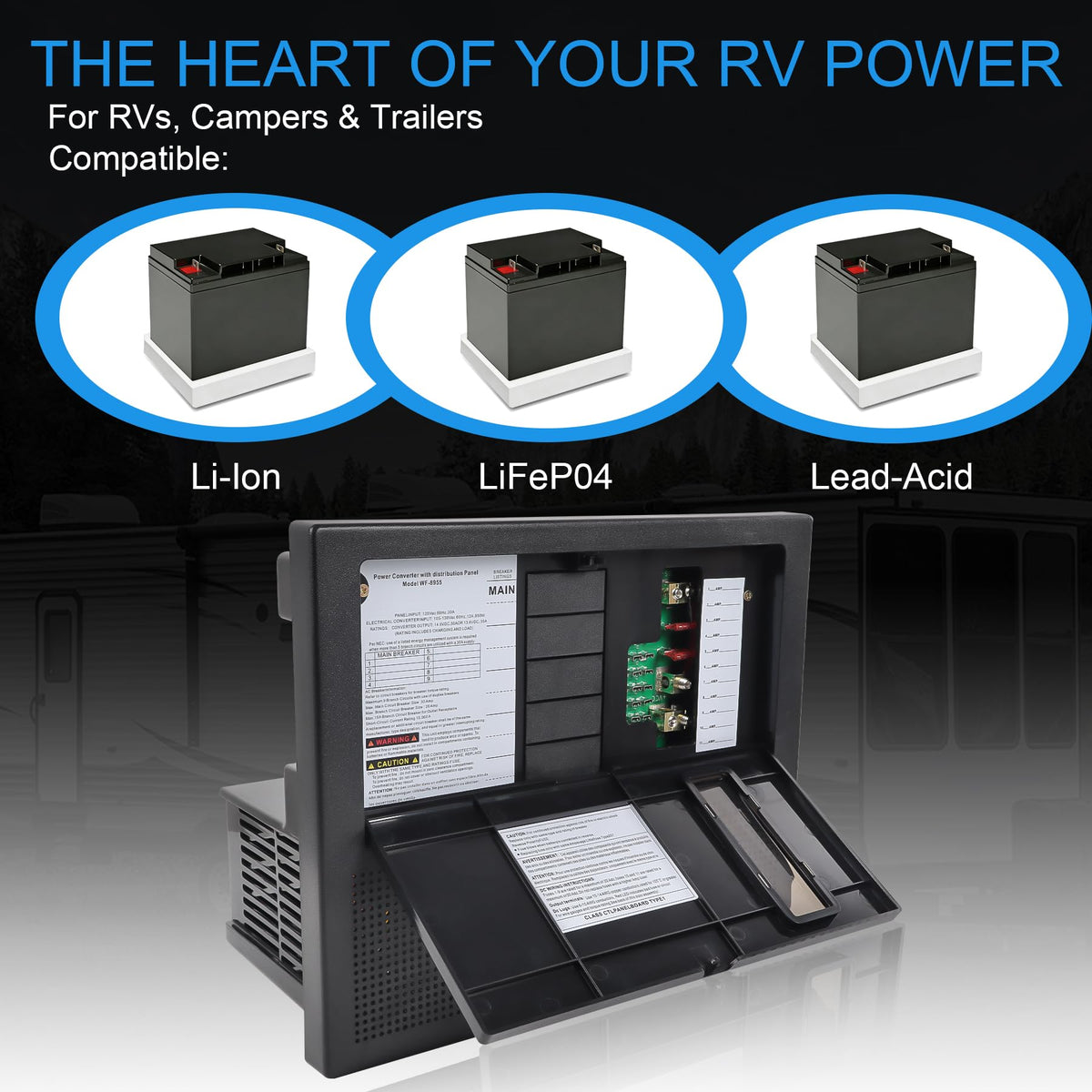

• Works with both lead-acid and lithium with tailored profiles

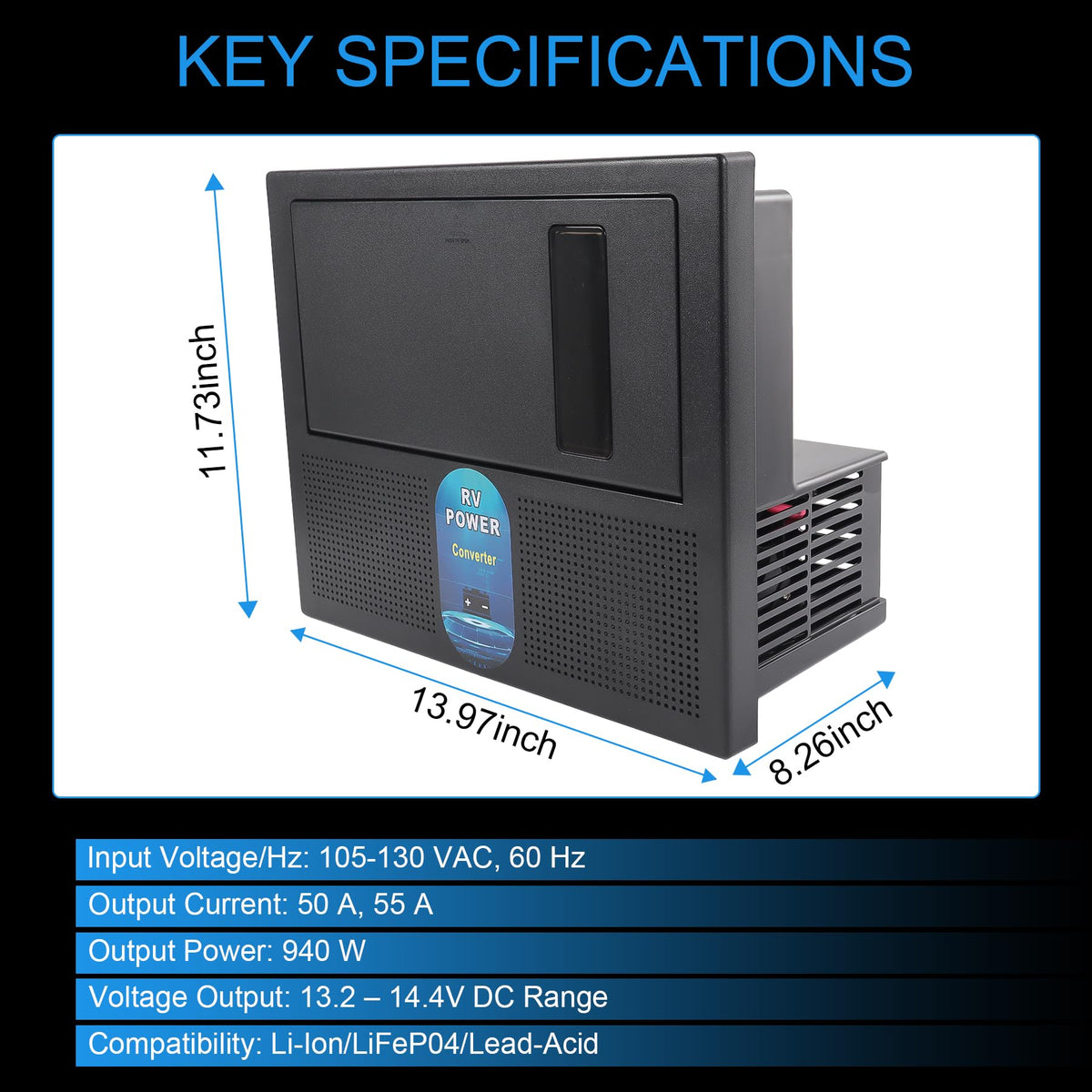

What electrical capacity and inputs does it handle?

The WF 8955-AD accepts typical RV shore power (105–130V AC) and converts it into a consistent 55A DC output for 12V loads and battery charging. That power is sufficient to run lights, pumps, fans, and other standard RV appliances while replenishing the battery bank.

• AC input range: 105–130V
• DC output: up to 55 amps for 12V systems
• Supports continuous loads and routine charging cycles
• Integrated distribution simplifies wiring and circuit management

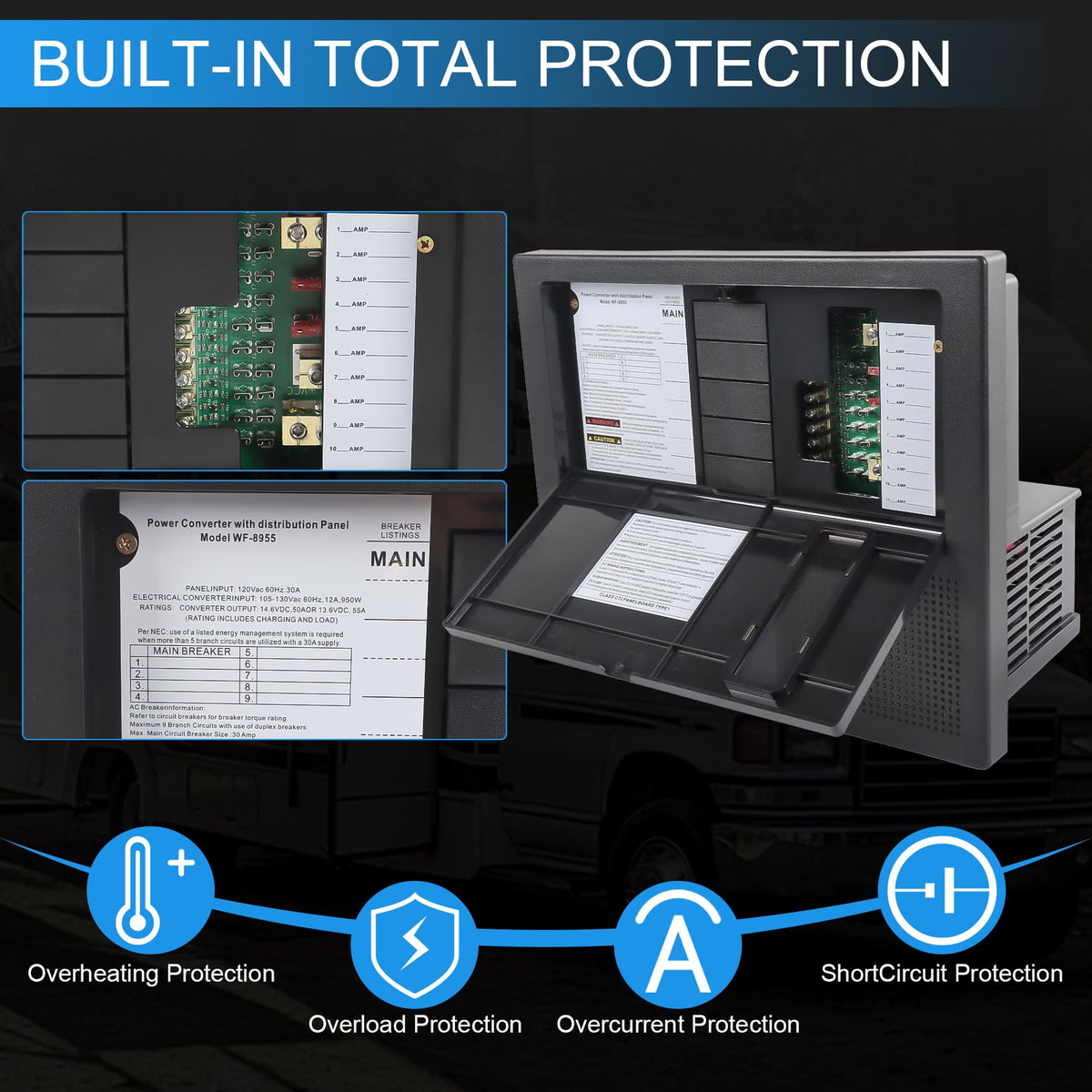

Which safety features protect my RV and batteries?

The converter includes multiple layered protections to reduce risk to equipment and wiring. Built-in safeguards monitor conditions and react to faults such as over-current or incorrect connections, helping to prevent damage to batteries and onboard electronics.

• Over-current protection to prevent excessive draw
• Over-voltage and reverse polarity defenses for battery safety
• Over-temperature cutoff to avoid thermal damage
• Designed to meet common RV electrical expectations for reliability

How does the integrated power distribution hub simplify installation?

Beyond charging, this model consolidates AC-to-DC conversion and DC circuit distribution into one enclosure, reducing the number of separate components and connections needed. A central power center lowers wiring complexity and keeps the RV’s electrical system organized.

• Single enclosure for charging and DC circuit management
• Multiple DC and AC circuits accessible for common RV loads
• Simplifies service access and reduces installation points
• Frees space compared with standalone converter plus distribution panel

Who is this for? The BUSIDN WF 8955-AD suits RV owners and installers who want a reliable, mid-power converter that also acts as a compact electrical hub. It fits travelers upgrading to mixed battery chemistries, builder-spec motorhomes needing centralized wiring, and anyone replacing older chargers with a smart, safety-focused unit. Ideal for those who require steady 12V power for appliances and efficient, staged charging for battery longevity without adding multiple separate components.
