BUYMACHINERYPARTS 1" DD x 3/4" DD steering U-joint shaft, Black 83mm, 35° articulation, 4000 RPM

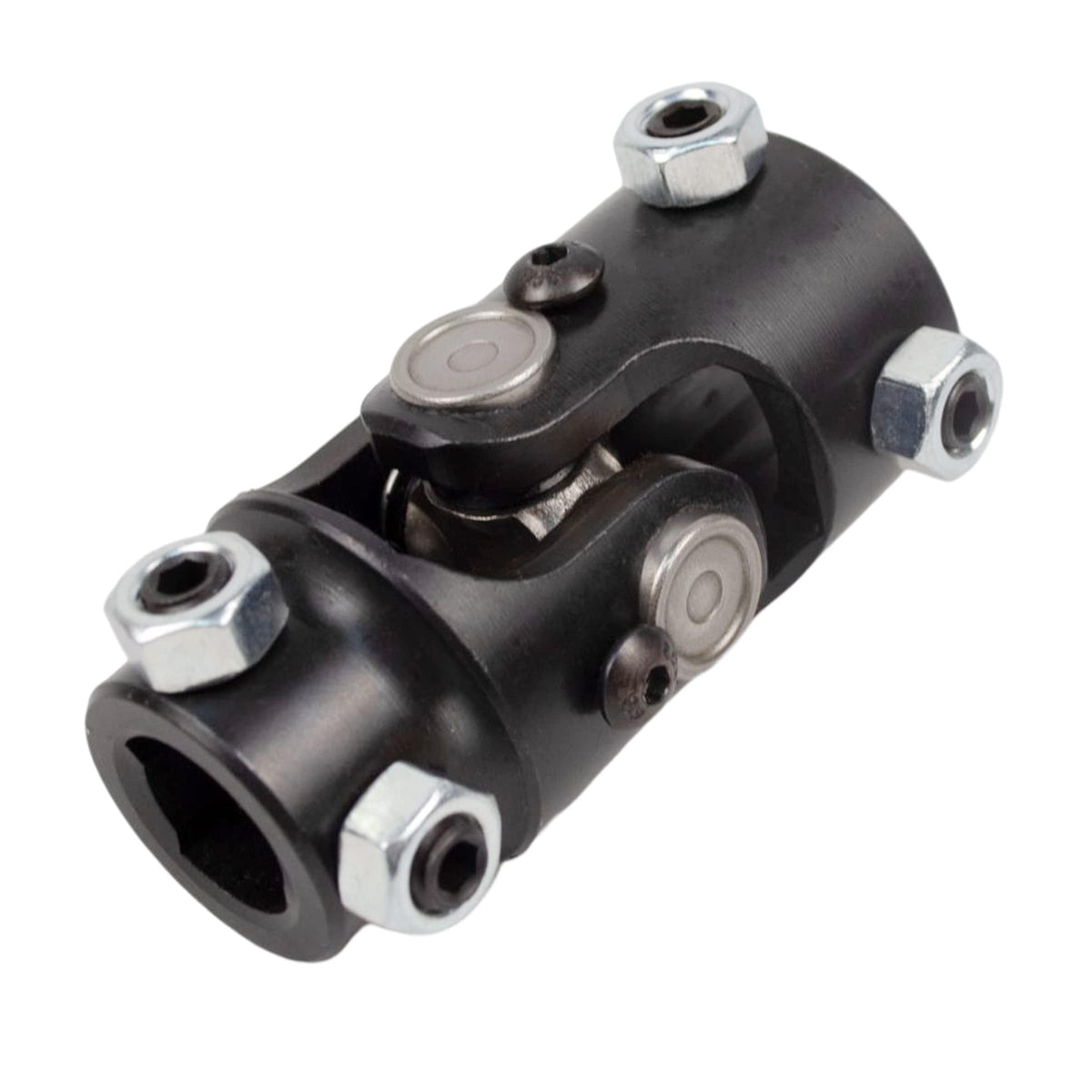

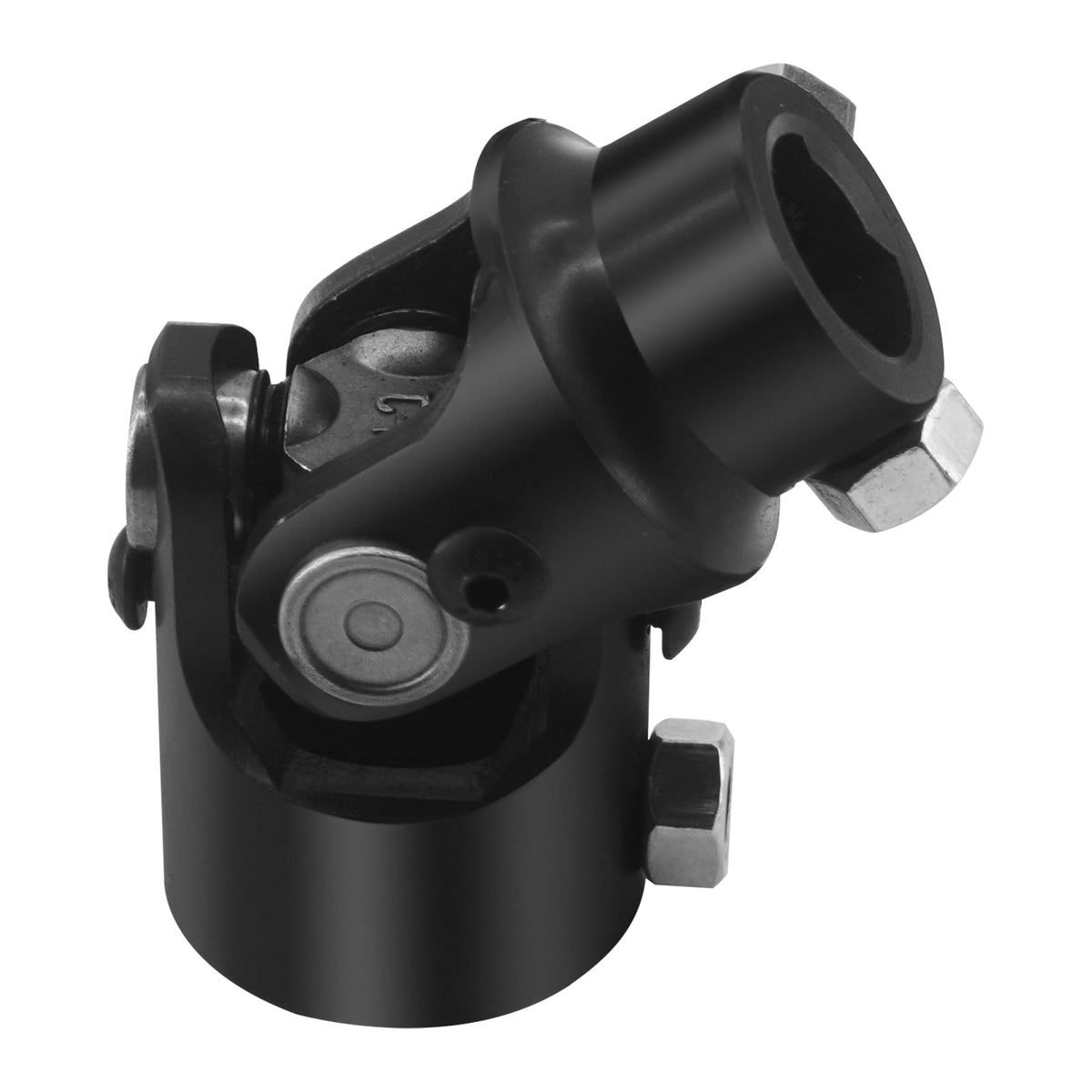

BUYMACHINERYPARTS 1" DD x 3/4" DD black steering universal joint is a compact, single U-joint shaft engineered to transfer rotary motion reliably with a total length of 83mm (3-1/4").

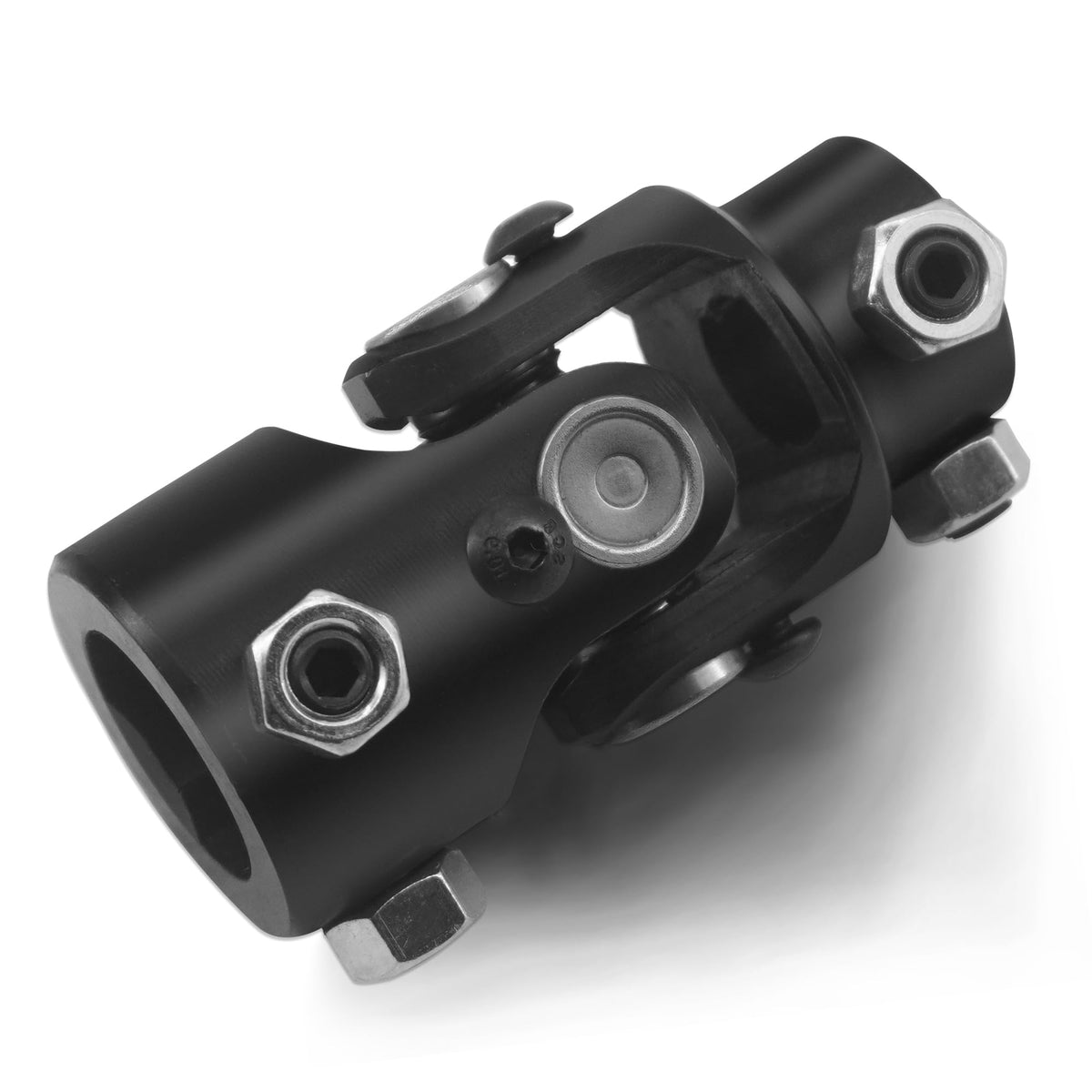

This single universal joint shaft pairs a 1" double-diamond (DD) input with a 3/4" DD output and is finished in a black coating for corrosion resistance and visual consistency. Designed for light- to medium-duty power transmission, it supports intermittent angular misalignment up to 35° and operates up to 4000 rpm. Common uses include steering linkages, grinding and shop machinery, automated parking lifts, and other automotive or industrial assemblies where compact, durable shaft coupling is required.

How does this U-joint handle angled drives and misalignment?

The joint accommodates angular deflection without loading the connected components beyond its design limits. Rated for a maximum working angle of 35°, it maintains smooth torque transfer within that envelope to reduce vibration and wear.

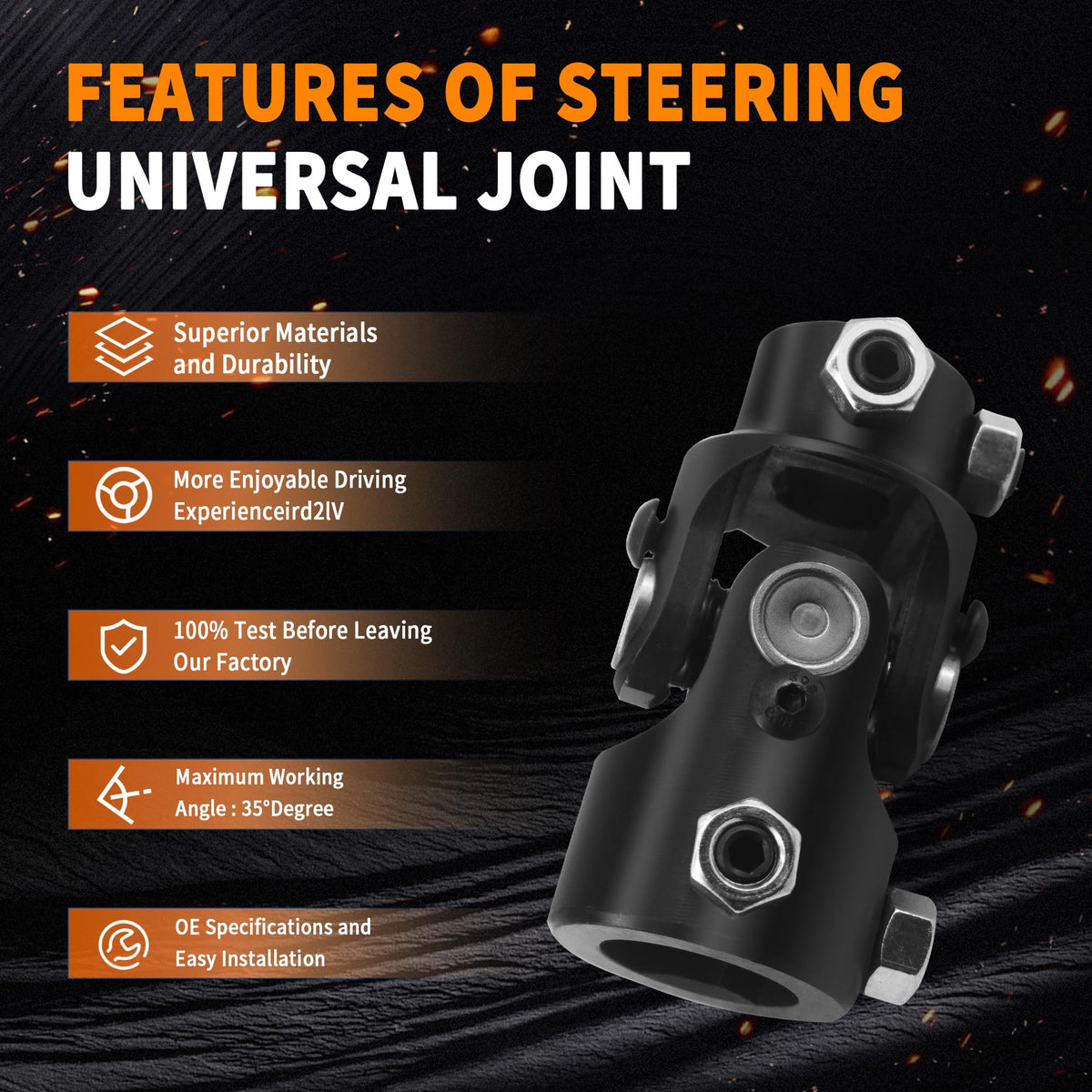

• Maximum working angle: 35° for reliable articulation.
• Precision-machined DD splines ensure tight engagement and minimal play.
• Black finish helps resist corrosion in workshop environments.

What rotational speeds and durability can I expect?

This shaft is built to run up to 4000 rpm under appropriate mounting and lubrication conditions. The single U-joint design emphasizes simplicity and longevity for intermittent or continuous rotation at moderate speeds.

• Rated maximum operating speed: 4000 rpm.
• Robust DD splined ends reduce slippage and wear at higher speeds.

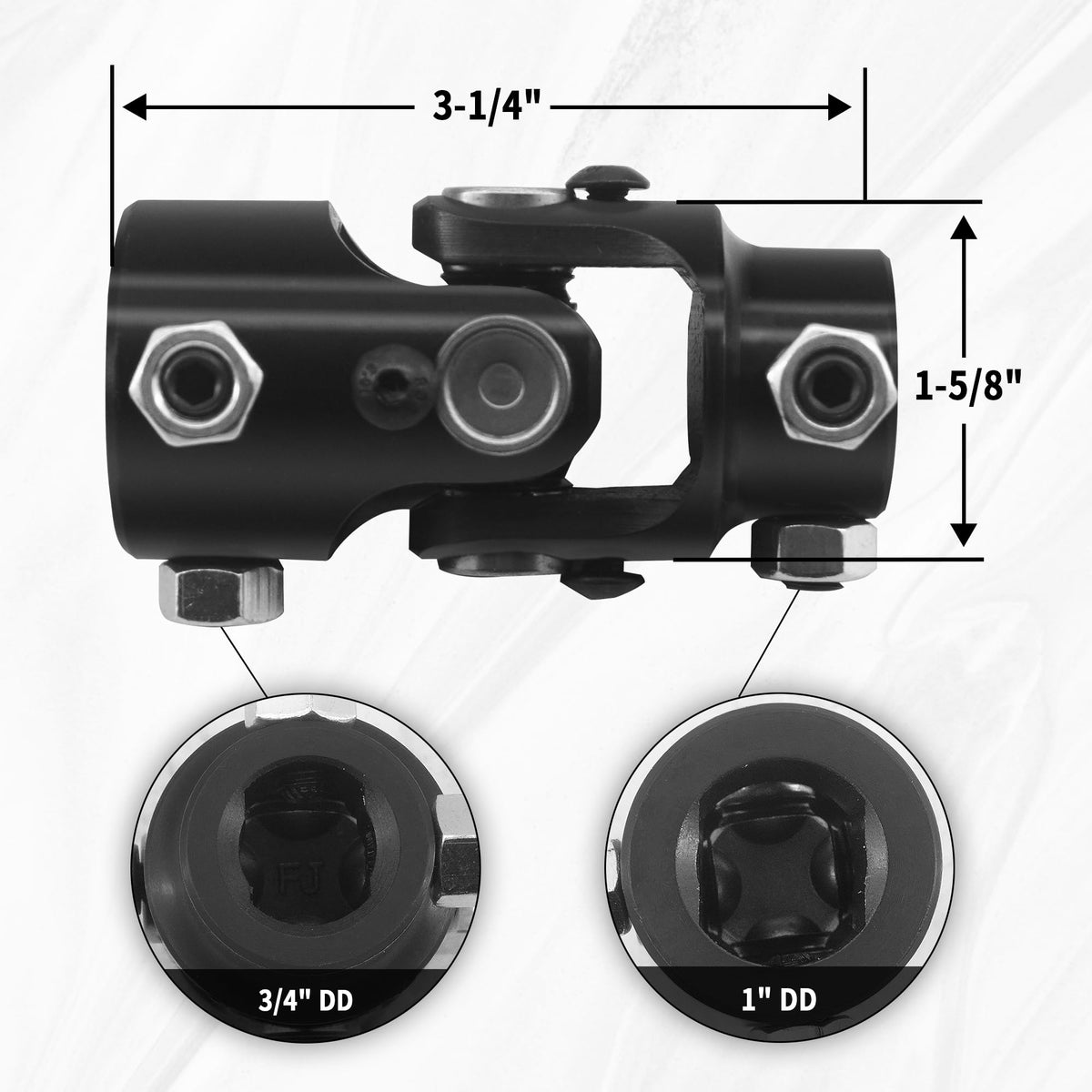

• Compact 83mm length suits tight spatial constraints without sacrificing performance.

Which machines and applications suit this universal joint best?

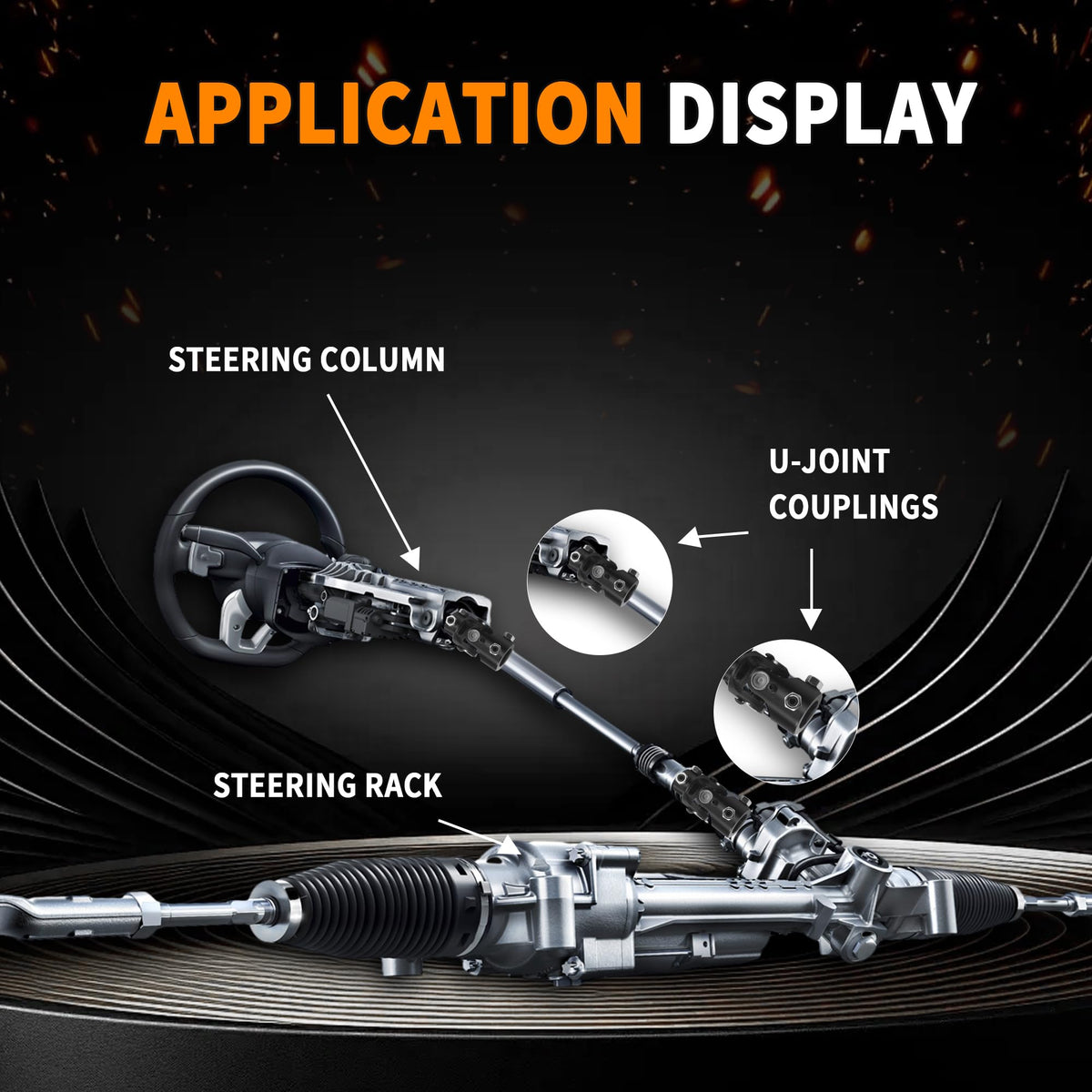

The 1" DD x 3/4" DD shaft works well in steering linkages and mechanical transmissions found in automotive or industrial equipment. It’s especially useful where space is limited and a reliable, splined connection is needed between offset shafts.

• Steering systems and tie-rod linkages for smaller vehicles or custom builds.
• Grinding machines and shop equipment requiring angular shaft coupling.
• Automated parking lifts, levelers, and other compact mechanical assemblies.

How do I install and maintain this U-joint for long life?

Installation requires matching the DD spline sizes to mating shafts and securing per your system’s retaining method. Routine inspection and proper lubrication (where applicable) will extend service life and keep vibration low.

• Confirm mating shafts match 1" DD and 3/4" DD spline profiles before assembly.
• Inspect for play, corrosion, or surface damage periodically and re-grease as recommended.
• Keep within 35° operating angle and 4000 rpm speed limits for reliable performance.

Who is this for: technicians, fabricators, and DIY vehicle or equipment builders who need a compact, splined universal joint for steering or power-transfer tasks. If you’re working on small machinery, automotive linkages, or custom mechanical systems that require a robust 1" DD to 3/4" DD connection in a short 83mm package, this shaft offers a practical balance of strength, speed capability, and ease of installation.
