CAFEZAYO PZ22 22mm Carburetor for 70–125cc Dirt Bikes ATV Quad — Red, Complete Replacement Kit with Filters & Throttle Parts

The CAFEZAYO PZ22 is a 22mm replacement carburetor kit engineered to fit many 70–125cc 4-stroke dirt bikes, ATVs, quads and pit bikes, delivering a complete plug-and-play replacement with tuning options and included accessories.

This CAFEZAYO carburetor bundle arrives as a drop-in replacement designed around the popular Honda-style XR/CRF small-engine layout and a wide range of Chinese-made bikes and quads. The package pairs the main 22mm carb body with a selection of hoses, gaskets, filters, throttle parts and a spark plug so you receive a ready-to-install assembly for routine repairs or engine refreshes. Built from corrosion-resistant materials and fitted with user-adjustable idle and air-mixture screws, the unit is intended to simplify installation and maintenance while matching OEM throttle response on compatible machines.

Which models and engines will this carburetor fit?

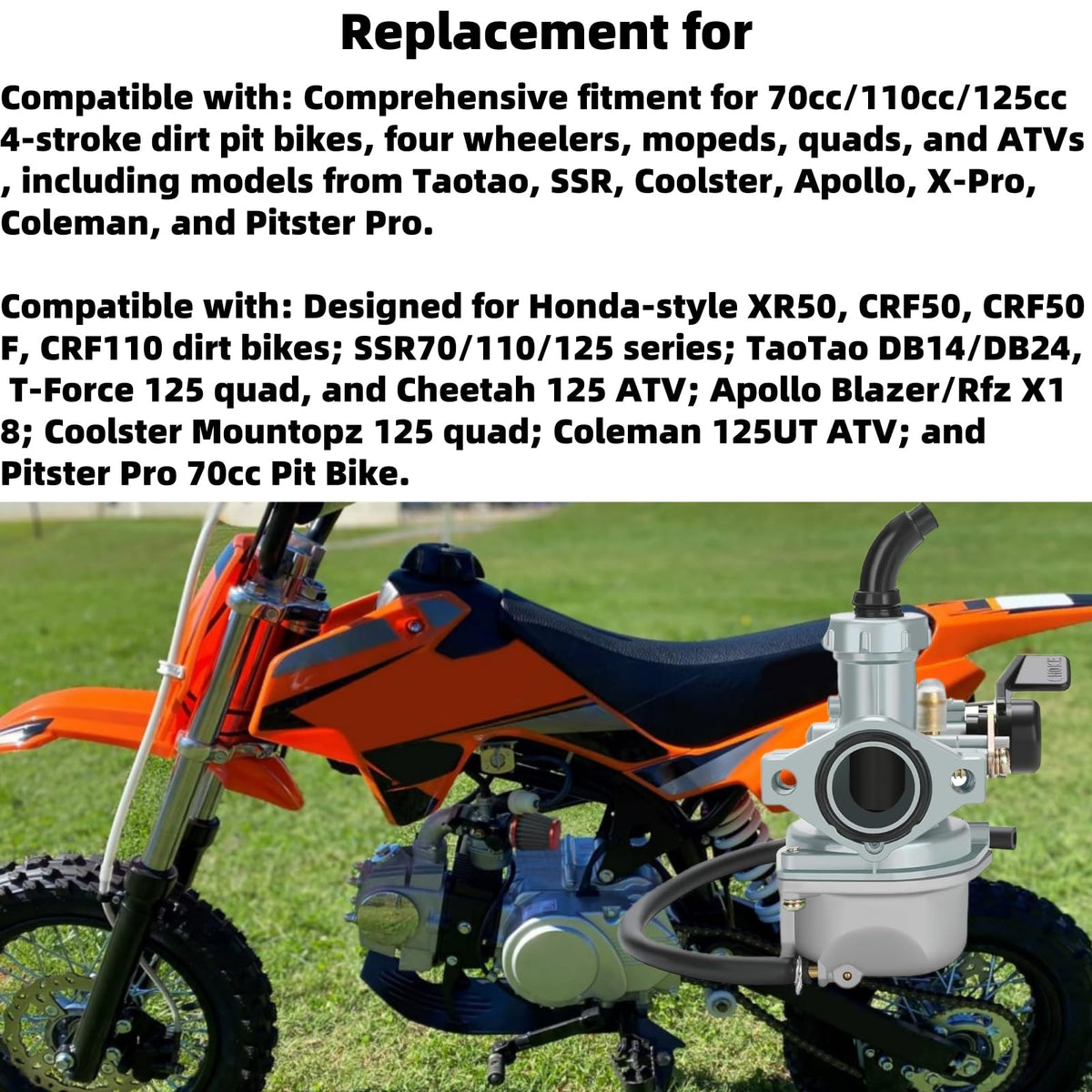

The PZ22 kit is made to cover a broad subset of 70cc through 125cc single-cylinder 4-stroke machines. It follows the Honda-style carburetor flange and throttle layout common on many pit bikes, small dirt bikes, quads and ATVs from multiple manufacturers.

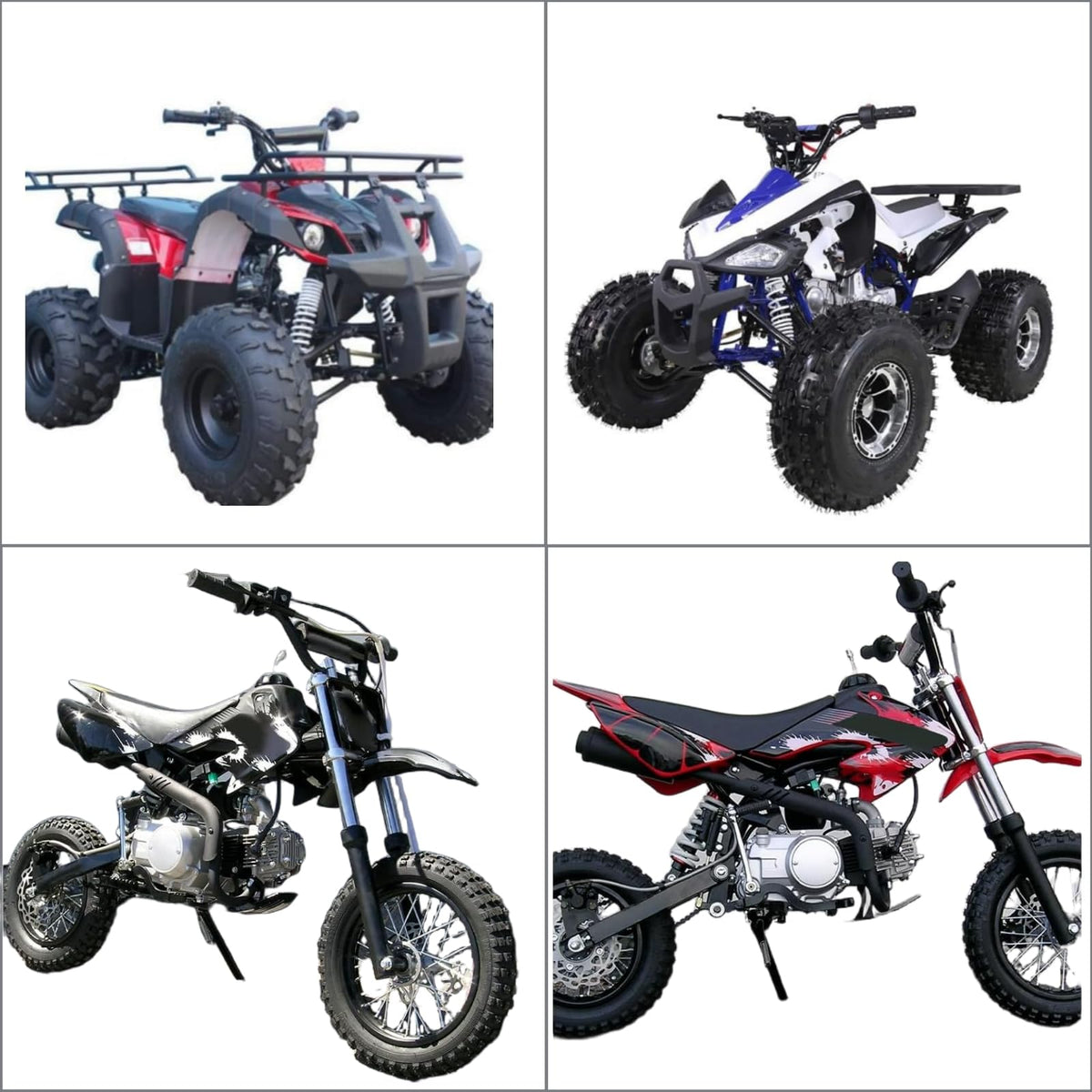

• Fits Honda-style XR50, CRF50, CRF50F, CRF110 formats and similar small-displacement engines.
• Compatible with SSR70/110/125, TaoTao DB14/DB24, T-Force 125 quad and Cheetah 125 ATV series.
• Works with Apollo Blazer/Rfz X18, Coolster Mountopz 125 quad and Coleman 125UT ATV applications.
• Also suitable for Pitster Pro 70cc pit bikes and many Chinese 4-wheeler/quad models using a 22mm carb interface.

How easy is installation and what comes in the kit?

This kit ships with the core carburetor plus a selection of install parts to make the swap straightforward for home mechanics. The carb includes accessible idle and air mixture screws for initial tuning and basic disassembly for cleaning.

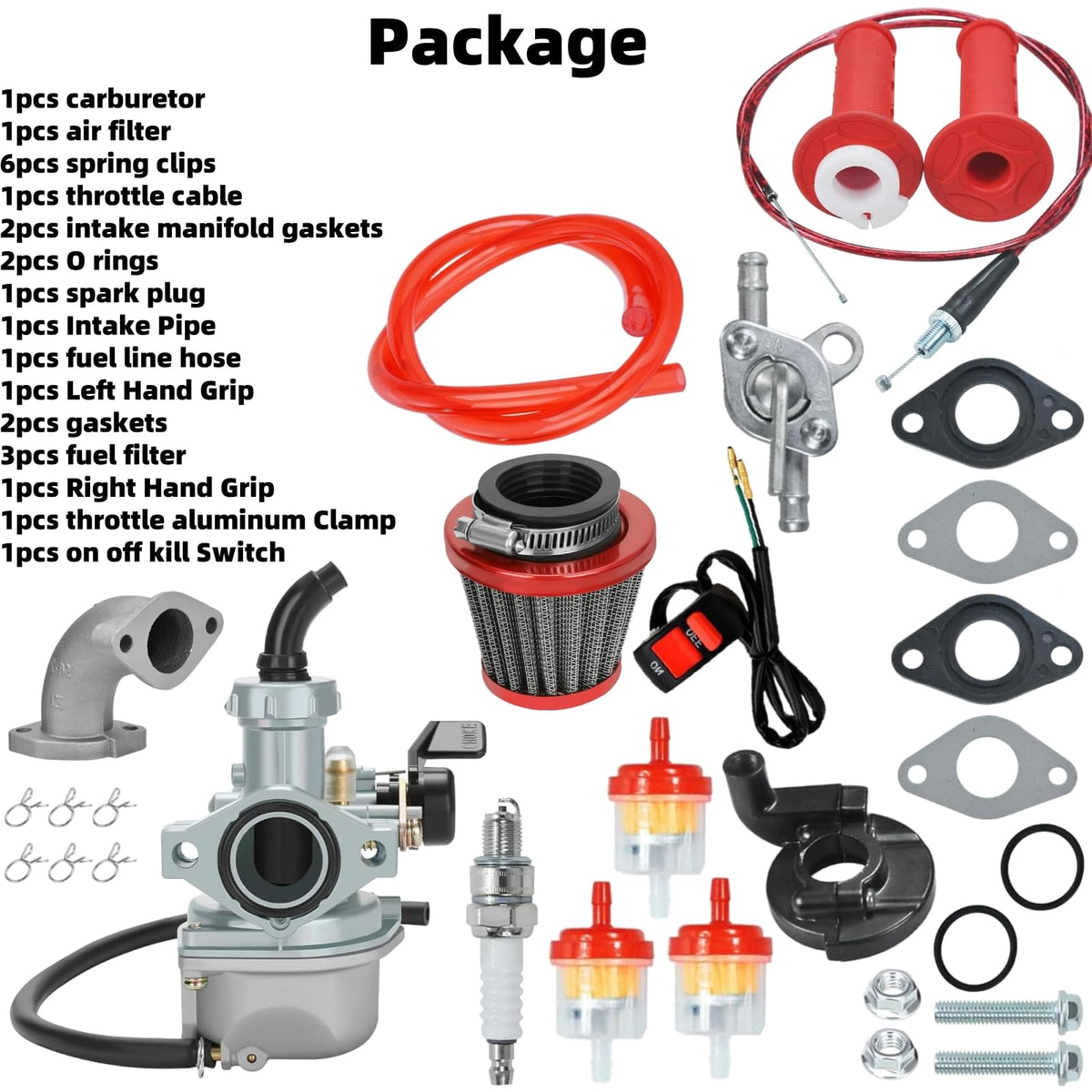

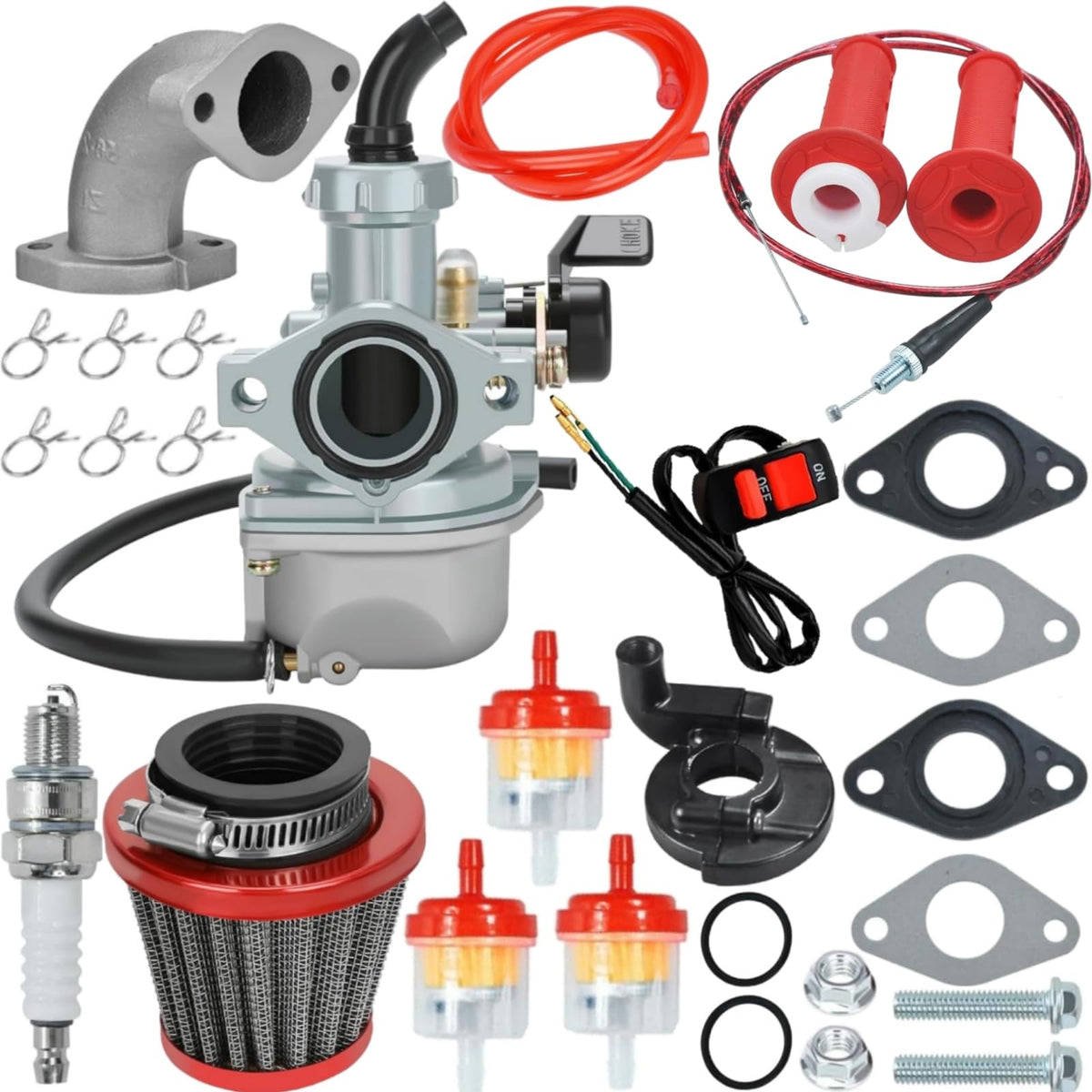

• Included parts: carburetor, air filter, throttle cable, intake pipe, fuel line hose and spark plug.
• Seals and connectors: intake manifold gaskets, O-rings, multiple gaskets and spring clips for secure hose routing.
• Controls and small parts: left/right hand grips, throttle aluminum clamp and an on/off kill switch for a complete control replacement.
• Extras: three fuel filters and a set of spring clips reduce the need for immediate additional purchases.

What tuning and maintenance should I expect after fitting this carburetor?

Once installed, expect to adjust the idle and air-fuel mixture screws to match altitude, fuel type and engine wear. Periodic cleaning of the jet, float bowl and air filter will keep throttle response crisp and prevent hesitations or flooding.

• Initial tuning: set idle speed, then fine-tune the air-fuel screw for smooth throttle transition.
• Routine care: clean jets and float bowl every season or after heavy dust exposure; replace the air filter if excessively dirty.
• Inspection tips: check fuel line routing and gaskets for leaks after first run and re-tighten clips if necessary.

What compatibility checks should I perform before ordering?

Verify flange type, throttle cable orientation and fuel inlet position against your original carburetor images or parts. Confirm engine displacement and that your intake manifold matches the provided gasket pattern to prevent fitment issues.

• Compare photos: match the mounting flange bolt spacing and throttle lever orientation to your existing carb.
• Check measurements: ensure 22mm bore suits your engine and intake manifold dimensions for proper air flow.
• Confirm fuel routing: verify the supplied fuel line connections align with your tank and petcock layout.

Who is this for: The CAFEZAYO PZ22 kit is aimed at owners of small-displacement dirt bikes, pit bikes, ATVs and quads who need a full replacement carburetor plus useful installation hardware. It suits DIY mechanics, repair shops and hobbyists restoring or upgrading 70cc–125cc Chinese-style or Honda-style machines who want a single-purchase solution that includes tuning access and spare consumables.
