CarBole Suction Paint Spray Gun with 1.3/1.7/2.0mm Tips — HVLP, 1000cc Stainless Steel

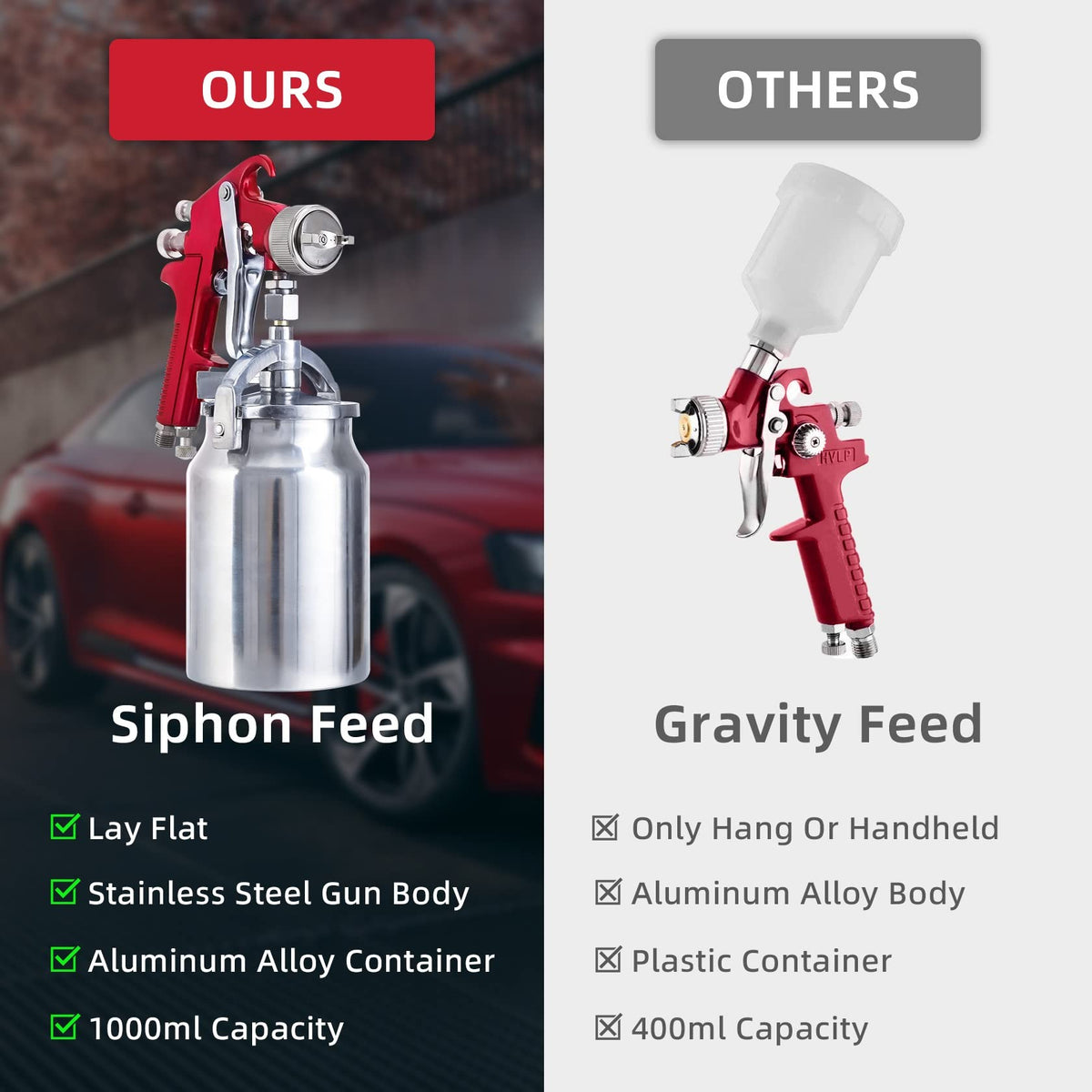

The CarBole Suction Paint Spray-Gun is an HVLP siphon-feed sprayer with three nozzle sizes (1.3mm, 1.7mm, 2.0mm) built for versatile DIY and automotive painting tasks.

Designed for hobbyists and pros who want professional-looking finishes without specialized equipment, this CarBole spray gun brings stainless-steel durability, brass precision tips, and a 1000cc cup for longer runs. It works with a wide range of coatings — from chalk and milk paints to enamels, primers, sealers, stains and varnishes — provided you pair it with a compressor that delivers 7–12 CFM.

What surfaces and projects can this sprayer handle?

This sprayer suits many home and workshop projects, from furniture refreshes to small automotive tasks. The variable nozzles and adjustable air cap let you adapt to different materials and shapes for consistent coverage.

• Fences, decks, doors and walls — quick, even coats for large areas
• Cabinets, dressers, chairs and furniture — smooth finishes with minimal brush marks
• Automotive touch-ups and panels — use appropriate thinner and primer
• Stains, varnishes and clear sealers — fine atomization with proper tip selection

How does nozzle choice affect finish and material compatibility?

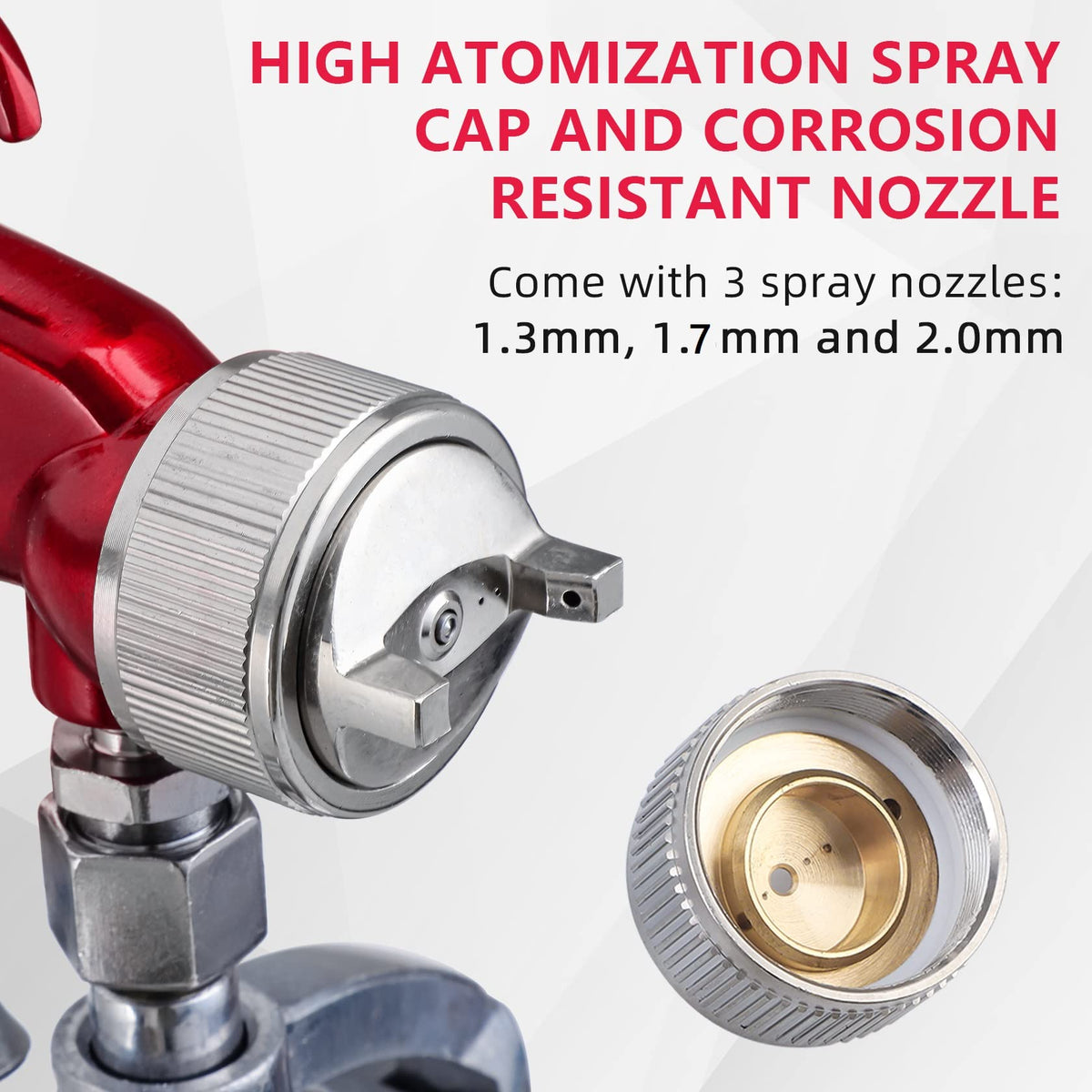

The three included fluid tips (1.3mm, 1.7mm, 2.0mm) let you match spray pattern to paint viscosity. Smaller orifices produce finer atomization for thin coatings; larger tips move thicker materials like latex and heavy varnish faster and more evenly.

• 1.3mm — best for thin enamels, lacquers, and light sealers
• 1.7mm — versatile mid-range option for primers and standard paints
• 2.0mm — suits heavy paints, thicker stains and high-build coatings

What compressor and setup do I need for reliable performance?

This is an HVLP siphon-feed gun requiring 7–12 CFM at a compatible pressure; a 3 HP-rated compressor or equivalent output is recommended. The gun’s air cap supports horizontal, vertical and circular spray orientations while the material flow knob provides fast output adjustment.

• Required airflow: 7–12 CFM; recommended compressor: 3 HP or equivalent

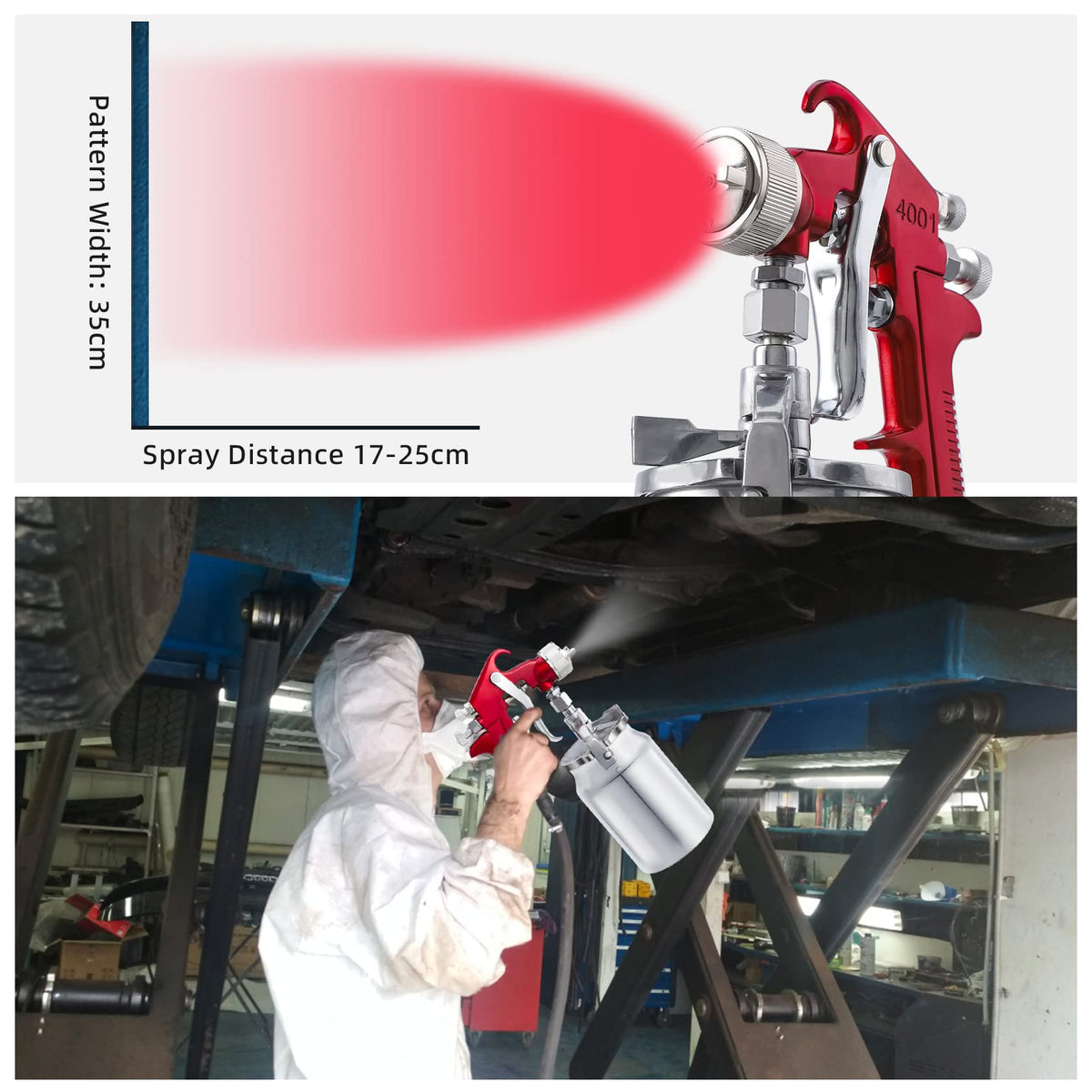

• Spray distance: 17–25 cm; effective spray width: about 35 cm
• Three spray patterns via air cap adjustment: horizontal, vertical, round
• Material flow control knob for on-the-fly output changes

How easy is it to clean and maintain?

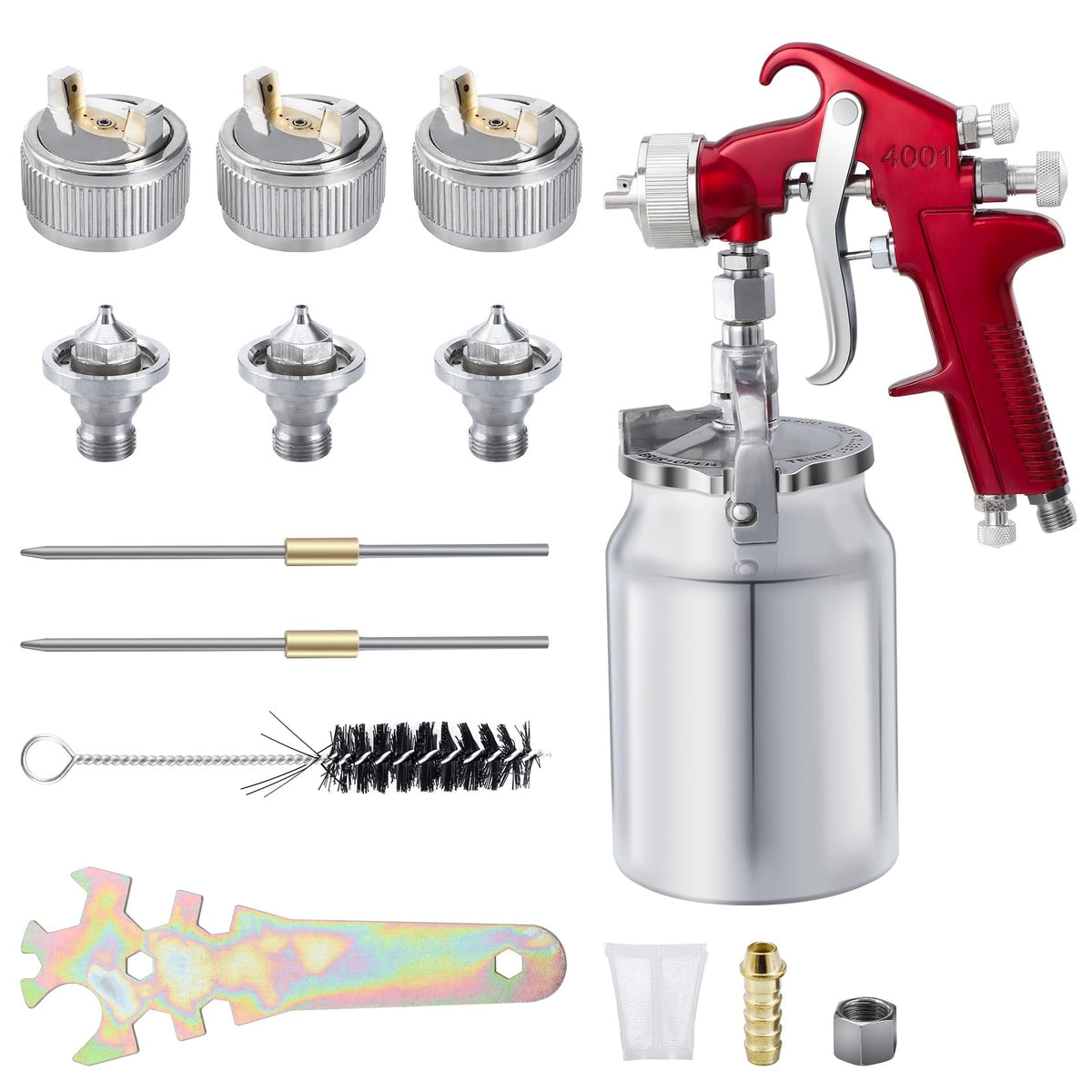

CarBole prioritized serviceability: stainless-steel body and brass nozzle resist wear and are removable for thorough cleaning. The package includes a cleaning brush and multifunction spanner to simplify disassembly and tip swaps.

• Detachable stainless-steel body and brass nozzle for durable performance
• Includes cleaning brush and spanner for routine maintenance
• 1000cc cup reduces refills and speeds large projects
• Replaceable tips included to extend gun life and maintain spray quality

Who is this for? The CarBole Suction Paint Spray-Gun is aimed at DIYers, small-shop carpenters, refinishing hobbyists and automotive enthusiasts who want flexible tip options and a robust metal body without investing in a turbine system. If you already have a compressor that meets the airflow requirements and you frequently switch between thin and thick coatings, this tool delivers adaptable, professional-style atomization and easy maintenance in a compact package.
