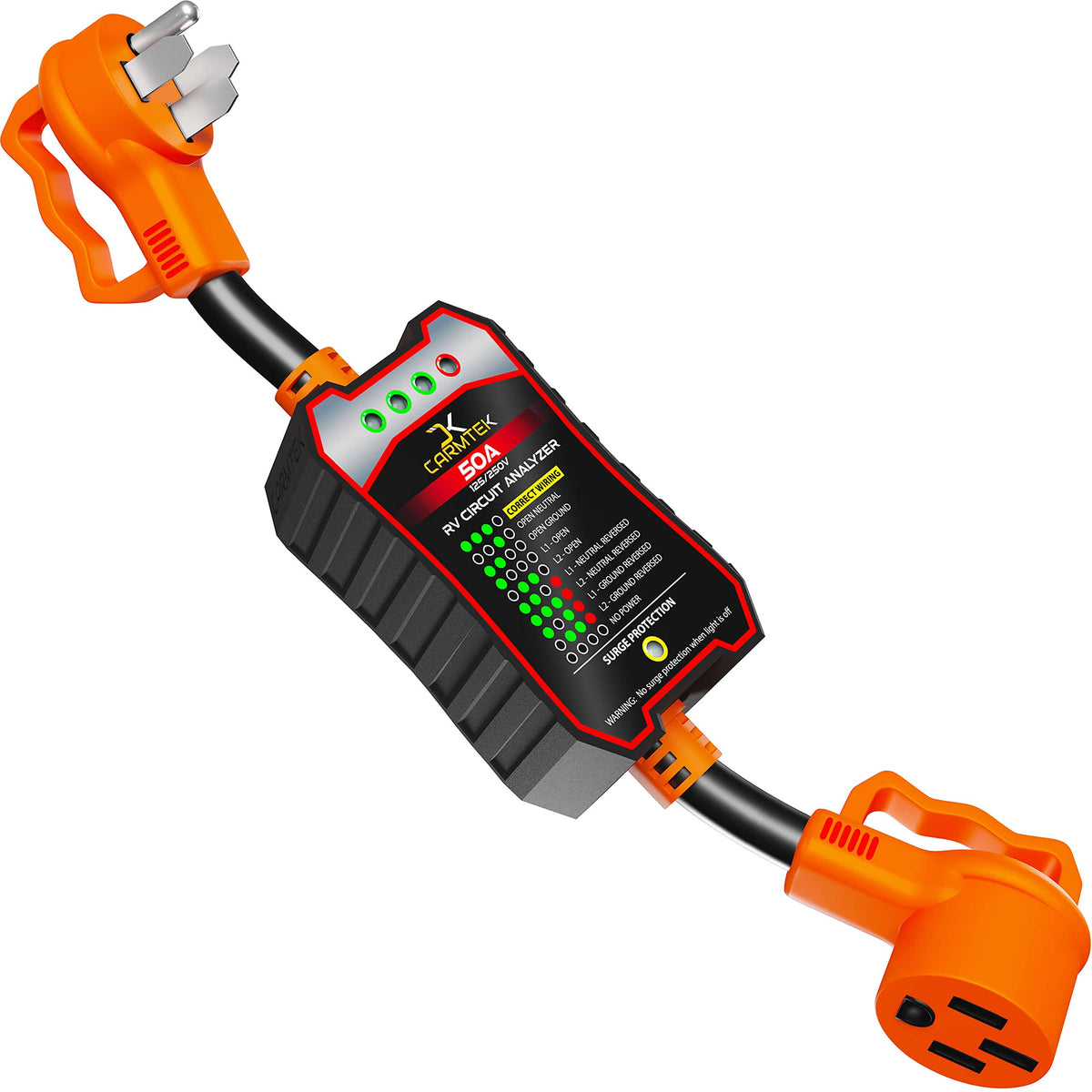

CARMTEK 50 Amp RV Surge Protector — Circuit Analyzer with 4200J Surge Protection, Weather‑Resistant Grip Handles

The CARMTEK 50 Amp RV Surge Protector is a weather-resistant plug-in device that analyzes campground power and shields your RV’s electrical system with up to 4200 joules of surge suppression.

Connecting to campground pedestals can expose your coach to miswired outlets, unstable voltage, and storm-driven power spikes. This compact unit combines an electronic circuit analyzer with integrated surge protection and ergonomic grips so you can verify the pedestal wiring and protect onboard appliances before you plug in.

How does the analyzer verify campground power?

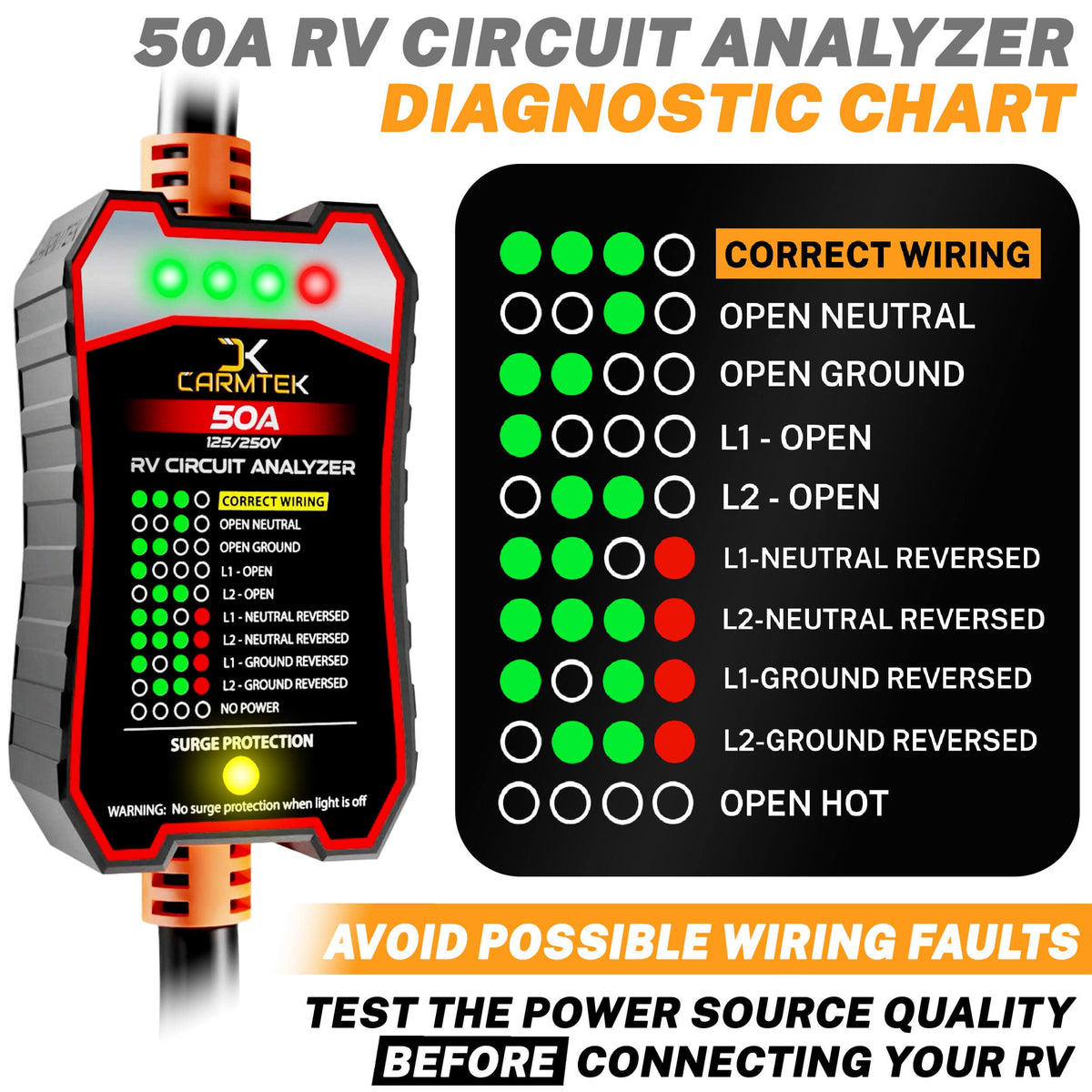

The built-in diagnostic checks the pedestal for common wiring issues and displays an easy-to-read status so you can avoid connecting to unsafe power. It runs a full set of tests covering open circuits, reversed conductors, and missing neutrals or grounds.

• Detects correct wiring, open ground, open neutral and open hot legs.
• Flags reversed neutral or ground conditions.
• Identifies complete lack of power or open circuit conditions.

What level of surge protection does it provide?

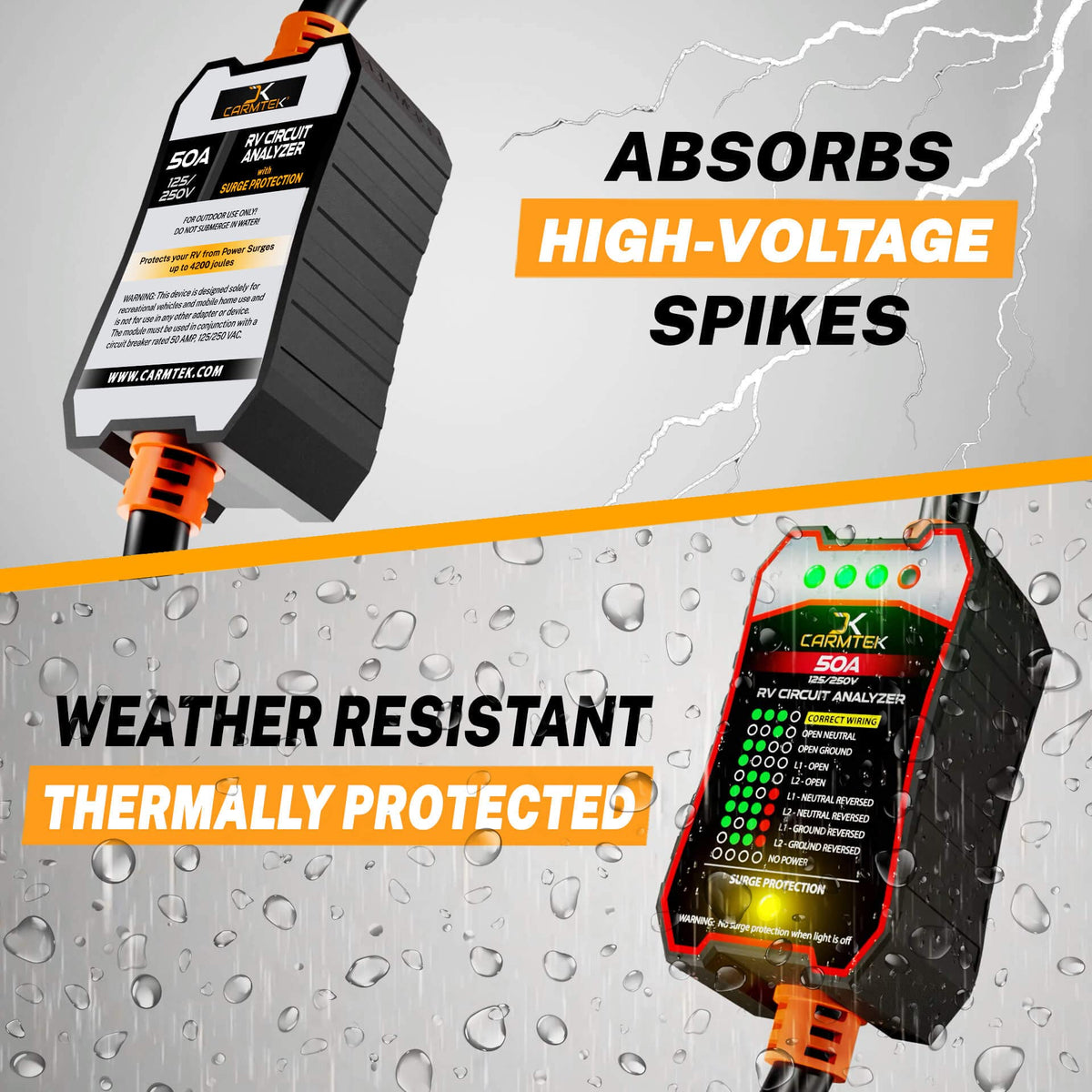

This protector uses a 4200-joule suppression module to absorb dangerous voltage spikes from storms, utility switching, or transient events, reducing the risk to sensitive appliances. It’s thermally protected and constructed from flame-retardant materials for added safety in outdoor environments.

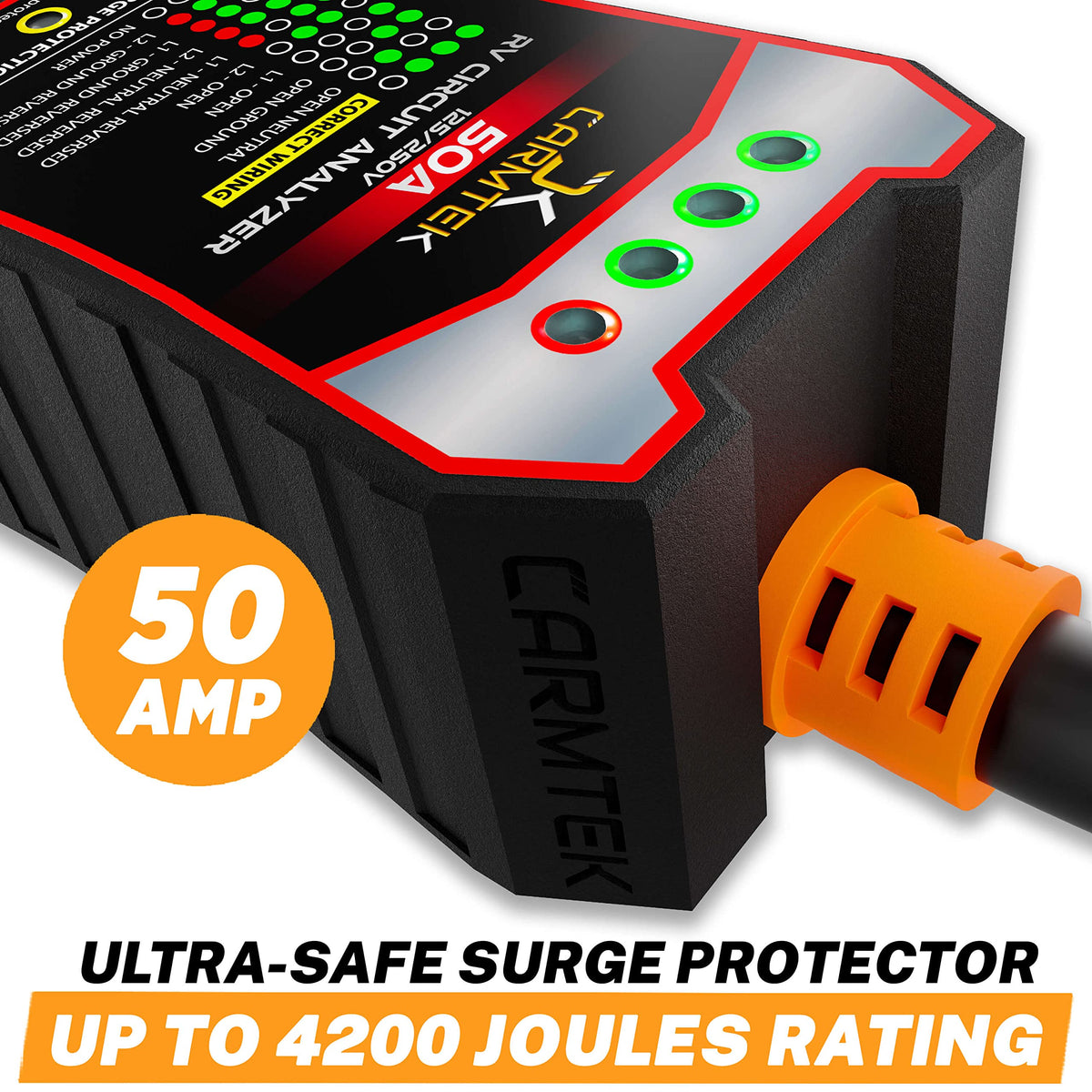

• 4200 joules of energy absorption for transient suppression.
• Thermal protection and flame-retardant housing to limit failure risks.
• Designed for outdoor use and weather-resistant performance.

How easy is it to use and install at the campsite?

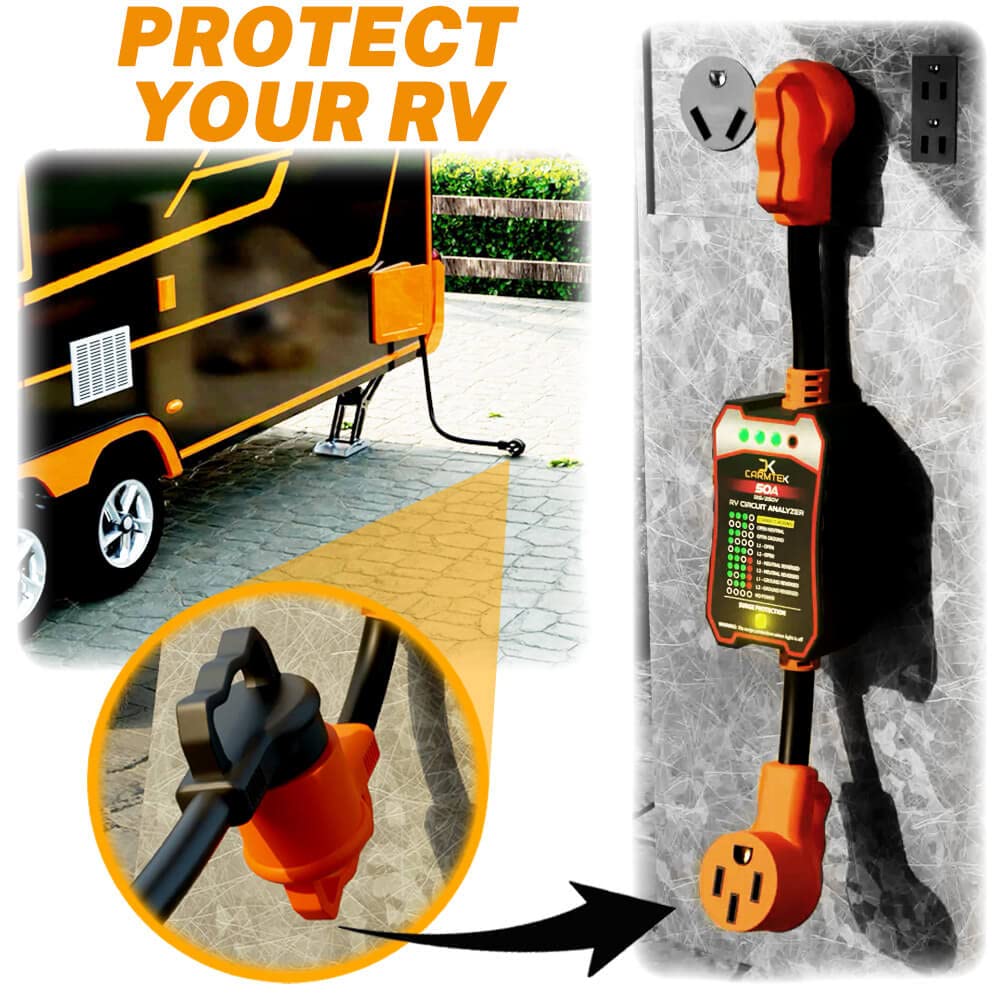

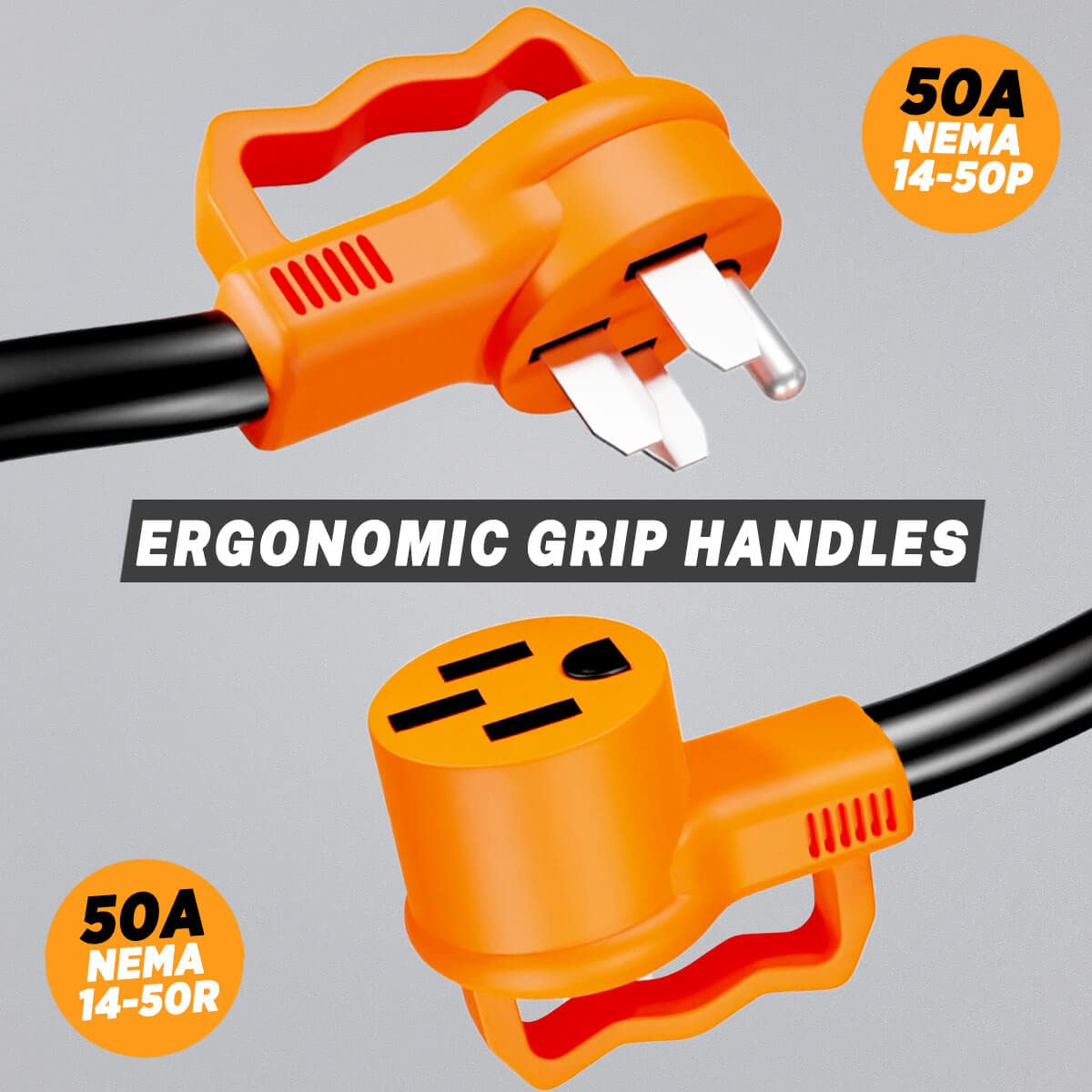

Simply plug the unit’s right-angle NEMA 14-50P into the pedestal and connect your RV’s cord to the female end. Ergonomic grip handles make plugging and unplugging safer and reduce strain, while the analyzer LEDs give immediate pass/fail feedback.

• Right-angle 50A male plug reduces cable strain at the pedestal.
• Comfort-grip handles for secure insertion and removal.
• Clear diagnostic indications speed decision-making before connection.

What are the technical and safety features I should know?

The unit is rated for 50 amps at 125/250 volts and works across 50/60 Hz systems, operating in extreme temperatures from -35°C to +110°C. It has been UL tested and built with weather resistance to suit seasonal travel and outdoor storage.

• Ratings: 50A / 125V/250V, 50/60Hz for full RV compatibility.
• Operating range suited for cold to hot climates (-35°C to +110°C).
• UL-tested construction with outdoor-rated materials for durability.

Who this is for: The CARMTEK 50 Amp Surge Protector is for RV owners who camp at marinas, RV parks or boondocking locations and want a compact, reliable way to check pedestal wiring and protect costly onboard electronics. It’s especially useful for those who prioritize quick diagnostics, safer plug handling, and rugged outdoor performance without installing a permanent hardwired solution.
