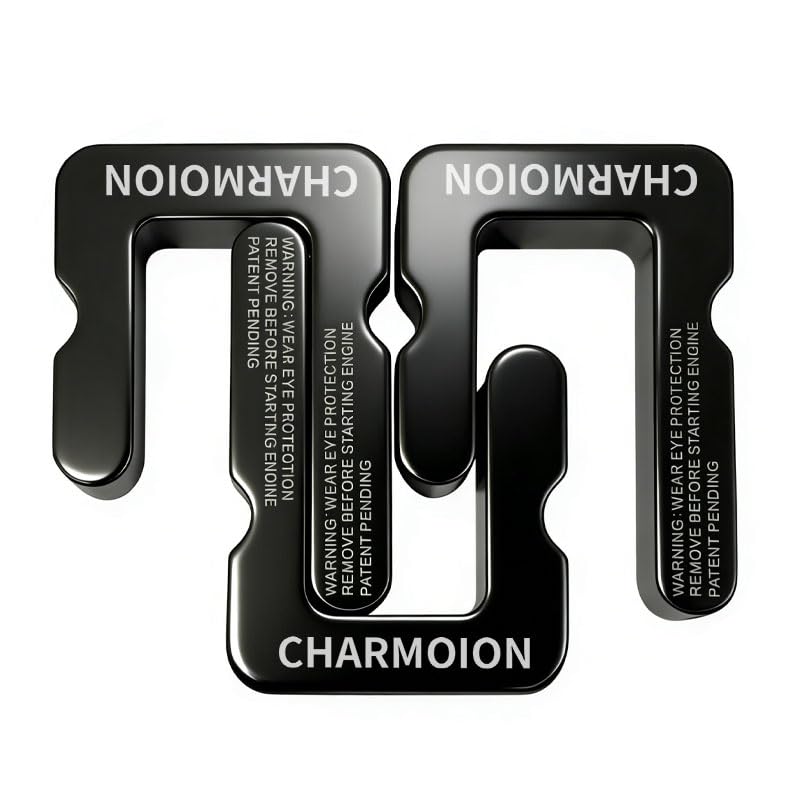

CHARMOION Stretch Belt Tool Kit for GM 5.3L/6.2L/6.6L — 3-Piece U Kit, Double-Sided A/C & Main Drive Pulley, Heat-Treated Steel

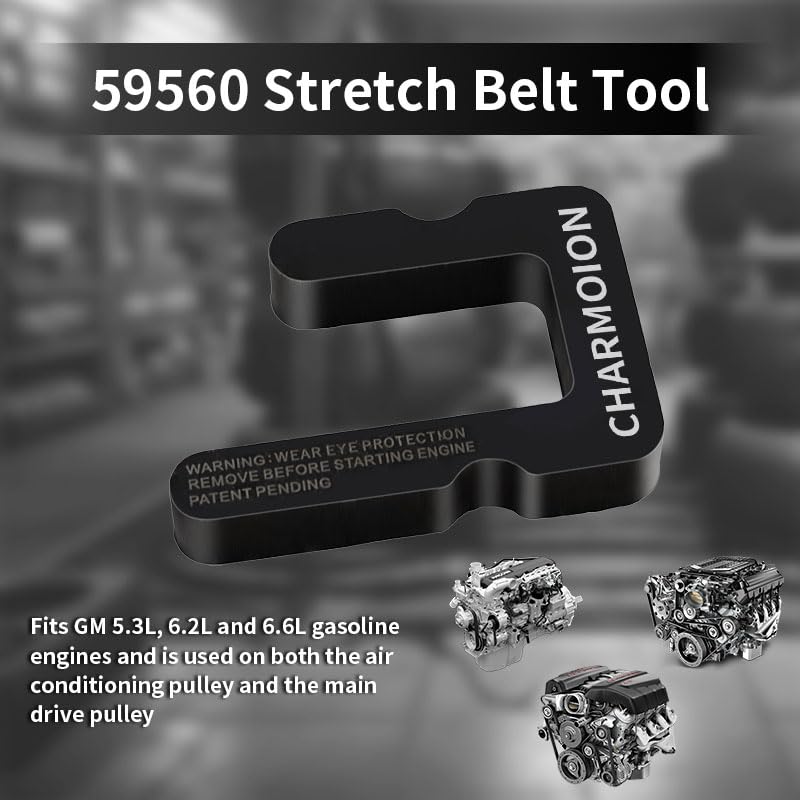

CHARMOION's compact, heat-treated steel stretch belt tool installs and removes GM stretch belts on 5.3L, 6.2L and 6.6L engines safely and with one person.

If you service 2014–2024 GM trucks and SUVs, the right stretch-belt tool saves time and prevents damaged belts or pulleys. This three-piece U-style kit from CHARMOION is built for the common stretch-belt layouts found on Silverado, Sierra, Tahoe, Suburban, Yukon and Escalade models. Its double-sided tabs let you work both the A/C and the main drive pulley without swapping tools, and the heat-treated steel construction is made to withstand repeated shop use.

Which GM engines and models will this tool fit?

The CHARMOION U-kit is engineered for GM 5.3L, 6.2L and 6.6L gas engines produced in 2014–2024. It covers typical stretch-belt routes on light- and heavy-duty pickups and full-size SUVs, but belt routing can vary by option and year.

• Designed for Silverado 1500/2500, Sierra 1500/2500, Tahoe, Suburban, Yukon and Escalade models (2014–2024).

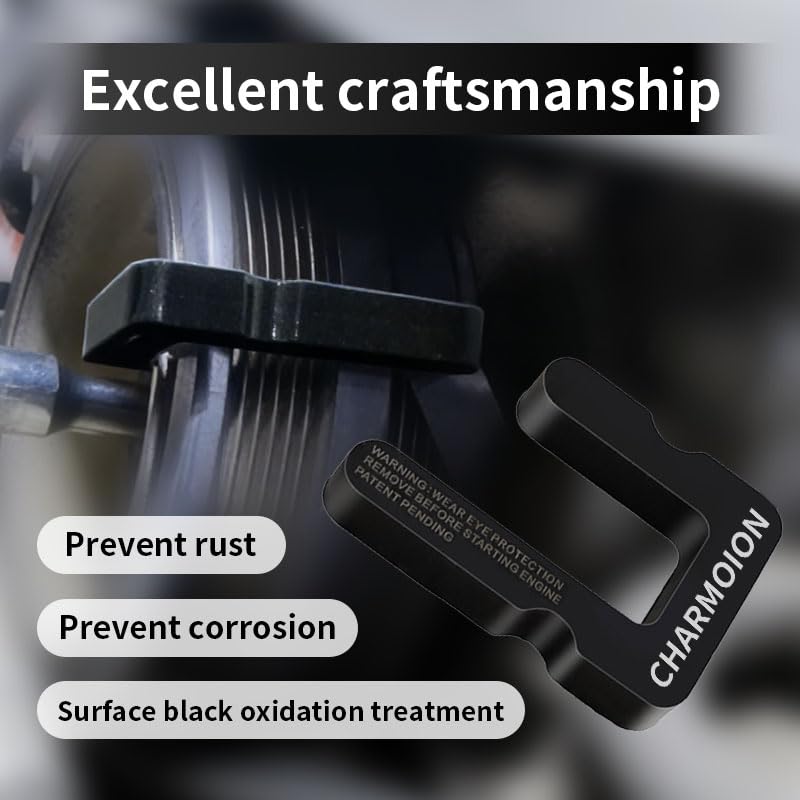

• Long tab reaches the A/C pulley groove on 2014+ GM trucks.

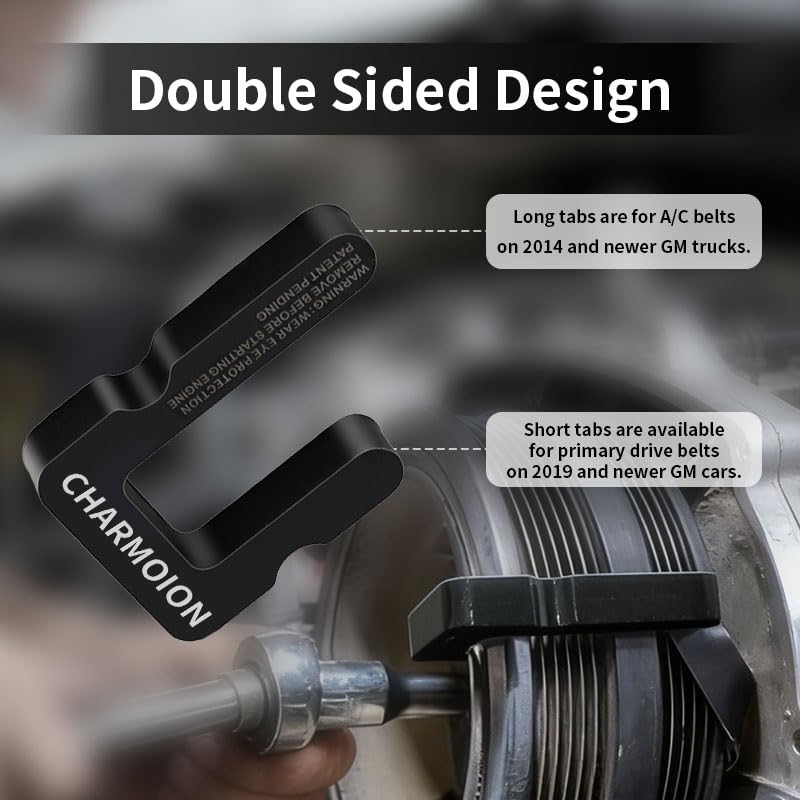

• Short tab seats on the main drive pulley used in 2019+ configurations.
• Always confirm your vehicle’s belt routing before use to ensure compatibility.

How does the double-sided design speed up installation?

The tool’s opposite tabs are shaped for two specific pulley grooves so you don’t need separate tools mid-job. You slip the appropriate tab between belt and pulley, then walk the engine to roll the belt onto place—faster and safer than improvised levers or prying with common hand tools.

• One tool does both A/C and main drive pulley installations.
• Precision-fit tabs reduce pinching, slipping, and belt deformation.
• Helps complete the install single-handedly—no second technician required.
• Reduce rework time from damaged belts or misaligned installs.

What materials and finish protect the tool for long-term use?

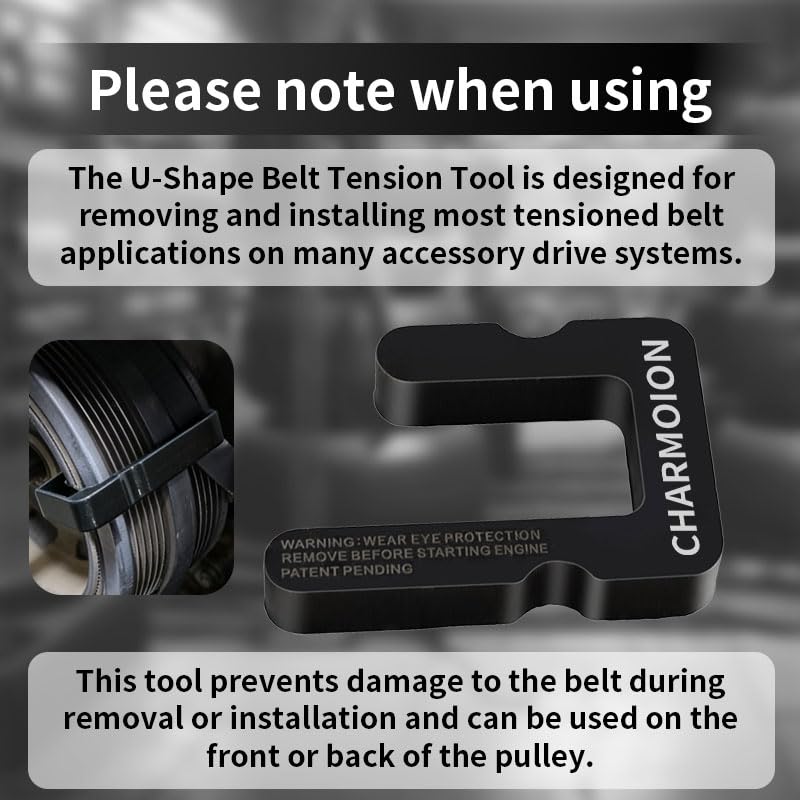

CHARMOION constructs the kit from heat-treated high-strength steel for stiffness and wear resistance under repeated use. A black oxide finish adds basic corrosion protection suitable for daily shop environments while preserving metal toughness.

• Heat-treated steel for durability and resistance to deformation.
• Black oxide coating offers moderate corrosion resistance in garages.
• Compact, solid construction suited to frequent professional use.
• Manufactured to withstand torque when rotating engine by hand or breaker bar.

What’s the correct procedure and safety tips for using it?

Use the tab that matches the pulley groove, slip it between belt and pulley, then rotate the crank clockwise by hand or with a breaker bar to walk the belt on. Remove the tool completely before starting the engine and double-check belt seating to avoid damage.

• Insert tab between belt and pulley—do not force or pry at odd angles.
• Rotate engine clockwise slowly to roll belt over pulley.
• Always remove the tool before cranking or starting the engine.
• Verify belt alignment and routing after install to prevent premature wear.

Who is this for: This CHARMOION 3-piece U-kit is intended for professional technicians, independent mechanics and well-equipped DIYers who work on 2014–2024 GM 5.3L, 6.2L and 6.6L engines. If you need a compact, reliable, single-person solution for installing or removing stretch belts—especially on Silverado, Sierra, Tahoe, Suburban, Yukon and Escalade models—this tool reduces job time and lowers the chance of belt or pulley damage. For any fitment concerns or manufacturing defects, CHARMOION offers replacement support.
