Chatovalo 6-Circuit Blade Fuse Box, Ground Bus, 150A Total

The Chatovalo 6-circuit blade fuse box is a compact, service-friendly DC distribution unit with a built-in ground bus and 150A combined capacity for automotive, marine, RV and solar applications.

This compact fuse block organizes up to six independently fused circuits while keeping installations neat and easy to service. Its PA66+GF15% flame-retardant housing, nickel-plated copper busbar and finger-safe cover are built to withstand vibration, heat and the routine access that comes with onboard electrical systems. The unit accepts standard ATO/ATC blade fuses and supports 12V and 24V systems out of the box, with provisions for 48V installations using appropriately rated fuses.

How does the Chatovalo fuse box make wiring and maintenance easier?

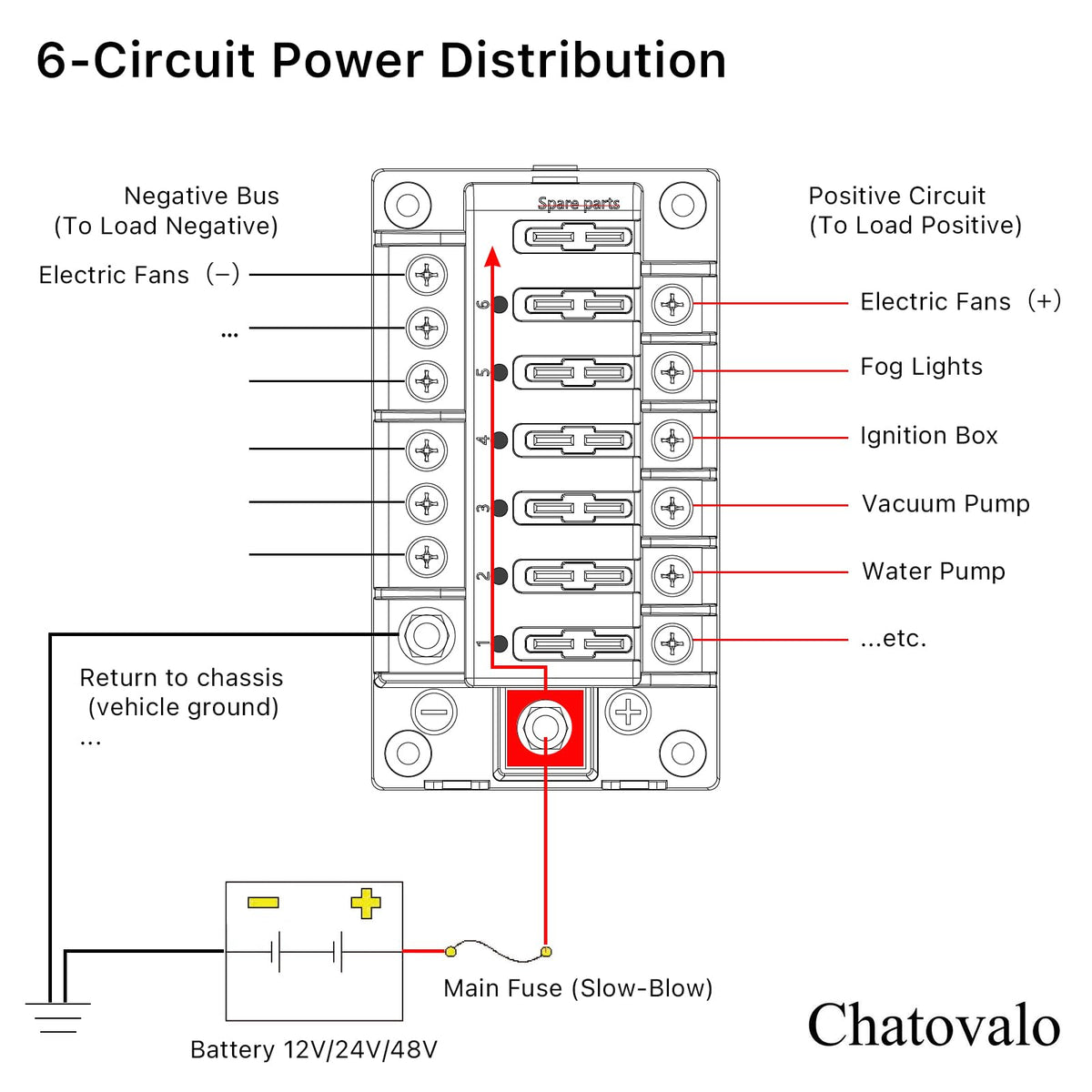

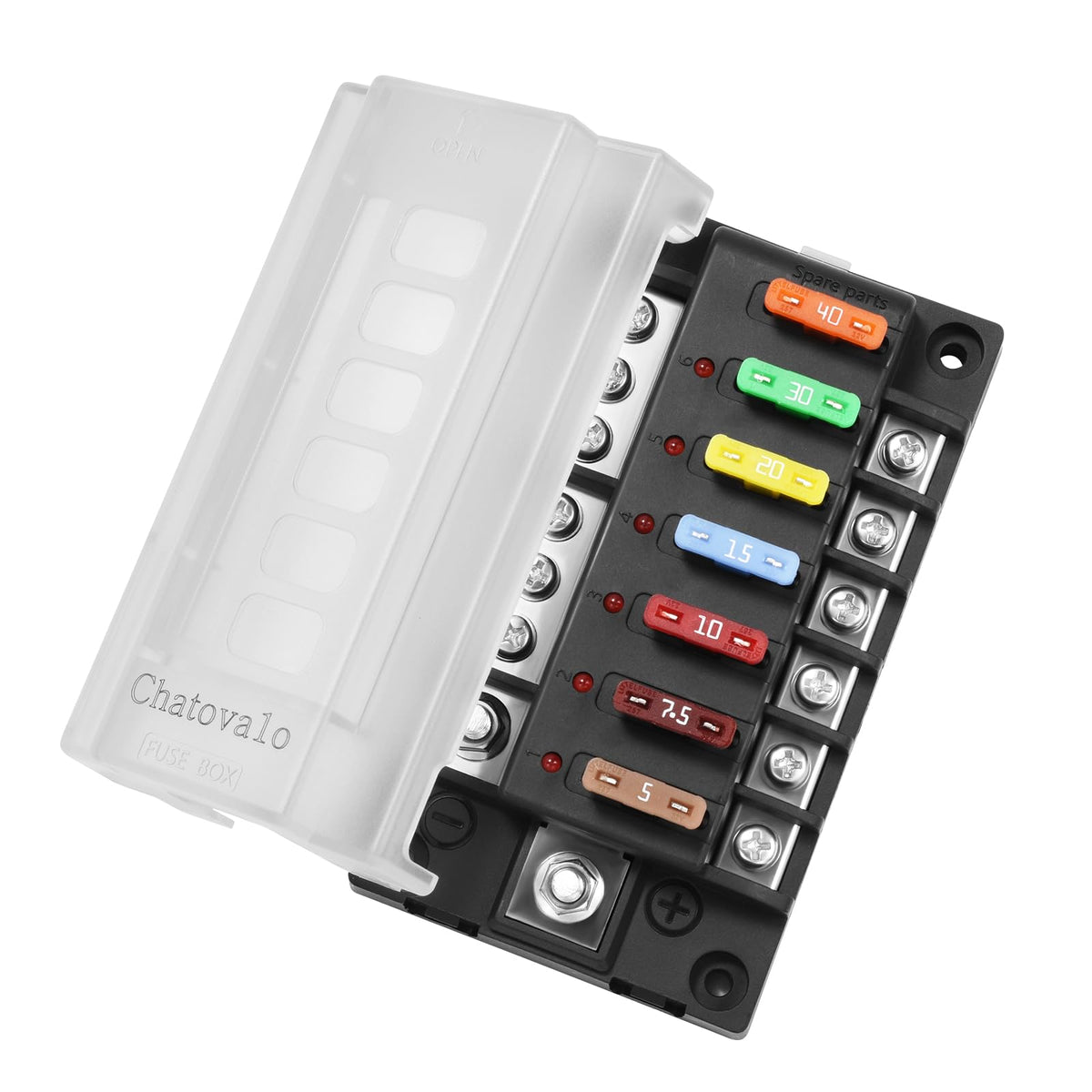

Designed for tidy, accessible installs, the single-row layout keeps positive outputs in line while the integrated ground bus removes the need for a separate negative distribution bar. The clear cover window and individual LED indicators let you spot blown fuses quickly without disassembly.

• Numbered circuits and polarity markings for straightforward wiring and documentation
• Clear inspection window and LED fault indicators speed troubleshooting

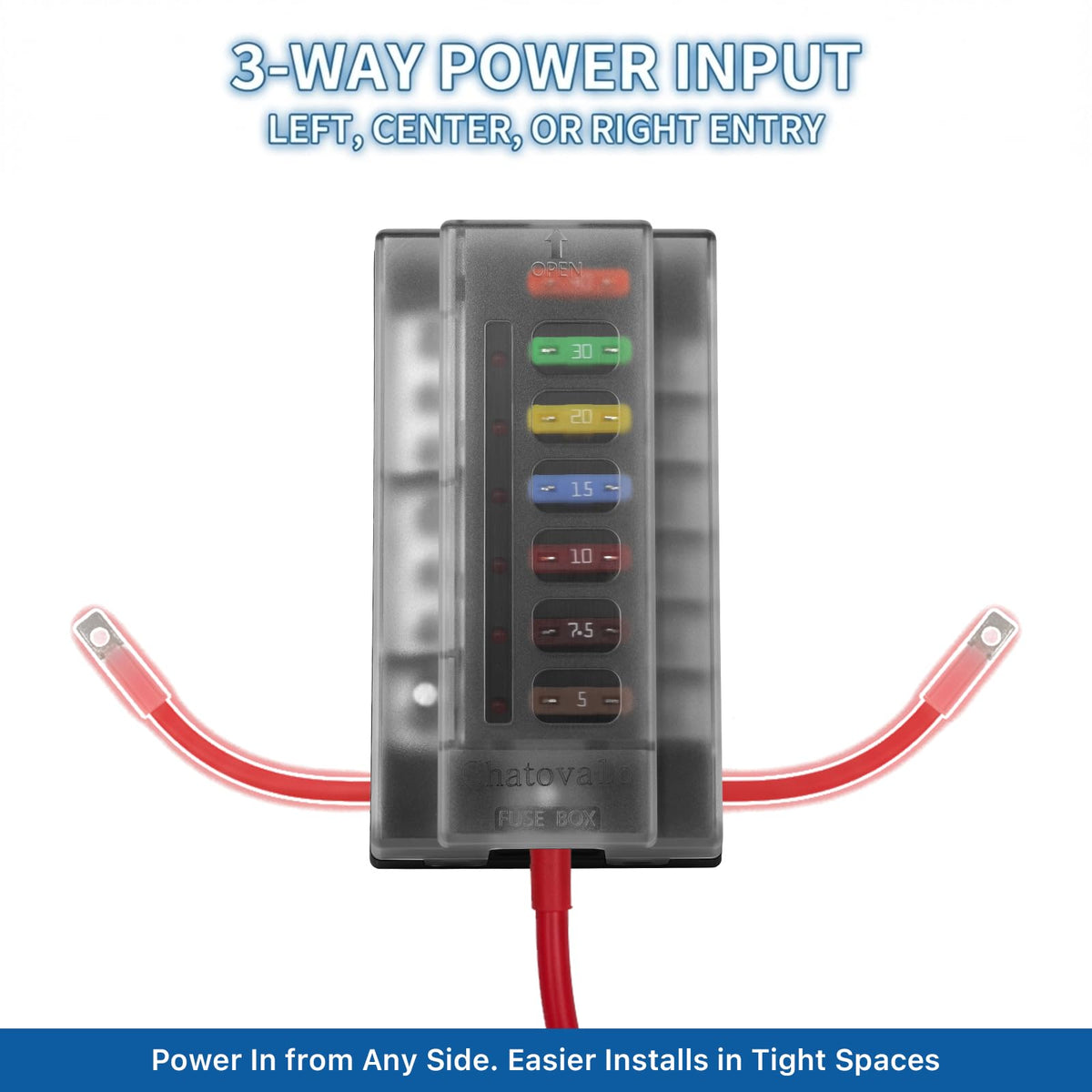

• Three-way M5 main input (left/bottom/right) for flexible cable routing
• Integrated spare-fuse storage and labeling sheets included

What electrical limits and compatibility should I know about?

The block supports up to 40A per circuit with a 150A total maximum current across all feeds, suitable for many auxiliary systems. It ships with 32V ATO blade fuses sized for 12V and 24V systems; use fuses rated for higher working voltage when installing in 48V setups.

• Max 40A per channel, 150A combined capacity
• Accepts standard ATO/ATC blade fuses (supplied: 5–40A assortment)
• Terminal sizes: M5 main positive stud, M4 outputs and ground
• PA66+GF15% housing rated UL94 V-0 for heat resistance

Will this fuse box withstand harsh conditions like marine or off-road use?

The materials and mechanical design prioritize durability and corrosion-resistant power paths for challenging environments. The nickel-plated copper busbar lowers contact resistance, and the rugged housing resists heat and mechanical stress encountered in automotive, marine and solar installations.

• Nickel-plated copper busbar for low-loss, corrosion-resistant distribution
• PA66+glass-fiber housing with V-0 flame rating for thermal durability

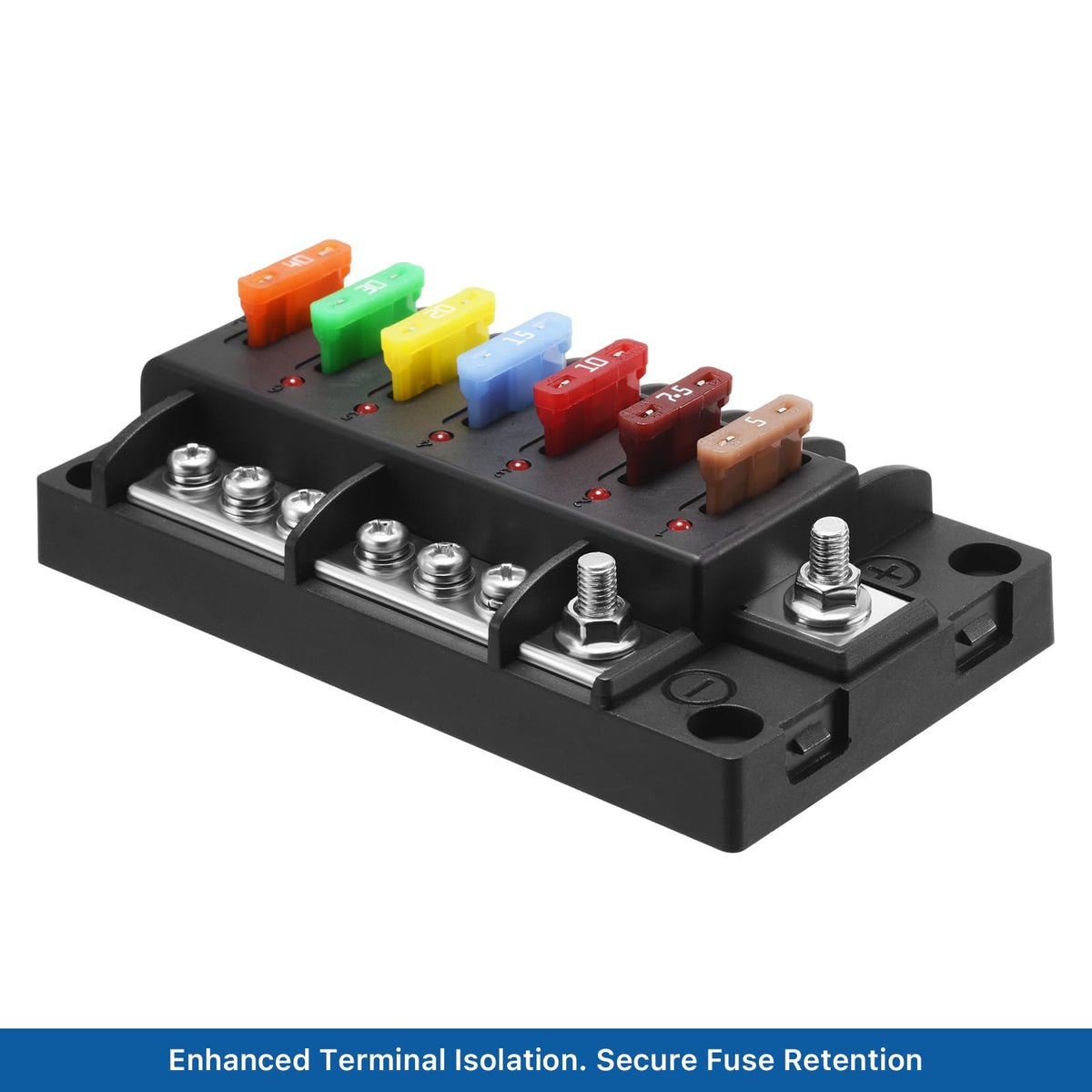

• Clamping-plate terminals secure stranded conductors without damage
• Finger-safe cover protects live terminals while allowing inspection

Who is this for? Installers, DIYers and system integrators who need a compact, dependable DC distribution solution will appreciate this fuse box’s serviceability and flexible wiring options. It suits small boats, camper conversions, auxiliary circuits on trucks, solar-storage accessory feeds and any project requiring clear circuit labeling, quick fuse replacement and a built-in ground bus. The included screw hardware, assortment of fuses and label sheets make it ready for immediate installation into most 12V and 24V systems; for 48V installations select fuses rated for that voltage during setup.
