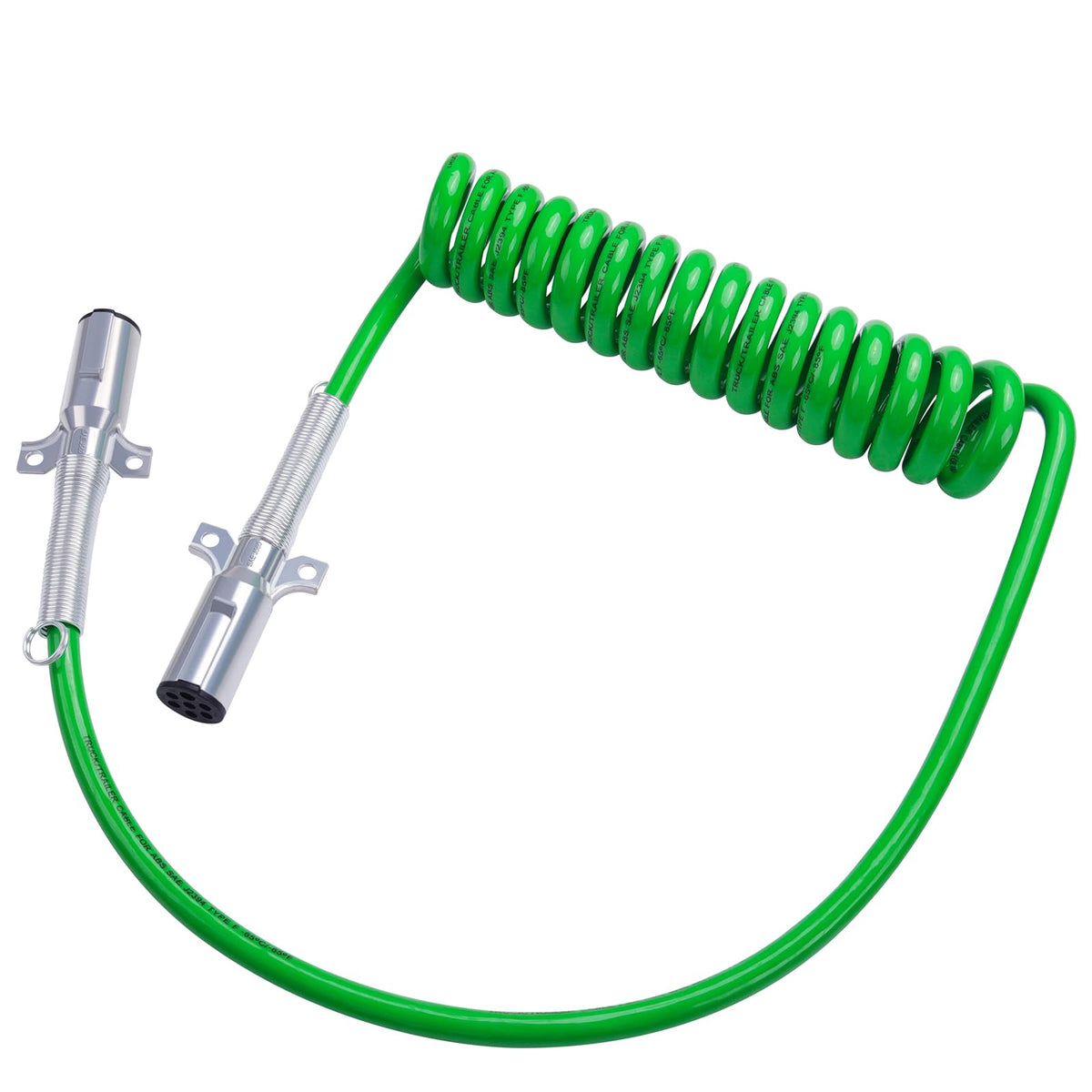

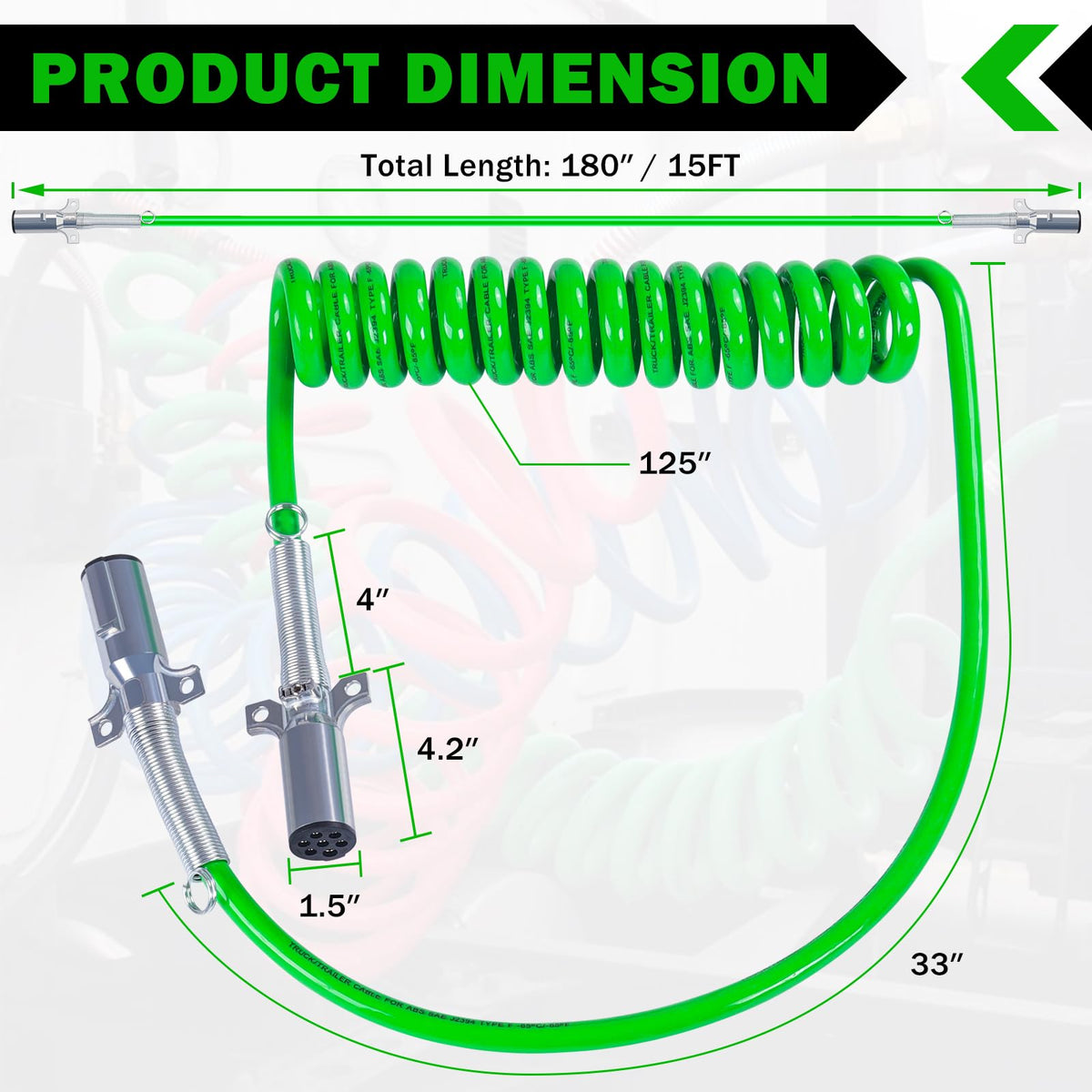

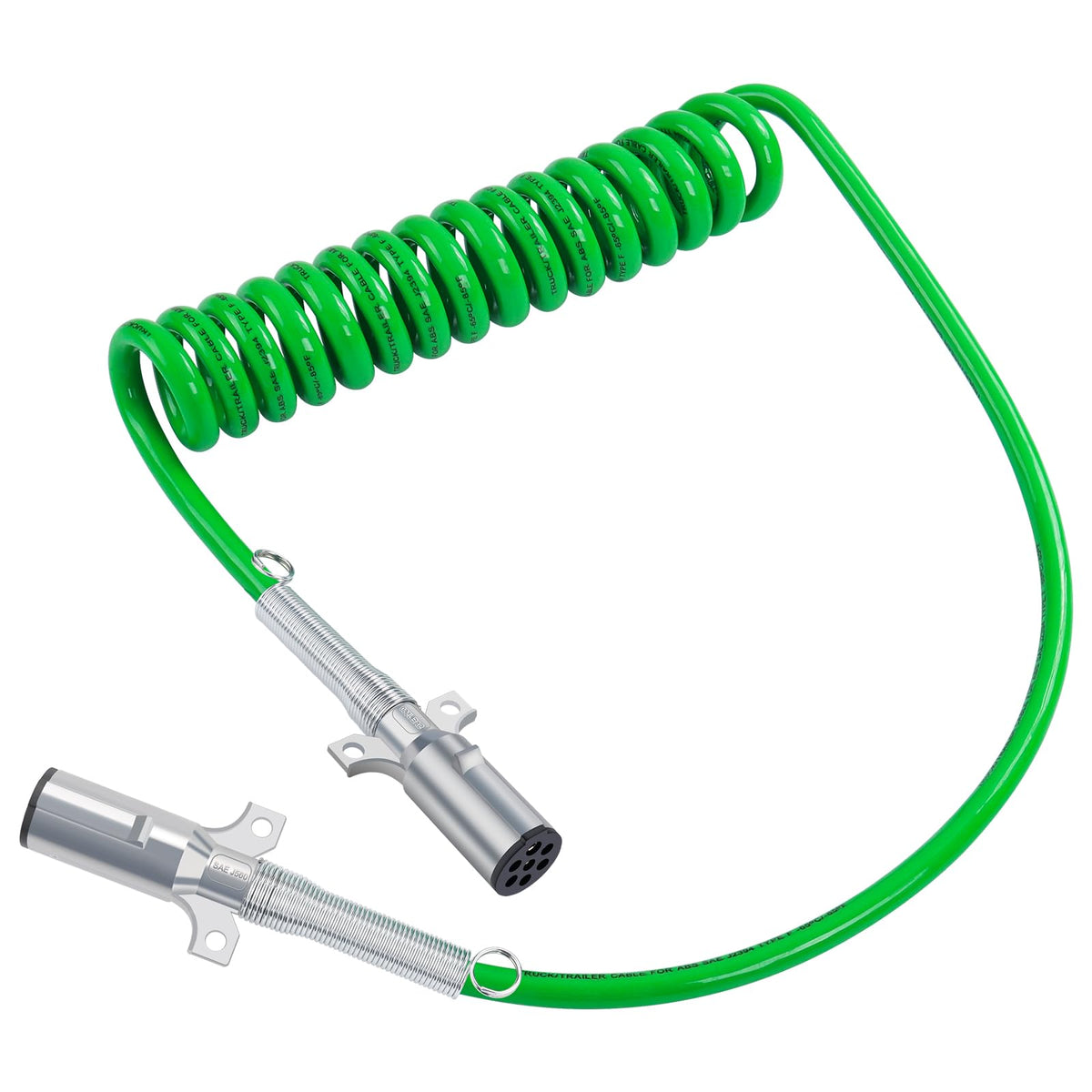

CheeMuii 15FT 7-Way Trailer Cord Coiled Heavy-Duty SAE J560 Plug, Pure Copper

CheeMuii 15FT 7 Way Trailer Cord is a heavy-duty coiled electrical cable that links your truck and trailer, delivering reliable power for lights and ABS systems.

This 15-foot, 7-pin coiled cord is engineered for commercial towing and heavy trailers, combining pure copper conductors, robust zinc-die SAE J560 plug, and protective stainless-steel spring ends. It’s built to withstand repeated stretching, high temperatures and the daily wear that comes with road use, while matching common OEM replacement part numbers.

What components make this cord dependable for towing?

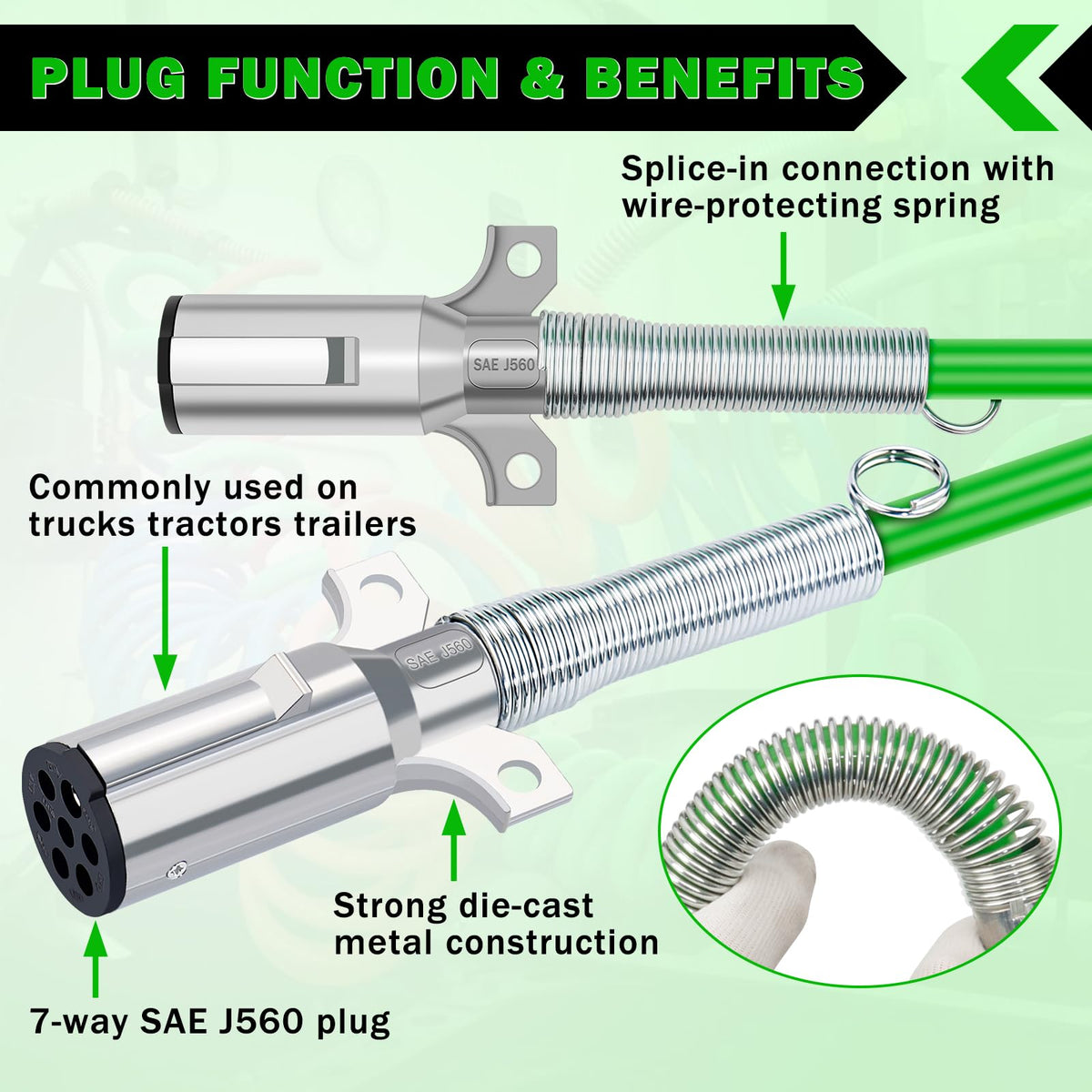

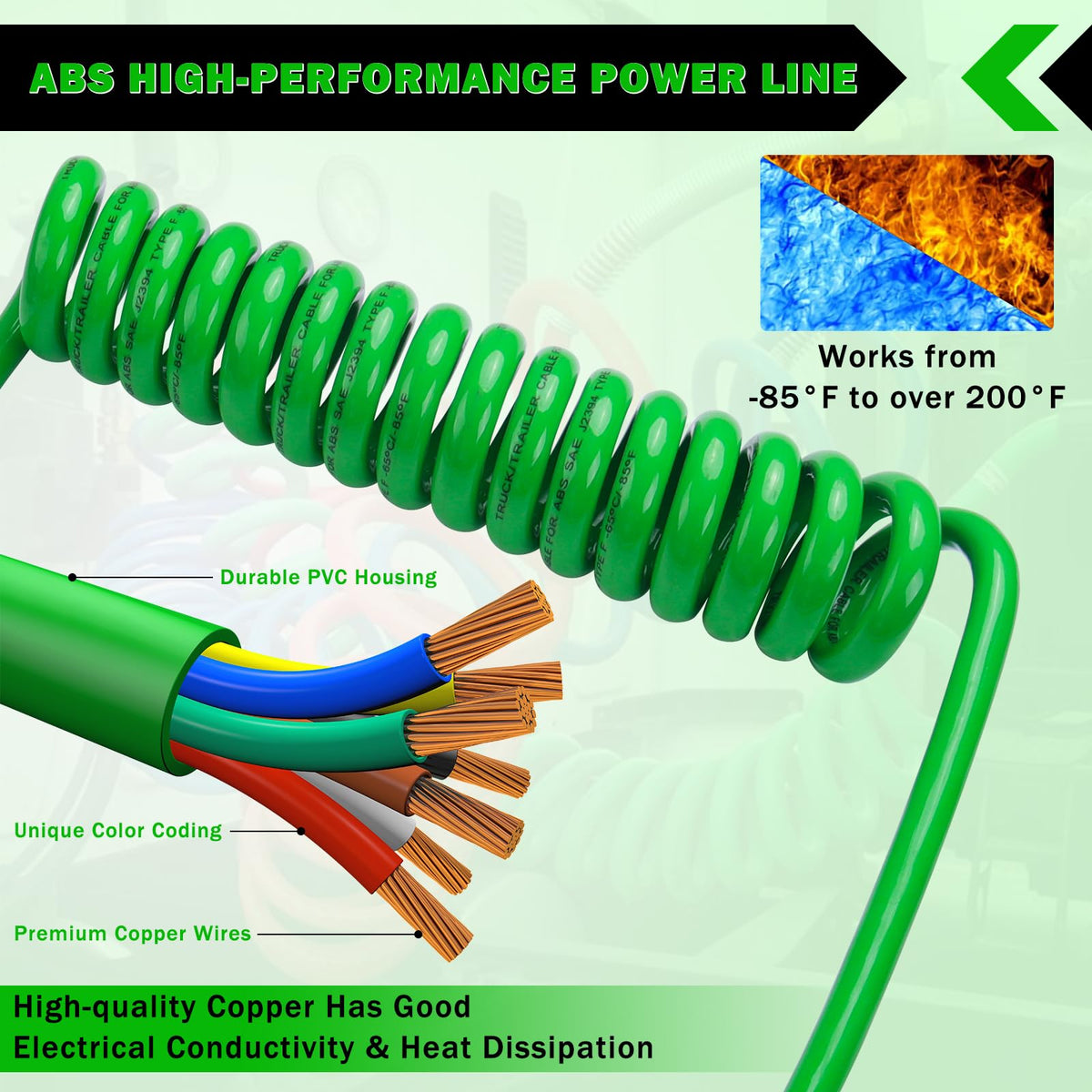

The CheeMuii cable uses high-purity copper wiring to ensure low resistance and consistent electrical flow to trailer lights and ABS modules. The plug meets SAE J560 standards and the ends are reinforced with stainless-steel springs to prevent strain and chafing at connection points.

• Pure copper conductors for strong conductivity and heat tolerance
• SAE J560 zinc-die plug that resists deformation
• 3.94" stainless-steel spring guards to protect entry points

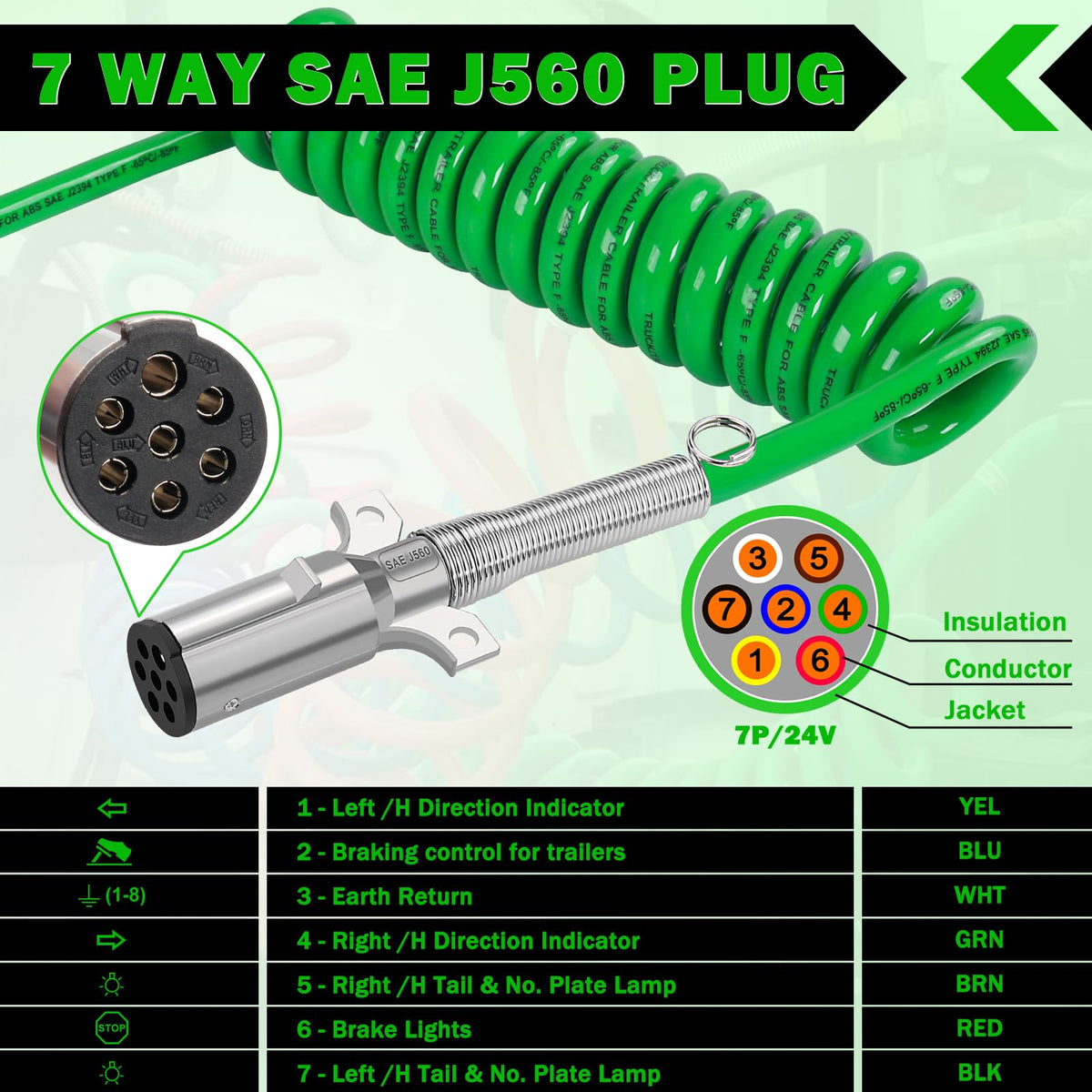

• 7 pins / 24 V configuration compatible with standard heavy-duty trailers

How does the coiled design benefit day-to-day towing?

The coiled configuration extends safely when the trailer moves away, then retracts to avoid dragging or snagging. This reduces cable wear, minimizes ground contact, and keeps connections tidy on and off the road.

• Compact when not extended to limit exposure to road debris
• Extends smoothly during turns and backing to maintain signal continuity
• Retracts to prevent tangles and trips during hitching or storage

Which vehicles and replacements is this cable compatible with?

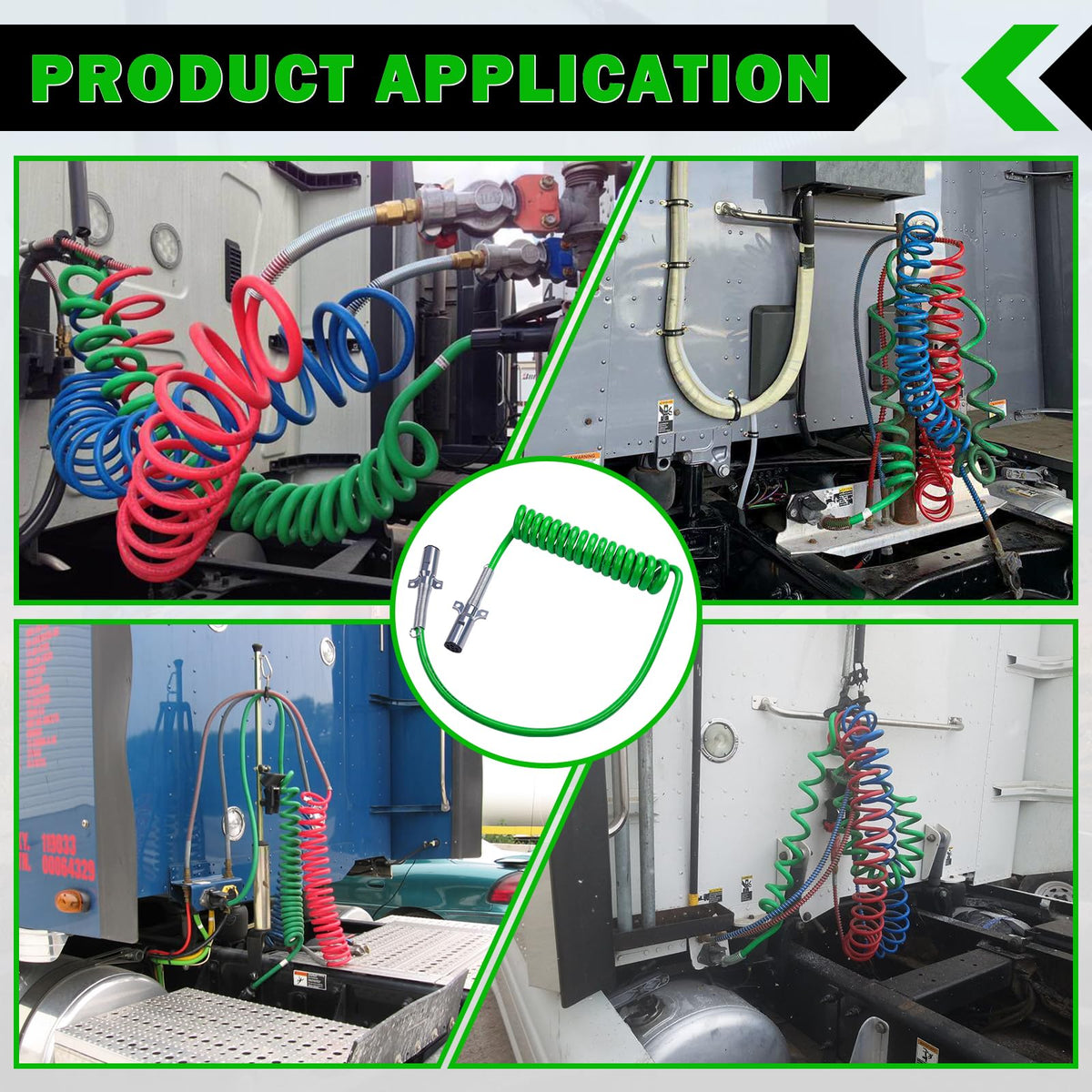

This 15-foot 7-way cord suits semi trucks, heavy trailers and RVs that use the SAE J560/J2394 wiring format for ABS and lighting. It directly replaces multiple aftermarket part numbers used across common manufacturers.

• Compatible with truck/trailer ABS wiring conforming to SAE J2394
• Meets SAE J560 plug performance requirements for 7-pin systems
• Replacement reference: Philips 30-4621, Velvac 590161, and others

How should I install and maintain the CheeMuii 15FT cord?

Installation is straightforward: align the 7-pin plug with the trailer socket and press until the zinc-die housing seats securely. Regular inspection and keeping the spring guards clean will prolong service life and maintain reliable connections.

• Firmly insert plug and verify all pins contact the socket
• Inspect spring guards and wiring for cuts or abrasions periodically
• Use dielectric grease on pins if exposed to salt or moisture frequently

Who is this for: The CheeMuii 15FT 7 Way Trailer Cord is aimed at truck operators, fleet managers, and RV or heavy-trailer owners who need a rugged, OEM‑grade replacement cable. If you require a coiled 7-pin cord that preserves trailer lighting and ABS functionality while resisting deformation and wear, this cable is designed to meet those demands.
