CheeMuii 50FT 1/4" DOT Air Line with 10Pcs 1/4" Brass DOT

CheeMuii 50FT 1/4" DOT air line kit is a ready-to-install pneumatic hose and brass fitting set engineered for DOT-compliant vehicle air systems, air suspension, and general shop pneumatic connections.

This kit bundles a 50-foot length of 1/4" PA12 DOT-rated air hose with ten brass DOT fittings and a handful of installation accessories so you can repair, extend, or install pneumatic lines quickly. Each component is specified to meet D.O.T. FMVSS 571.106 and SAE J844/J1131 where applicable, offering corrosion resistance, temperature tolerance and practical hardware for on-vehicle or workshop use.

How does this kit meet DOT and SAE requirements?

The hose and the brass fittings in this kit are manufactured from materials selected to comply with common DOT and SAE standards for vehicle air lines. The PA12 tubing and CA360 brass fittings resist heat, corrosion and pressure fluctuations encountered in automotive and heavy-equipment service.

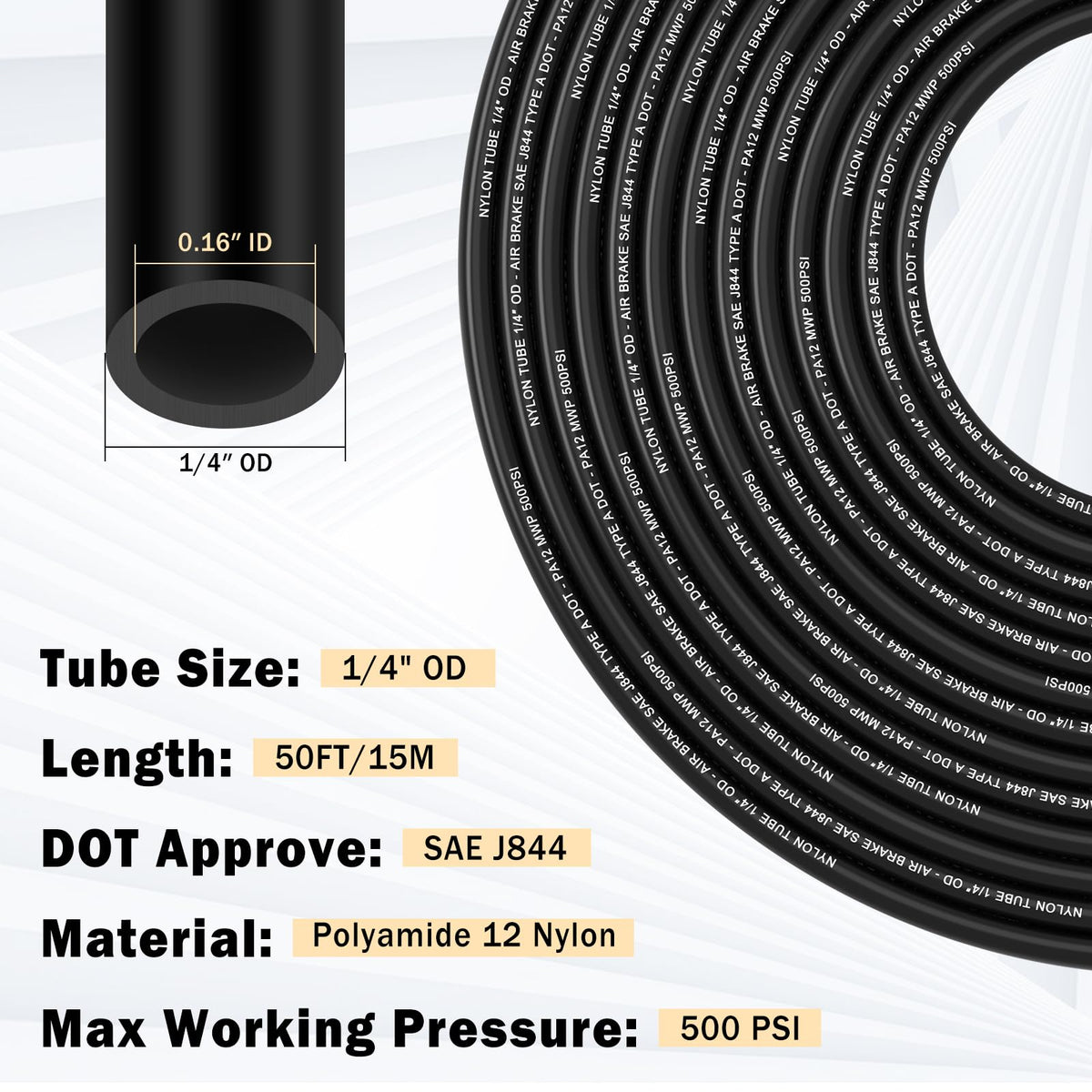

• PA12 (Polyamide 12) tubing meets D.O.T. FMVSS 571.106 and SAE J844 specifications.

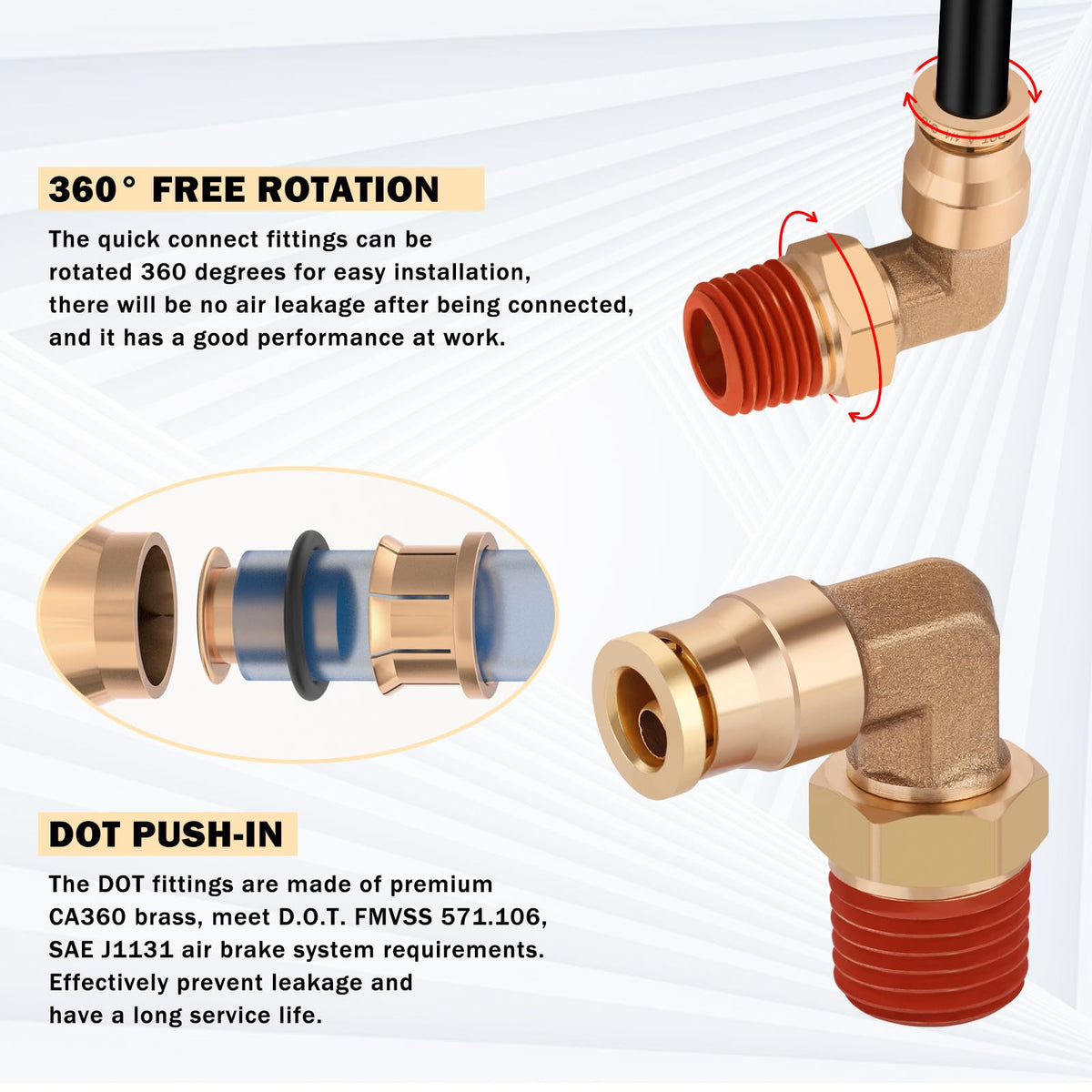

• CA360 brass fittings are produced to D.O.T. FMVSS 571.106 and SAE J1131 tolerances.
• Operational temperature range listed from -40°F to +248°F (-40°C to +120°C).
• Pressure handling from vacuum up to 500 PSI (follow tubing manufacturer guidance).

What parts are included and how do they speed installation?

The kit contains a complete set of fittings and a few installation helpers so you don’t need to source extras. That makes it useful for patching leaks, extending runs, or adding inflation ports for air springs on trucks, trailers, RVs and other pneumatic systems.

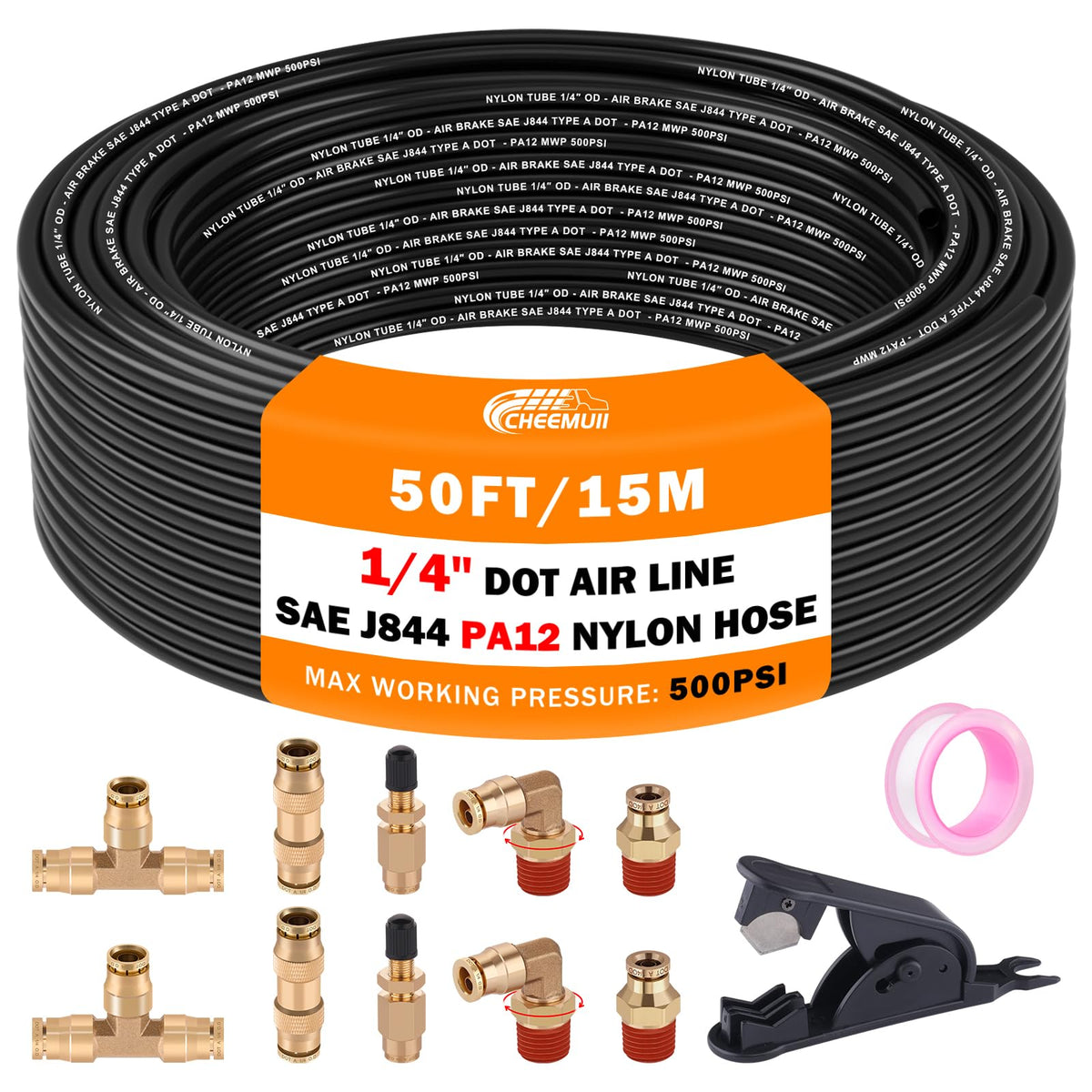

• 50 ft of 1/4" DOT-rated PA12 air line for long runs or multiple connections.

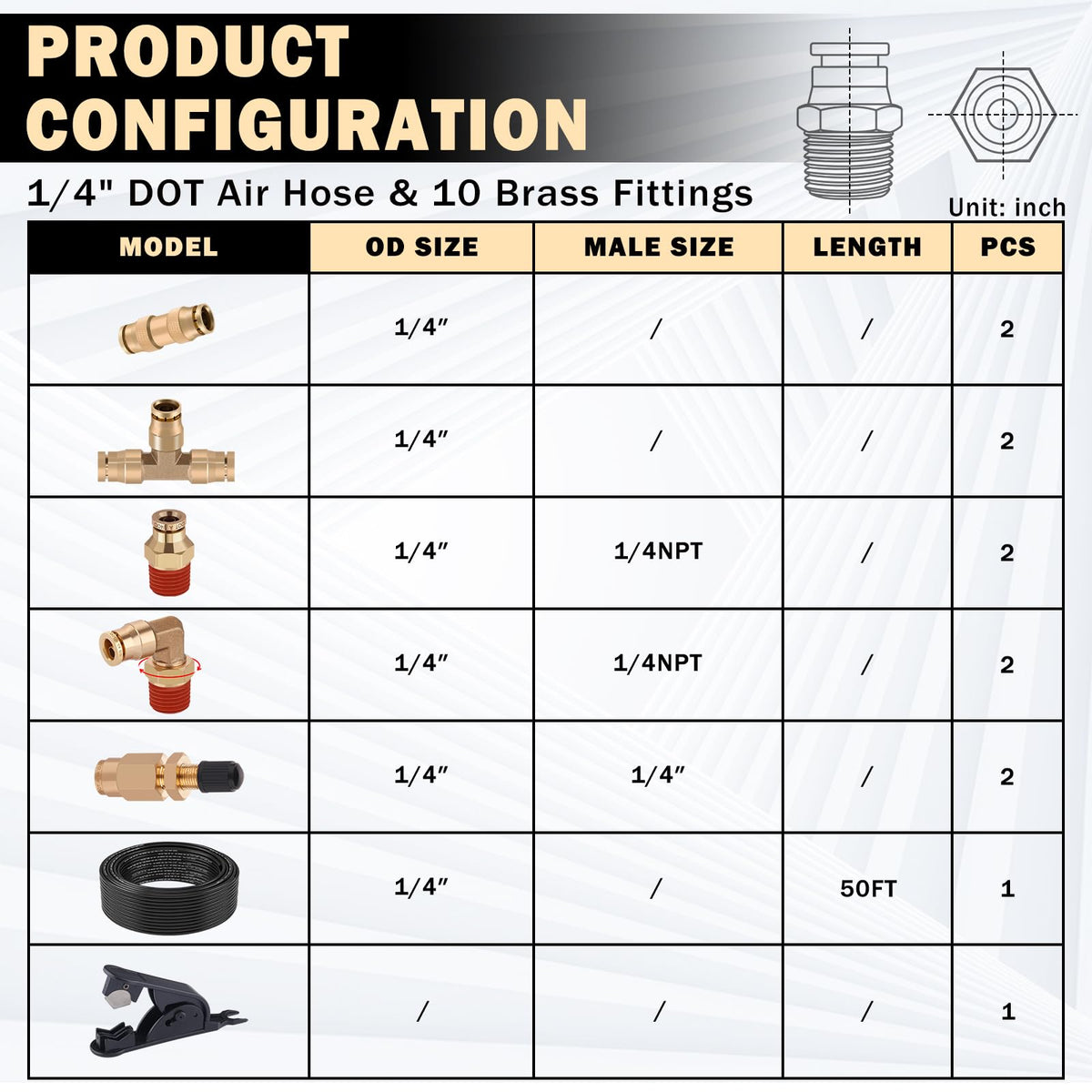

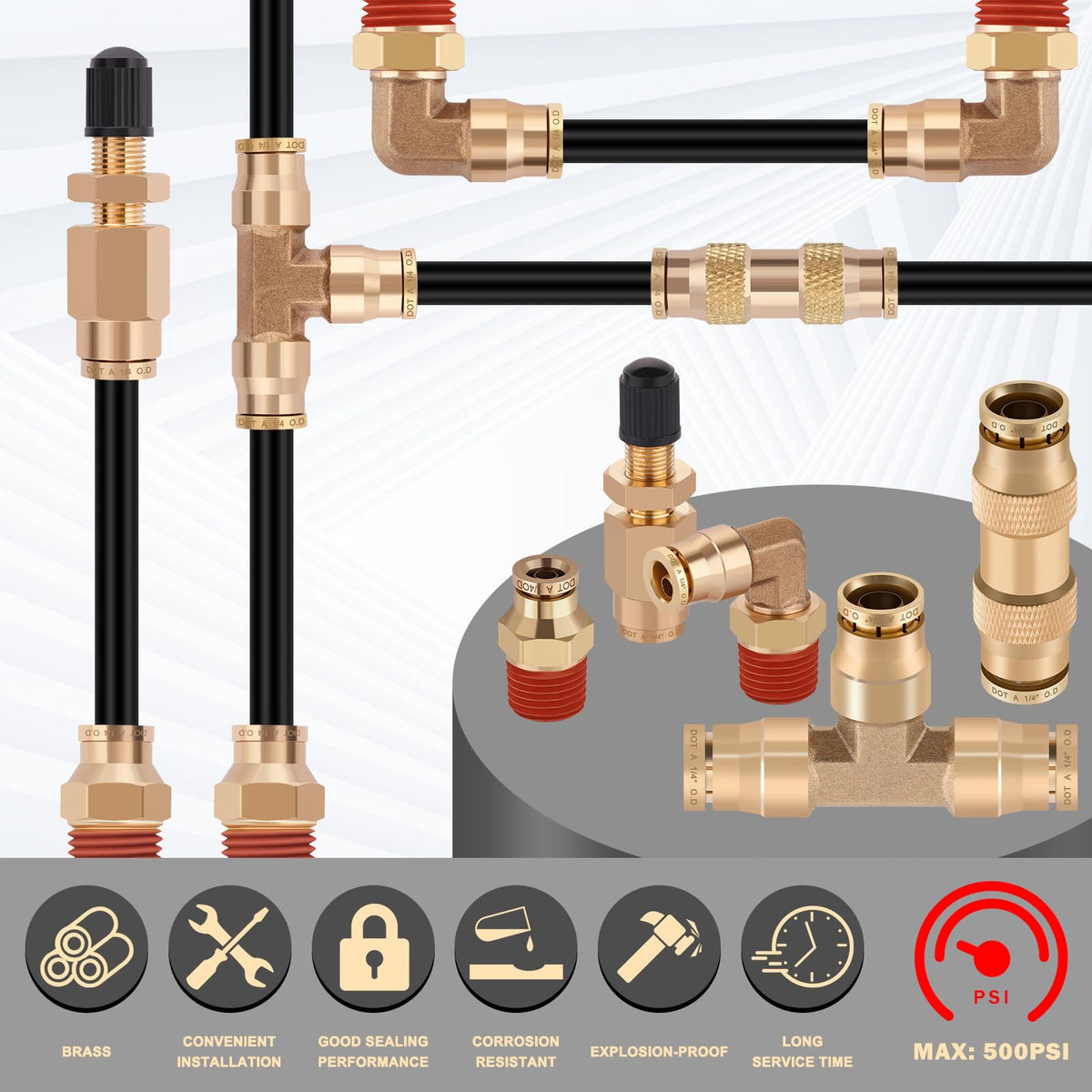

• Two brass tube tees, two straight unions, two straight push & NPT adapters, two 360° swivel elbows with NPT threads.
• Two 1/4" brass Schrader inflation valves with protective caps and one tube cutter plus Teflon tape for sealing threads.
• Components ready for field repair or workshop installation without extra fittings.

Is this hose durable enough for heavy-duty or outdoor use?

CheeMuii’s reinforced PA12 tubing and CA360 brass fittings emphasize strength and long life in demanding settings. The construction offers high impact and wear resistance along with flexibility so the line routes cleanly without kinking under normal service conditions.

• Reinforced nylon tubing for higher working pressure and abrasion resistance.
• Brass fittings with corrosion resistance and good high-temperature ductility.
• Schrader valves include caps to protect against dirt and contaminants outdoors.
• Suitable for truck, trailer, RV, industrial workshop, and garden equipment uses.

How do I use the included Schrader valves and fittings safely?

Install the Schrader inflation valves where you need a manual inflation point for air springs or suspension bags, and seal threaded connections with the provided Teflon tape. Always depressurize the system before cutting or connecting tubing and follow recommended torque and thread engagement guidance for NPT fittings.

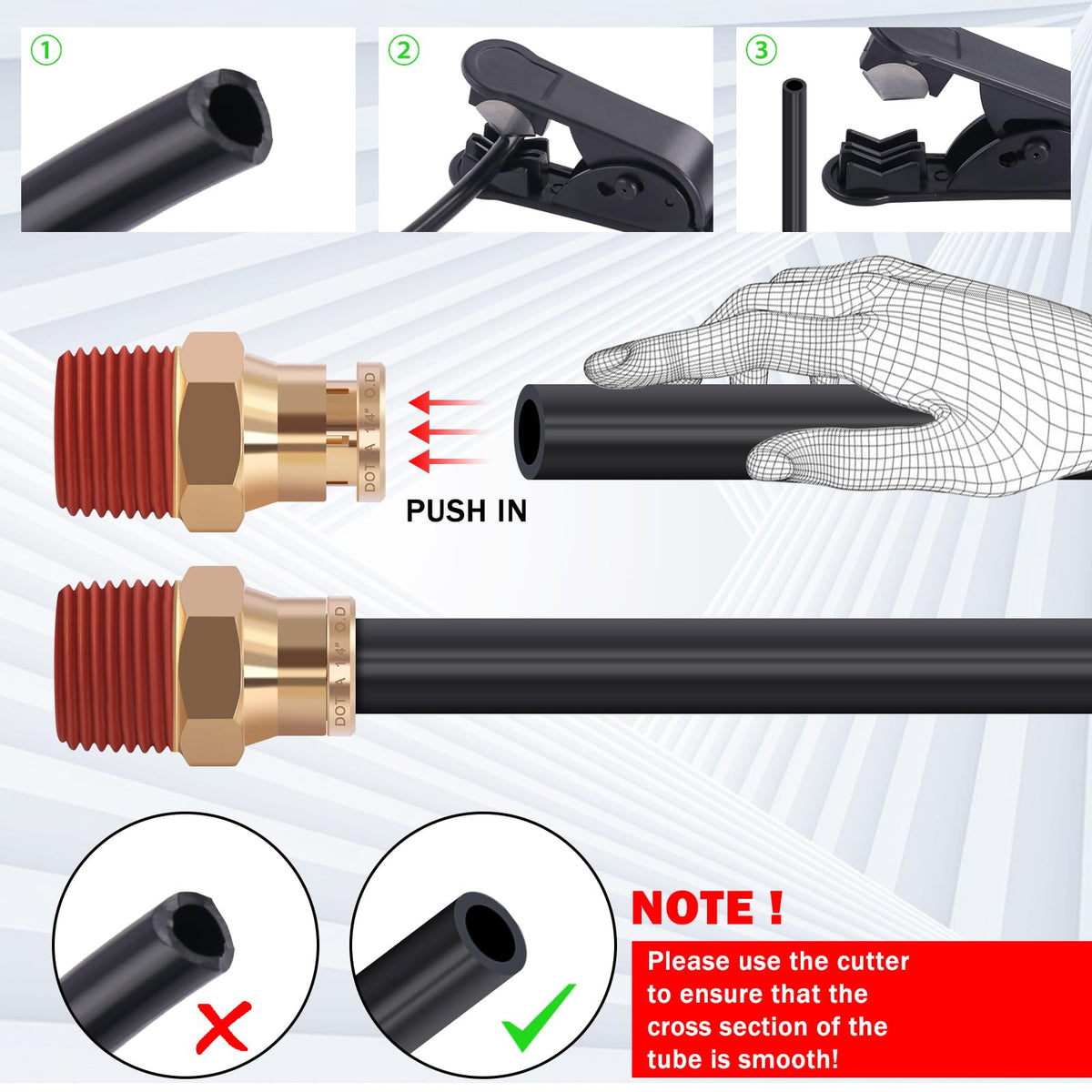

• Use the tube cutter to produce clean, square cuts for push or barb fittings.

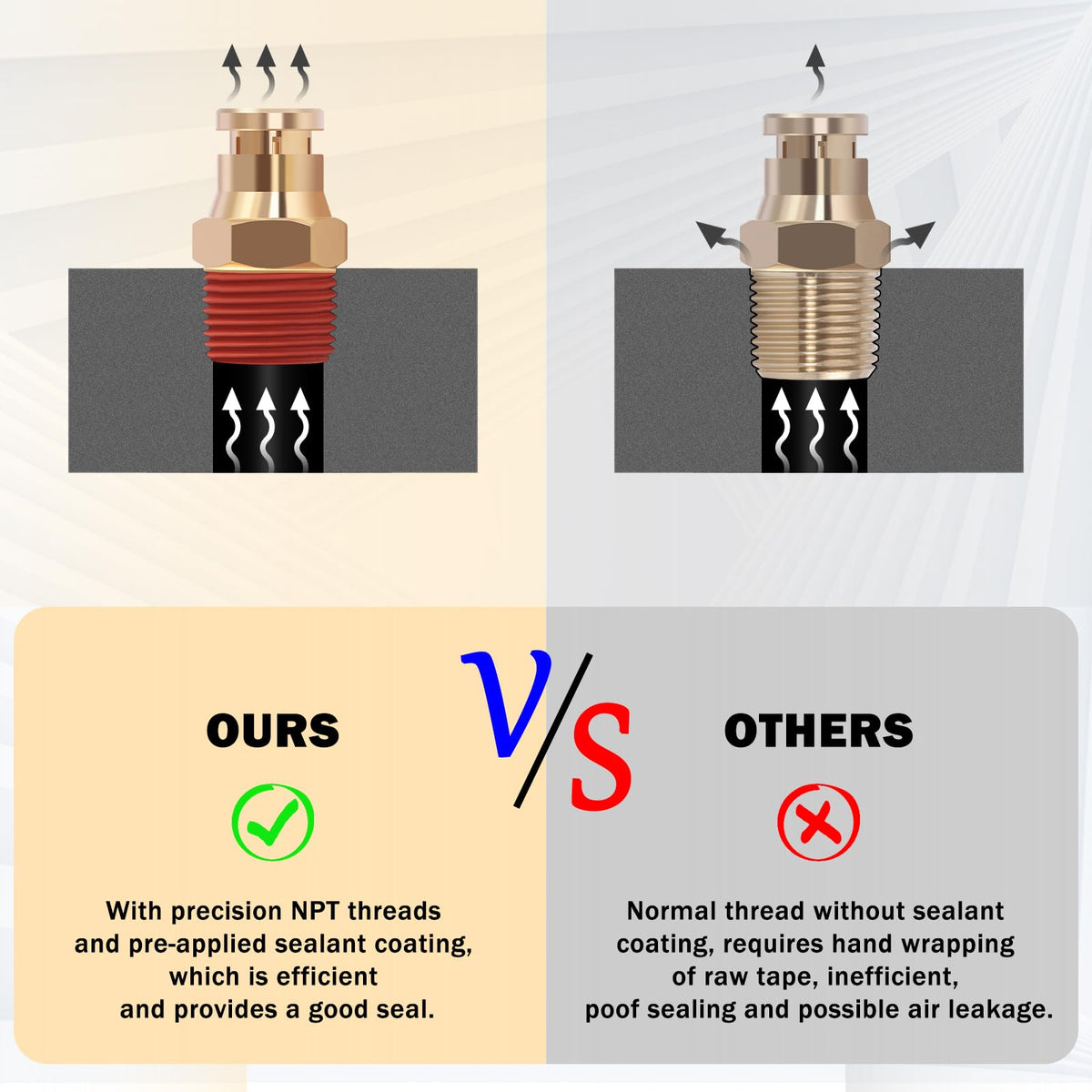

• Wrap NPT threads with the supplied Teflon tape for airtight seals.
• Hand-start threads, then tighten to recommended torque; avoid over-tightening.
• Check for leaks with soapy water after pressurization and before final routing.

Who is this for: This CheeMuii kit is intended for mechanics, fleet technicians, RV and truck owners, and DIYers who need a DOT-rated 1/4" air line solution with matching brass fittings. It’s especially useful when you want a single package that covers hose length, common connector types, inflation valves and basic installation tools for repairs or retrofits in vehicle air systems and general pneumatic applications.
