CheeMuii 7-Way Trailer Cord 12FT Green — 2-Pack SAE J560 Pure Copper, ABS Compatible

These twin 12-foot 7-way cords from CheeMuii are built for reliable trailer lighting and ABS signal transmission. Constructed with pure copper conductors, reinforced zinc-die plugs and stainless-steel spring guards, the cables are intended to resist wear, maintain conductivity and protect connections during towing. The vivid green jacket and SAE/ABS specifications make them suited for commercial and recreational trailer use where consistent 24 V power and durable assembly matter.

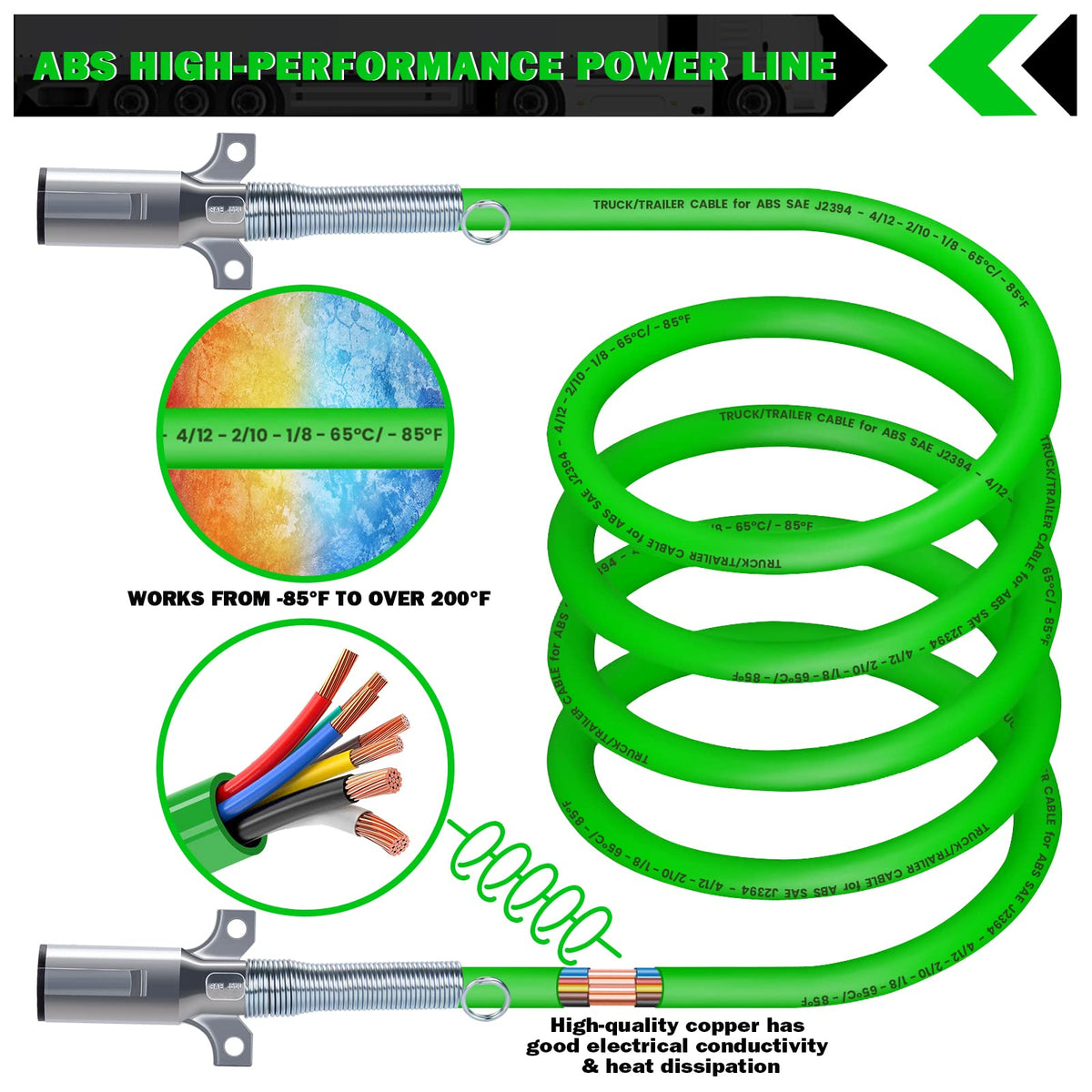

How does this 7-way cable ensure dependable trailer lighting?

The CheeMuii cord uses high-purity copper conductors and a robust insulation jacket to minimize voltage drop and heat buildup. That helps keep turn signals, brake lights and tail lights functioning consistently over long runs and repeated use.

• Pure copper wiring for superior conductivity
• Thermally stable jacket rated to -65°C/-85°F for temperature resilience
• 7-pin configuration supporting standard 24 V trailer lighting circuits

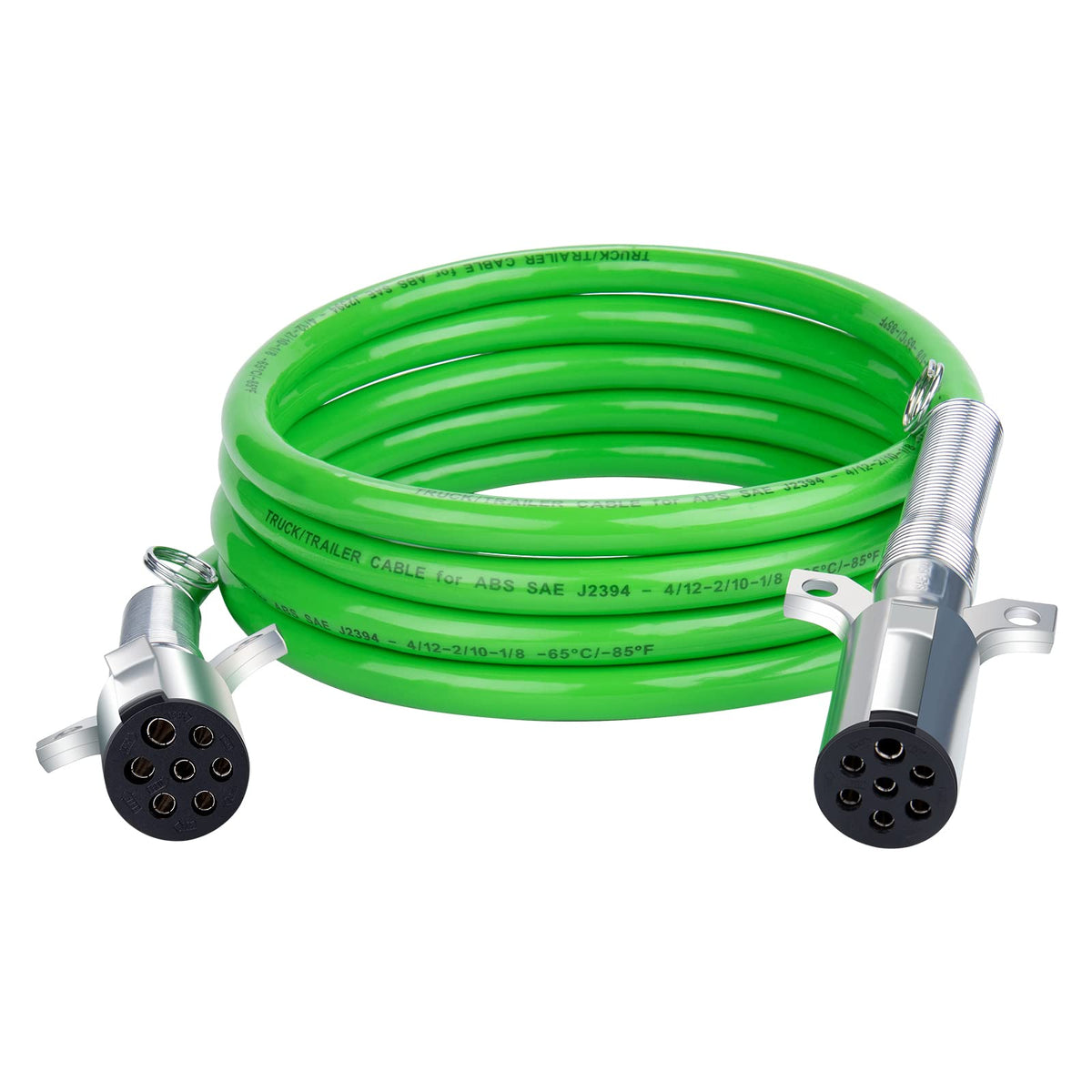

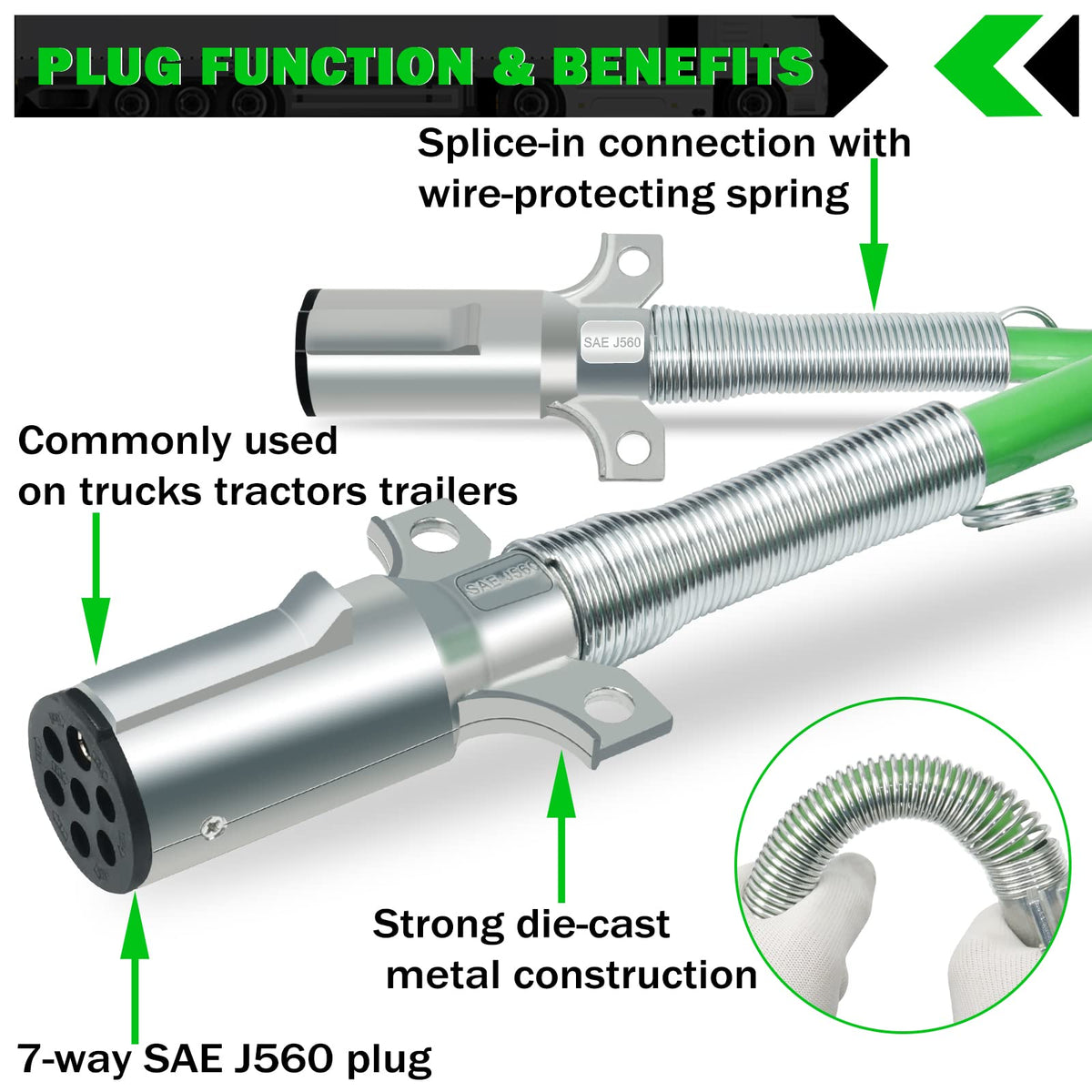

What makes the plugs and connectors durable?

Each plug meets SAE J560 performance requirements and uses zinc die-cast housings that resist deformation and corrosion. The ends are further protected by 3.94-inch stainless-steel spring guards that cushion the cable and prevent flex fatigue at the junction points.

• SAE J560-rated zinc die plugs for strength and alignment
• Stainless-steel spring guards to reduce stress at cable ends
• Secure-fit 7-way mating to standard trailer sockets

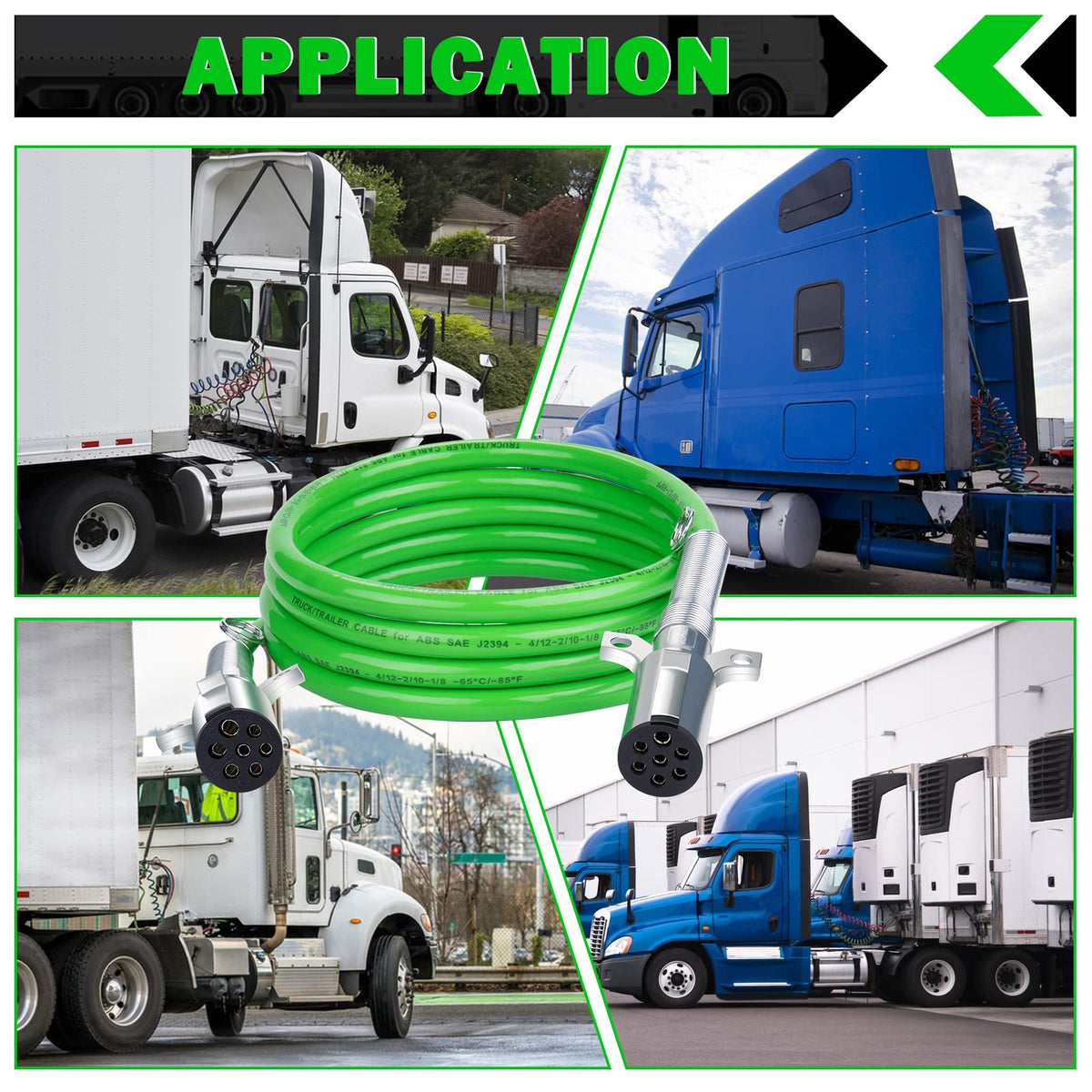

Is this cable compatible with ABS braking and commercial trailers?

Yes. The cord is specified for ABS trailer circuits (SAE J2394) and designed to carry the 7-pin signals commonly required on commercial and heavy-duty trailers. It supports the ABS feed alongside lighting and auxiliary circuits when used with compatible towing systems.

• Compatible with ABS SAE J2394 signal requirements

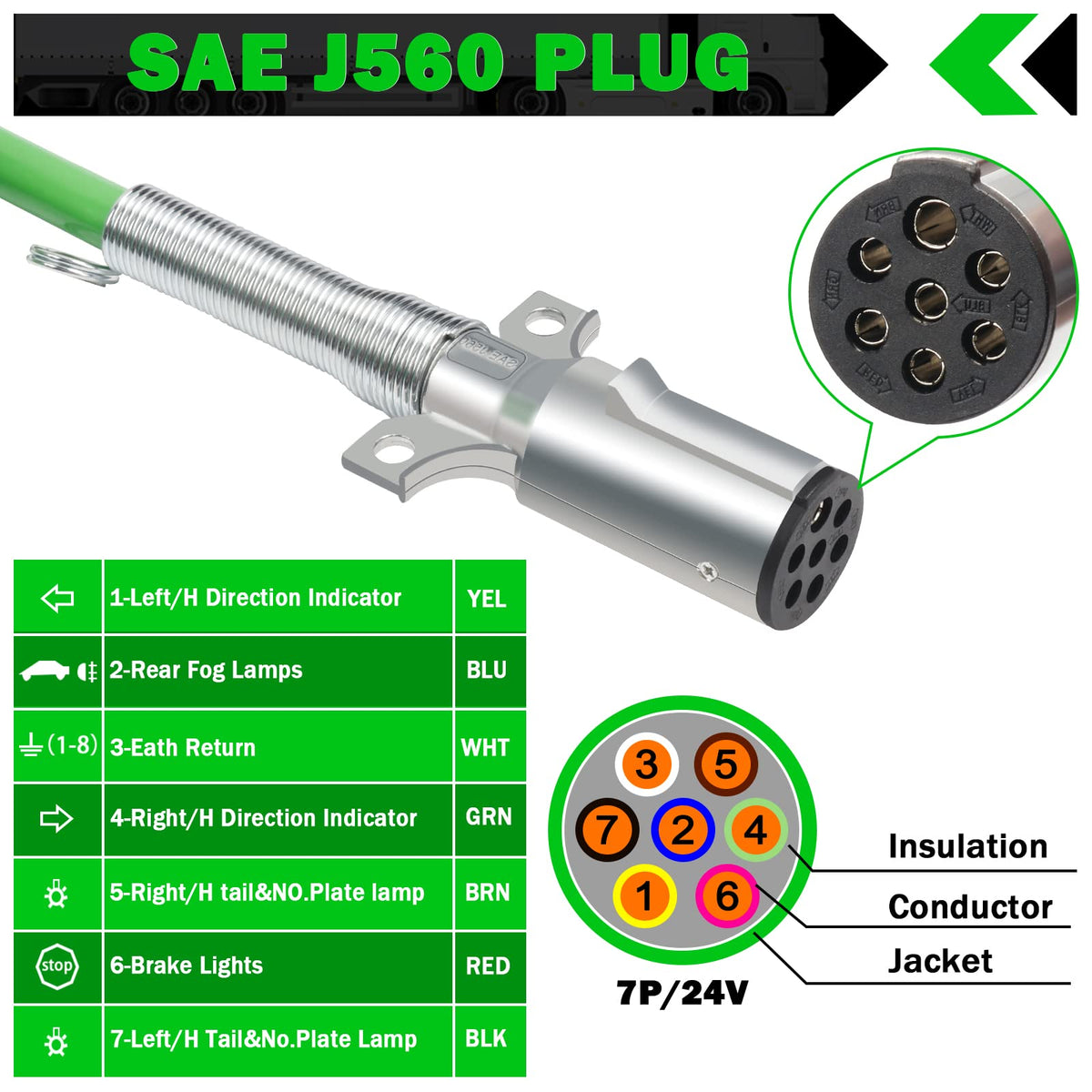

• 7-pin layout accommodates brake, turn, tail and auxiliary circuits
• Rated for 24 V systems used in many trucks and trailers

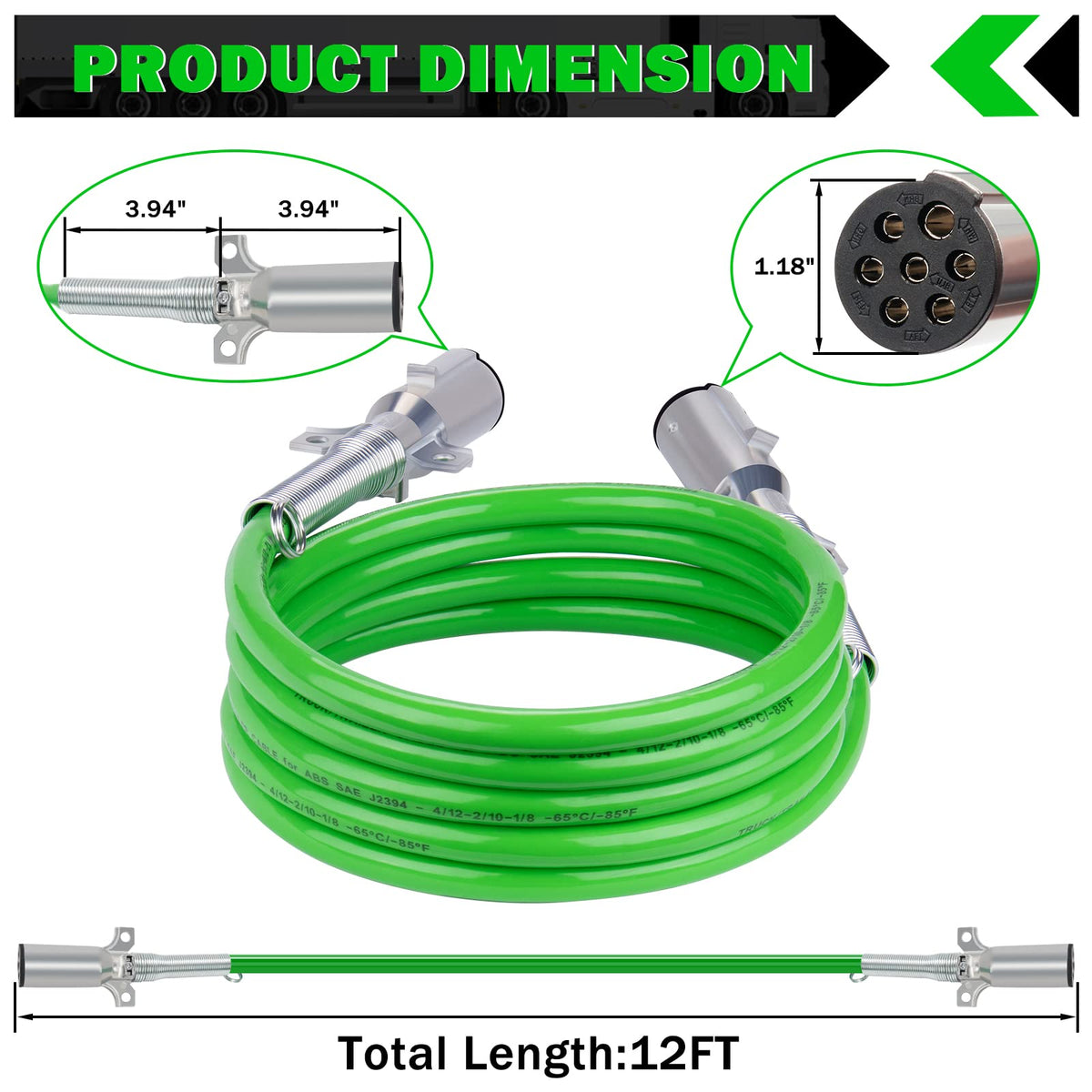

How long are the cables and what are the installation basics?

Each cable in the package is 12 feet long, supplied as a two-piece set to fit common tractor-trailer spacing. Installation is plug-and-play with standard 7-way sockets; route the cord to avoid pinch points and secure it to prevent drag or excessive bending.

• 12 FT length per cable for typical tractor-trailer reach
• Two-piece set covers both left/right or backup needs
• Use clamps or cable ties to secure routing and reduce stress

Who is this for: The CheeMuii 2PCS 12FT 7-Way Trailer Cord is aimed at truck drivers, fleet managers and trailer owners who need a dependable, standards-compliant connection for lighting and ABS signals. It’s suitable for commercial haulers, RV owners and anyone requiring a durable 7-pin cable that resists deformation, helps prevent wiring fatigue and maintains consistent conductivity under towing conditions. CheeMuii includes quality assurance support for buyers seeking dependable aftermarket trailer cabling.
