Ciuouient 2" Lower Steering Column Mount S83022A — 2" Hole, Swivel Clamp, 1/8" Flange

Ciuouient S83022A is a robust 2" lower steering column mount engineered to clamp 2" OD steering column tubes and secure the column to the firewall or chassis.

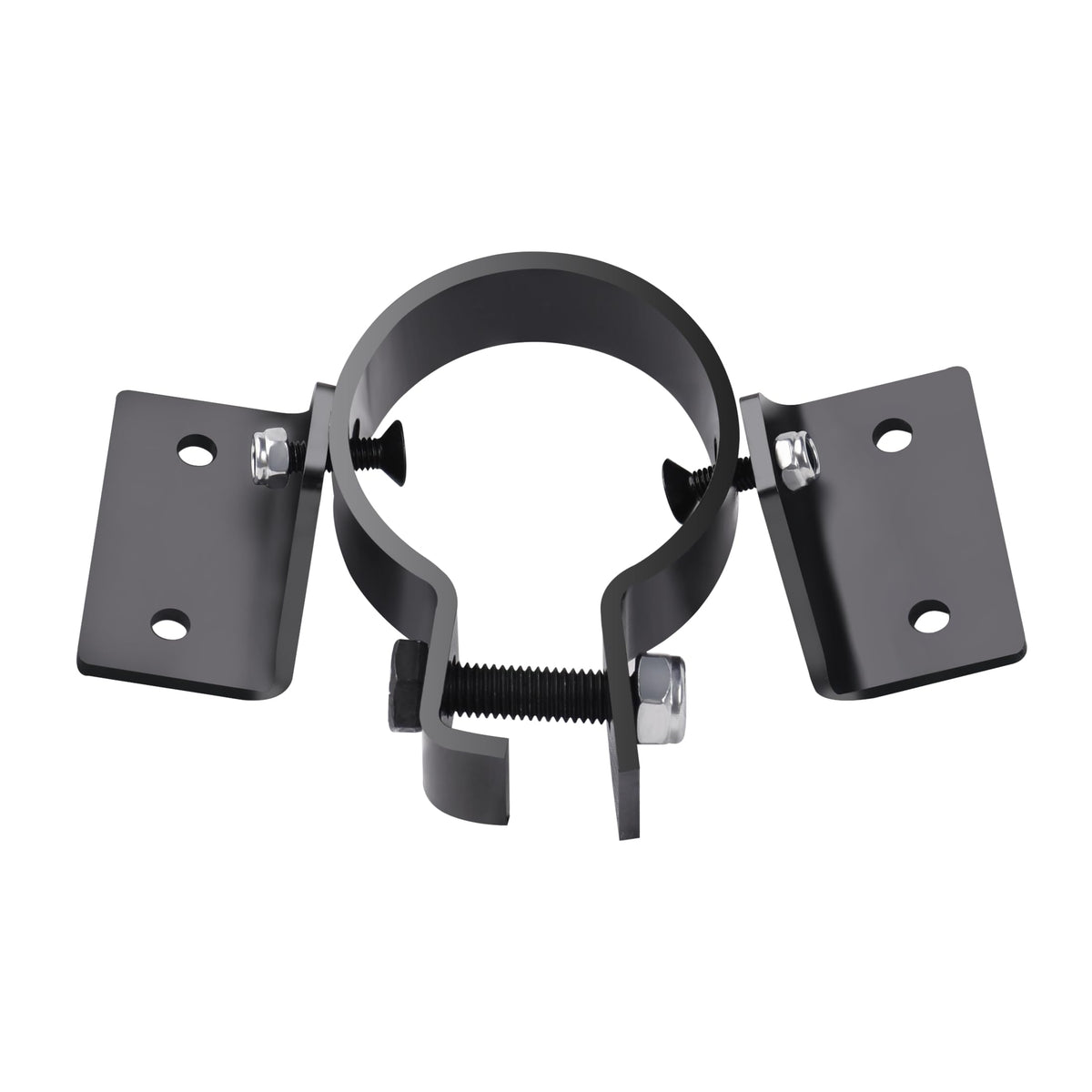

This single-piece lower steering column mount (part number S83022A) offers a compact, hard-wearing solution for replacing a damaged bracket or fitting a new steering column tube with a 2" outer diameter. Built with a 2" assembled height and a 1/8" thick flange, the mount provides a low-profile connection point that supports both alignment and stable attachment. Its dimensions and flange spacing are optimized for common steering column installations where a dependable, easy-to-fit clamp is required.

How does this mount secure a 2" steering column tube?

The S83022A uses a swiveled band-style clamp and flanged mounting surfaces to hold a 2" OD tube firmly in place while distributing load across the firewall. Once tightened, the clamp resists axial and rotational movement so the column stays aligned under normal vehicle forces.

• Clamps 2" outside-diameter steering tubes for direct-fit installations
• Swivel-capable design allows slight angular adjustments during fitting
• Flanges spread load across 1" x 2" mounting surfaces for secure attachment
• 1/8" flange thickness improves rigidity at the firewall interface

What are the precise dimensions and mounting details?

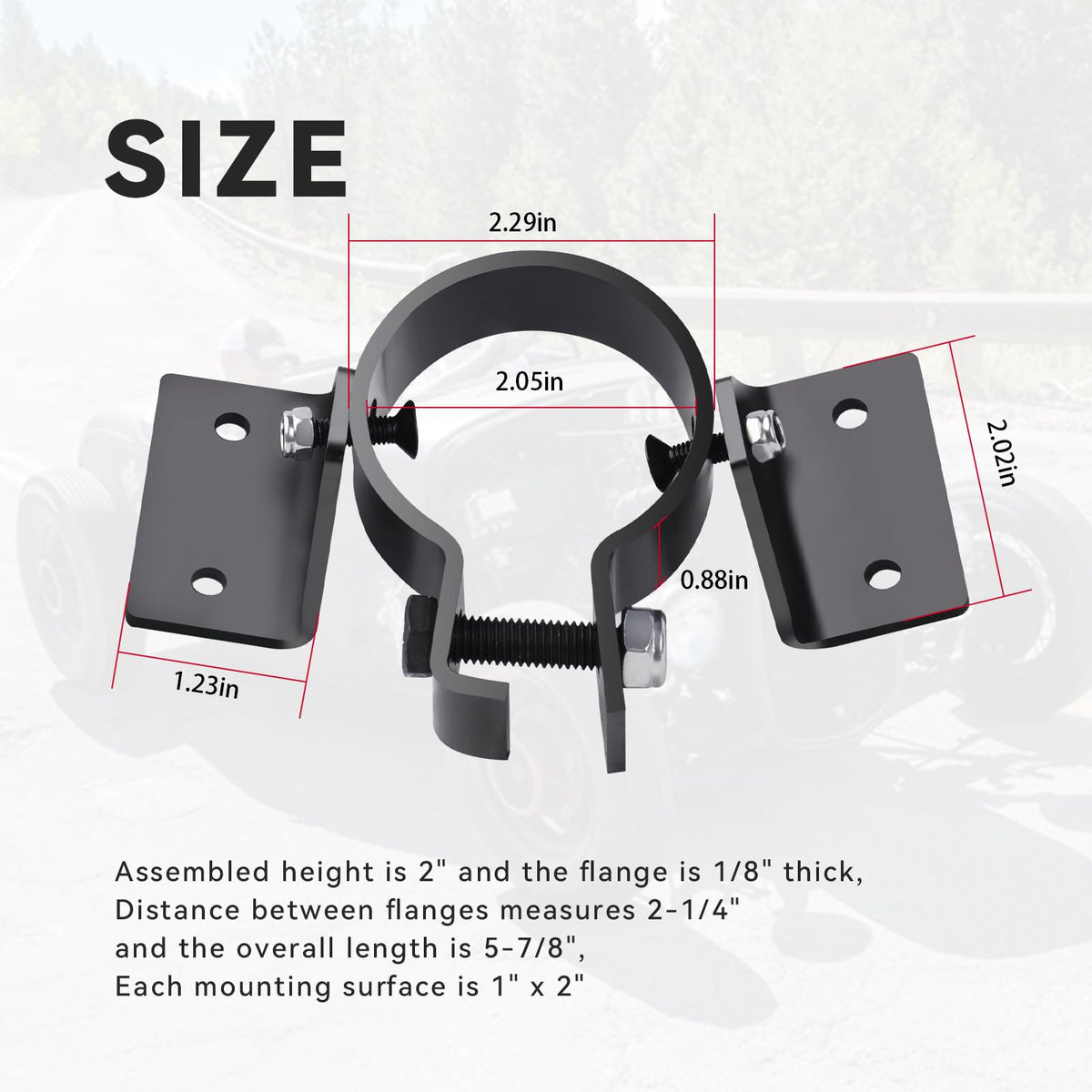

The mount’s overall length is 5-7/8", with a 2-1/4" distance between flanges and a 2" assembled height, giving installers clear reference points for drilling or aligning existing holes. These measurements help ensure compatibility with common steering column layouts and simplify retrofit work.

• Assembled height: 2" to match 2" tube OD
• Flange thickness: 1/8" for durable firewall contact
• Distance between flanges: 2-1/4" for stable leverage
• Overall length: 5-7/8" to accommodate various mounting depths

Can I use the S83022A to replace an original bracket or install a new column?

Yes. The S83022A is intended for installation or replacement when the factory bracket is damaged or when fitting a new steering column tube with a 2" diameter. Its straightforward clamp design makes it suitable for both repairs and custom-fit installations.

• Designed as a replacement for damaged or worn original mounts
• Works well in retrofit applications and custom steering setups
• Compatible with common firewall mounting practices and bolt patterns
• Single-piece construction simplifies installation and reduces alignment steps

How does its design help with installation and alignment?

The swivel-style clamp and measured flange spacing allow installers to adjust the column angle slightly while tightening, helping to achieve correct shaft alignment without excessive modification. The mount’s dimensions offer predictable placement so installers can plan hole locations and clearance in advance.

• Swivel clamp permits minor angular positioning during torque-down
• Clearly defined flange spacing aids in pre-drilling and alignment checks
• Rigid flange and clamp layout minimize post-installation movement
• Compact footprint keeps the column close to the firewall for efficient packaging

Who is this for: The Ciuouient S83022A 2" Lower Steering Column Mount is ideal for mechanics, restorers, and DIY vehicle builders who need a reliable clamp-style bracket for 2" steering tubes. It suits anyone replacing a failed factory mount or installing a custom steering column where solid firewall attachment and straightforward alignment are priorities.
