Clatoon Inner CV Axle Puller Kit with 5/8"-18 Slide Hammer — 7 lb Slide Hammer, 63mm & 48mm Forks

The Clatoon Inner CV Axle Puller is a heavy‑duty slide‑hammer removal kit that safely extracts stubborn inner CV axles without damaging gearboxes or surrounding parts.

Whether you’re a professional mechanic or a DIYer tackling drive‑train repairs, this kit combines a 7 lb slide hammer with interchangeable CV fork adapters and threaded fittings to deliver controlled, straight pull force. Built from heat‑treated 45# steel and finished in rust‑resistant plating, the set is designed to fit most passenger cars and light trucks — with larger vehicles requiring a quick dimension check before use.

How does this tool remove an inner CV axle without harming the transmission?

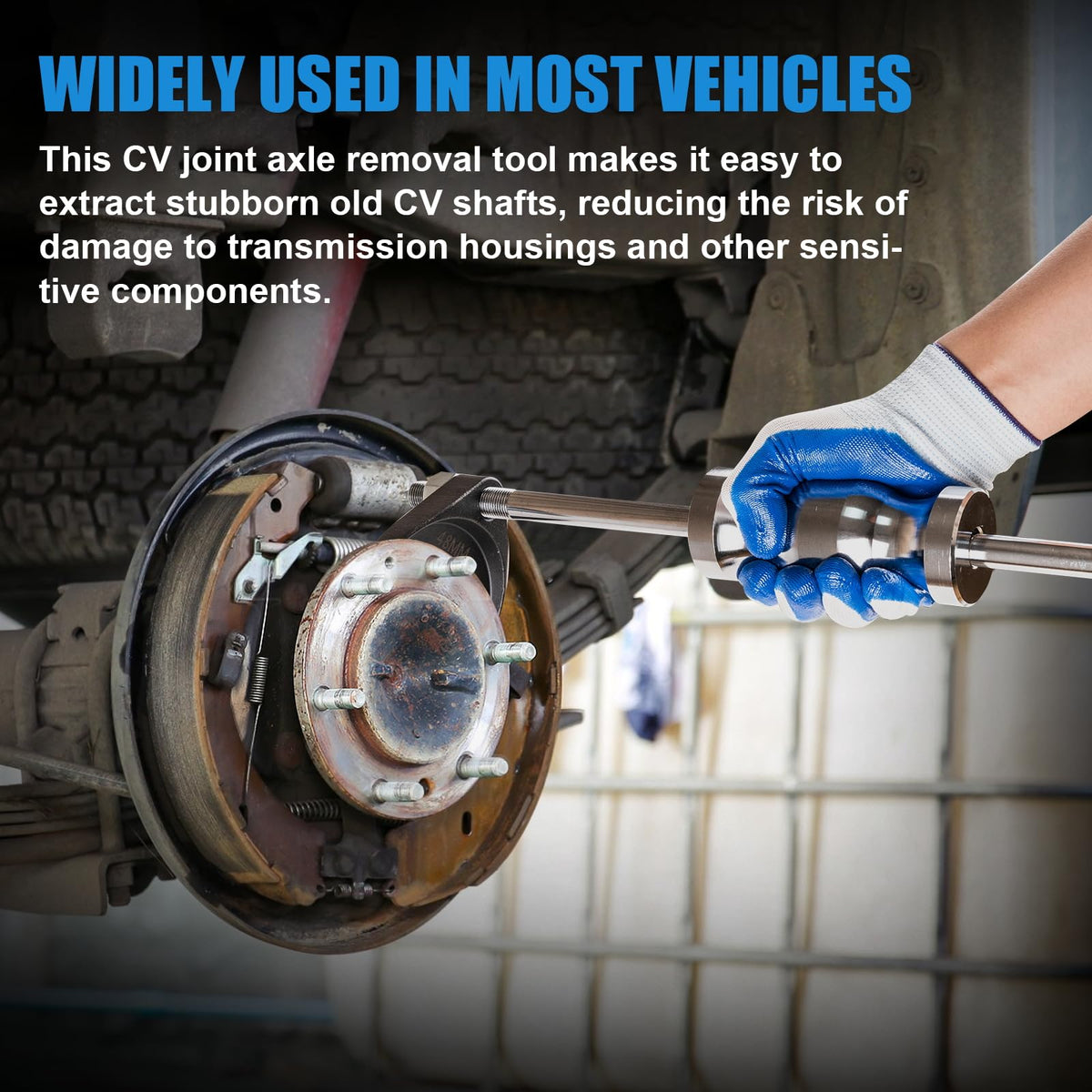

The Clatoon design applies axial, even force to coax the axle free instead of levering or prying, which reduces the risk of denting or cracking aluminum housings. Threaded adapters and a precision fork interface seat securely on the axle for focused energy transfer from the slide hammer.

• 5/8"-18 threaded slide hammer accepts multiple adapters for secure attachment

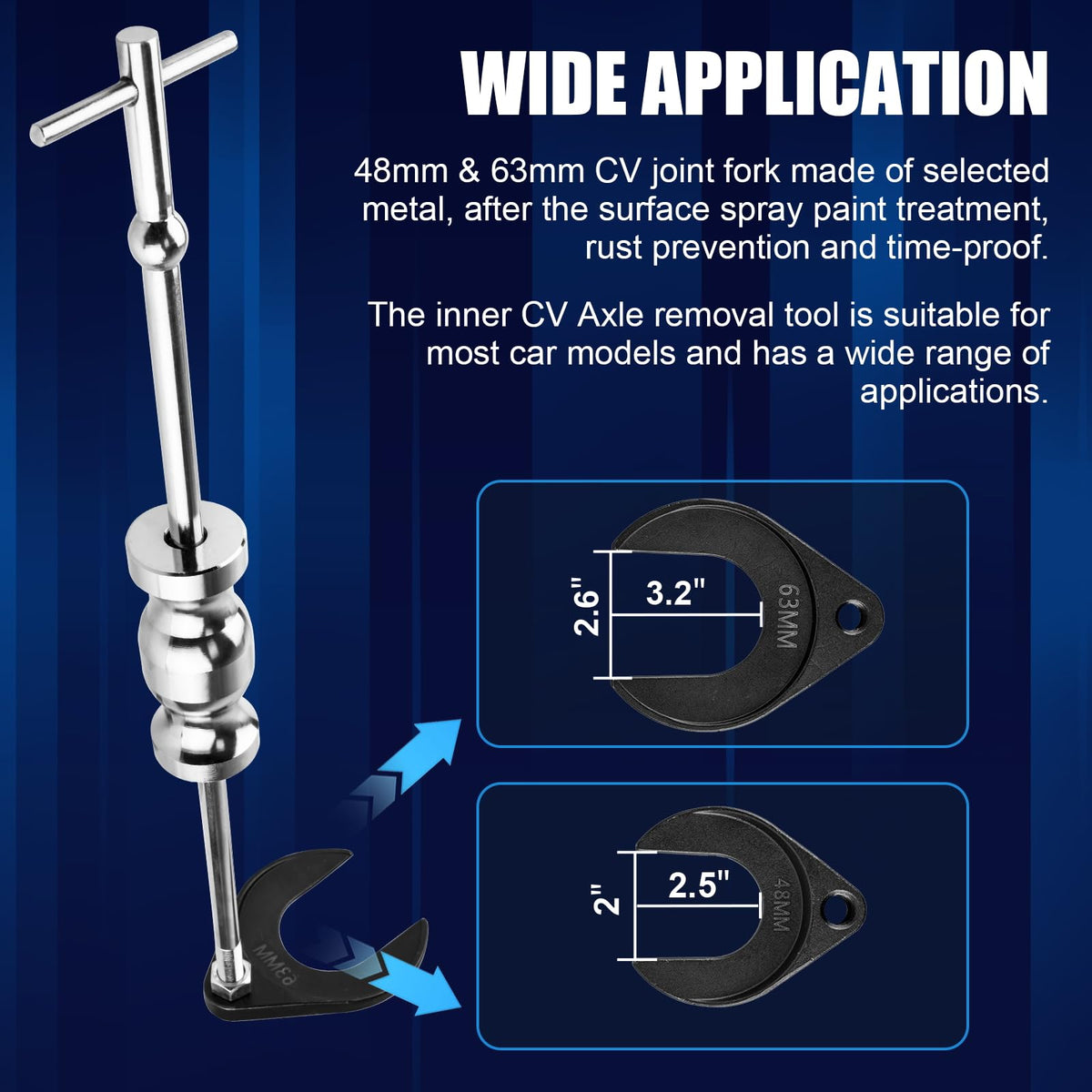

• Two fork sizes (63mm and 48mm) match common CV joint splines and grooves
• Straight pull action prevents side loading of the gearbox and bearings

What components are included and why do they matter?

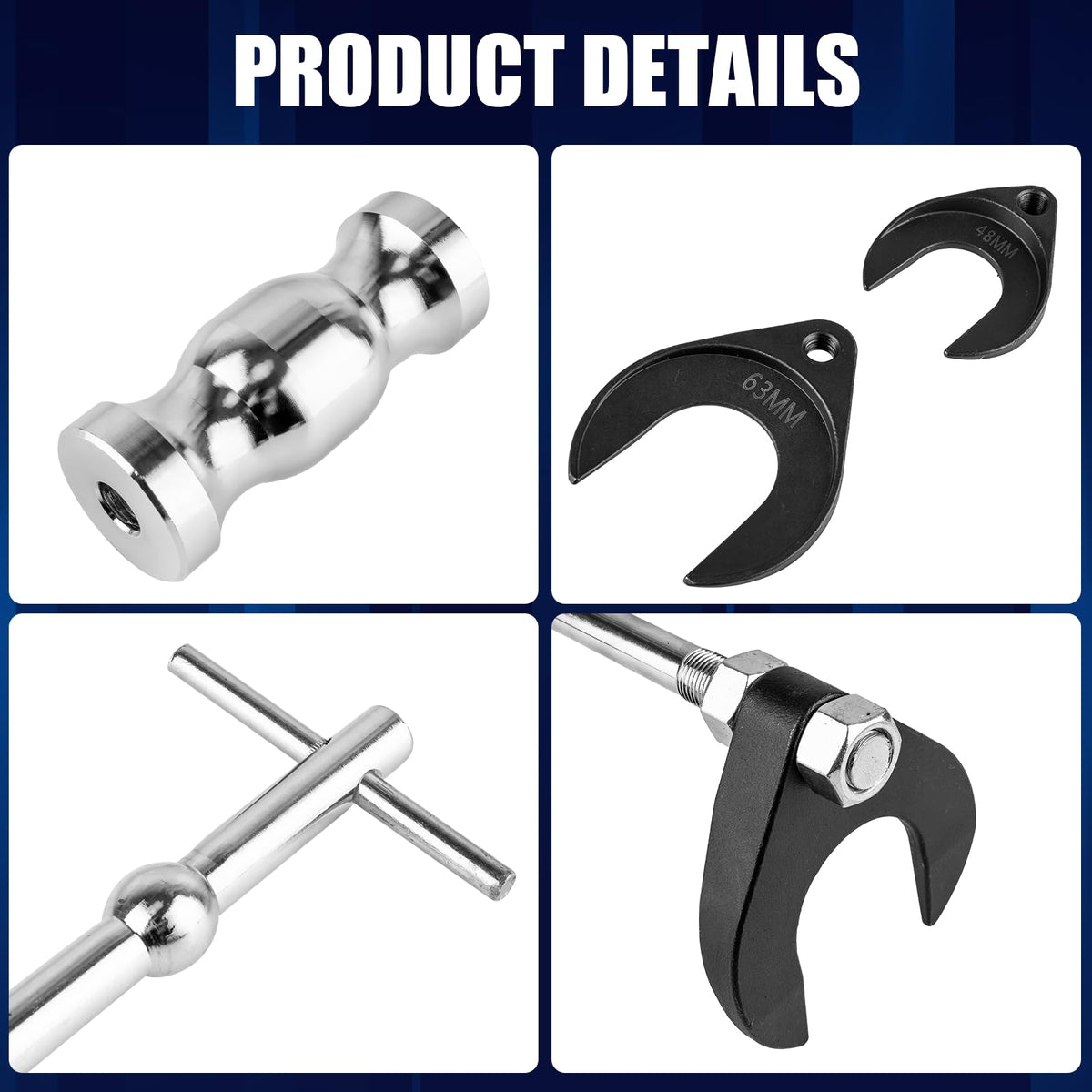

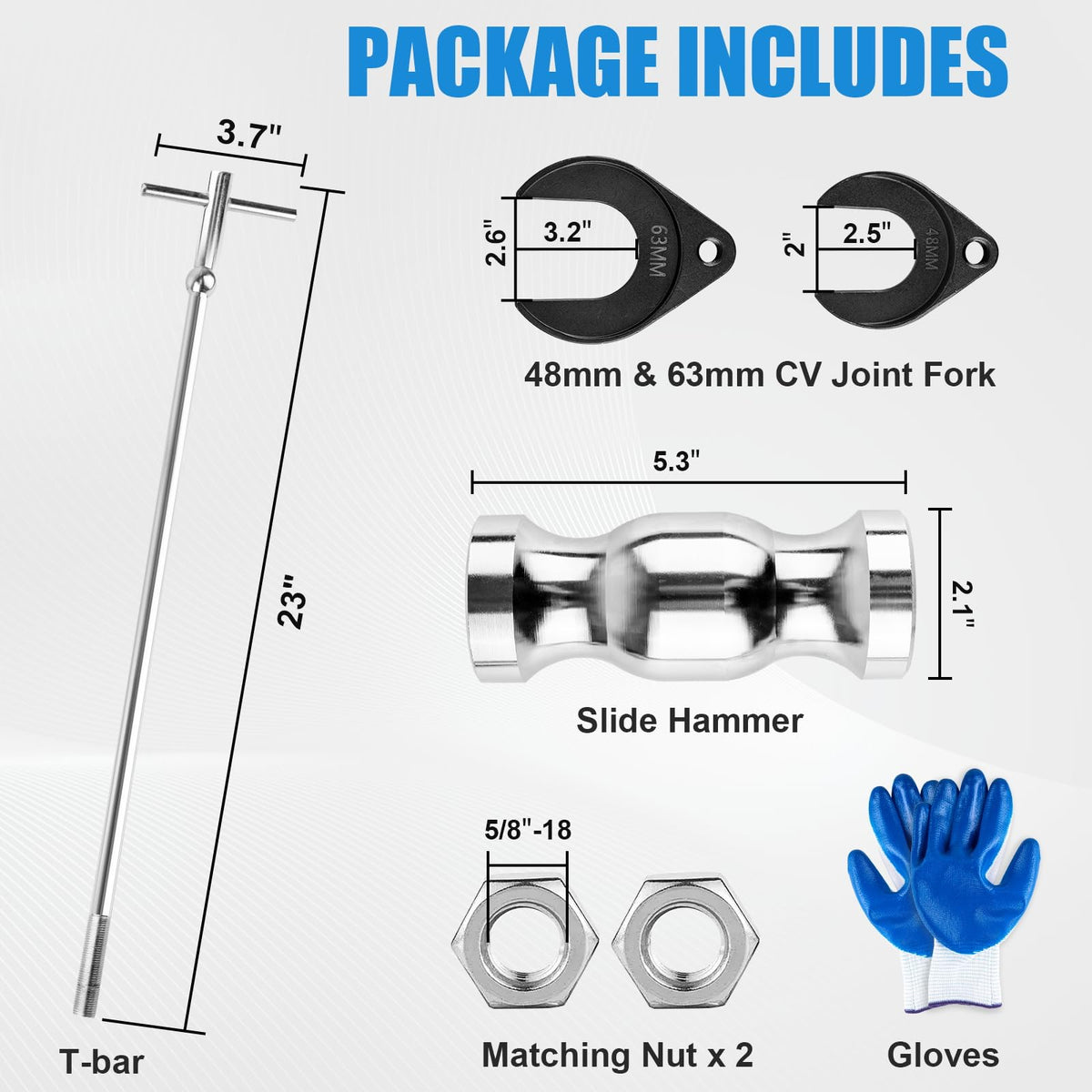

The complete kit contains the slide hammer with T‑bar, two CV joint forks, matching nuts, and a protective glove so you can start work immediately. Each part is sized and plated to resist corrosion and provide reliable engagement during repeated removals.

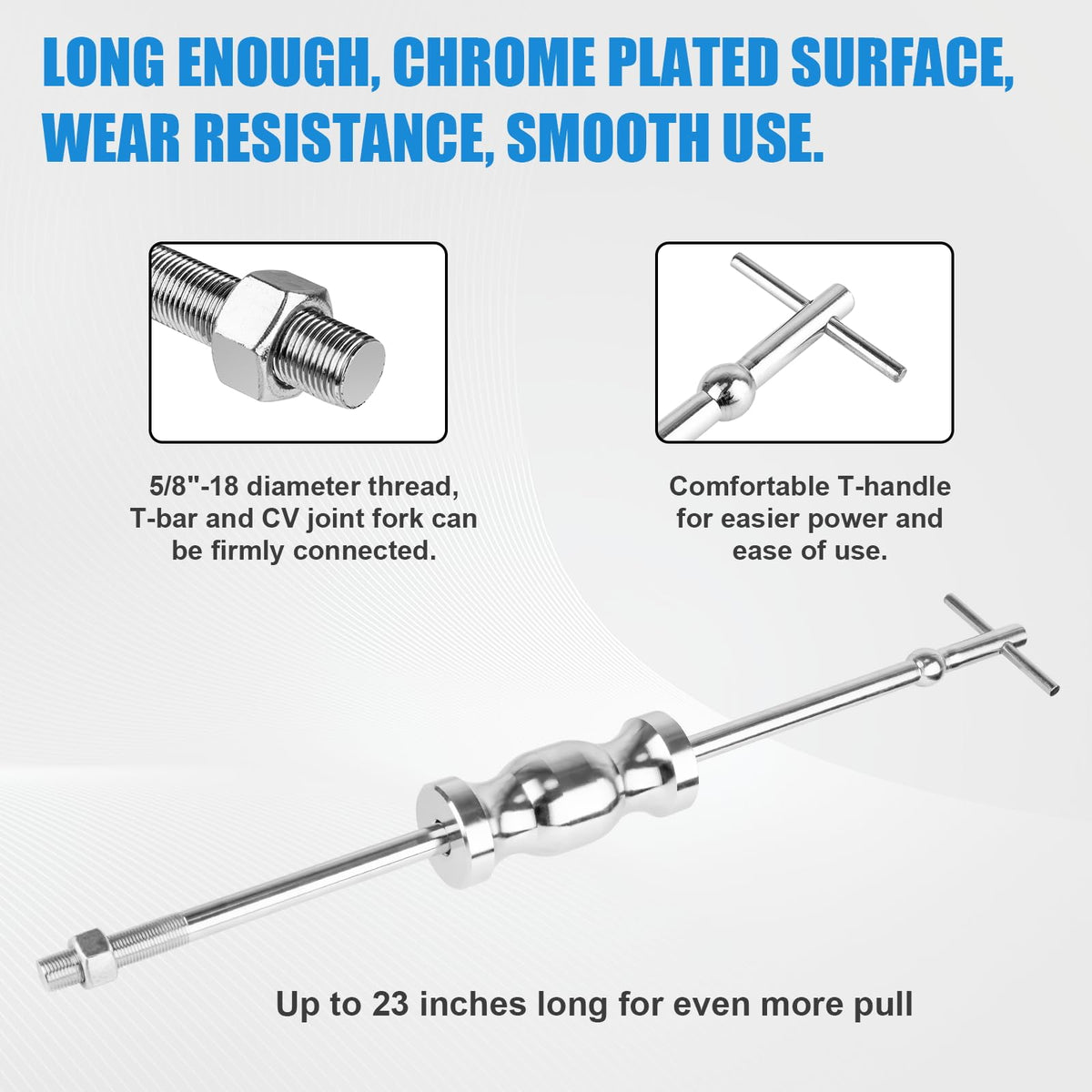

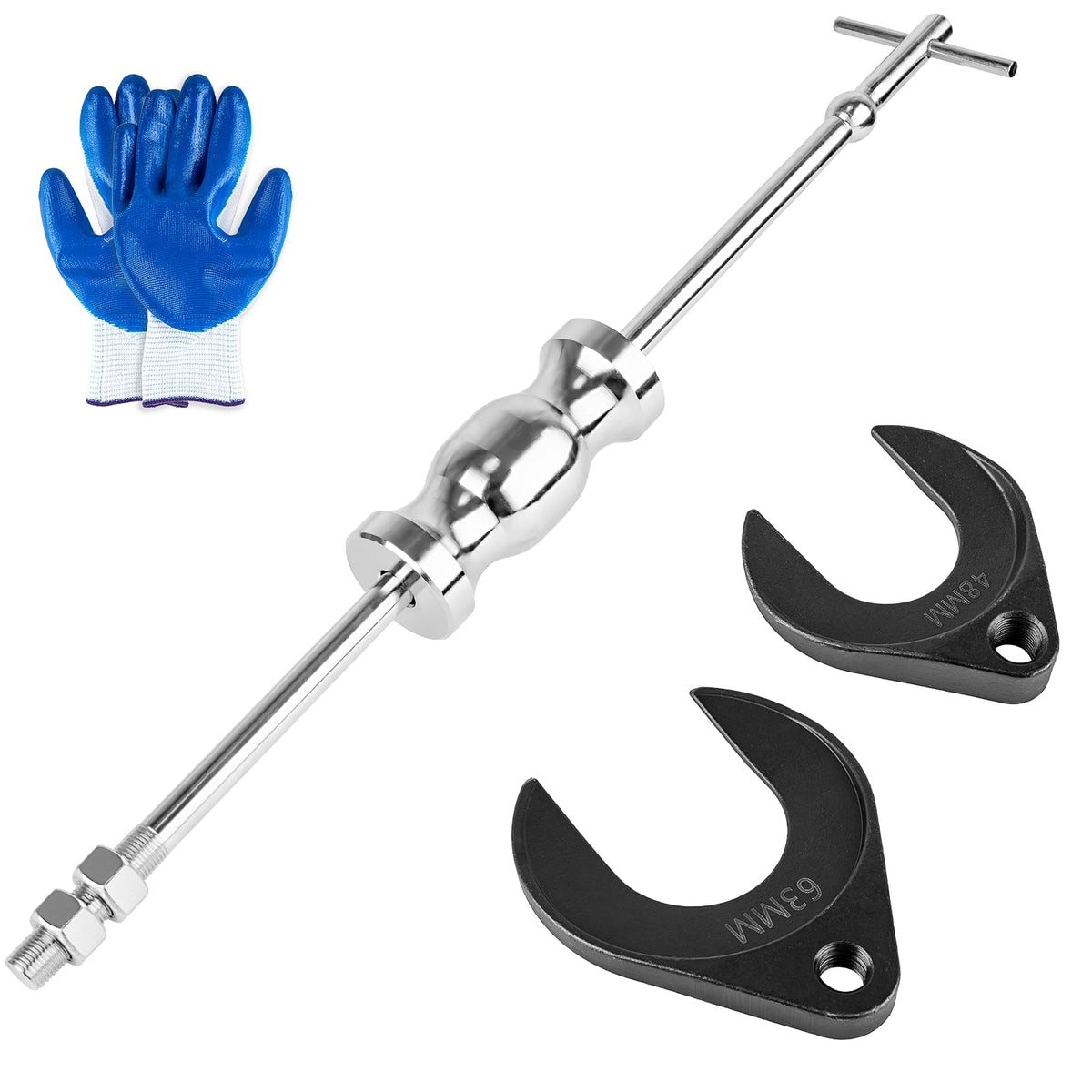

• 7 lb slide hammer with 23" T‑bar for high impact force and control
• 63mm and 48mm CV joint forks to fit a wide range of axle ends
• Matching nuts for secure threaded connection and one glove for safety

How durable and safe is the Clatoon axle puller for frequent shop use?

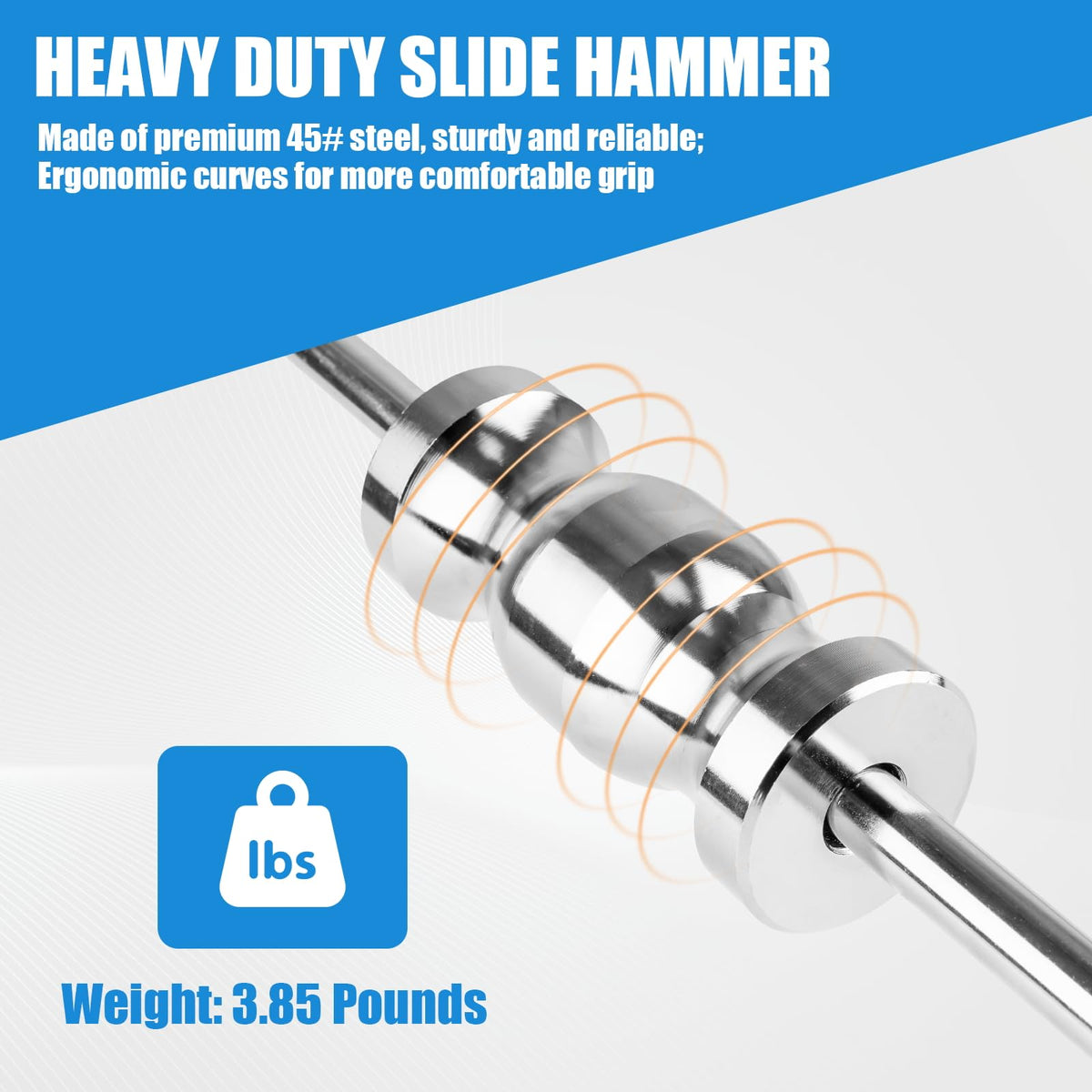

All steel components are made from heat‑treated 45# steel and finished with chrome or black plating for extended service life and wear resistance. The robust construction tolerates repeated hammer strikes while the short, heavy slide mass delivers strong pulls without excessive swinging, lowering accident risk when used properly.

• 45# heat‑treated steel cores resist bending and fatigue
• Plated surfaces protect against rust and reduce binding

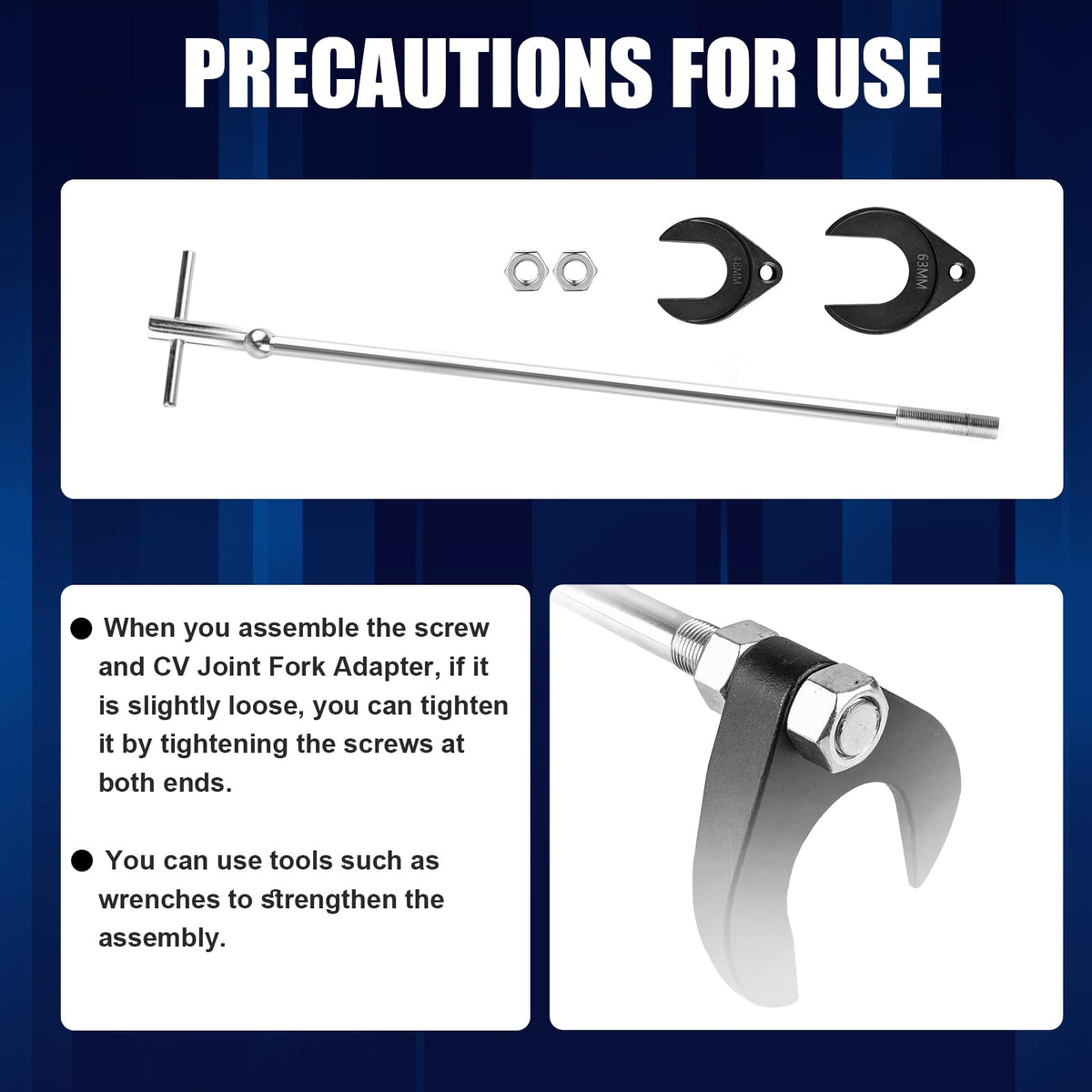

• Use precautions included: tighten screws fully and avoid directing tool toward your body

Will this kit work on my vehicle and how do I prepare?

The Clatoon kit fits most standard passenger cars and many light trucks, but larger commercial axles may need a size check before attempting removal. Measure the CV joint end and compare to the fork sizes; secure the threaded assembly tightly and, if needed, use a wrench to ensure a firm connection before sliding the hammer.

• Check axle diameter and joint feature against 63mm and 48mm forks
• Tighten screws and nuts at both ends to prevent assembly looseness
• Wear the included glove and keep the tool pointed away from your body

Who is this for: This Clatoon Inner CV Axle Puller set is aimed at automotive technicians, restoration enthusiasts, and home mechanics who need a reliable, high‑force removal tool that minimizes gearbox damage. If you regularly service driveline components or encounter seized axles, this kit provides a durable, ready‑to‑use solution; if you work on heavy commercial vehicles, confirm axle dimensions before purchase.
