CURT 2" Ball Mount, Class III — 4" Drop / 2" Rise, Gloss Black Powder-Coated, 7,500 lb Tow Capacity

CURT 45060 is a Class III 2" ball mount engineered to tow up to 7,500 lbs gross trailer weight with a 750 lb tongue weight, offering a 4" drop and 2" rise in a durable powder-coated steel design.

This ball mount is built for everyday towing tasks on pickup trucks and SUVs equipped with a standard 2" receiver. CNC-formed steel and robotic welding give the unit consistent strength and fit, while a gloss black powder coat resists corrosion, chips, and UV exposure. At 10-1/4" overall length, the 45060 balances ground clearance and trailer geometry to help keep trailers level across a wide range of tow setups.

Will this ball mount fit my vehicle's hitch receiver?

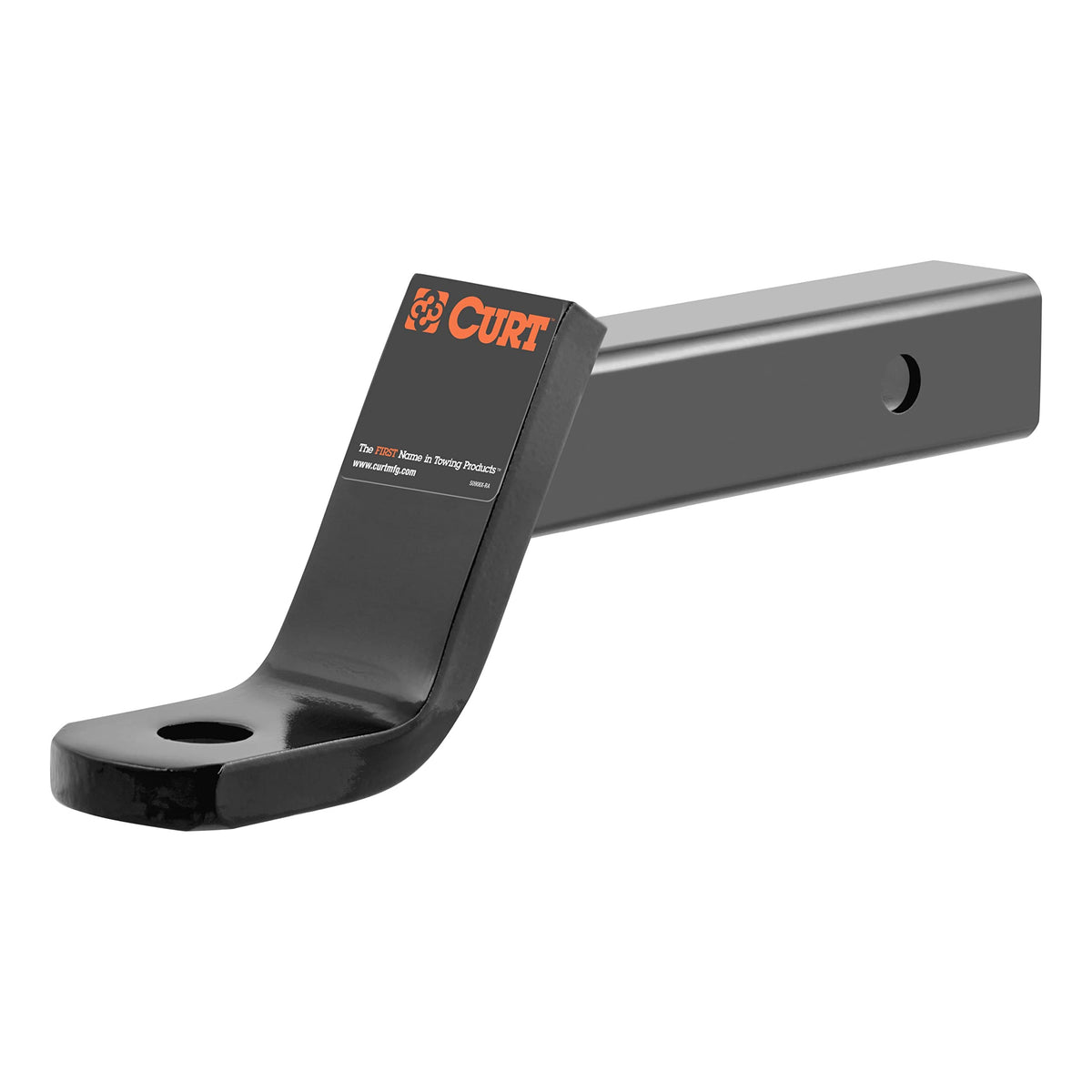

If your vehicle has a standard 2" x 2" receiver, the CURT 45060 is designed to slide right in. The mount uses a common rounded shank profile for easy insertion and accepts a hitch pin (sold separately) to secure it in place.

• Shank size: 2" x 2" to match industry-standard receivers
• Rounded shank for straightforward installation

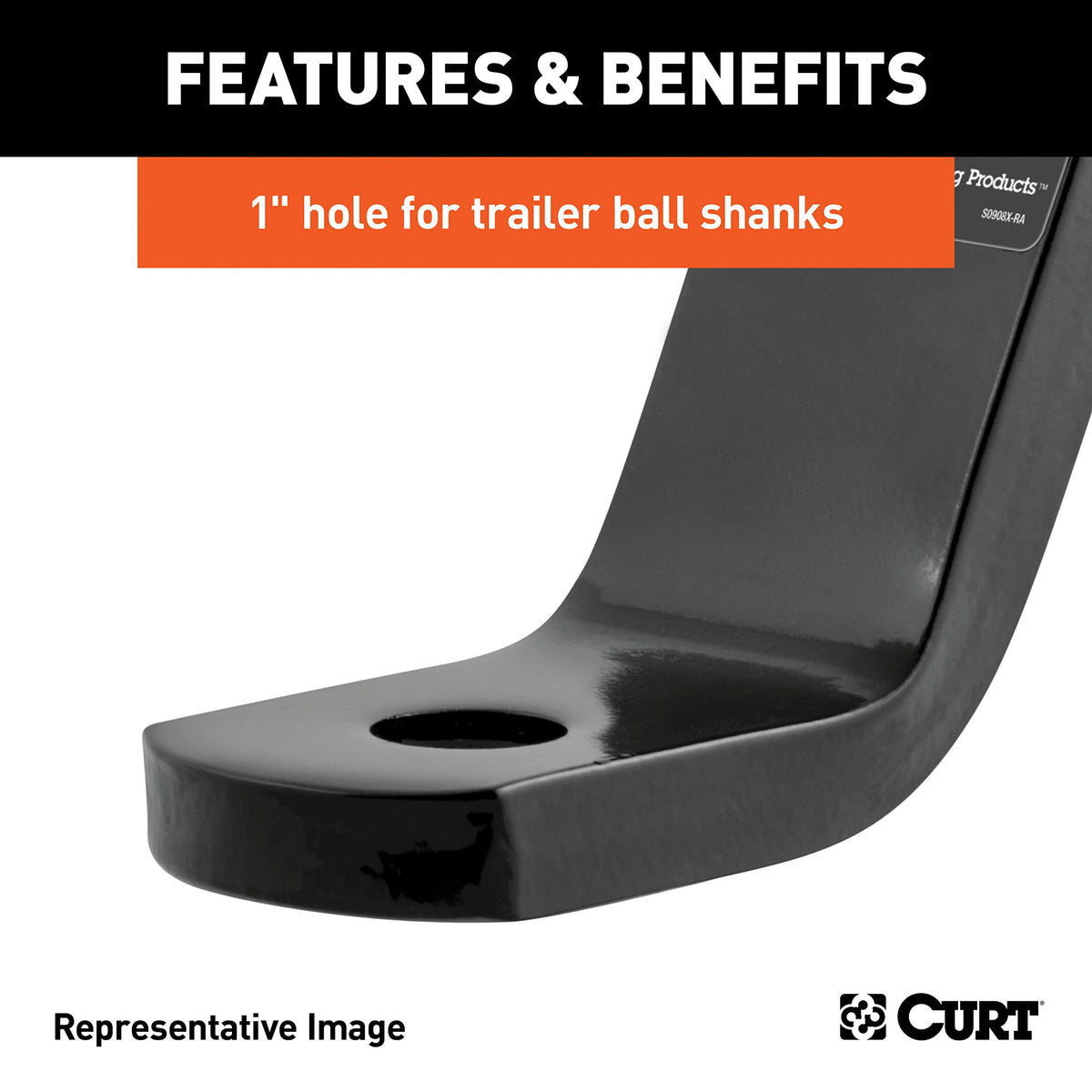

• Requires a 1" diameter trailer ball (sold separately)
• Use a hitch pin or locking pin to secure the mount (not included)

What towing capacities and dimensions should I expect?

The 45060 is rated for up to 7,500 lbs gross trailer weight (GTW) with a 750 lb tongue weight (TW). Always observe the lowest rating among vehicle, hitch, ball, and trailer — never exceed any single component's limit.

• Gross trailer weight (GTW): 7,500 lbs
• Tongue weight (TW): 750 lbs

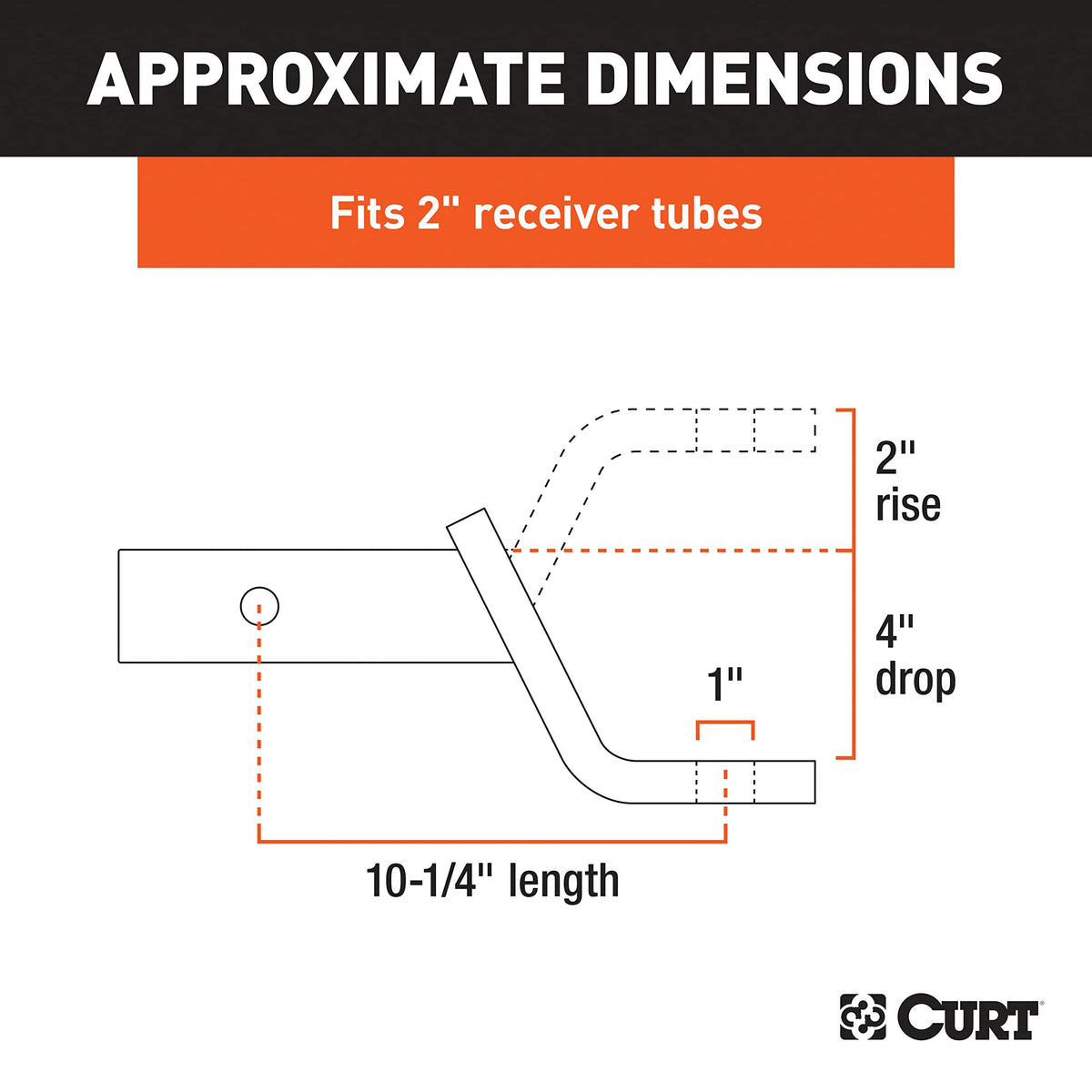

• Overall length: 10-1/4" for balanced clearance

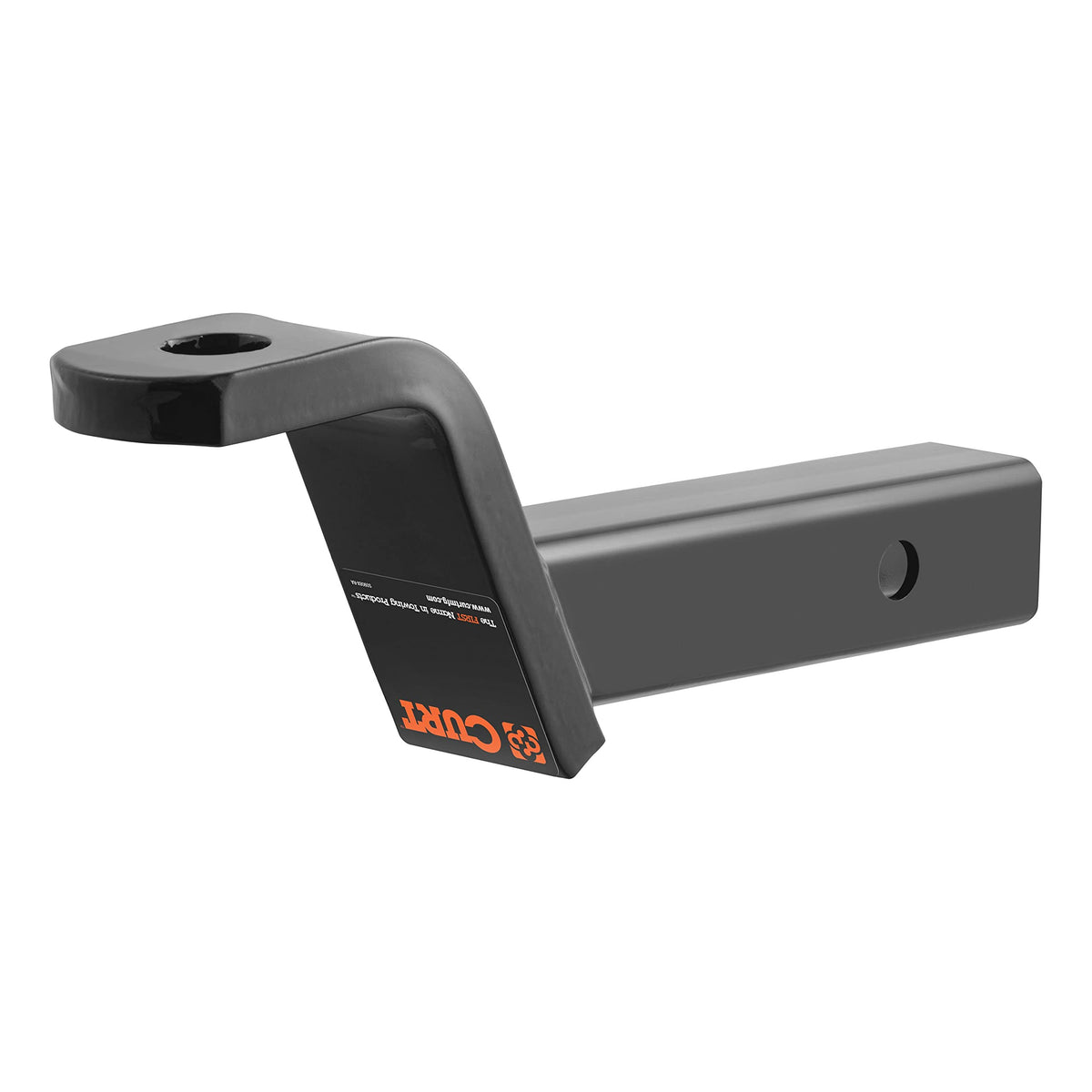

• Drop: 4" and Rise: 2"—choose orientation to achieve level towing

How is the 45060 built to last on the road?

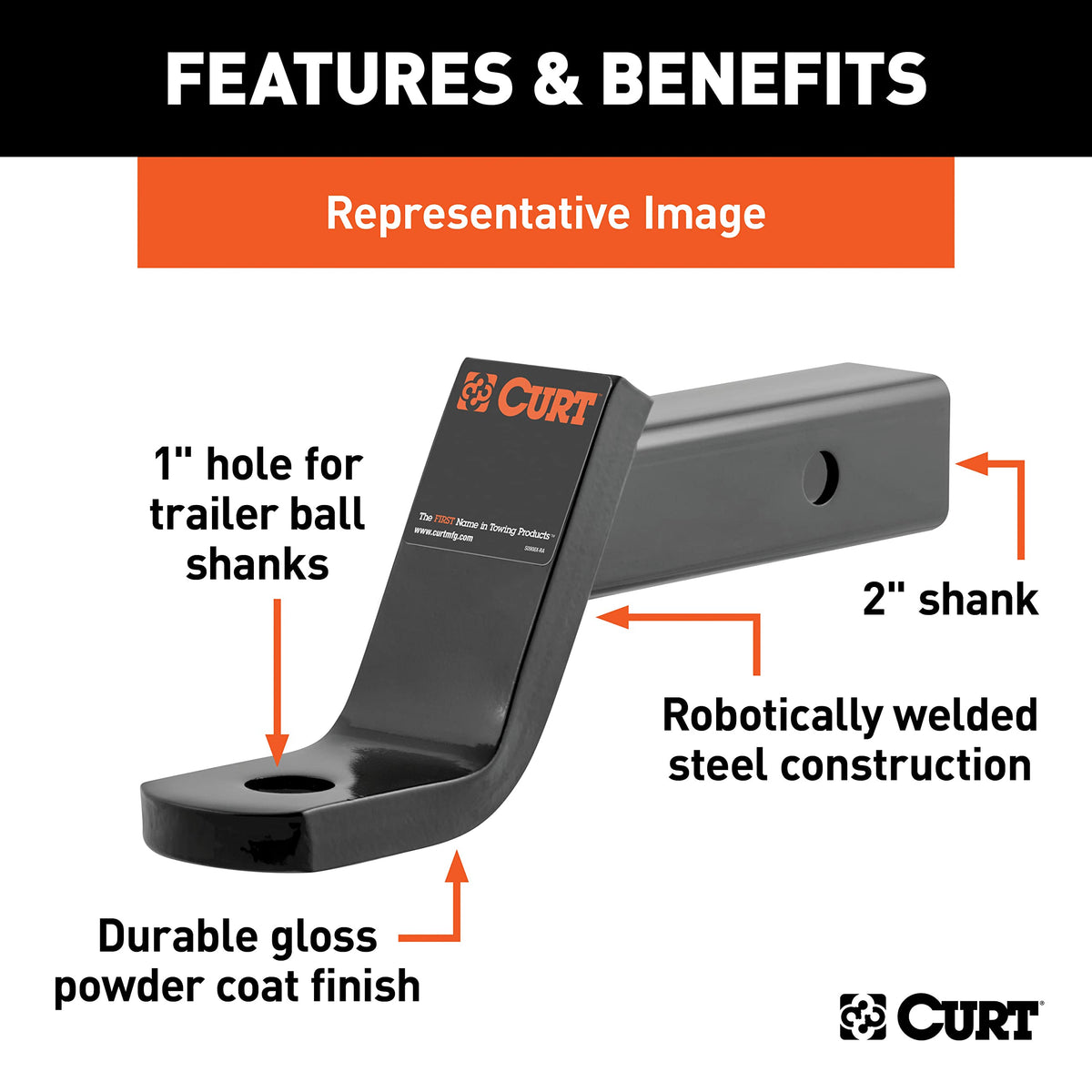

CURT manufactures this Class III mount using high-strength steel, CNC forming, and robotic welding to ensure consistent structural integrity. A mechanical descaling process prepares the metal for a glossy black powder coat that protects against rust and road wear.

• CNC-formed steel construction for precision and strength
• Robotic welding for uniform, durable welds
• Mechanically descaled surface for improved coating adhesion
• Gloss black powder coat resists corrosion, scratches, and UV

What accessories or installation steps should I plan for?

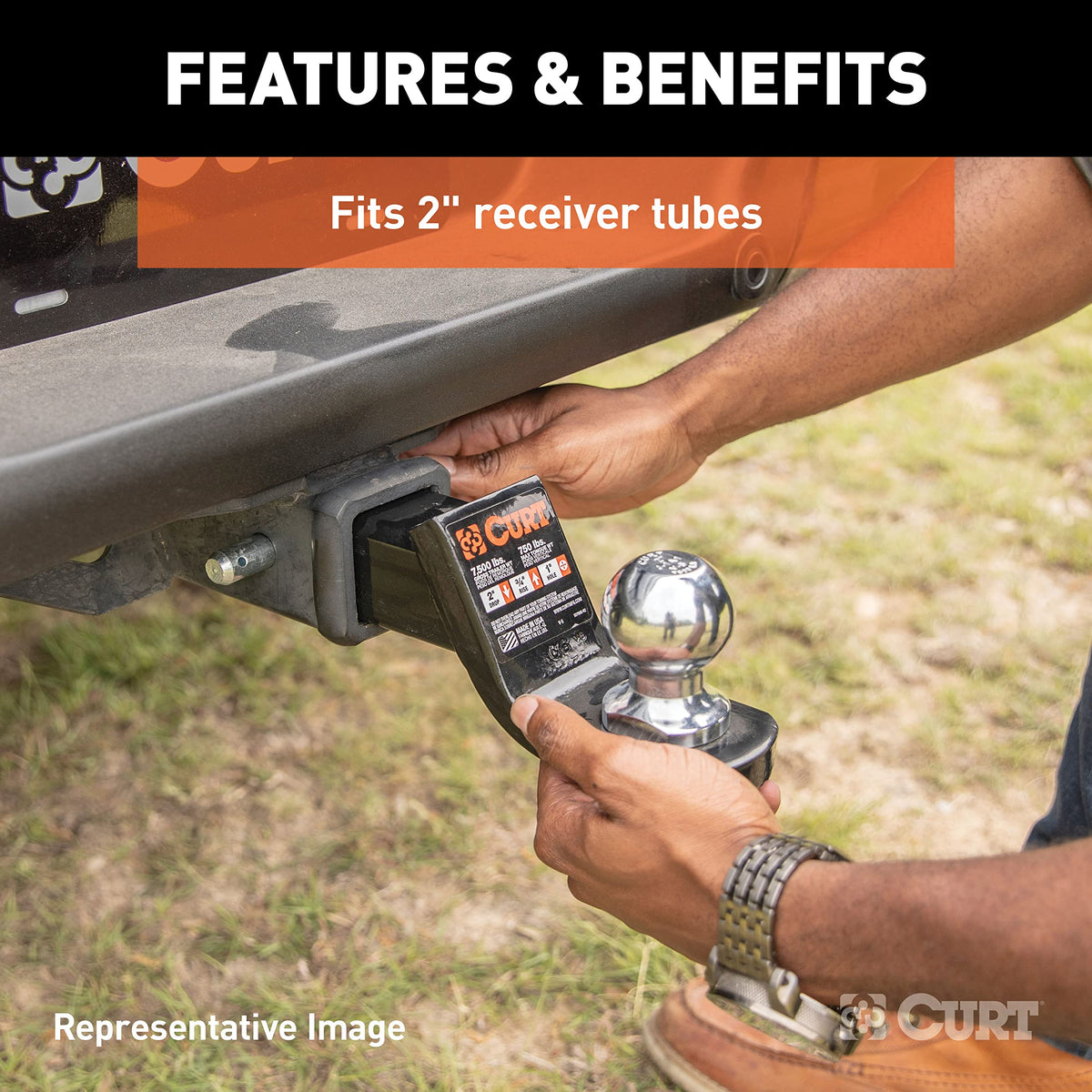

Basic installation takes seconds: slide the shank into the receiver and secure it with a hitch pin (sold separately). You will also need a 1" diameter trailer ball with a matching shank to attach the coupler; select a ball rated at or above your intended GTW.

• Install with a standard 1" hitch pin or locking pin (not included)
• Trailer ball with 1" diameter shank required (sold separately)
• Verify vehicle and hitch ratings before towing
• Flip mount orientation to use either 4" drop or 2" rise for level towing

Who this is for: The CURT 45060 Class III 2" ball mount is aimed at truck and SUV owners who tow utility trailers, boat trailers, campers, and other mid-sized loads under 7,500 lbs. It fits drivers who want a durable, easy-to-install mount with corrosion resistance and the flexibility of both drop and rise settings. Choose this mount if you need a reliable, industry-standard solution that pairs with 2" receivers and common 1" trailer balls for everyday towing needs.
