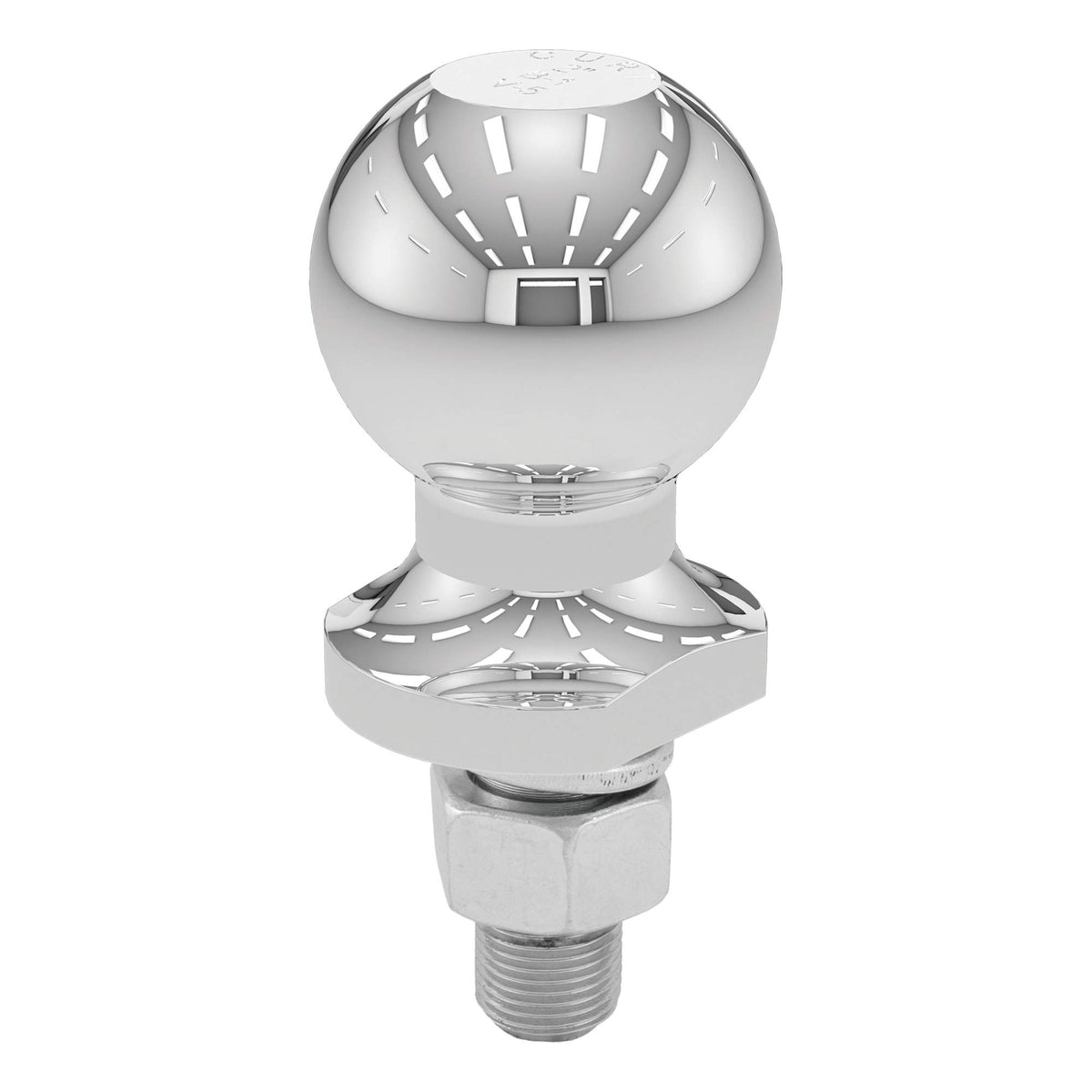

CURT 2-inch Hitch Ball for ATVs, UTVs & Lawn Tractors — Chrome, 2,000 lb, 5/8 x 1-3/4in Shank

The CURT 40097 is a chrome-plated 2-inch diameter hitch ball engineered to let ATVs, UTVs and lawn tractors tow up to 2,000 lb with an industry-standard fit and durable hot-forged construction.

Designed to convert your four-wheeler, UTV or lawn tractor into a reliable towing rig, the CURT 40097 combines hot-forged steel strength, a corrosion-resistant chrome finish and fine-thread mounting for a secure connection. It meets U.S. VESC V-5 test standards and is built to accept standard 2-inch trailer couplers, making it a practical choice for hauling small utility trailers, landscape trailers, gear haulers and other light loads where the lowest-rated component determines capacity.

How does this hitch ball handle daily outdoor use?

The CURT 40097 is finished in chrome to resist rust and abrasion from exposure to rain, mud and snow, while the underlying hot-forged steel provides the structural durability needed for fieldwork. Its finish and material selection were chosen to extend service life in rough environments without frequent replacement.

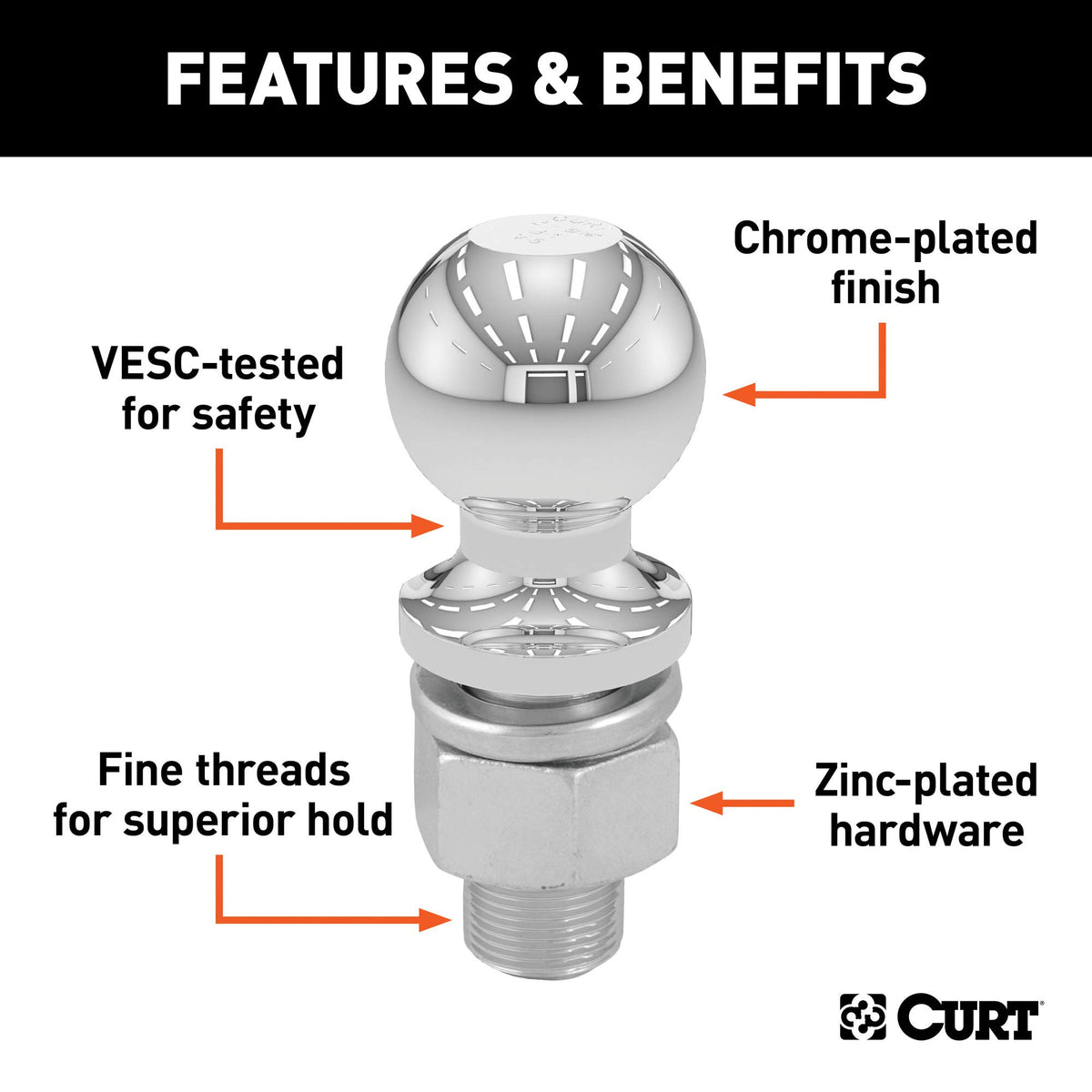

• Chrome-plated finish for corrosion resistance
• Hot-forged steel core for impact and load strength
• Tested to U.S. VESC V-5 standards for rugged conditions

Will this ball fit my trailer coupler and ATV/lawn tractor mount?

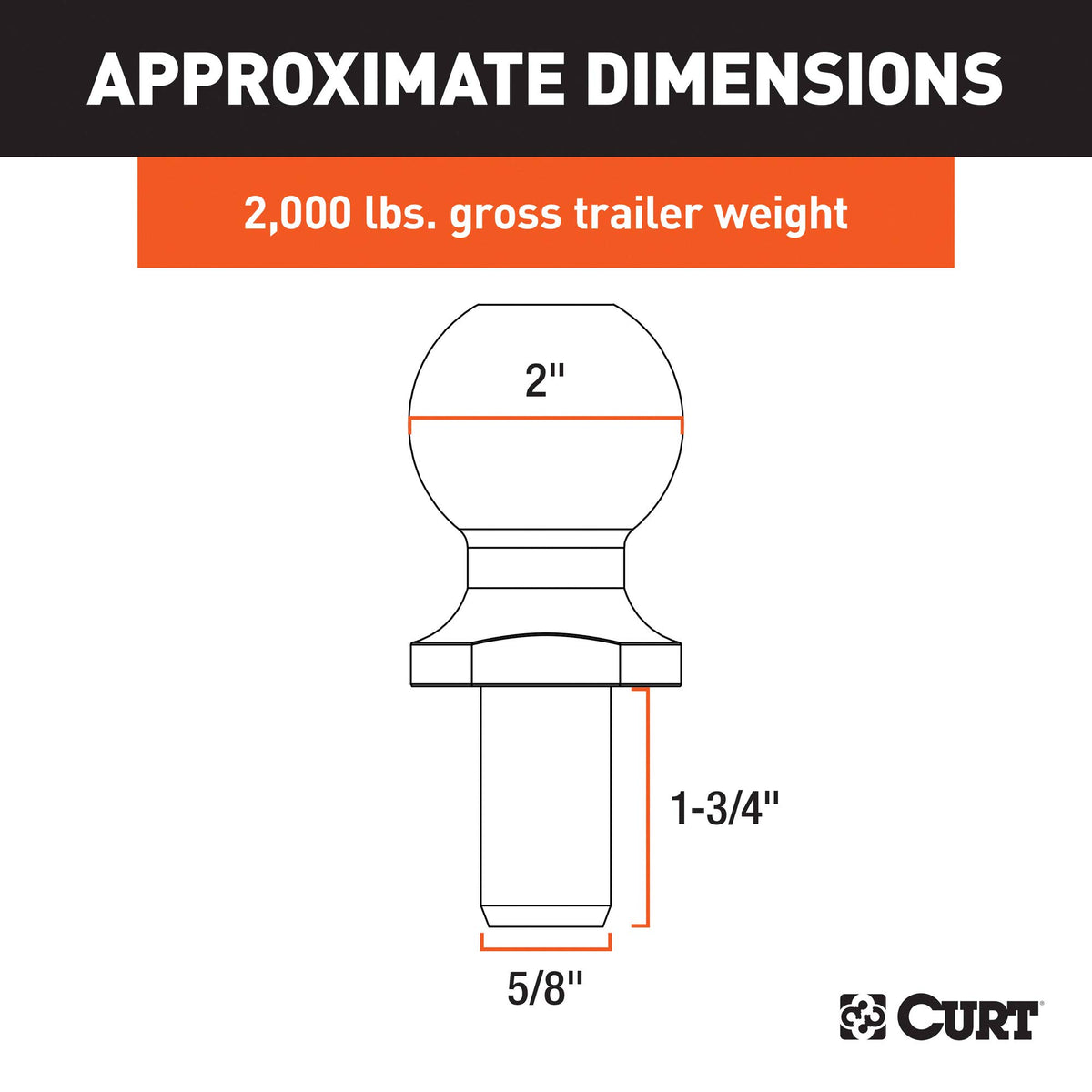

This trailer ball uses industry-standard dimensions to ensure broad compatibility: a 2.00-inch ball diameter for standard 2" couplers and a 5/8" diameter shank that measures 1-3/4" long for mounting. The fine-thread shank and included hardware secure the ball to typical ATV tongues, lawn tractor tongues or small ball mounts.

• 2.00" ball diameter fits standard 2" couplers
• 5/8" diameter shank, 1-3/4" length for common tongues
• Fine threads plus zinc nut and helical lock washer for firm installation

What towing capacity and limits should I expect?

The CURT 40097 is rated for a gross trailer weight up to 2,000 lb, suitable for smaller utility and landscape trailers or light campers when matched with compatible towing components. Always observe the lowest-rated element in the towing system—vehicle tongue rating, hitch, ball and coupler—to ensure safe operation.

• 2,000 lb gross trailer weight maximum rating
• Capacity limited by the lowest-rated towing component in the system
• Intended for light-duty towing with ATVs, UTVs and lawn tractors

How do I install and maintain the CURT 40097?

Installation requires threading the shank through the tongue hole and tightening the included zinc hex nut against the helical lock washer to the recommended torque for a secure hold. Maintenance is minimal: keep the chrome surface clean, inspect threads and hardware periodically, and re-torque after initial use.

• Includes zinc-plated hex nut and helical lock washer for secure fit
• Fine threads provide enhanced holding strength; torque to 90 lb-ft as required
• Periodic inspection and cleaning preserve performance and safety

Who is this for? The CURT 40097 is aimed at owners of ATVs, UTVs and lawn tractors who need a dependable, low-profile towing solution for landscape work, trail hauling or campsite chores. If you tow small trailers or gear frequently, want straightforward compatibility with 2" couplers, and prefer a rugged chrome finish with proven mechanical strength, this hitch ball is a practical, cost-effective upgrade for light-duty towing tasks.
