CURT 2" x 2" Receiver Tube 6" Weld-On Raw Steel with 1/2" Reinforcement Collar

CURT 49060 is a 6-inch, 2" x 2" raw steel receiver tube designed for weld-on towing fabrication with a 1/2" reinforcement collar and pre-drilled pin hole.

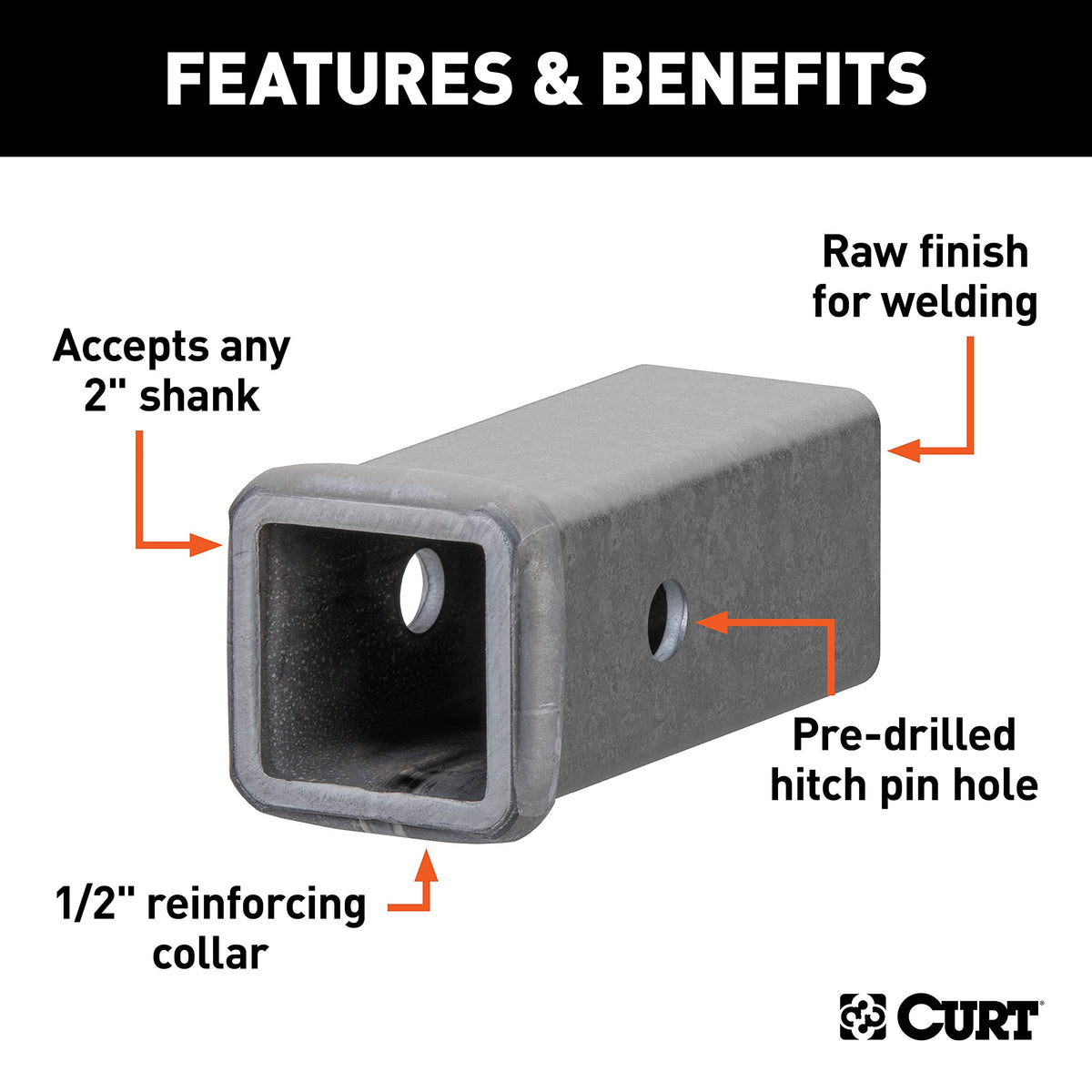

This weld-on receiver tube from CURT is a basic building block for custom hitch projects and repair work. Manufactured from solid steel and supplied with a raw finish, the 6-inch tube accepts standard 2" x 2" shanks and is pre-drilled for a hitch pin, making it convenient for DIY fabrication, trailer shops, and vehicle modification tasks. The reinforced collar adds rigidity where the accessory inserts, and the raw surface is ready for welding, cutting, or painting to suit your build.

How does this receiver tube fit standard hitch accessories?

The CURT 49060 uses industry-standard inside dimensions for 2" x 2" shanks, so it will accept most ball mounts, tow hooks, cargo carriers, and other common hitch-mounted accessories. Because it’s a plain receiver tube, compatibility depends on the accessory shank rather than vehicle model.

• Accepts any 2" x 2" shank accessory
• Pre-drilled hole aligns with standard 5/8" hitch pins
• Works as extension or replacement receiver section

What makes this tube strong enough for towing projects?

Constructed of solid steel, the tube is intended as a heavy-duty fabrication component; the welded-in collar increases bearing area around the opening to reduce stress. While the raw tube is robust, final load capacity depends on weld quality, attachment method, and the rest of the towing assembly.

• Solid-steel construction for structural strength
• 1/2" reinforcement collar at the receiver mouth
• Pre-drilled pin hole to secure inserted accessories

Can I weld this directly to my frame or custom hitch?

Yes — the raw finish is intended specifically for welding into place. The uncoated surface gives welders a clean substrate; however, proper preparation like degreasing and fit-up is important for strong joints. Use certified welding practices and inspect welds before towing.

• Raw steel finish ready for MIG, TIG, or stick welding
• Prepare surfaces and follow welding codes for structural connections
• Inspect and test welds; consider professional installation for critical loads

What measurements and features should I expect?

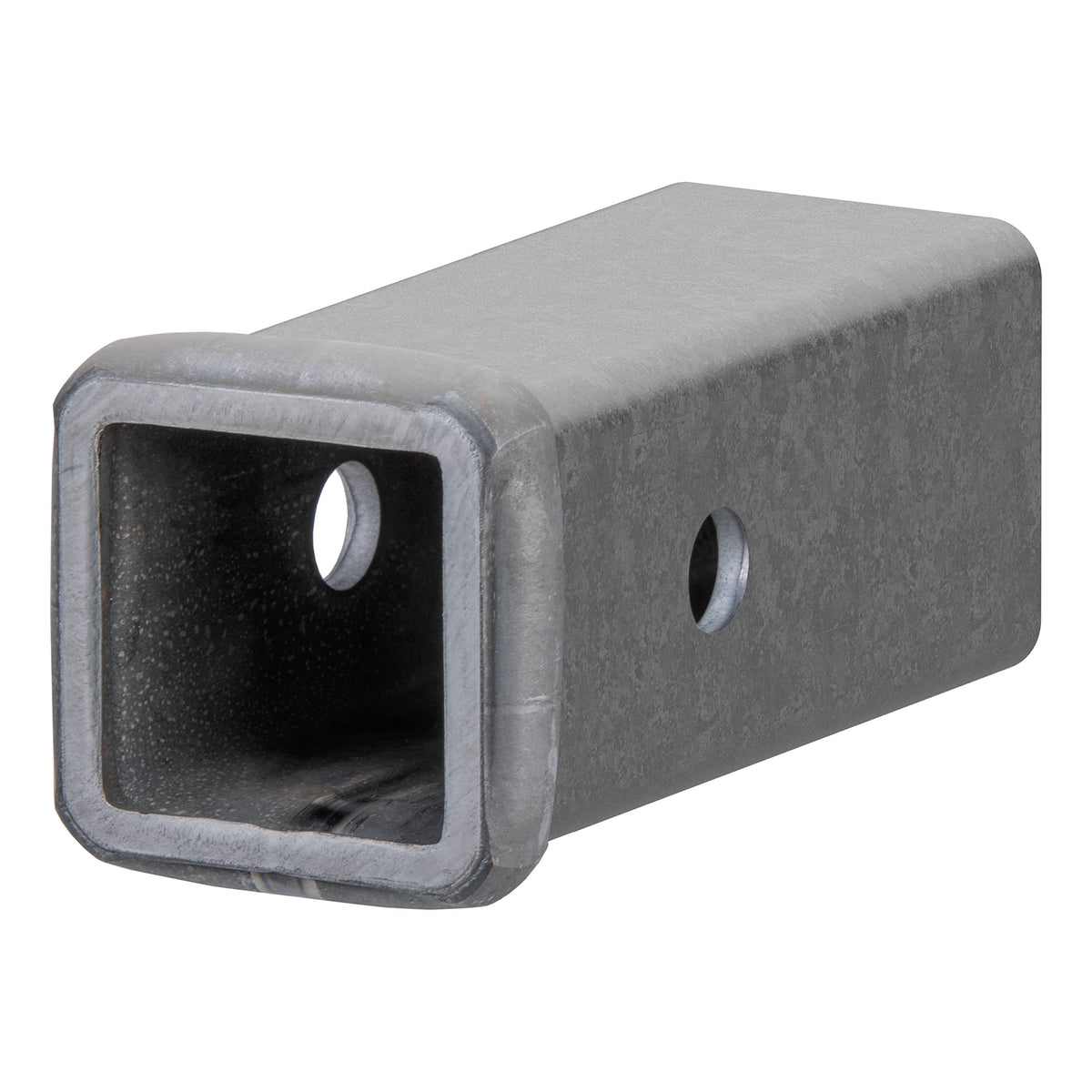

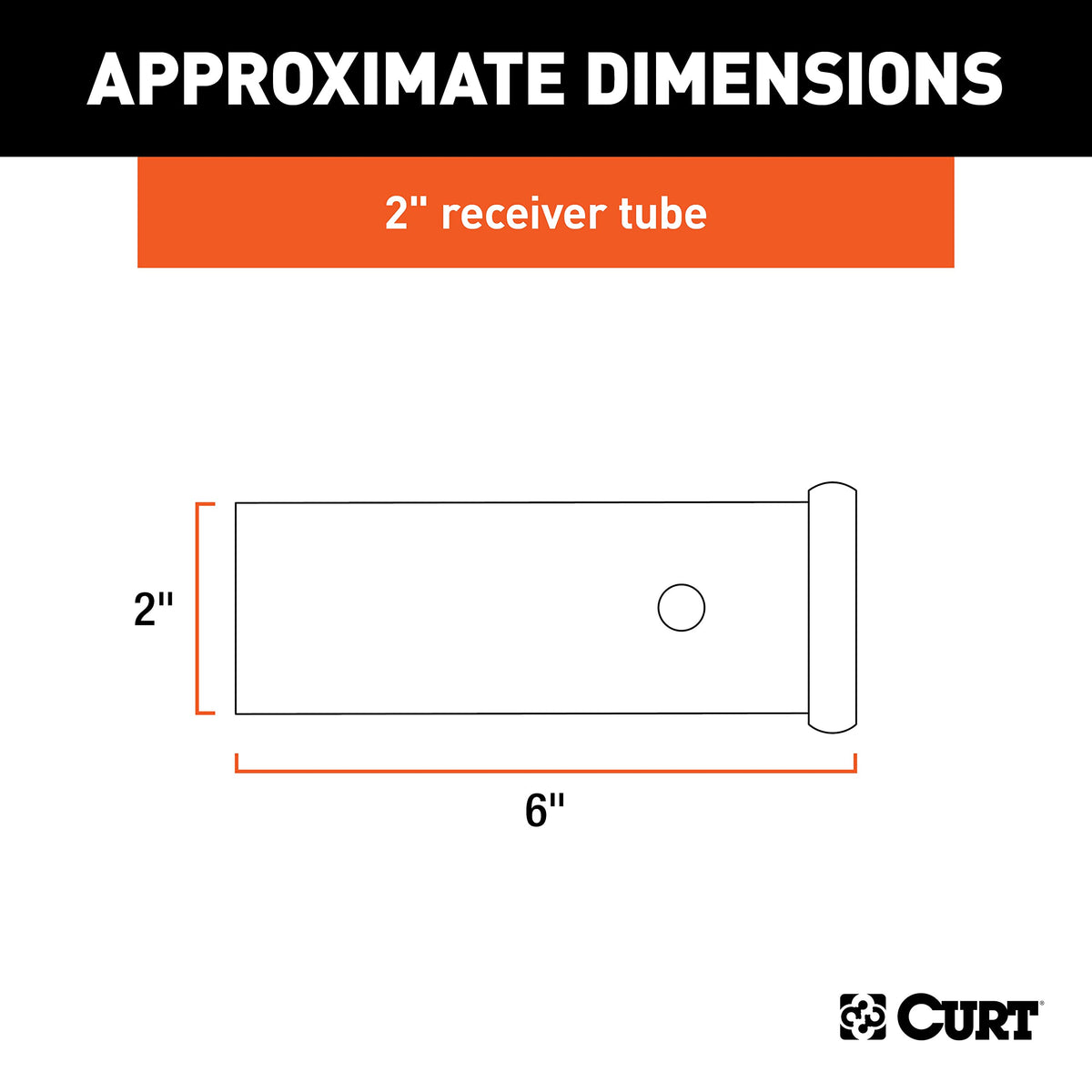

The tube measures 6 inches long with a 2" x 2" internal opening to match standard receiver dimensions. It includes a 1/2" reinforcing collar around the mouth and a pre-drilled hole for hitch pin retention, making it straightforward to use in many fabrication scenarios.

• Overall length: 6 inches
• Receiver opening: 2" x 2" (internal)
• Reinforcement collar thickness: 1/2"; pre-drilled hitch pin hole

Who this product is for: The CURT 49060 receiver tube is aimed at do-it-yourself fabricators, welding shops, and vehicle owners who need a reliable, weld-on 2" receiver section for custom trailers, recovery rigs, or repair projects. It’s ideal for anyone comfortable with welding and structural assembly who wants a straightforward, industry-standard receiver component to integrate into a larger towing or mounting system.
