CURT 7-Way to 4/5-Way Trailer Light Adapter 57004 — LED-compatible with built-in resistors

The CURT 57004 converts a vehicle's 7-way RV blade socket to accept 4-way or 5-way flat trailer plugs and includes built-in resistors to make LED trailer lights compatible with vehicles using lamp-detecting electronics.

When tow vehicles and trailers use different connector standards, you don't need to rewire either side. This compact, plug-and-play adapter lets you match a 7-way RV blade vehicle outlet to a trailer's 4-way or 5-way flat plug. It is designed to work with LED-equipped trailers by providing the resistance some vehicle control modules require to register lamps correctly. No splicing or special tools are required — simply plug the adapter into the vehicle socket and insert the trailer plug.

How does this adapter let LED trailer lights work with modern vehicles?

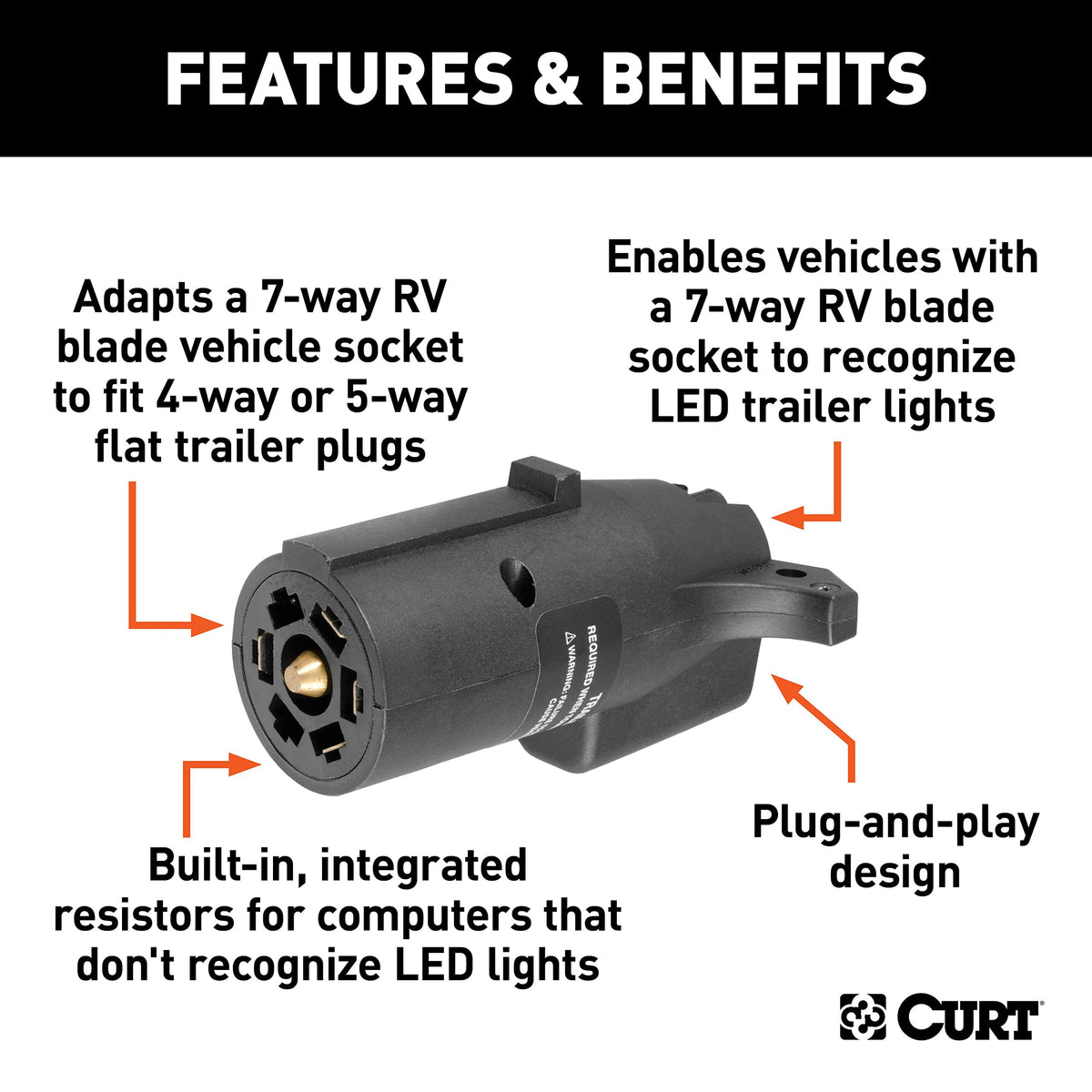

The adapter includes integrated resistors that simulate the electrical load of incandescent bulbs so vehicles with bulb-monitoring systems will recognize trailer lights. This avoids error messages, hyper-flashing, or disabled circuits that can occur when low-current LEDs are used without load equalization. It is specifically tuned for the common detection thresholds of many passenger vehicles and light trucks.

• Built-in resistors to increase circuit load for LED compatibility
• Pre-wired to match 7-way vehicle pinouts to 4/5-way flat trailers
• No external ballast or extra connectors required

Which connector types does the 57004 support and how do I use it?

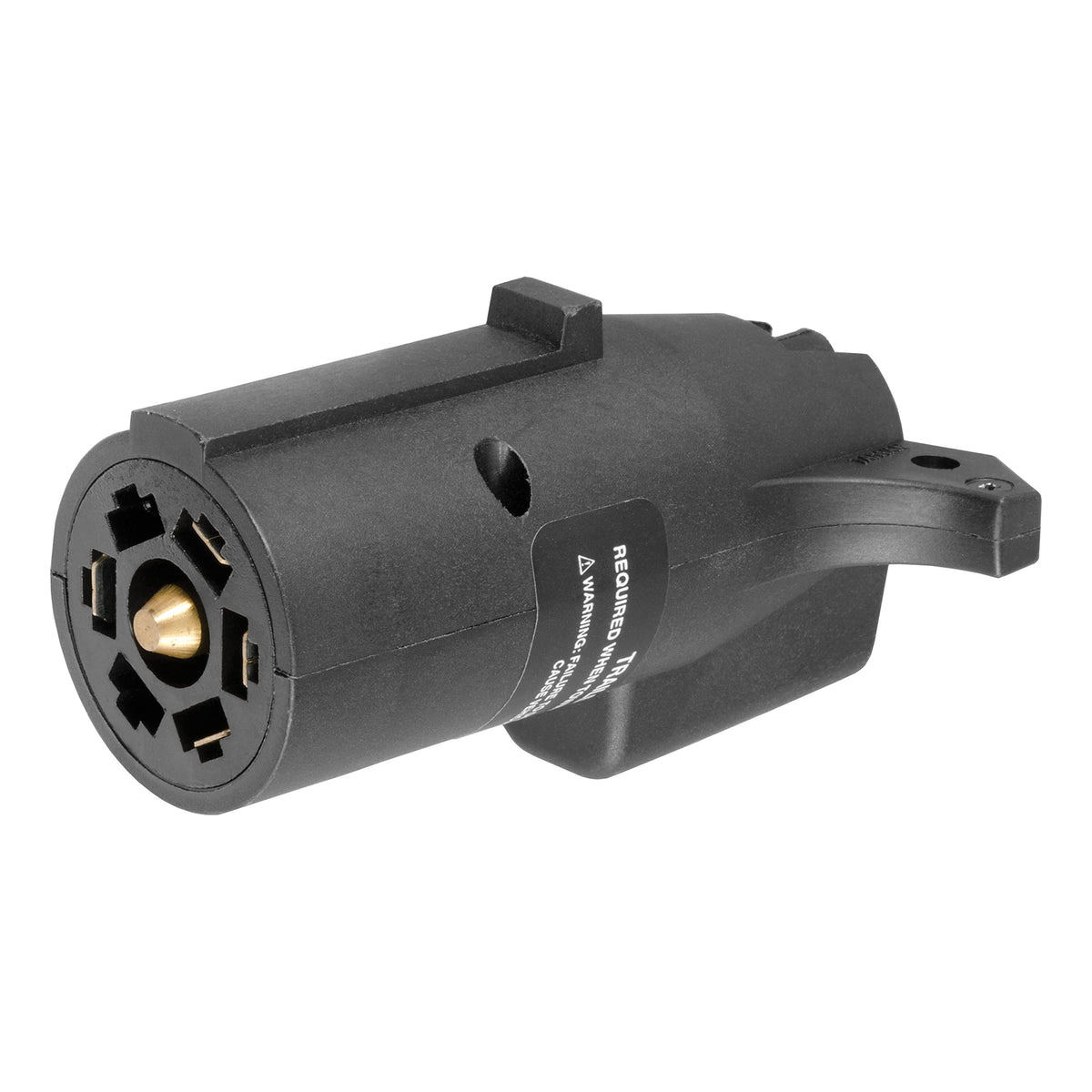

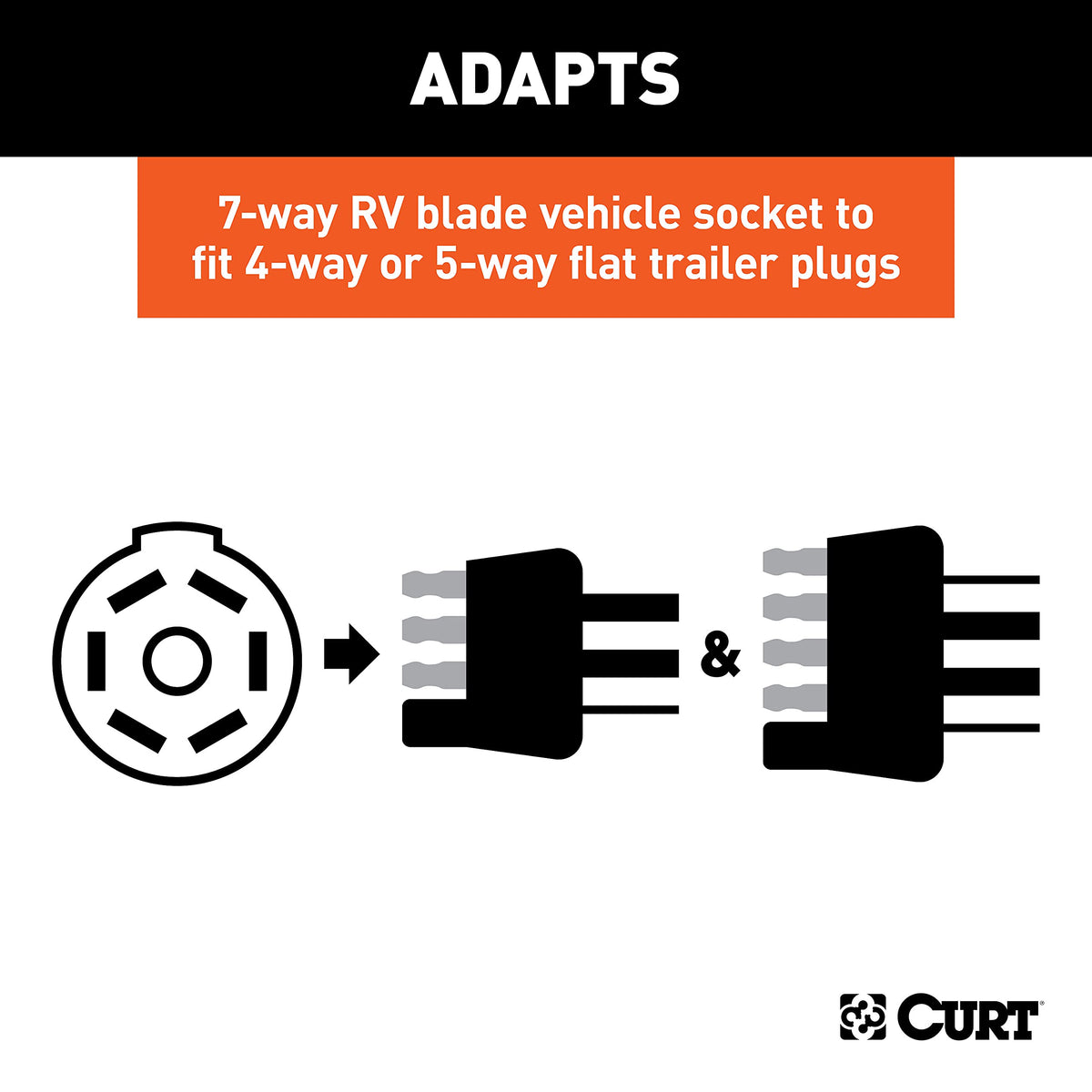

The adapter is made to plug into a 7-way RV blade socket on your tow vehicle and provide a mating 4-way flat or 5-way flat outlet for the trailer. Using it is straightforward: insert the adapter into the vehicle's 7-way port, then plug the trailer's flat connector into the adapter. It avoids the need to modify wiring on the vehicle or trailer.

• Input: standard 7-way RV blade vehicle socket

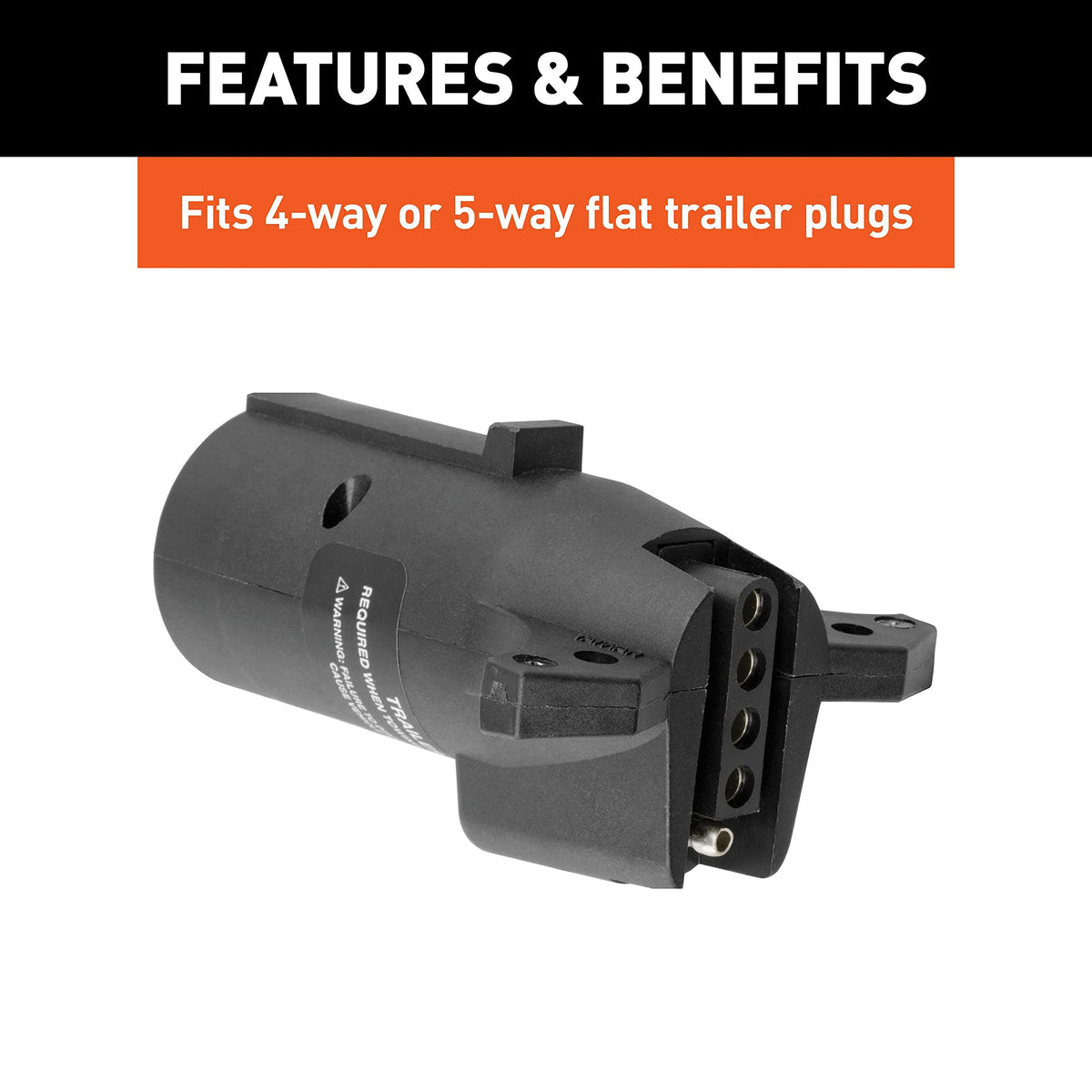

• Outputs: compatible 4-way flat and 5-way flat trailer connectors
• Simple plug-and-play installation with no splicing

Will this adapter handle braking, auxiliary power, and reverse lights?

The CURT 57004 routes the typical lighting circuits required for running lights, turn signals, and brakes between the vehicle and trailer through the appropriate pins. It adapts the common lighting and ground functions; however, specific auxiliary or brake-controller signals depend on how the trailer and vehicle pinouts align. Always verify connector pin assignments for systems like electric brakes or auxiliary power before towing.

• Supports running, turn, and stop light circuits
• Designed for trailer LED lighting compatibility
• Check vehicle/trailer pinouts for electric brake or auxiliary power needs

Who is this for: The CURT 57004 is aimed at drivers who tow trailers with a flat 4-way or 5-way plug but have a tow vehicle equipped with a 7-way RV blade socket — especially when the trailer uses LED lights and the vehicle has lamp-detection electronics. It’s a practical solution for occasional and frequent tow rigs, rental situations, and fleets that need a reliable, no-modification adapter to ensure lights are correctly detected and function safely on the road.

Features at a glance:

• Converts 7-way RV blade to 4-way or 5-way flat trailer connector
• Built-in resistors for LED compatibility with modern vehicle electronics
• Plug-and-play design — no splicing or wiring required
