CURT Class III 2-inch Ball Mount, 2x2 Shank — 7,500 lb Capacity, Gloss Black

The CURT 45260 is a Class III 2" ball mount engineered to tow up to 7,500 lb gross trailer weight and 750 lb tongue weight with a 2" x 2" shank for standard receivers.

This solid-steel ball mount from CURT delivers a reliable, corrosion-resistant solution for towing heavier trailers behind pickups and SUVs. CNC-formed and robotically welded for consistent strength, the 45260 combines a gloss black powder coat with practical rise/drop options to help you achieve a level tow and long service life. It accepts a standard 1"-shank trailer ball (sold separately) and installs quickly into any industry-standard 2" receiver.

How much weight can this ball mount safely tow?

The CURT 45260 ball mount is rated for a maximum gross trailer weight of 7,500 pounds and a tongue weight of 750 pounds. Always confirm the lowest-rated component in your towing system — vehicle, hitch, ball mount, and trailer — before loading.

• Gross trailer weight (GTW): 7,500 lb
• Tongue weight (TW): 750 lb
• Capacity limited to the lowest-rated towing component

Will it fit my vehicle’s hitch and trailer ball?

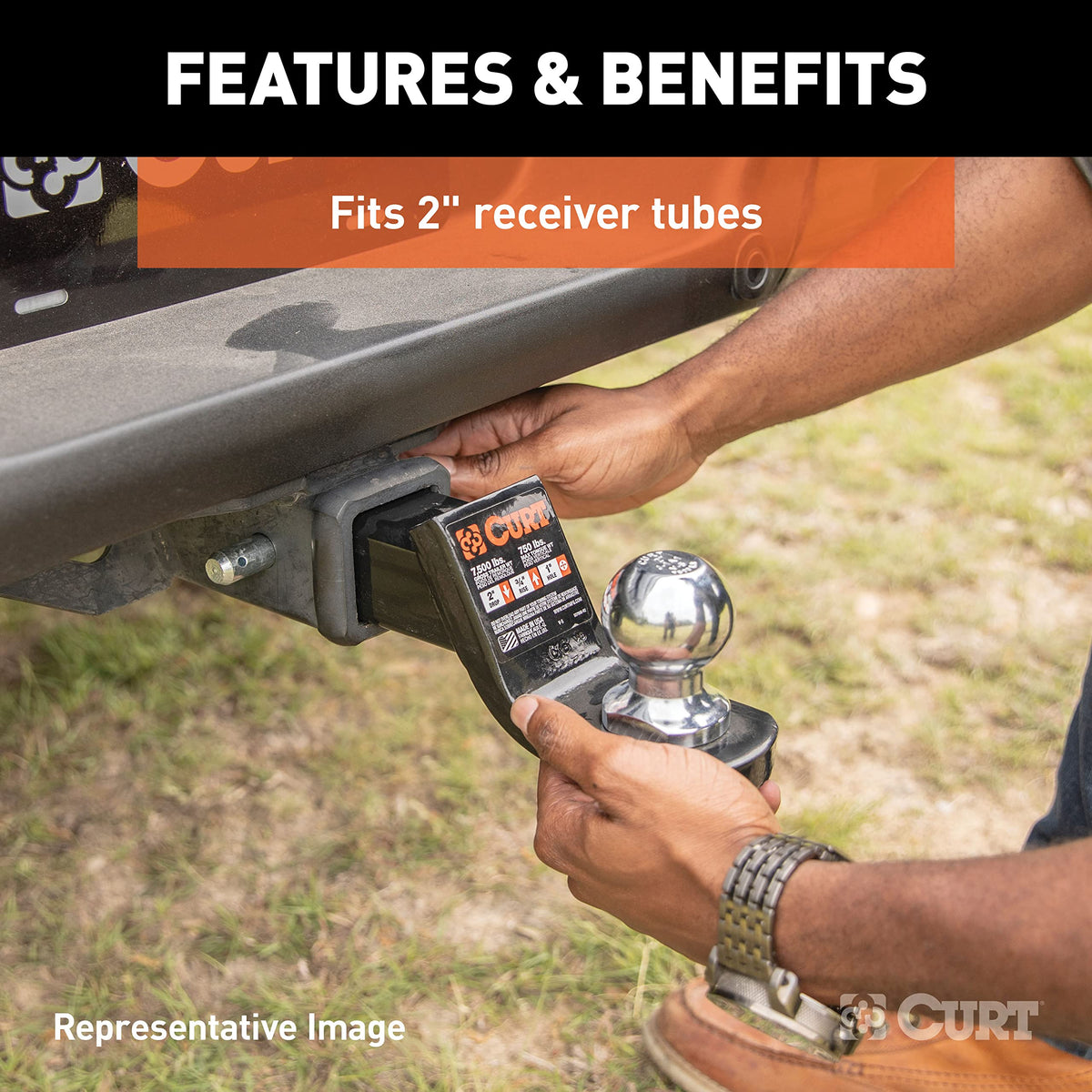

This mount uses a 2" x 2" shank sized for common 2" receiver hitches on trucks and many SUVs. The hitch hole accepts a 1"-diameter trailer ball shank, so choose a compatible ball and secure it before towing.

• Shank size: 2" x 2" to fit standard 2" receivers

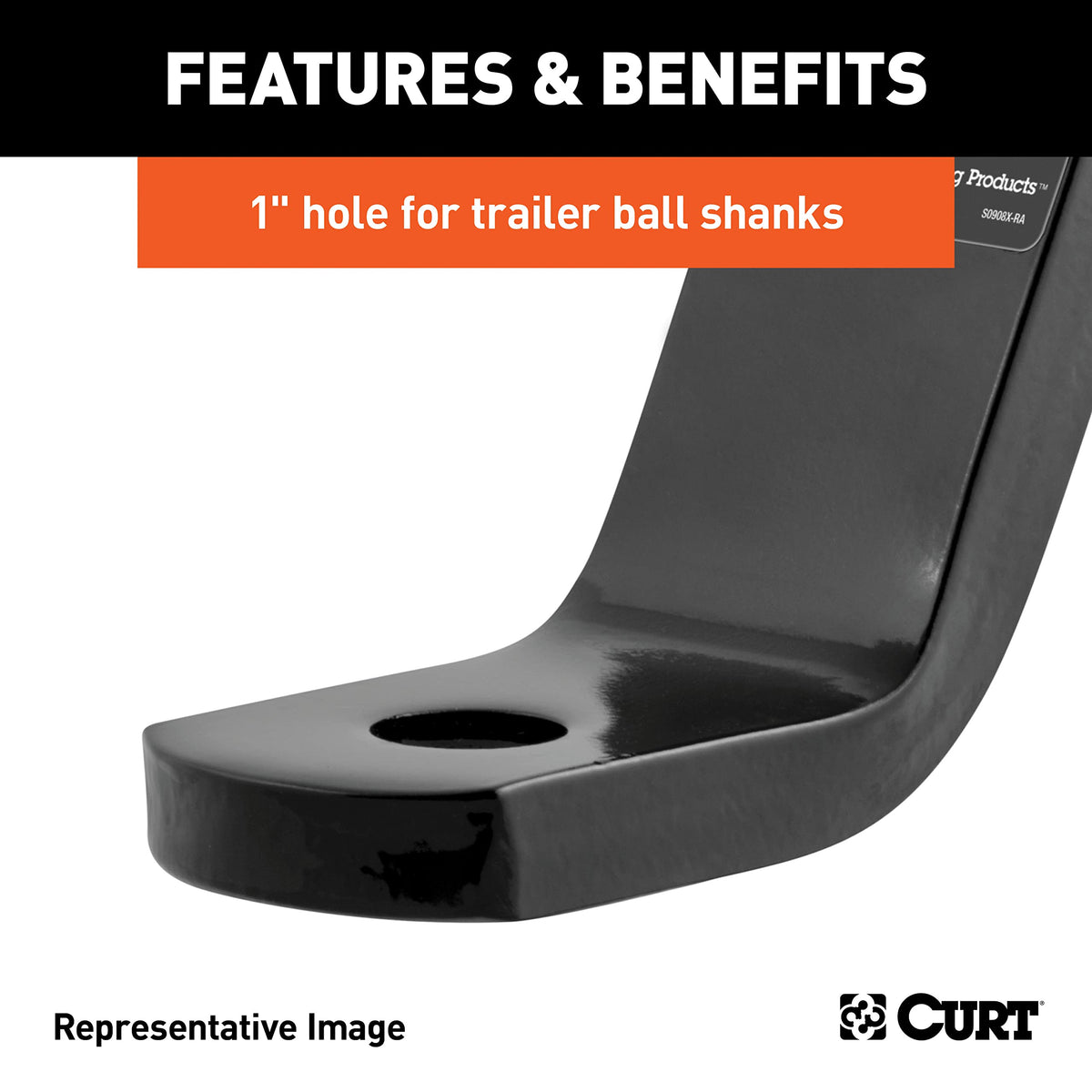

• Ball hole: 1" diameter (trailer ball sold separately)
• Secures with a hitch pin or lock (not included)

What are the dimensions and rise/drop options?

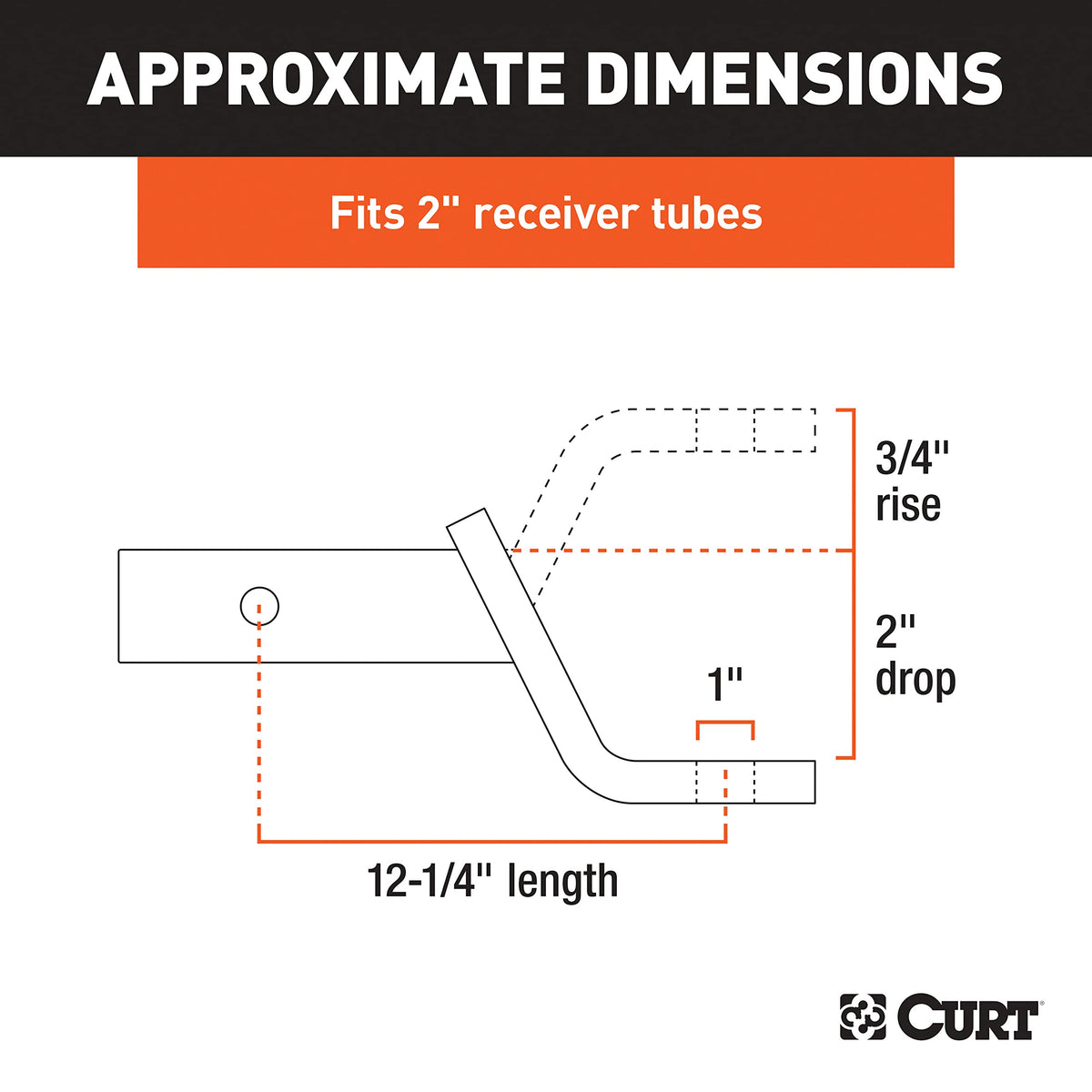

The CURT 45260 provides a fixed length and modest vertical adjustment to help level your trailer. It offers a 2" drop and a 3/4" rise from the shank centerline, with an overall length suited for common towing setups.

• Overall length: 12-1/4"
• Drop: 2" for lower trailer couplers
• Rise: 3/4" for slightly higher couplers

How does the finish and construction protect the ball mount?

CURT forms and robotically welds the mount to maintain consistent strength across units, then mechanically descales each piece to create an even surface for coating. The glossy black powder coat resists corrosion, chips, and UV exposure to keep the mount functioning in harsh road conditions.

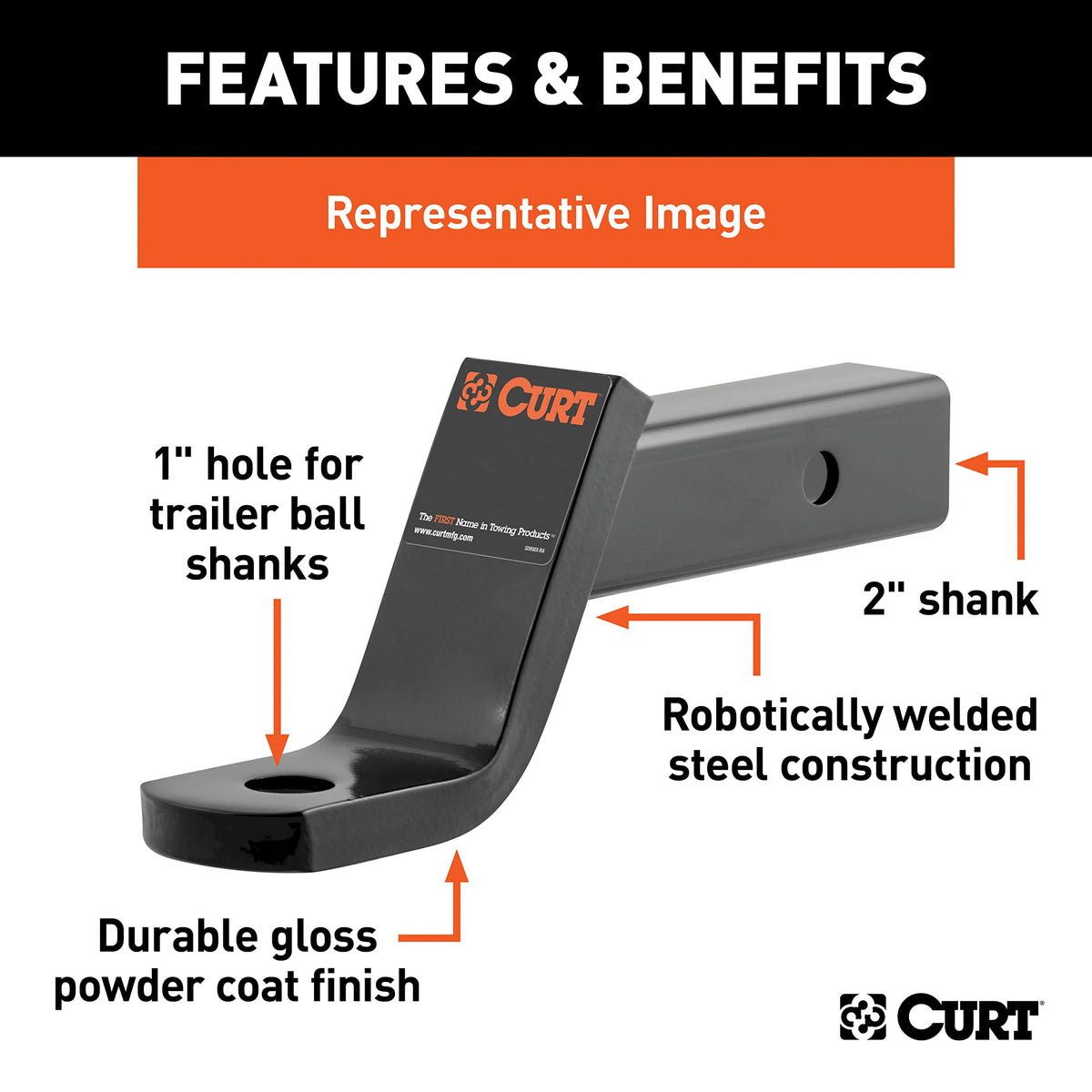

• CNC-formed, robotically welded steel for repeatable strength
• Mechanically descaled before coating for long-lasting adhesion
• Gloss black powder coat protects against rust, salt, and abrasion

Who this is for: The CURT 45260 Class III ball mount is designed for pickup and SUV owners who tow mid- to heavy-duty trailers — boats, campers, utility trailers, and similar loads — and need a durable, corrosion-resistant mount that fits standard 2" receivers. If your towing requirements fall within the 7,500/750 lb limits and you want a professionally finished, factory-formed ball mount, this model is a practical, long-lasting choice.
