CURT taillight converter 56130 — 3-to-2-wire SMT splice-in with 4-way flat and weather cover

CURT 56130 SMT Converter is a splice-in taillight converter that turns a 3-wire vehicle lighting circuit into a standard 2-wire trailer wiring system with a 4-way flat connector.

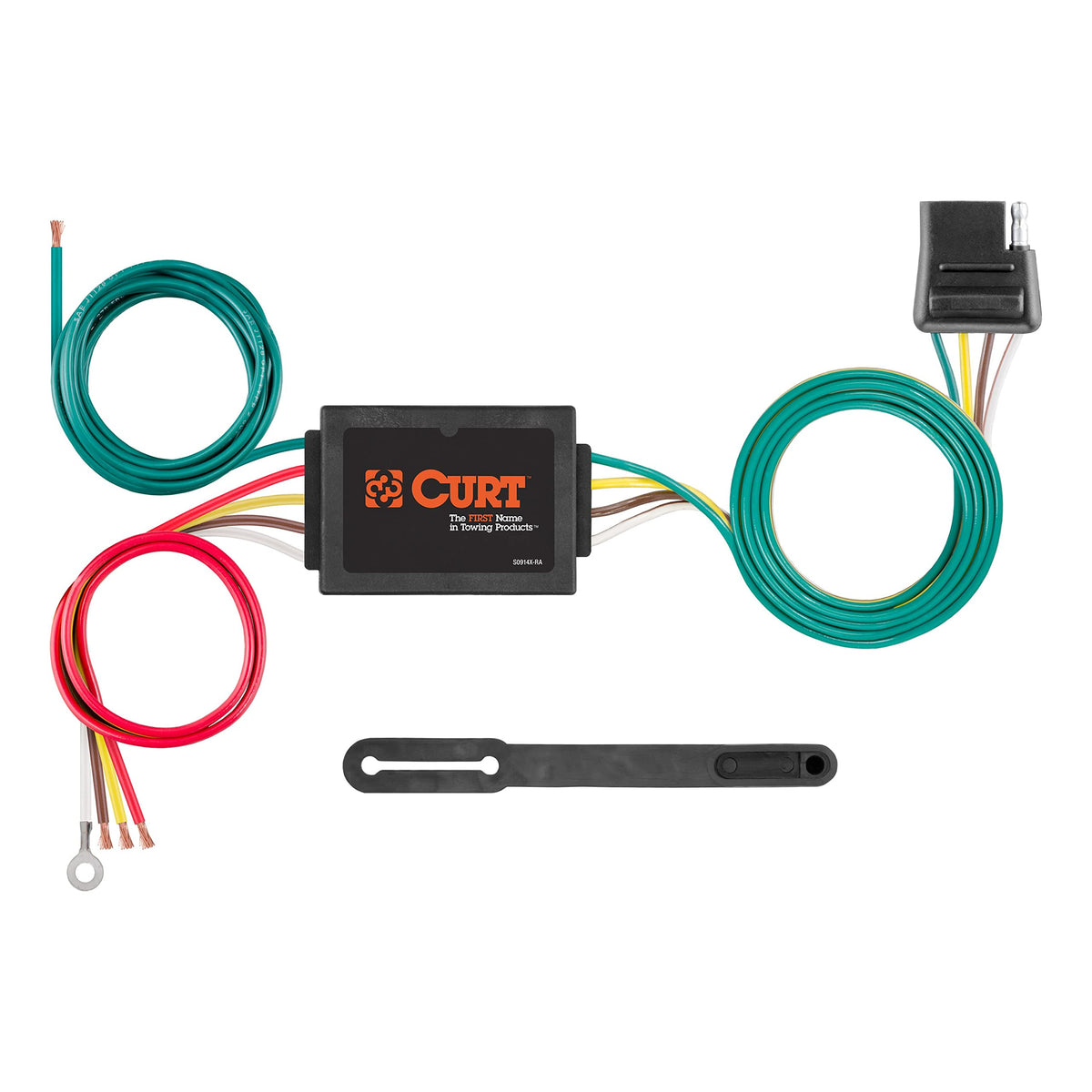

If your vehicle lacks a ready-made trailer connector, the CURT 56130 offers a reliable way to add one by splicing into the factory taillight wiring. Built using surface-mount technology (SMT), this non-powered 3-to-2-wire converter provides stable signal routing for turn, brake and tail lights while minimizing heat and resistance compared with older through-hole designs. It arrives ready to install with color-coded wires, snap-lock terminals, and a weather-resistant dust cover for the 4-pin outlet.

How does the CURT 56130 create a trailer connector from a 3-wire system?

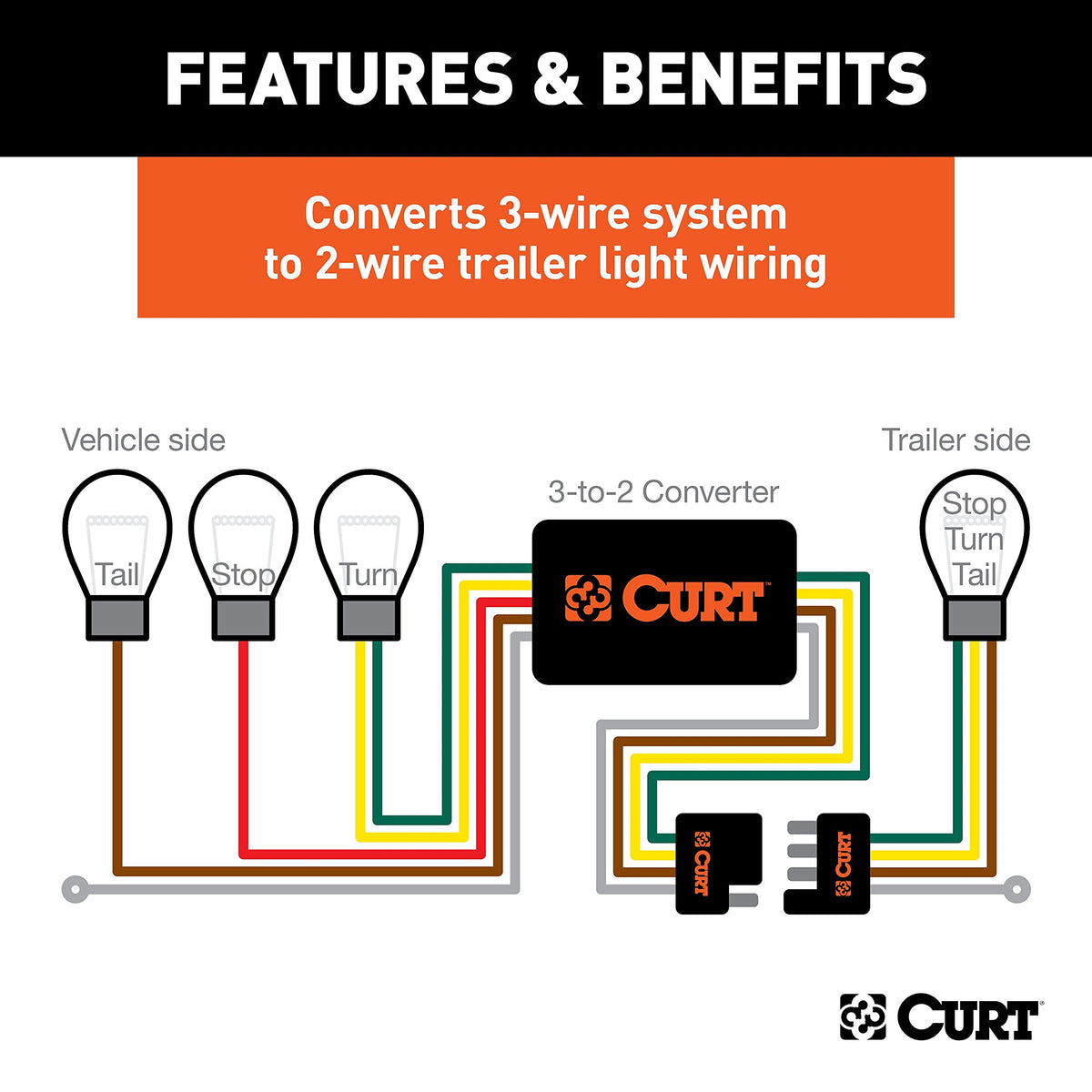

The unit splices directly into the vehicle’s taillight harness and consolidates signals into the standard 2-wire output that most trailers expect. It does not require a separate battery feed or heavy-duty flasher; instead it routes existing vehicle signals through its internal SMT circuitry to the 4-way flat socket.

• Converts vehicle 3-wire taillight circuits to 2-wire trailer wiring.

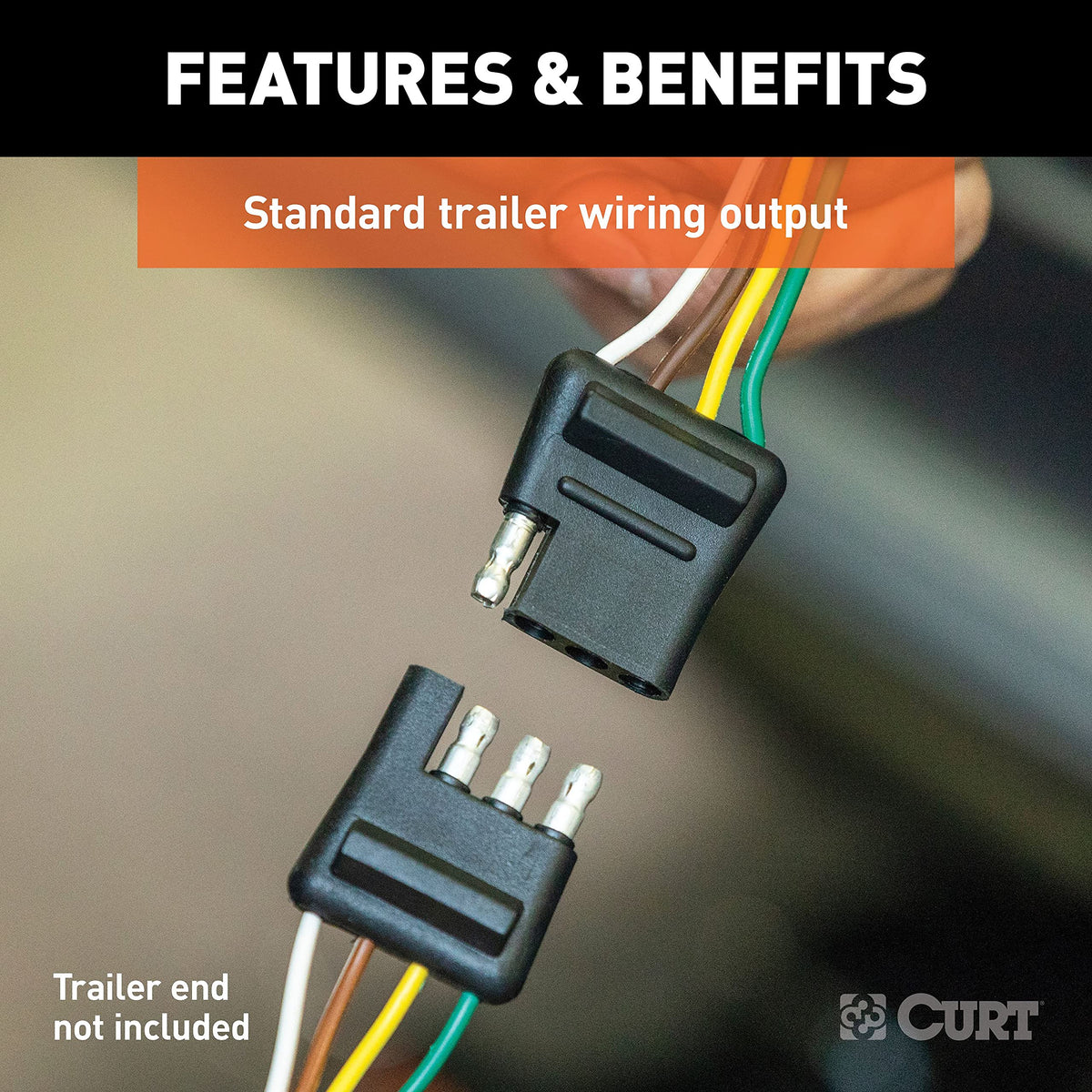

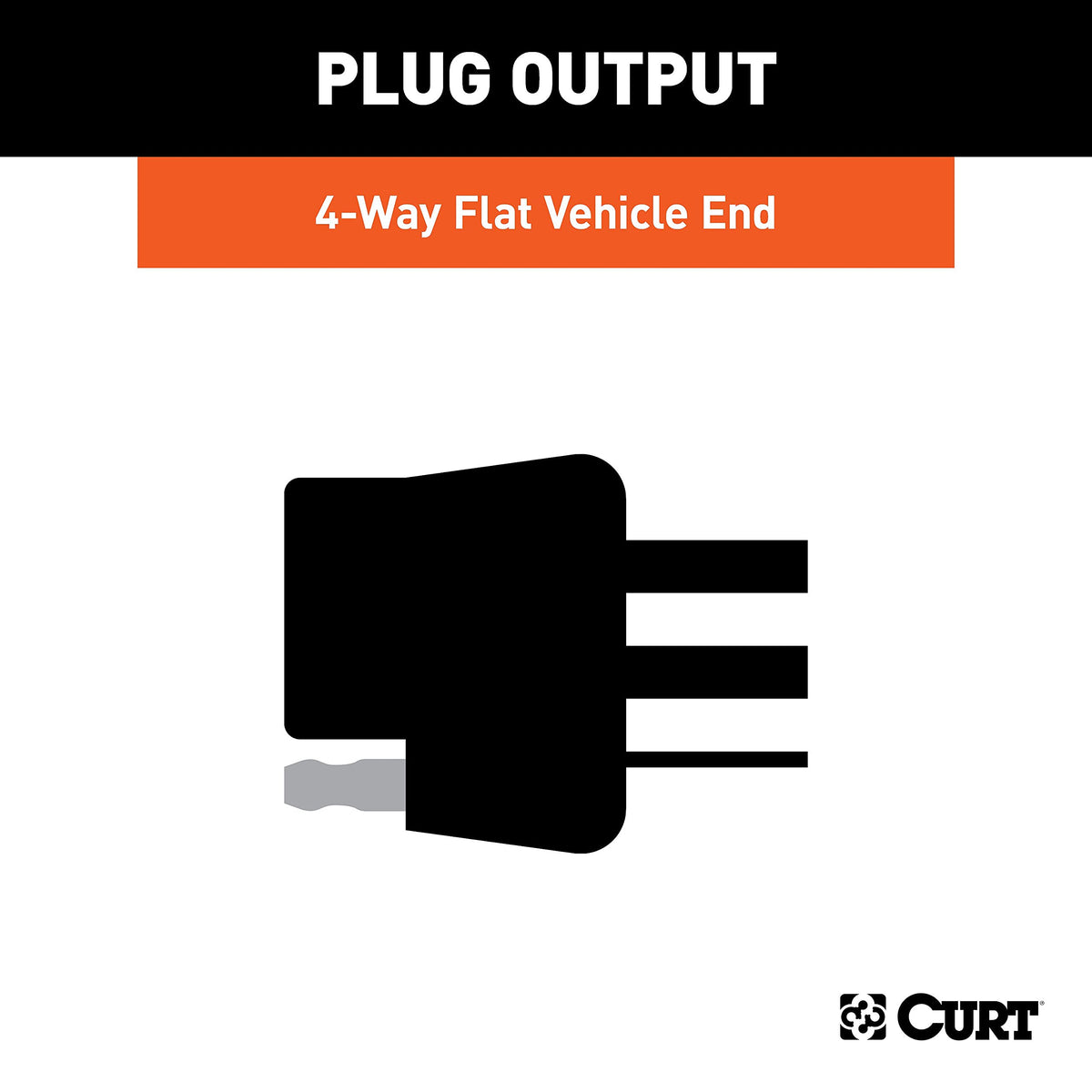

• Provides a standard 4-way flat female socket for trailer plug-in.
• Non-powered design—uses vehicle lighting signals, no extra battery.
• Includes snap-lock wire connectors for secure splices.

What advantages does SMT circuitry provide over older converter designs?

Surface-mount technology mounts components directly on the PCB surface, reducing resistance and heat while improving long-term reliability. For a taillight converter this means a longer lifecycle and more consistent electrical performance in demanding towing conditions.

• Lower electrical resistance for cleaner signal transfer.
• Reduced heat generation compared to through-hole components.
• Improved durability and extended component life.
• Compact board layout that fits easily behind panels.

How straightforward is installation and what hardware is included?

• Color-coded leads: signal and taillight circuits clearly identified.

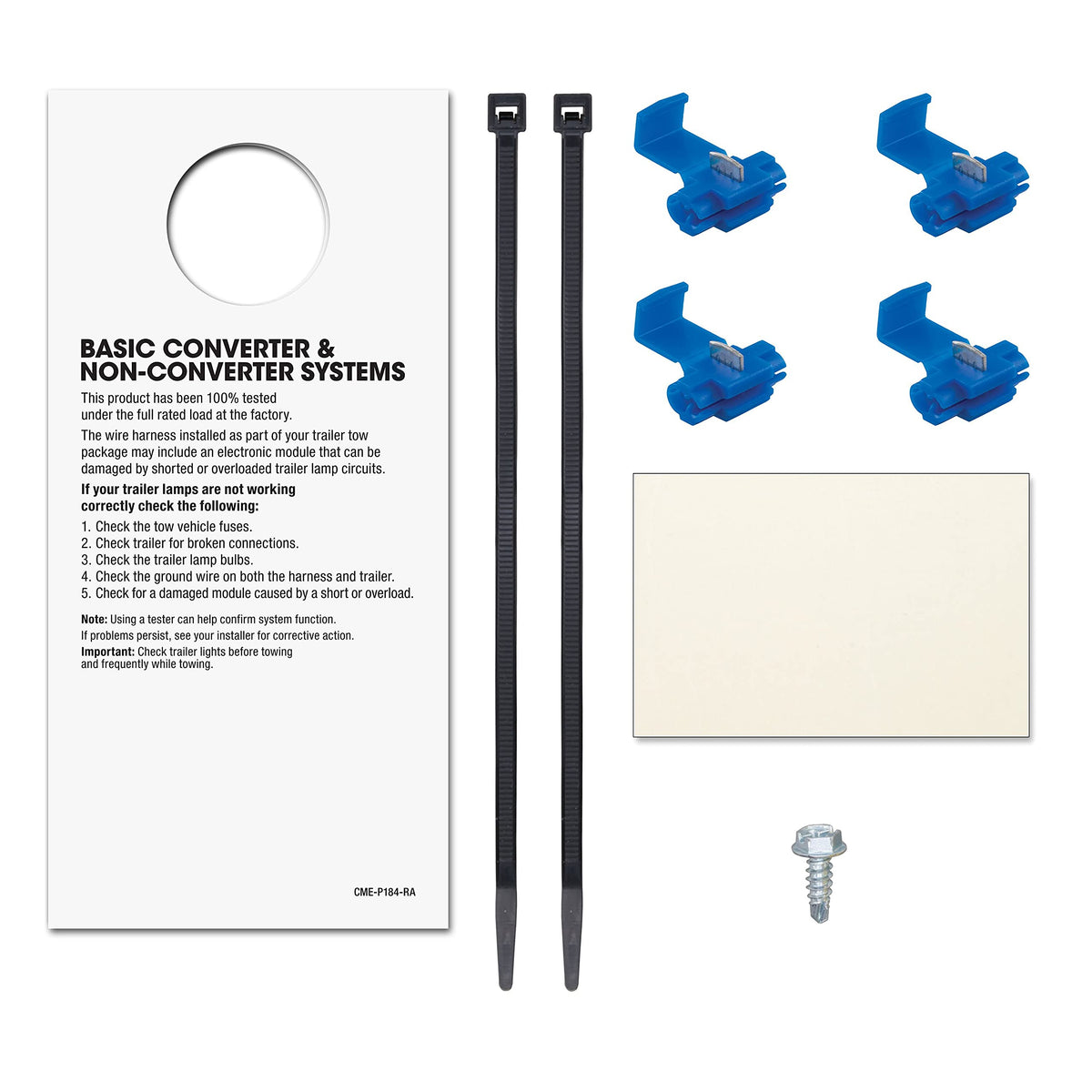

• Snap-lock terminals included for secure wire connections.

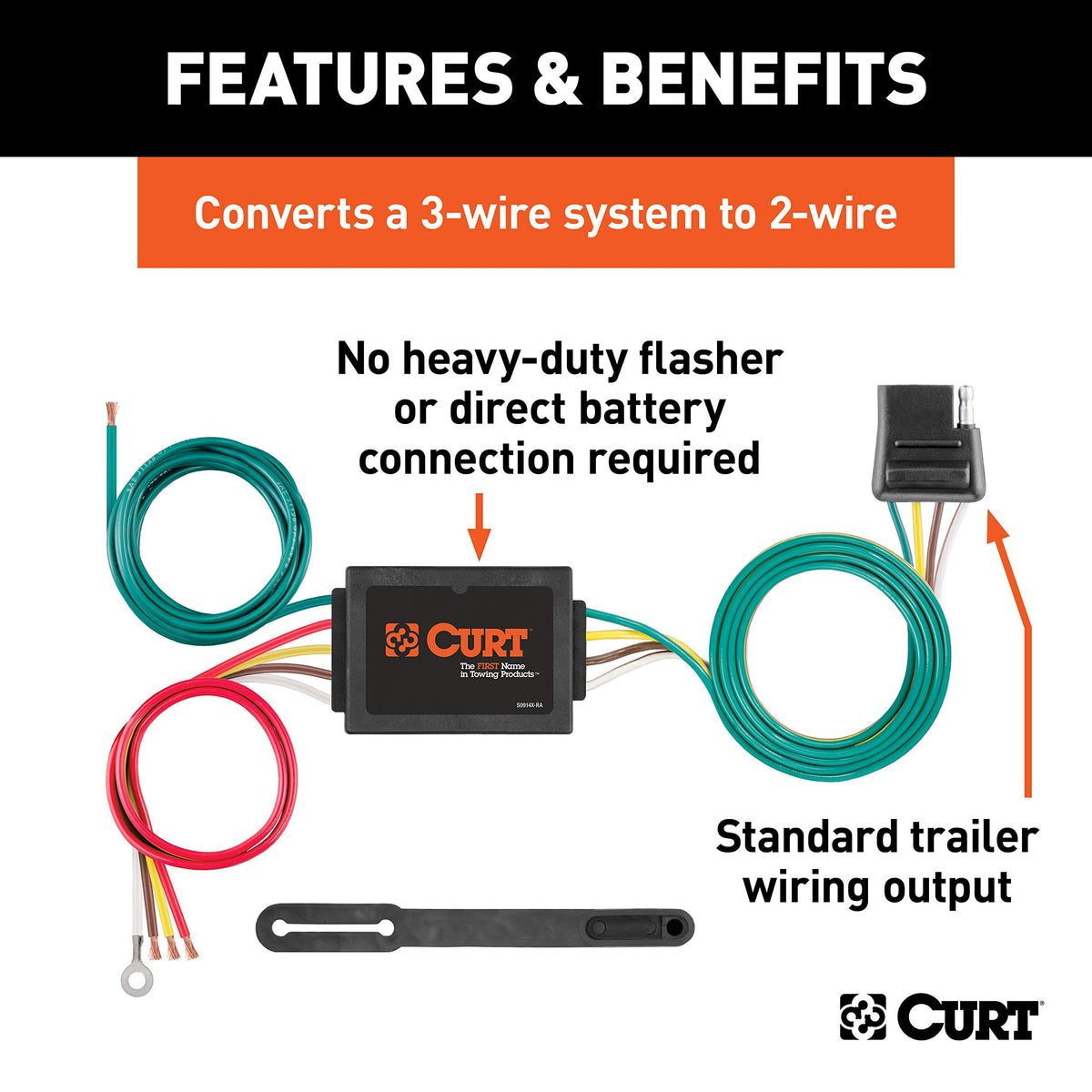

• No heavy-duty flasher or battery hookup necessary.
• Dust cover provided for the 4-way socket to resist weather exposure.

Will this converter handle my trailer’s lighting needs and outdoor exposure?

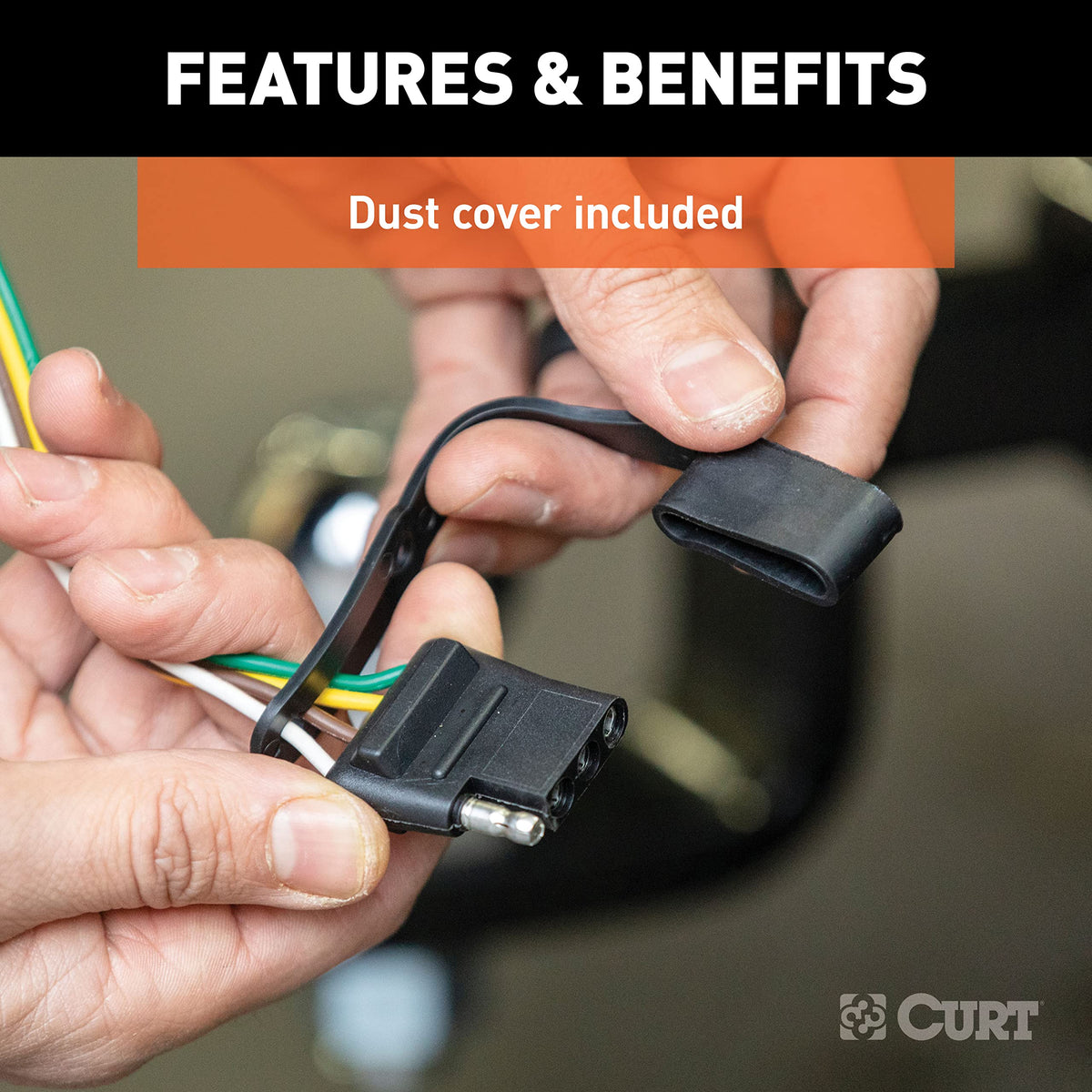

Designed for typical light-duty towing, this converter supports standard trailer turn, brake and tail light functions while offering protection from the elements at the connector. The unit’s sealed 4-pin receptacle shielded by a rubber dust cover helps prevent moisture and dirt intrusion when the trailer isn’t connected.

• Supports turn signals, brake lights and tail lights through the 4-way flat socket.
• Rated signal and taillight circuit amperage suitable for most light trailers.
• Rubber dust cover provides weather protection for the connector.
• Designed for permanent splice-in installation for long-term use.

Who is this for: The CURT 56130 SMT Converter is ideal for vehicle owners who need a dependable splice-in solution to tow light trailers but do not have (or cannot fit) a vehicle-specific custom wiring harness. It’s well suited for DIY installers, fleet vehicles, and anyone who wants a compact, durable 4-way flat outlet that uses modern SMT circuitry for improved reliability. If you tow occasionally or need a straightforward way to add standard trailer lights to an older or specialty vehicle, this converter is a practical, long-term option.
