CURT Weld-On Pipe-Mount Swivel Trailer Jack 3,000 lb Support, 10" Travel, Black

CURT 28321 is a weld-on pipe-mount swivel trailer jack that provides up to 3,000 lbs of static support and 2,000 lbs of lifting power with 10 inches of vertical travel.

This heavy-duty pipe-mount swivel jack from CURT is built for towing rigs that need a dependable, compact lifting solution that swings up and out of the way for road travel. Constructed with corrosion-resistant finishes and a welded foot plate, the 28321 is engineered to be welded directly to your trailer frame and to withstand wet, salty, and dirty conditions common to marine, agricultural, and utility use.

How much weight can this jack safely support and lift?

The CURT 28321 is rated for a 3,000-pound support capacity (static) and a 2,000-pound lift capacity, making it suitable for many small to medium trailers. Ratings reflect designed loads for tongue support and lifting when used correctly and mounted per instructions.

• 3,000 lb support capacity (static load)
• 2,000 lb lift capacity (manual side-wind)
• 10 inches of vertical travel for height adjustment

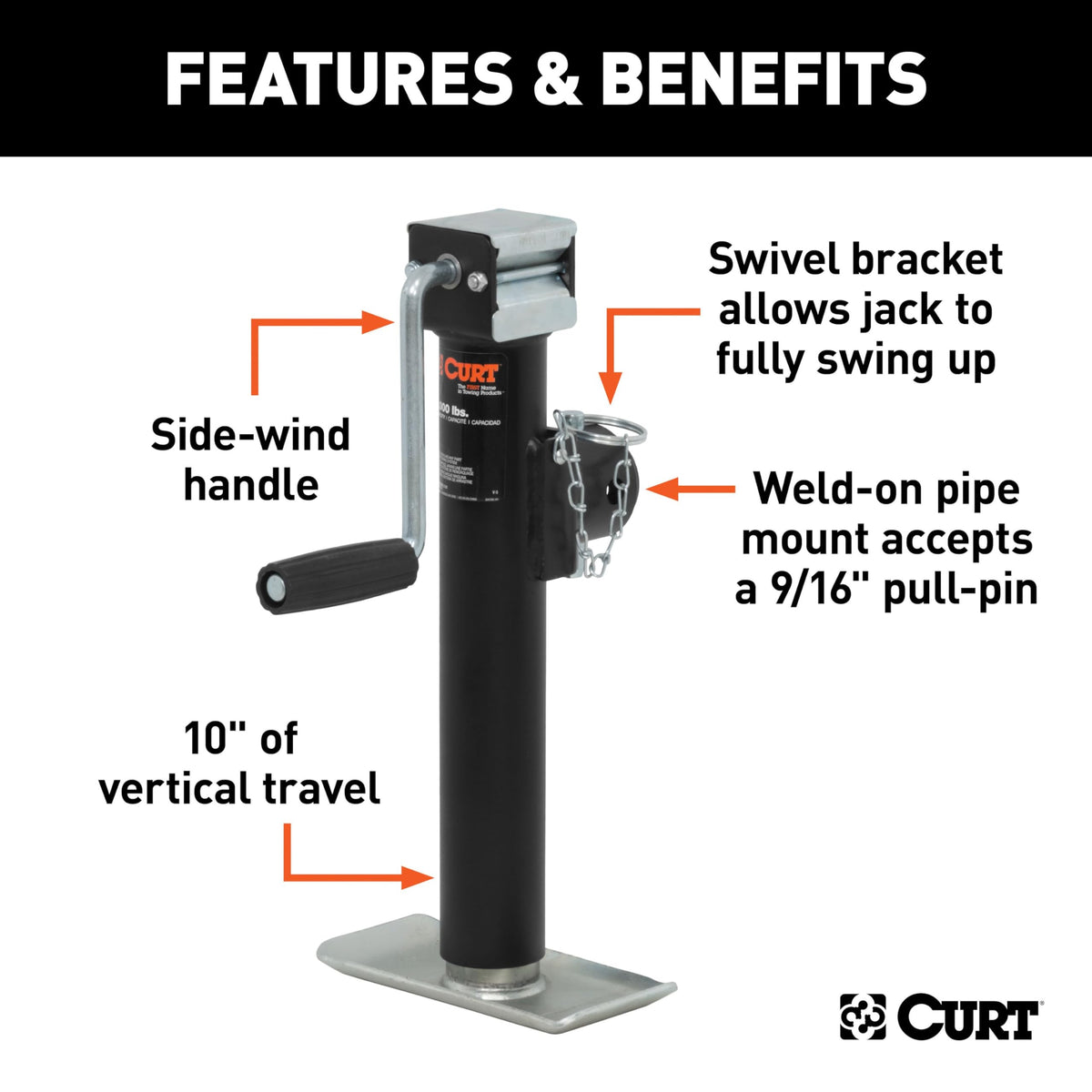

What mounting and swivel features does this jack include?

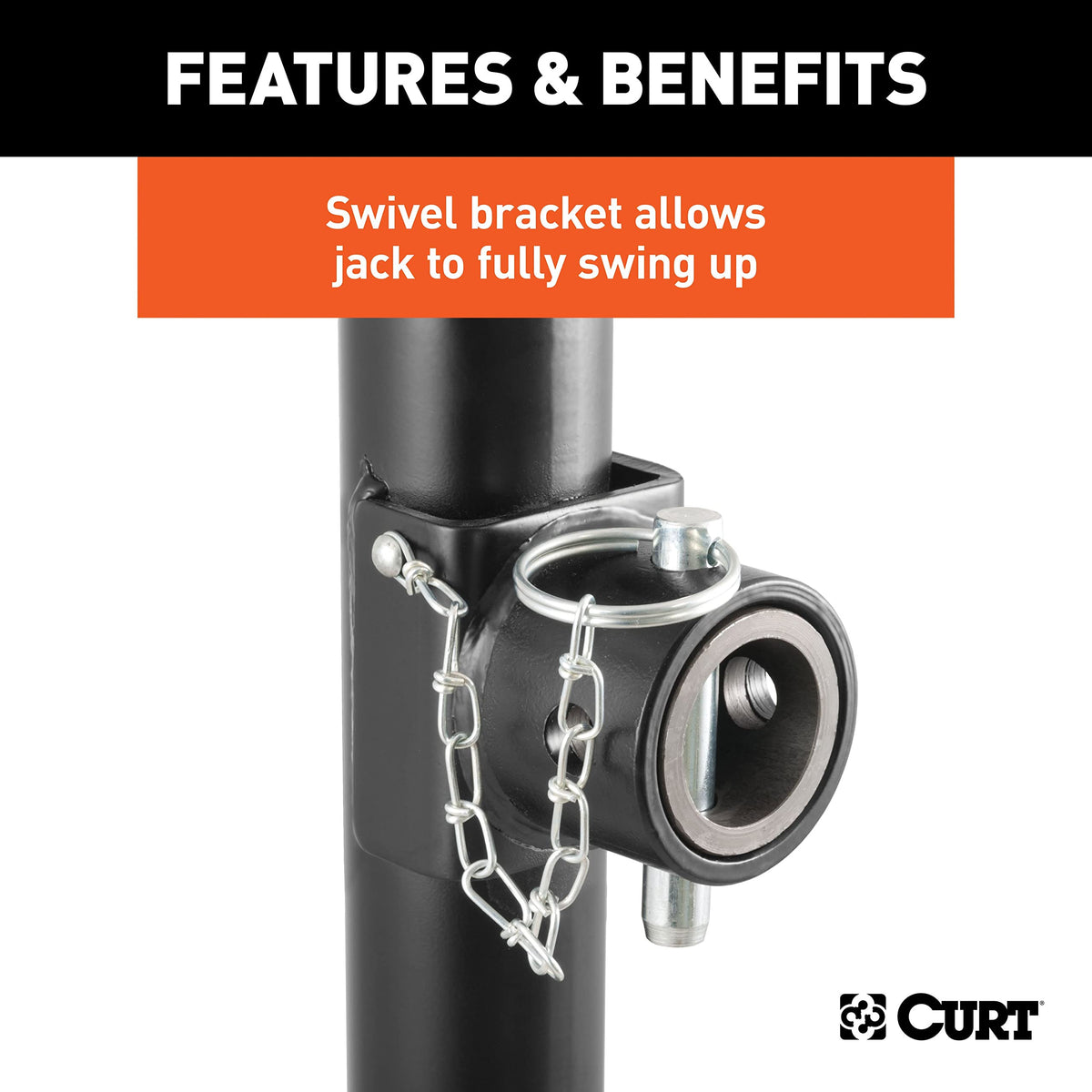

This model is a pipe-mount design meant to be welded onto a trailer’s frame using the supplied raw steel pipe bracket. The swivel mechanism uses a pull-pin system so the jack can pivot up and lock into the travel position when towing.

• Weld-on pipe bracket with 9/16" hole ready for welding
• Pull-pin swivel lets the jack swing up and clear the ground for travel
• Welded foot plate provides stable contact on uneven ground

How easy is it to operate and resist corrosion?

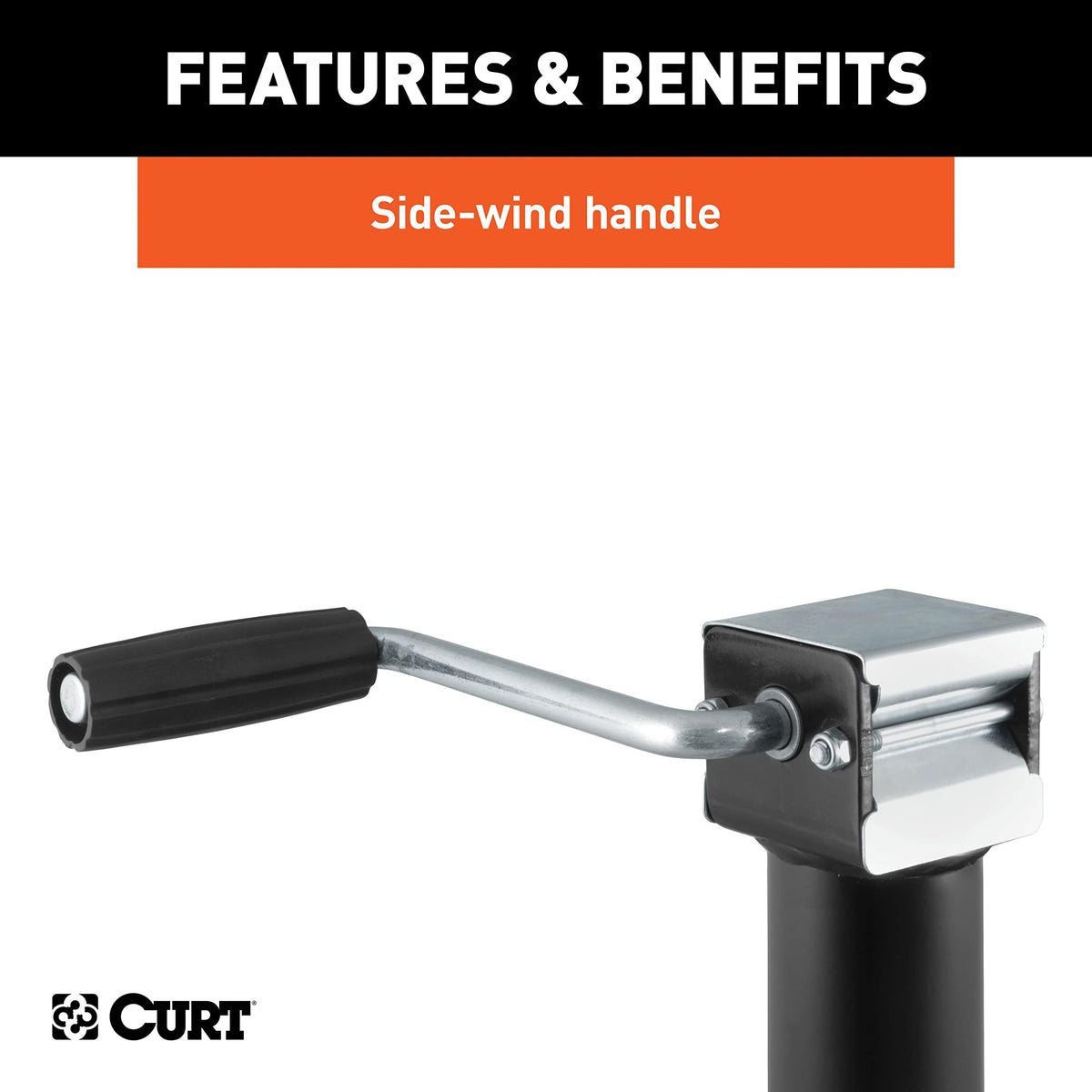

Operation is manual via a side-wind handle that integrates an ergonomic grip for raising and lowering the tongue. The jack is finished in durable black powder coat with zinc-plated components to help slow rust and wear from water, road salt, and debris.

• Side-wind handle for convenient vertical adjustment
• Integrated grip on handle for easier turning and control
• Black powder coat and zinc plating for extended exterior life

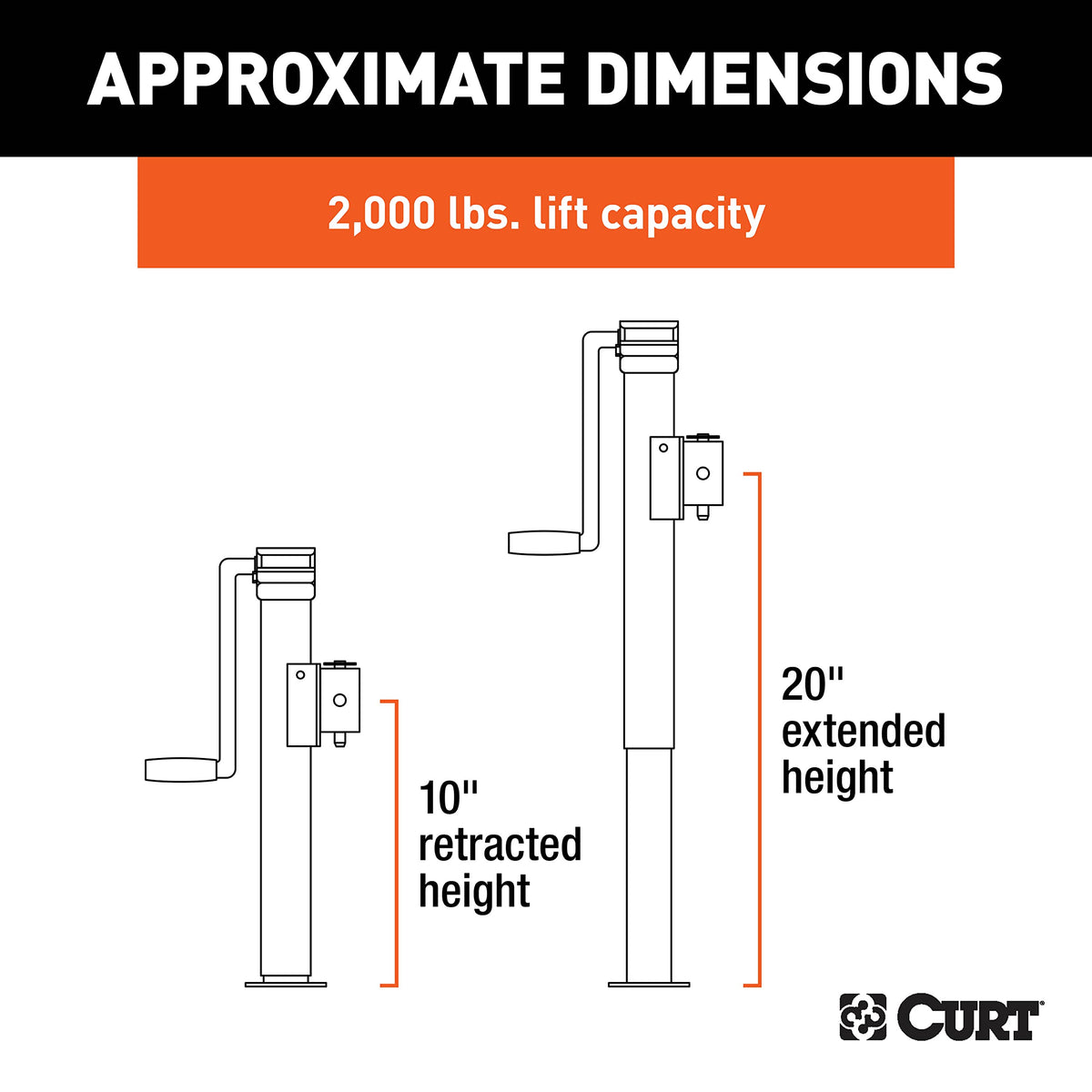

What are the size and travel dimensions I should expect?

The 28321 delivers 10 inches of vertical travel to accommodate common hitch heights. Typical retracted and extended measurements provide the range needed to couple and level many trailer types.

• 10" vertical travel from lowest to highest position
• Approximately 17-1/2" retracted and 28-1/2" extended overall handle heights
• Compact weld-on pipe mount keeps jack secure and out of the way when stored

Who is this for: The CURT 28321 is aimed at boat owners, utility trailer operators, and recreational haulers who want a robust, welded pipe-mount jack with swivel capability. It suits trailers that require a low-profile, heavy-duty jack able to handle wet environments and frequent use while providing a secure travel position when towing.
