Cxdar Third 3rd Brake Light LED for 2003-2017 Chevy

The Cxdar Third 3rd Brake Light is a direct-fit, high-mount LED stop lamp designed to replace the center cab brake light on 2003–2017 Chevy Express and GMC Savana vans.

If you need a reliable, visible center brake lamp that installs without custom wiring, this Cxdar assembly offers a low-power, dual-row LED array inside a durable red lens and ABS housing. It’s built to withstand road splash and light weather exposure while matching the mounting points on Express and Savana models from 2003 through 2017. The unit is intended to restore or upgrade the rear center stop lamp with a straightforward plug-and-play fit.

Will this brake light fit my 2003–2017 Chevy Express or GMC Savana?

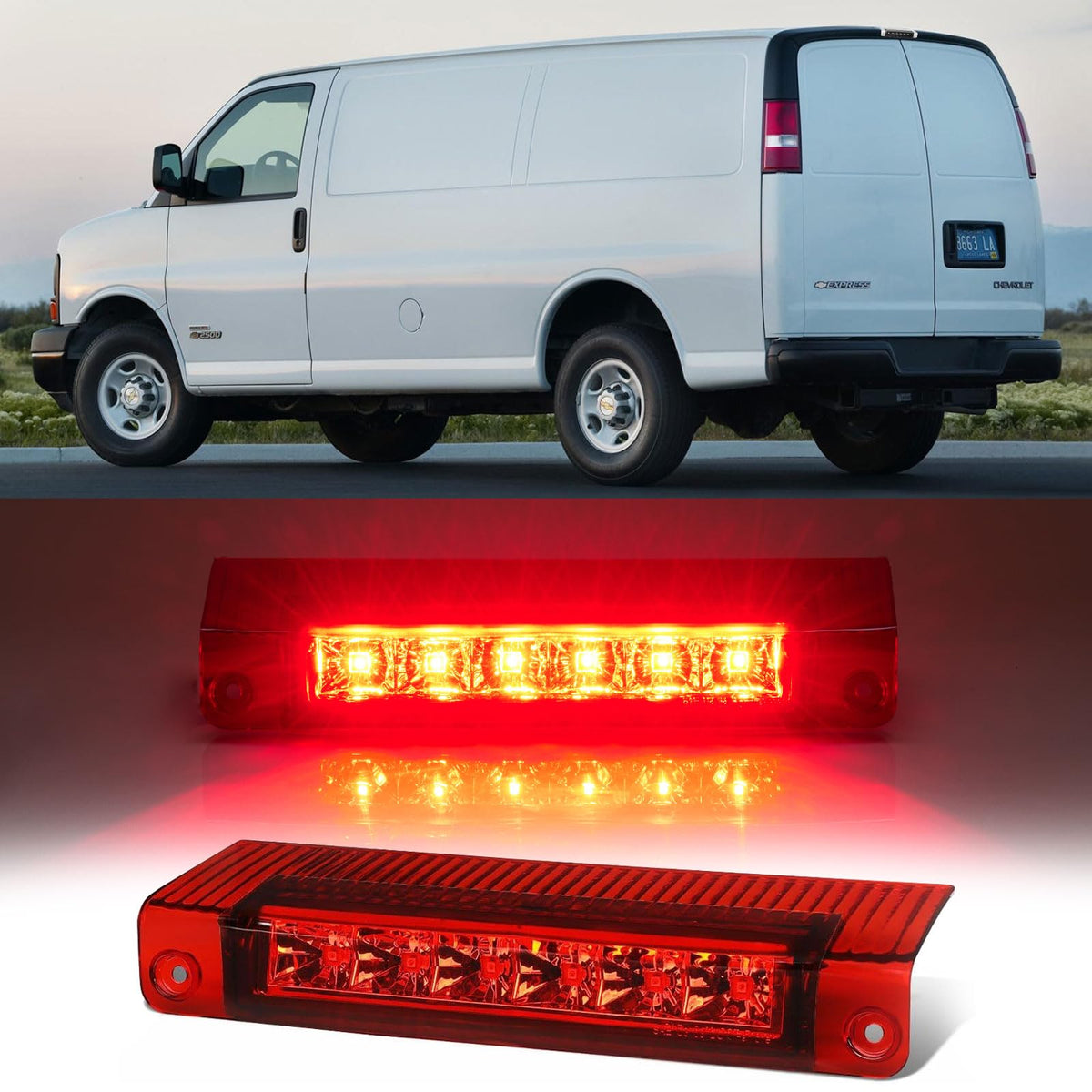

This lamp is manufactured to match the factory mounting and electrical connector of 1500, 2500, and 3500 Chevy Express and GMC Savana vans for model years 2003–2017. It is a direct replacement intended to align with original bolt locations and the OEM wiring plug.

• Direct-fit for Express / Savana 1500, 2500, 3500 (2003–2017).
• No cutting or splicing required—uses existing connector.
• Keeps original mounting points and alignment.

How durable and weather-resistant is the Cxdar center stop lamp?

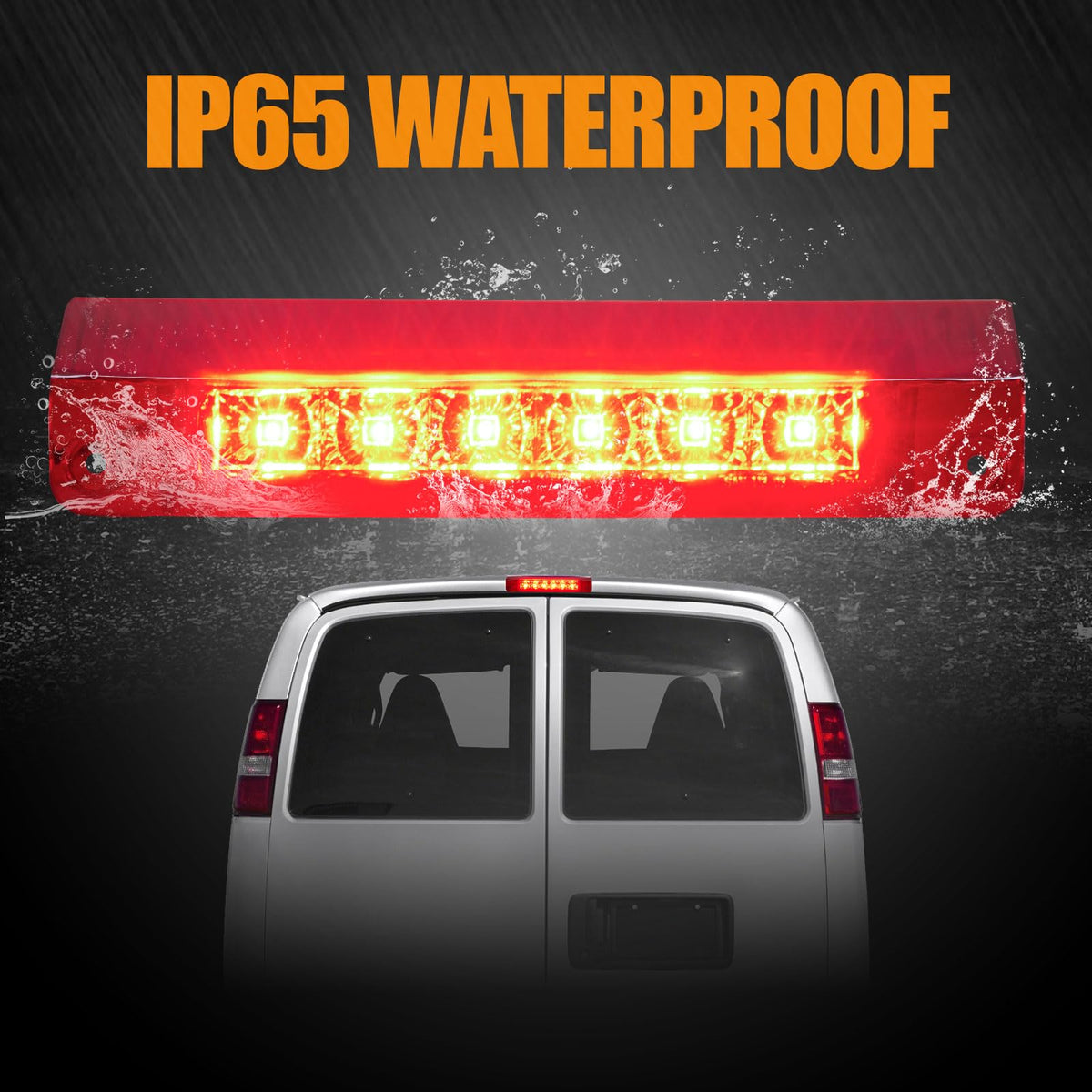

The assembly uses an ABS housing and a sealed lens to resist dust, light moisture, and road spray. It’s rated to IP65-level protection for general outdoor durability, though it does not include a separate gasket; careful installation prevents stress on the cover.

• IP65-class sealing for dust and water spray resistance.
• ABS housing and tough red lens for impact and UV tolerance.
• Designed for extended service life with LED low-power operation.

How easy is installation and what tools are recommended?

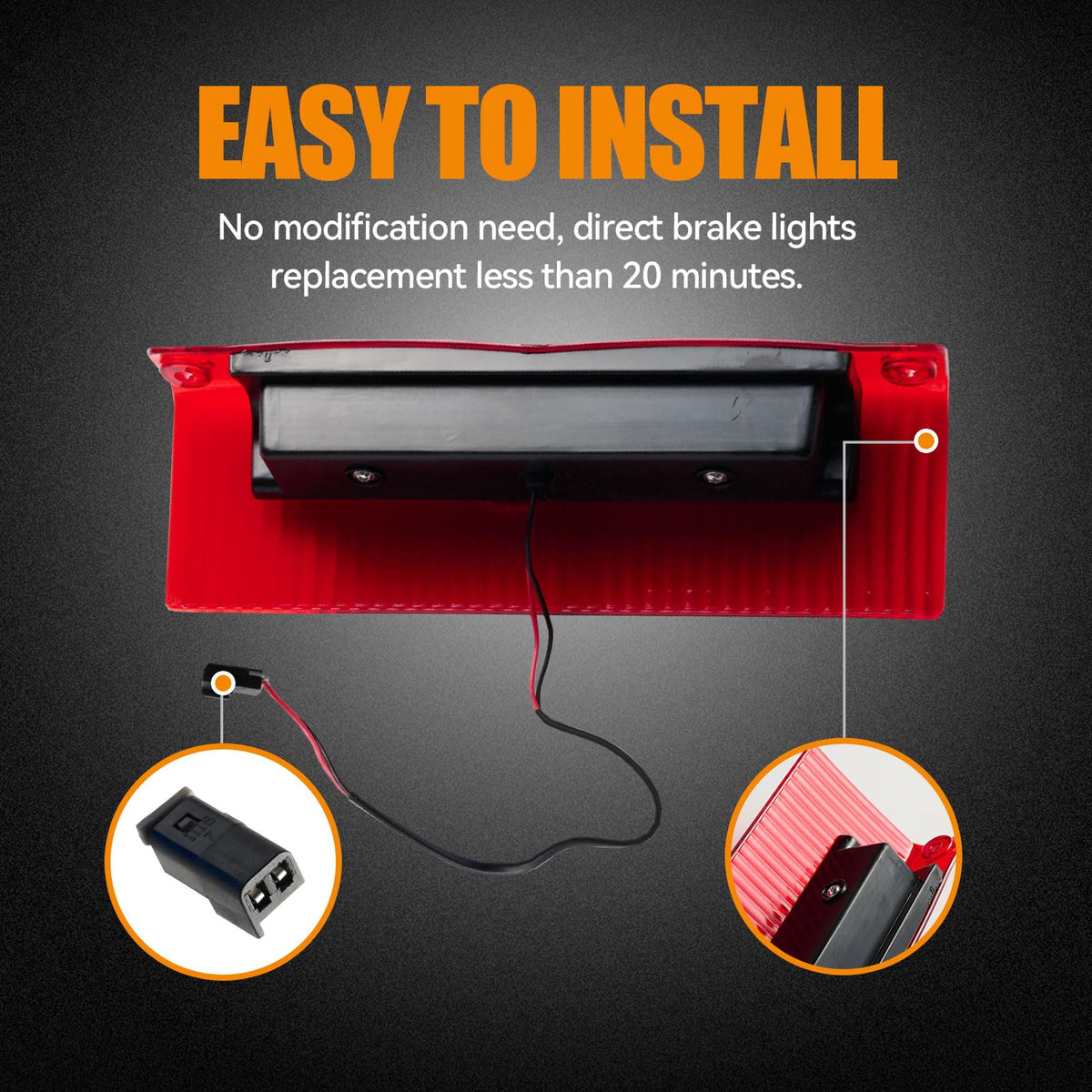

Installation is intended to be plug-and-play: remove the old unit, align the replacement, and connect the factory plug. To avoid cracking the lens cover, the manufacturer recommends hand tools for final tightening and, if unsure, professional installation.

• Plug-and-play electrical connection—no splicing.
• Use hand screwdriver for cover screws to reduce cracking risk.
• Professional install suggested if you lack experience.

What lighting and performance features should I expect?

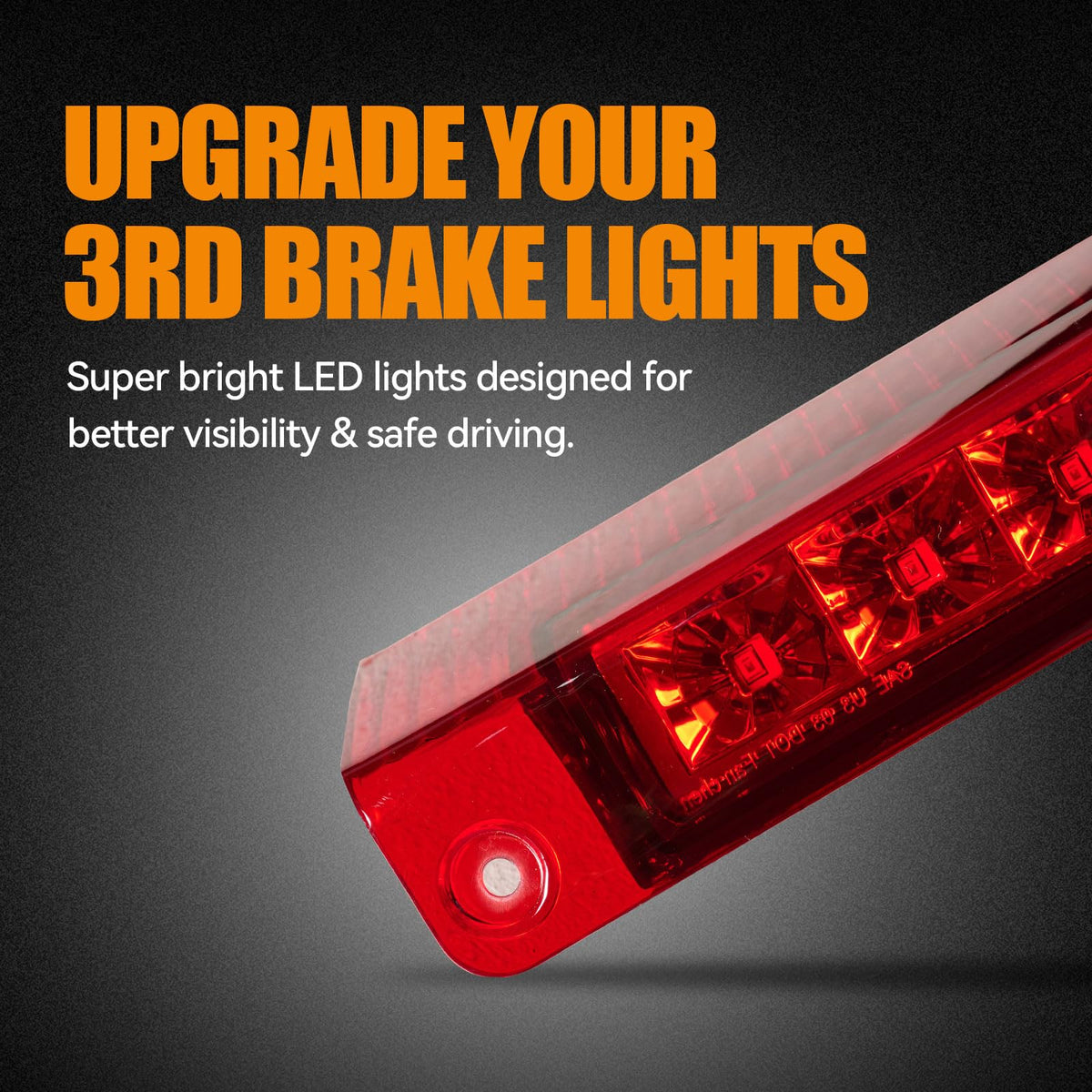

The lamp uses a dual-row LED layout to deliver bright, consistent illumination with lower energy draw than halogen bulbs. LEDs light quickly for responsive signaling; the red lens focuses visibility for the rear center brake function without altering other lighting systems.

• Dual-row LEDs for strong, uniform stop-light output.
• Low power consumption compared with traditional bulbs.
• Red lens tuned for clear rear visibility while braking.

Who this is for: This Cxdar third brake light assembly suits owners and fleet managers of Chevy Express and GMC Savana vans (2003–2017) who want a direct-fit LED replacement that improves rear brake visibility while being simple to install. It’s a practical option for drivers replacing a failed OEM unit, upgrading to LEDs for lower power draw, or keeping a commercial van road-legal with a functional center stop lamp. If you need maximum weather sealing or a gasketed installation, consider professional fitment guidance.
