CZC AUTO 25ft 4‑Pin 5‑Wire Trailer Wiring Harness — 18 AWG Pure Copper, Nylon Sleeve for Dual Taillights

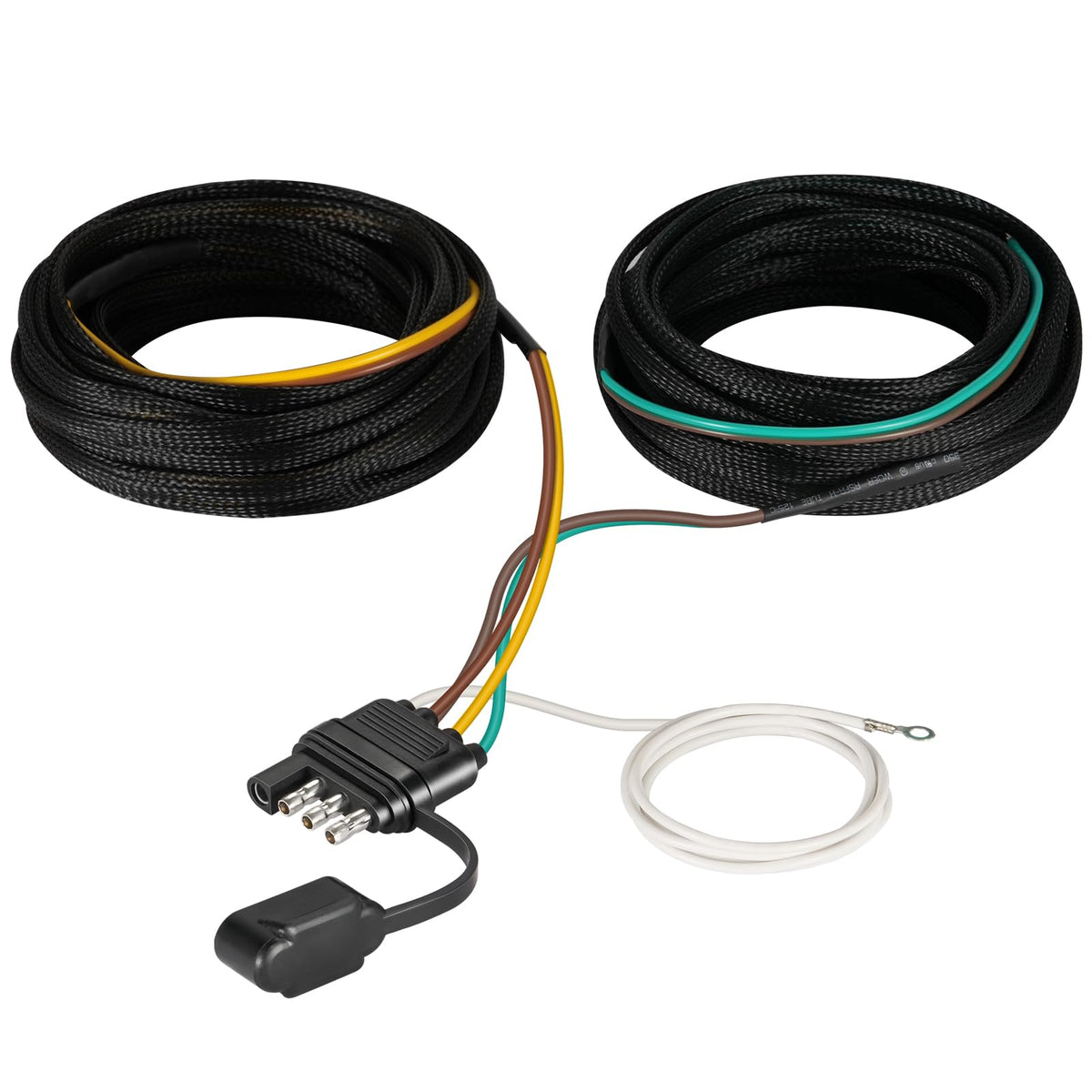

CZC AUTO's 25-foot 4-pin 5-wire trailer wiring harness is a pre-assembled Y-harness with 18 AWG pure copper conductors, nylon protective sleeve and PVC jacket designed to rewire trailer taillights and feed dual side taillights without extra splicing. Rewiring a trailer can be messy and time-consuming; this kit simplifies the job by combining a 4-way flat connector with a built-in 5-wire Y harness so both left and right taillights get power from a single 4-pin socket. The harness uses color-coded conductors, heavy-gauge copper, and layered protection—PVC insulation plus a black nylon mesh sleeve—so installations stay tidy and hold up to road wear, salt, and basic abrasion. With 25 feet of main wire and a 2.5-foot ground lead, it works for small to large trailers and includes a dust cap to protect the plug when it’s not in use.

How does this harness make rewiring faster and cleaner?

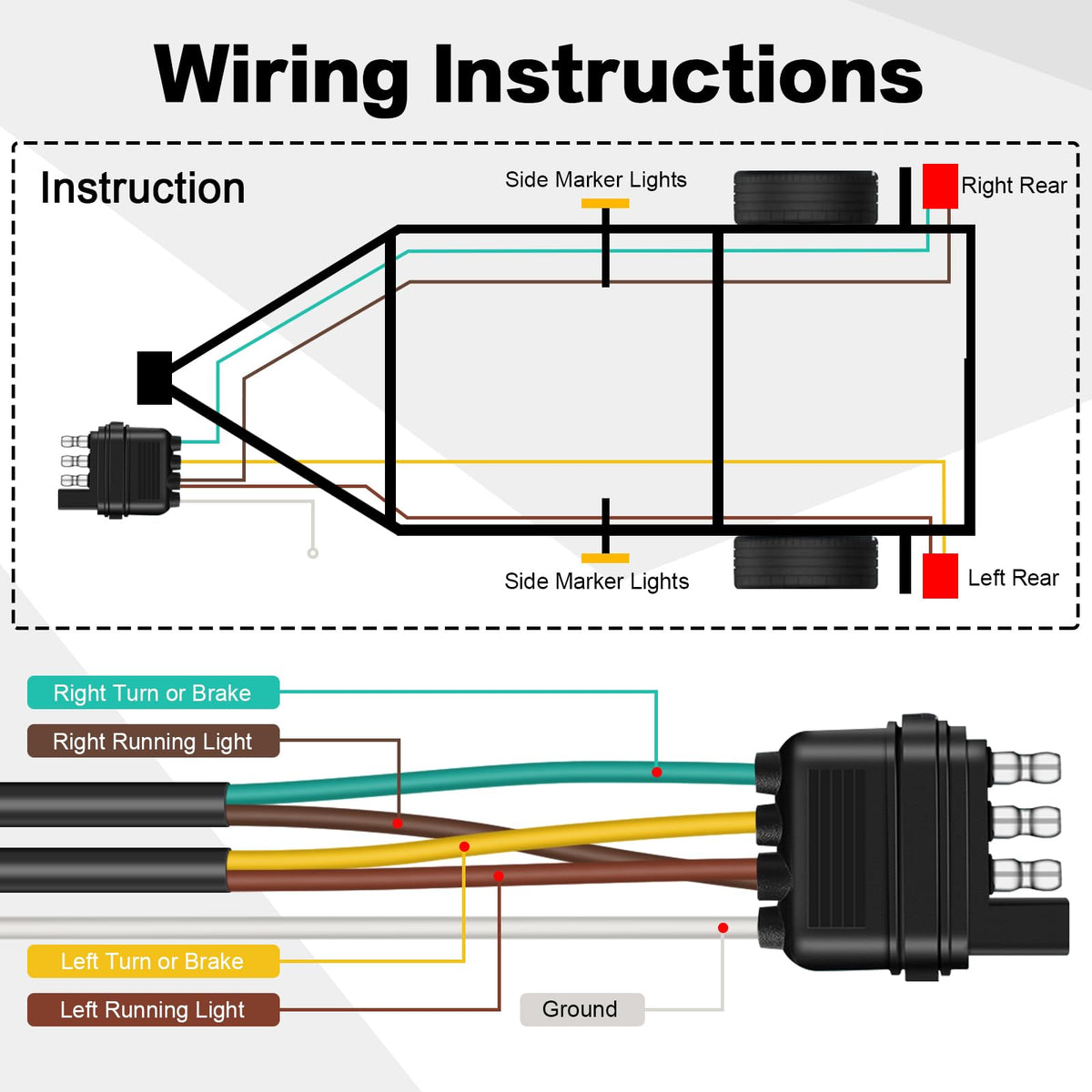

The built-in Y (wishbone) layout eliminates the need to splice a separate wire to feed both taillights, cutting install time and reducing failure points. Color-coded wires match standard trailer wiring conventions so you can identify functions quickly. The outer nylon sleeve keeps the bundle neat and resists chafing in tight or moving mounting locations.

• Preassembled Y-harness: no separate splicing for dual taillights
• Color-coded conductors: quick identification of signals
• Nylon mesh sleeve: organized bundle and abrasion resistance

Will the materials last through salt, road debris, and normal wear?

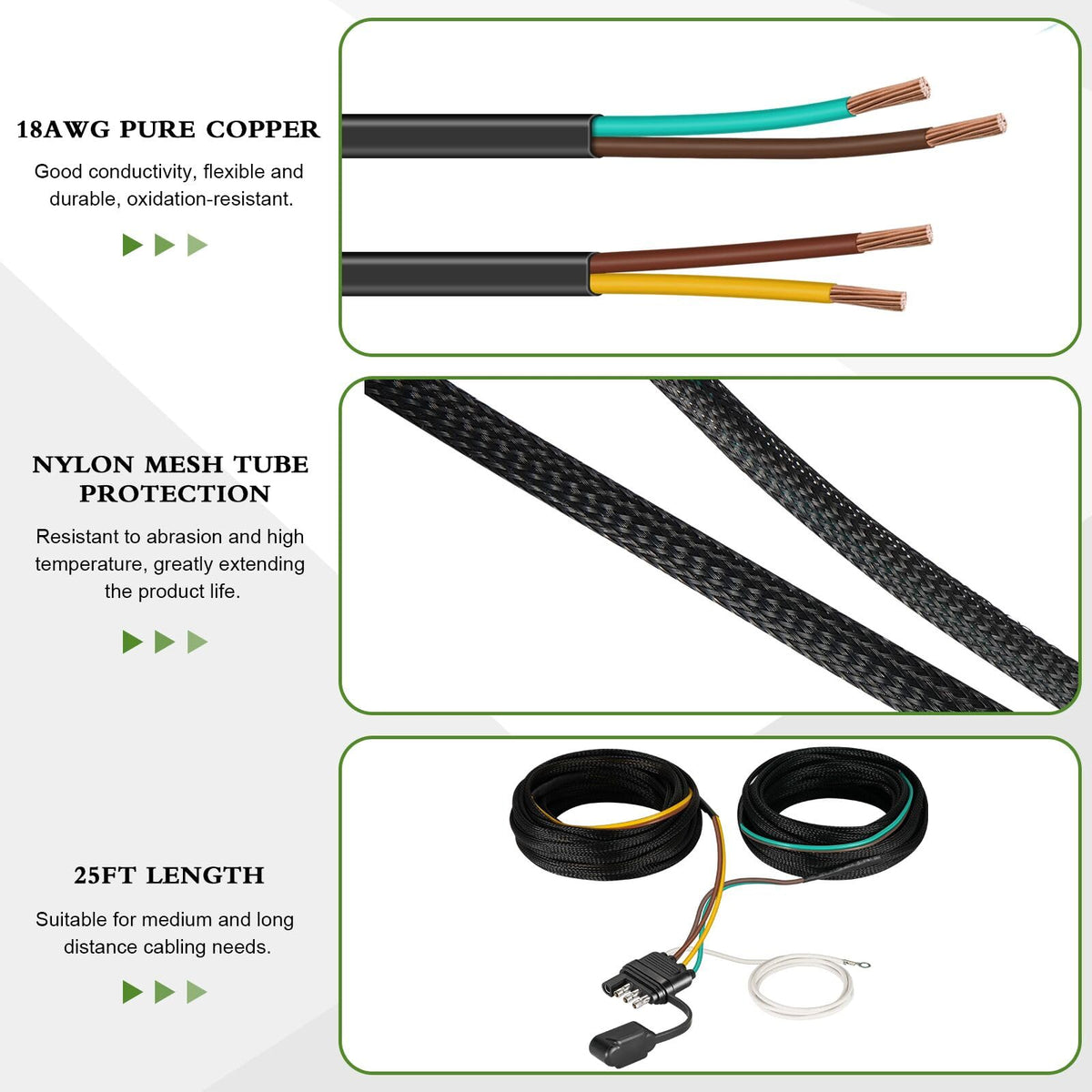

The conductors use 18 AWG pure copper for consistent electrical conductivity, while each wire is insulated with thick PVC to resist cracking and moisture ingress. Over that, a black nylon mesh sleeve adds a physical barrier against abrasion and abrasion-induced failures. The 4-way plug has a dust cover to reduce corrosion when the trailer is idle.

• 18 AWG pure copper cores: reliable conductivity
• Thick PVC insulation: moisture and wear resistance
• Black nylon sleeve: extra protection from abrasion and chafing

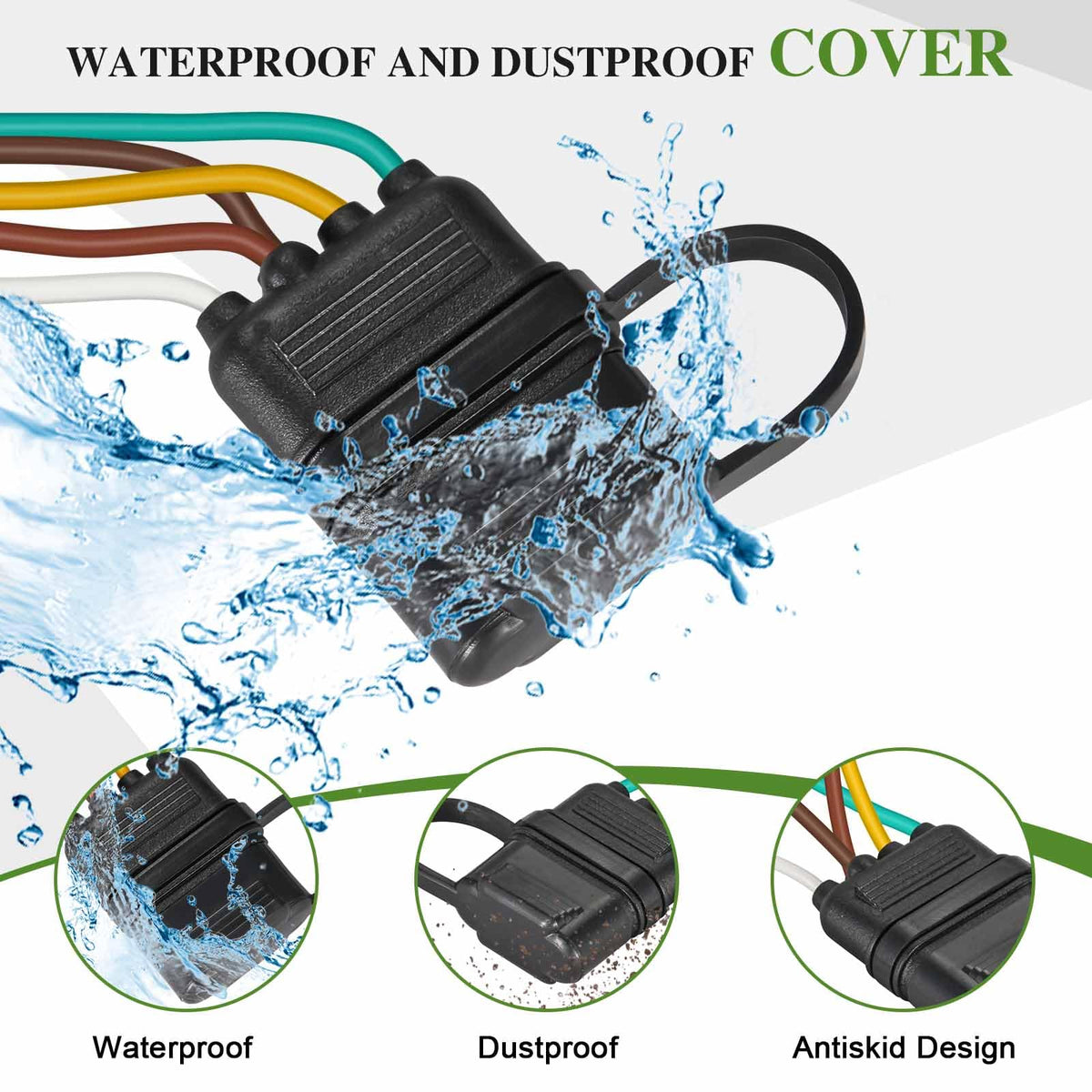

• Dustproof plug cover: limits corrosion when unused

Is the length and wiring layout suitable for different trailer types?

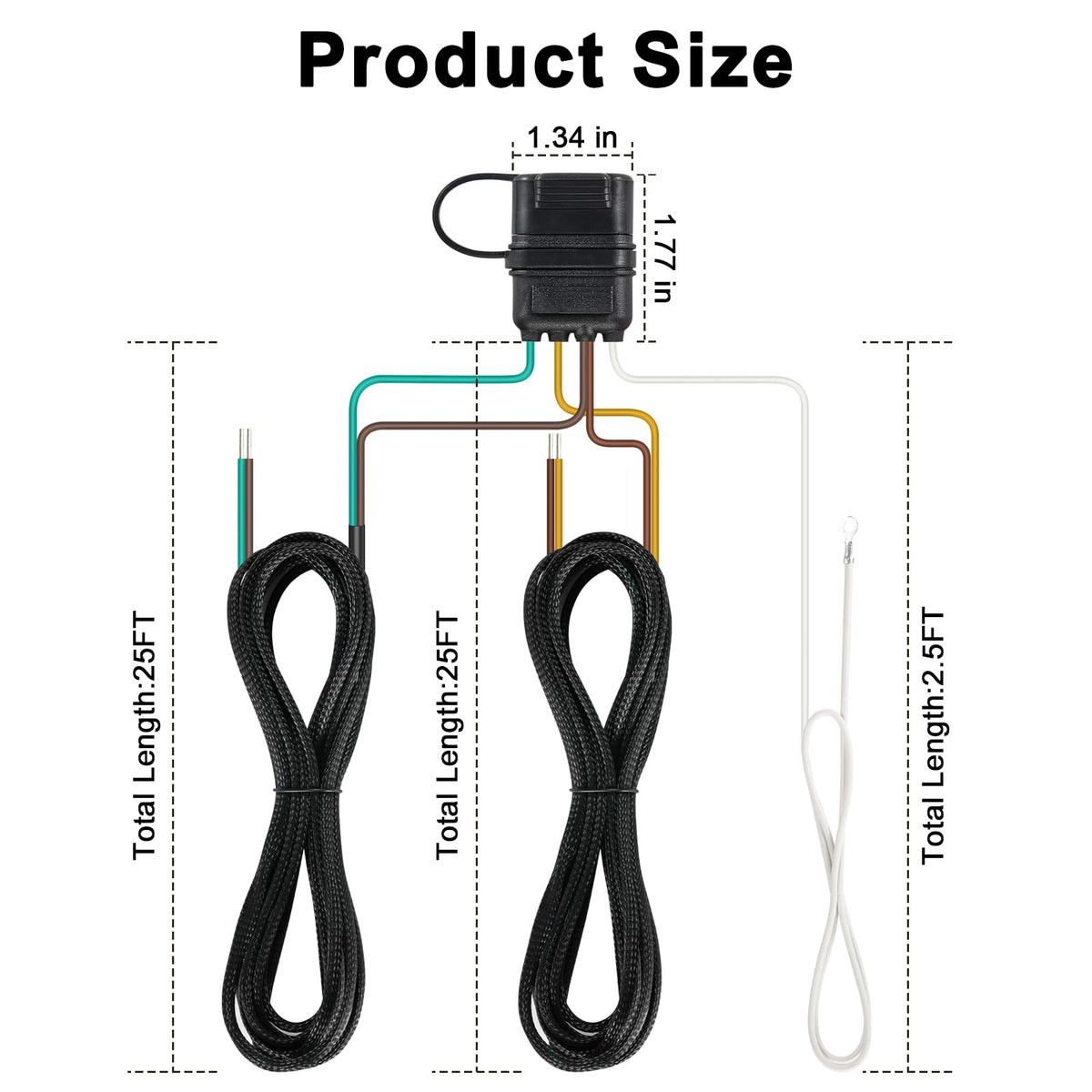

The harness offers a 25-foot main lead and a 2.5-foot ground wire, providing enough reach for trailers both under and over 80 inches wide and giving installers flexibility in routing. The 4-way flat plug fits standard 4-pin sockets found on boat trailers, ATV trailers, horse trailers and many utility trailers. Because it’s a 5-wire harness wired into a 4-pin plug, it allows for dual side taillights without converting to a 7-pin system.

• 25-foot main length: accommodates most trailer lengths and mounting points
• 2.5-foot ground: extra slack for secure grounding locations
• Standard 4-way flat connector: wide compatibility with existing sockets

What tools or skills are needed to install this kit?

Basic hand tools and a working knowledge of trailer light wiring are sufficient for most installs: cut, strip, crimp or solder connections, and secure the harness to the trailer frame. Color-coded wiring reduces guesswork; you may want dielectric grease on connector pins for long-term corrosion protection. If you prefer not to join wires manually, a professional installer can complete the job quickly thanks to the harness layout.

• Tools: wire cutter/stripper, crimper or soldering iron, heat shrink or butt connectors
• Optional: dielectric grease for connector longevity
• Time: typically under an hour for experienced DIYers

Who is this for?

This CZC AUTO harness is aimed at DIY trailer owners, boaters, small-fleet operators and repair shops that need a clean, durable solution for feeding left and right taillights from a 4-way flat socket. It’s especially useful when you want to avoid adding extra splices, tidy up an old wiring job, or upgrade wiring durability without converting to a 7-pin system.

FAQ

Q: Does this harness fit standard 4-way trailer sockets?

A: Yes. The kit uses a standard 4-way flat connector compatible with most 4-pin trailer sockets.

Q: Can I use this harness for boat trailers exposed to saltwater?

A: Yes. PVC insulation and the nylon sleeve reduce moisture and abrasion; use dielectric grease on pins for extra corrosion resistance.
