DABAZUALY Carburetor Kit for Honda XR100R CRF100F 2001-2005 — Complete Carb with Air Filter & Fuel Petcock

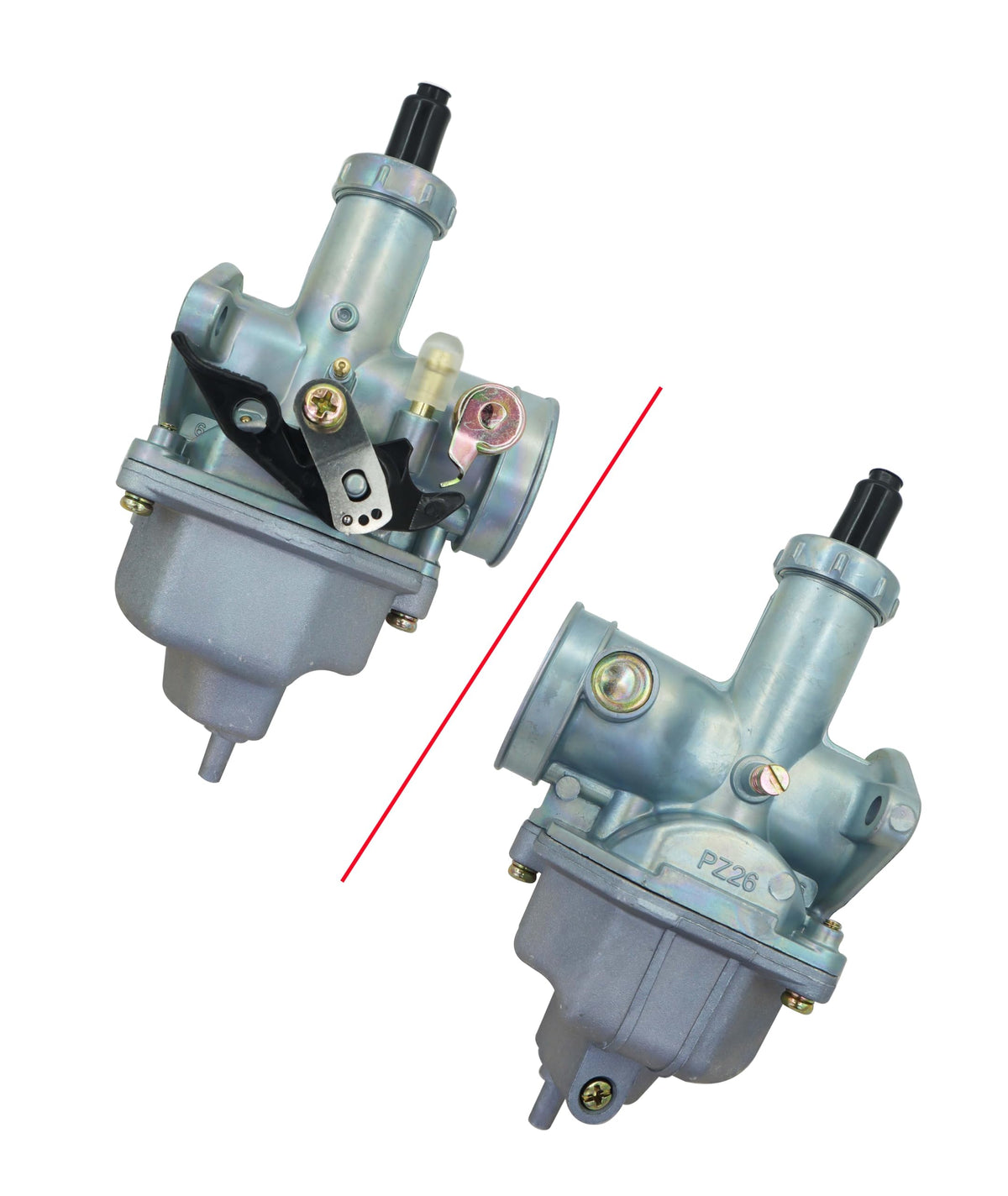

This DABAZUALY carburetor assembly is built to restore throttle response and reliable fueling for small-displacement Honda off-road bikes. Designed as a direct-fit replacement for the listed model years, the kit bundles the carburetor with the most commonly replaced consumables so you can install and ride without sourcing multiple parts. Technical fit dimensions and OEM cross-reference numbers are provided to confirm compatibility before purchase.

Which Honda models and years does this carburetor fit?

The kit is engineered to fit Honda XR100R motorcycles from 2001 through 2003, and CRF100F models for 2004 and 2005. Use the size and bolt spacing measurements to verify fitment on custom or modified intake setups.

• XR100R: 2001, 2002, 2003
• CRF100F: 2004, 2005
• Cross-reference part numbers: 16100-KN4-A62, 17254-HF7-000
• Check intake diameter and bolt hole spacing before ordering

What hardware and parts are included in the kit?

Beyond the carburetor body, this kit groups the basic items technicians most often replace during a carb swap. That minimizes downtime and prevents fuel- and air-side contamination from used components.

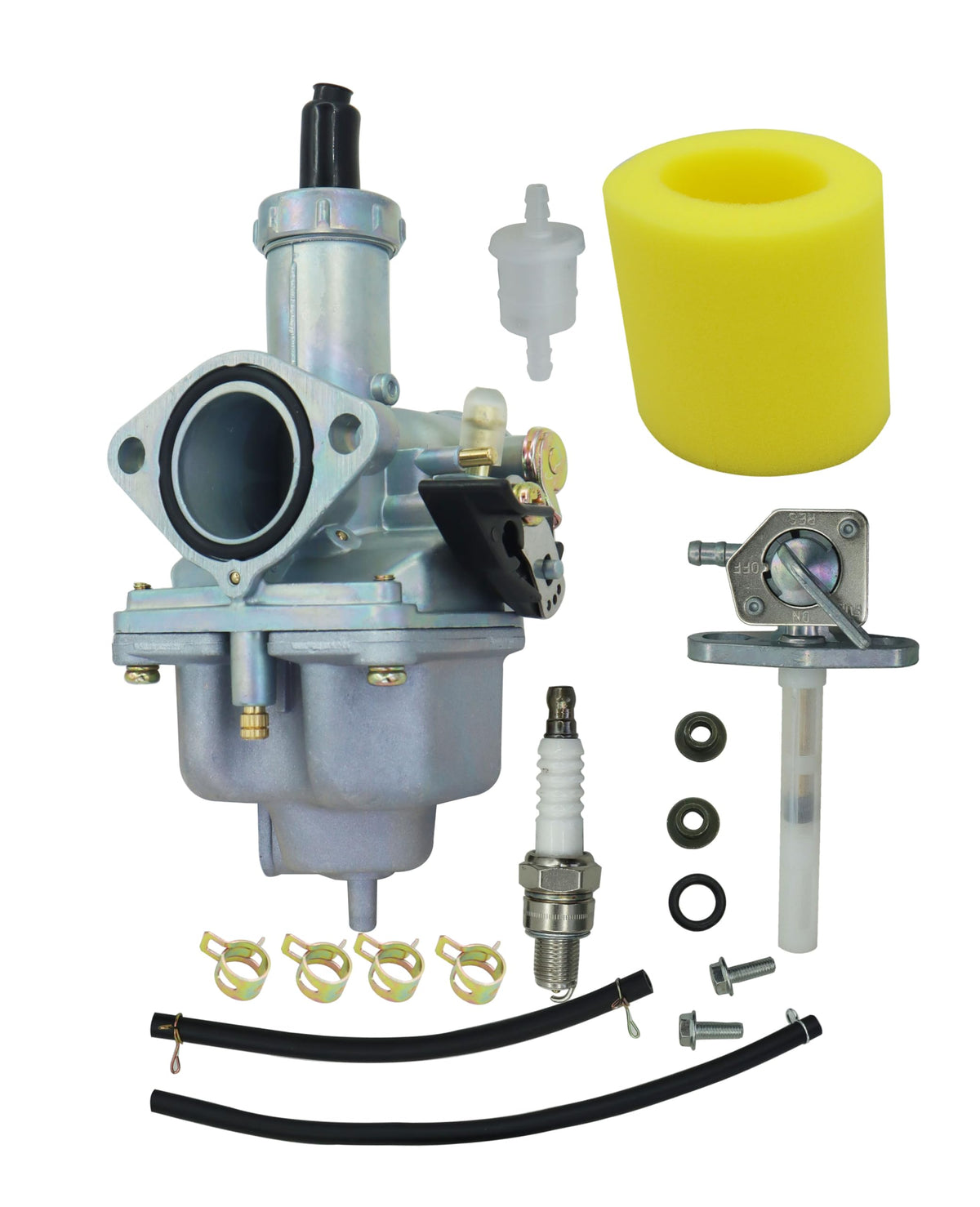

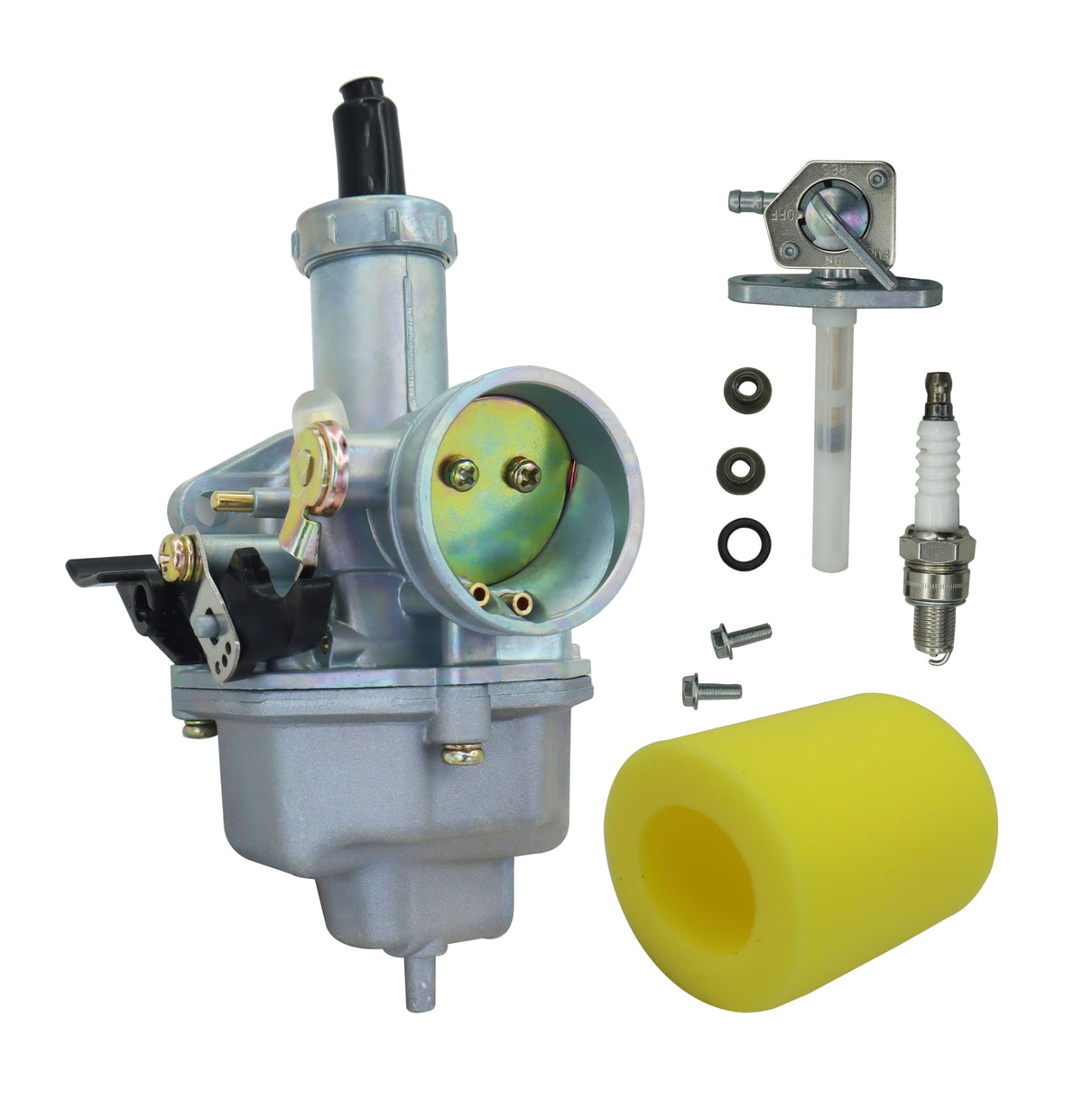

• 1 x complete carburetor assembly
• 1 x air filter element (pre-mounted sponge-style filter)
• 1 x fuel petcock to regulate tank flow
• 1 x inline fuel filter to trap debris
• 1 x replacement spark plug for initial tune-up

What are the critical dimensions and installation details?

Verify these measurements to ensure the carburetor seats and seals correctly in your intake manifold and airbox. Proper mounting prevents air leaks and uneven idling.

• Air filter mount diameter: 38 mm
• Bolt hole spacing: 48 mm (center-to-center)
• Intake throat (intake diameter): 26 mm
• Designed for bolt-on replacement with standard XR/CRF mounting points

Who this kit is for: Riders, mechanics, and restoration projects that need a cost-effective, ready-to-install carburetor package for 100cc Honda trail bikes. It’s particularly useful if you want to replace both the fueling component and common wear items in a single purchase — ideal for maintenance, track prep, or breathing new life into older machines. Confirm your bike’s year and intake measurements before ordering to guarantee the correct fit.
