DAIERTEK Remote Battery Disconnect Switch 12V/24V 240A — Auto-Detect Voltage Protection, Anti-Misoperation

This compact, high-current battery disconnect is designed for cars, trucks, RVs and boats that need a reliable way to isolate their battery without rewiring. It supports both 12V and 24V systems with automatic detection, offers remote and manual control, and adds voltage-sensing intelligence to reduce battery damage from long-term parasitic drains. Built-in anti-misoperation safeguards prevent accidental shutdowns during engine start, while indicator lights and audible alerts keep you informed of battery condition.

How does the DAIERTEK switch prevent a dead battery when a vehicle sits unused?

The unit continuously monitors battery voltage in smart mode and will disconnect the battery if it detects sustained low voltage, preventing deep discharge. This protects battery capacity and reduces the chance of being stranded after extended parking.

• Automatically detects low-voltage below 11.8V (12V mode) or 23V (24V mode).
• Disconnects after a sustained low-voltage period (more than 2 minutes).
• Ideal against drains from lights, alarm systems, or electronics left on.

Will it work safely on both 12V and 24V vehicles without extra setup?

Yes — the switch senses system voltage and configures itself for 12V or 24V operation, so no manual mode selection is required. After the system switches modes, a power cycle restores the selected mode, making installation and use straightforward.

• Auto-voltage detection for 12V and 24V systems.
• No manual jumpers or settings needed during installation.
• Power off and restart to apply a newly detected voltage mode.

Can I accidentally cut power while driving or during engine start?

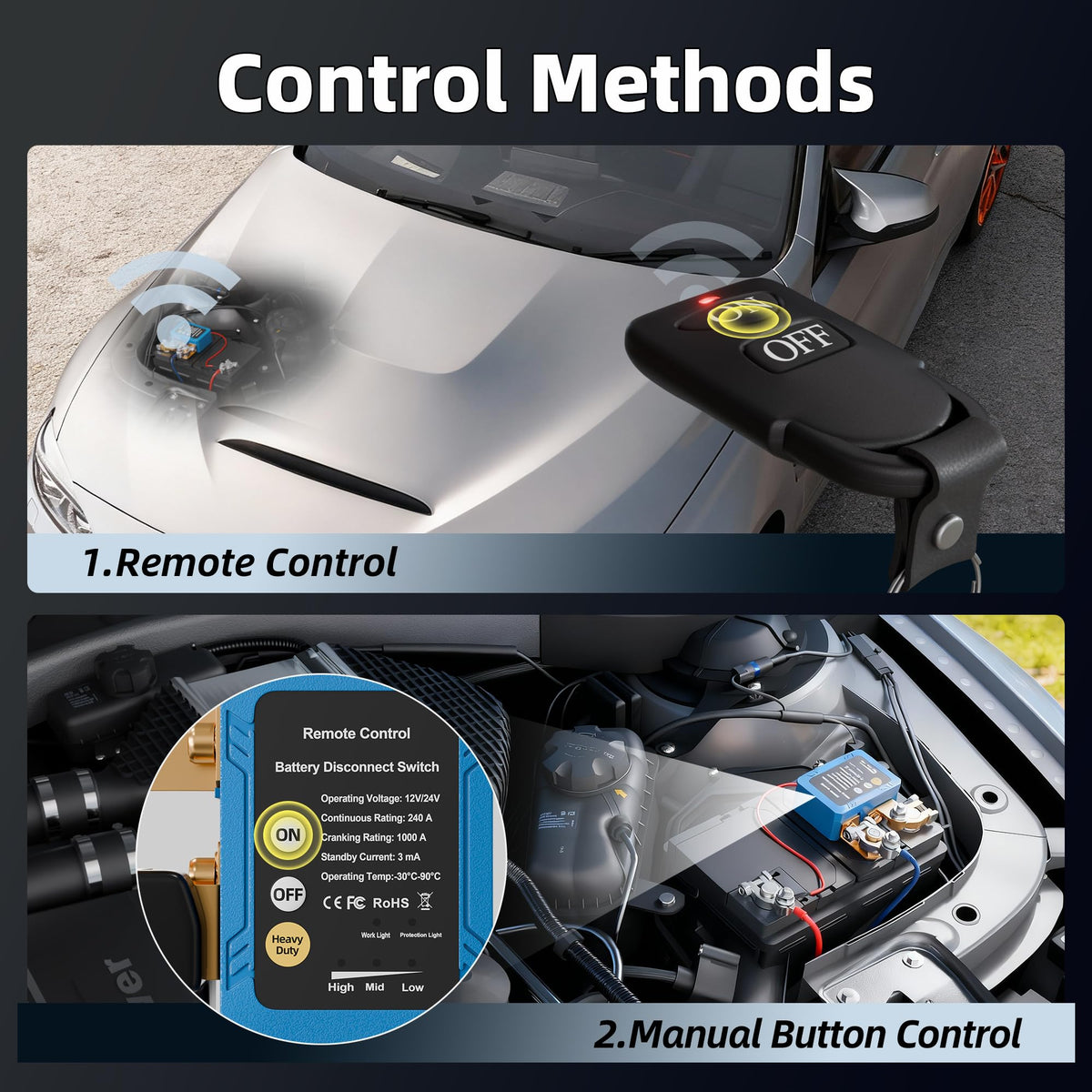

DAIERTEK includes intelligent anti-misoperation protection that temporarily disables remote control during engine cranking and when abnormal voltages are present. An indicator light alerts you if control is suspended, and the physical manual button is always available as a backup.

• Remote control is disabled during engine cranking and abnormal voltages.
• Indicator light signals disabled remote control to avoid surprises while driving.
• Manual mechanical button remains usable for immediate control.

How will I know the battery’s condition at a glance?

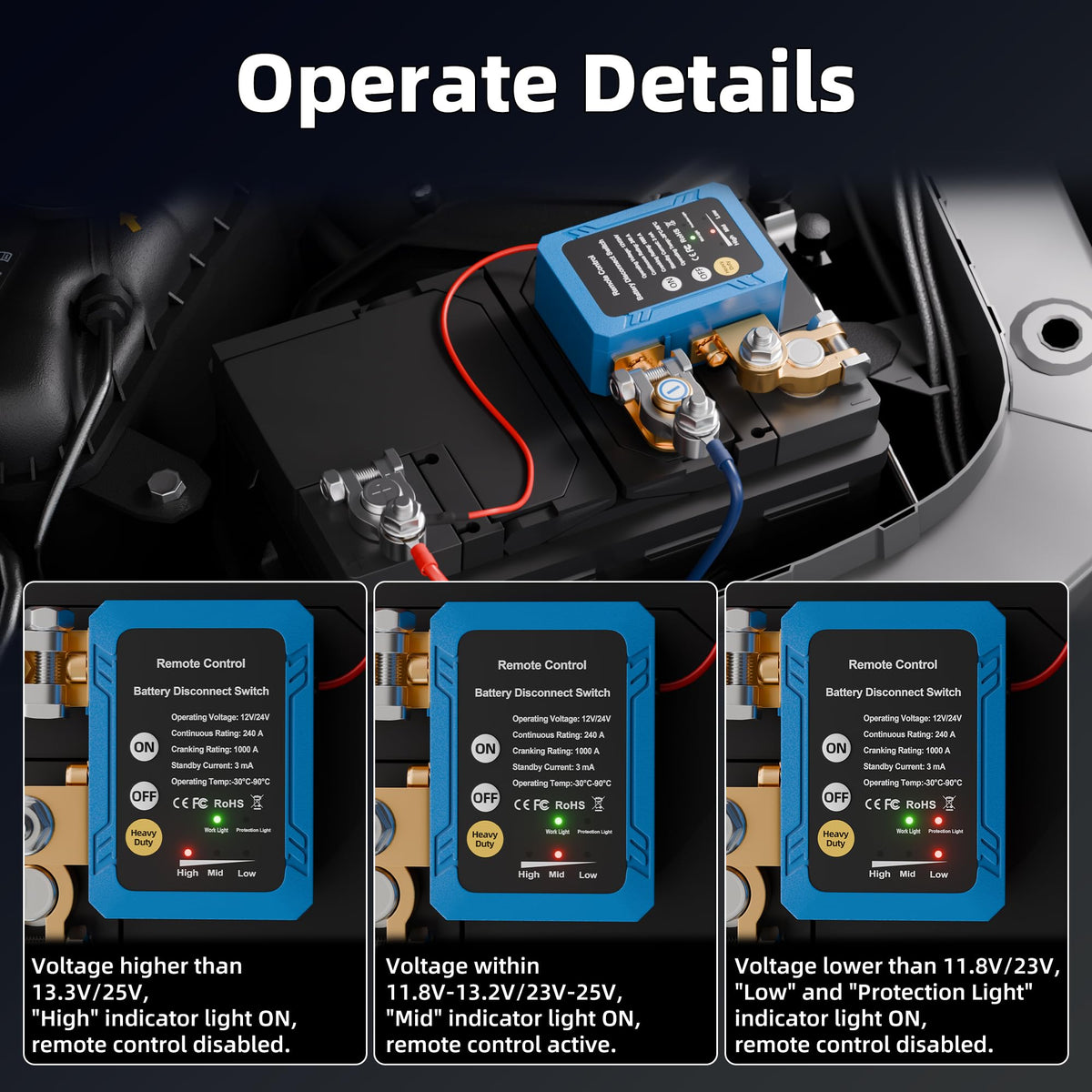

The switch provides multi-stage visual and audible feedback: normal, low, and high voltage states are shown with distinct indicator lights, and an alarm sounds during prolonged low voltage. These cues let you quickly assess battery health without additional meters.

• “Mid” light for normal voltage, “Low” light and alarm for sustained low voltage.
• “High” light activates when alternator or charging system produces overvoltage.
• Real-time alerts help catch charging issues early.

Who is this for: The DAIERTEK 240A remote battery disconnect is aimed at vehicle owners who want an easy, non-destructive way to manage battery power—RV owners, boaters, fleet operators, and off-grid or seasonal vehicle users. Installers and DIYers will appreciate the tool-free clamp options and plug-and-play approach, while anyone wanting automated battery protection and remote isolation will benefit from its safety features and clear voltage feedback.
