Danhonwin IPR Air Test Kit for Ford Powerstroke 6.0L & 7.3L — High‑pressure hose, fittings, hand valve

Danhonwin High Pressure Oil System IPR Air Test Tool Special Kit lets technicians pressure-test Ford 6.0L and 7.3L Powerstroke high-pressure oil systems to find and pinpoint leaks before engine installation. This compact kit provides everything needed to pressurize the HP oil system and listen for or isolate leaks so repairs can be completed on the bench rather than after vehicle assembly. Built hoses, fittings, and a hand valve allow safe shop-air testing up to the hose rating; the set includes adapters for both 6.0L and 7.3L IPR ports plus multiple sealing washers and O-rings for repeatable, reliable connections.

How does this tool verify a Powerstroke high-pressure oil system?

The kit converts shop air into a controlled pressure source that feeds into the IPR port, allowing the technician to pressurize the system and detect leaks by sound or pressure loss. Using the shutoff valve, you can trap pressure to isolate small leaks or verify a repaired assembly.

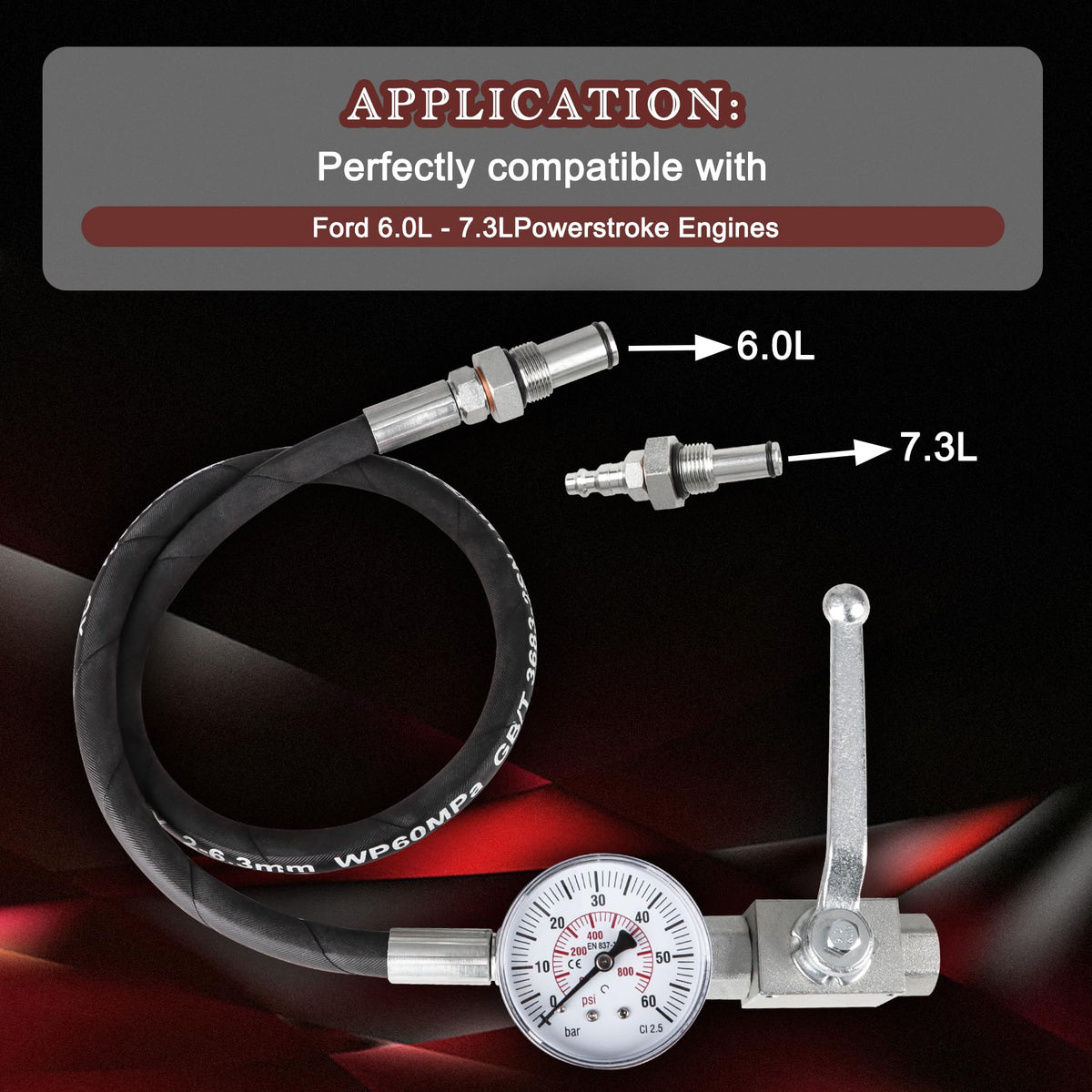

• Includes 6.0 and 7.3 IPR fittings for direct port compatibility
• Heavy-duty rubber hose rated to 5,300 PSI for durable pressure handling
• Hand-operated valve allows easy pressurization and isolation
• Extra O-rings and copper washers ensure proper sealing on repeat tests

What components and materials are included and why do they matter?

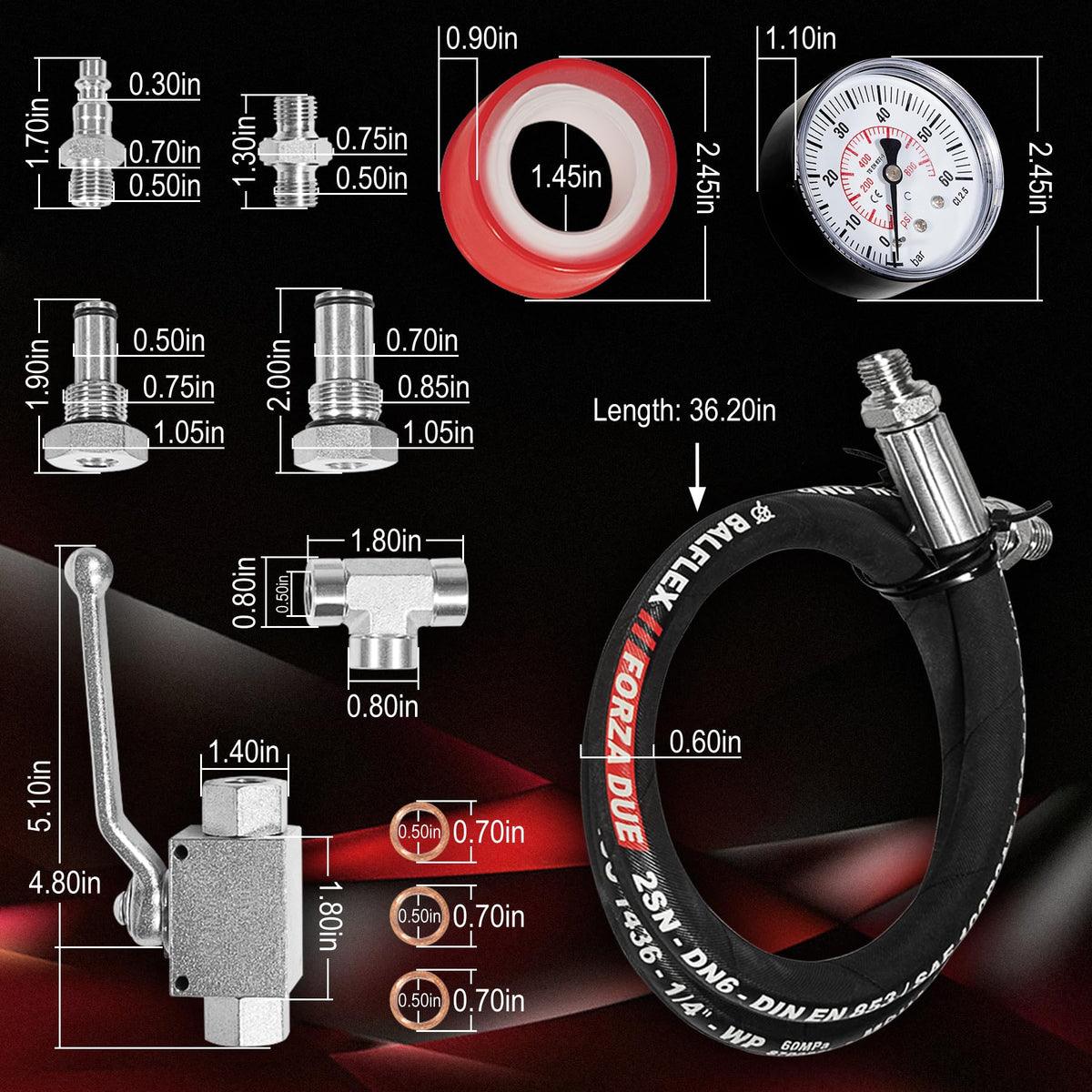

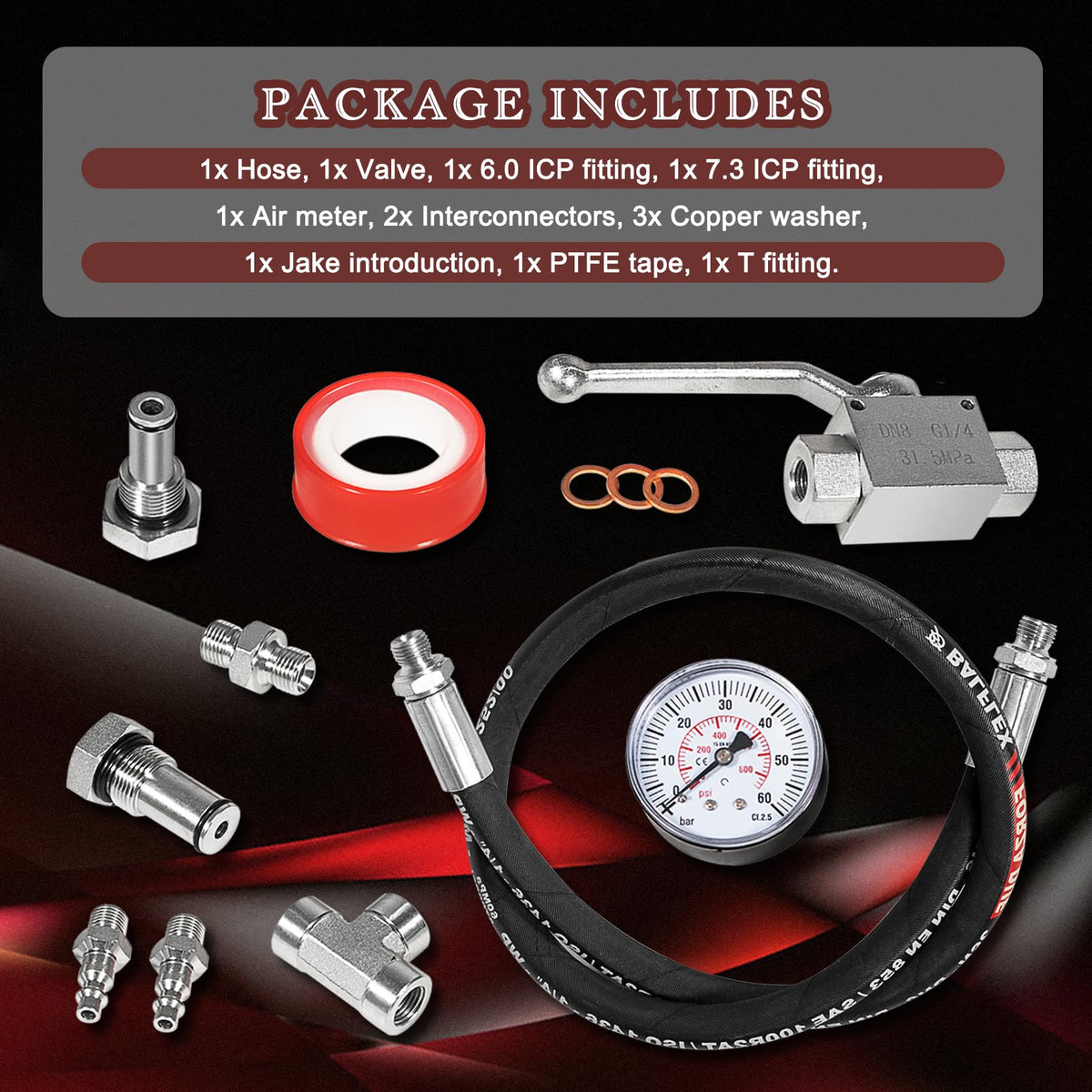

The kit bundles a reinforced hydraulic hose, high-strength steel fittings, an air meter, interconnectors, and sealing hardware so you get a complete test solution without fabricating adapters. Using quality fittings and a rated hose reduces the chance of failure during testing and provides tighter seals for accurate leak detection.

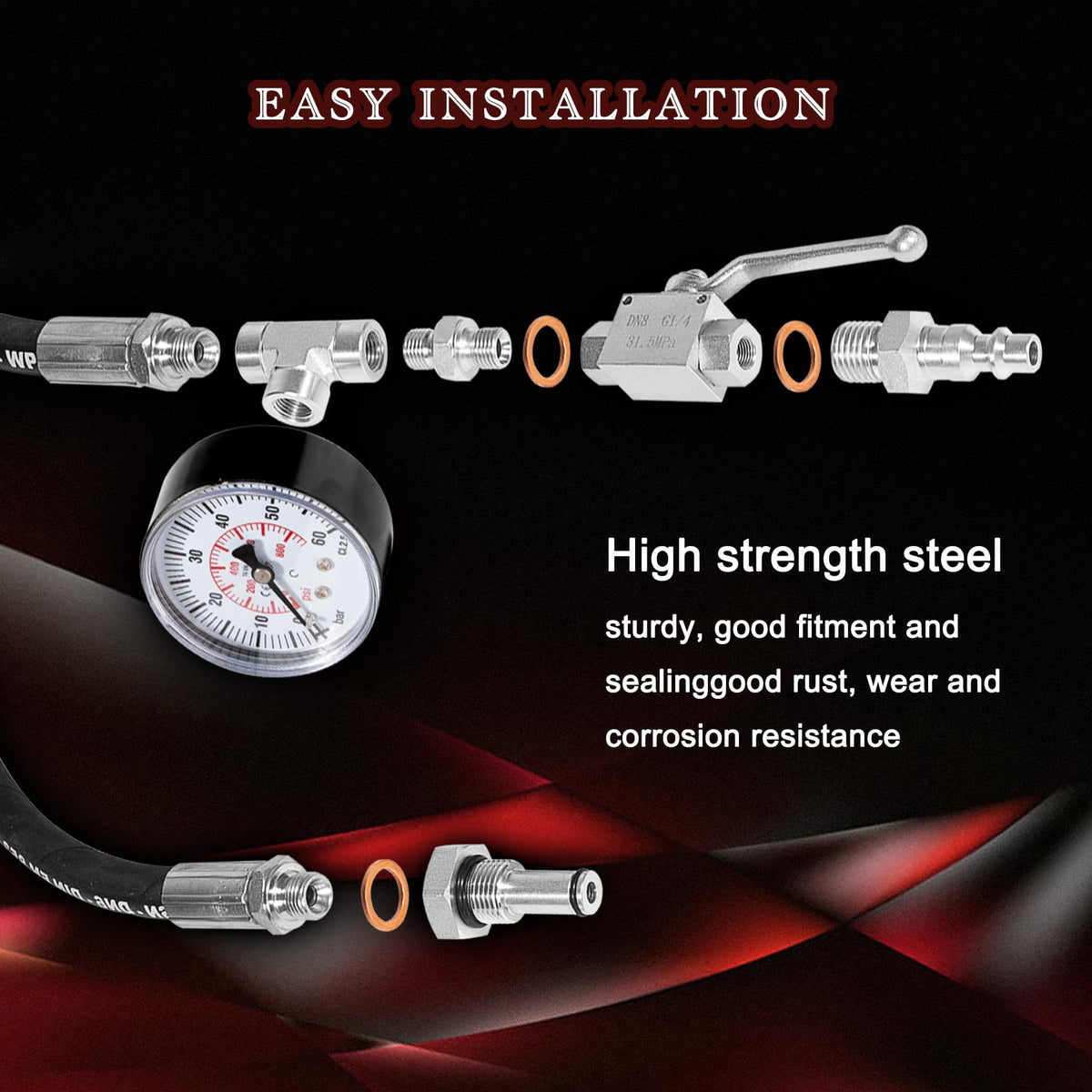

• High-hardness steel fittings resist wear and improve sealing
• PTFE tape and copper washers for reliable, leak-free threads
• Three O-ring sets let you replace seals during repeated use

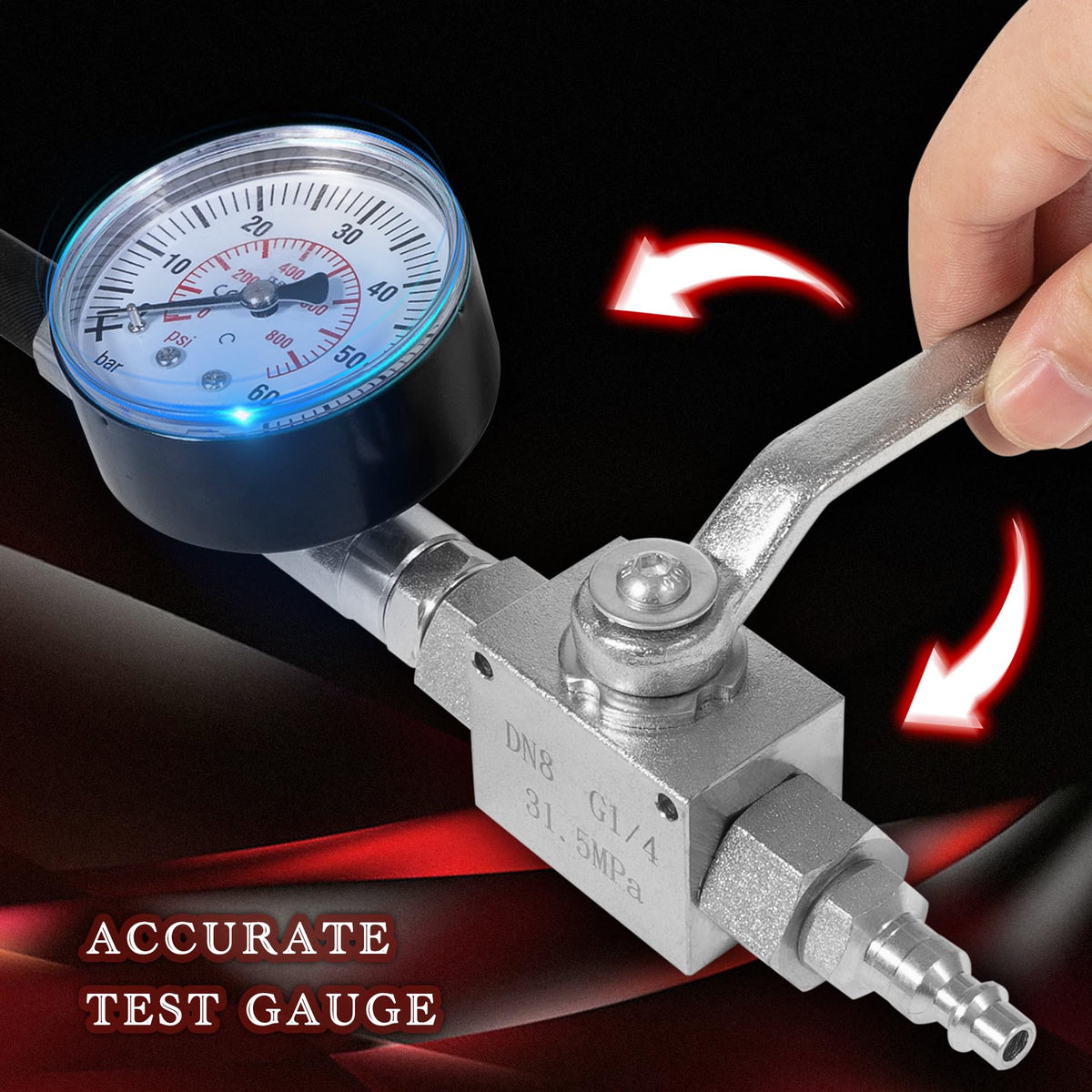

• Air meter gives immediate readout to monitor test pressure levels

How simple is setup and operation in a typical shop environment?

Installation is straightforward: remove the air cleaner, FICM, and degas bottle to access the IPR—turbo removal is not required. Thread the appropriate adapter into the IPR port, attach the hose, and feed shop air; hand-tightening on the hose fitting is sufficient, and the valve lets you trap pressure to pinpoint leaks.

• No special tools needed beyond common shop air and basic hand tools
• Hand-tightened connections make quick test cycles possible
• Shutoff valve lets you isolate and locate minute leaks
• Designed to test updated standpipe systems as well as earlier designs

Who is this for? This Danhonwin IPR air test kit is aimed at diesel engine builders, independent shops, and mobile technicians who service Ford 6.0L and 7.3L Powerstroke engines and want to confirm the HP oil system is leak-free before final assembly. It’s useful for bench testing rebuilt cylinder heads, diagnosing intermittent oil loss, or validating repairs where removing the engine from the vehicle would be costly or time-consuming. The included adapters, spare seals, and rated hose make it practical for repeated professional use while keeping testing efficient and safe.

FAQ

Q: Will this kit fit both 6.0L and 7.3L Powerstroke IPR ports?

A: Yes. The kit includes dedicated fittings for both 6.0L and 7.3L IPR ports to accommodate those Powerstroke engines.

Q: What maximum pressure can the hose handle during testing?

A: The supplied hydraulic hose is rated up to 5,300 PSI, suitable for controlled HP oil system checks.
