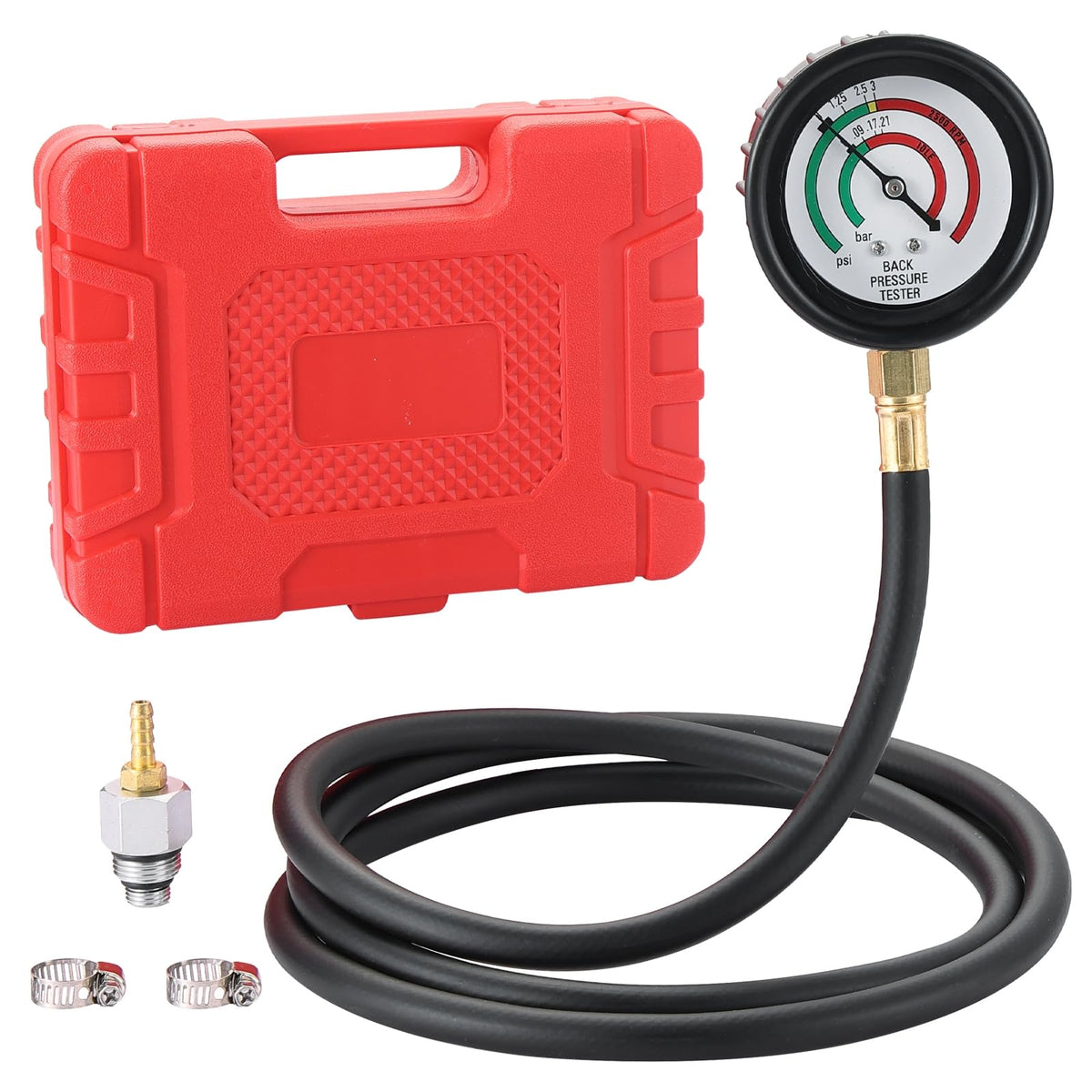

DASBET Exhaust Back Pressure Tester Kit with 2.5-inch Gauge, M12/M18 Adapters & Carrying Case

DASBET Exhaust Back Pressure Tester Kit is a professional-grade tool for measuring exhaust back pressure to help identify clogged catalytic converters, mufflers, or restrictive exhaust components.

Powered by a 2.5-inch dual-scale gauge, high-temperature hose, and universal M12 and M18 fittings, this kit gives mechanics and DIYers a fast, reliable way to evaluate exhaust flow without removing components. The color-coded dial, shockproof rubber guard, and calibrated assembly enable clear readings at idle and higher RPMs so you can pinpoint restrictions that cause poor acceleration or overheating symptoms.

How do I use the tester to check my vehicle’s exhaust back pressure?

Install the appropriate M12 or M18 adapter into the exhaust port, attach the heat-resistant hose, then connect the gauge and run the engine at the recommended speeds. Observe the PSI/Bar dial in the green, yellow, or red zones to assess whether the exhaust flow is within acceptable limits.

• Choose M12 or M18 adapter matching the vehicle exhaust port.
• Connect the 6-foot silicone hose and secure fittings tightly.
• Check readings at idle (target ≤1.25 PSI) and at 2500 RPM (target ≤3 PSI).
• Record color-zone result: green = acceptable, red = restrictive.

What features make this kit suitable for professional use?

The DASBET kit combines a high-definition 2.5-inch gauge with a shockproof rubber cover and a thickened silicone hose that resists heat up to 300°C, giving technicians a durable, accurate instrument for repeated shop use. Calibrated at the factory, the gauge supports quick diagnostics without complicated setup.

• 2.5-inch dual-scale gauge with color indicators for fast assessment.

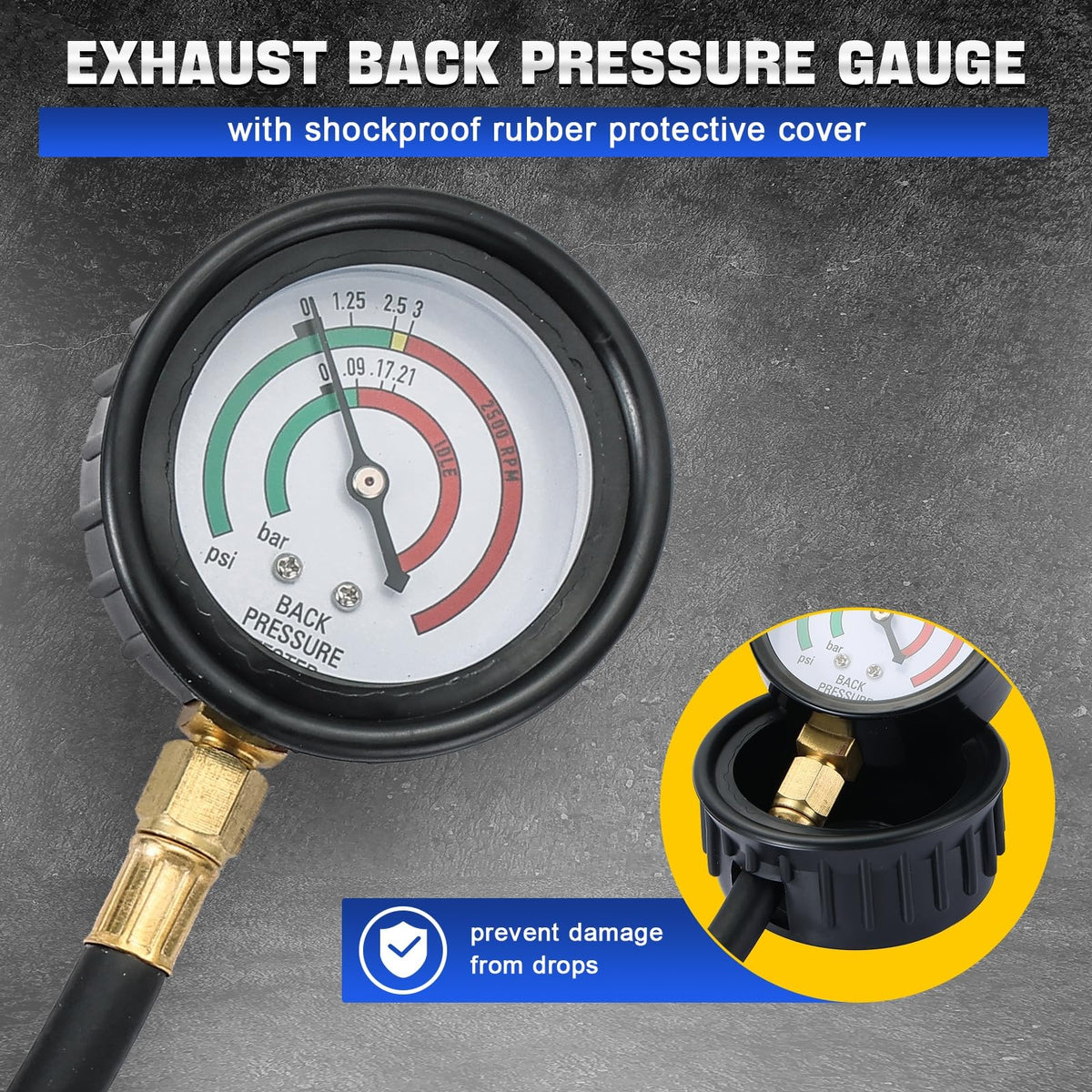

• Shockproof rubber guard protects gauge from impacts and drops.

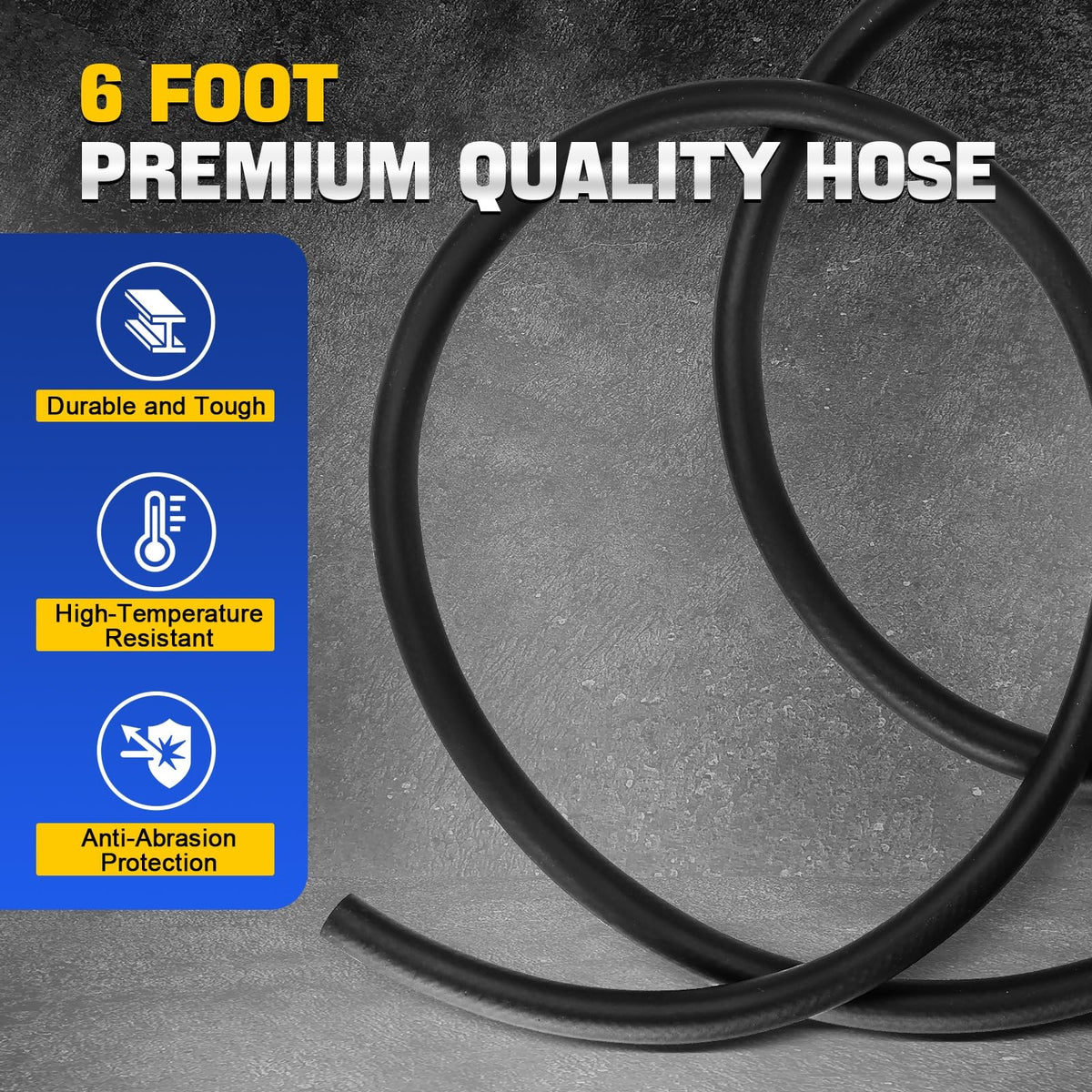

• 6-foot, high-temperature silicone hose allows testing from the driver’s seat.

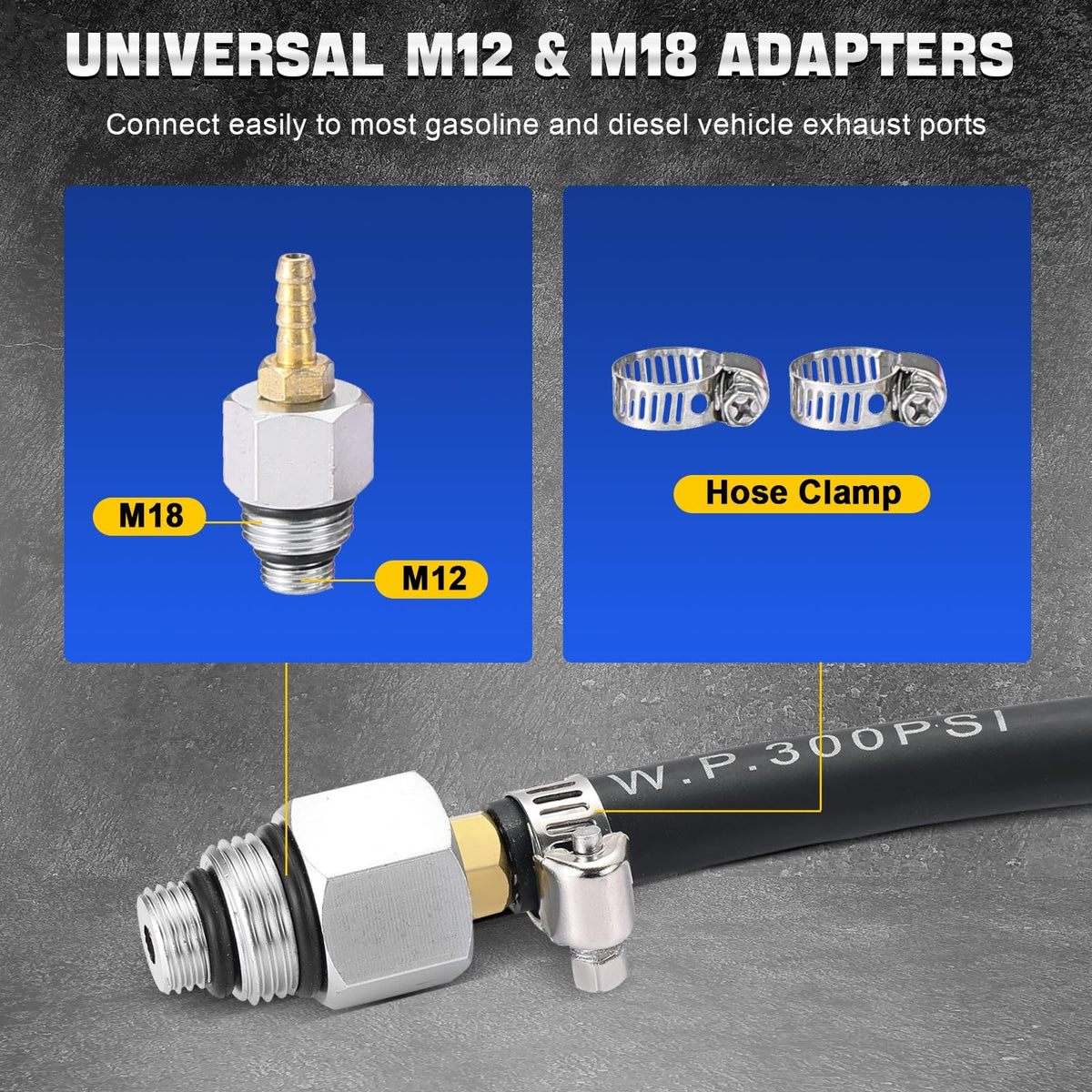

• Universal M12 and M18 adapters fit most gasoline and diesel exhaust ports.

How precise are the readings and can I adjust the gauge?

Readings are calibrated so you can rely on the PSI values at idle and at 2500 RPM; acceptable thresholds are ≤1.25 PSI at idle and ≤3 PSI at 2500 RPM. If the pointer shifts during transit, the clear instructions allow you to reset the needle to zero without affecting measurement accuracy.

• Factory-checked and calibrated gauge for consistent results.

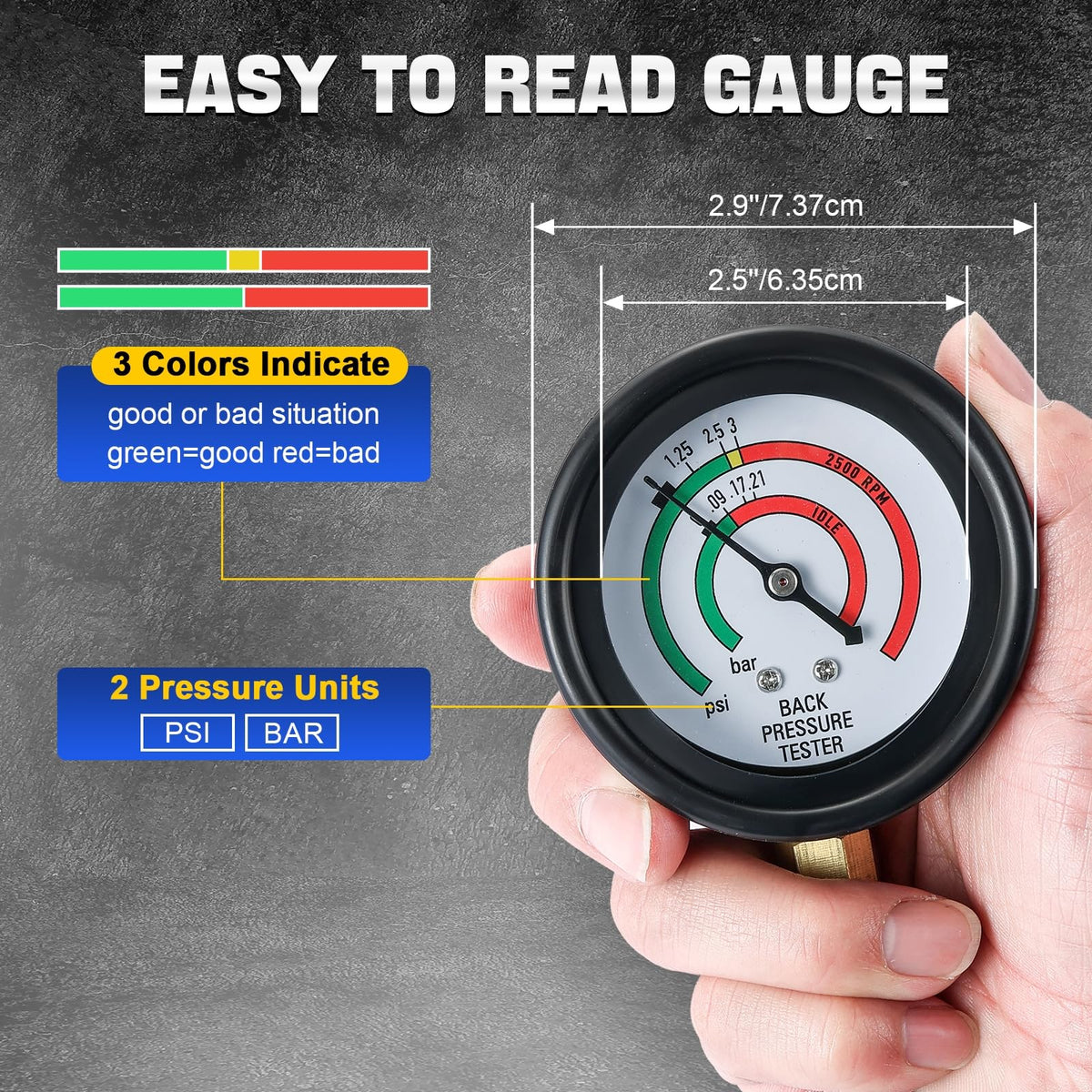

• Clear 2.5-inch dial shows PSI and Bar with green/yellow/red zones.

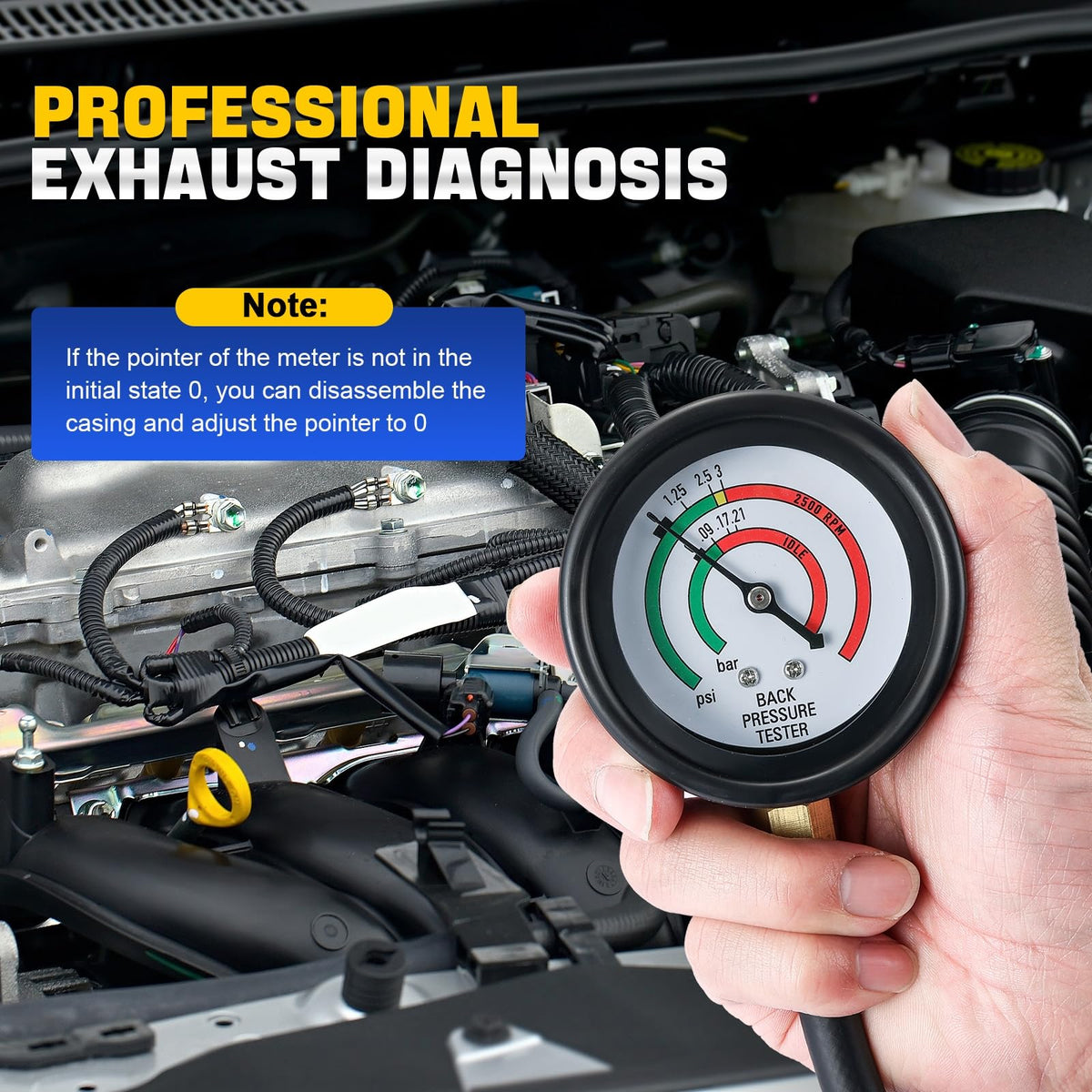

• Needle can be adjusted by disassembling the cover if displaced in shipping.
• Designed for repeated testing across a range of engine speeds.

Are there safety tips or limits I should know before testing?

Always perform tests in a well-ventilated area to avoid exhaust buildup and follow vehicle manufacturer safety steps when revving the engine. The hose tolerates temperatures up to 300°C, but keep hands and loose clothing clear of moving parts and hot surfaces while testing.

• Test outdoors or in ventilated shop to prevent exhaust fume exposure.
• Keep the hose away from sharp edges and direct flame contact.
• Secure fittings to prevent leaks during high-RPM checks.
• Wear gloves and eye protection when connecting and disconnecting fittings.

Who is this for: The DASBET Exhaust Back Pressure Tester Kit is aimed at automotive technicians, service shops, vehicle dealers, and informed DIY enthusiasts who need a reliable, portable tool to diagnose exhaust restrictions quickly. It’s especially useful when tracing poor acceleration, overheating concerns, or verifying catalytic converter and muffler performance without costly disassembly.
