DC Cargo Mall Cargo Bar Load Lock Double Holder — Bolt-on Black Steel, 2-Piece Restraint & Foot Protector

A two-piece steel carrier that secures and protects two cargo bar load locks by bolting to truck, trailer, warehouse, or garage walls.

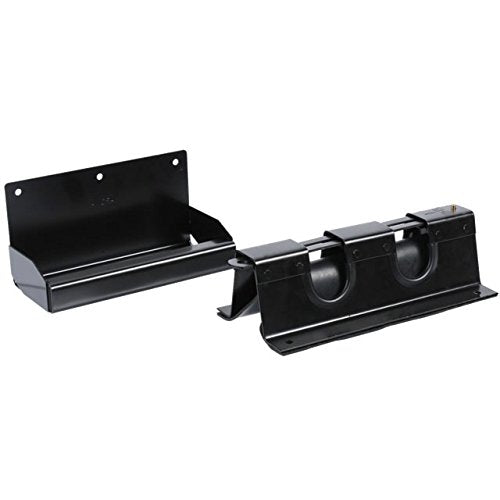

Keep load locks organized and damage-free with this bolt-on, black-steel double holder from DC Cargo Mall. The design separates into a top restraining assembly and a bottom foot protector so you can store two cargo rods safely, prevent suction cups or feet from getting scuffed or dusty, and lock the bars in place for transport or storage. Built for utility vehicles and industrial spaces, the carrier measures to accept rods up to 1-3/4" x 2" in cross section and installs with standard 1/4" fasteners.

How does the holder keep two cargo bars from shifting or falling?

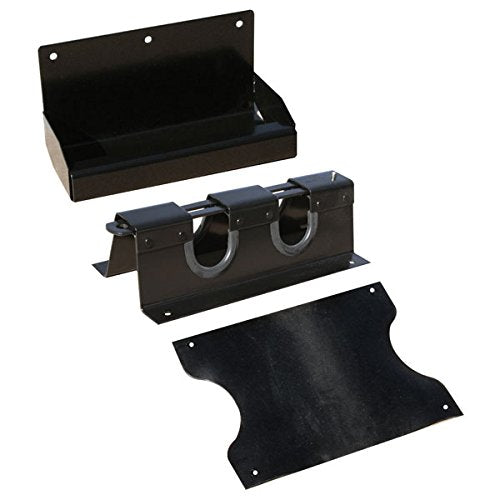

The top section clamps the bars with a spring-pin style restraining rod that swings open for removal and snaps closed to hold items firmly. A padlock can be threaded through the restraining rod’s end hole for added theft or tampering protection. The bottom piece supports the rod feet and prevents direct contact with the wall.

• Top section length 11", depth 3-1/2", height 5-1/8"
• Bottom length 9-1/4", width 4-3/8" with curved upward extension
• Pre-drilled 1/4" mounting holes (top: four corners; bottom: three holes)
• Accommodates two rods up to 1-3/4" x 2" each

What hardware and installation details should I expect?

Both halves are steel and arrive with pre-drilled mounting holes sized for 1/4" bolts so you can attach the unit to wood, metal, or composite wall surfaces. The top plate uses four corner holes for stable load support; the bottom uses three holes and a built-in floor to cradle the bar feet. Use appropriate bolts, washers, and anchors for your wall material and torque to recommended fastener specs.

• Material: durable steel, finish: matte black
• Top: four 1/4" pre-drilled holes; Bottom: three 1/4" pre-drilled holes
• Includes spring-pin restraining rod with lockable hole
• Recommended fasteners not included — match to mounting substrate

Will this carrier protect suction feet and maintain grip on load locks?

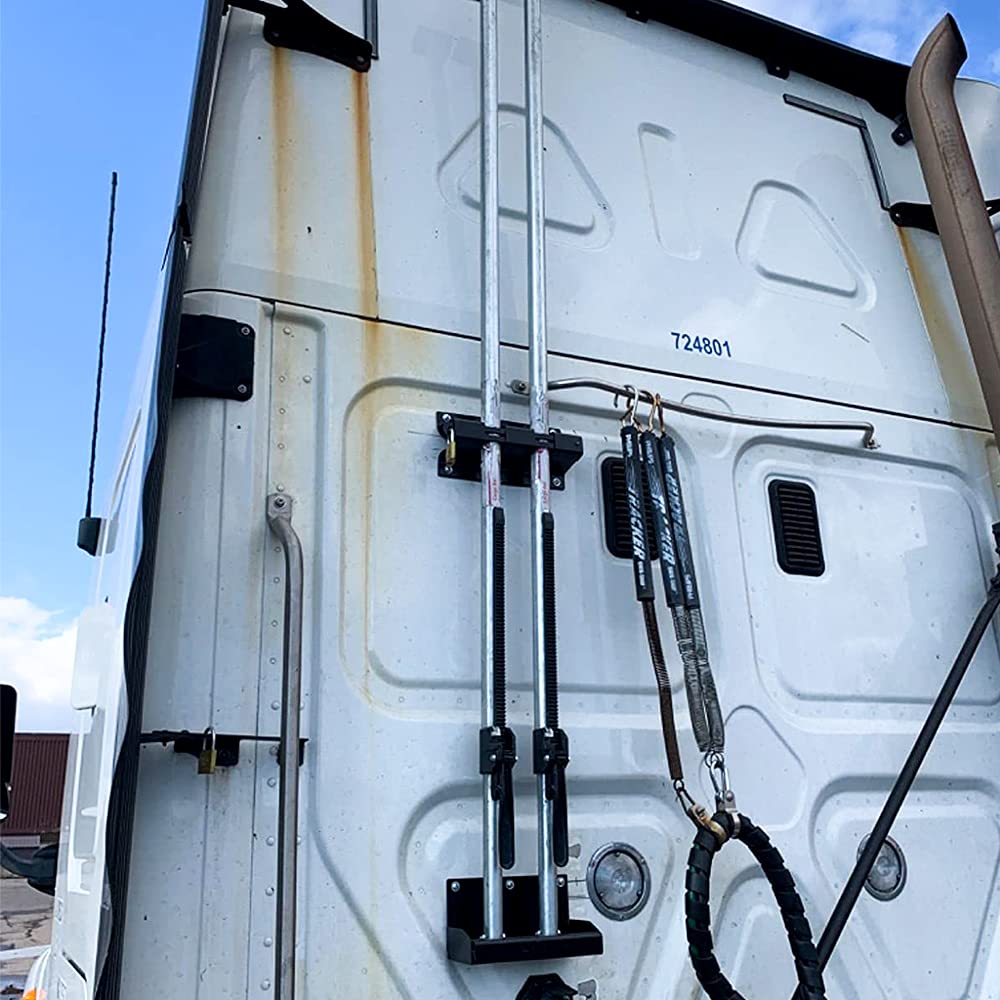

The bottom foot protector lifts the suction feet off the mounting surface and features a curved lip that prevents abrasion and dust buildup on rubber or plastic feet. By keeping the feet from constant contact with walls or concrete, you preserve the integrity of suction surfaces so they retain grip when redeployed.

• Floored bottom piece keeps feet elevated and spaced
• Curved extension reduces rubbing and compression damage
• Black finish minimizes visible scuffs and resists dirt buildup
• Ideal for load locks with suction or soft protective pads

How secure is the carrier during transport or storage?

The carrier’s restraining bar locks into place with a spring pin and includes a hole sized for a small padlock, letting you immobilize rods against accidental release or unauthorized removal. The bolt-on mounting prevents rattling or shifting under normal vehicle movement when installed with proper hardware.

• Lockable restraining bar hole for padlock use
• Steel construction resists bending under typical cargo loads
• Pre-drilled mount points ensure stable attachment
• Compact footprint keeps bars out of the way and secure

Who this is for: Professional drivers, fleet managers, warehouse personnel, and DIY vehicle owners who use cargo load locks and need a compact, lockable storage solution that prevents damage to suction feet and keeps bars accessible. If you want a durable, boltable holder that organizes two rods and preserves the condition of their contact points, this DC Cargo Mall double holder is designed for that use.
