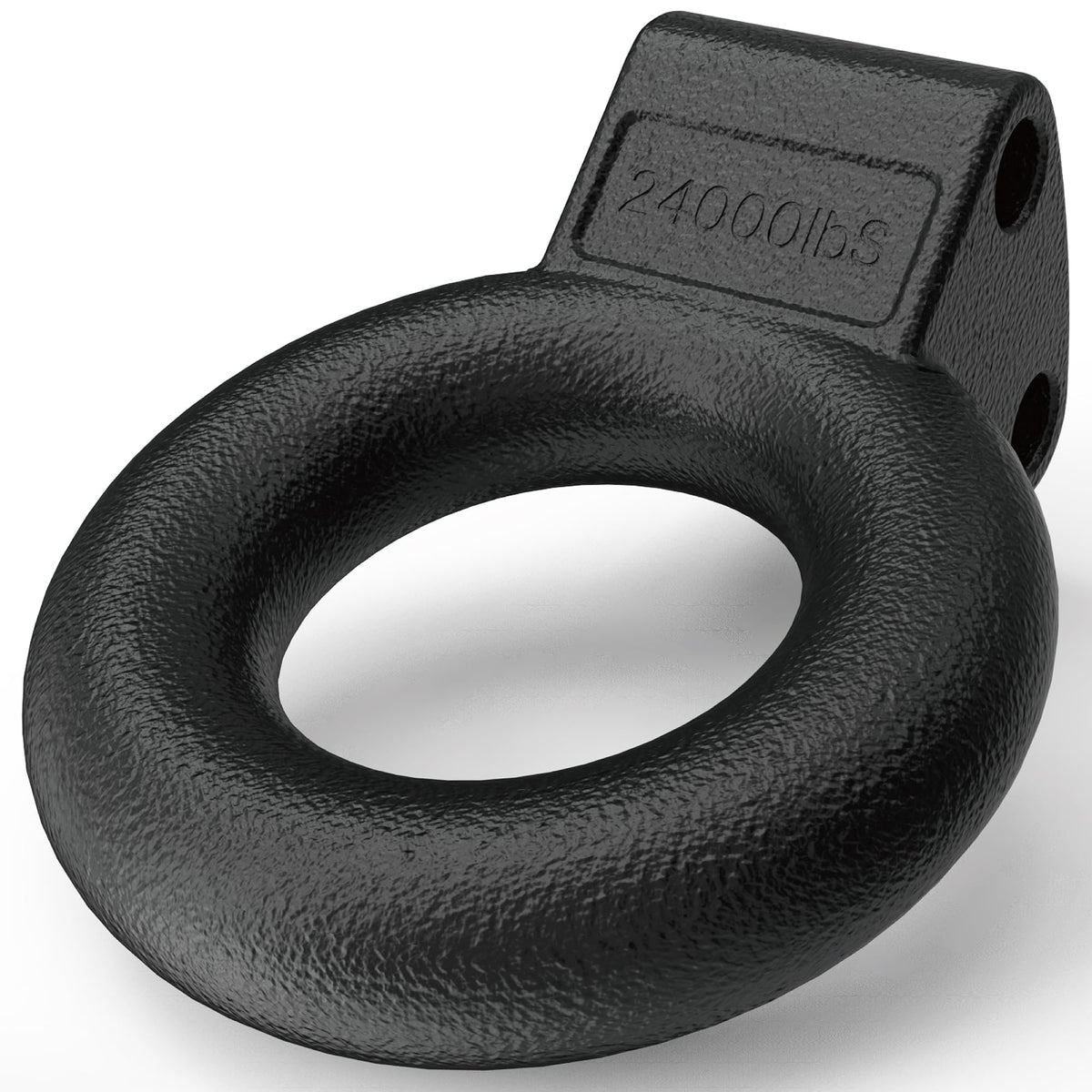

DEEAGLE Pintle Hitch Lunette Ring 3" ID, 24,000 lb Rated — Heat‑Treated 45# Steel, Zinc-Plated Option

DEEAGLE Pintle Hitch Lunette Ring is a 3-inch inner diameter, 24,000 lb rated lunette ring built from heat-treated 45# steel for secure heavy-duty towing.

This heavy-duty lunette ring is engineered for commercial, construction, and fleet towing where a robust, dependable connection is required. Finished in either zinc-plating for corrosion resistance or plain for custom coating, the DEEAGLE ring pairs with standard pintle hooks, balls, and couplers and mounts quickly into adjustable channel brackets. Its combination of hardened steel, double-bolt fixation, and controlled rotational clearance makes it a practical component for trailers, equipment haulers, and work vehicles operating in demanding environments.

How does the DEEAGLE lunette ring fit my existing towing setup?

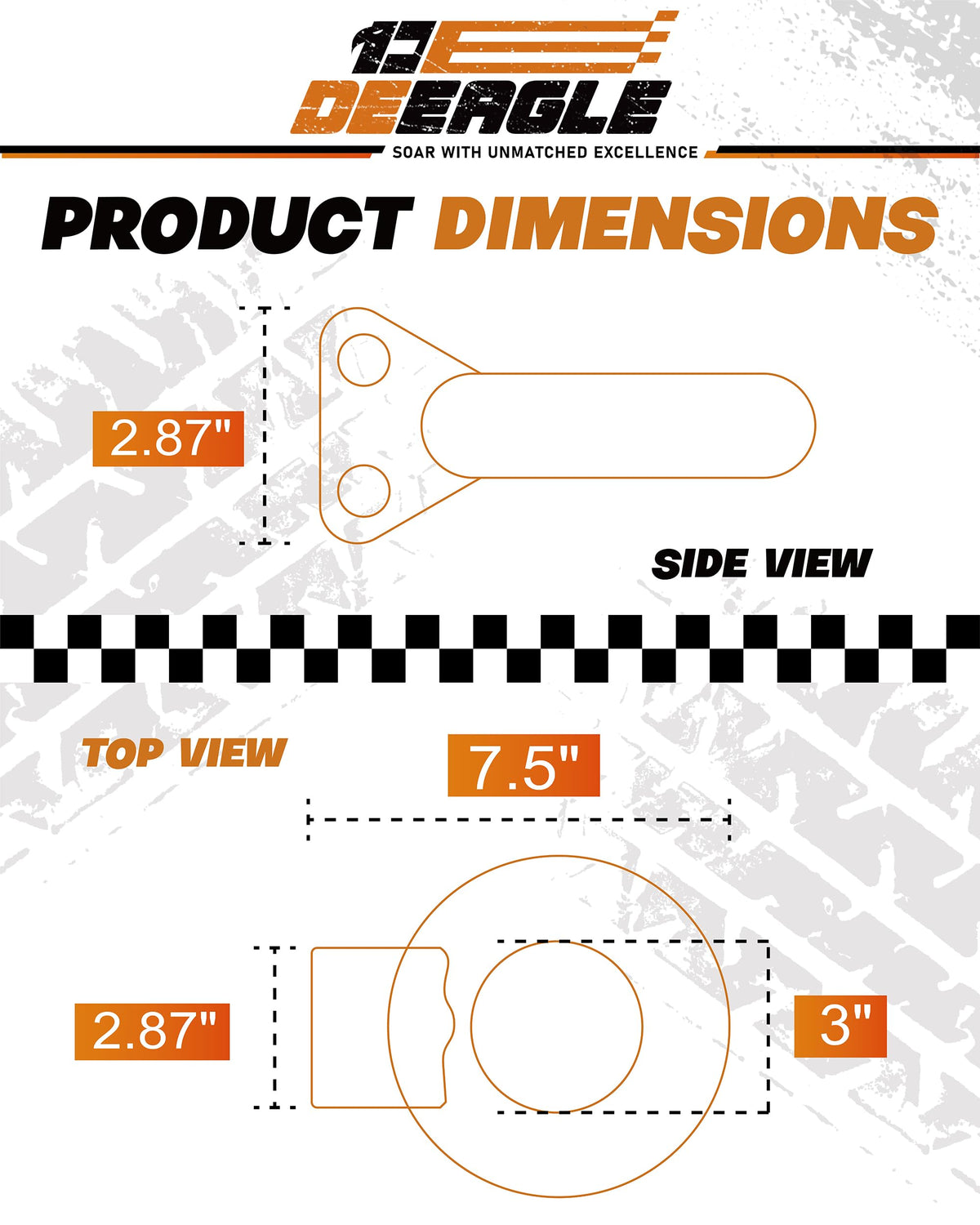

The DEEAGLE lunette ring is made with a 3-inch inner diameter to match most standard pintle hooks and couplers; it also accepts pintle balls used in many commercial systems. It was designed specifically to slot into adjustable channel brackets and uses double-bolt fixation for a stable mounting that maintains alignment under load.

• 3-inch inner diameter compatible with common pintle hooks and pintle balls.

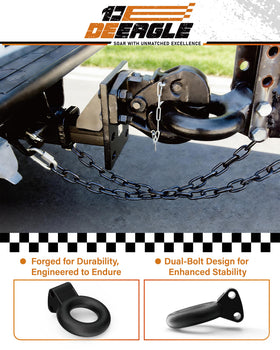

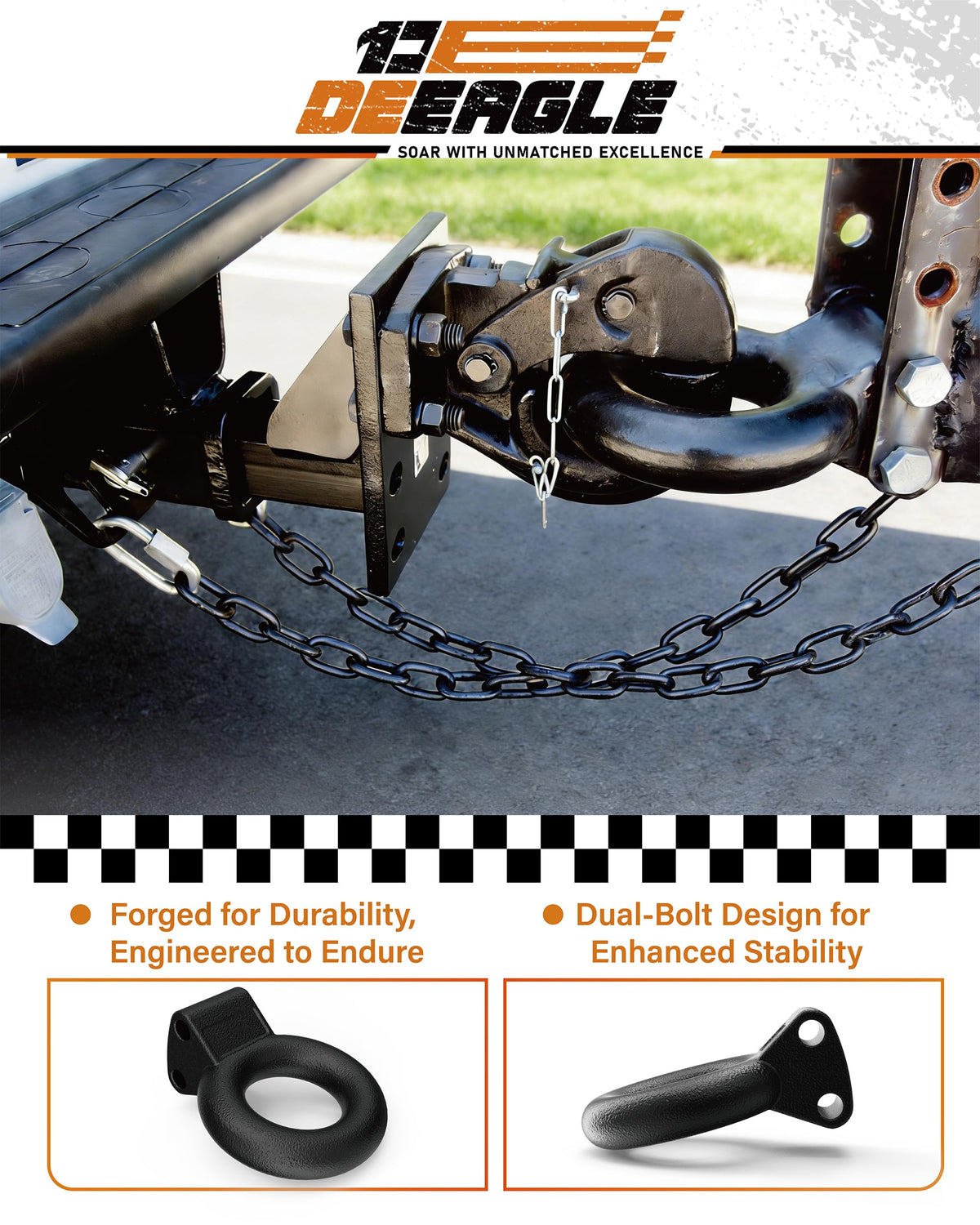

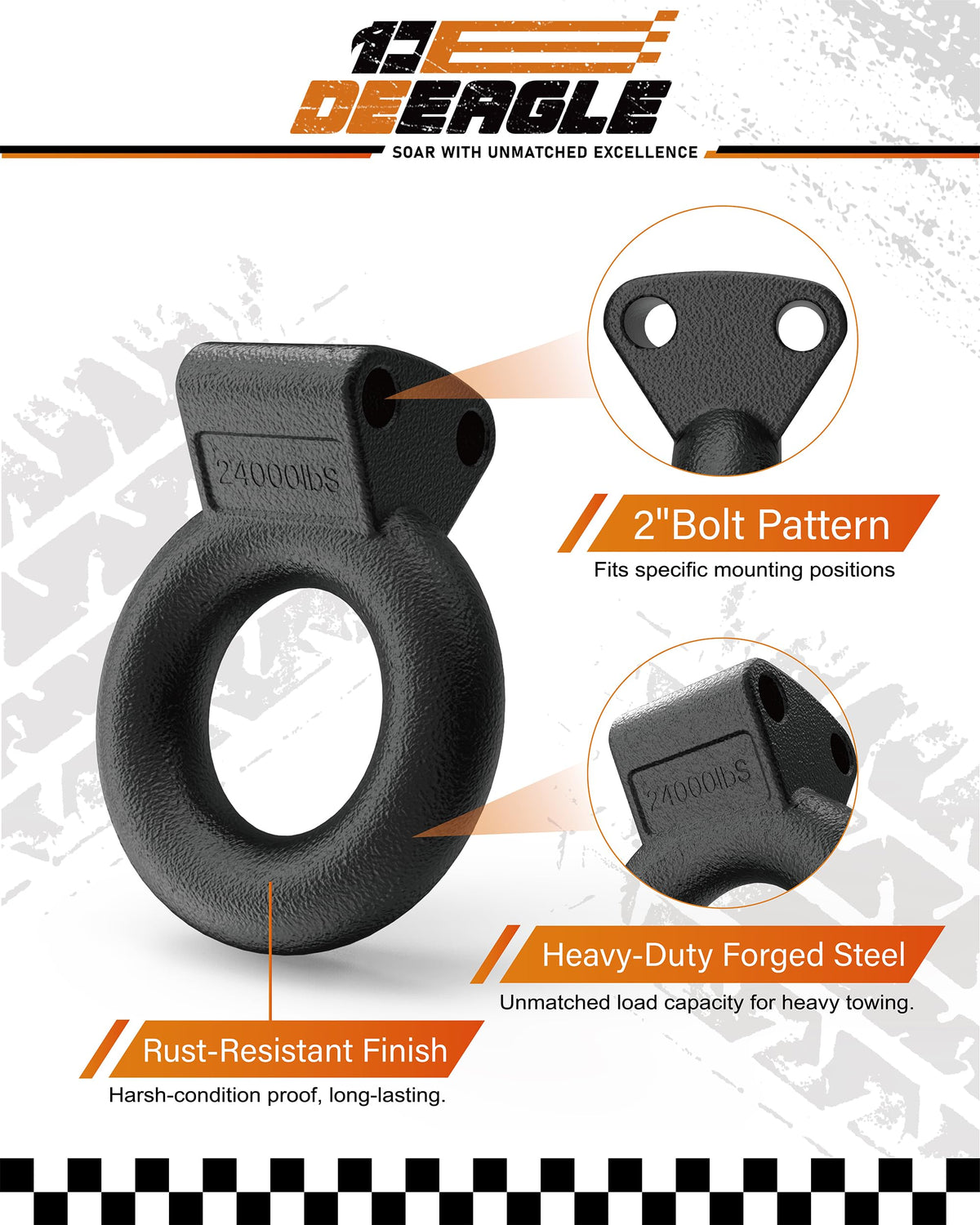

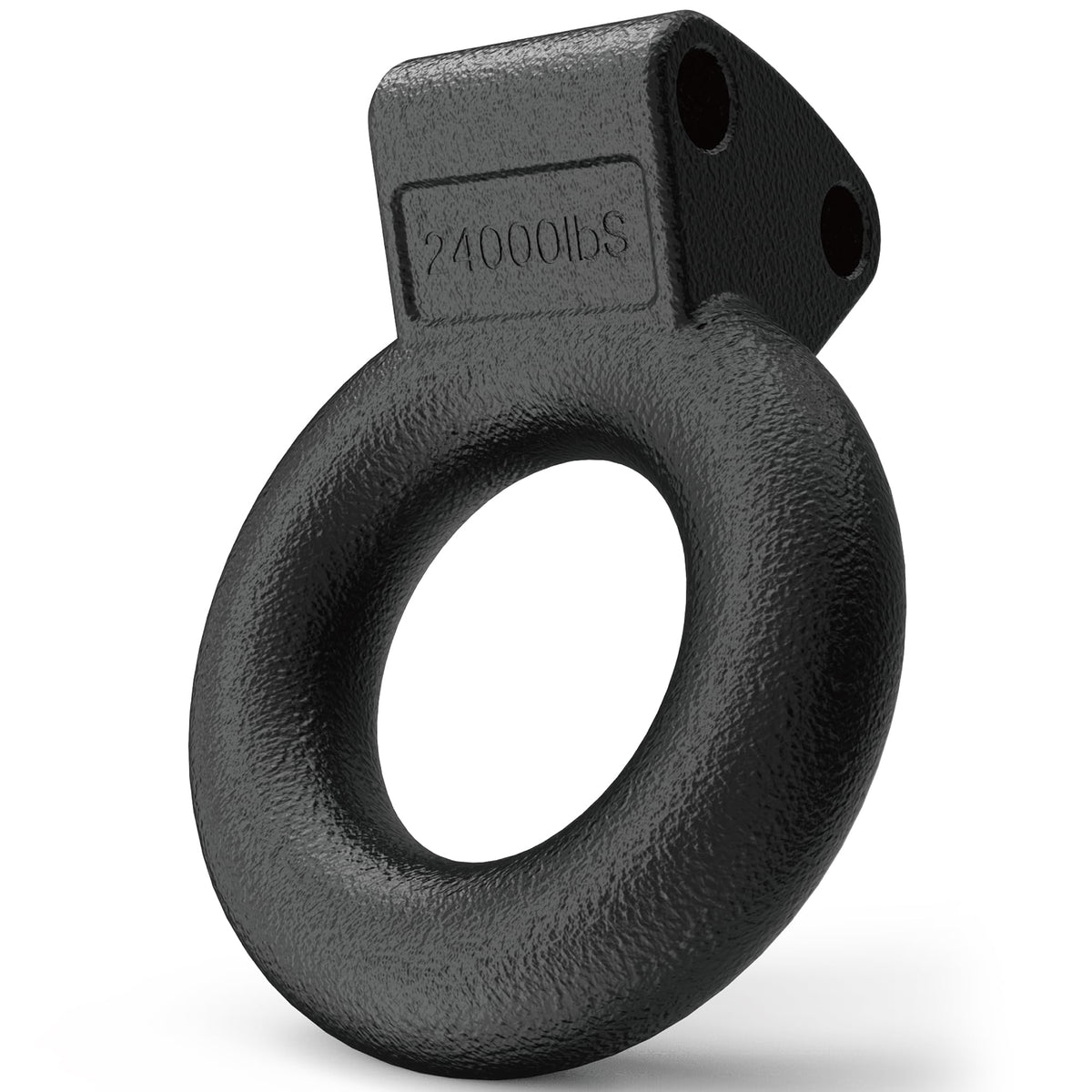

• Double-bolt fixation secures ring to adjustable channel brackets.
• Works with standard couplers on trailers, haulers, and equipment rigs.
• Adjustable bracket compatibility for precise ride height and alignment.

What materials and treatments give this lunette ring its strength?

This lunette ring is fabricated from 45# carbon steel and professionally heat-treated to reach hardness between HRC25 and HRC30, delivering a balance of toughness and wear resistance. The result is a durable assembly able to withstand repeated heavy loads and the stresses of off-road or construction-site towing without deformation.

• 45# steel core for high tensile strength and durability.
• Heat-treated to HRC25–30 for improved wear resistance and longevity.
• Zinc-plated option for enhanced corrosion protection in wet or salty conditions.
• Plain finish available for custom coating or weld-on modifications.

How easy is installation and everyday use of this lunette ring?

Installation is straightforward: align the ring within an adjustable channel bracket, insert the bolts and tighten the double-bolt fixation to secure the mount. The lunette ring’s design also allows for a small degree of rotational movement to accommodate uneven terrain, reducing stress on the hitch and trailer during operation.

• Simple bolt-in installation into adjustable channel brackets.
• Double-bolt fastening for fast, stable mounting and removal.
• Engineered rotational clearance for flexible towing on uneven ground.
• Suitable for frequent trailer swaps and fleet maintenance routines.

What kind of environments and vehicles is this lunette ring meant for?

The DEEAGLE lunette ring was built for heavy-duty service: construction sites, agricultural operations, municipal fleets, and industrial haulers where high towing capacity and durability are essential. Its combination of strength and corrosion protection makes it appropriate for both on-road and off-road use, especially in harsh weather or high-wear settings.

• Ideal for construction trailers, equipment haulers, and utility trailers.
• Designed for fleet vehicles and rental fleets that need reliable interchangeability.
• Corrosion-resistant finish option for coastal or wet-climate use.
• Durable enough for frequent heavy-load cycles and rough terrain.

Who is this for: The DEEAGLE Pintle Hitch Lunette Ring is intended for fleet managers, contractors, equipment rental companies, and tradespeople who require a rugged, easily serviceable towing connection rated up to 24,000 pounds. If you operate heavy trailers, frequently change trailer setups, or need a component that resists wear and weather, this lunette ring gives a practical, industry-oriented solution.
