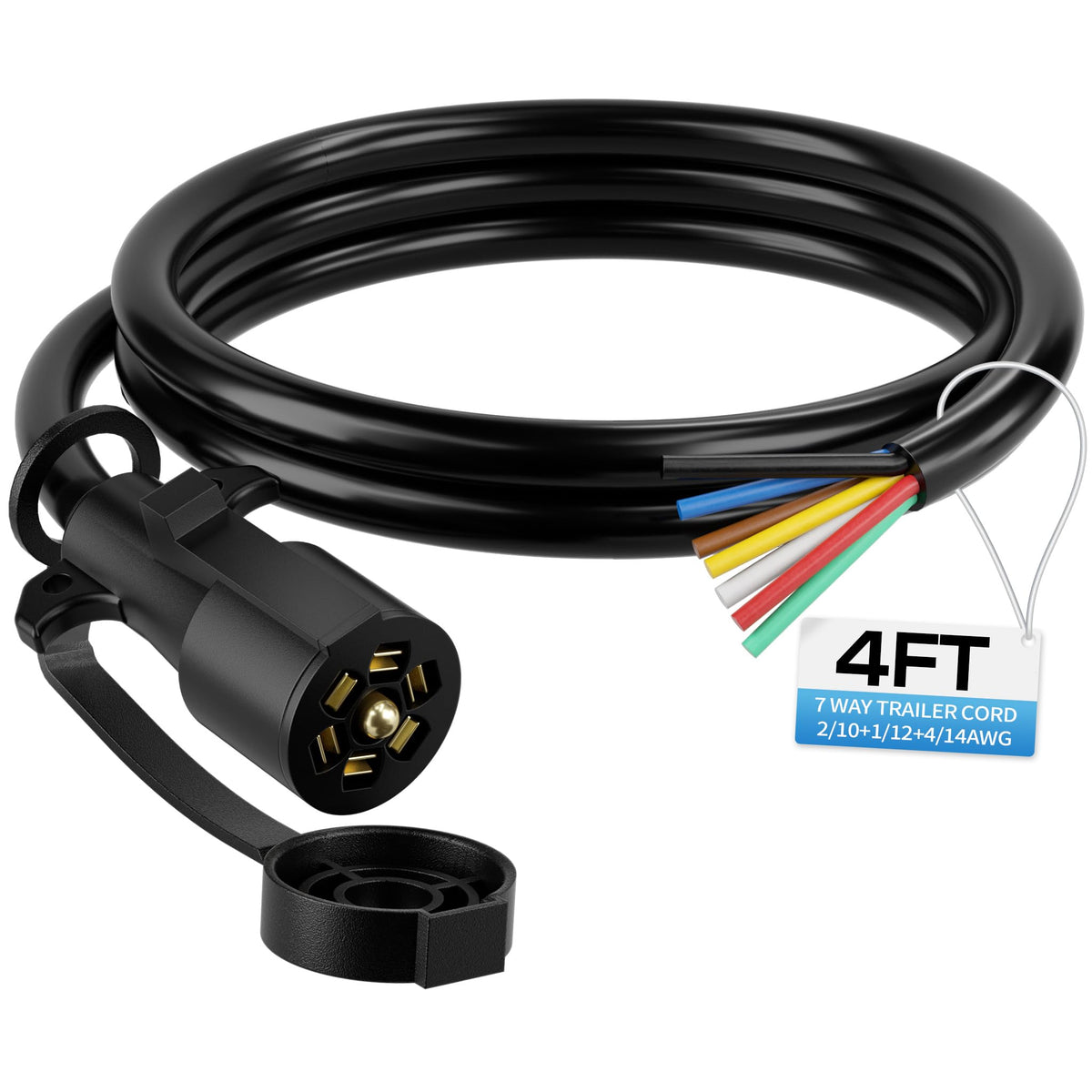

Deluwire 7-Pin Trailer Plug Wiring Harness 4FT — Dual-Contact Pins, Kink-Resistant PVC

Deluwire 4FT 7 Pin Trailer Plug is a heavy-duty, 7-way trailer wiring harness designed to reliably connect trailer lighting and auxiliary circuits to towing vehicles.

This 4-foot Deluwire harness bundles seven RV-standard, color-coded conductors inside a kink-resistant PVC jacket and uses dual-contact pins for a firmer electrical connection. Built from mixed-gauge copper wire (2/10 + 1/12 + 4/14) for high conductivity and fast response, it replaces worn or damaged cords and fits most trailers, campers, RVs, and towing applications that use a standard 7-pin socket.

How does the Deluwire 7-pin plug improve connection reliability?

The harness swaps common single-pin designs for durable dual-contact pins to reduce intermittent loss of signal and improve contact area under vibration. The multi-gauge copper conductors deliver stronger current flow to critical circuits like brakes and reverse lights.

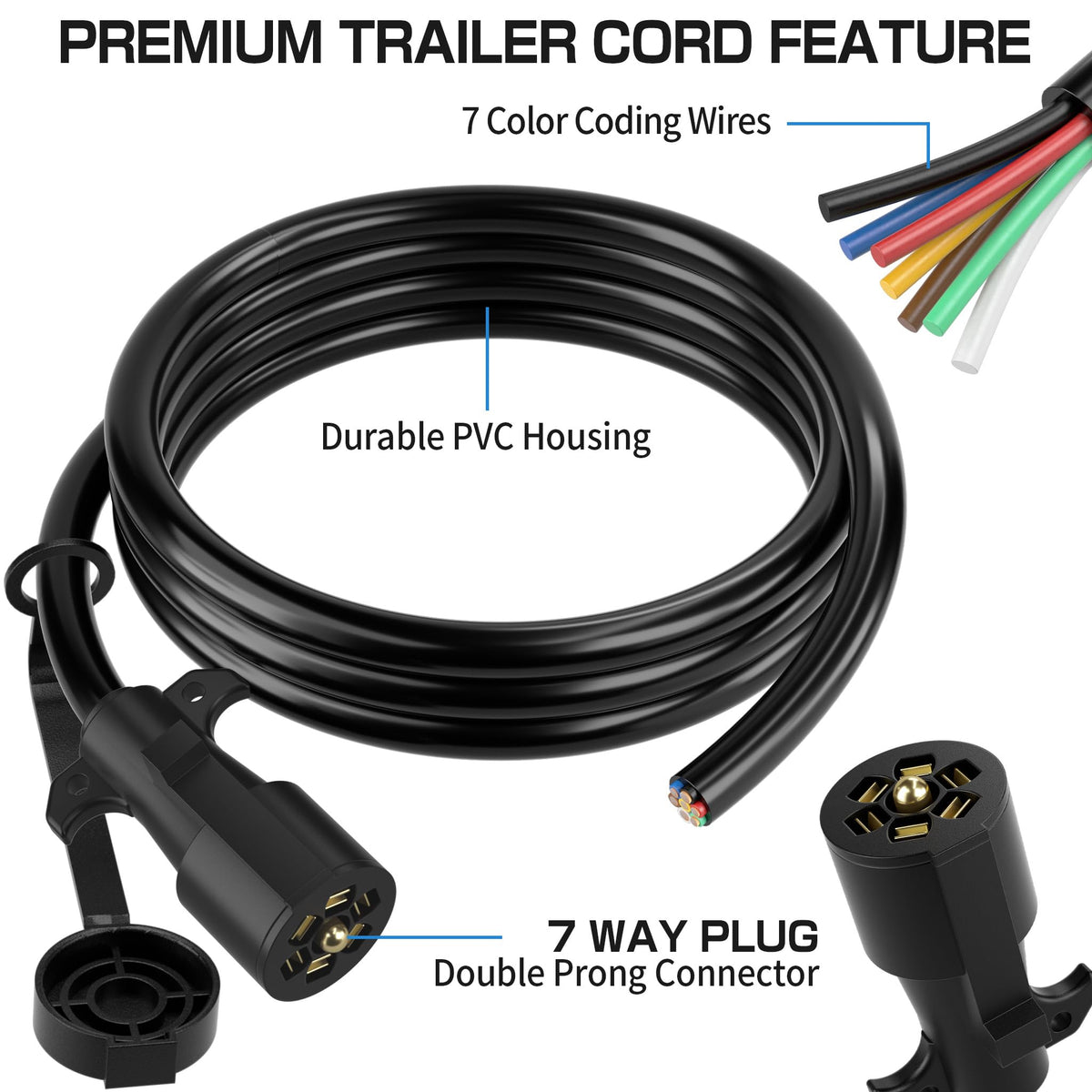

• Dual-prong pins for firmer, more stable electrical contact
• High-conductivity copper wire (2/10, 1/12, 4/14 gauges) for faster signal response
• Corrosion-resistant materials to lower failure risk in wet conditions

Is this harness weatherproof and built to last?

Yes — the cord is encased in a kink-free PVC jacket that resists moisture and corrosion, helping the harness remain serviceable through rain, road spray, and seasonal use. The jacket prevents chafing and keeps the inner conductors insulated from contaminants.

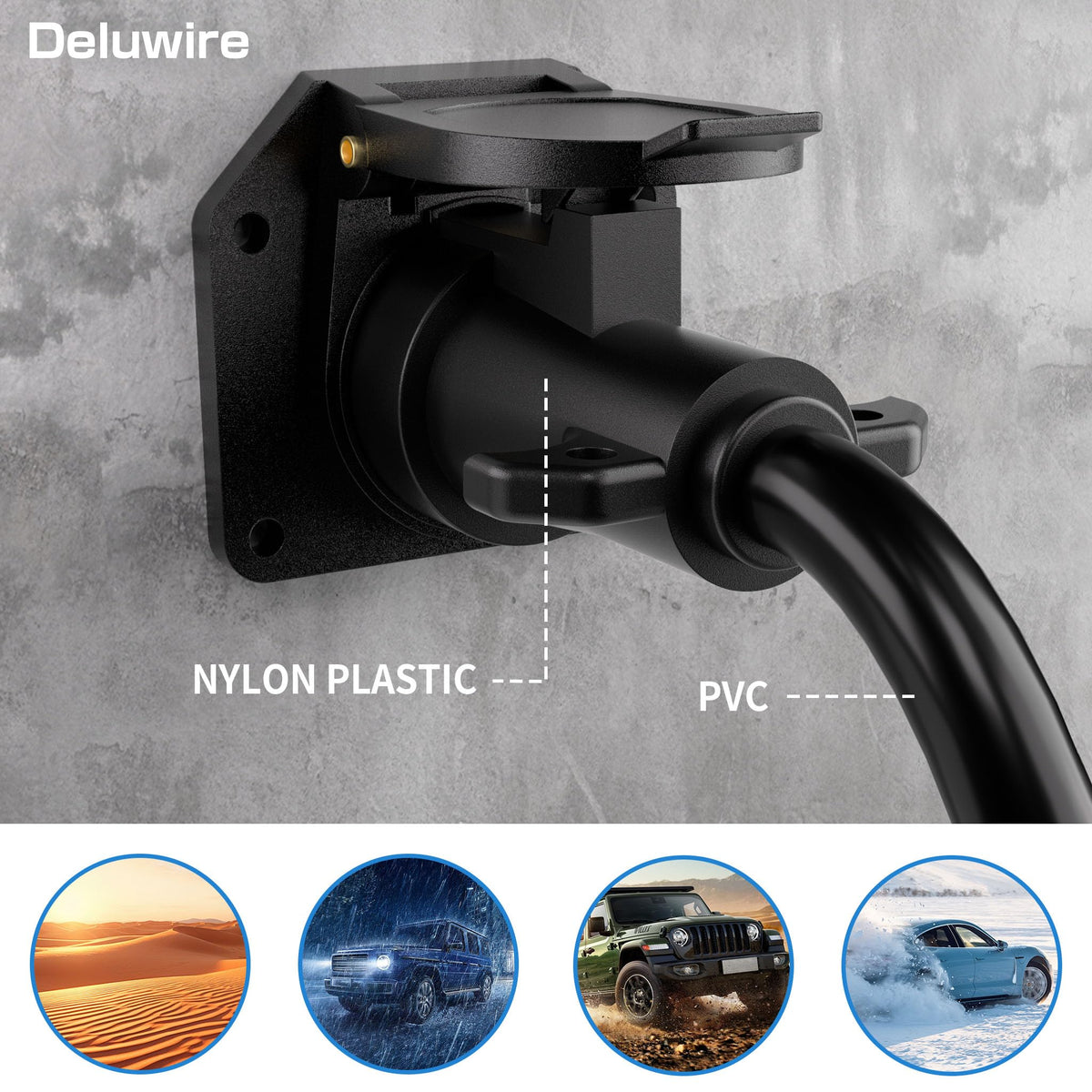

• Kink-free PVC outer jacket for abrasion resistance
• Waterproofing to reduce shorting and corrosion
• Robust strain relief at the plug to prevent premature failure

Will the Deluwire 4FT harness fit my trailer or RV?

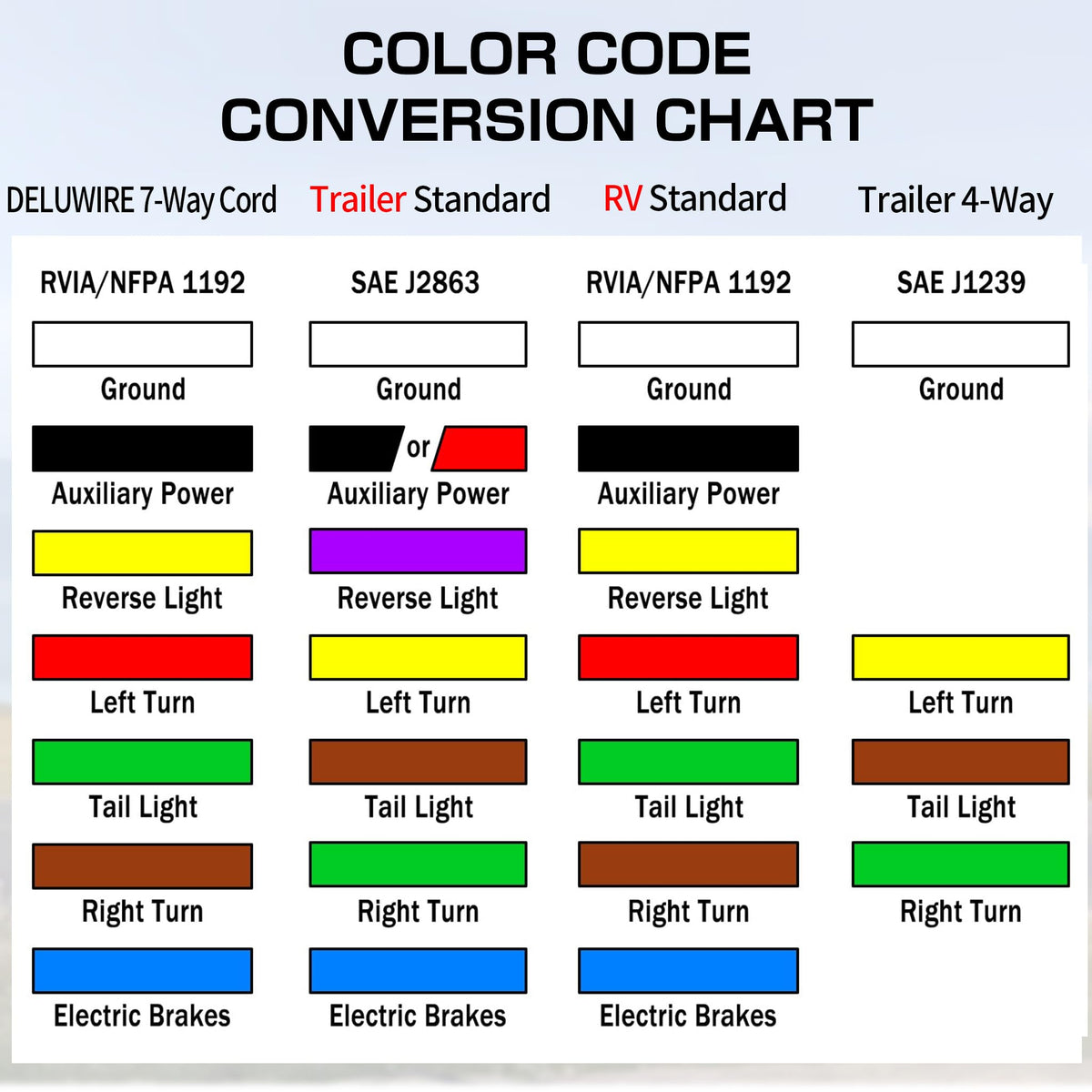

The harness follows the standard 7-way RV wiring color code and pin layout used by most trailers and tow vehicles, so it’s compatible with many platforms out of the box. Because trailer wiring practices sometimes vary, verify the pin assignments and wire colors on your trailer before installation to be certain of fit and function.

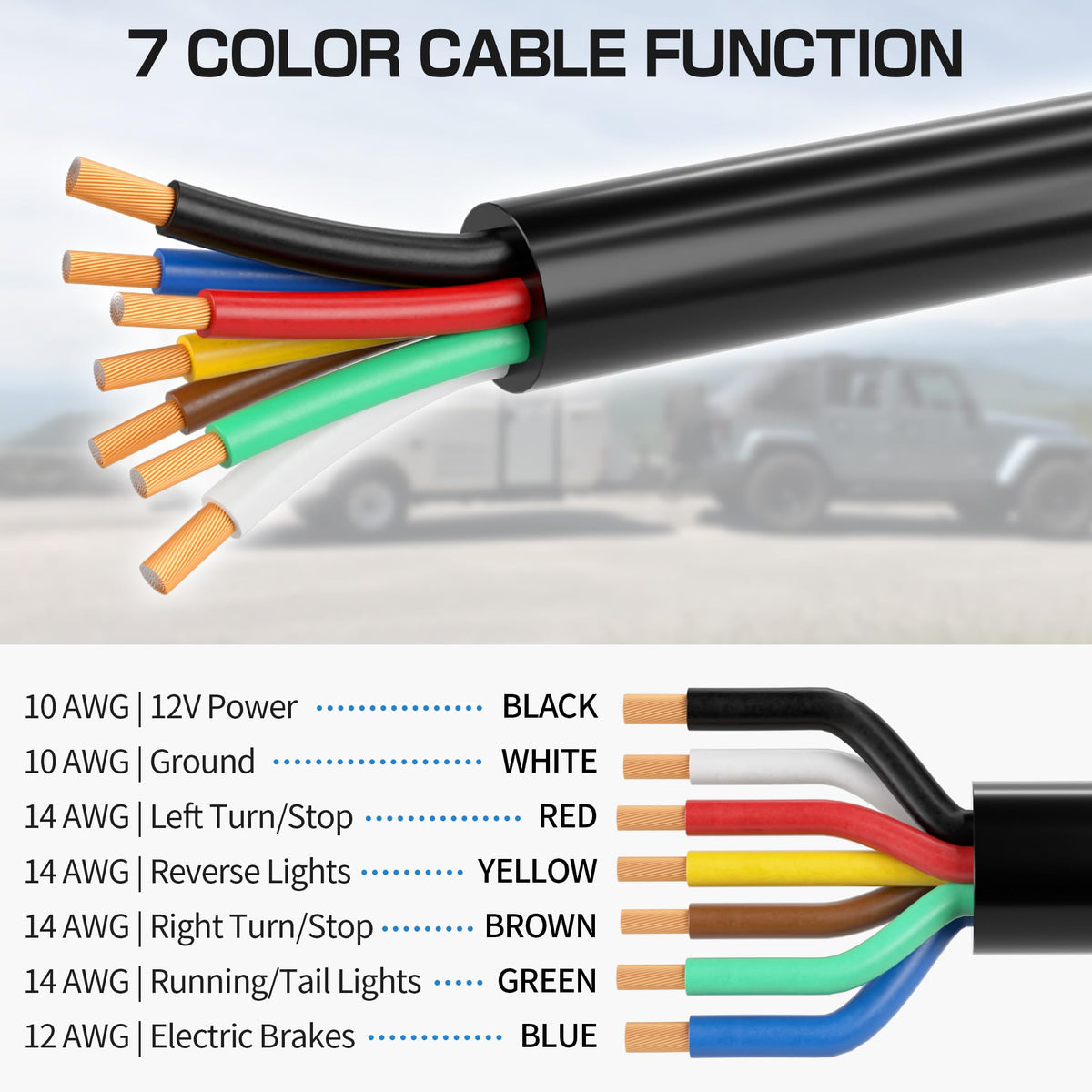

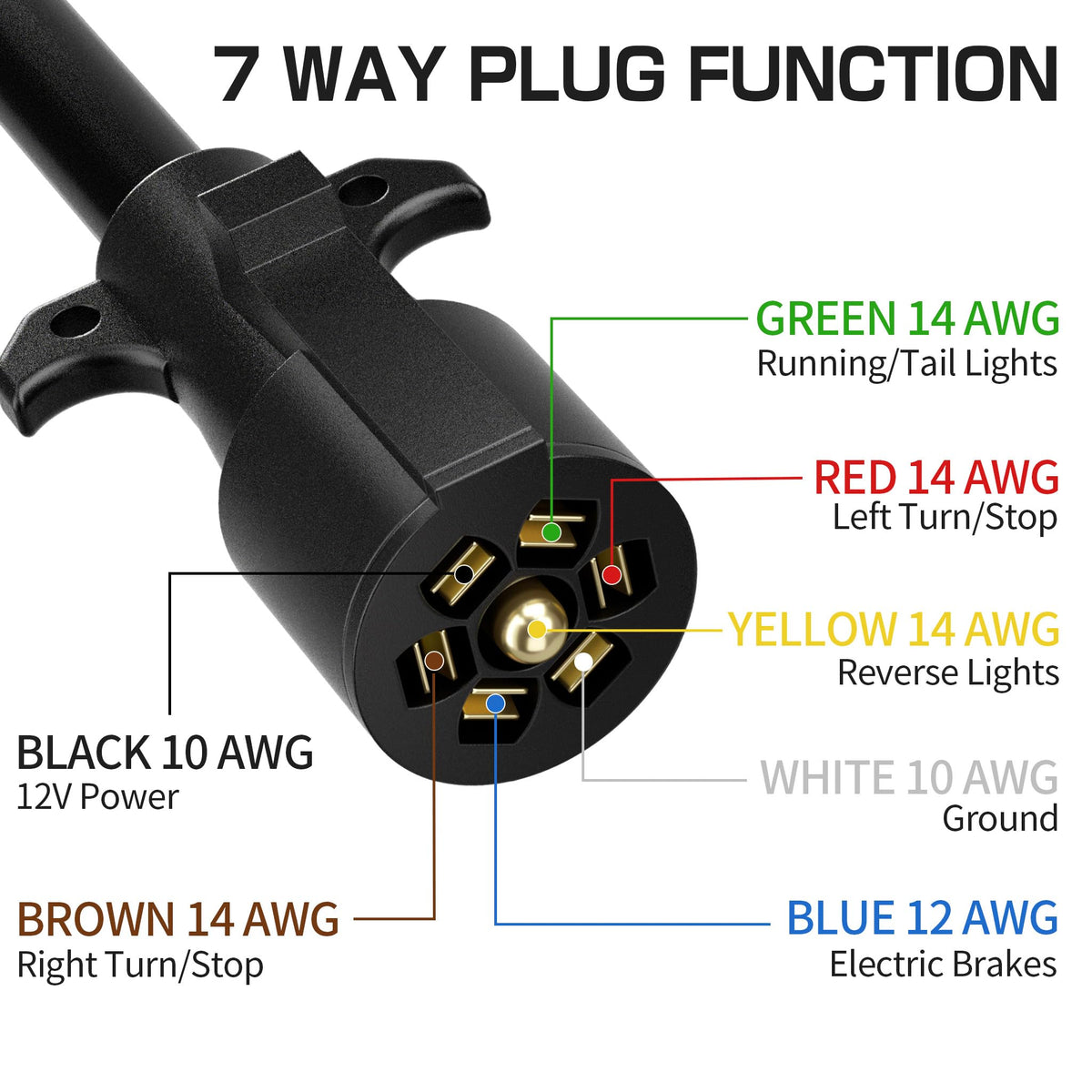

• Standard 7-pin RV color coding for brake, turn, tail, reverse, and auxiliary circuits
• 4-foot length for common hitch-to-socket distances without excess slack
• Easy replacement for old or damaged trailer cords

How easy is installation and maintenance?

Installation is straightforward for users familiar with trailer wiring: match the color-coded wires to the trailer’s terminals or splice points, secure connections, and test lights before towing. For maintenance, keep the plug faces clean, apply dielectric grease if desired, and periodically inspect the jacket and pins for wear.

• Color-coded wires simplify matching and splicing
• 4-foot length reduces need for additional extensions or rewiring
• Routine cleaning and inspection extend service life

Who is this for? The Deluwire 4FT 7 Pin Trailer Plug is intended for trailer owners, RV and camper owners, food truck operators, and anyone who needs a dependable, easy-to-install replacement for worn 7-way trailer wiring. It’s a practical choice for DIY installers and fleet managers who prioritize a solid electrical connection, weather resistance, and standard compatibility. If you’re unsure whether the standard 7-pin layout matches your trailer’s wiring, confirm the pinout before purchasing to ensure correct operation.
