DID 525 X-Ring Motorcycle Chain ZVM-X2 Gold/Gold — Rivet Link, High-Tensile

The DID ZJ525ZVMX2G (ZVM-X2) is a high-performance 525-series X-ring motorcycle chain engineered for stronger sealing, lower friction and extended wear life on high-displacement street bikes.

The ZVM-X2 refines D.I.D’s Super Street X-ring technology to deliver improved reliability and more efficient power transfer for modern large-displacement motorcycles. Built with upgraded X-ring seals and beefed-up plates, this rivet-type chain is designed to resist stretch, reduce energy loss and keep lubrication in while excluding contaminants. Below you’ll find concise answers to common buyer questions plus clear technical specifics to confirm fit and performance.

How does the ZVM-X2 reduce friction and preserve lubrication?

The ZVM-X2 uses a patented X-ring design that twists between plates rather than being squashed, which lowers contact friction and spreads sealing pressure across four points. That geometry reduces heat and wear while maintaining a more effective barrier against dirt and moisture.

• Patented X-ring cross-section that twists to minimize rubbing.
• Four contact surfaces increase sealing efficiency versus standard O-rings.
• Improved retention of lubricant for longer internal lubrication life.
• Reduced friction translates to lower measurable power loss at the rear wheel.

What performance benefits will I notice on a high-displacement street bike?

The chain’s increased rigidity and precise plate thicknesses deliver crisper throttle response and more direct power delivery. Riders will feel quicker acceleration response and sustained chain performance under higher torque loads common to big-capacity engines.

• Optimized plate stiffness for smoother handling and faster response.
• Higher tensile strength for dependable under-load performance.
• Resistance to elongation helps maintain consistent sprocket engagement.
• Designed for modern large-displacement street motorcycles up to the specified limit.

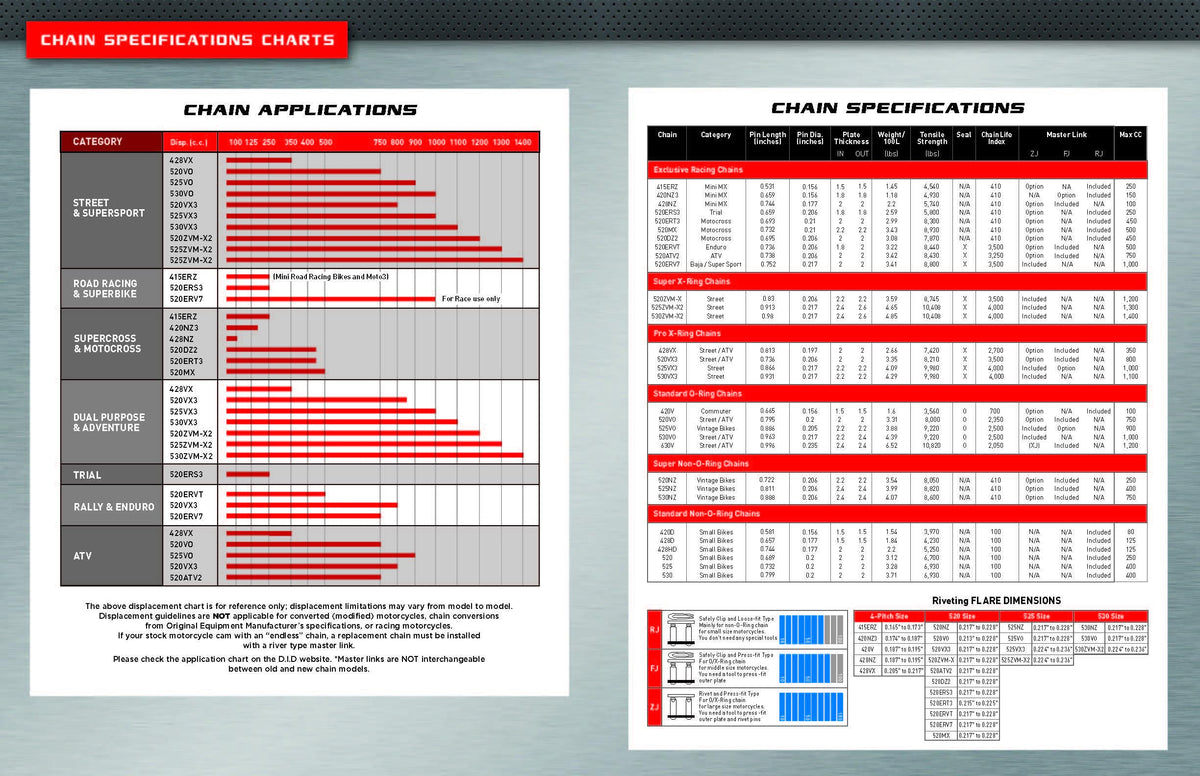

What are the critical technical specifications and compatibility notes?

The ZJ525ZVMX2G is a 525-series gold-on-gold X-ring chain supplied with a rivet-type master link. Check the chain’s dimensions, tensile rating and compatibility with your bike’s displacement before ordering.

• Chain series: 525 (ZVM-X2).
• Tensile strength: 10,408 lbs; weight per 100 links: 4.65 lbs.
• Pin length: 0.913"; pin diameter: 0.217"; inner plate thickness: 2.4 mm; outer plate thickness: 2.6 mm.
• Maximum recommended engine displacement: 1,300 cc. Note: ZVM-X2 master link is not compatible with older ZVM-X master links.

How should I care for the chain to maximize life and performance?

Routine inspection and proper lubrication extend chain life significantly even with X-ring seals. Focus on correct tension, periodic cleaning to remove grit, and re-lubrication with a product compatible with X-ring chains.

• Inspect tension and wear at regular service intervals and after heavy use.
• Use chain lubes formulated for sealed-ring chains to protect seals and internal bushings.
• Avoid aggressive cleaners that can dry out sealing rings.

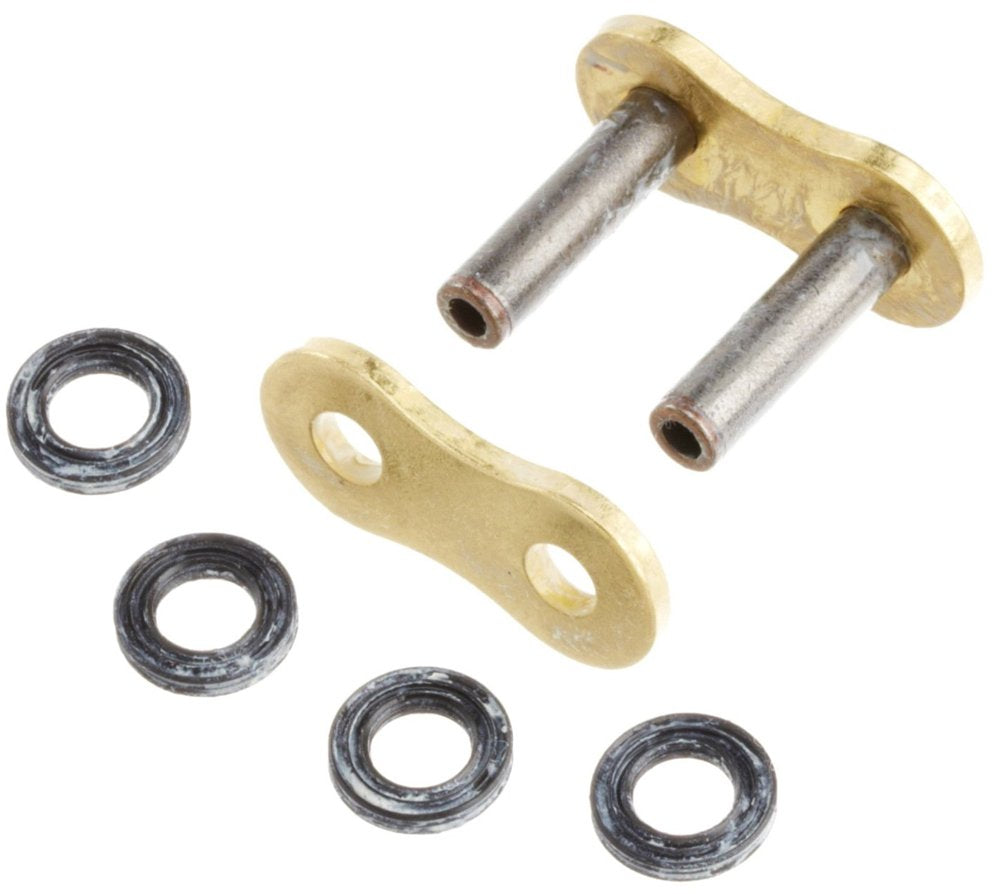

• Replace the master link when replacing the chain and ensure correct rivet installation for safety.

Who is this for? The D.I.D ZVM-X2 is aimed at riders who demand durable, efficient final drive components for high-power street motorcycles—track-day enthusiasts, sport-touring riders and owners of large-displacement bikes who want lower maintenance intervals, better throttle response and reduced drivetrain losses. If you need a robust 525-series chain that balances longevity with improved power transfer, the ZJ525ZVMX2G delivers a strong, specification-backed option.
