Digital Tachometer, 2 Stroke 4 Stroke Small Engine

HFWHOK Digital Tachometer is a handheld inductive RPM meter that quickly and accurately measures engine speed (100–30,000 RPM) on 2‑ and 4‑stroke small engines.

Compact and battery powered, this tachometer uses an inductive pickup or clamp to read ignition pulses from spark plug wires, showing real‑time RPM and accumulated runtime on a clear LCD. It’s designed for technicians, hobbyists, and equipment owners who need fast, portable RPM checks on chainsaws, lawnmowers, motorcycles, ATVs, boats, generators and more. The unit supports single‑to‑eight cylinder counting, includes a reset feature for recorded time and speed, and saves power by automatically turning off when the engine is idle.

How does the HFWHOK tachometer measure engine RPM?

The device senses ignition pulses without mechanical contact using an inductive pickup. You either clip the included metal clip to the spark wire housing, wrap the pickup around the wire sleeve, or hold the unit 3–5 cm from the spark plug wire sheath to record RPM.

• Inductive sensing for non‑intrusive measurements.
• Clip or wrap attachment for secure connection to spark wires.
• Handheld proximity mode for quick checks without clipping.
• Counts pulses for 1–8 cylinder engines automatically.

What accuracy and range can I expect?

This tachometer reads between 100 and 30,000 RPM with a stated accuracy of about 1%, suitable for most small combustion engines. It also records elapsed timing from 1 to 99,999 minutes for maintenance tracking or runtime logging.

• Wide measurement span: 100–30,000 RPM.
• Approximately 1% measurement precision under normal conditions.
• Runtime/timing range from 1 to 99,999 minutes.

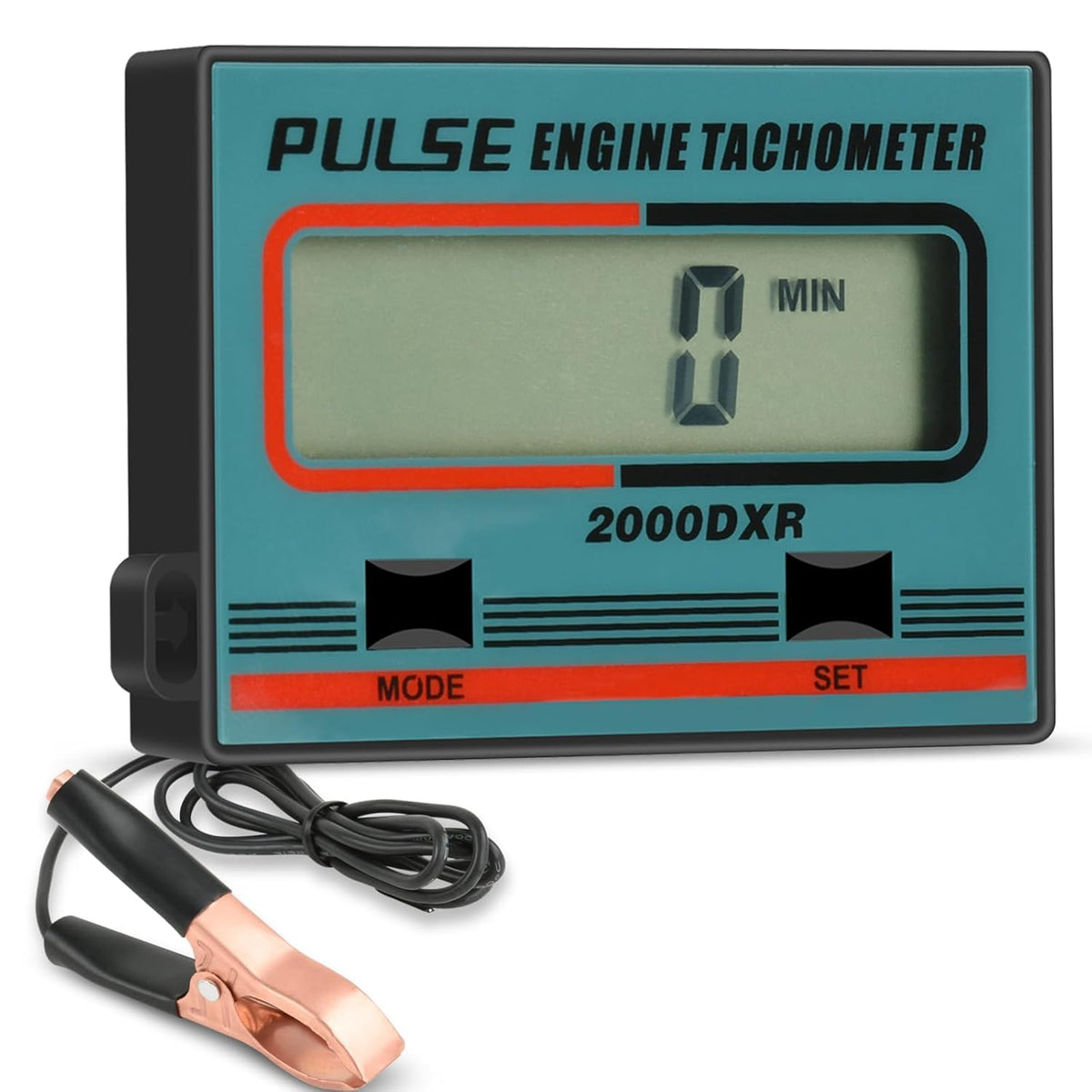

• Clear LCD presentation of both RPM and timing data.

Which features help with repeated tests and maintenance records?

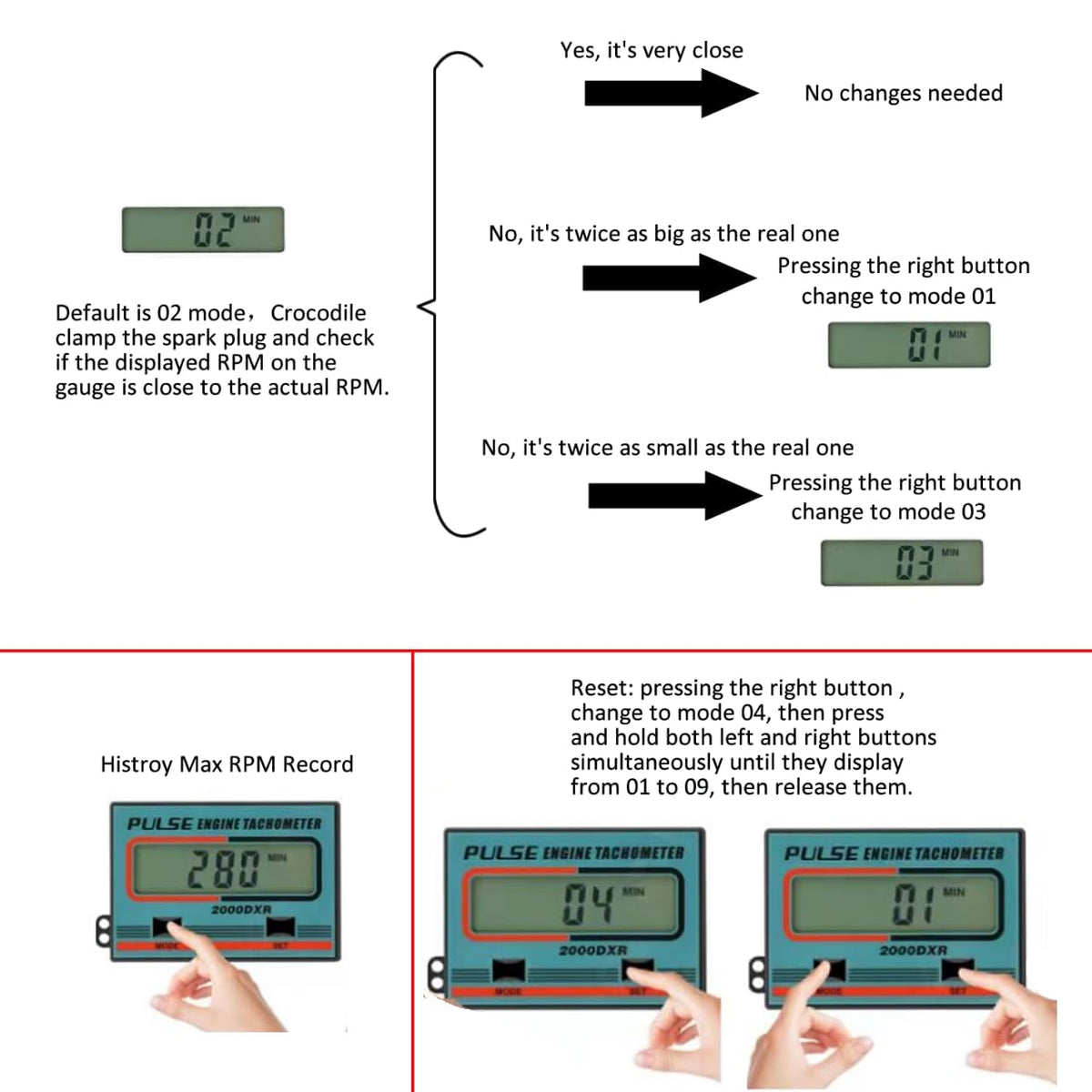

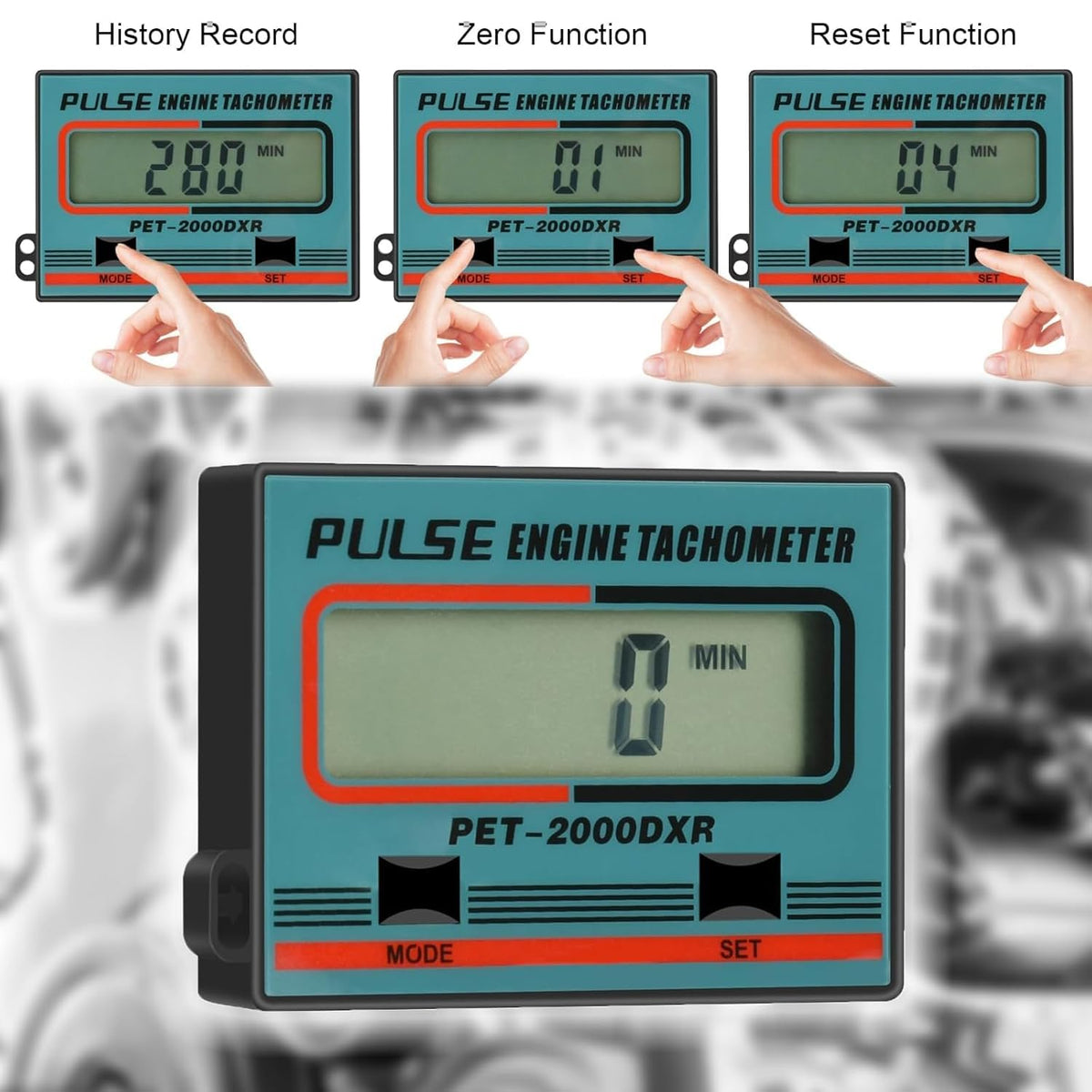

The tachometer includes a zero/reset function and a combined MODE/SET clearing sequence to erase stored speed and operating time. It also automatically powers down when it detects no engine activity, extending battery life between uses.

• Long‑press SET cycles to reset counters (01→04 sequence then confirm).
• Press MODE+SET together to clear all recorded speed and time data.

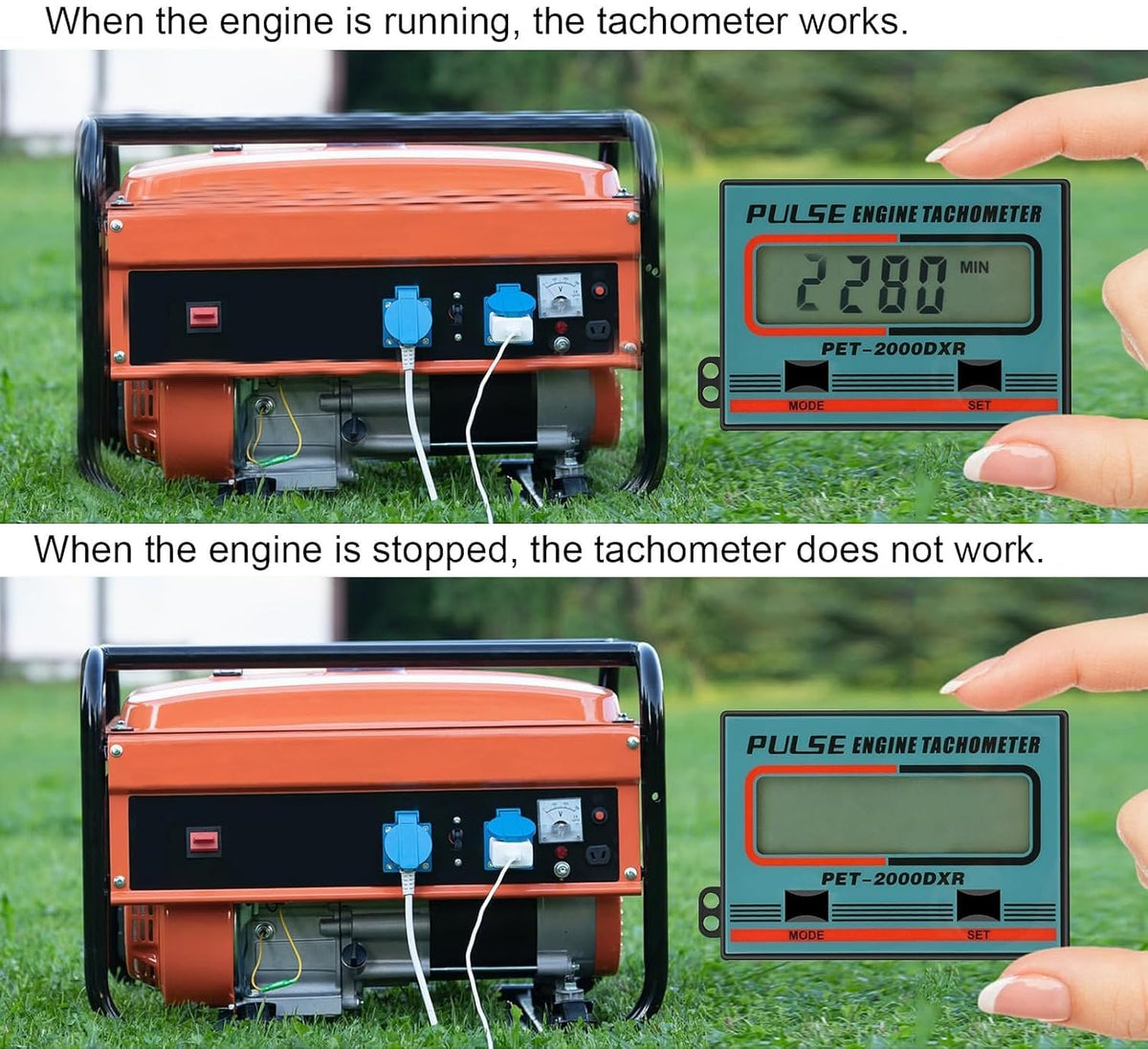

• Auto power‑off to conserve battery when the engine is stopped.
• Built‑in battery power for field portability and safe low‑voltage operation.

What engines and vehicles is this tachometer compatible with?

Designed as a universal small‑engine tester, it works on both 2‑stroke and 4‑stroke gasoline engines and supports most single‑cylinder through eight‑cylinder ignition systems. Typical applications include chainsaws, lawnmowers, motorcycles, go‑karts, snowmobiles, outboards, small tractors, generators and other powered equipment.

• 2‑ and 4‑stroke gasoline engines from 1 to 8 cylinders.
• Handheld use for chainsaws, mowers, ATVs, motorcycles and marine engines.
• Also suitable for small industrial and construction engine applications.
• Works on ignition‑pulse systems—ensure accessible spark plug wire or sheath.

Who is this for? The HFWHOK Digital Tachometer is made for mechanics, landscapers, motorsports enthusiasts, marine technicians and DIYers who need an economical, portable RPM and runtime tool. It’s useful for routine tune‑ups, performance checks, troubleshooting ignition issues, and logging engine hours for maintenance schedules. If you require a lightweight, inductive, and battery‑driven tach gauge that reads a broad RPM range and supports common small‑engine formats, this model provides a practical balance of features and portability without complex setup.
