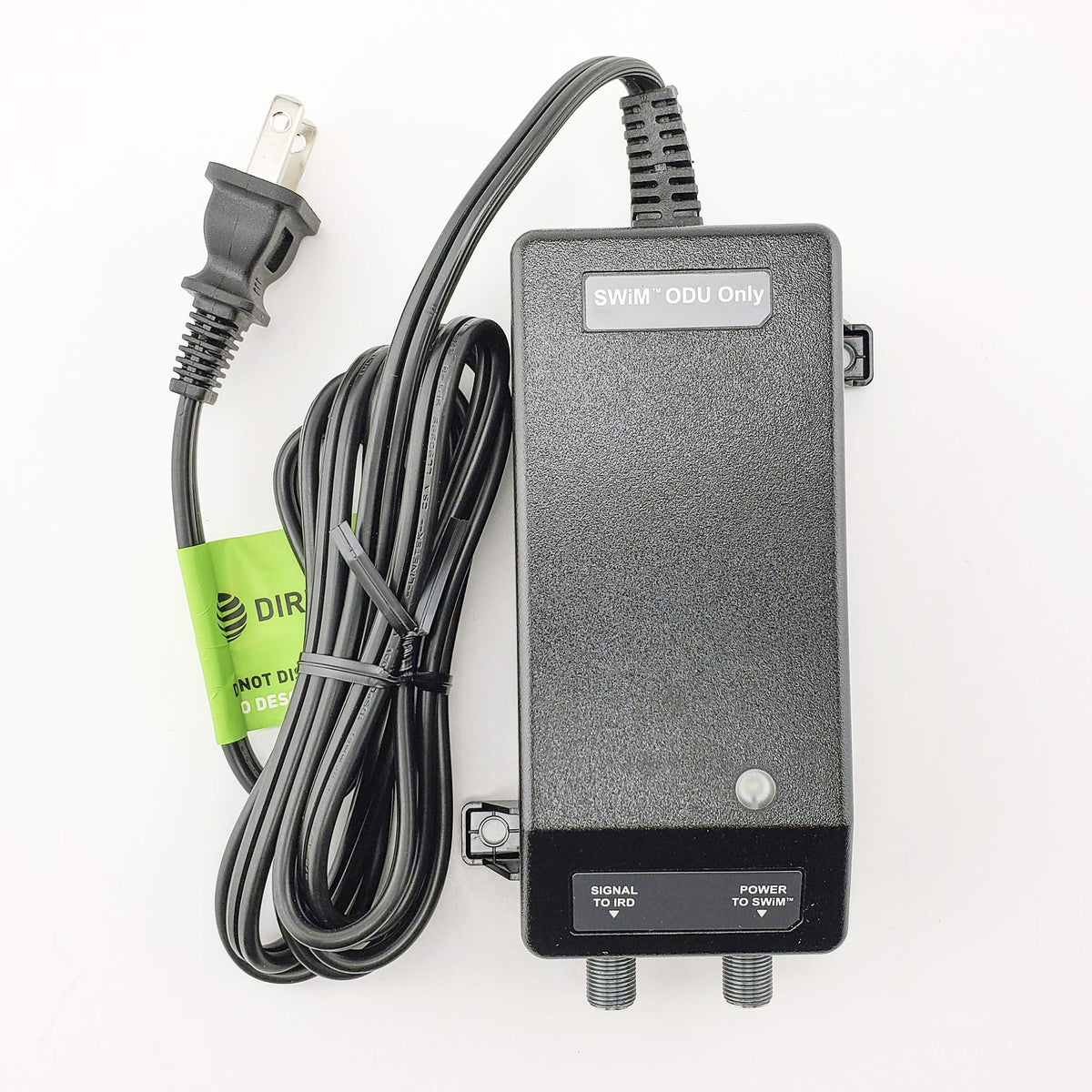

DIRECTV 21V Power Inserter for Slim Line Dish LNBs PI-21 — F-type inline, low insertion loss

The PI-21 (also called PI21 or PI-21 Power Inserter) is a compact inline unit designed to inject a 21-volt DC feed into coaxial runs so DIRECTV Slim Line Dish LNBs and SWM (Single Wire Multiswitch) equipment receive proper power. It connects with standard F-type coax connectors and operates across the satellite IF band used by DIRECTV, making it a straightforward accessory whenever the LNB or multiswitch in your installation requires external DC biasing.

How does the PI-21 work with my DIRECTV Slim Line Dish?

The PI-21 sits in-line on the coax between the dish LNB assembly and the multiswitch or receiver, adding the necessary 21V DC without altering the RF signal path appreciably. It’s engineered for the IF frequency range DIRECTV systems use and keeps insertion loss minimal so signal levels remain usable.

• Voltage output: provides 21 volts DC to the LNB.
• Frequency support: 2000 kHz to 2150 MHz, matching DIRECTV IF band.

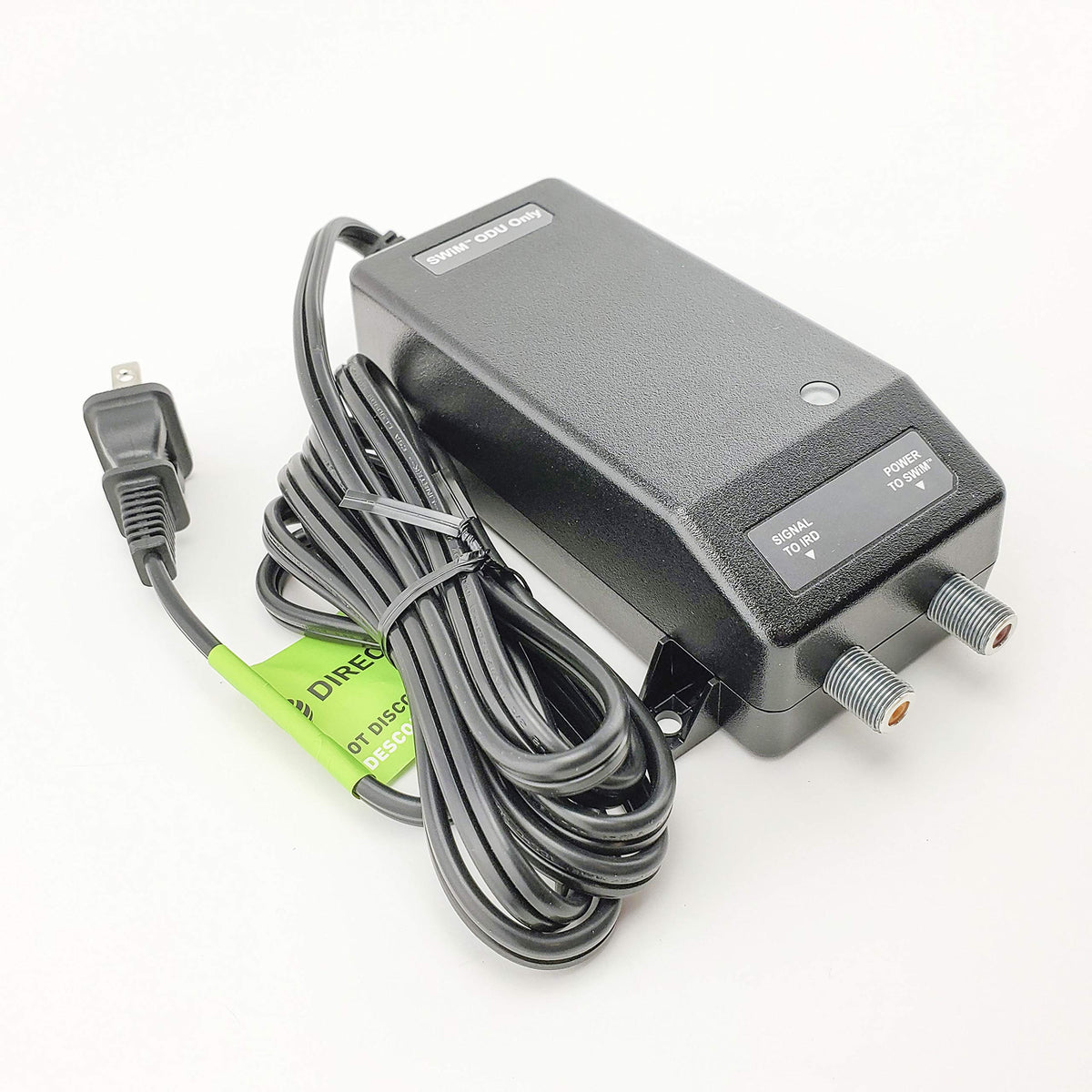

• Connector type: standard F-type male/female interfaces for easy hookup.
• Insertion loss: approximately 2 dB, specified for planning signal budgets.

Will it fit my existing coax and equipment layout?

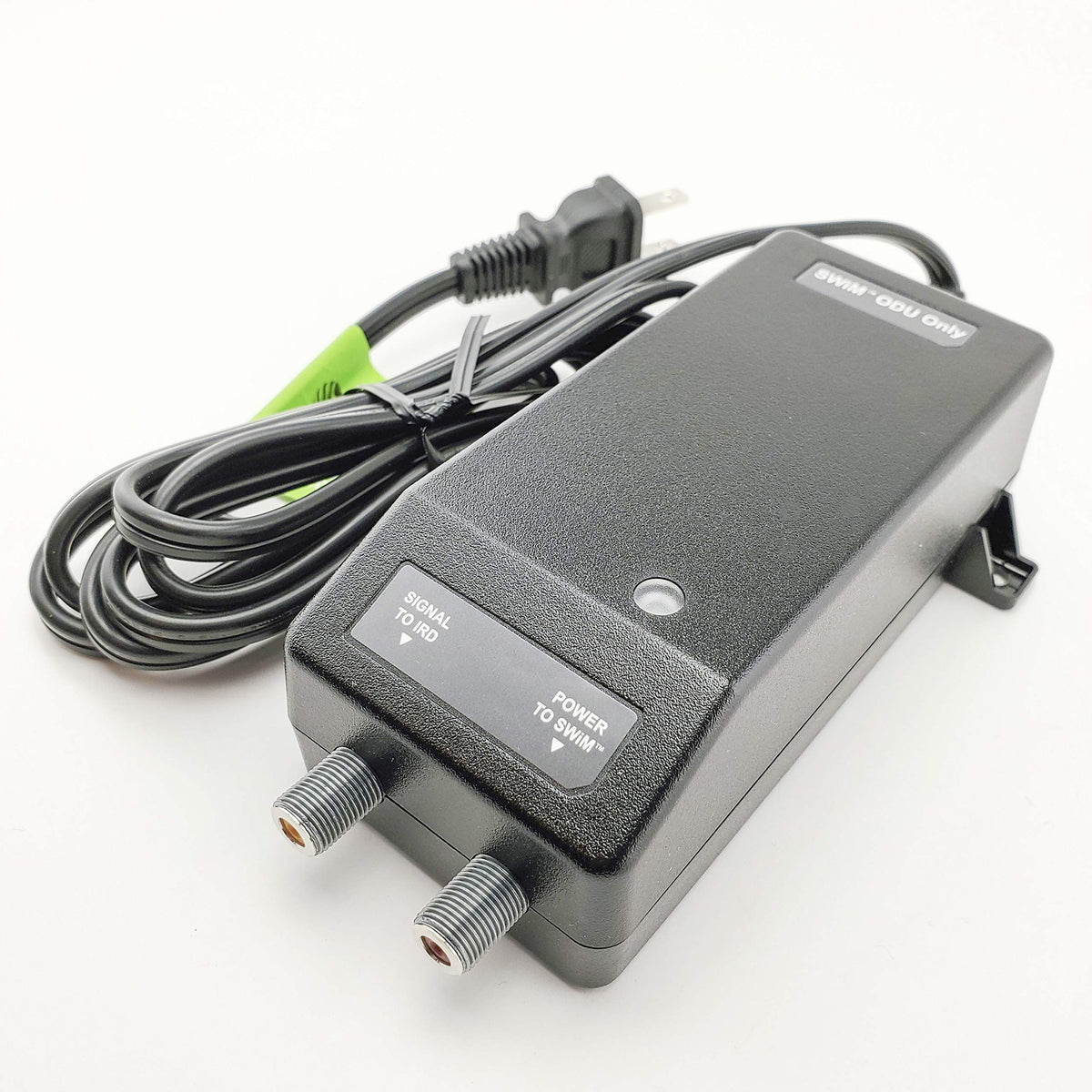

The PI-21 uses F-type ports, the same threaded coax connectors common on DIRECTV dishes and equipment, so it integrates into most Slim Line Dish cabling without adapter changes. Its form factor is compact for placement near the dish, at a distribution point, or inside a low-voltage enclosure.

• Connector compatibility: standard F-type, no special tools required beyond a wrench.
• Power input: accepts 100–120 VAC, suitable for typical household outlets in supported regions.
• Mounting flexibility: small footprint allows indoor or protected outdoor placement.

What technical limits and performance should I plan for?

The PI-21 is specified to operate across the 2000 kHz–2150 MHz IF band used by DIRECTV and introduces about 2 dB of insertion loss. When designing or troubleshooting a system, include that loss in your signal budget and place the inserter so cabling losses remain within acceptable ranges.

• Frequency range: 2000 kHz–2150 MHz for DIRECTV IF signals.
• Specified insertion loss: ~2 dB; account for this in long runs or multiple splitters.
• AC input range: 100–120 V AC for powering the unit’s DC injection circuitry.

How do I install and maintain the PI-21 for reliable service?

Installation is straightforward: interrupt the coax run, thread the F-type connectors into the inserter, and plug the AC supply into a nearby outlet. Keep the unit protected from direct weather exposure and periodically check connector tightness and cable condition to maintain optimal signal flow.

• Installation tip: tighten F-type connectors hand-tight plus a quarter-turn with a wrench to avoid damage.
• Placement: indoors or in a weatherproof enclosure near the dish feed or multiswitch location.
• Routine care: inspect coax for corrosion and re-tighten connections annually.

Who is this for: The DIRECTV PI-21 is intended for installers, technicians, and DIRECTV subscribers who use Slim Line Dish antennas with SWM LNBs and need a dedicated 21V DC feed inline. It’s appropriate for homeowners upgrading or replacing components, professional installers building or repairing DIRECTV multiswitch systems, and anyone who needs a compact, F-type compatible power inserter that matches DIRECTV frequency requirements. This product is not a general-purpose amplifier—select it when a DIRECTV SWM LNB specifically requires an inline 21V power source.
