DNA MOTORING Radiator for Toyota Corolla/Matrix & Pontiac Vibe — 1-Row T-6061 Aluminum, Direct-Fit (09-17/09-10)

DNA Motoring CU13106 is a direct-fit, 1-row aluminum-core replacement radiator engineered to restore proper engine cooling for 2009–2017 Toyota Corolla/Matrix and 2009–2010 Pontiac Vibe automatic-transmission models.

This OEM-style radiator combines a full T-6061 aluminum core with durable ABS end tanks to deliver an aftermarket replacement that matches factory mounting points and coolant plumbing. It’s designed to meet the same basic dimensions and inlet/outlet sizing as original equipment, making it a straightforward bolt-on swap when the factory unit leaks, corrodes, or no longer provides reliable heat rejection. The CU13106 references multiple interchange numbers (164100T030, 13049, 3445) so it’s easier to confirm fitment across compatible model years.

Will this radiator fit my Corolla, Matrix, or Vibe?

Yes, the CU13106 is made to fit specific automatic-transmission models. Check your vehicle year and part cross-references to confirm exact compatibility before purchase.

• Compatible with 2009–2017 Toyota Corolla (automatic models).
• Fits 2009–2014 Toyota Matrix (automatic models).
• Compatible with 2009–2010 Pontiac Vibe (automatic models).
• Interchange numbers: 164100T030, 164100T031, 164100T040, 164100T041, 13049, 3445.

What are the core dimensions and connection sizes?

The CU13106 follows OEM replacement dimensions so cooling capacity and hose connections align with factory components. That makes installation and hose routing consistent with the original radiator.

• Core size: 23-5/8" wide × 14-9/16" high × 5/8" thick.

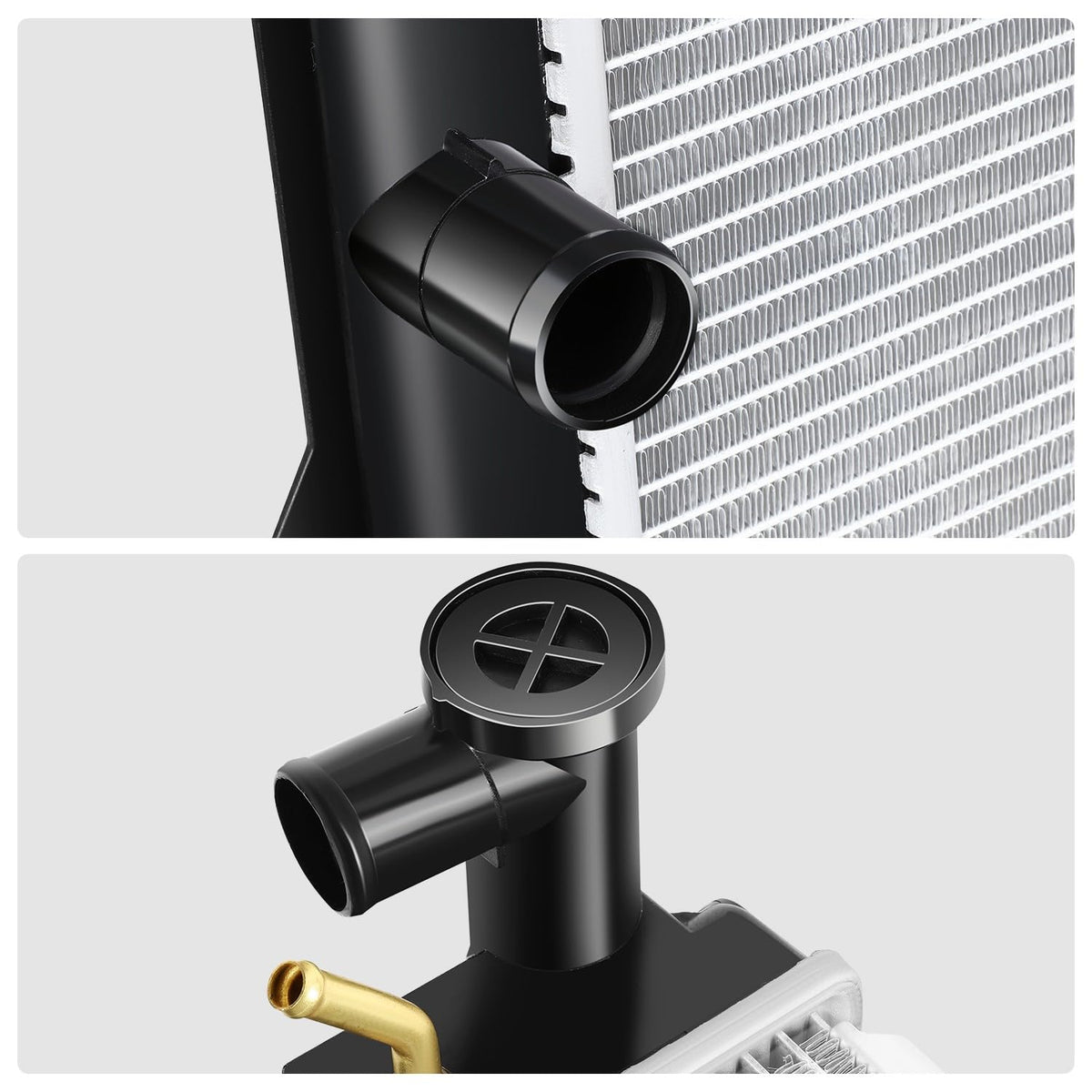

• Inlet and outlet diameter: 1-3/8" for direct hose compatibility.
• One-row core design for efficient airflow and stock-fitment profiles.
• Lightweight construction eases handling during installation.

What materials and construction quality should I expect?

DNA Motoring uses proven materials aimed at balancing strength, heat transfer, and corrosion resistance. This radiator is built for longevity under normal driving conditions when installed correctly.

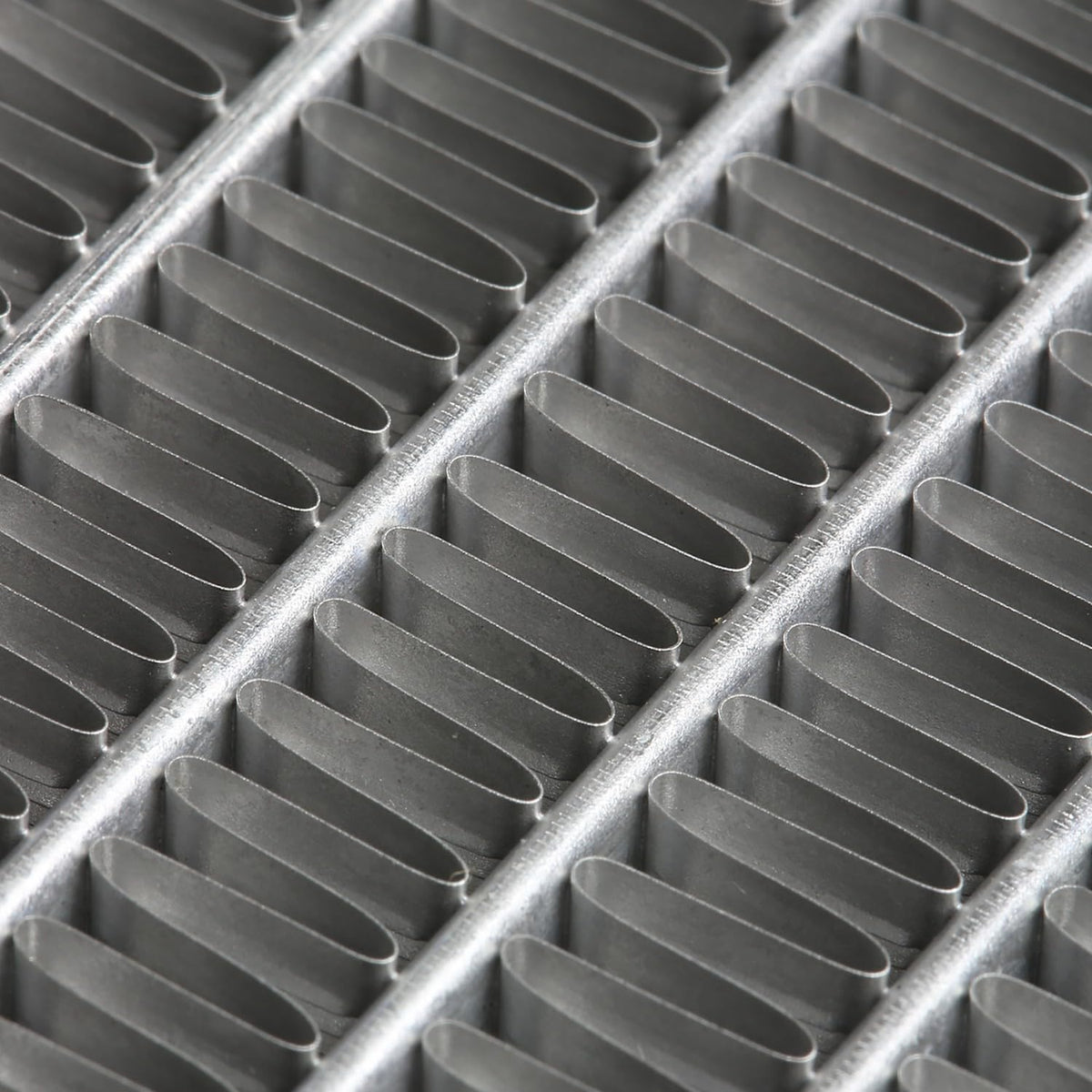

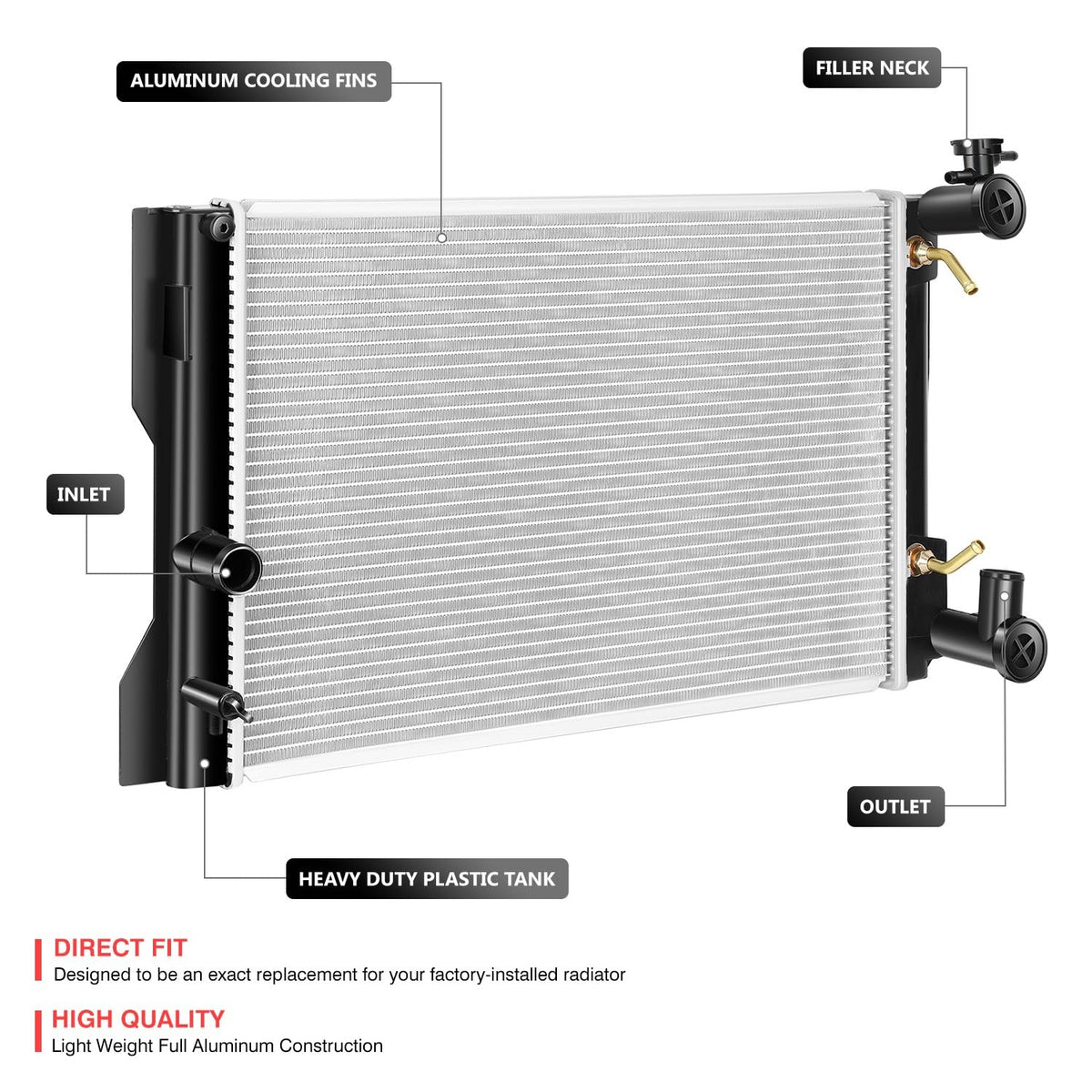

• Full T-6061 aluminum core for efficient heat dissipation and structural strength.

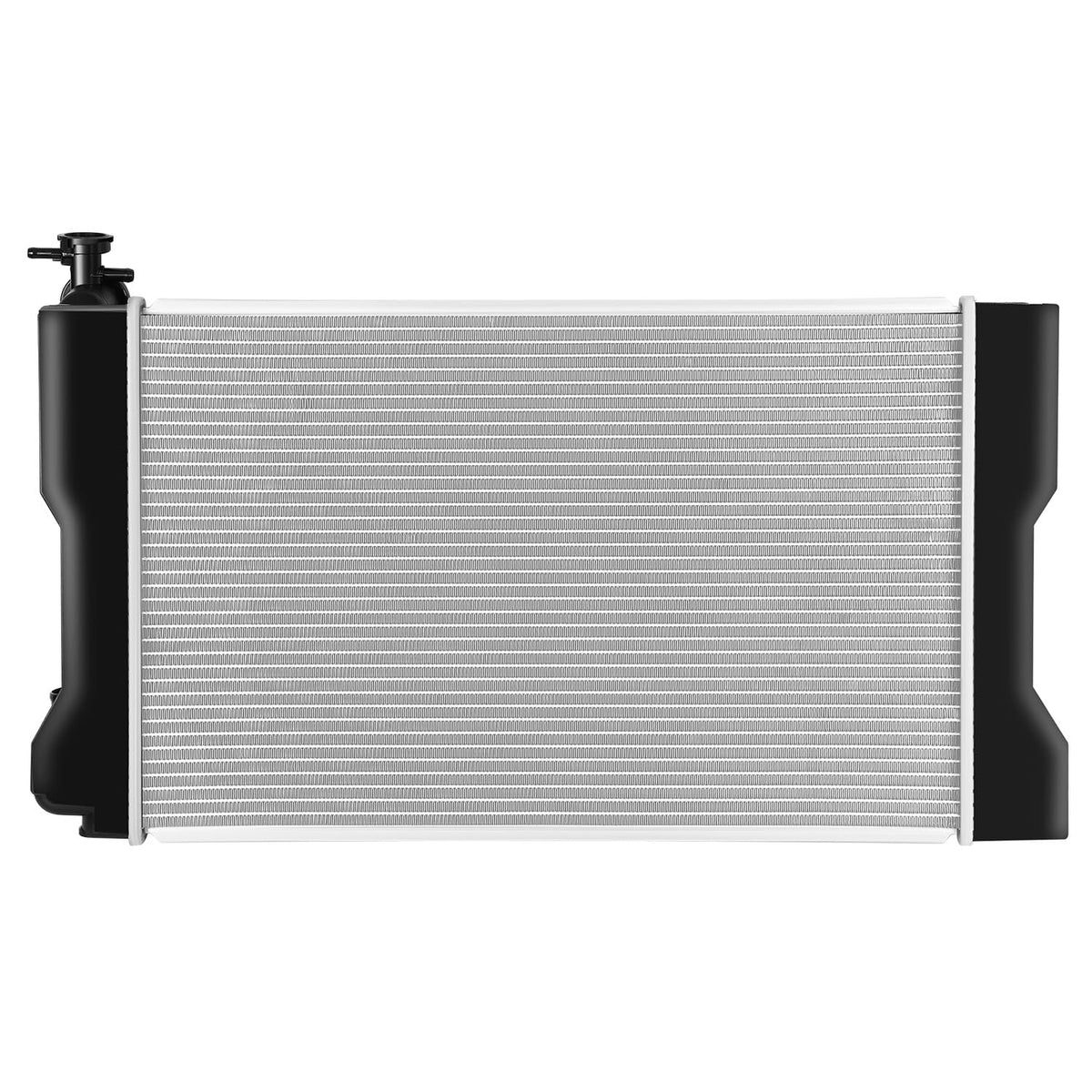

• High-strength ABS plastic end tanks to resist impact and vibration.
• OEM-style bolt-on mounting points for proper alignment and seal.
• Manufactured as a direct replacement; professional installation recommended.

How difficult is installation and can I reuse my existing parts?

Installation follows standard radiator replacement procedures and generally requires basic hand tools and familiarity with cooling-system service. Many stock hoses, fans, and sensors can be reused if they’re in good condition.

• Direct bolt-on mounting style aligns with factory brackets and hardware.
• Recommended professional installation to ensure proper coolant fill and no air pockets.
• Reusing original fan assemblies, shrouds, and sensors is typically possible.
• Inspect and replace hoses, clamps, and thermostat if aged or damaged.

Who is this for: The DNA Motoring CU13106 radiator is intended for owners of 2009–2017 Toyota Corolla and 2009–2014 Matrix, or 2009–2010 Pontiac Vibe with automatic transmissions who need a reliable OEM-form radiator replacement. It’s best for DIYers with cooling-system experience, independent shops, or fleet managers seeking a durable, OEM-dimension aftermarket radiator that restores proper coolant flow and core integrity when the original radiator has failed or is compromised by leaks, corrosion, or impact damage.
