Dorman HVAC Blend Door Actuator for Jeep Cherokee/TJ/Wrangler 604-020 — Direct-Fit, Durable Replacement

Dorman 604-020 is a direct-fit HVAC blend door actuator designed to restore proper airflow and temperature blending in compatible Jeep vehicles.

This replacement blend door actuator fits specific Jeep Cherokee, TJ and Wrangler model years and positions to recover HVAC function when the factory actuator fails. Because many vehicles use multiple actuators for different doors and functions, confirming the exact position and model fit is essential before ordering. Use your vehicle details with the fitment/garage tool and check the application notes to make sure this part matches the actuator you need to replace.

Which vehicles and years is this actuator compatible with?

The 604-020 actuator is manufactured to match original equipment for selected Jeep models and model years. It is listed for Jeep Cherokee (1998–2001), Jeep TJ (1999–2006) and Jeep Wrangler (1999–2006), but compatibility depends on the actuator location and vehicle configuration. Always enter your exact trim and options into the fitment tool for confirmation.

• Jeep Cherokee: 1998, 1999, 2000, 2001
• Jeep TJ: 1999–2006 (select years within range)
• Jeep Wrangler: 1999–2006 (select years within range)
• Verify position and function via application notes or dealer/service manual

How does this actuator match the original part?

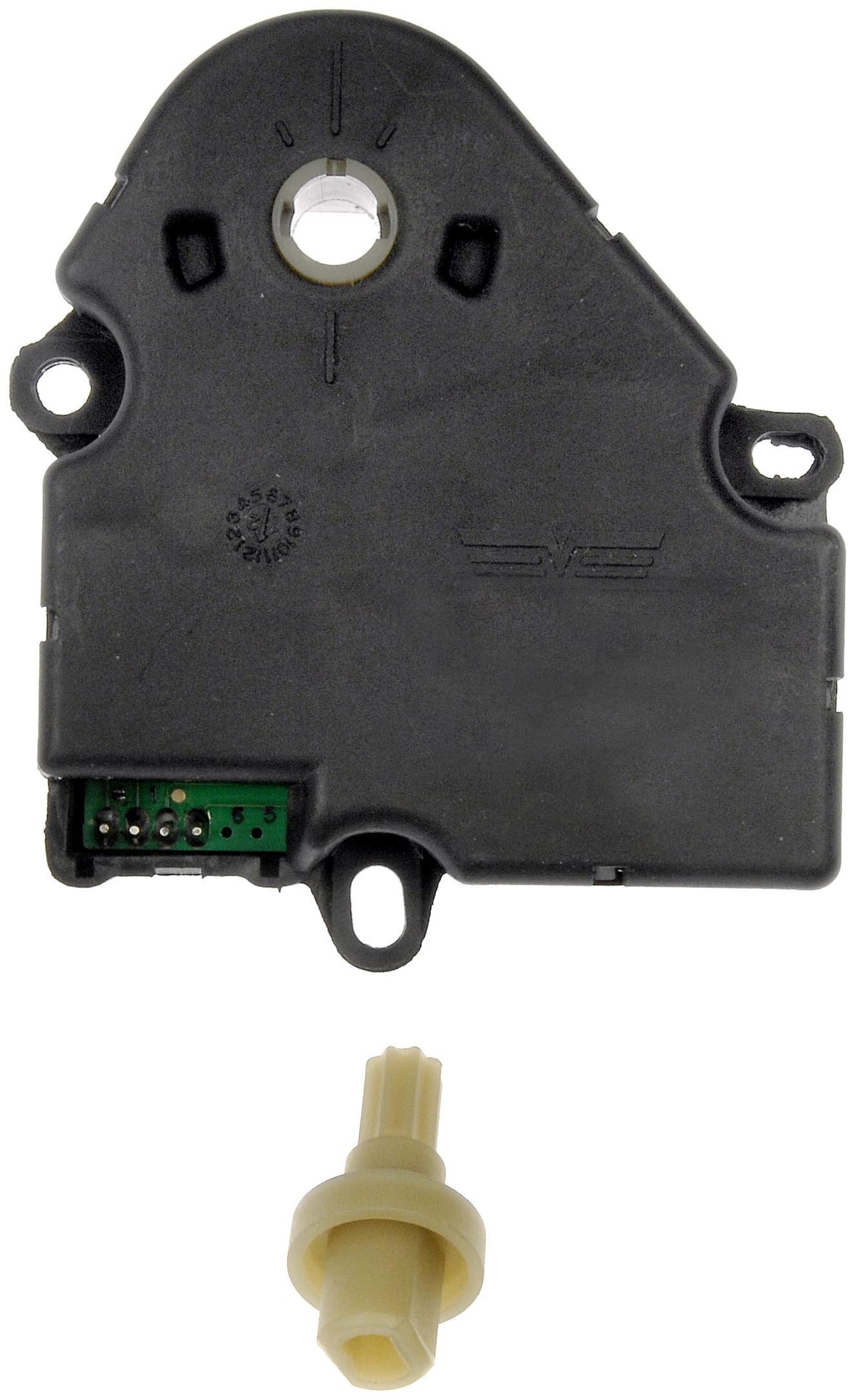

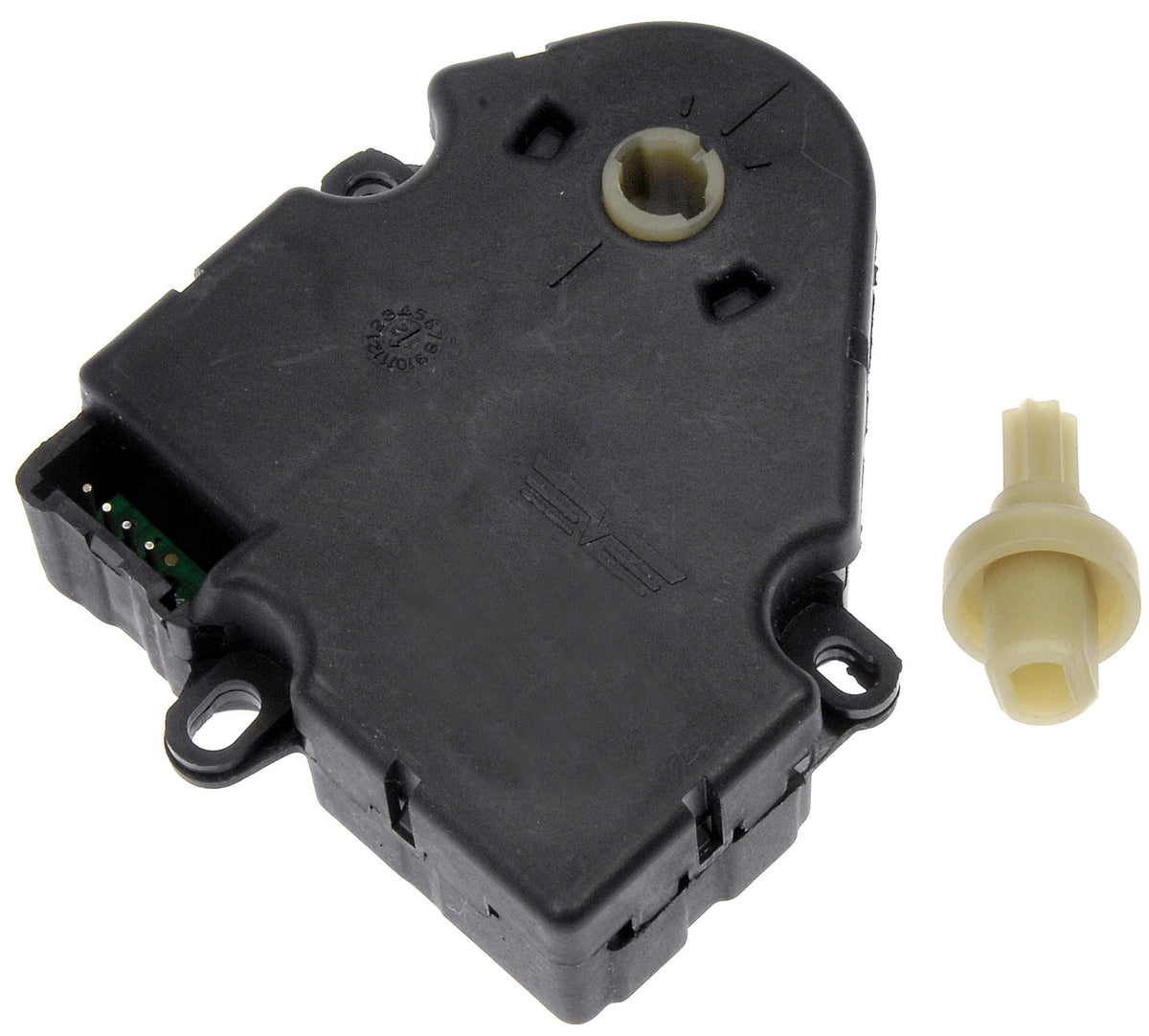

Dorman engineered the 604-020 to be a direct replacement, mirroring the fit and electrical interface of the original actuator where specified. The housing, mounting points and connector configuration are made to align with factory locations so installation is straightforward when the correct position is selected. Its build is tested to resist normal wear and electrical issues common to HVAC actuators.

• Direct-fit design for intended factory locations
• Matching electrical connector and mounting pattern
• Durable materials to reduce premature failure
• Tested to meet performance expectations for HVAC operation

What should I check before buying and installing this actuator?

Because many vehicles have multiple actuators, identifying the exact actuator location and function is crucial before purchase. Use the vehicle garage tool or application notes to confirm fitment, and inspect the failed actuator to verify connector type and mounting points. If uncertain, consult a qualified technician to avoid replacing the wrong component.

• Enter vehicle trim and options in the fitment tool
• Compare connector and mounting pattern to the old actuator
• Check application notes (blue “i” may indicate additional verification steps)
• Ask a service technician if position is unknown

What benefits can I expect after replacing a faulty blend door actuator?

Replacing a failing actuator like the Dorman 604-020 can restore correct airflow direction and temperature mixing in the cabin, eliminating erratic vents, incorrect temperatures, or clicking noises coming from the dash. While outcomes depend on diagnosing the root issue correctly, a proper-fit actuator helps return the HVAC system to expected operation.

• Restores accurate vent selection and temperature blending
• Reduces dashboard noise from failing gears or motors
• Improves HVAC responsiveness and comfort control
• Longer service life from robust construction

Who is this for: The Dorman 604-020 HVAC blend door actuator is for Jeep owners or mechanics who need a like-for-like replacement part for the specified Cherokee, TJ, or Wrangler model years and confirmed actuator positions. It’s best suited to those who have verified fitment using vehicle details or who can identify the failed actuator by position and connector. If you’re unsure which actuator is required, have a professional check the vehicle to ensure you order the correct Dorman part.
