DPTOOL 10mm Back Tap Spark Plug Thread Repair Tool M10x1.0

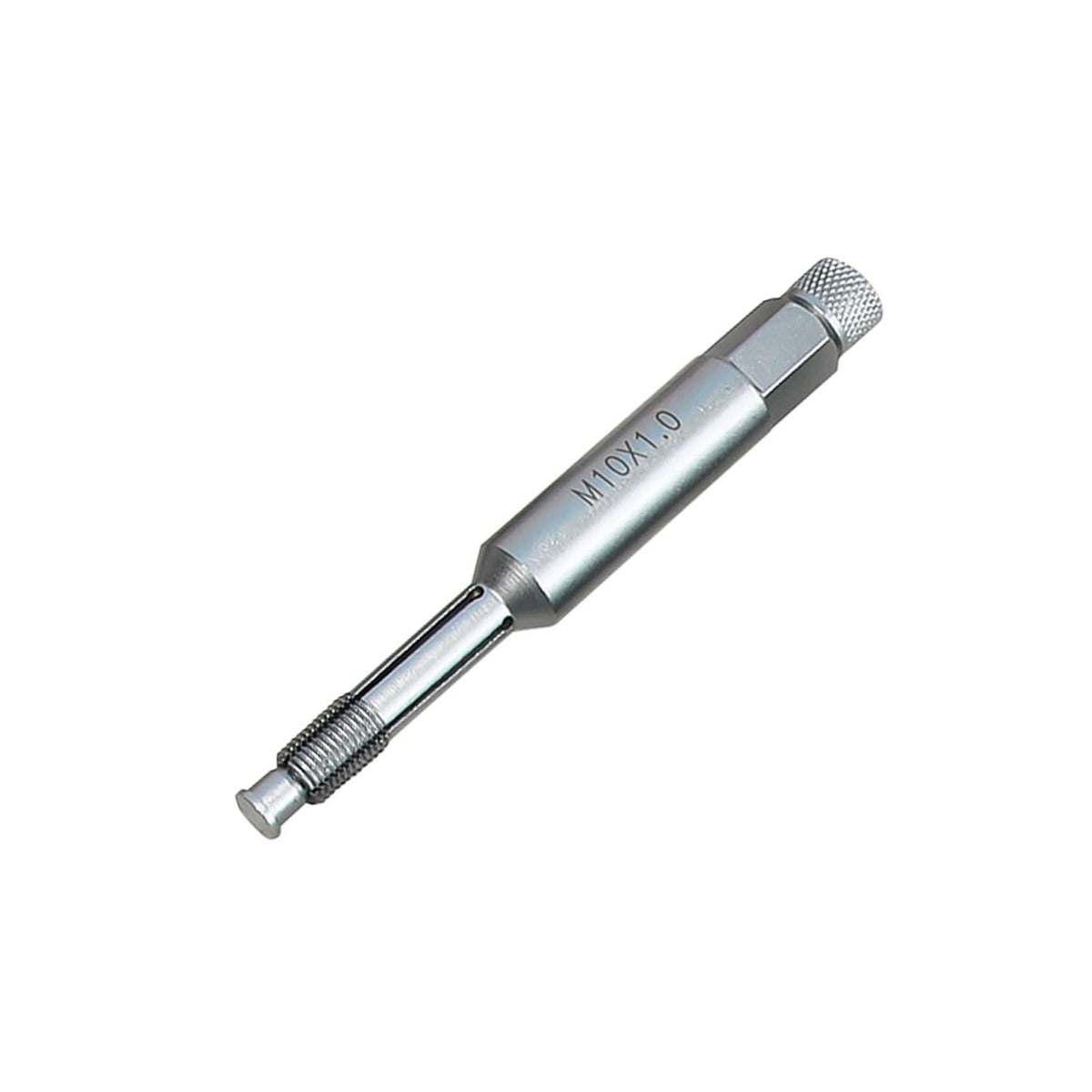

DPTOOL’s 10mm back tap thread chaser (M10x1.0) is a durable, high-strength tool designed to restore damaged spark plug threads without removing the cylinder head or leaving metal shavings inside the bore.

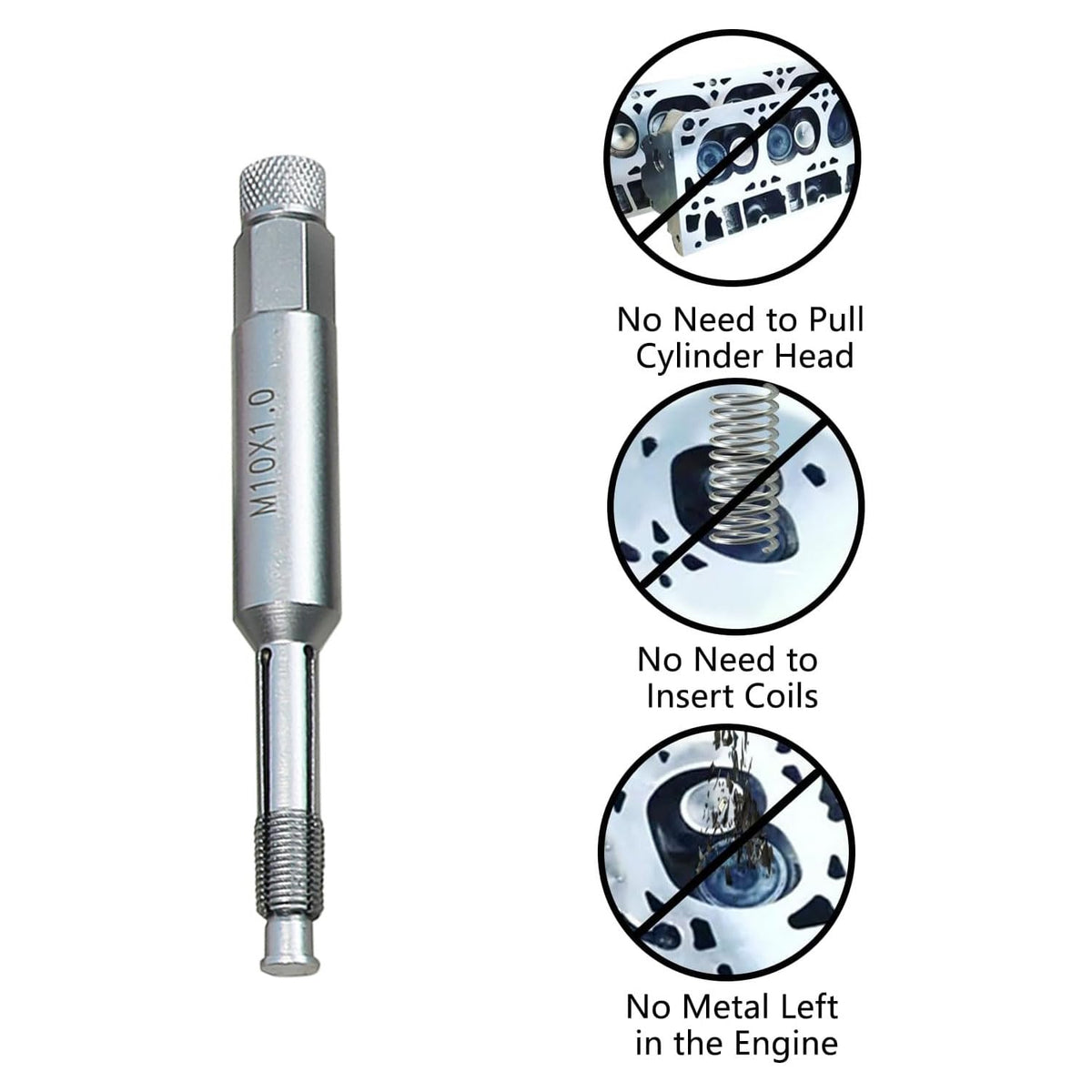

When a spark plug hole becomes cross-threaded or partially damaged, replacing the head or installing a helicoil can be costly and time-consuming. This back tap thread repair tool cleans and reforms M10x1.0 spark plug threads by expanding through the hole and backing out contaminants, all while minimizing debris falling into the combustion chamber. Built from 42CrMo (equivalent to 4140) heat-treated steel, it’s engineered to resist wear and repeated impact for garage or professional use.

How does this tool fix badly cross-threaded spark plug holes?

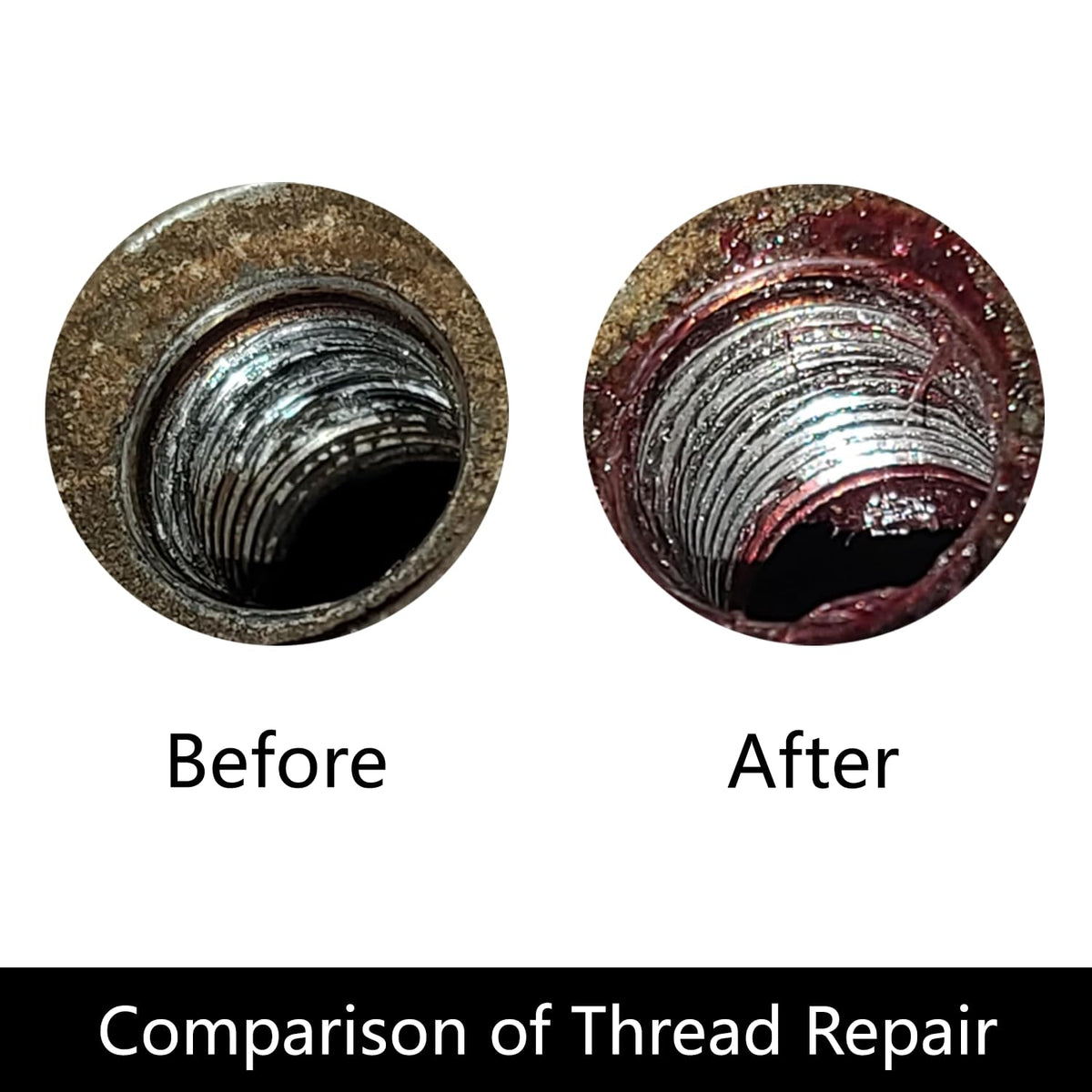

The DPTOOL thread chaser re-centers and reforms the original thread profile by being inserted straight through the hole, expanded, and rotated to cut away burrs and collapsed thread sections. It pulls out trapped material rather than pushing it into the cylinder, restoring a usable M10x1.0 thread fit in most repair scenarios.

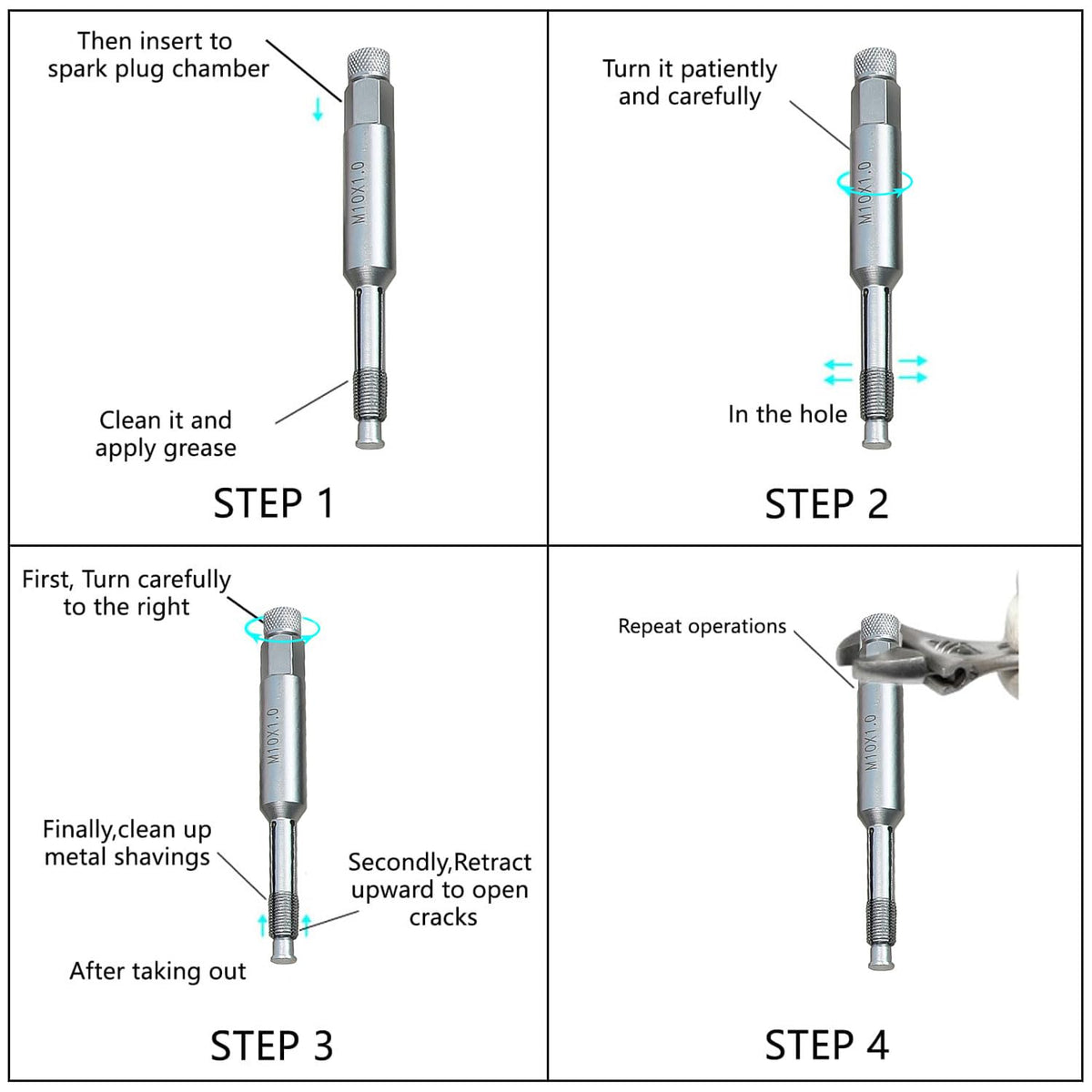

• Insert tool straight through spark plug hole to align with the bore.
• Expand the chaser and rotate 3–5 full turns forward to clean threads.
• Reverse direction and use short forward/back motions when resistance rises.
• Repeat until remaining debris is removed and thread pitch is restored.

Will metal shavings fall into the engine during use?

This design reduces the risk of shavings entering the combustion chamber by using grease on the threaded portion to trap metal particles. As the repair tool withdraws, it pulls trapped shavings out with it, helping prevent foreign material from dropping into the cylinder bore.

• Apply light grease to the chaser before insertion to capture debris.
• Withdraw the tool slowly so captured particles exit with the device.
• Inspect the tool and reapply grease between passes for cleaner removal.

What makes the DPTOOL chaser durable and reliable?

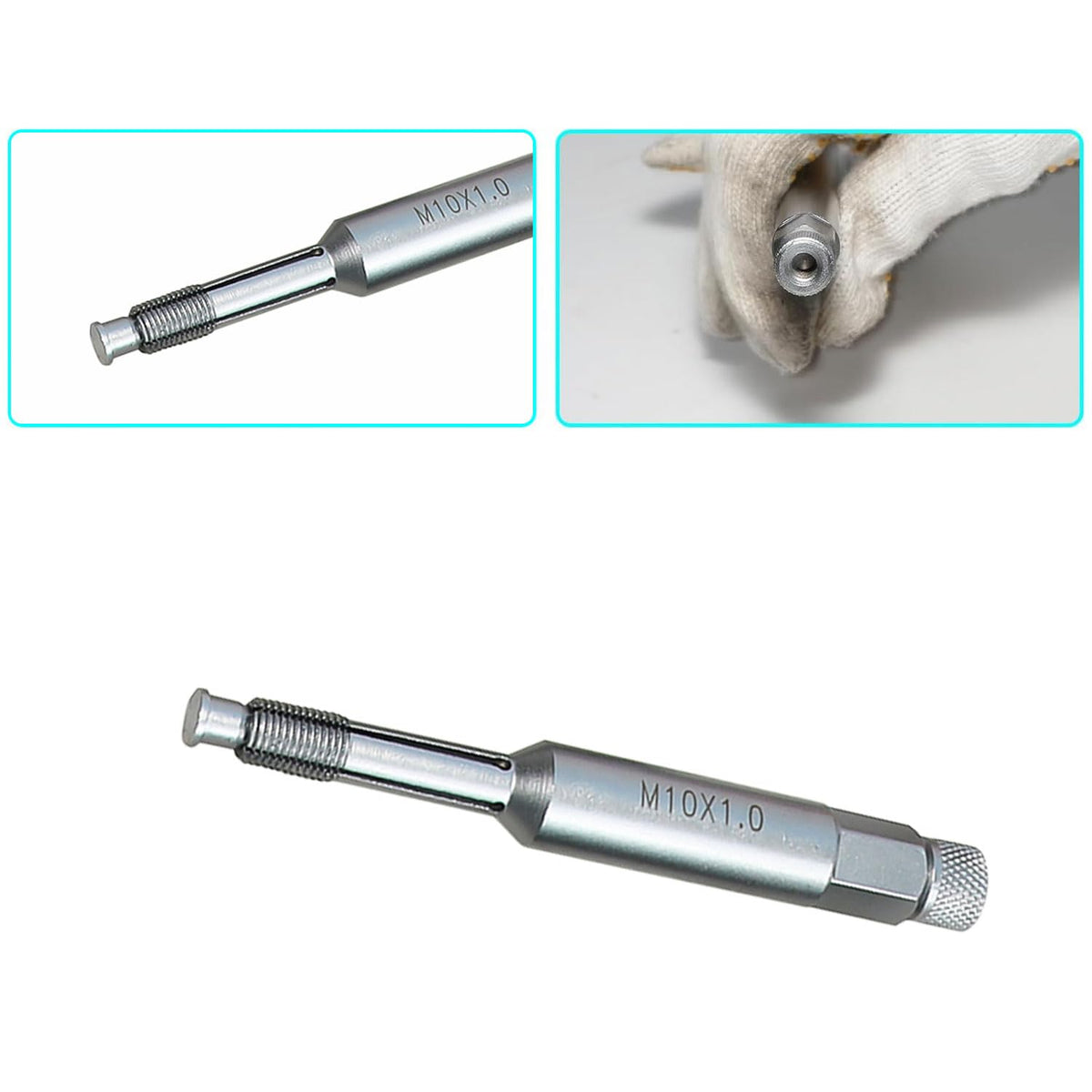

Manufactured from high-grade 42CrMo alloy steel (equivalent to 4140), the tool is heat-treated for toughness, fatigue resistance, and good hardenability. That combination yields a heavy, precise tool that withstands multiple repair cycles and impact without obvious temper brittleness.

• 42CrMo (4140-equivalent) construction for high strength and toughness.
• Quenched and tempered to resist repeated impact and fatigue.

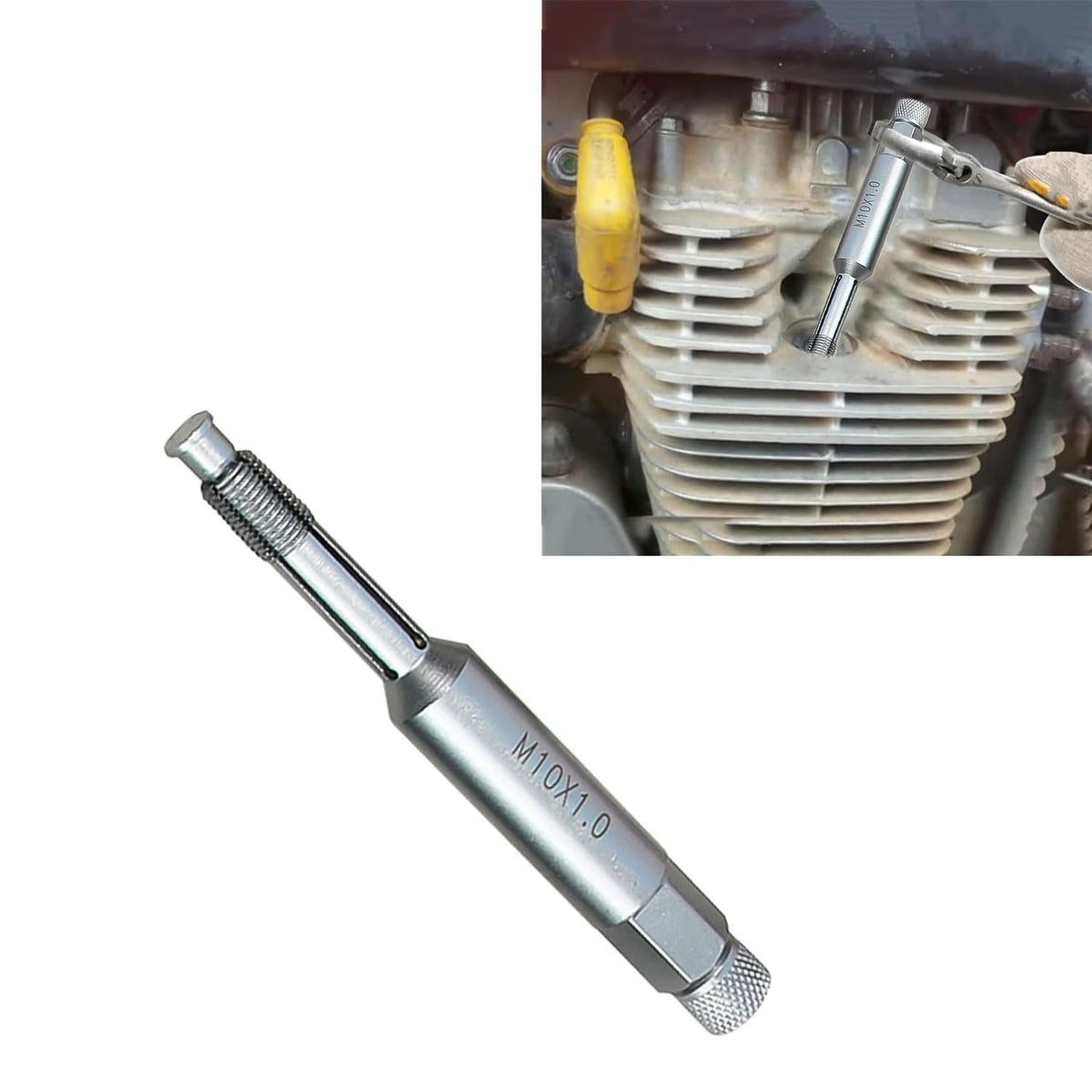

• Precision-machined profile for accurate M10x1.0 thread chasing.

How do I use the tool safely and effectively?

Use steady, controlled motions rather than forcing the chaser. Turn forward 3–5 times, then reverse to clear chips; when you meet resistance, back out slightly and continue slowly. Patience and light lubrication are key to preventing further damage.

• Start straight and slow—do not force the tool through tight spots.
• Alternate forward and reverse turns; trim shavings gradually.
• Keep the tool greased and inspect for captured debris between passes.

Who is this for: Mechanics, DIY car enthusiasts, and small repair shops needing a compact, reliable solution for M10x1.0 spark plug thread damage will benefit from this DPTOOL back tap. It suits users who want to avoid cylinder head removal or helicoil installation, offering a lower-cost, quicker thread restoration method for many common spark plug repair jobs. Note: assess the damage first—severely stripped or cracked heads may still require professional machining or thread inserts.
