DPTOOL 14mm Spark Plug Thread Repair Kit M14x1.25 — Two Hardened 42CrMo Back Taps (5.27" & 10.3")

DPTOOL's 14mm back tap spark plug thread repair kit (M14x1.25) restores damaged spark plug holes quickly without removing the cylinder head.

If a cross-threaded or worn spark plug thread is causing misseating or oil leaks, this kit delivers a fast, workshop-friendly repair. The set includes two back taps in different lengths made from hardened 42CrMo alloy steel, designed to chase and re-form M14x1.25 threads inside the combustion chamber while minimizing the risk of metal debris falling into the cylinder.

How does this tool fix a damaged spark plug thread?

The back taps expand and re-cut the existing thread form by engaging and pushing out corrosion, nicks, and deformation. Grease is applied to trap metal shavings so they withdraw with the tool instead of dropping into the bore. For best results, work slowly and alternate forward and reverse passes until the thread runs smoothly.

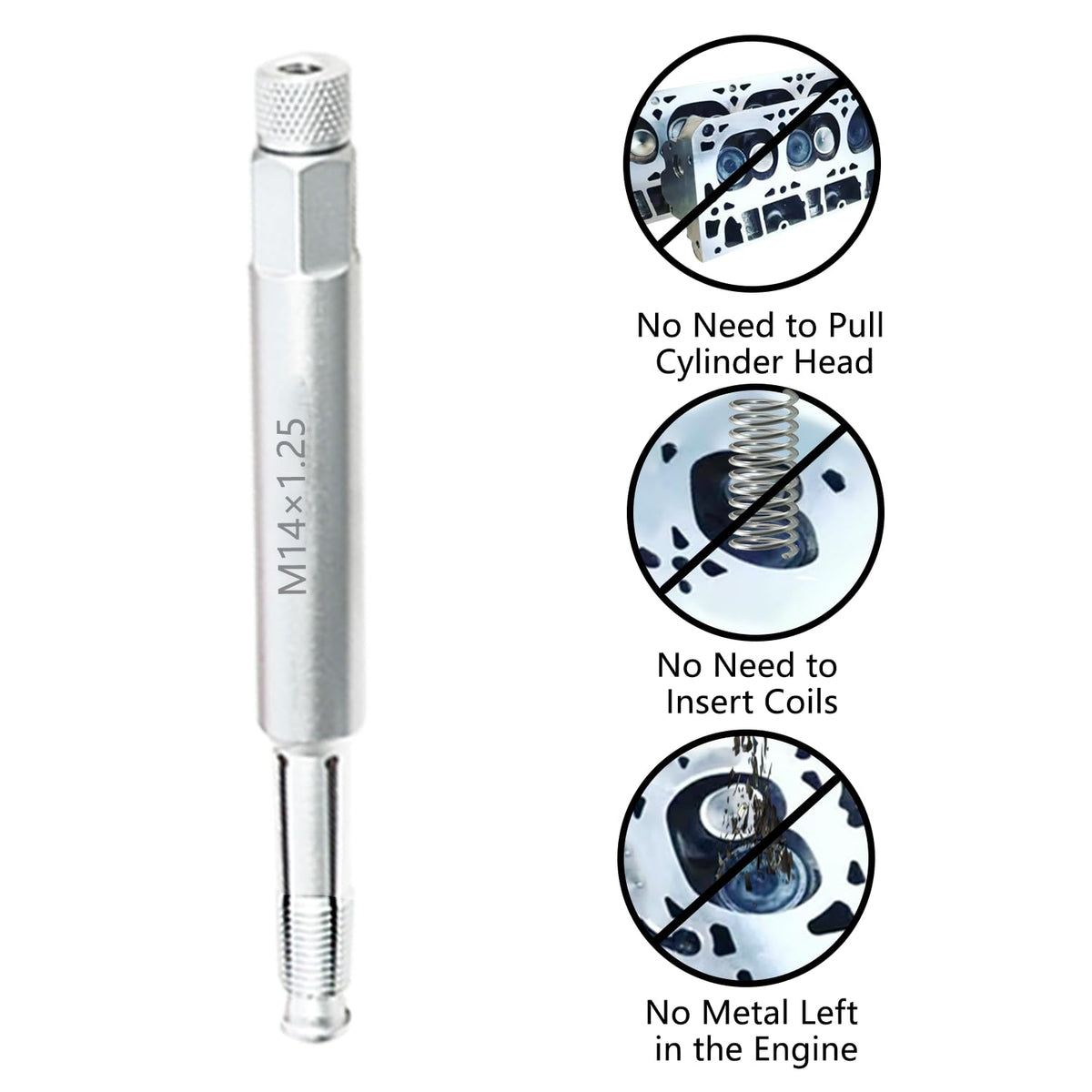

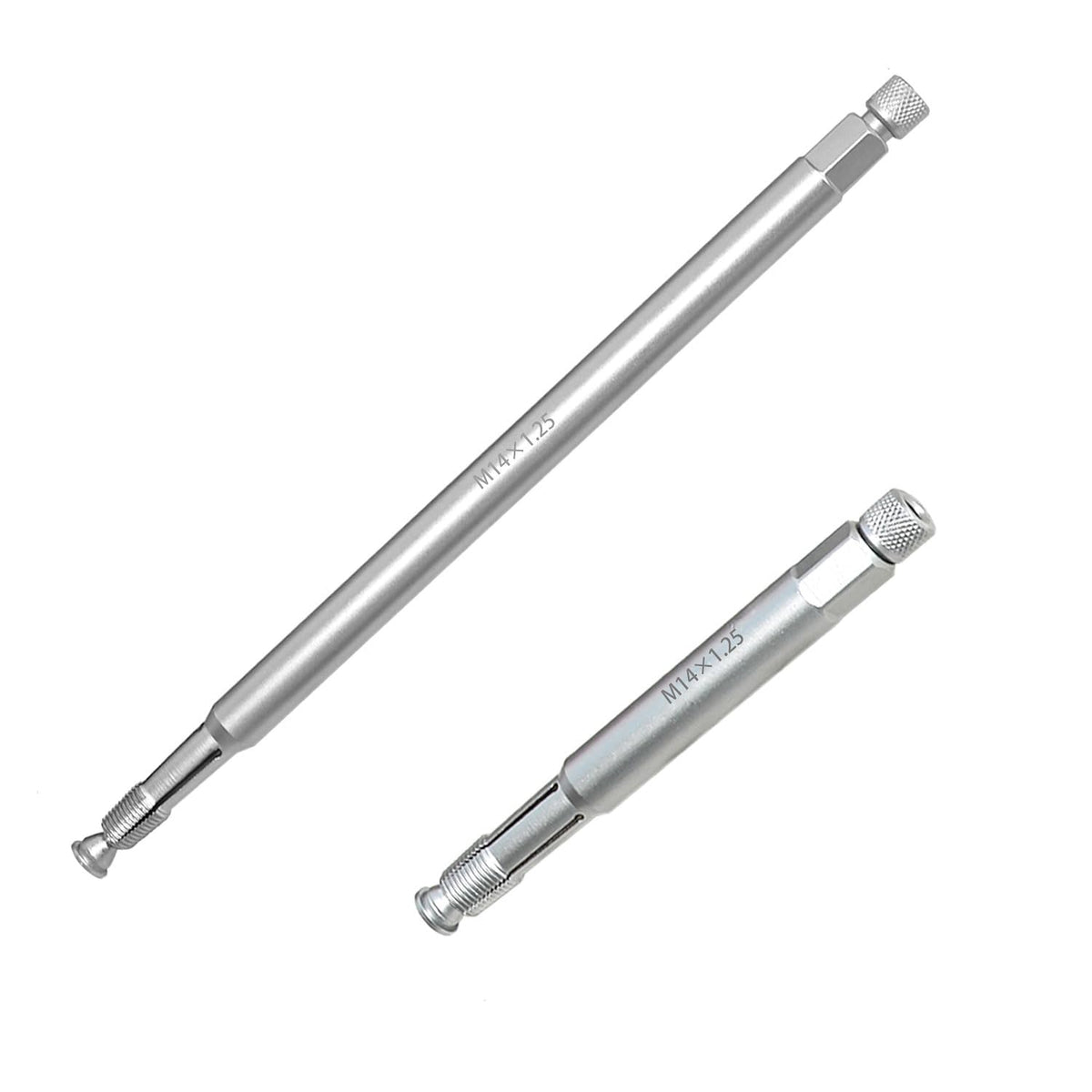

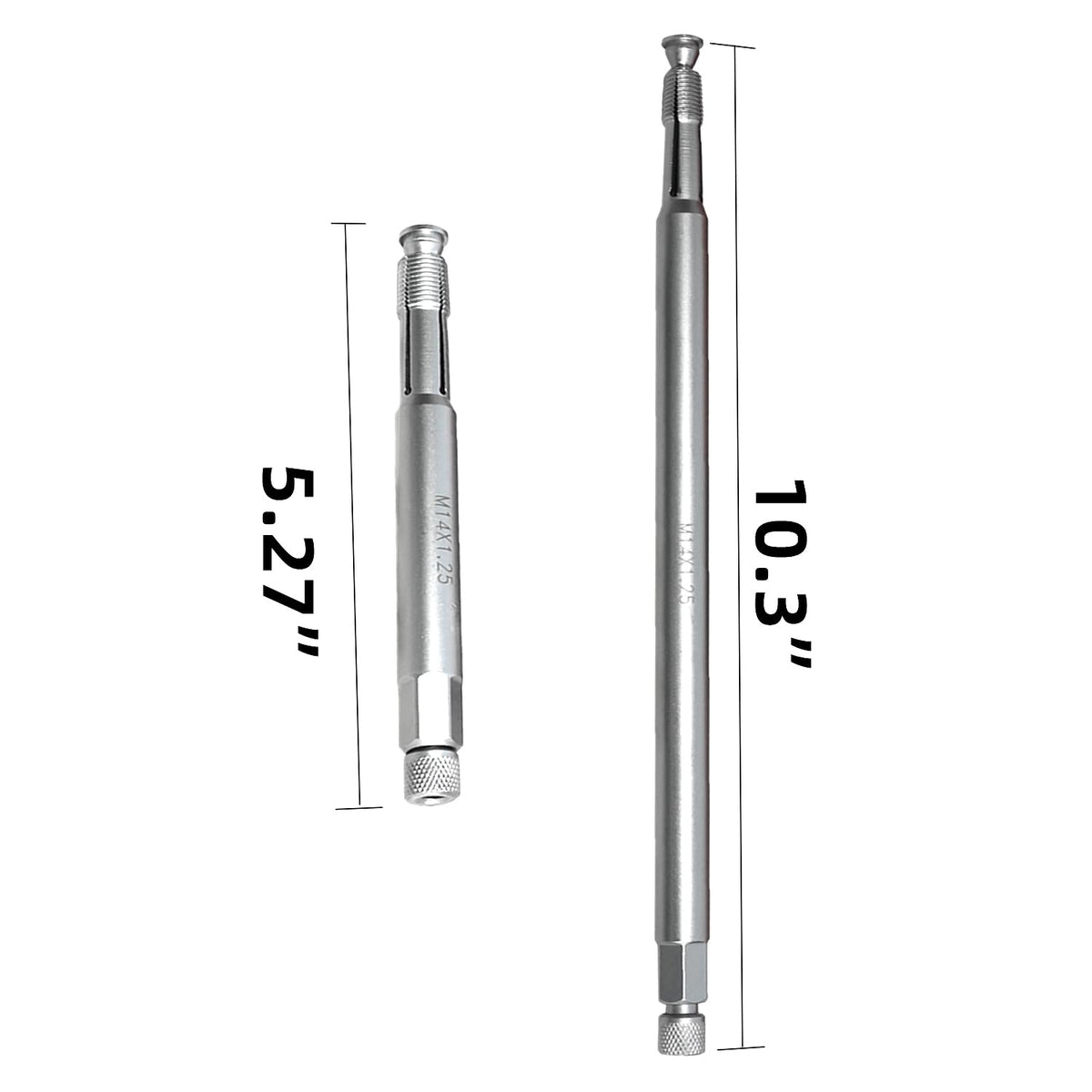

• Two tap lengths: 5.27" and 10.3" for tight or deep wells.
• Use light grease to collect shavings on the tool during re-cutting.
• Alternate turning directions and back off when resistance increases.

What materials and durability can I expect from the DPTOOL 14mm back taps?

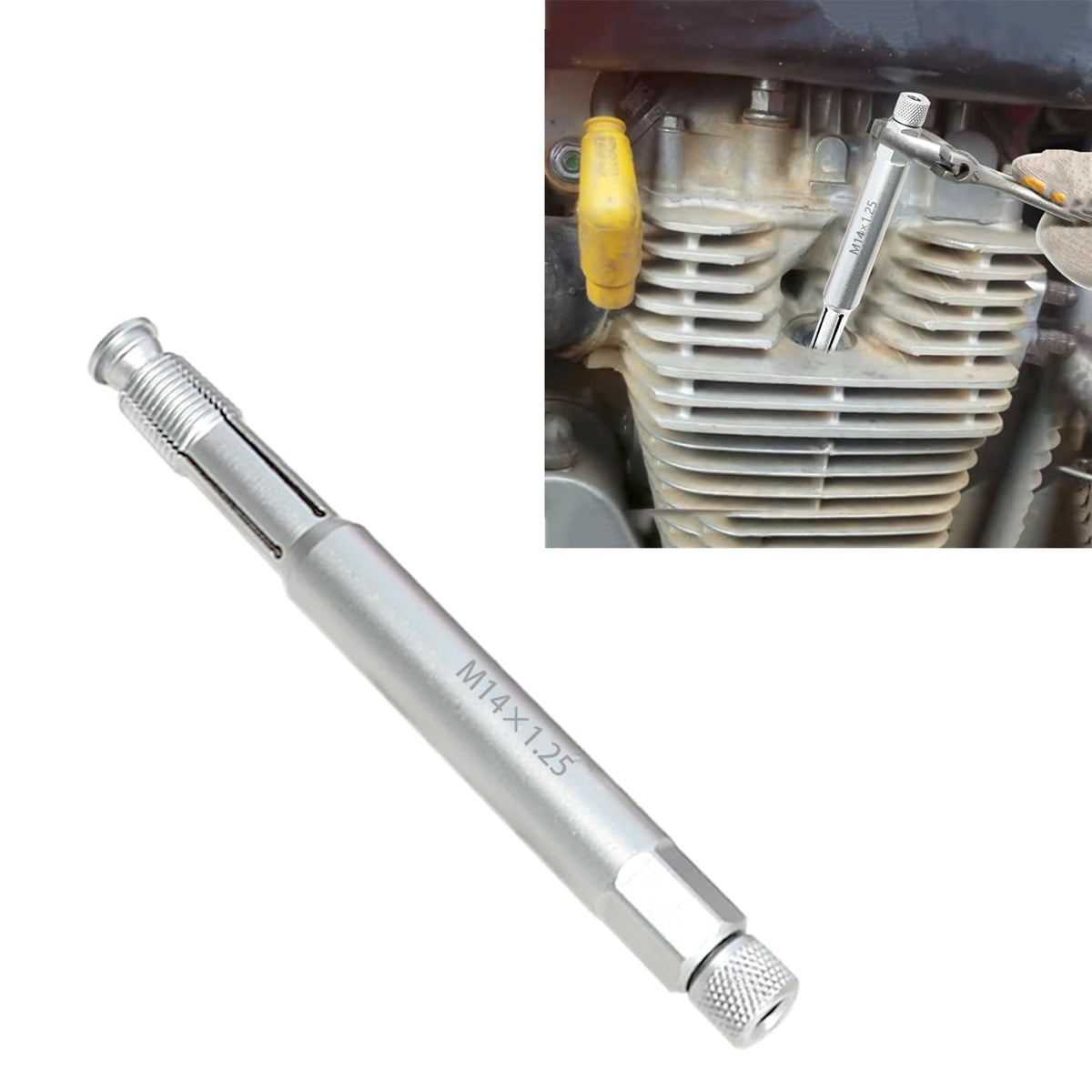

Each tap is made from 42CrMo steel, a high-strength alloy comparable to 4140, heat-treated for toughness and wear resistance. That construction gives the tools high fatigue limit and resistance to impact during torqueing, so they remain accurate after repeated repairs.

• Hardened 42CrMo alloy for long-lasting cutting edges.
• Quenched and tempered to resist chipping and breakage.
• Designed to maintain thread profile under repeated use.

Which vehicles and spark plugs are compatible with the M14x1.25 taps?

The M14x1.25 thread pitch is common on many cars and light trucks worldwide. With two lengths included, the kit fits shallow and recessed spark plug wells across a broad range of engines—helpful for modern engines with deep wells and older vehicles alike.

• Standard M14x1.25 plug threads used on many gasoline engines.
• Two lengths accommodate both shallow and deep spark plug wells.
• Works on aluminium and cast-iron heads where thread repair is feasible.

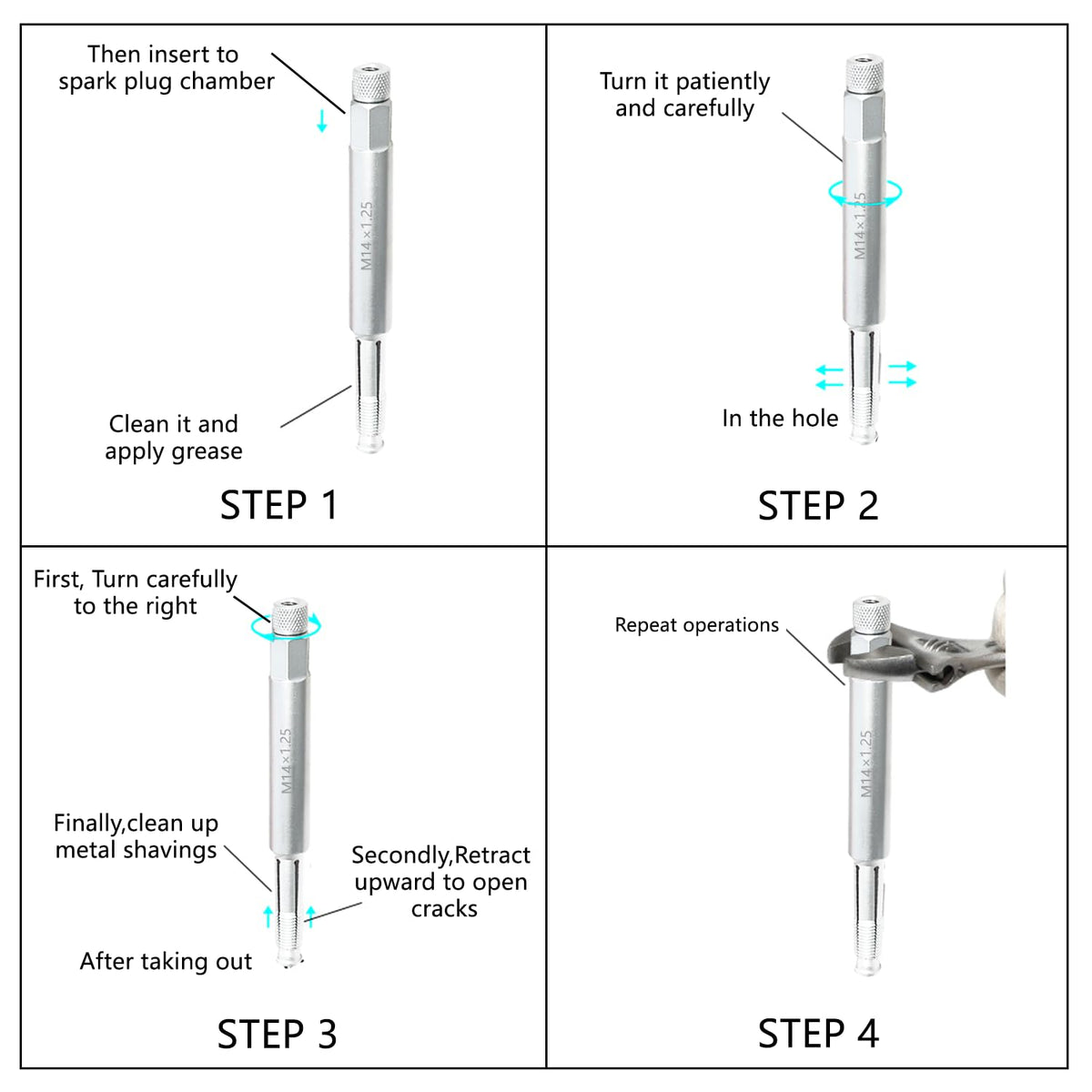

How do I use the back tap safely to avoid debris and further damage?

Begin by coating the tool with grease so metal filings adhere to the tap instead of falling into the cylinder. Insert straight, advance slowly, and retreat occasionally to clear chips; reversing when resistance increases prevents binding. Take multiple light passes rather than forcing a single aggressive cut.

• Apply grease to trap swarf on the tap for safe removal.
• Insert straight, turn slowly, and back out every few turns.
• If you meet a hard spot, back up slightly then proceed again.

Who is this for: DPTOOL's M14x1.25 back tap kit is aimed at mechanics, DIY car owners, and mobile technicians who need a reliable, non-invasive way to restore spark plug threads without removing the cylinder head. It's especially useful for shops dealing with varied vehicle fleets, roadside repair services, and hobbyists with limited equipment who want a durable, easy-to-use thread repair solution.
