DPTOOL Engine Timing Tool Kit for Ford 2.0T/2.3T & Jaguar/Land Rover 2.0T — Hardened Steel Camshaft and Crankshaft Locking Set

DPTOOL Engine Timing Tool Kit is a complete camshaft and crankshaft locking set engineered to reset and secure timing on Ford 2.0T and 2.3T EcoBoost and compatible Jaguar/Land Rover 2.0T engines.

This professional-grade kit was designed to match OEM fit and function for a wide range of Ford petrol engines, including Duratec-HE and EcoBoost variants (engine codes TNWA/TNWB/TNBA/TPWA/MGDA/XQDA). Built from hardened steel with an anti-corrosion finish, the set includes specialized alignment plates, pins, a flywheel holder and crankshaft tools to make timing, maintenance or belt replacement work repeatable and accurate. The case and manual keep components organized for shop or roadside use.

Which engines and vehicles is this timing tool kit compatible with?

The DPTOOL kit targets Ford 2.0L and 2.3L petrol engines used across several models and years, and is also suitable for certain Jaguar/Land Rover 2.0T installations. Compatibility covers common EcoBoost engines and Duratec-HE variants listed by engine codes.

• Ford Focus, Mondeo, Galaxy, S-MAX, Fusion, Edge, Escape, Explorer and Mustang models (specific years apply).
• Engine families: 2.0L Duratec-HE (MI4), 2.0L EcoBoost GTDI (MI4), 2.3L EcoBoost (pre-2019 Mustang/Focus RS ranges).
• Referenced OEM equivalent numbers: 303-1565, 303-1600, 303-748, 303-1594, 303-1595, 303-1521, 303-1504.

How does this kit help me perform accurate timing work?

Each tool in the set is shaped and tested to locate camshafts, crankshafts and sensors in exact OEM positions so timing components can be removed and refitted without guesswork. Using dedicated alignment plates and pins reduces the risk of misalignment that can cause engine noise or damage.

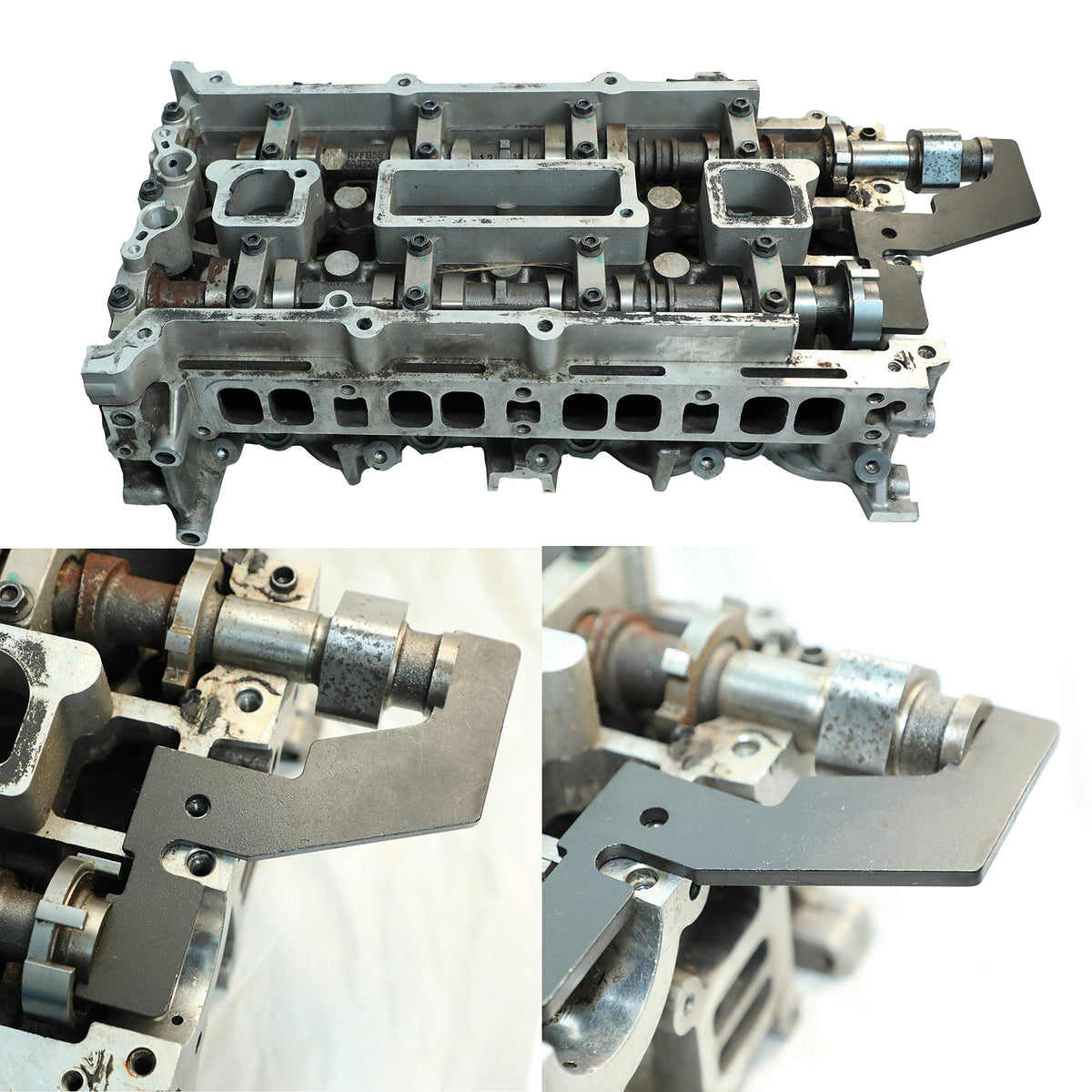

• Camshaft alignment plates lock both banks to factory positioning during belt or chain service.
• Crankshaft and pulley alignment pins hold the crank at TDC for repeatable reassembly.
• Flywheel holding tool prevents rotation when loosening or tightening crank fasteners.

What is included in the complete DPTOOL set and why each part matters?

The kit bundles all essential timing locking tools so you won’t need to source individual pieces. Each component is intended to replace specific OEM tools for fast, correct service and minimize time spent chasing fitment on the bench.

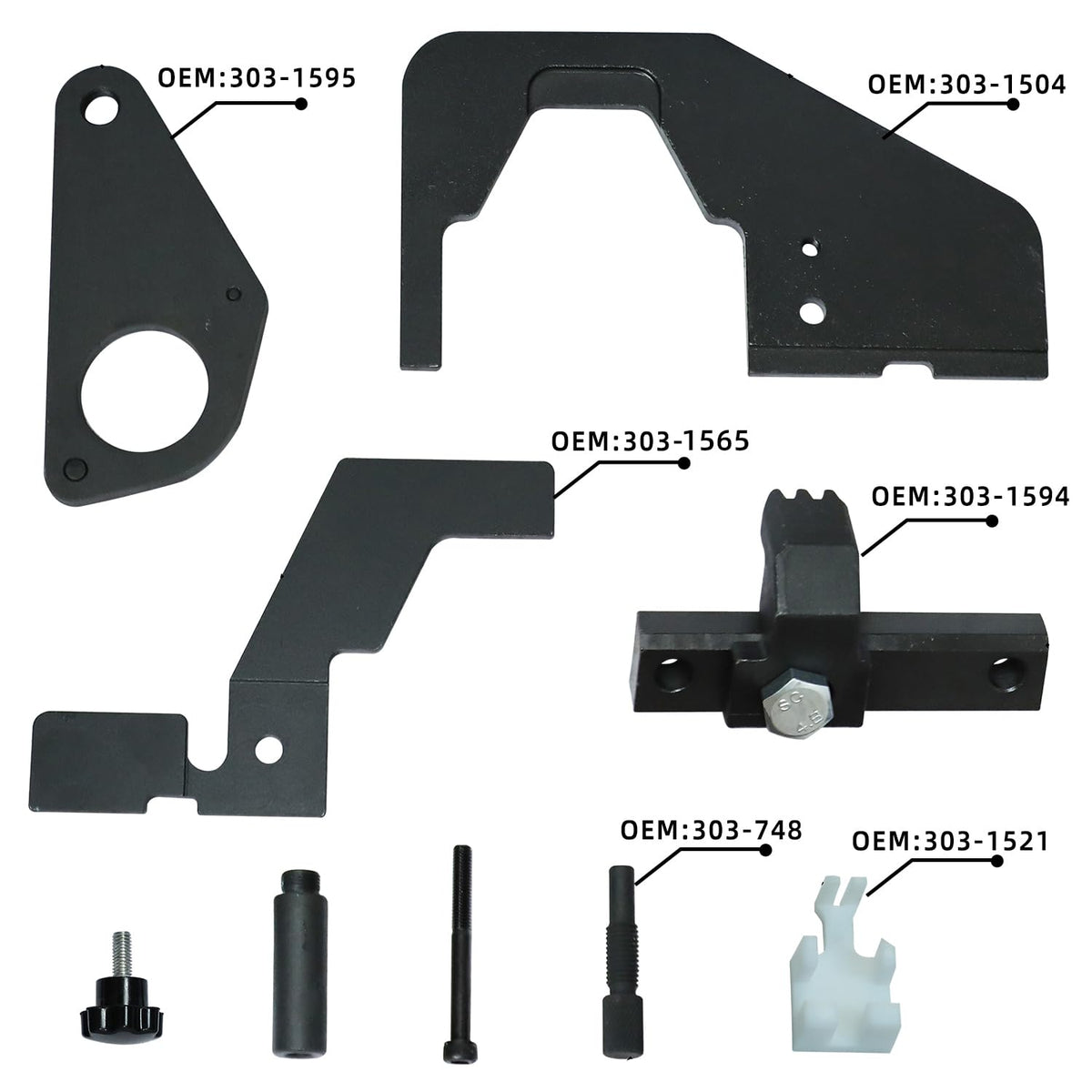

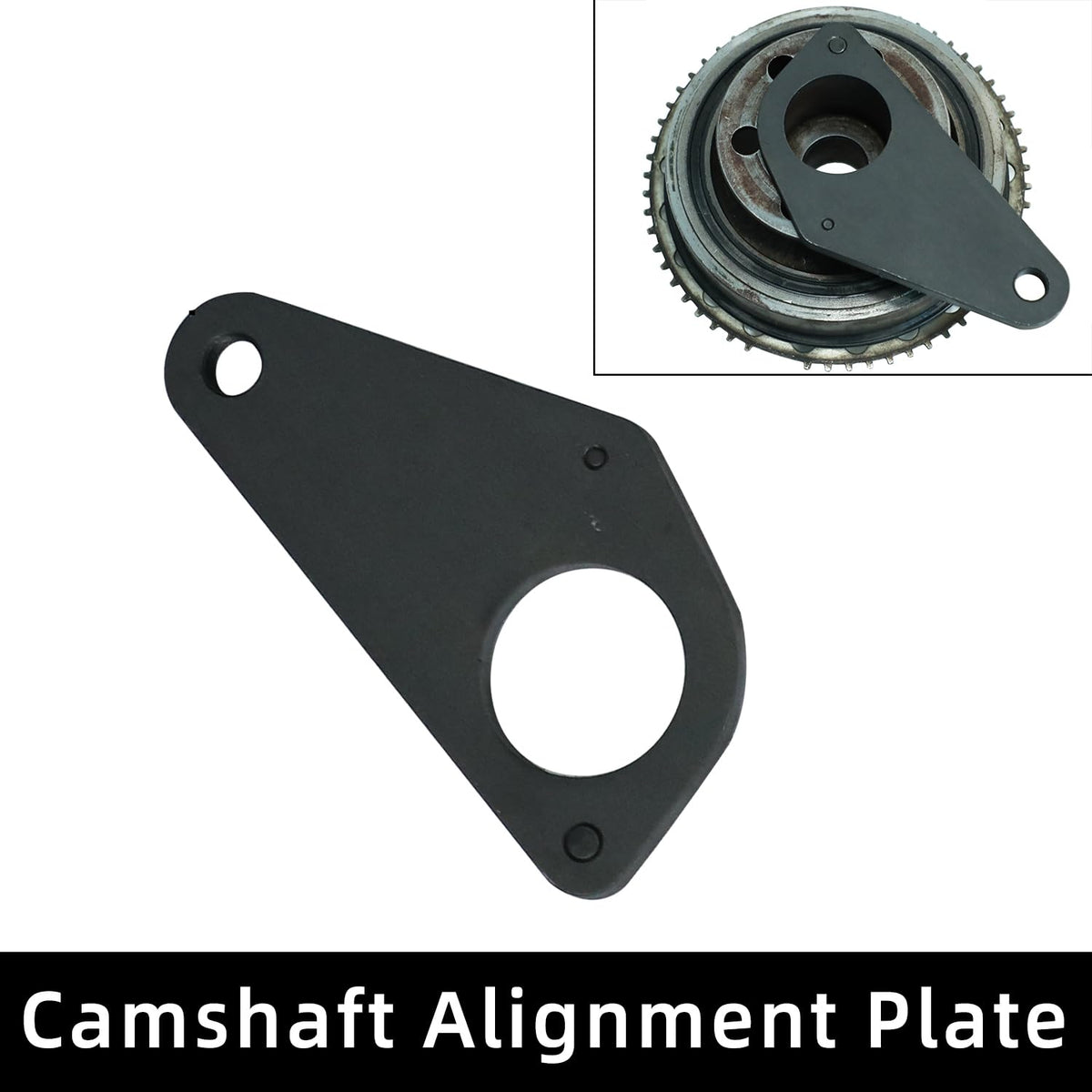

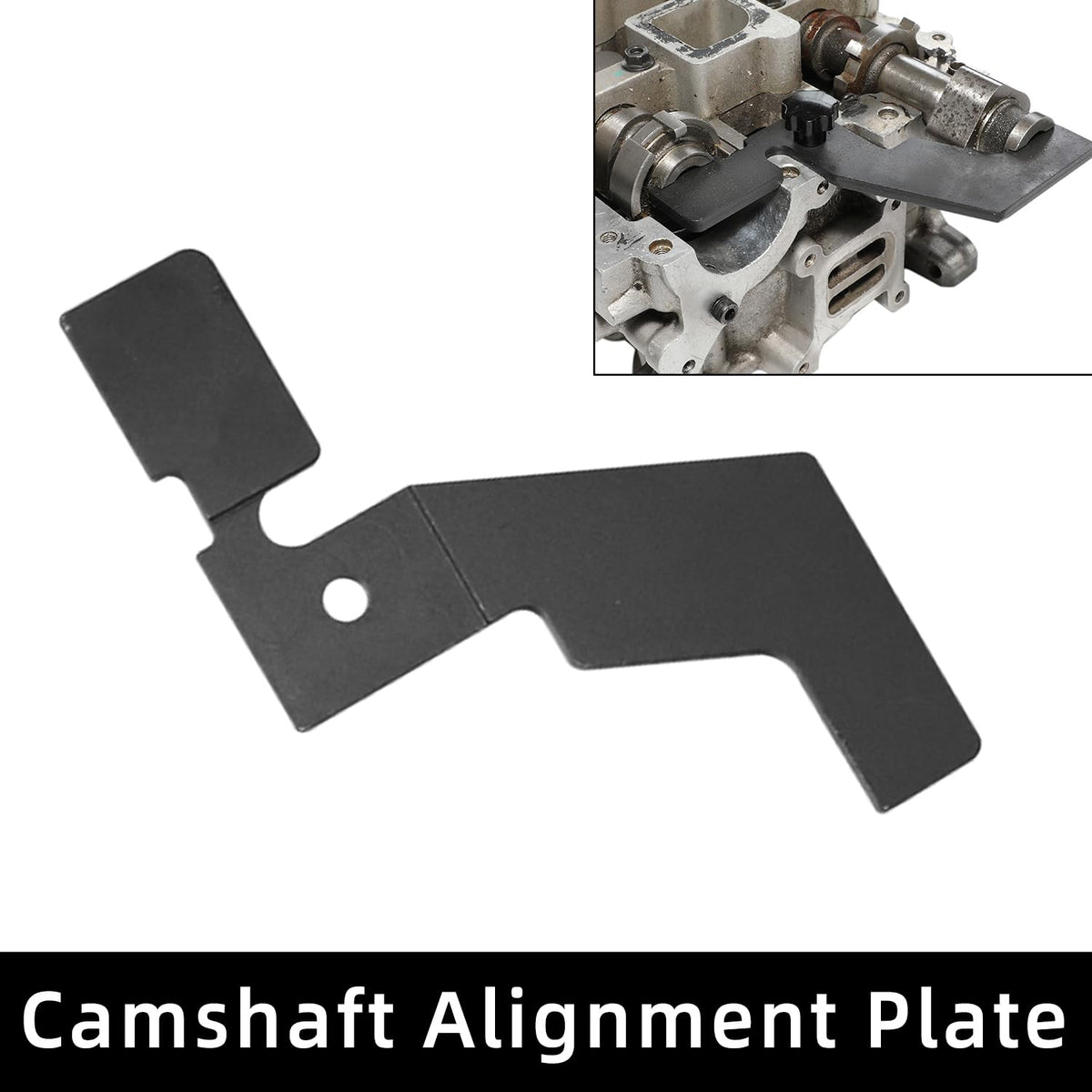

• 303-1565 camshaft alignment tool and 303-1600 camshaft alignment plate for precise valve timing.
• 303-748 crankshaft setting pin and 303-1595 crankshaft pulley alignment tools for TDC control.

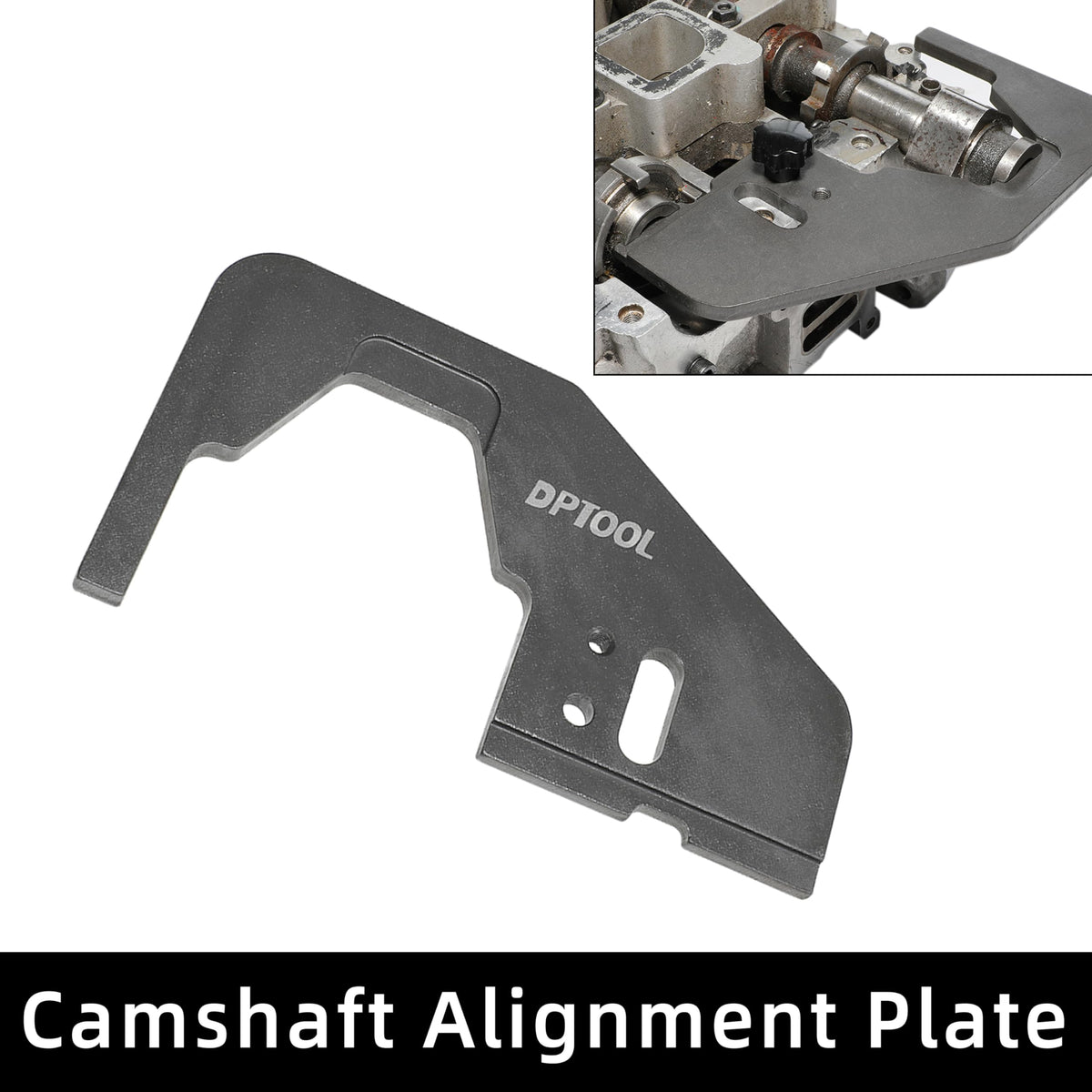

• 303-1594 flywheel holding tool, 303-1521 crankshaft sensor alignment tool, 303-1504 camshaft plate, fasteners, case and manual for a full-service solution.

How durable and reliable are the tools for shop use?

DPTOOL builds the kit from heat-treated steel with a black anti-oxidant coating so parts resist wear and surface corrosion. Tools are engineered for repeated use in busy garages; each piece is inspected to match OEM dimensions for dependable alignment across multiple service events.

• High-hardness steel construction for long life under torque loads.
• Protective coating reduces rust after exposure to oils and shop environments.

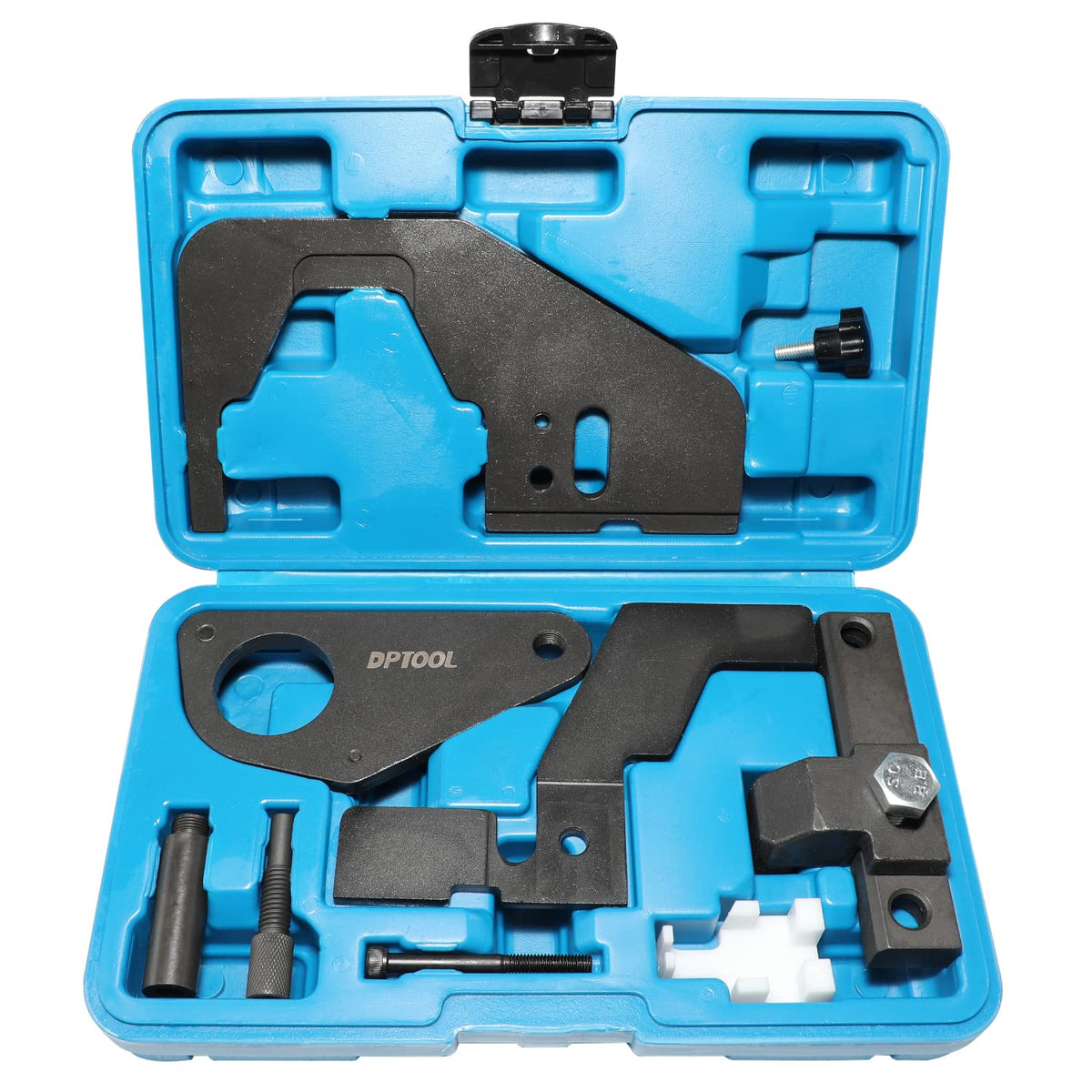

• Supplied case keeps components protected and organized between jobs.

Who this is for: The DPTOOL Engine Timing Tool Kit is suited to professional mechanics, independent shops and knowledgeable DIYers who service Ford EcoBoost and Duratec-HE petrol engines. If you perform belt, chain, camshaft or crankshaft work on compatible Ford, Jaguar or Land Rover 2.0T/2.3T engines and need OEM-equivalent alignment tools in a portable kit, this set covers the typical requirements for accurate, safe reassembly.
