DPTOOL Engine Timing Tool Kit for Ford & Volvo 1.5–2.3T Ecoboost — OEM-equivalent, hardened steel in foam case

This precision-engineered kit includes all the common OEM-equivalent tools needed to lock, align and hold camshafts, crankshafts and related timing components while you service or replace timing belts, chains or sprockets. Manufactured from hardened steel with an anti-corrosion finish and supplied in a foam-fitted carry case, the set mirrors OEM part numbers so technicians and DIYers can achieve reliable positioning without repeatedly referencing multiple single-purpose tools.

Which engines and models will this kit work with?

The DPTOOL kit supports a wide range of Ford Ecoboost engines (1.5L, 1.6L Ti-VCT / VVT, 2.0L, 2.3L EcoBoost) and many Volvo and Jaguar/Land Rover 2.0L GTDi/Si4 variants. Compatibility covers common engine codes such as TNWA/TNWB/TNBA/TPWA/MGDA/XQDA and OEM-equivalent tools used across these platforms.

• Ford: 1.5/1.6/2.0/2.3 Ecoboost engines including Mustang 2.3L (pre-2019)
• Volvo: 1.6L and 2.0L T4/T5 engine families
• Jaguar/Land Rover: 2.0L GTDi and Si4 engines—Discovery Sport, Freelander 2, Evoque, XF, XE, XJ

How does the kit help during timing and cam/crank procedures?

Each tool in the set is purpose-made to lock or align a specific component so you can set Top Dead Center (TDC) and maintain correct cam/crank relationships during repairs. Using proper locking and locating tools prevents movement during torqueing and reduces the risk of incorrect timing alignment.

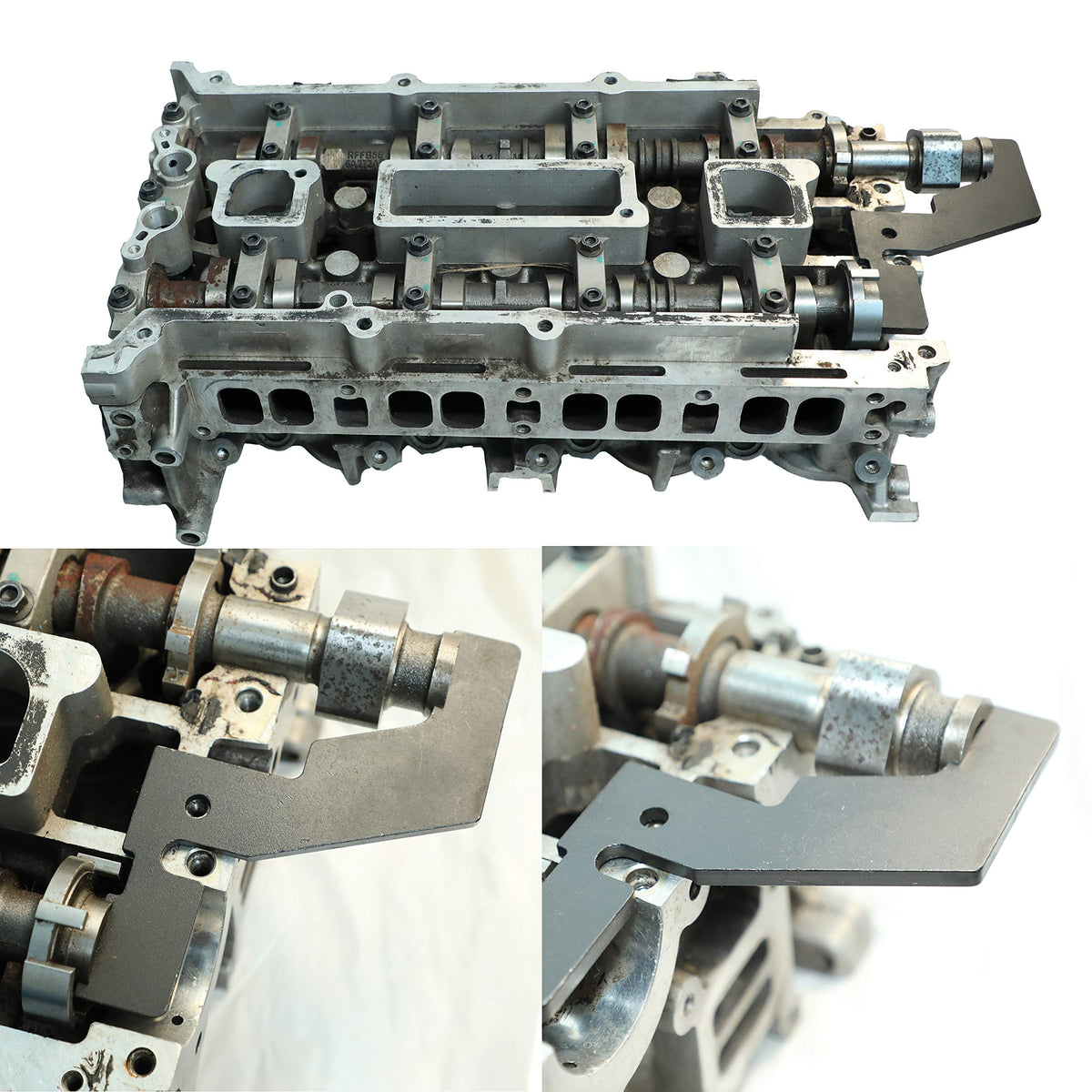

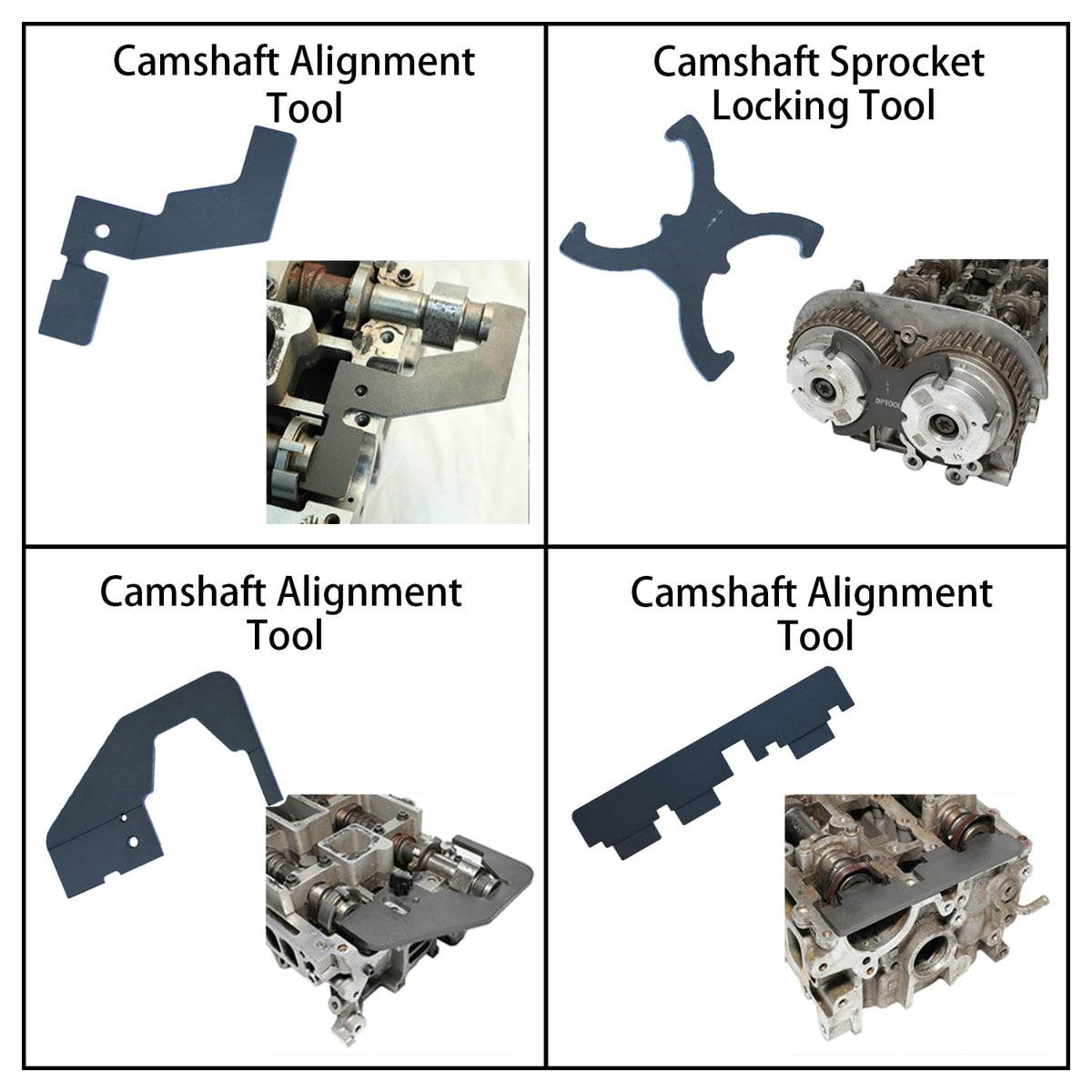

• Camshaft sprocket locking and alignment tools keep cam lobes fixed while you work

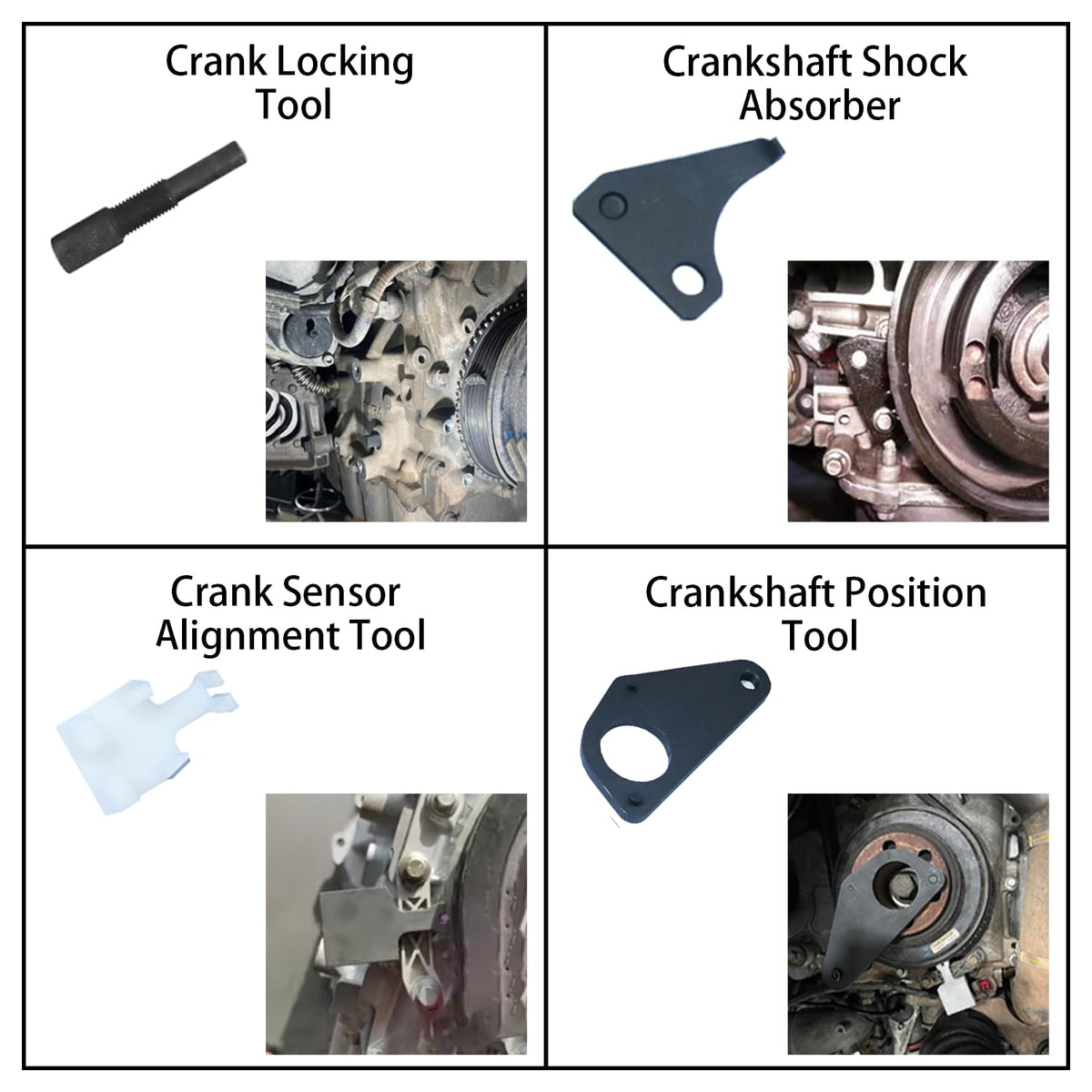

• Crankshaft TDC pins and locking tools secure piston position for accurate timing
• Flywheel and sensor alignment tools hold engine timing components exactly in place

What parts are included and how do they match OEM references?

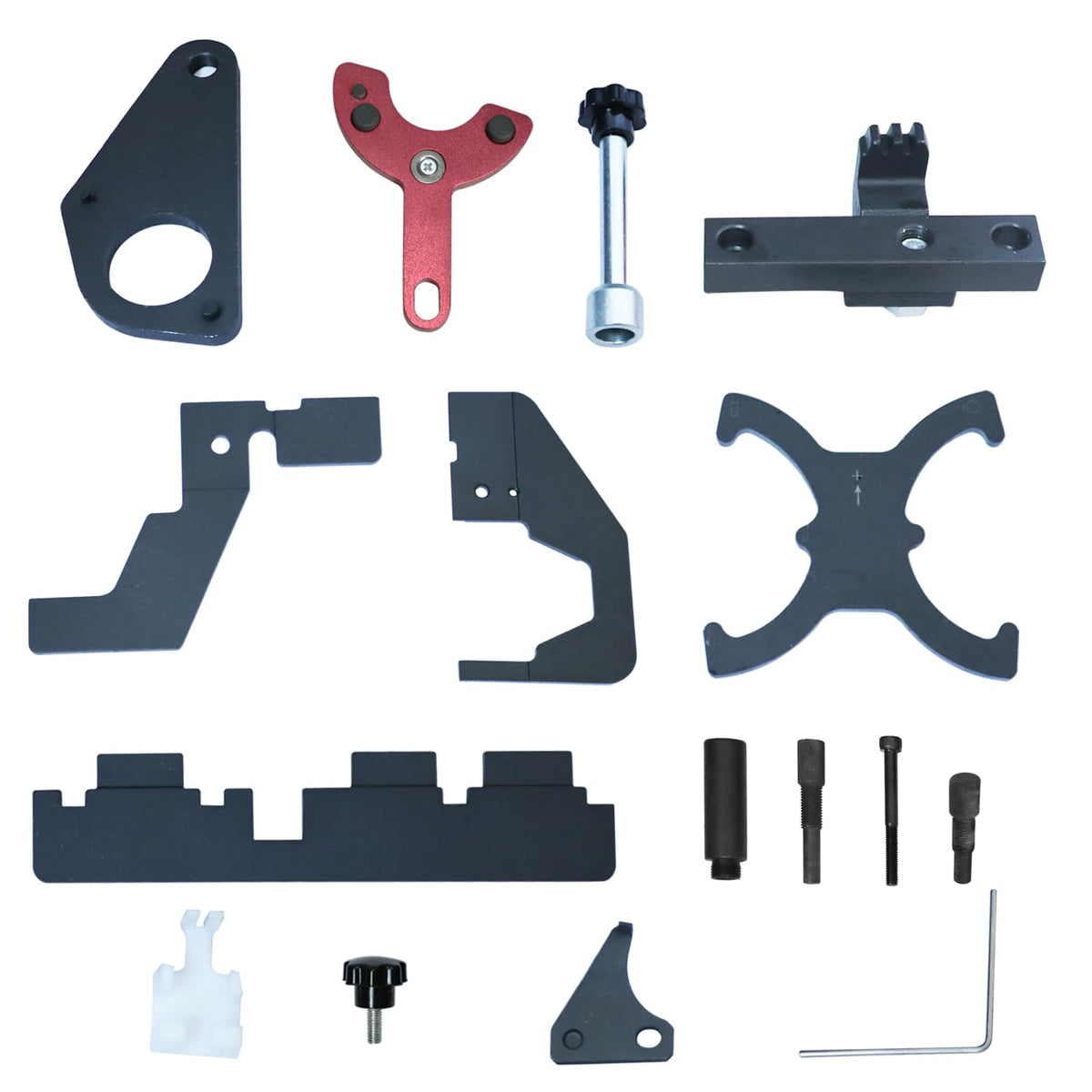

The set contains the common OEM-equivalent pieces technicians need for these engines: multiple camshaft alignment tools, crank locking pins, flywheel lock and sensor alignment tools, plus extras like a crankshaft shock absorber and timing pins. DPTOOL lists matching OEM numbers so you can cross-check fitment for specific jobs.

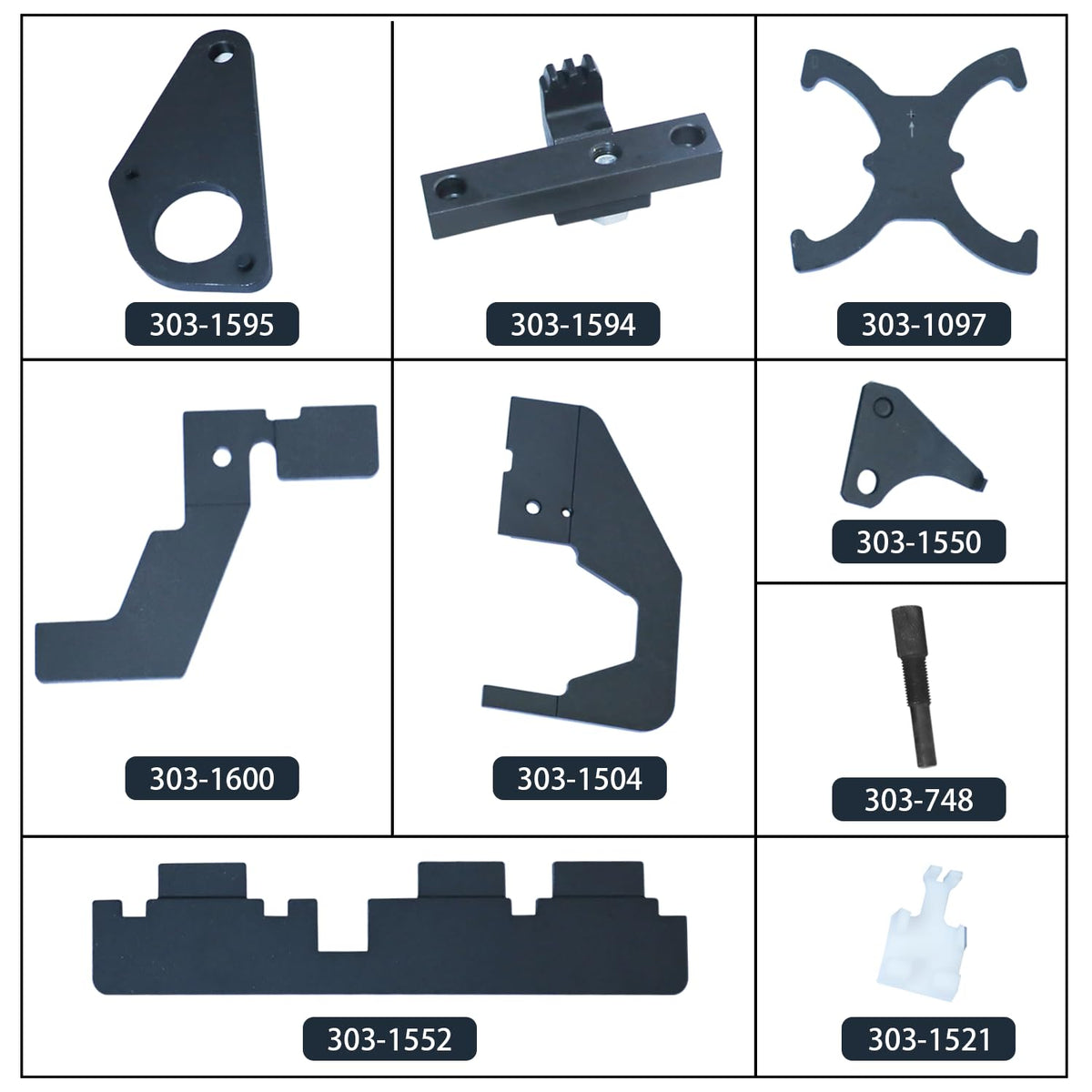

• Included: 303-1097, 303-1504, 303-1552 cam tools; 303-748 crank lock; 303-507 TDC pin; 303-1595 crank position tool

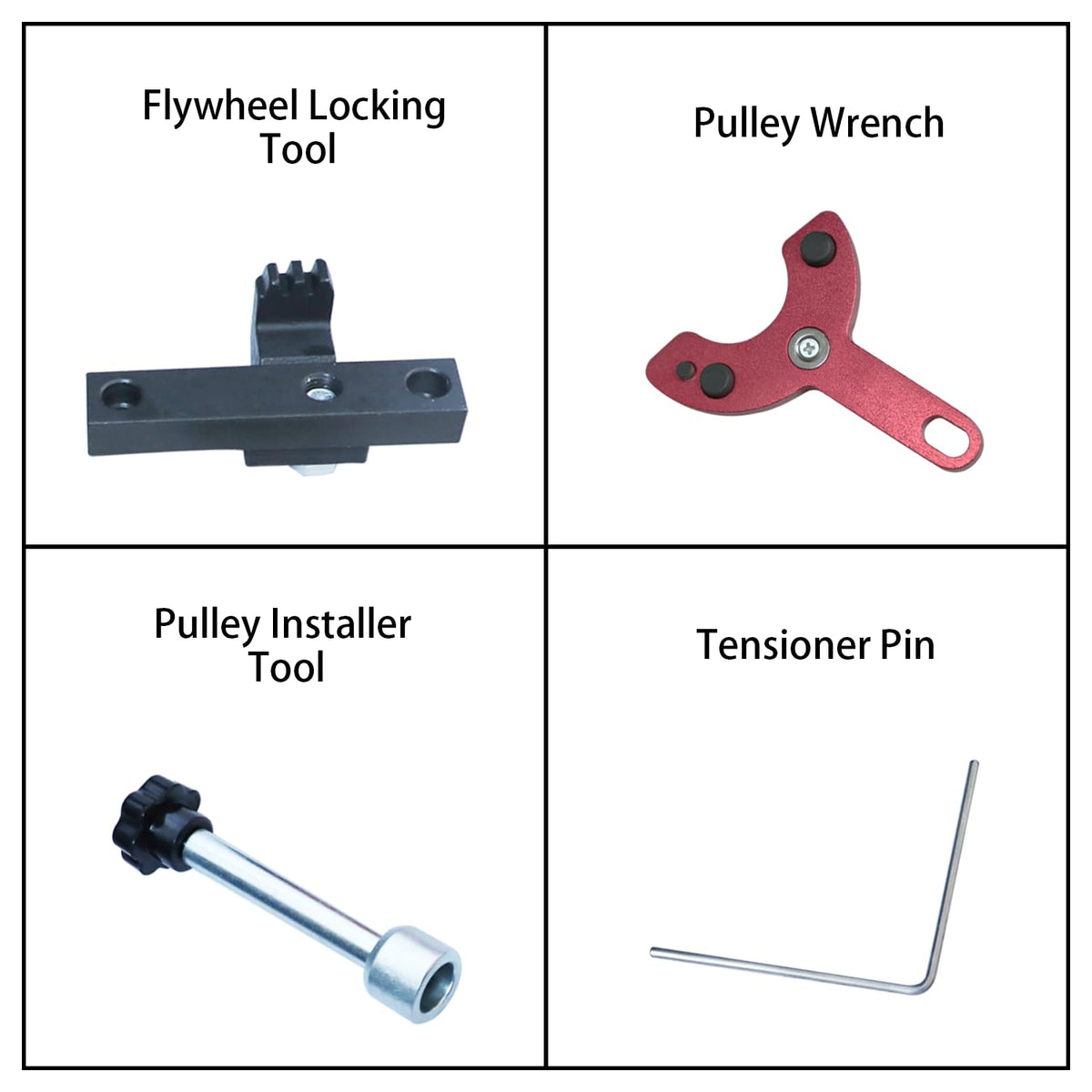

• Also: 303-1600 cam tool, 303-1270 timing pin, 303-1550 crank shock absorber, 303-1521 sensor alignment, 303-1594 flywheel lock

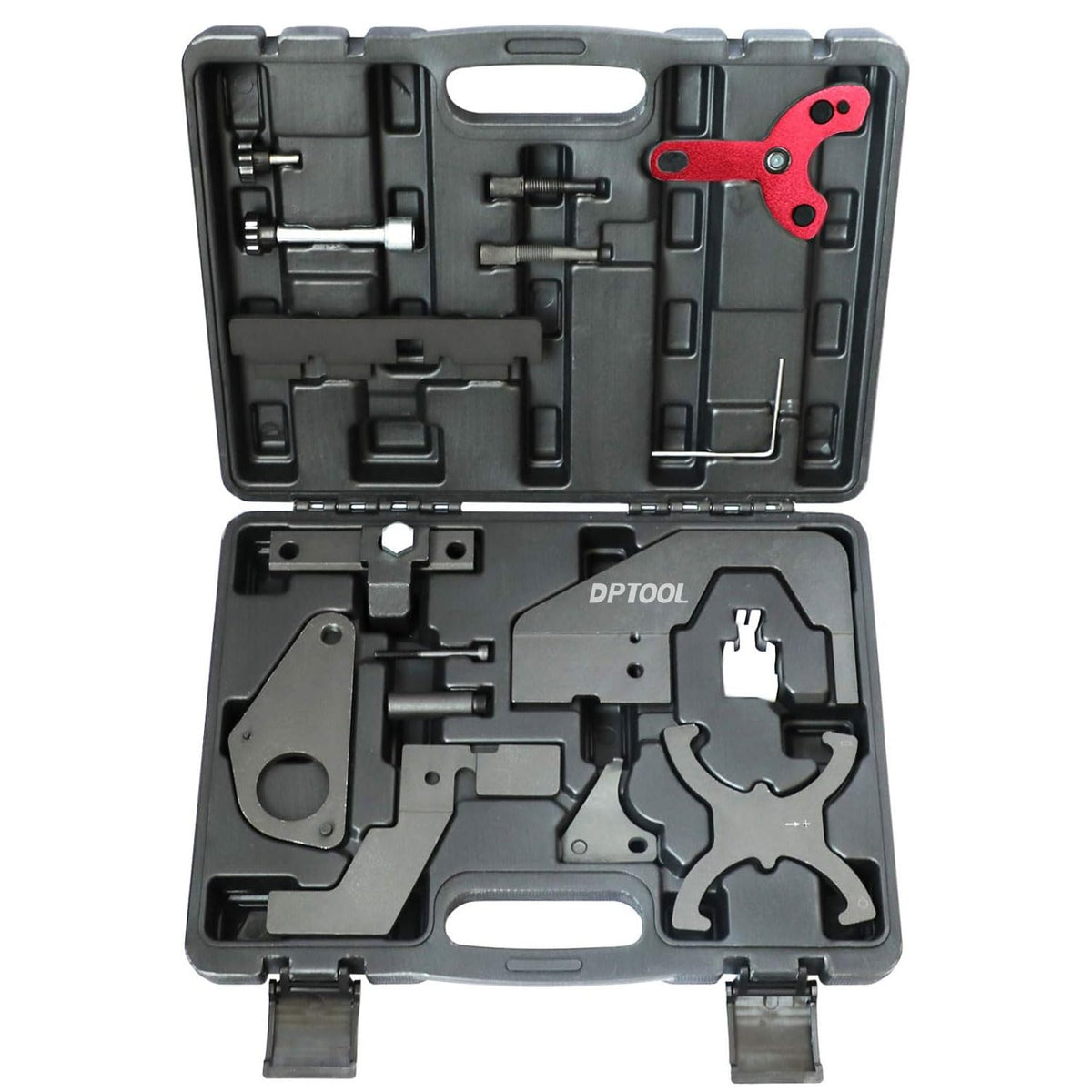

• Supplied in a labeled, foam-cut carry case with an instruction manual

How durable and reliable are the tools?

Tools are manufactured from high-hardness steel and finished with an antioxidant coating to resist corrosion during workshop use. The build is intended for repeated professional or enthusiast use, and DPTOOL backs the set with a 12-month warranty for manufacturing defects.

• High-hardness steel construction for longevity
• Antioxidant exterior coating to reduce rust and wear
• 12-month warranty covering manufacturing faults

Who is this for: The DPTOOL Engine Timing Tool Kit is aimed at professional mechanics, independent repair shops and experienced DIYers who work on Ford Ecoboost, Volvo T-series or Jaguar/Land Rover 2.0L engines. If you perform timing service, belt/chain replacement, head removal or sensor alignment on these engines, this comprehensive, OEM-referenced tool set saves time and reduces the risk of misaligned timing while delivering workshop-grade durability.
