DPTOOL Fuel Injector Noid Light Test Kit — 8 Noid Lights, IAC Tester & Extension Lead for Rapid ECU Pulse Diagnosis

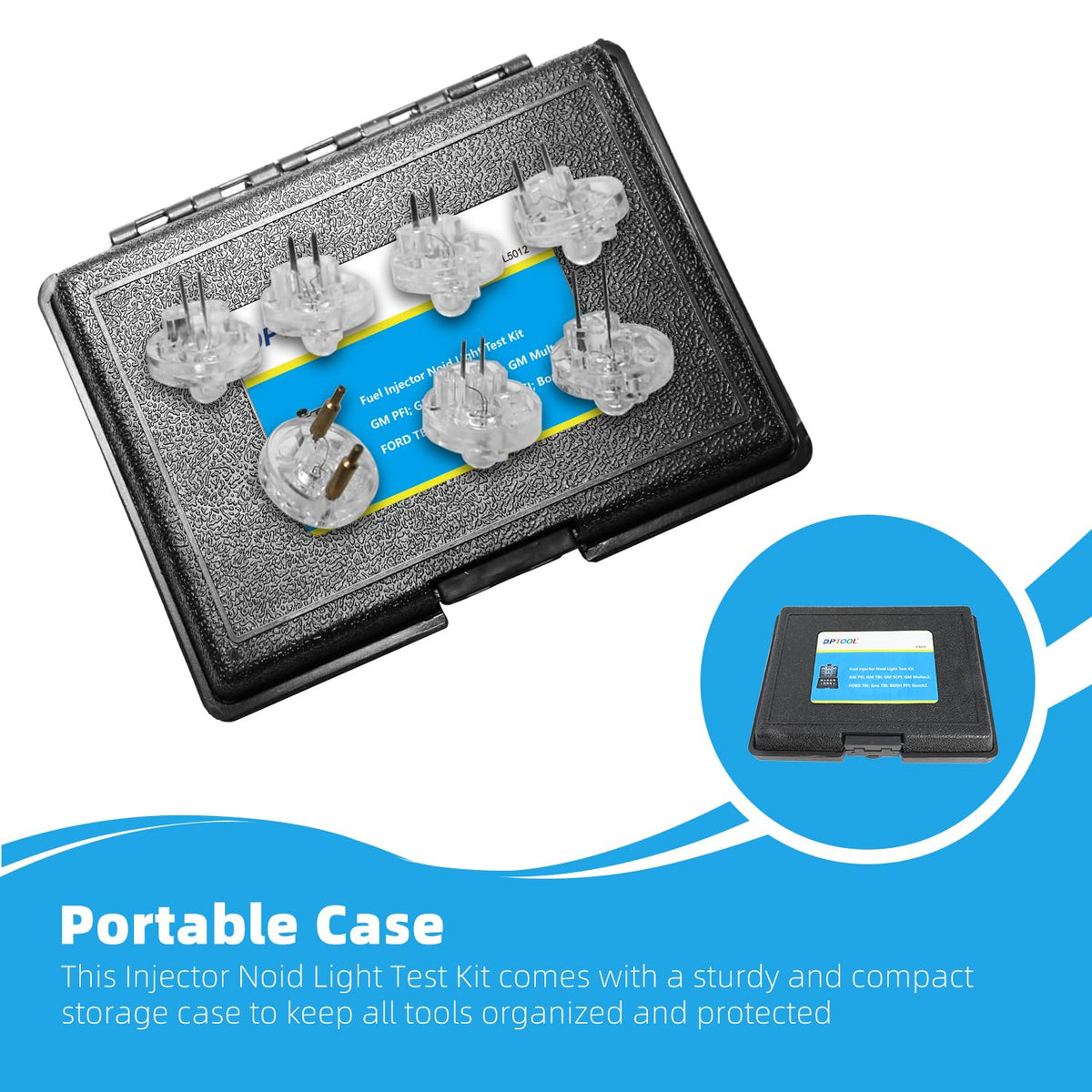

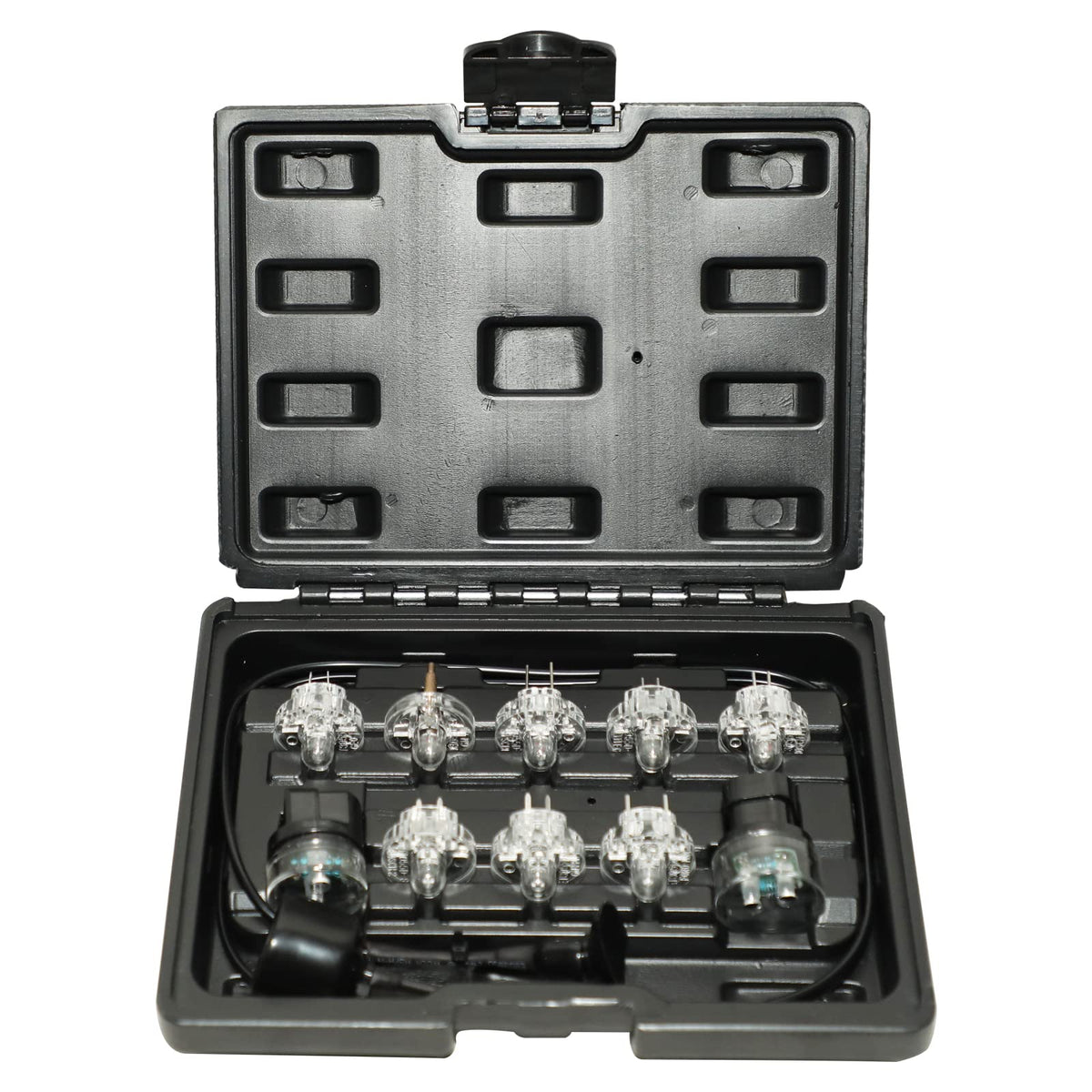

If an engine runs poorly, stumbles, or stalls, you need to separate electrical problems from mechanical ones quickly. This noid light kit provides a straightforward, visual way to verify injector pulse and idle air control signals without complex equipment. The set includes multiple noid lights matched to common connector styles, an IAC tester, an extension lead and a compact case so you can test a wide range of vehicles on the workbench or roadside.

How will this kit help me find an injector electrical fault?

The noid lights plug into an injector harness and flash when the ECU sends a pulse to open the injector. A flashing light confirms the wiring and control signal are present; a steady or dark light points to a wiring, connector, or ECU output issue. Using the kit eliminates guesswork and reduces diagnostic time compared with swapping parts.

• Instant visual confirmation of injector pulses while cranking or idling
• Helps isolate wiring harness, connector, or ECU output problems
• No need to remove injectors to test electrical feed

What connectors and circuits are covered by the DPTOOL set?

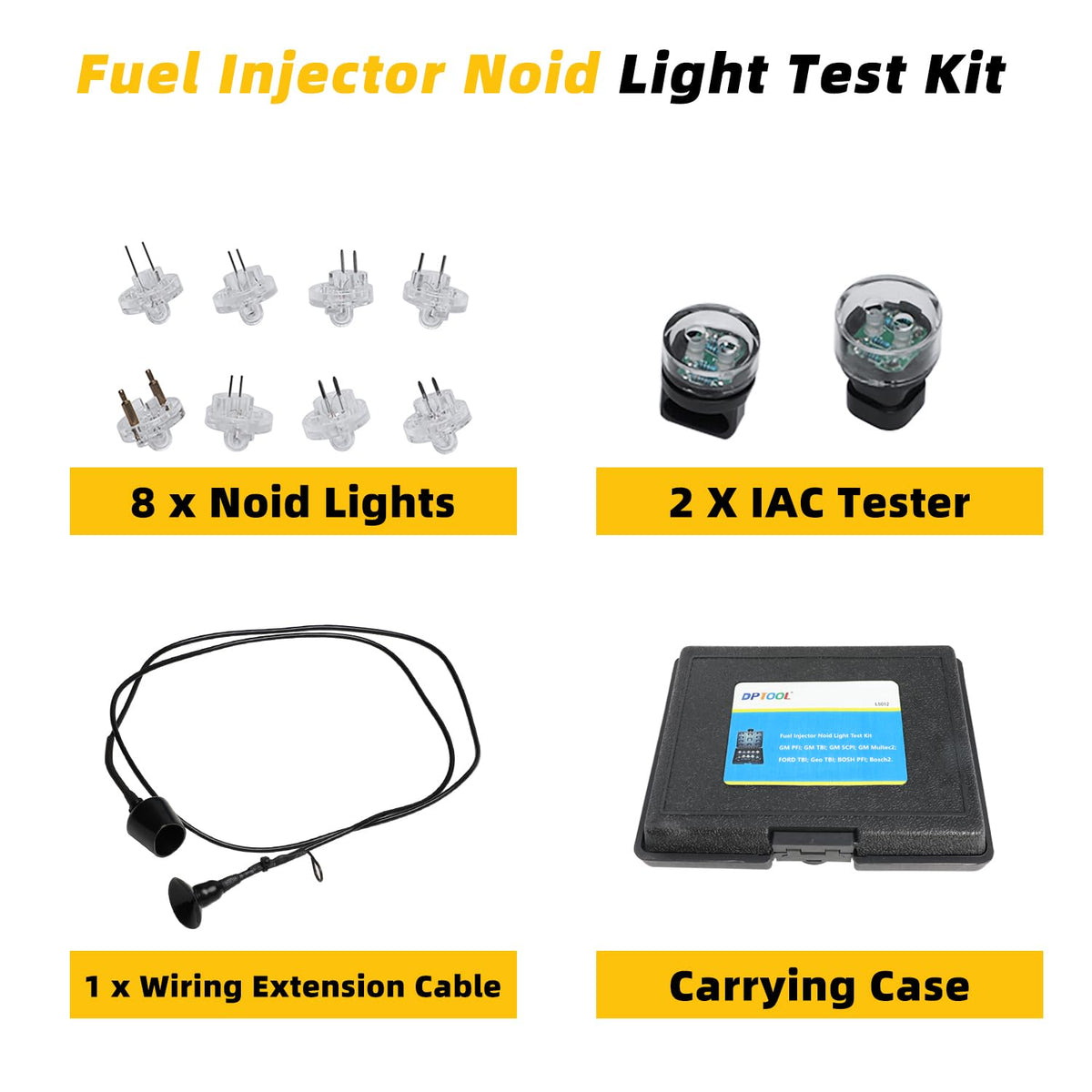

The kit supplies eight noid lights designed to fit popular connector types—including multiple GM and Ford styles, Bosch PFI, and more—so you won’t need ad hoc adapters for most domestic and import cars. It also includes an IAC tester to check idle air control circuits and a flexible extension lead to reach cramped engine bays.

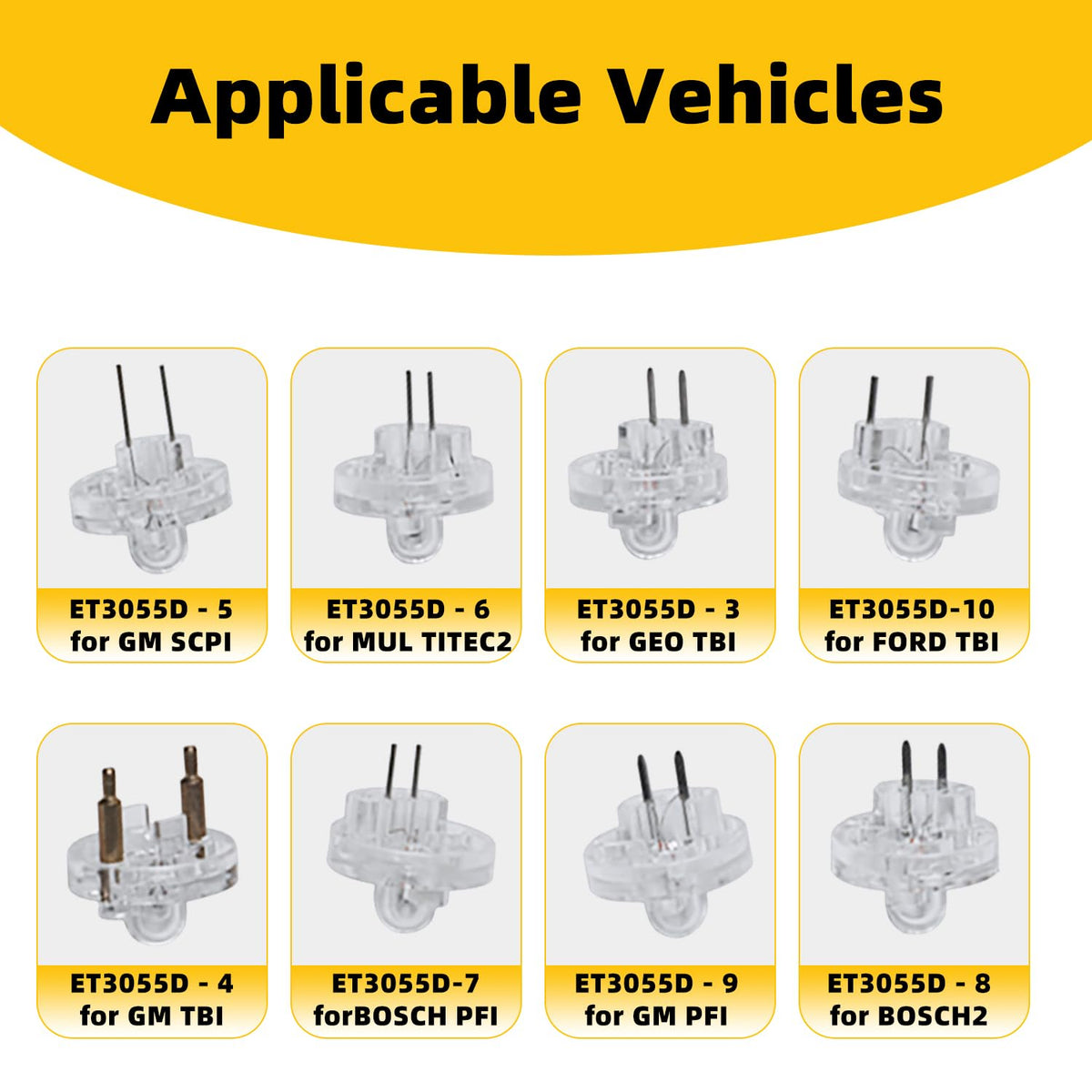

• Eight noid lights matching GM PFI/TBI/SCPI, Ford and Bosch patterns

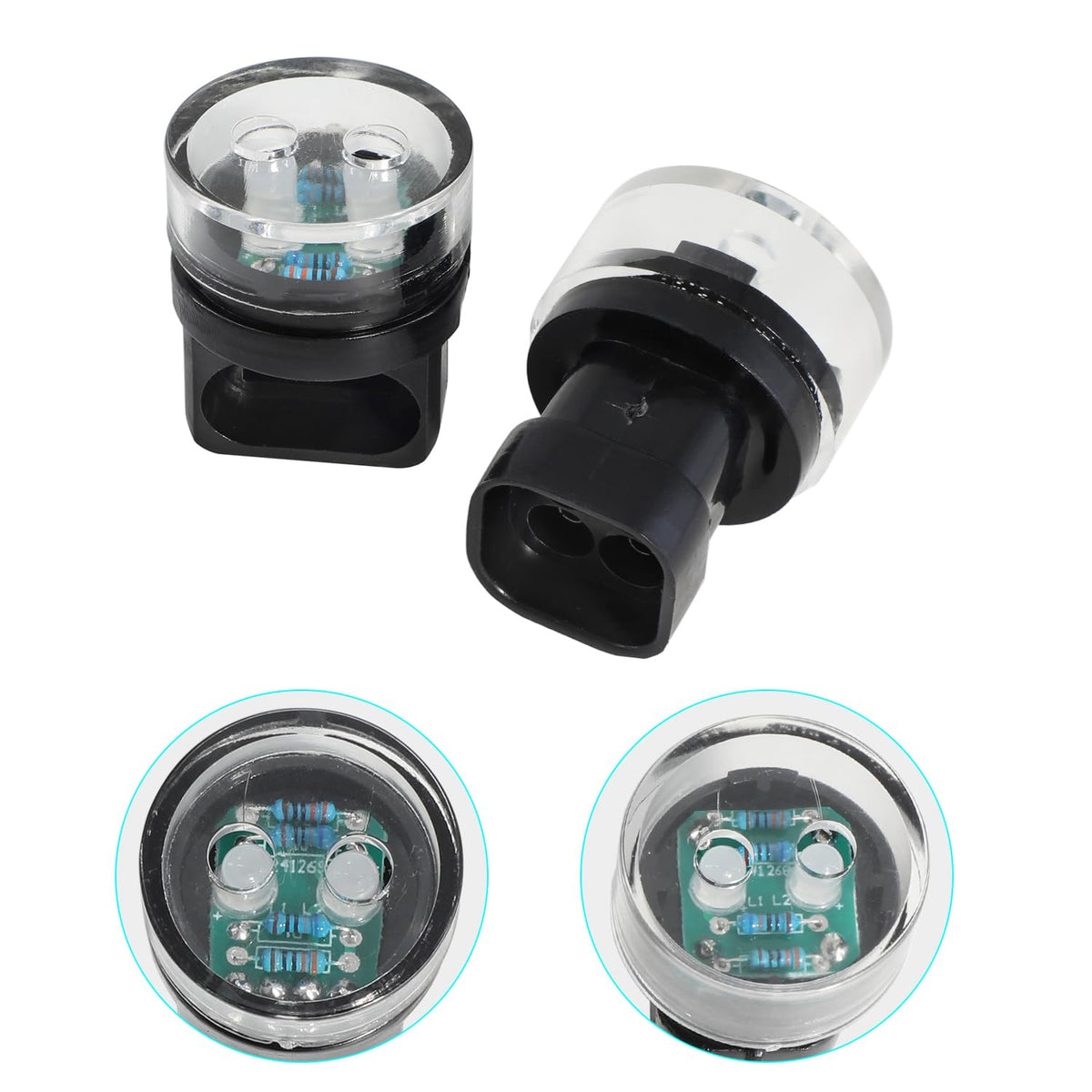

• Dedicated IAC tester for stepper or idle control diagnostics

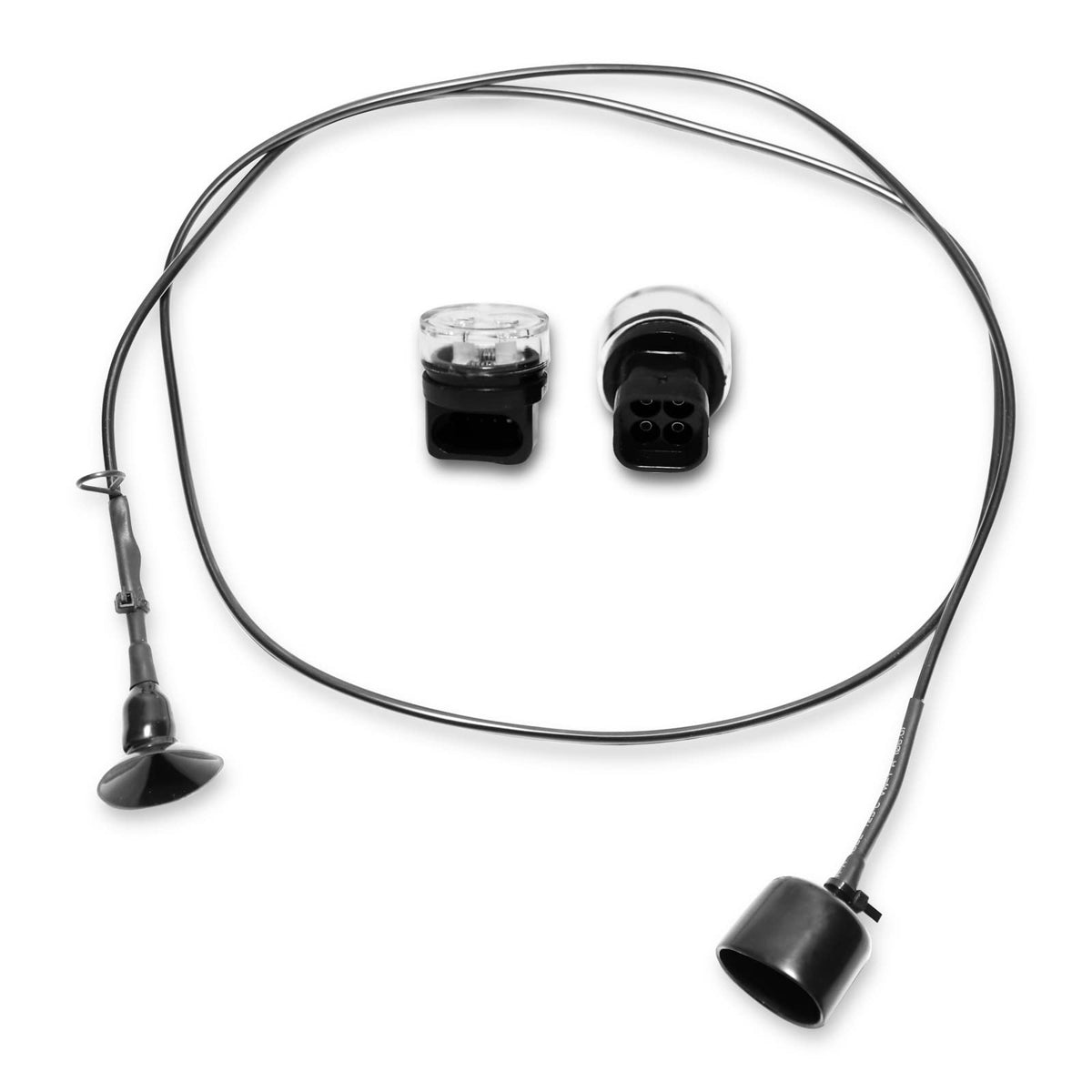

• Extension lead for hard-to-reach harnesses and safer observation

How do I use the noid lights and IAC tester safely?

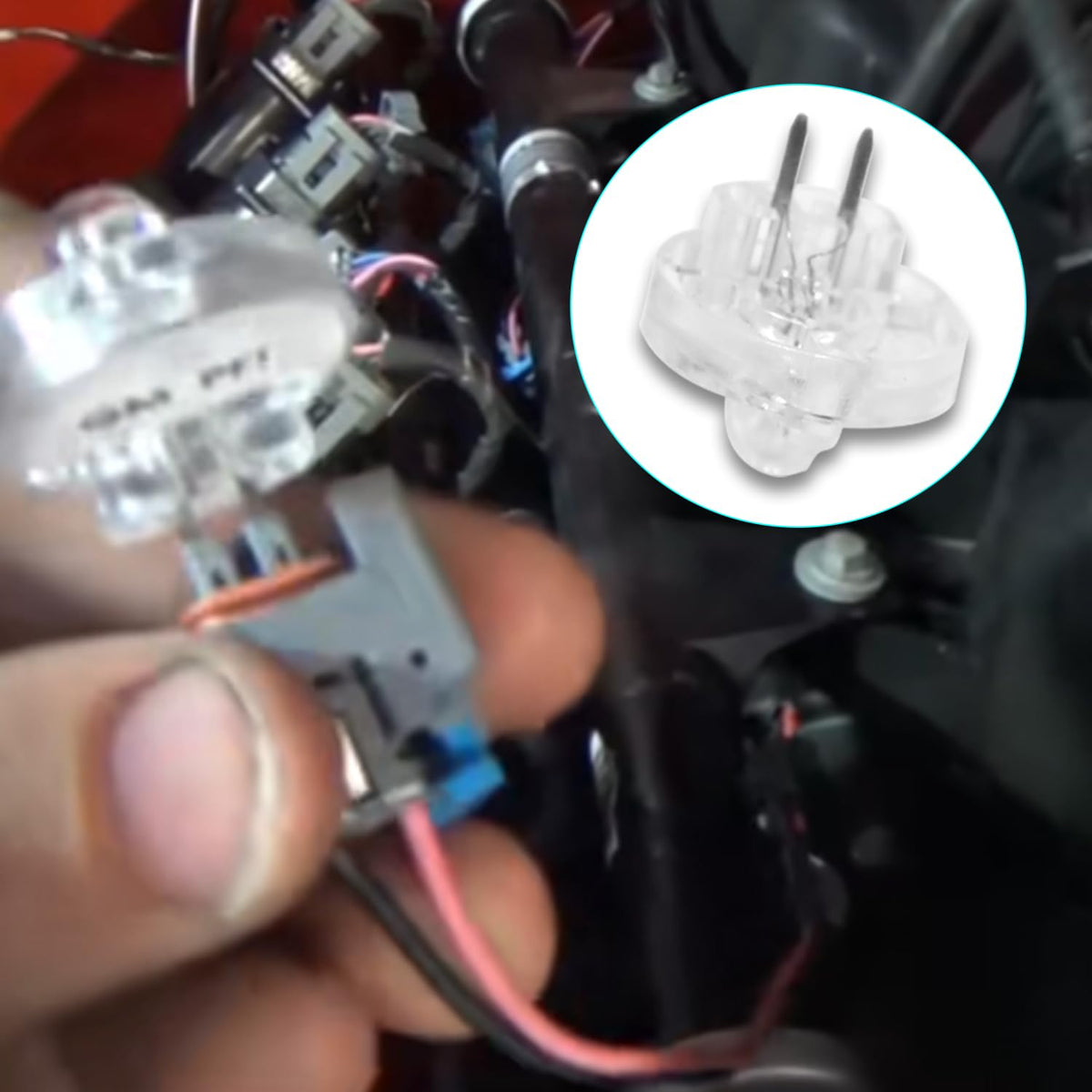

Install the appropriate noid light into the injector connector where the harness plugs into the injector, then crank or run the engine briefly while watching the LED. For idle air control checks, connect the IAC tester to the IAC plug and cycle the key or engine as directed to observe movement or signal. Always follow vehicle safety practices: engine cool, parking brake on, and keep loose clothing and tools away from moving parts.

• Plug into harness—do not inject into fuel lines—and observe LED while cranking
• Use extension to keep hands clear of belts and fans during tests
• Work on a stable surface and disconnect battery when servicing after diagnosis

What results should I expect and what do they mean?

A rapidly flashing noid light indicates a normal injector pulse and proper ECU output. A continuously lit or non-flashing light suggests the pulse is absent or abnormal, pointing to wiring, connector corrosion, fuse, relay, or control module issues. The IAC tester helps determine whether the idle control device itself responds to commands or if the problem is upstream in the control circuit.

• Flashing light = injector receiving pulse from ECU
• No flash or steady light = check wiring, grounds, fuses, or ECU output
• IAC tester movement = functioning idle control; no movement suggests circuit fault

Who is this for: The DPTOOL Fuel Injector Noid Light Test Kit is built for professional mechanics, automotive technicians, and DIY enthusiasts who want a fast, reliable method for checking injector and idle control circuits across many vehicle makes. It’s ideal for shops diagnosing intermittent stumbles, no-start conditions, or poor idle behavior, and for anyone who prefers to confirm electrical function before replacing components.
