DPTOOL Vanos Twin Camshaft Timing Tool Kit for BMW M52/M54/M56 — Hardened Steel Alignment & Locking Set with Carry Case

DPTOOL Double Vanos Twin Camshaft Timing Tool Kit is a complete alignment and locking set engineered to accurately set camshaft and crankshaft timing on BMW M52, M52TU, M54 and M56 engines.

This professional-grade kit gathers every fixture and jig needed to hold timing components precisely while you perform VANOS service, chain replacement, or head work. Built from hardened steel with an anti-corrosion finish, the tools are machined to fit the specific geometry of BMW M52-series and M54/M56 engines so you can lock the camshafts, secure the crank at top dead center, and control chain tension reliably.

How does this kit keep engine timing accurate during repairs?

The kit provides dedicated locking and alignment tools that prevent shafts and sprockets from moving while components are removed or installed. Using purpose-made jigs and pins minimizes slippage and preserves factory timing relationships.

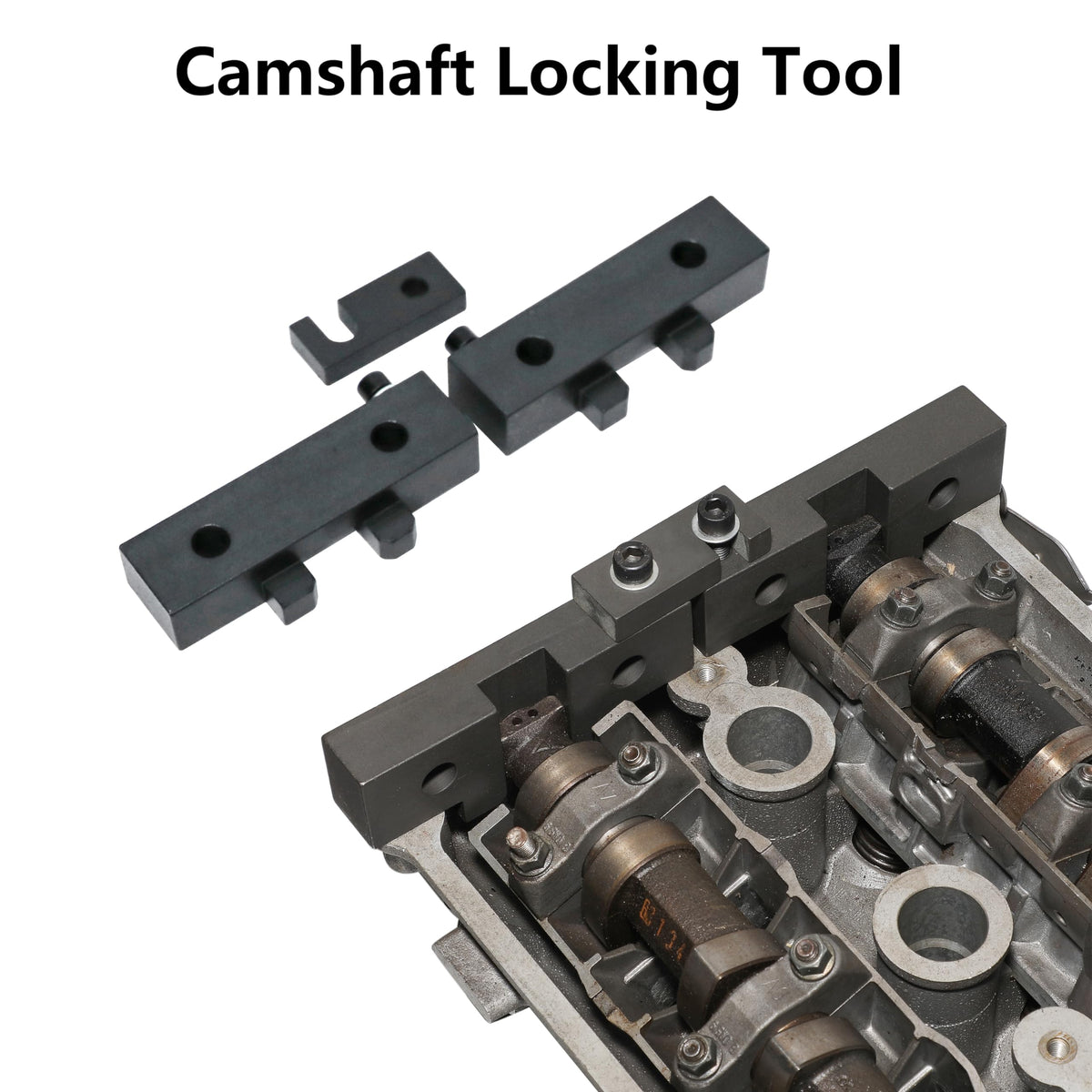

• Camshaft Locking Fixture holds camshafts in correct phase.
• Top Dead Center Pin secures crankshaft at TDC.

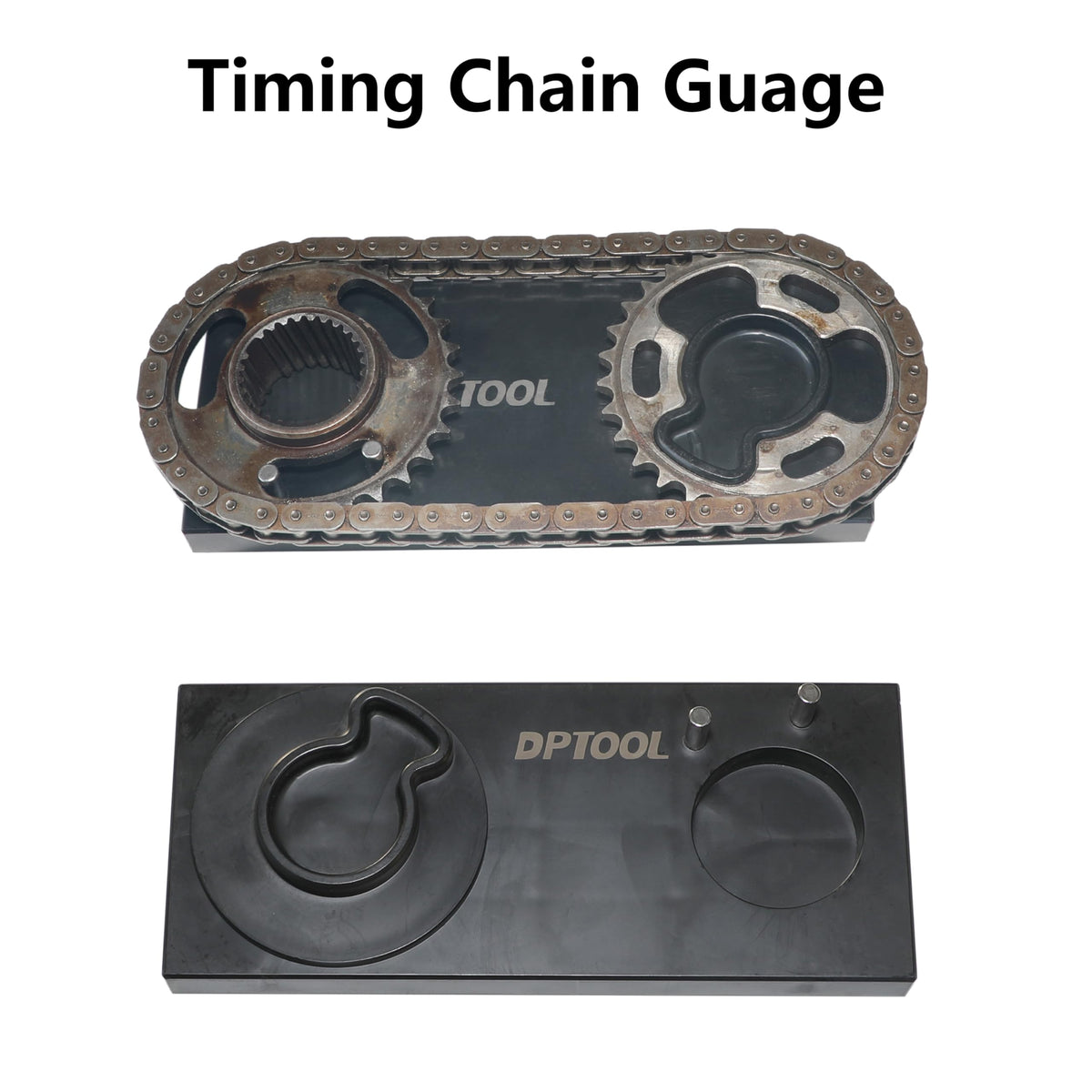

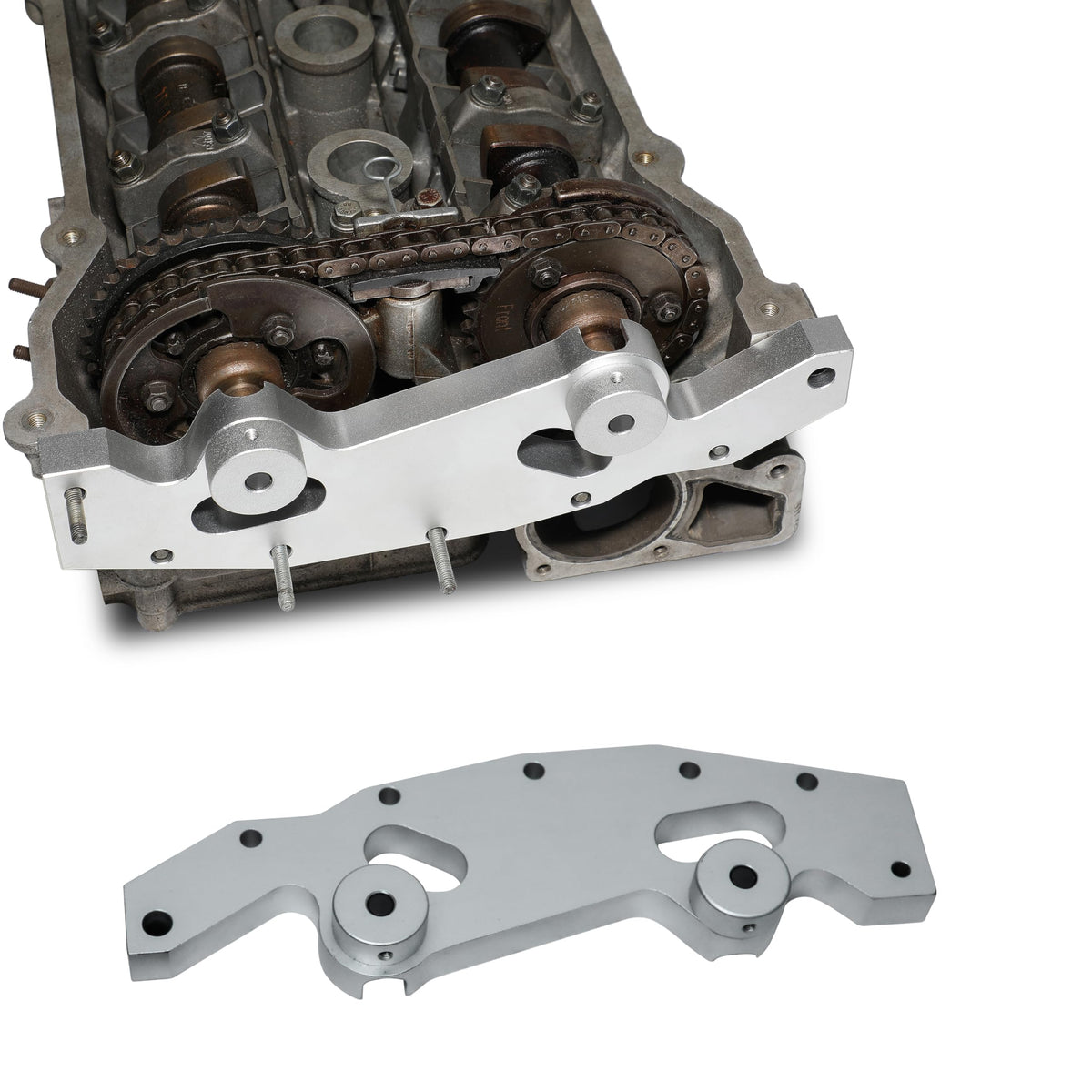

• Sprocket Assembly Jig aligns timing sprockets for reinstallation.

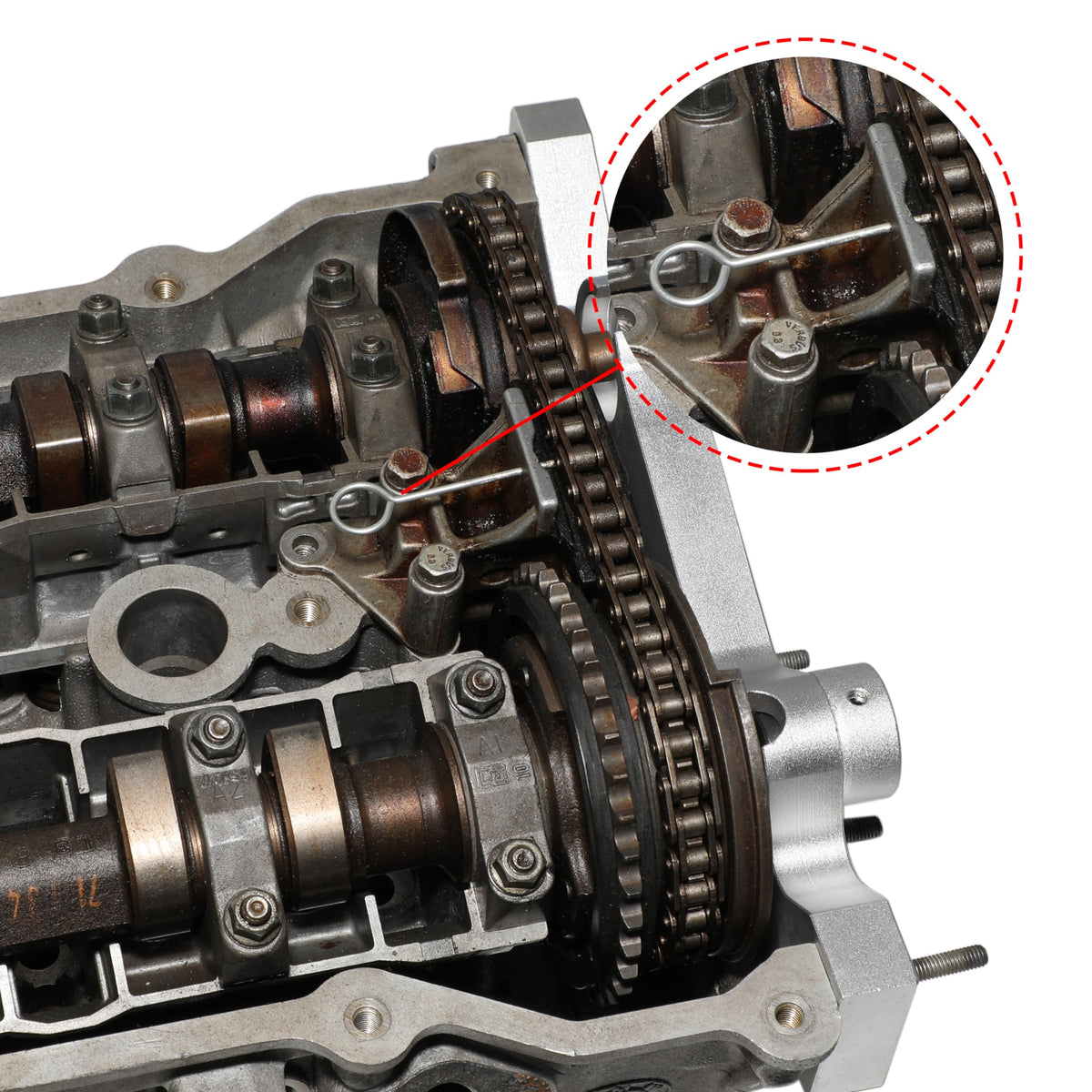

• Chain Tensioner Lock Pin and Rigid Chain Tensioner control chain slack.

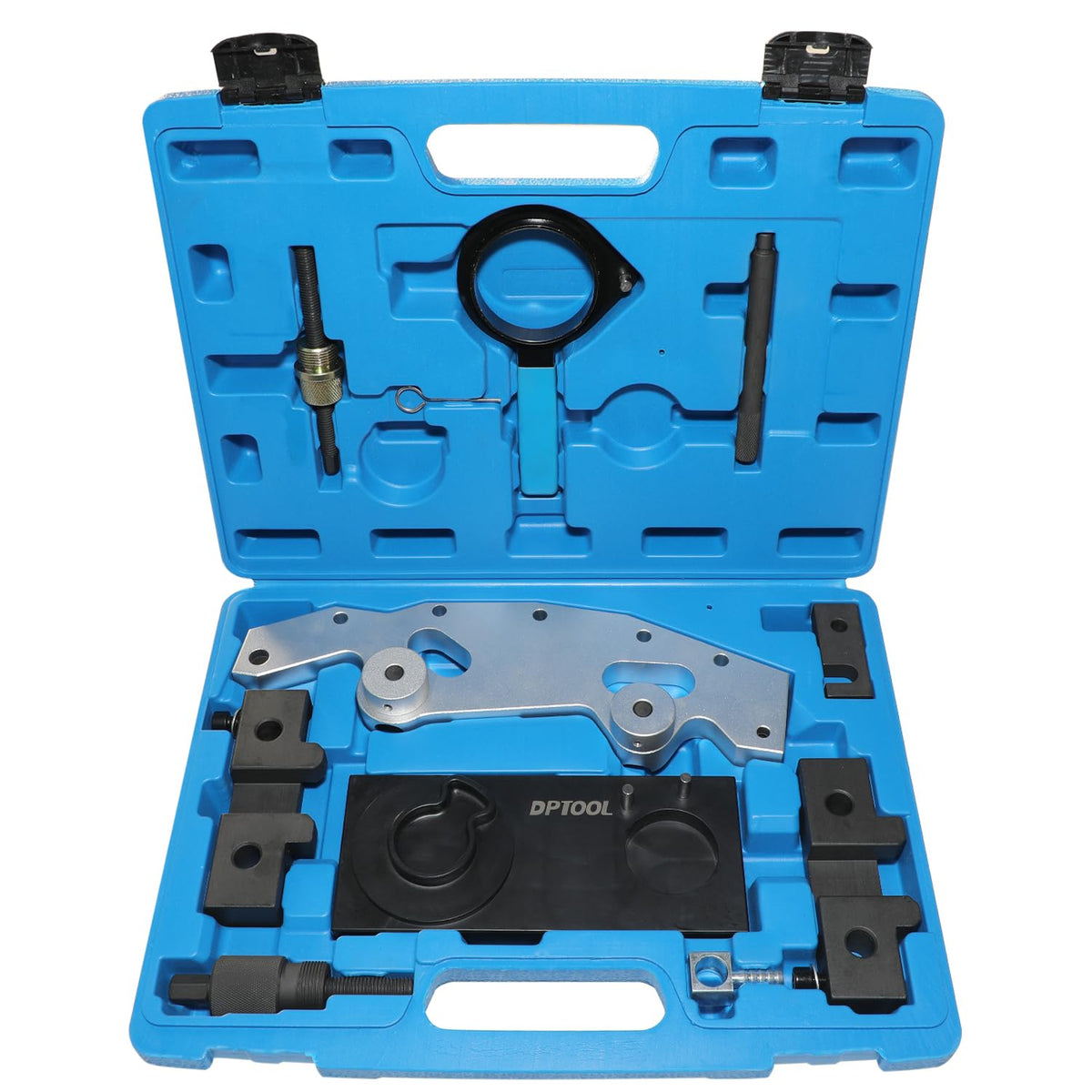

What parts come in the kit and what are they for?

The kit is a comprehensive set of tools grouped to address all timing-related steps on applicable BMW engines. Each piece is intended for a specific positioning or locking operation during service.

• Alignment Jig — positions components relative to the block for accurate timing.
• Sprocket Assembly Jig — supports correct sprocket seating and timing marks.
• Rigid Chain Tensioner and Lock Pin — hold chain tension steady during work.
• VANOS Compressed Air Connection and Turning Wrench — assist VANOS removal and installation.
• Camshaft Locking Fixture and Top Dead Center Pin — secure rotating parts in place.
• Carry Case — organized storage and transport for the whole set.

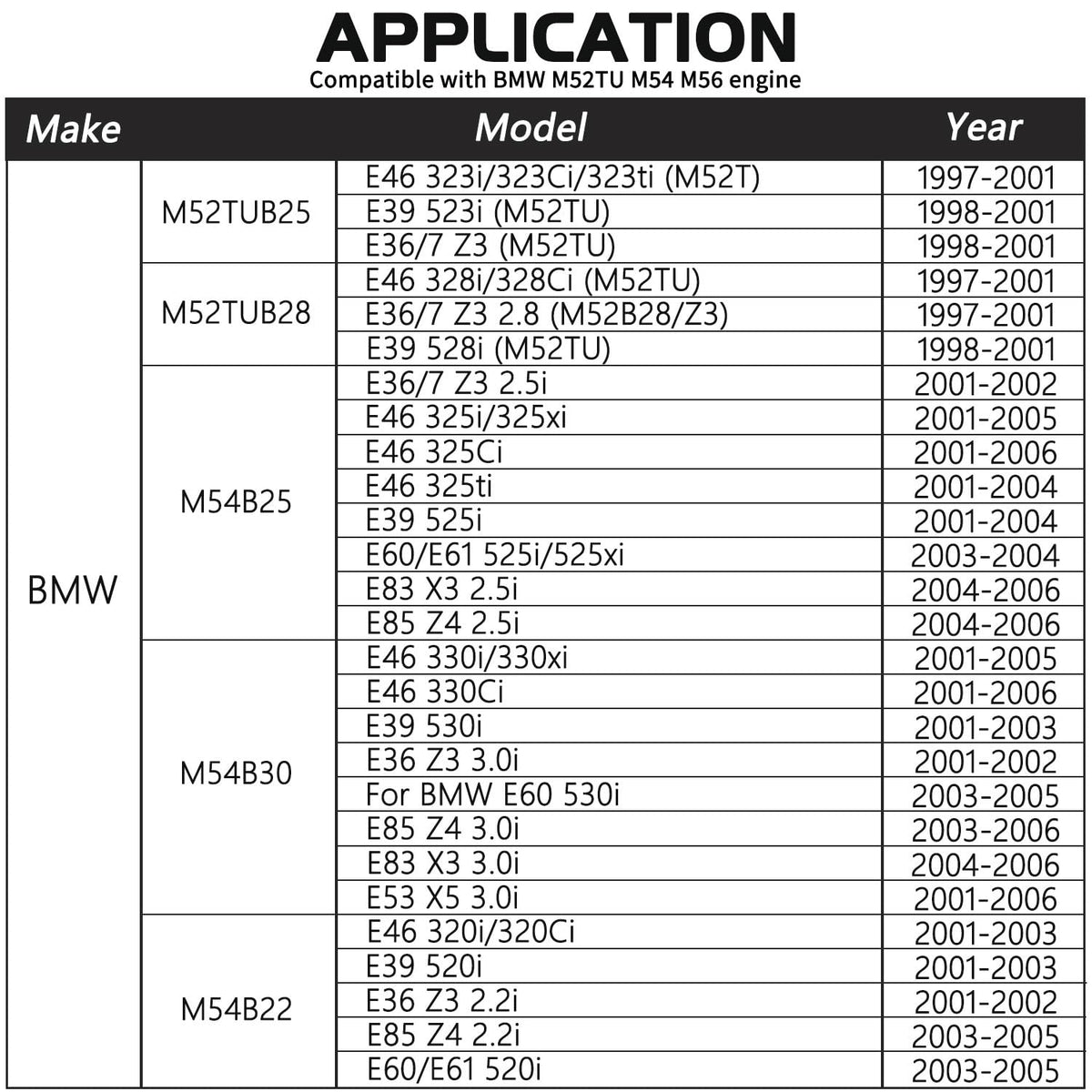

Will these tools fit my BMW M52TU, M54 or M56 engine precisely?

DPTOOL manufactures this kit specifically to match the dimensions and locking points used on M52TU, M54 and M56 engines. Tolerances are controlled to ensure mating surfaces and pins fit without excess play or forced modification.

• Designed for engine compatibility with M52TU/M54/M56 series.
• Hardened steel construction for low deformation under torque.
• Anti-oxidation coating reduces corrosion for repeat use.
• Supplied case keeps parts protected and correctly paired for each job.

Who is this for? Professional mechanics, independent BMW specialists and experienced DIYers who maintain or rebuild M52-series and M54/M56 BMW engines will benefit most. If you perform VANOS servicing, timing chain replacement, or cylinder head removal and want repeatable, factory-aligned results, this kit supplies the fixtures to make those procedures safer and more accurate. The durable construction and organized case also suit mobile technicians and shops that need a reliable set for multiple jobs.

Technical note: this kit is a mechanical alignment toolset. Follow the vehicle manufacturer's service procedures and torque specifications when using these tools. DPTOOL provides a 12-month warranty covering manufacturing defects; inspect components for wear before each use and replace damaged pieces to maintain safe operation.
