Drako-Myxx A2L Ball Valve Adapter 1/4" LH to 1/4" RH 45° Brass — 2026 Upgraded, Low-GWP R-32/R-454B Compatible

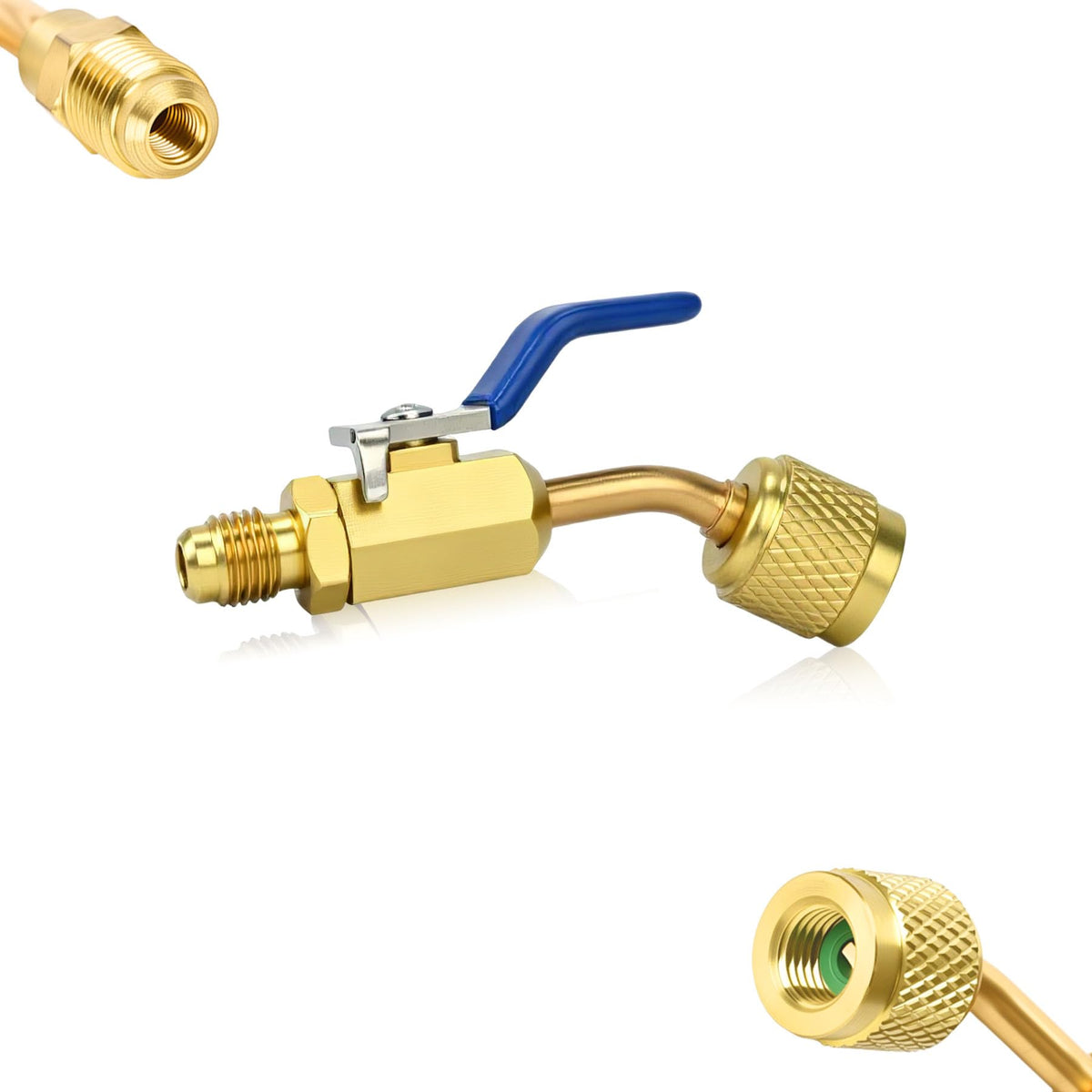

The Drako-Myxx A2L ball valve adapter is a compact 45° 1/4" LH female to 1/4" RH male brass connector that lets technicians safely join R-32/R-454B (A2L) refrigerant containers to standard RH service hoses.

This upgraded 2026 adapter solves thread incompatibility between new low‑GWP A2L refrigerants and legacy service equipment by combining a left‑hand internal thread for A2L tanks with a right‑hand external thread for common HVAC hoses. Built from precision‑forged brass with an angled ball valve, it minimizes hose stress, reduces leak risk during hookups, and keeps the connection compact for tight service spaces.

How does the 45° ball valve improve field installations?

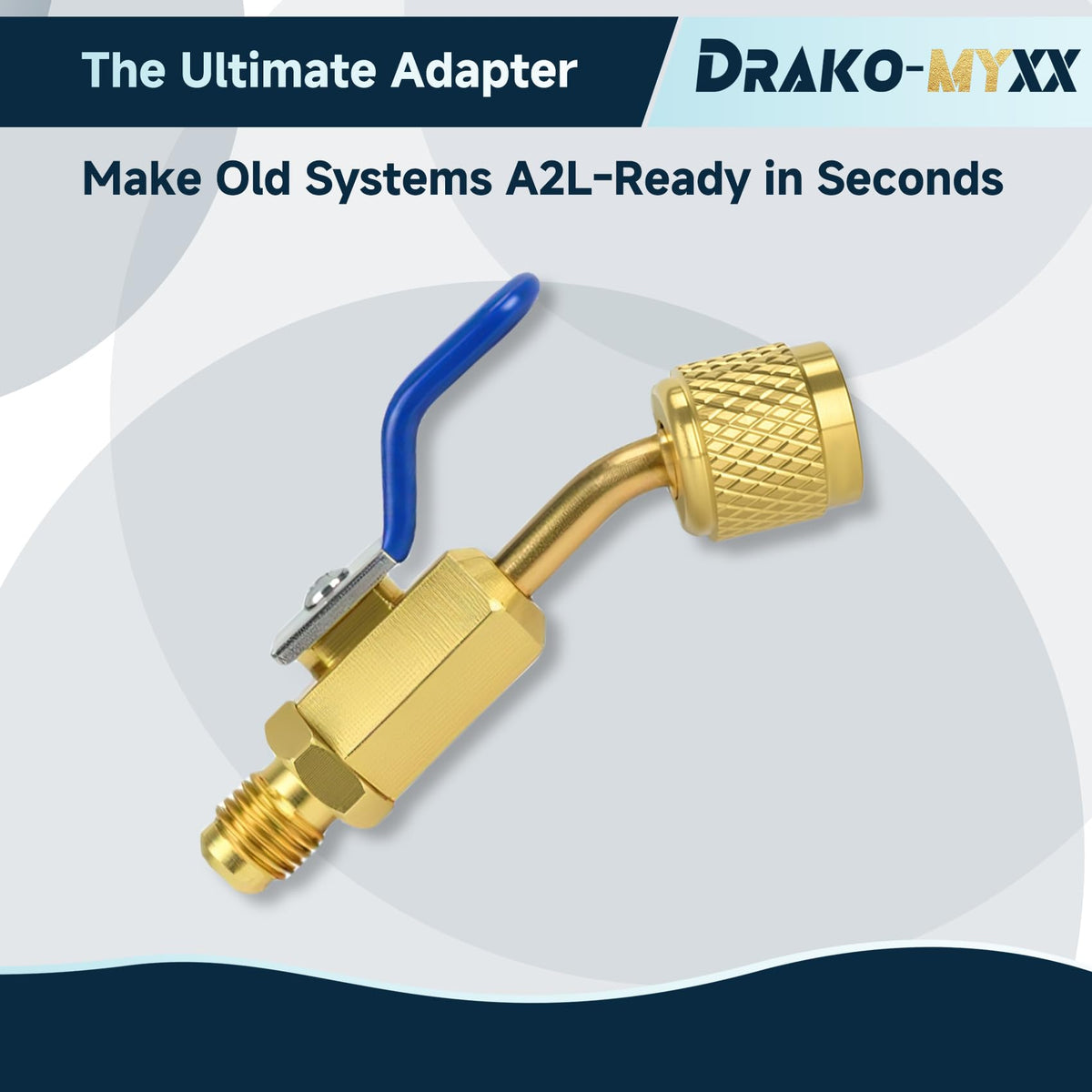

The 45° ball valve reorients the hose path to reduce sharp bends and tension on fittings, which lowers the chance of kinks and helps maintain consistent refrigerant flow. The valve also permits rapid shutoff during transitions, making service steps cleaner and quicker.

• Angled outlet reduces hose bending and wear in cramped locations
• Quarter‑turn ball valve allows fast isolation during connections
• Improved sealing design minimizes refrigerant escape when disconnecting

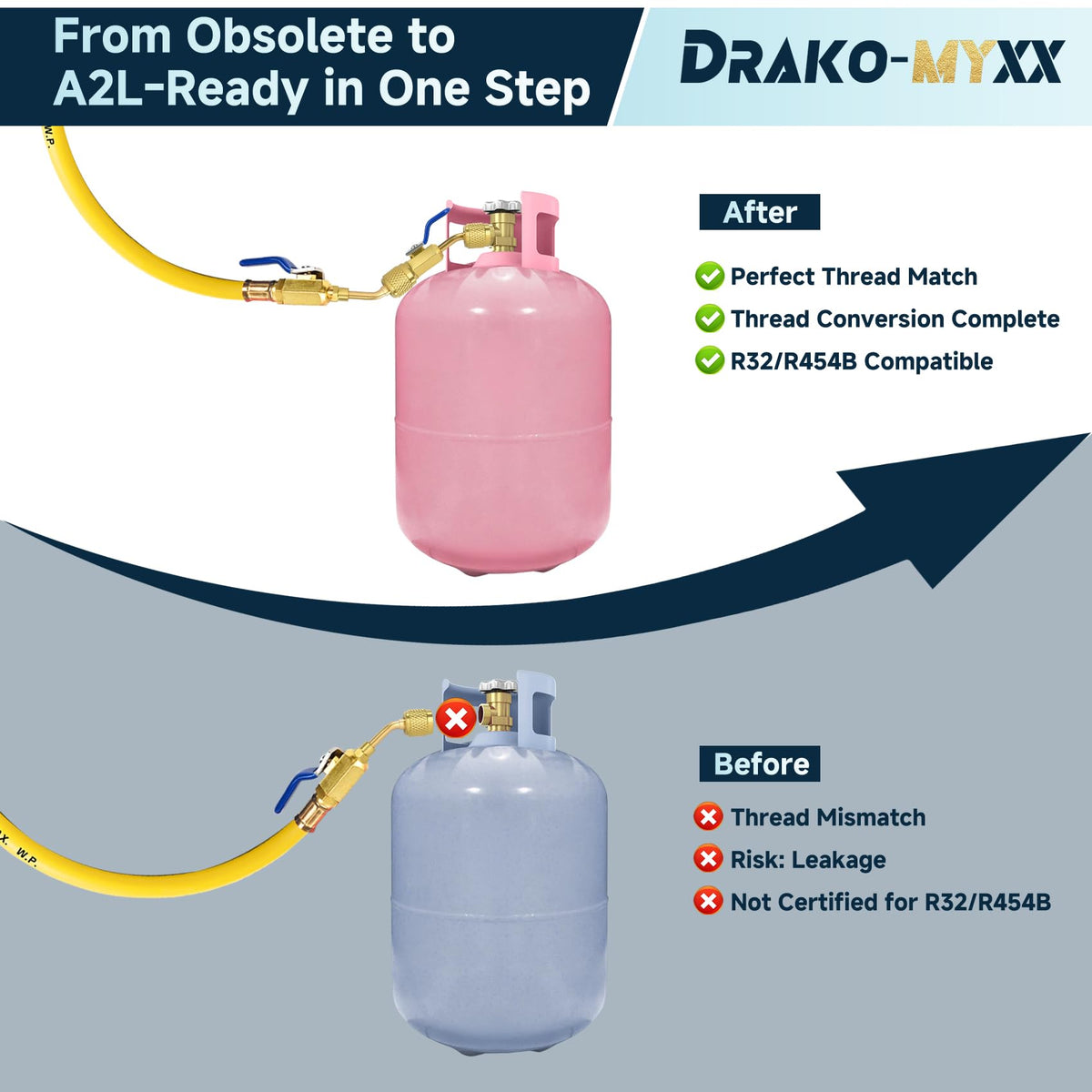

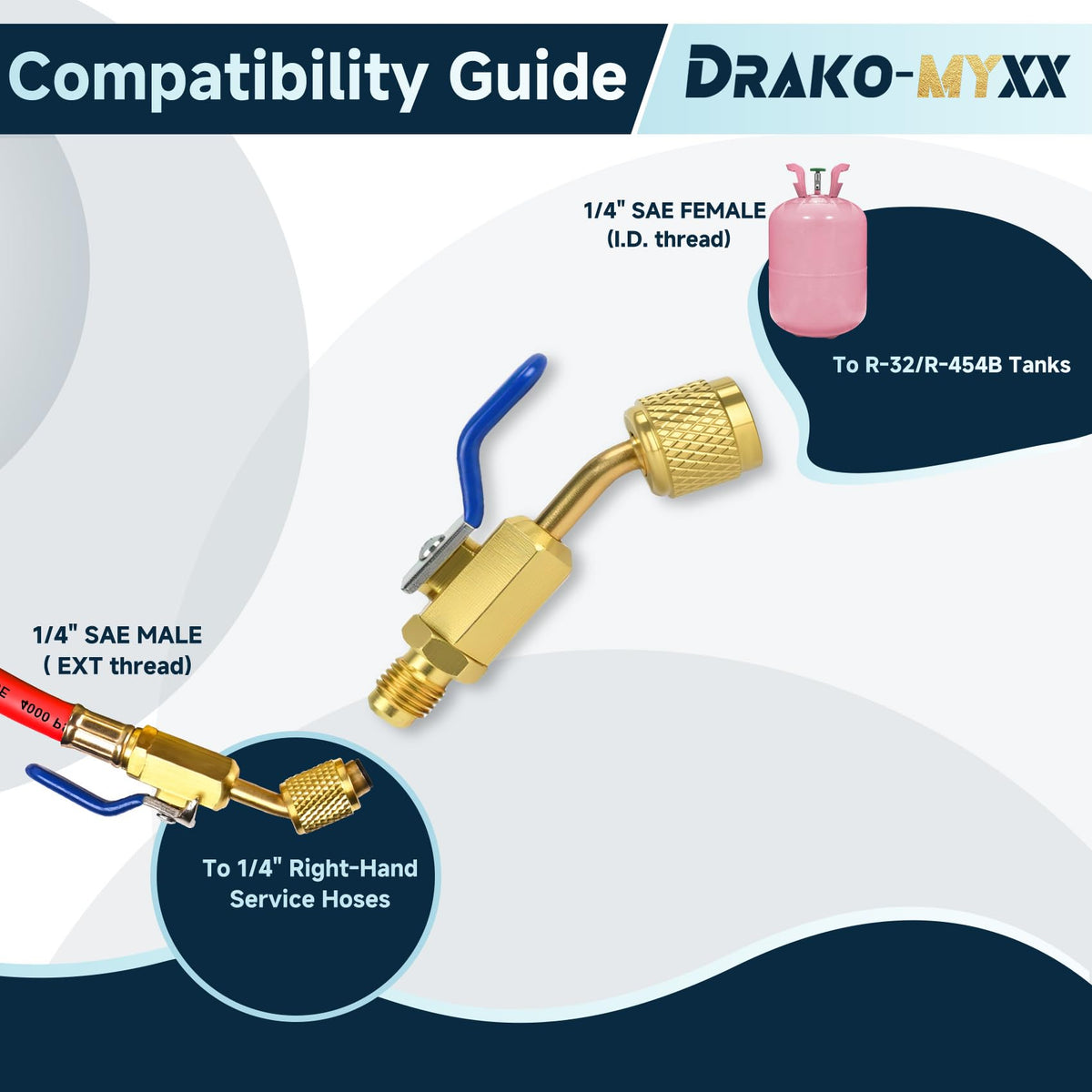

Will this adapter work with my existing 1/4" RH service hoses?

Yes — the adapter converts A2L 1/4" left‑hand tank threads to the standard 1/4" right‑hand flare used on most service hoses. It’s made to fit common HVAC and refrigeration maintenance setups without replacing service lines.

• 1/4" LH internal side mates to A2L R‑32/R‑454B tank valves
• 1/4" RH external side accepts standard 1/4" RH hoses and fittings
• Designed for compatibility with major equipment brands used in air conditioning and heat pump servicing

What are the size and build features I should expect?

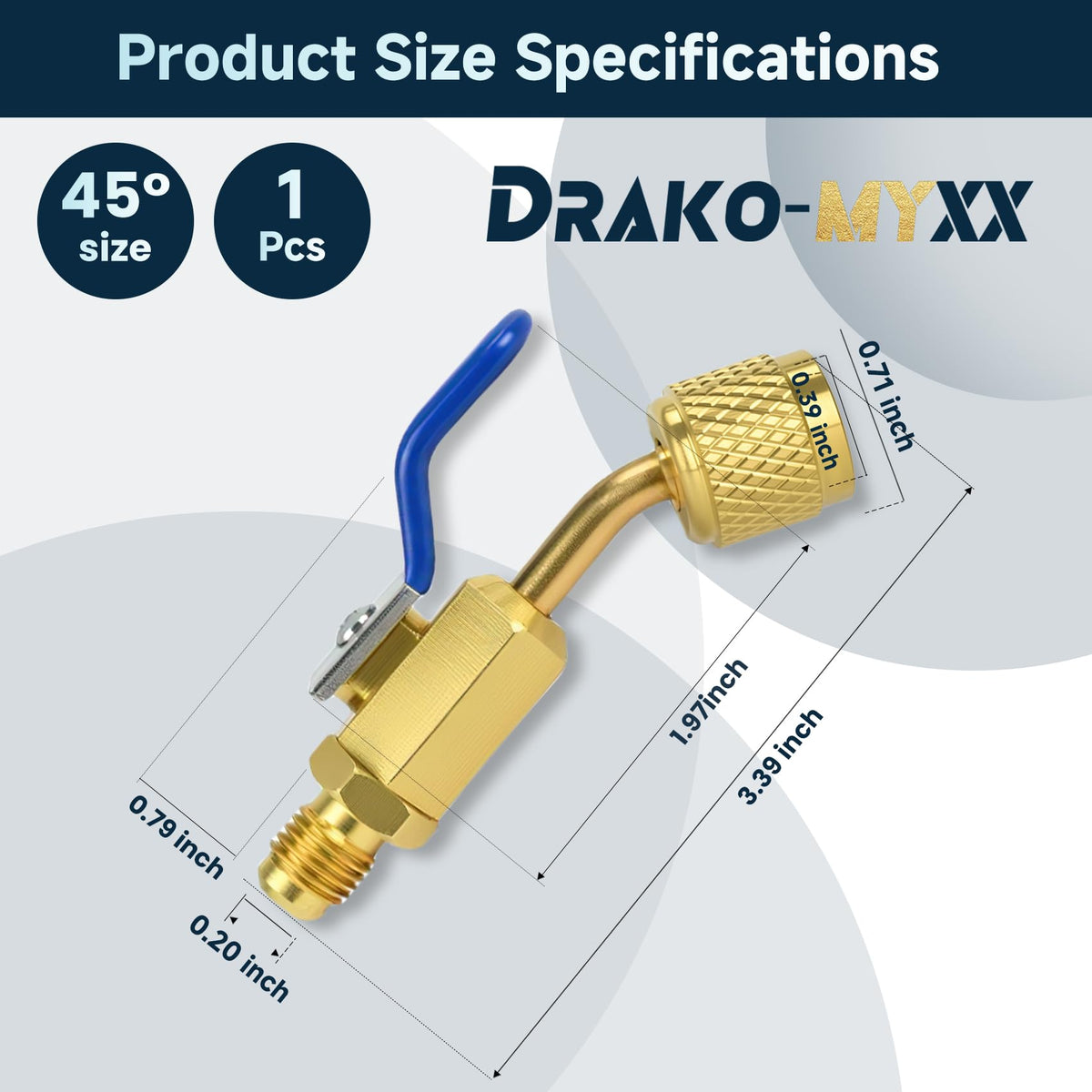

The adapter’s compact footprint (approximately 3.39" × 1.97" × 0.79") keeps the assembly low profile for tight access points while maintaining robust sealing surfaces. Crafted from brass, it balances corrosion resistance, pressure tolerance, and thermal conductivity for reliable service life.

• Overall dimensions optimized for space‑restricted jobsites

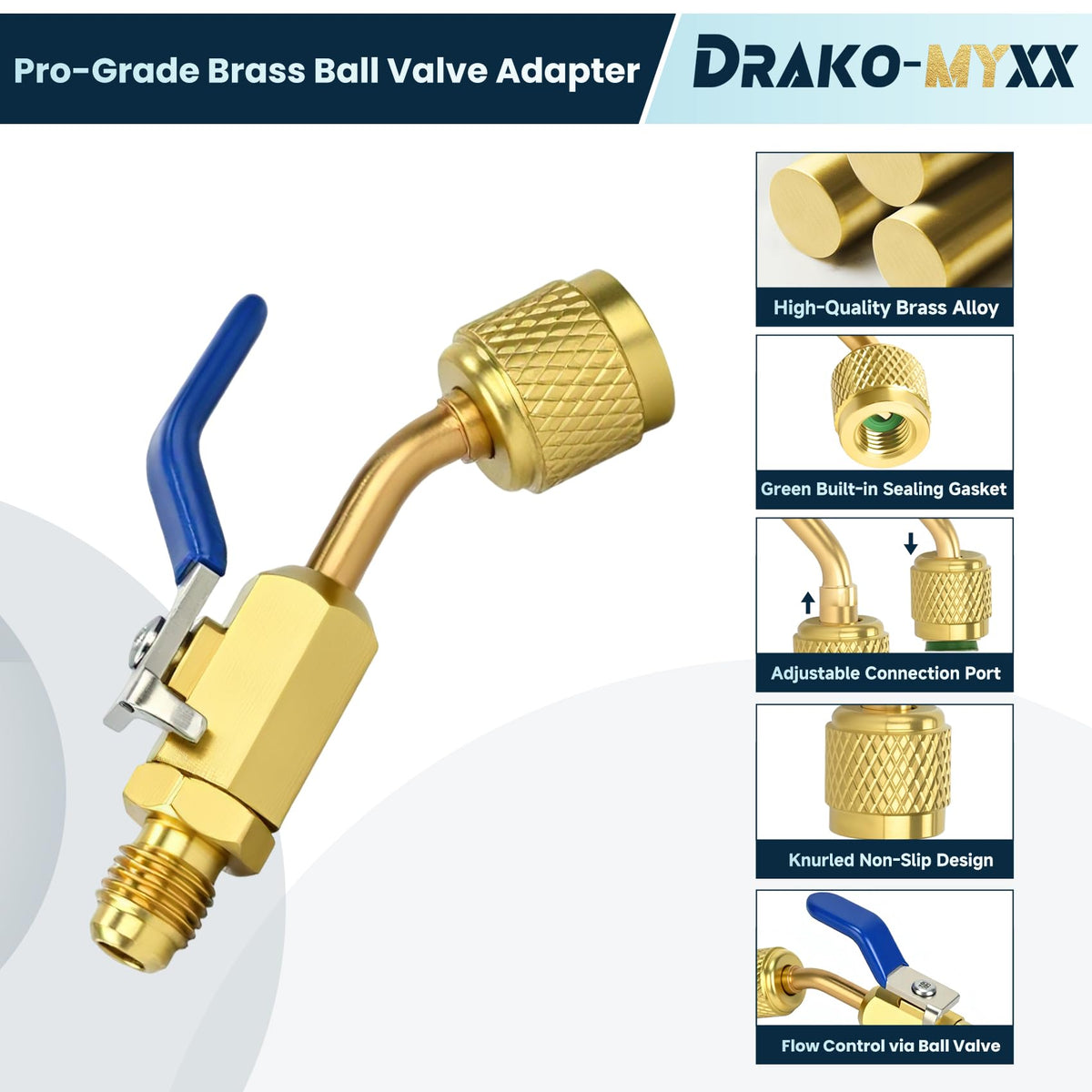

• Precision‑machined threads and improved sealing for leak reduction
• Brass construction for long‑term durability and pressure resistance

How does the 2026 upgrade benefit technicians?

The 2026 revision adds a refined sealing structure and higher thread precision to reduce bleed and make hand or wrench installation smoother. Those refinements are intended to speed up connections and lower the need for re‑torquing after initial use.

• Enhanced seal geometry for better leak control during repeated connections
• Tighter thread tolerances for consistent, repeatable fittings
• Tool‑friendly profile for quick, secure installs in the field

Who is this for: HVAC and refrigeration technicians, service contractors, and facilities maintenance teams switching to A2L refrigerants who need a reliable, space‑saving adapter to bridge left‑hand A2L tank threads to right‑hand service hoses. It’s intended for professional use on R‑32 and R‑454B systems where thread compatibility, leak minimization, and compact routing are priorities.
