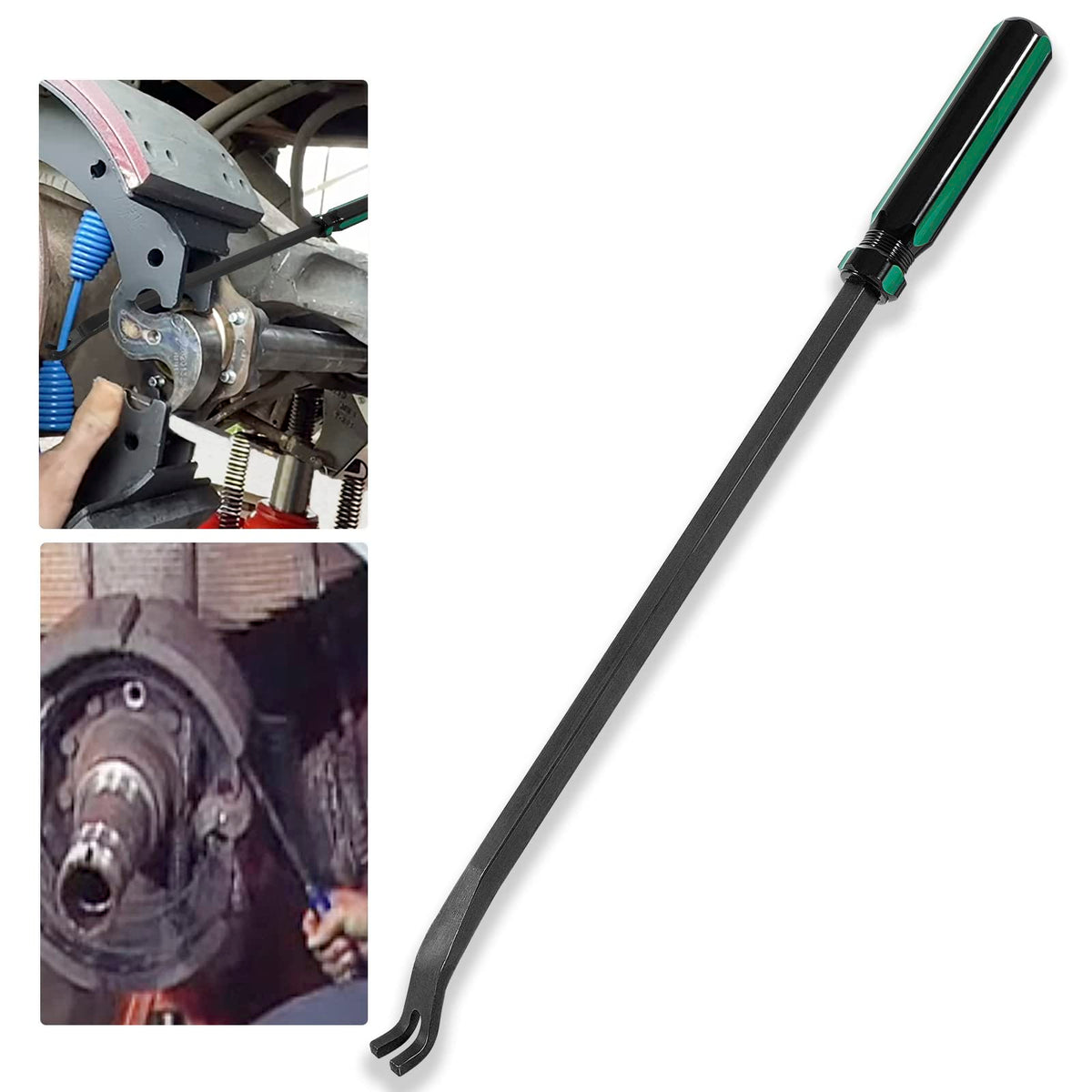

E-cowlboy BT-105SPT truck brake return spring tool — black powder‑coated steel, long-handle safety cup design

The E-cowlboy BT-105SPT is a heavy-duty brake return spring tool engineered to safely and quickly install and remove return springs on commercial trucks and trailers.

Designed for professional technicians and fleet maintenance teams, the BT-105SPT replaces the Spring Tech-style tool with a focused design that cups the spring to prevent slipping and reduce the chance of hand injury. Machined from high-quality steel and finished with a black powder coat, this tool combines a long, stable handle with purpose-built rollers and retainers to make brake shoe assembly faster and more secure.

How does the BT-105SPT make removing return springs safer?

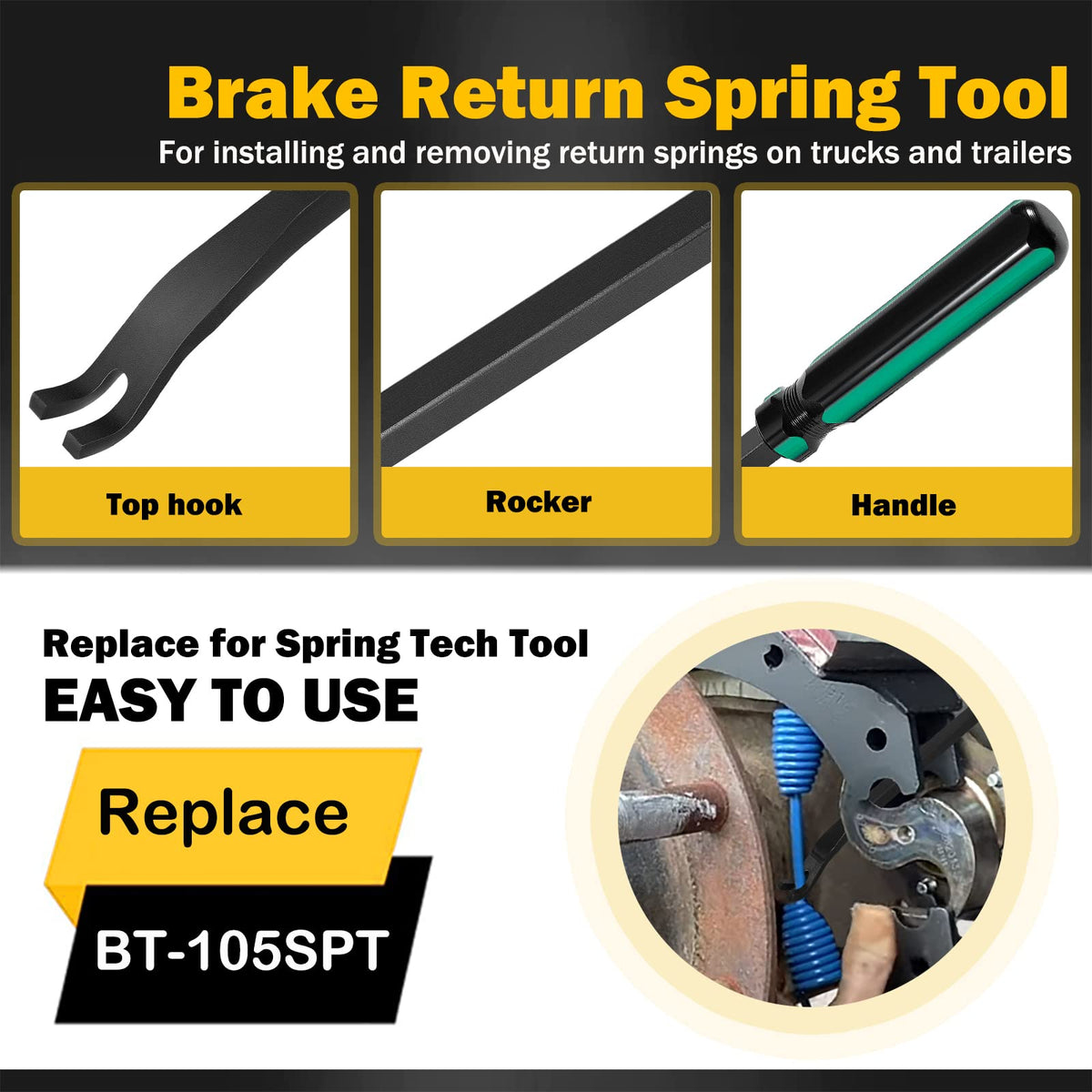

The tool’s unique cup-shaped head holds the spring coil in place while you disengage it from the pin, preventing the spring from sliding off unexpectedly. By guiding the spring during release, the tool reduces sudden recoil and keeps hands away from pinch points.

• Curved cup design stabilizes the spring coil.

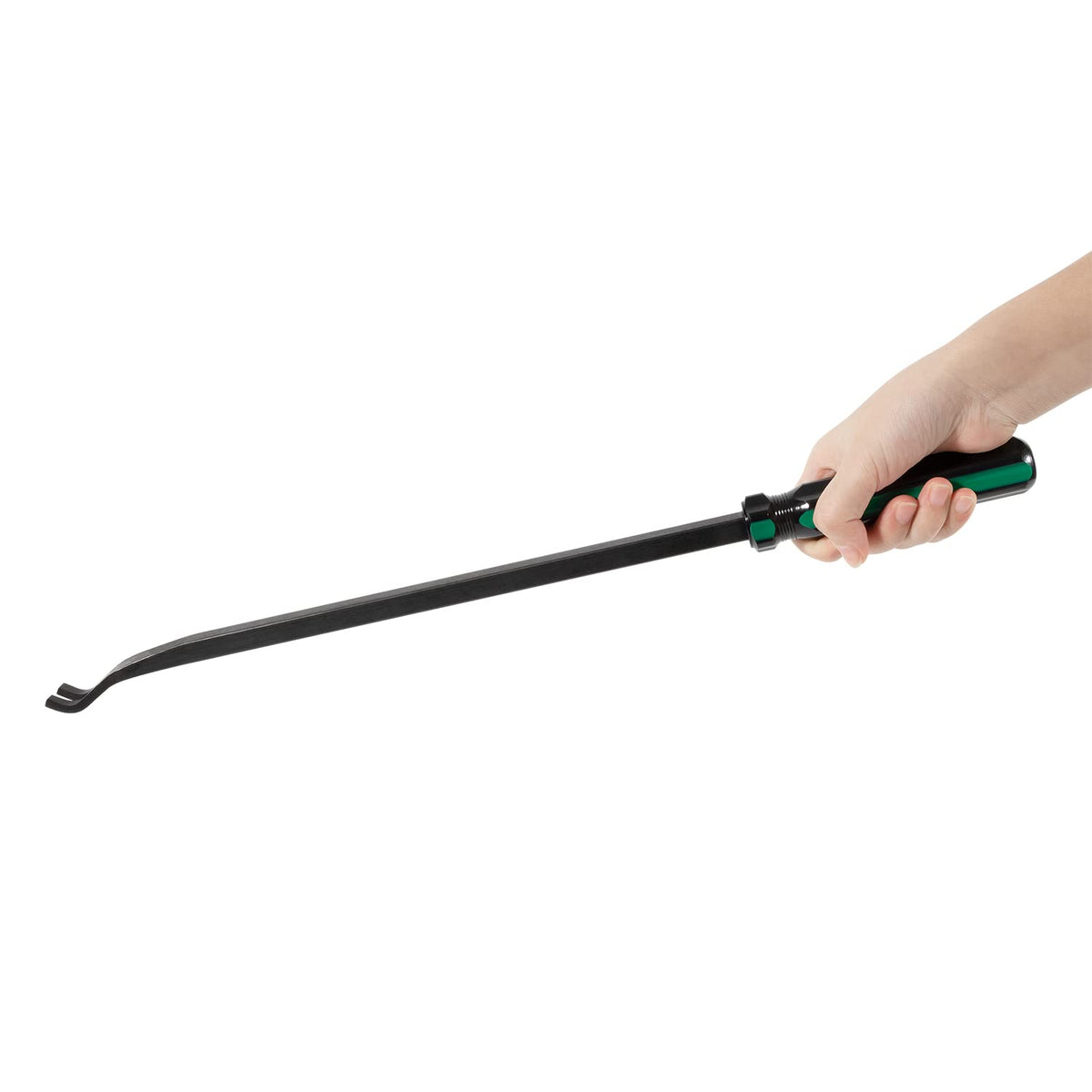

• Long handle increases leverage and distance from the shoe.
• Roller-retainer fit prevents lateral movement during removal.
• Coated steel construction resists wear and corrosion.

What is the correct way to use this return spring tool?

Begin with the S-cam rotated so rollers sit in their lowest position and shoes partially assembled. Slip the tool between the shoe webs over the top roller, hook the spring below its upper coil, then press the handle down and pull or push as required to seat or unseat the spring on its pin.

• Install rollers and roller retainers in both shoes first.
• Hang anchor springs and position the top shoe with the cam seated.
• Slide tool over roller, cup the spring, and use smooth handle motion to attach or detach.
• Do not attempt to rotate the cam backward with auto slack adjusters engaged.

Which features ensure durability and reliable performance?

The BT-105SPT is milled from high-grade steel and finished with a black powder coating to resist rust and abrasion in workshop conditions. The elongated handle gives technicians better control and leverage, while precision-machined engagement points fit typical commercial truck return springs securely.

• High-quality steel construction for long service life.

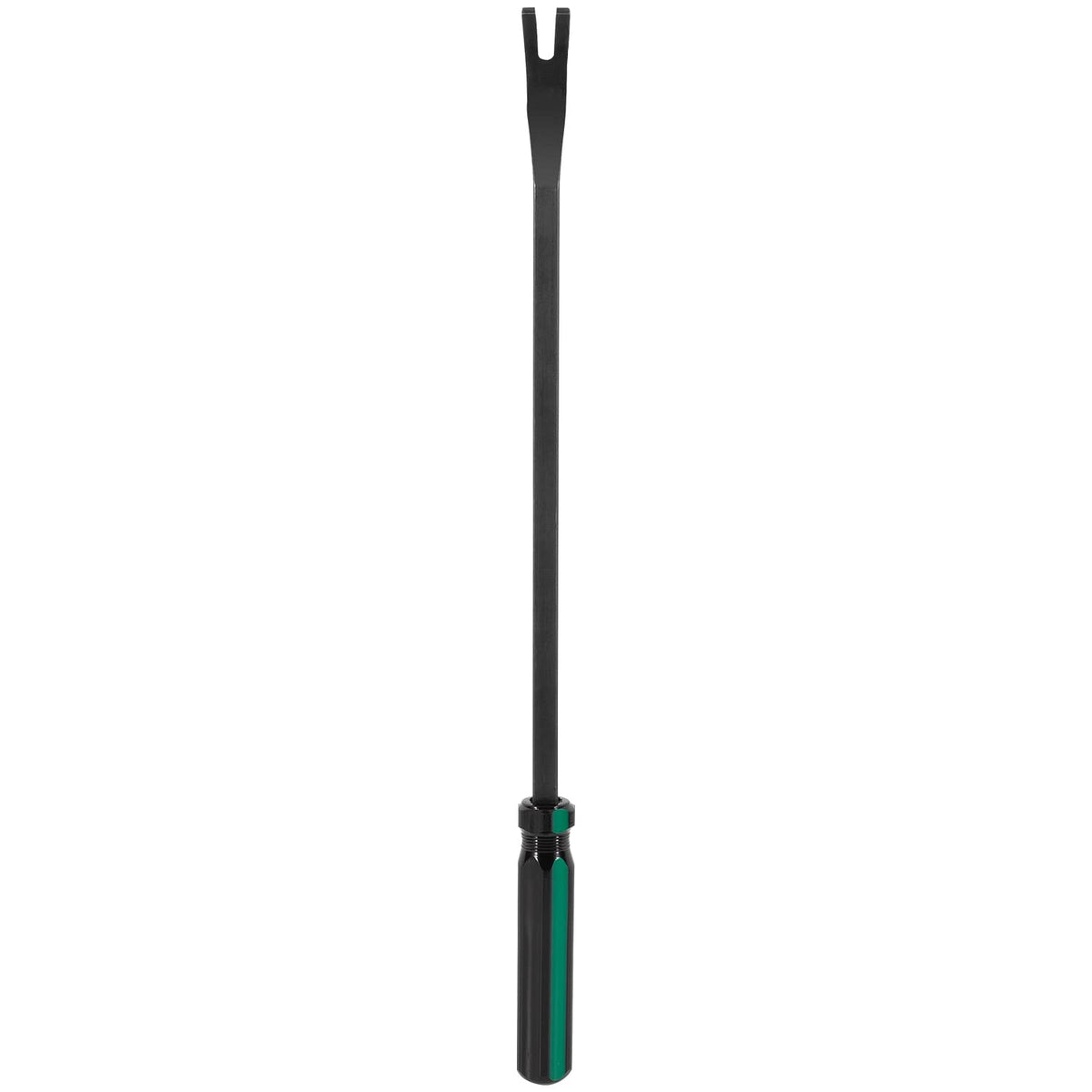

• Protective black powder coat to reduce oxidation.

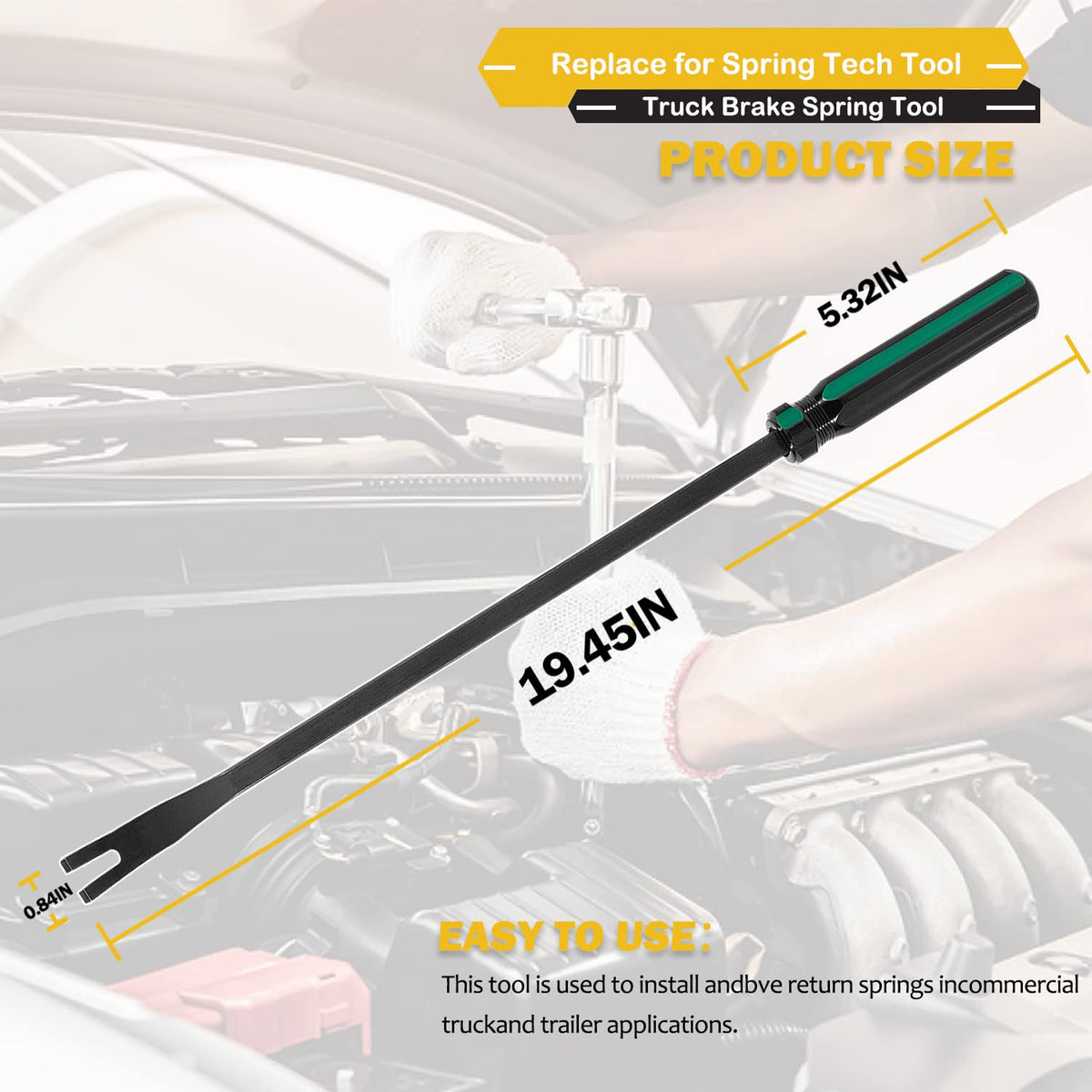

• Extra-long handle for improved stability and reach.
• Engineered cup and roller interface to reduce spring slippage.

Can this tool replace other spring tools in my shop?

Yes — it serves as a direct-fit replacement for Spring Tech-style return spring tools used on many commercial trucks and trailers. However, it’s purpose-built for return springs only; it shouldn’t be used as a general pry bar or to rotate cams backward without releasing the pawl on automatic slack adjusters.

• Compatible with most commercial truck and trailer return springs.
• Not a universal pry bar — use only for spring install/removal tasks.
• Follow vehicle-specific service procedures when working with S-cams and slack adjusters.
• Reduces risk compared with improvised methods or improper tools.

Who is this for: The E-cowlboy BT-105SPT is ideal for heavy-vehicle mechanics, fleet maintenance shops, and vocational technicians who regularly service air-brake drum assemblies. If you need a reliable, purpose-built tool to speed return-spring service while improving safety and repeatability, this tool fits into professional toolkits used on commercial trucks and trailers.
