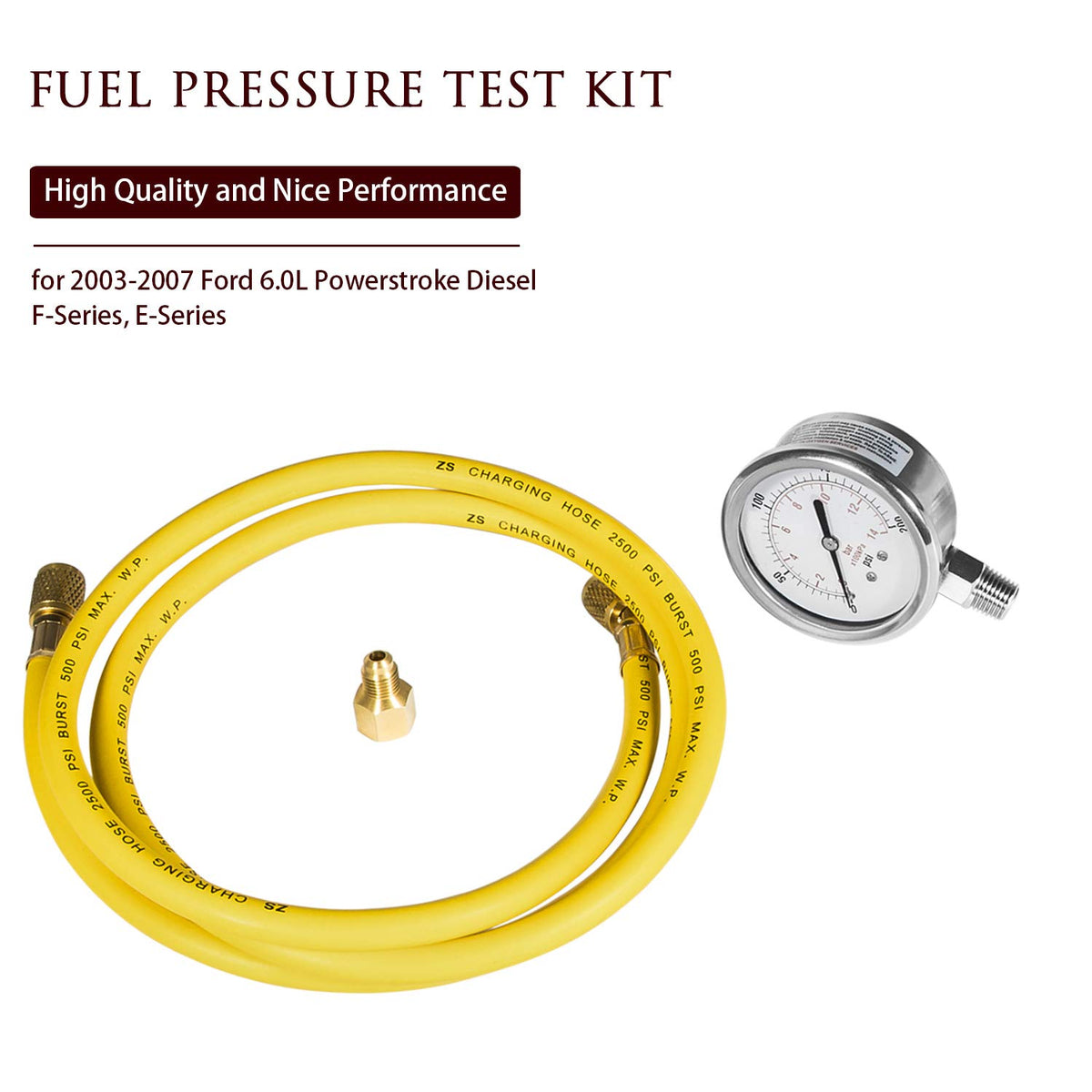

E-cowlboy Fuel Pressure Test Kit for Ford 2003–2007 6.0L — Billet Aluminum Cap, Liquid-Filled Gauge

The E-cowlboy Fuel Pressure Test Kit with billet aluminum fuel filter cap provides a durable, vehicle-specific way to measure and protect fuel pressure on 2003–2007 Ford 6.0L Powerstroke engines.

When diagnosing drivability issues on Ford Super Duty trucks and vans with the 6.0L Power Stroke, accurate fuel-pressure checks are essential. This kit combines a liquid-filled gauge with an extended hose and a machined aluminum replacement fuel filter cap equipped with a Schrader-style test port, so you can read pressures under operating conditions and avoid damage caused by low fuel pressure.

How does this kit help diagnose 6.0L Powerstroke fuel problems?

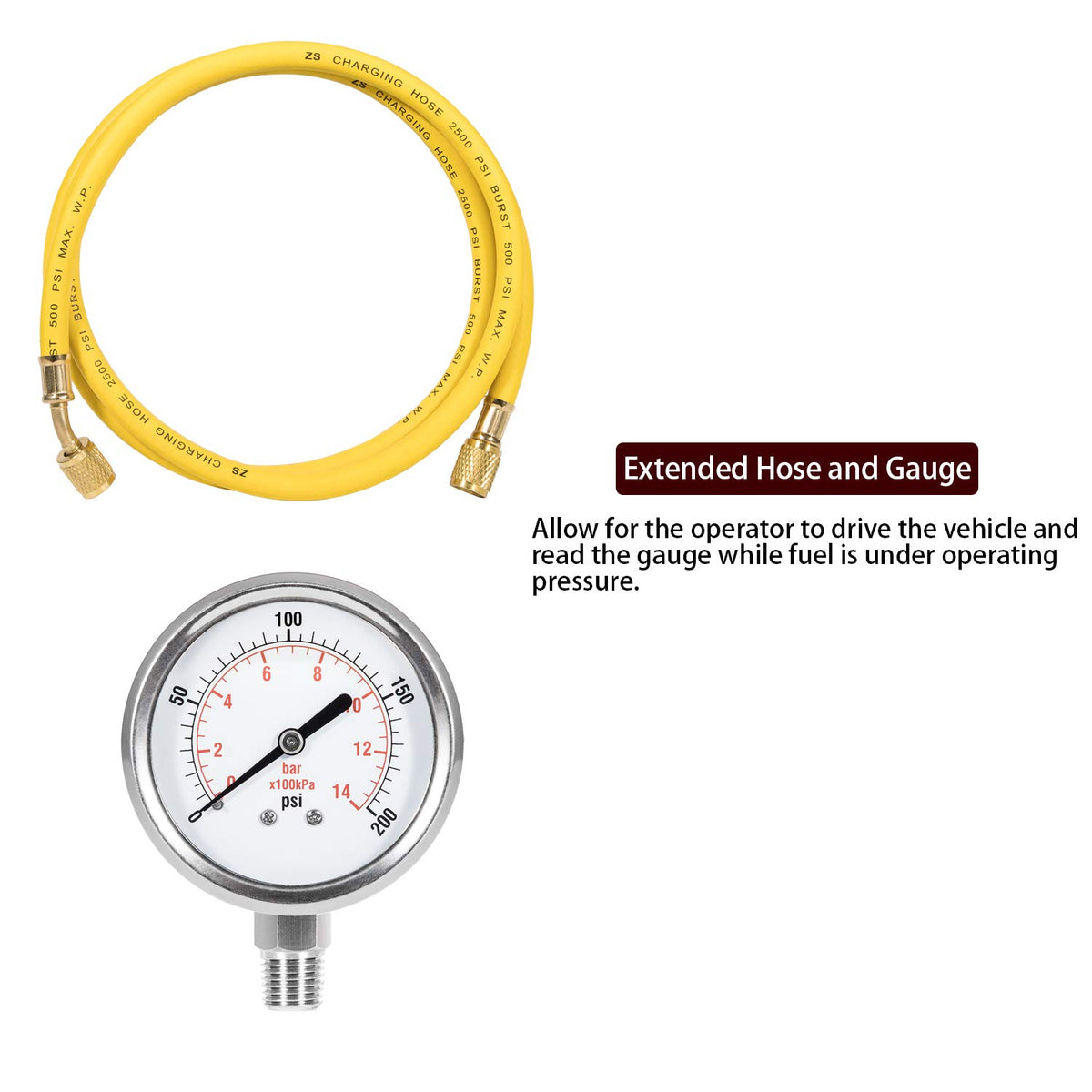

The included liquid-filled gauge and long hose let you monitor fuel pressure while the engine is running, so readings reflect real operating conditions. Because the 6.0L injectors require consistently high fuel pressure for cooling and lubrication, capturing accurate pressure data helps pinpoint issues before injectors are harmed.

• Liquid-filled gauge resists vibration for stable readings.
• Extended hose permits in-cab or nearby viewing while driving or idling.
• Schrader valve connection enables quick attach/detach without spills.
• Gauge and hose rated for typical diesel fuel system pressures.

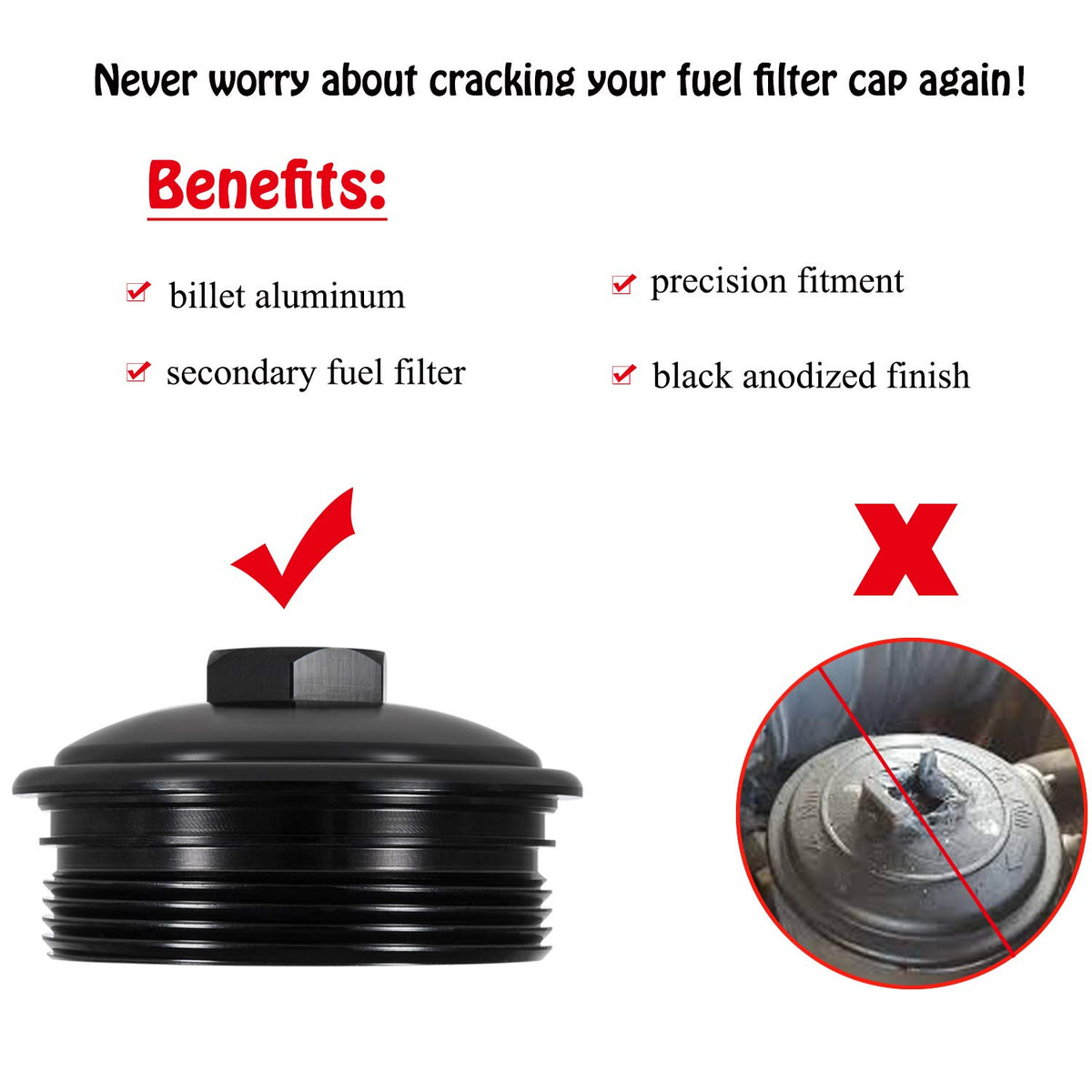

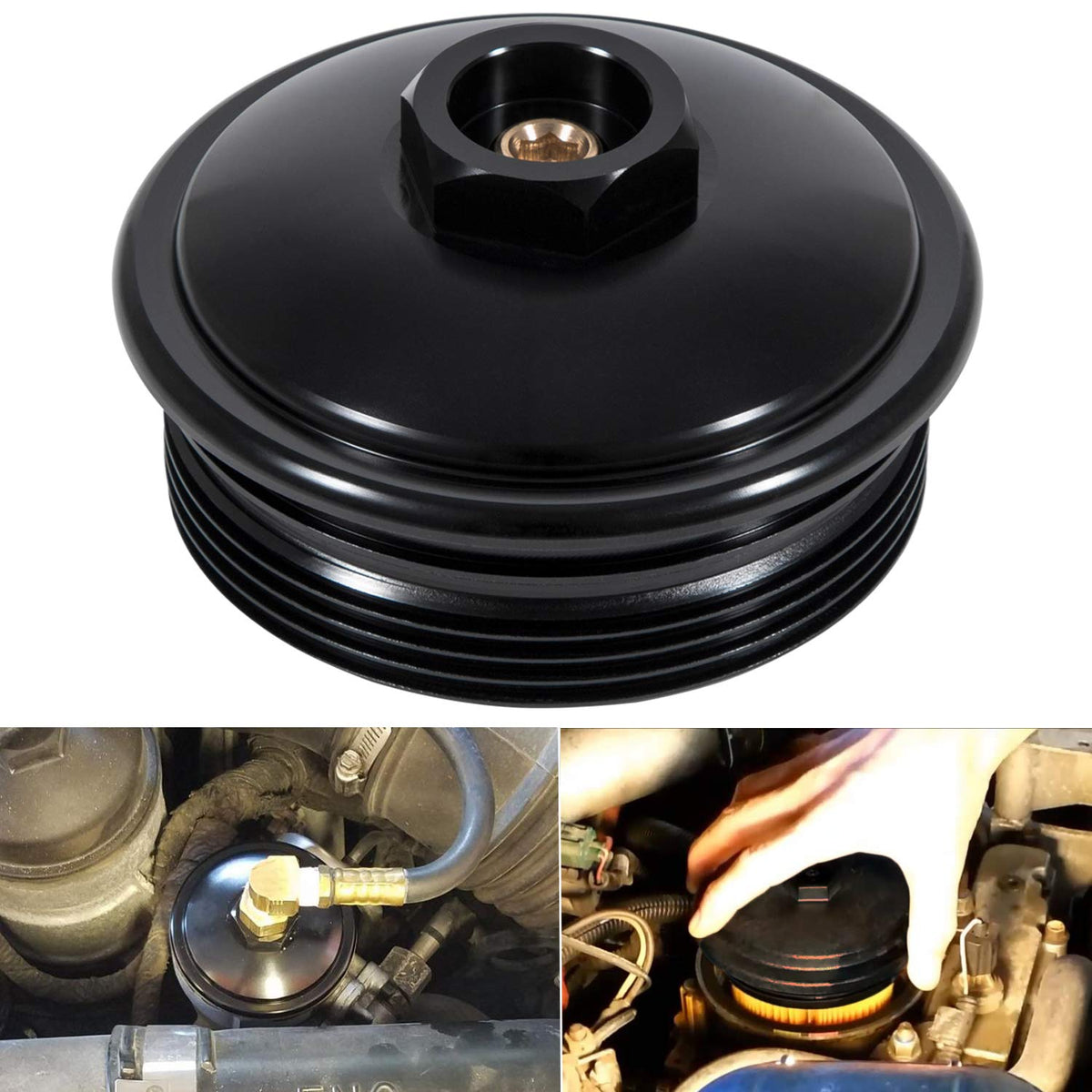

What makes the billet aluminum fuel filter cap better than the stock cap?

The E-cowlboy cap is CNC-style billet aluminum, offering improved corrosion and wear resistance over factory plastic caps. It reproduces the factory fit while adding a 1/8" NPT test port and a 1/4" male flare with a Schrader valve so you can test fuel pressure safely and repeatedly.

• High-grade aluminum resists cracking, corrosion, and heat exposure.

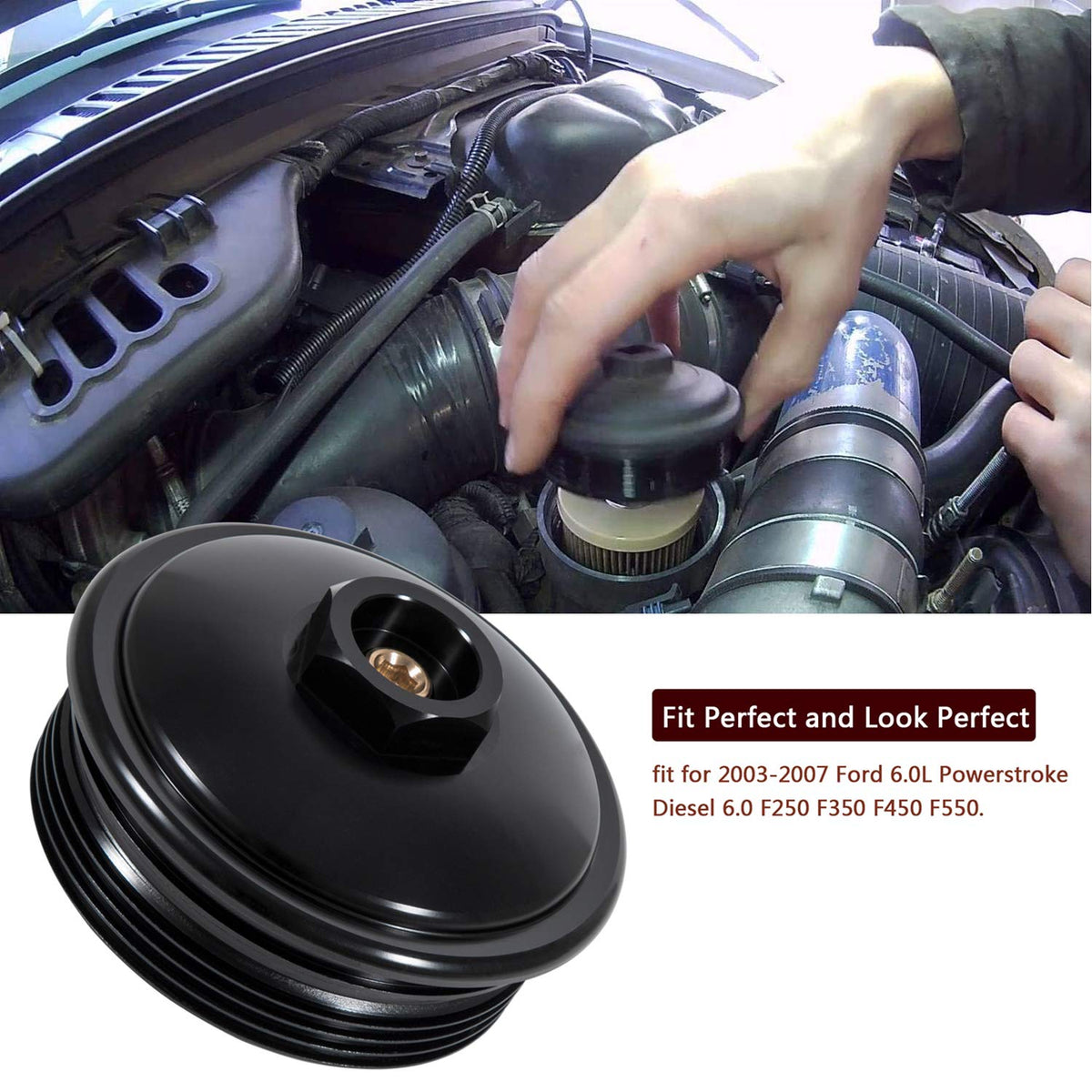

• Direct-fit for 2003–2007 Ford 6.0L Powerstroke filter housings.
• Test port accepts standard pressure fittings and gauges.
• Requires thread sealant on block-off plugs during installation.

Will this kit leak or damage my fuel system if used properly?

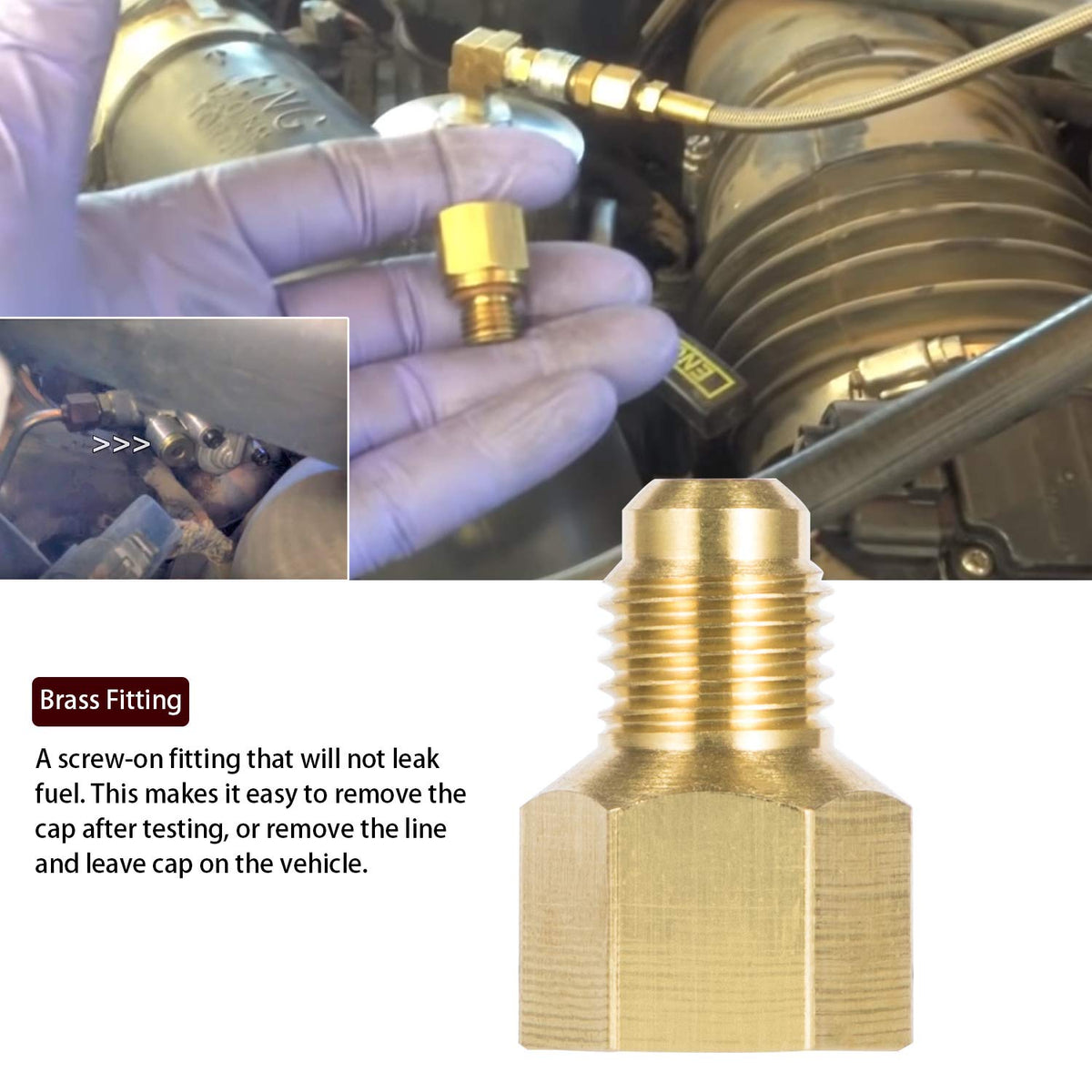

The kit’s hose uses a screw-on fitting designed to prevent fuel leakage and allows you to remove the cap or leave it installed after testing. Follow installation guidance—use proper thread sealant on any blocked ports—and always test in a well-ventilated area to minimize risk.

• Screw-on hose fitting minimizes fuel seepage during testing.
• Schrader valve prevents fuel spray when connecting/disconnecting gauge.
• Liquid-filled gauge dampens needle bounce for safer readings.
• Recommended to apply thread sealant on cap plugs before fitting.

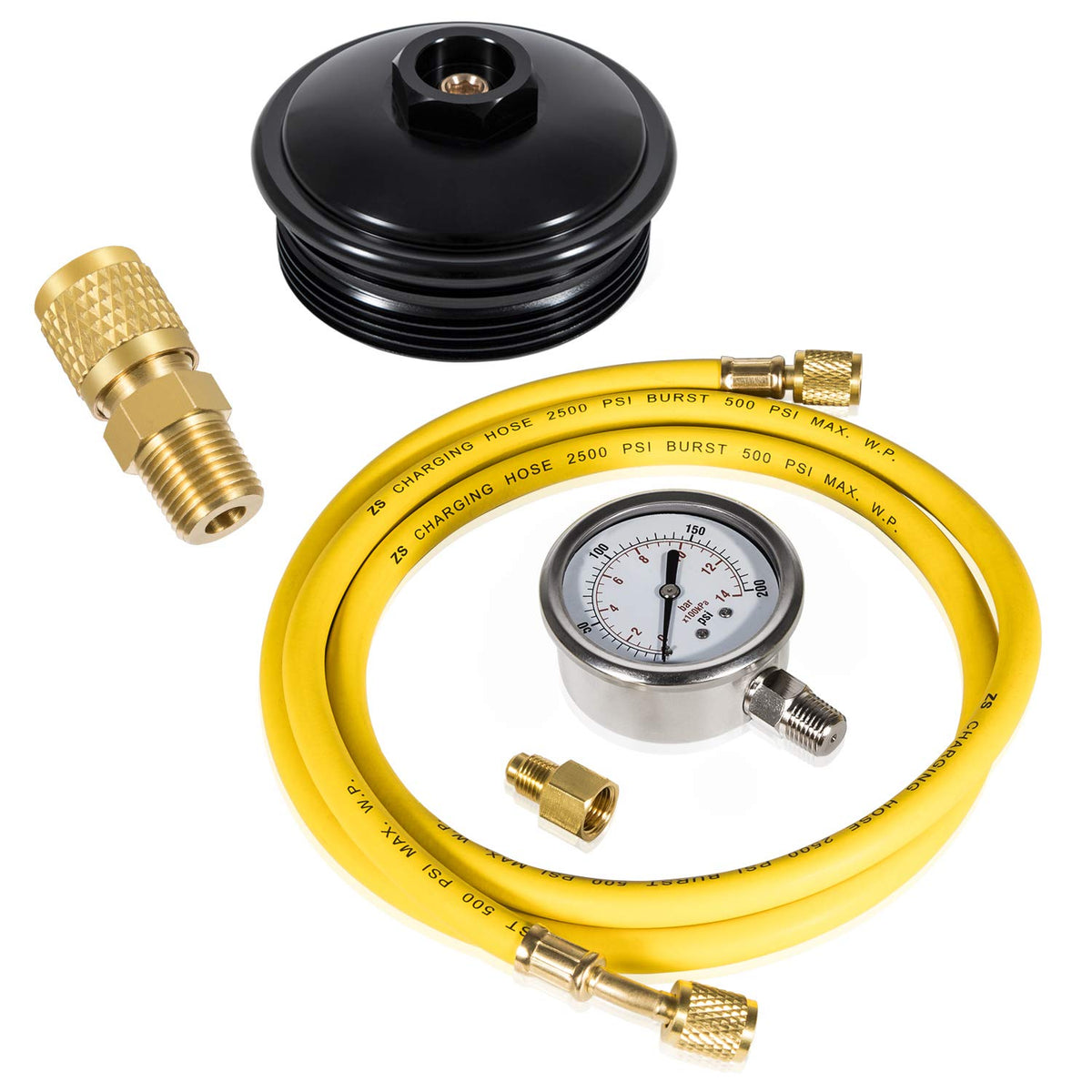

What components are included and what materials are used?

The package contains a premium liquid-filled pressure gauge with an extended-length hose and Schrader valve, plus the billet aluminum fuel filter cap with a 1/4" male flare and Schrader valve assembly. Rubber parts are made from RMA-A grade compounds to resist oil permeation and aging.

• 1 × liquid-filled pressure gauge with extended hose and Schrader valve.
• 1 × billet aluminum fuel filter cap with 1/8" NPT test port and 1/4" male flare.
• Inner/outer rubber formulated for oil resistance and long service life.
• Fitment tailored for Ford F-Series (F250–F550) and E-Series Super Duty 2003–2007.

Who is this for: This kit is intended for owners, mechanics, and technicians working on 2003–2007 Ford 6.0L Powerstroke F-Series and E-Series vehicles who need reliable fuel-pressure diagnostics and a stronger-than-stock filter cap. It’s useful for routine troubleshooting, pre-purchase inspections, or preventative checks to avoid injector damage caused by low fuel pressure. Note: follow safe fuel-handling practices and use thread sealant where recommended; this product supports diagnostics but does not diagnose or repair other unrelated engine faults.
