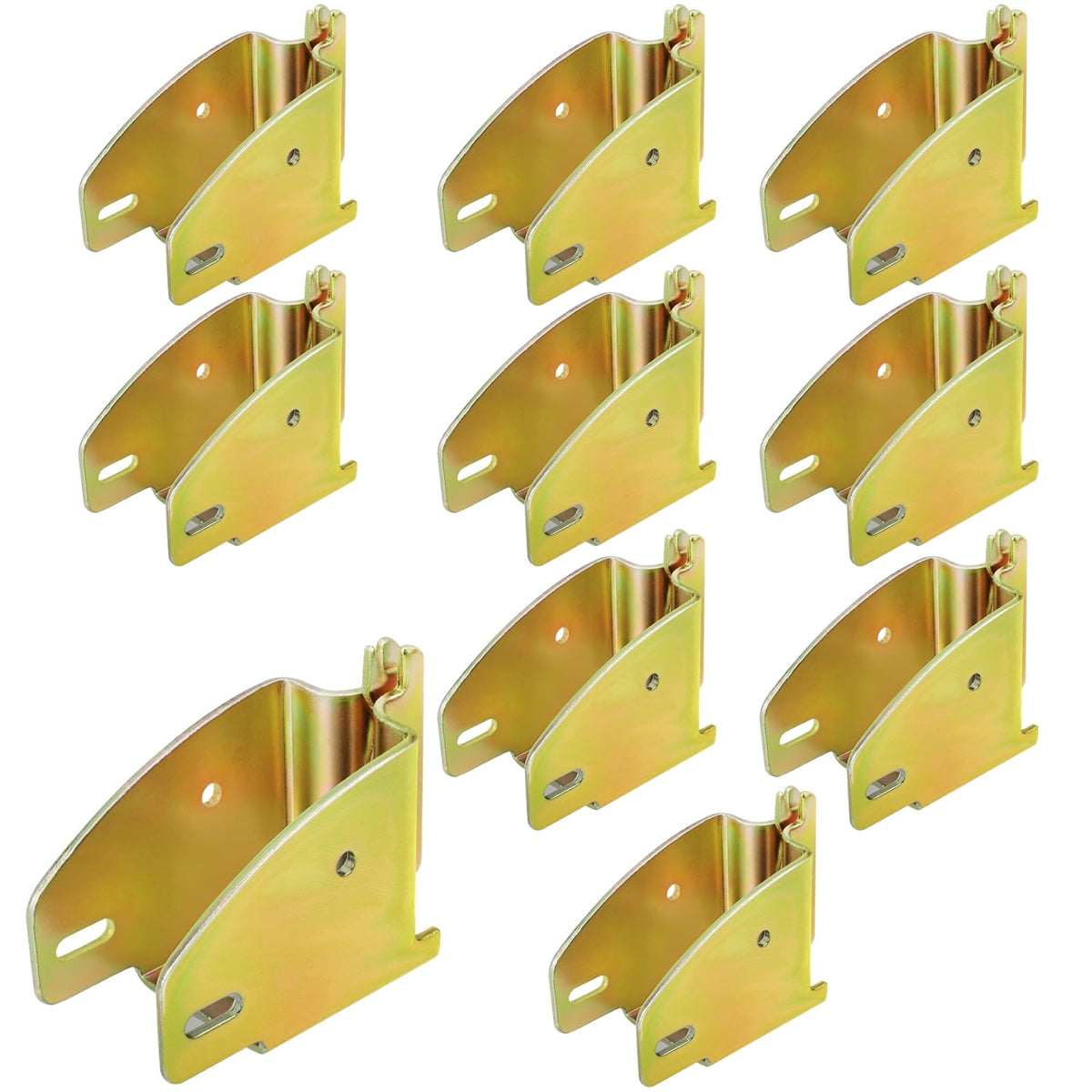

Eapele E-Track Wood Beam End Sockets — Zinc-Plated Steel 10pc, Fits 2x4/2x6 for Removable Load-Lock Bars

If you need a fast, adjustable way to build temporary shelving, secure cargo, or create shoring inside a van, trailer, or truck, these beam end sockets provide a simple mechanical interface between standard lumber and E-Track rails. Sold as a 10-piece set, each socket accepts common dimensional lumber and snaps into E-Track slots so you can reposition or remove beams without tools.

How do these sockets attach to my existing E-Track system?

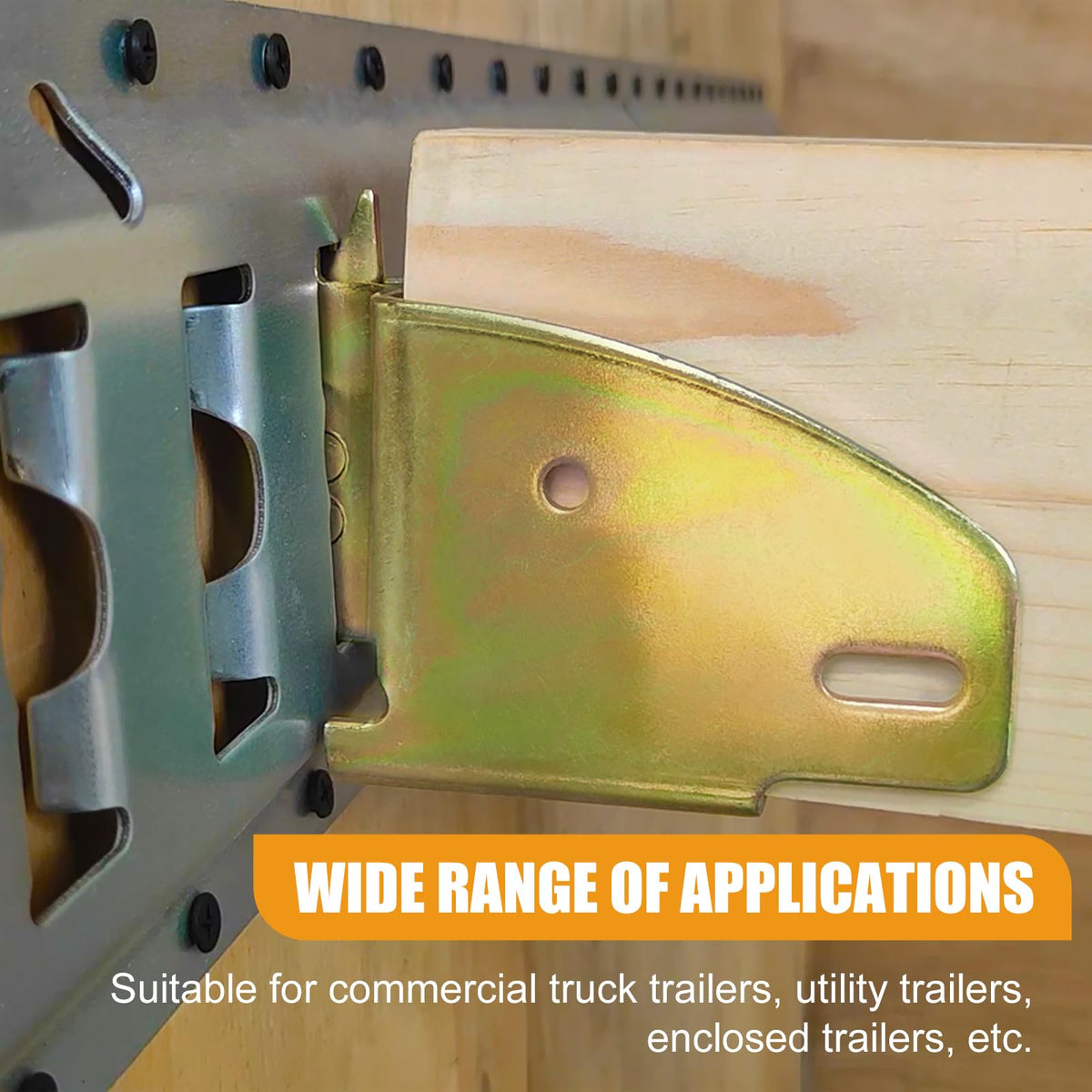

Each socket is designed to lock into standard E-Track slots using the built-in spring clip. Once engaged, the socket provides a stable mounting point for a 2x4 or 2x6 beam that you fasten with screws or bolts.

• Spring-loaded clip secures to E-Track profiles for tool-free installation.
• Two 1/4" bolt holes let you anchor lumber to the socket for a rigid connection.
• Compatible with common E-Track spacing and slot geometry.

Which beam sizes and dimensions fit these sockets?

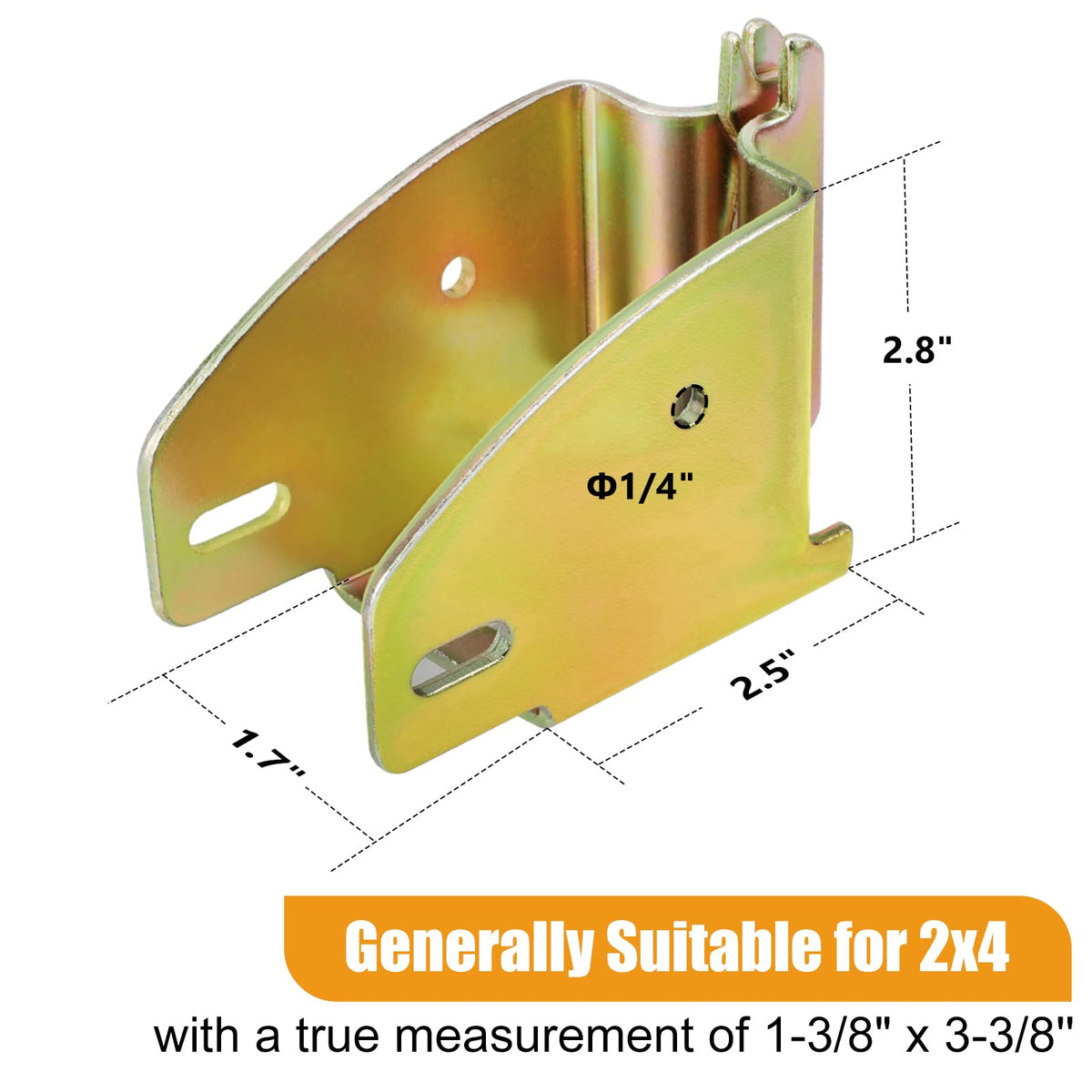

The interior opening is sized for standard dimensional lumber commonly sold as 2x4 and 2x6 stock. The socket fits the actual finished board dimensions so your beam seats snugly without excessive play.

• Inside width ~1.7" accommodates true 2x4 thickness (about 1-3/8").
• Works with both 2x4 and 2x6 profile beams when oriented appropriately.
• Height and length allow full seating of the beam for stable load transfers.

What durability and load performance can I expect?

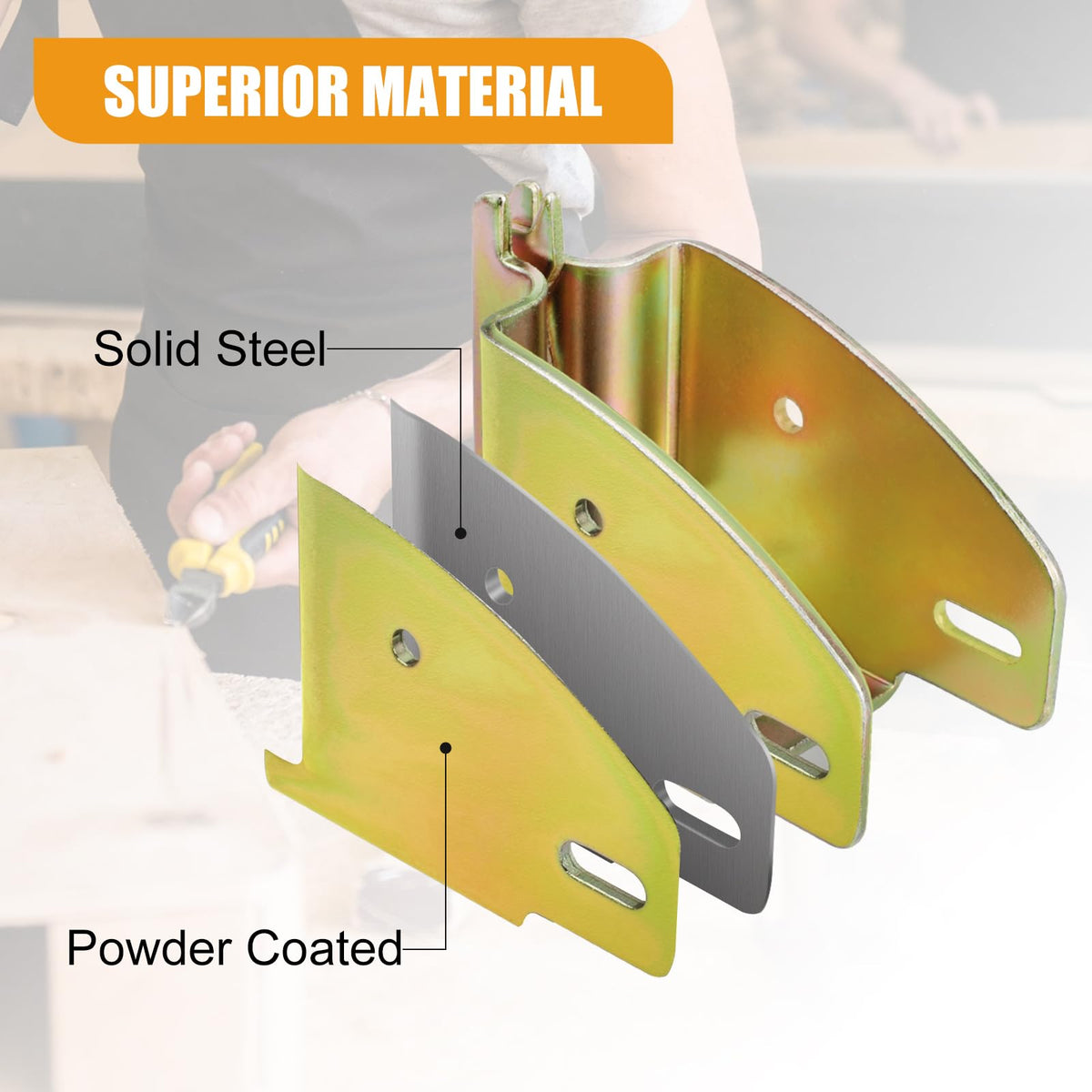

Constructed from heavy-gauge steel with a zinc finish, these sockets resist corrosion and handle regular use in cargo environments. The manufacturer’s testing indicates strong breaking resistance, making them suitable for many load-securing and shelving applications.

• Gold zinc coating for rust resistance in damp or salty conditions.
• Tested breaking strength around 940 lbs under controlled conditions.
• Robust steel construction suitable for repeated insertion and removal.

How easy is it to adjust or remove load-lock bars once installed?

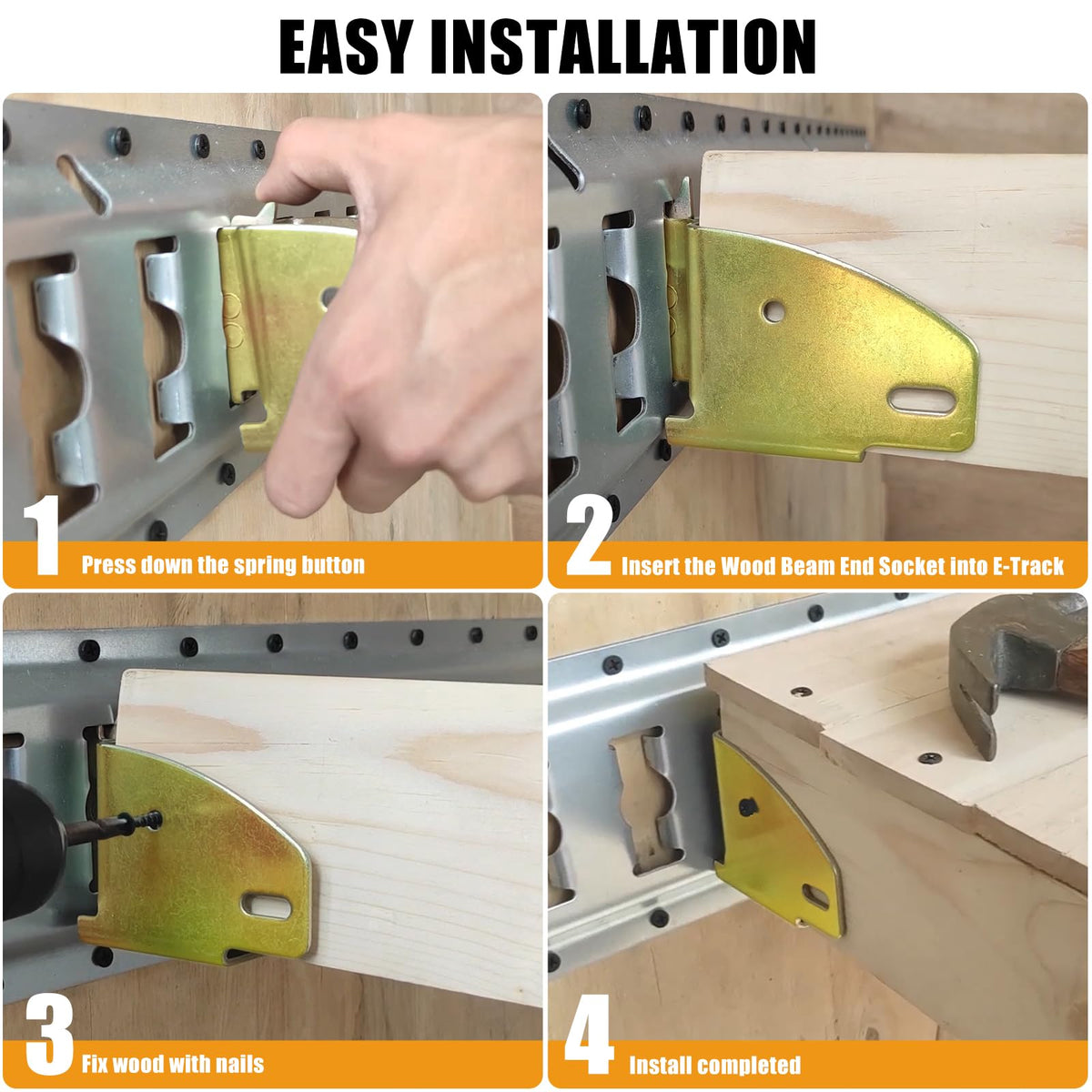

Adjustment is quick: pull the spring clip, lift the socket out of the E-Track slot, then relocate to another position. This makes it straightforward to change beam height or layout without disassembling the cargo area.

• Spring clip provides quick-release action for fast repositioning.
• No special tools required to move sockets along the track.
• Removable design supports temporary configurations and seasonal setups.

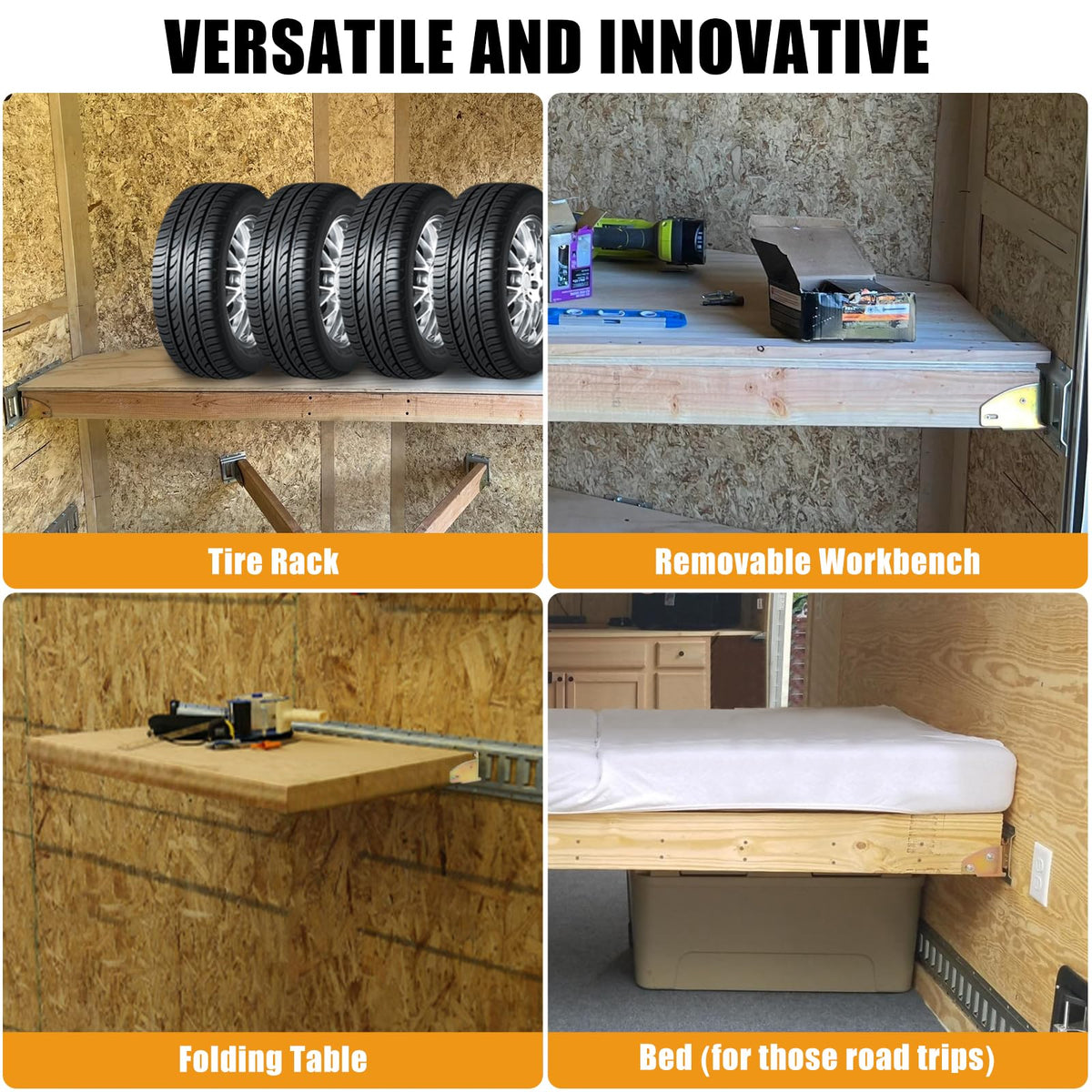

Who is this for? Tradespeople, delivery fleets, van lifers, and DIY organizers who use E-Track systems will find these sockets useful for creating temporary or permanent beam supports, shelving, and cargo restraints. If you want a corrosion-resistant, heavy-duty connector to convert standard lumber into adjustable interior structure, this 10-pack from Eapele gives you the fittings to build, modify, and reuse load-lock bars and dividers across multiple vehicles and projects.
