Earthtec Washing Machine Lid Lock Replacement W11307244 — Direct-Fit Plug-and-Play for Whirlpool Top-Load

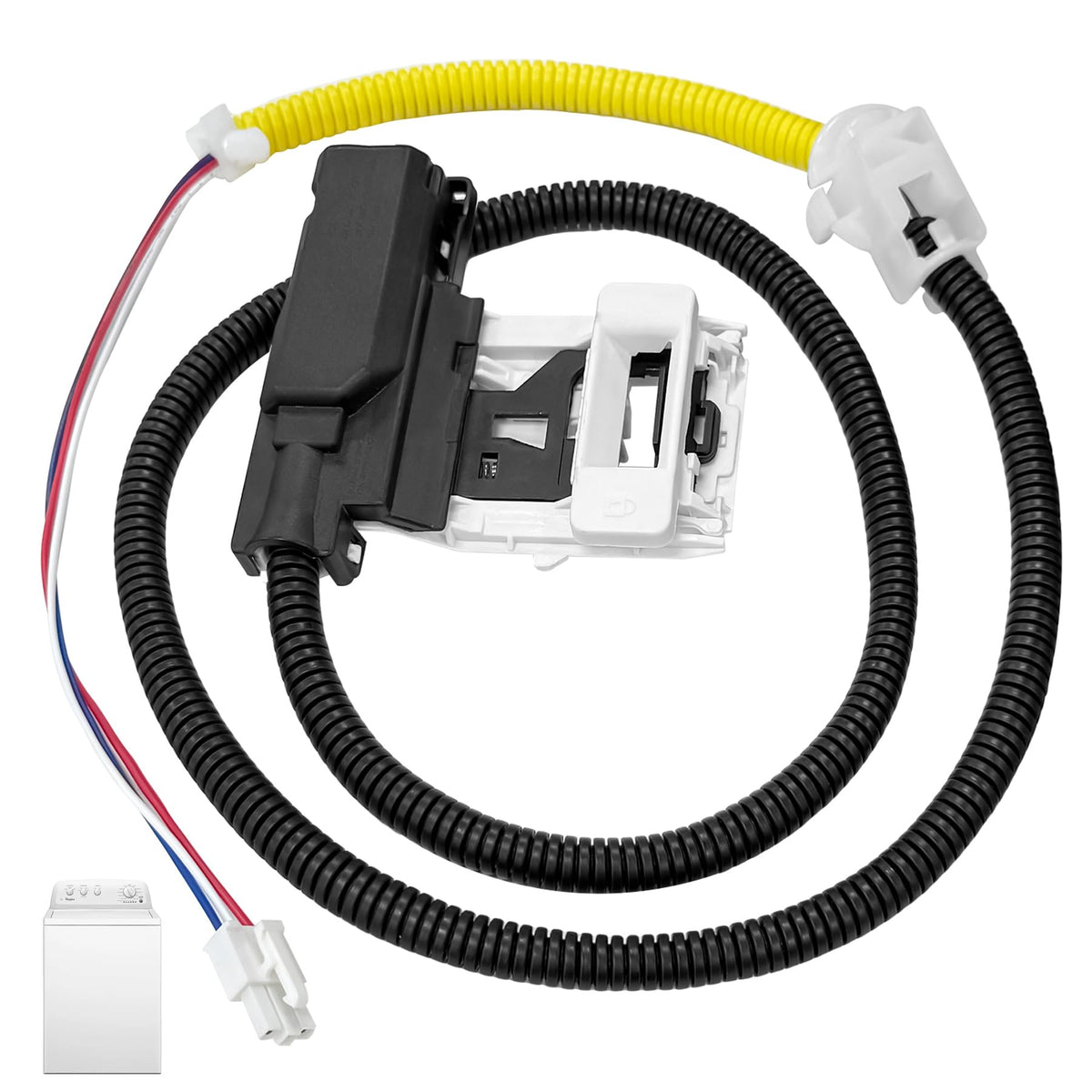

Earthtec W11307244 is a direct-fit replacement lid lock assembly designed to restore secure door locking and normal cycling on compatible Whirlpool-family washing machines.

If your top-load washer shows a blinking door lock light, won't spin or drain, or the lid refuses to latch, this OEM-style replacement part restores the mechanical and electrical locking function. Built to match the original W11307244 / W10682535 specifications, the assembly fits multiple Whirlpool, Maytag, Amana, Kenmore and Crosley models so you can avoid costly service calls and get the laundry back on schedule.

How do I know this part works with my washer?

Compare the part numbers and connector shape to your existing lid lock assembly before ordering. This Earthtec unit is compatible with W11307244, W10682535 and a long list of cross-reference numbers used across Whirlpool-brand family machines.

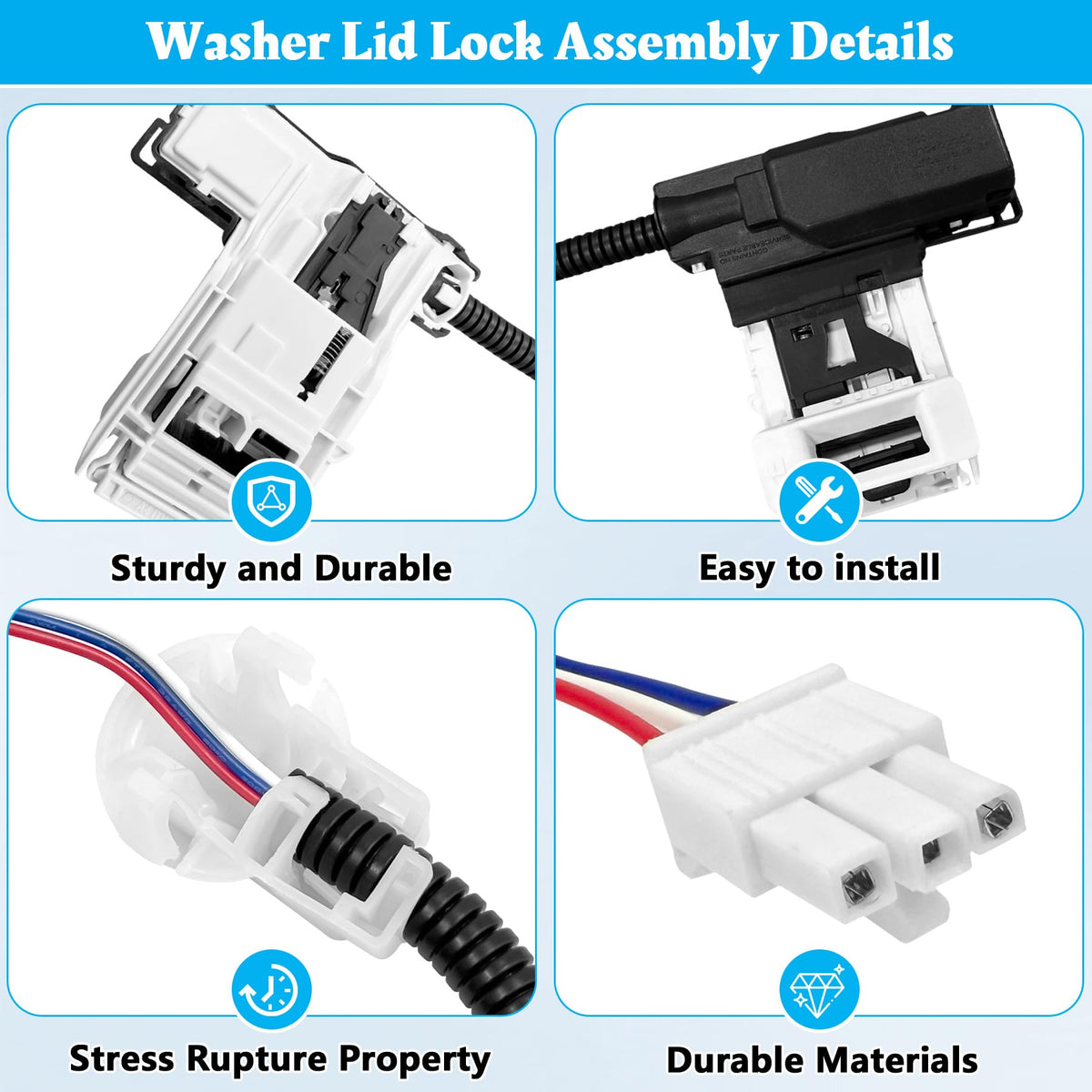

• Matches original mounting holes and electrical plug for a plug-and-play replacement
• Cross-references include W10838613VP, W11253733, PS12704713 and AP6832601
• Fits many Whirlpool, Maytag, Amana, Kenmore and Crosley top-load models
• Check your washer’s service manual or the old part sticker for exact number verification

What symptoms will this lid lock repair fix?

This assembly addresses electrical and mechanical failures that prevent safe lid locking, which often stops the wash cycle. Typical issues resolved include a constantly blinking lock indicator, failure to spin or drain, or a lid that won’t stay closed.

• Stops intermittent or continuous lock-light blinking
• Allows spin and drain cycles to resume when lock failure was the cause
• Eliminates lids that won’t latch or feel loose when closed
• Can remedy some causes of water leaking related to unlatched lids

How difficult is installation for a homeowner?

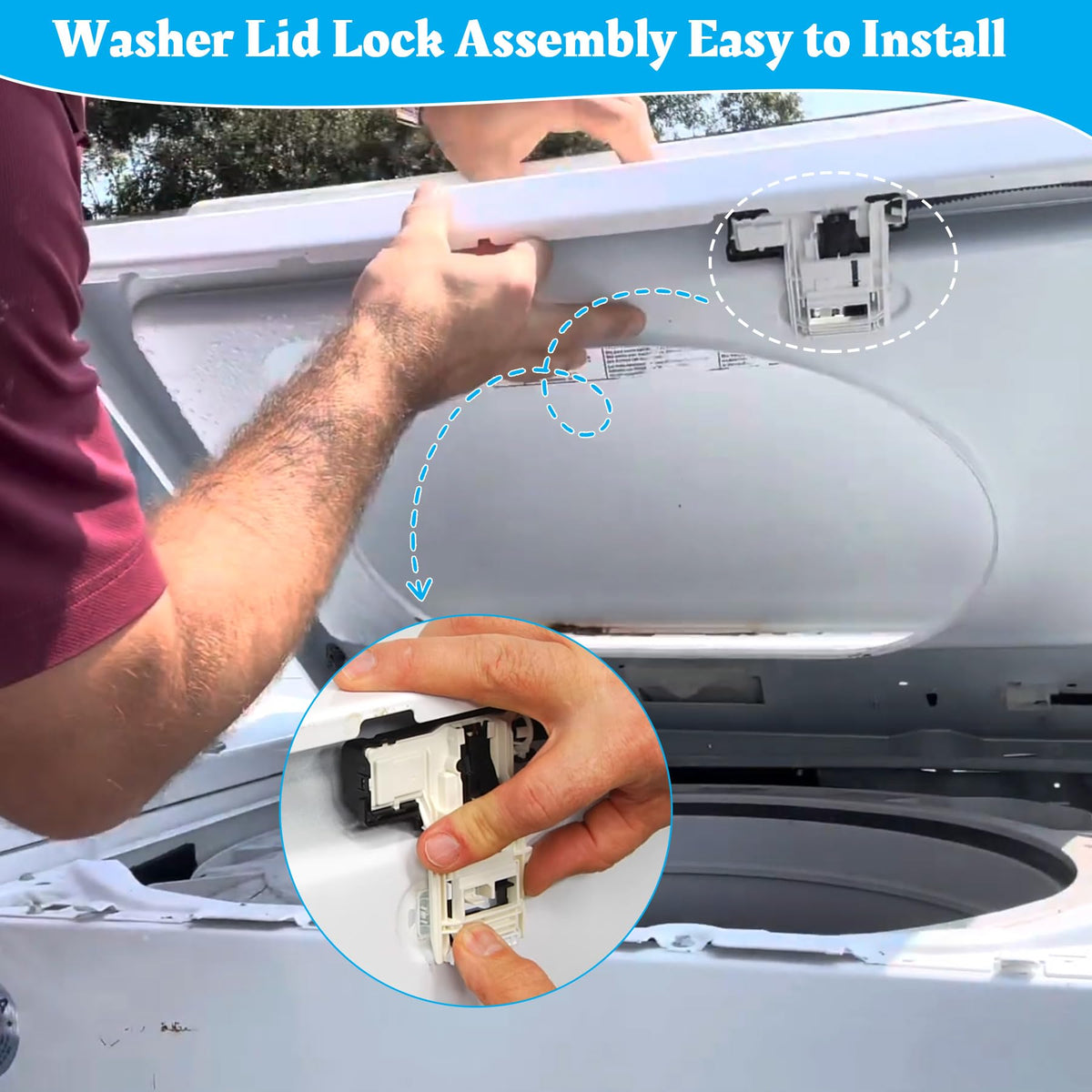

Installation is straightforward for anyone comfortable with basic appliance repairs and a screwdriver. Power down the washer, remove the control panel screws, unplug the old lock harness, swap the assembly, and resecure the panel.

• Required tools: screwdriver and basic hand tools
• Steps: power off, remove screws, disconnect harness, replace, reconnect
• Troubleshooting tip: if the cover won’t close, press the small white tab inside the latch hole before re-powering
• Refer to model-specific service instructions if uncertain

What should I expect after replacing the lid lock?

After installation the washer should recognize the lid is secure and complete safety checks, allowing the cycle to proceed normally. If the machine still shows errors, double-check wiring connections and part orientation; persistent faults could indicate an unrelated control or sensor issue.

• Washer should stop showing lock-related errors and resume draining/spinning
• Allow a few seconds after reconnecting power for the lock to self-check
• If the latch feels stuck, unplug and manually press the tab then reconnect
• Contact support if the replacement part behaves unexpectedly

Who is this for: Earthtec’s W11307244 replacement is intended for homeowners, rental property managers, and professional repair technicians who need an affordable, OEM-style lid lock that fits many Whirlpool-family top-load washers. It’s a practical choice if you want a plug-and-play swap to restore safe lid locking and normal machine operation without replacing the entire washer.
