EATAKWARD Accumulator Piston Kit for 4L60E/4L65E/4L70E Pinless 1-2 & 3-4 Dual-Seal Steel Plug Repair

The EATAKWARD Accumulator Piston Kit is a pinless replacement set engineered to restore sealed, stable 1-2 and 3-4 accumulator operation in 4L60E/4L65E/4L70E transmissions.

Worn or cracked forward accumulator pistons in GM 4L60-series transmissions commonly cause delayed engagement, slipping, burnt clutches or harsh shifts by allowing fluid to bypass the piston pin bore. This kit replaces OE-style pistons with a pinless design and dual-seal pistons that seal the bore, stop pin-leakage failure modes and add piston length to reduce cocking. It includes steel balls to plug any existing pin bores in the case or cover for a complete repair.

How does the pinless design improve shift performance?

Removing the piston pin eliminates a common leak path and the wear at the pin bore interface. The pinless pistons maintain consistent hydraulic pressure during accumulator movement, which translates to firmer, more predictable shift timing and reduced slipping under load.

• Eliminates piston pin-bore leakage, preventing fluid loss.
• Dual seals provide long-lasting compression and leak resistance.
• Increased piston length stabilizes and prevents cocking or galling.

Which transmissions and accumulator locations does this kit fit?

The kit is designed for GM 4L60-E, 4L65-E and 4L70-E transmissions and is compatible with many 200-4R applications when used specifically in the 3-4 accumulator position. Verify fitment against your OEM or service manual part numbers before installation.

• Direct replacement for worn forward accumulator pistons in 4L60E/4L65E/4L70E units.
• In 200-4R applications, suitable for the 3-4 accumulator bore only.
• Replaces OE part numbers such as 77987-01K and 77998-03K-style kits.

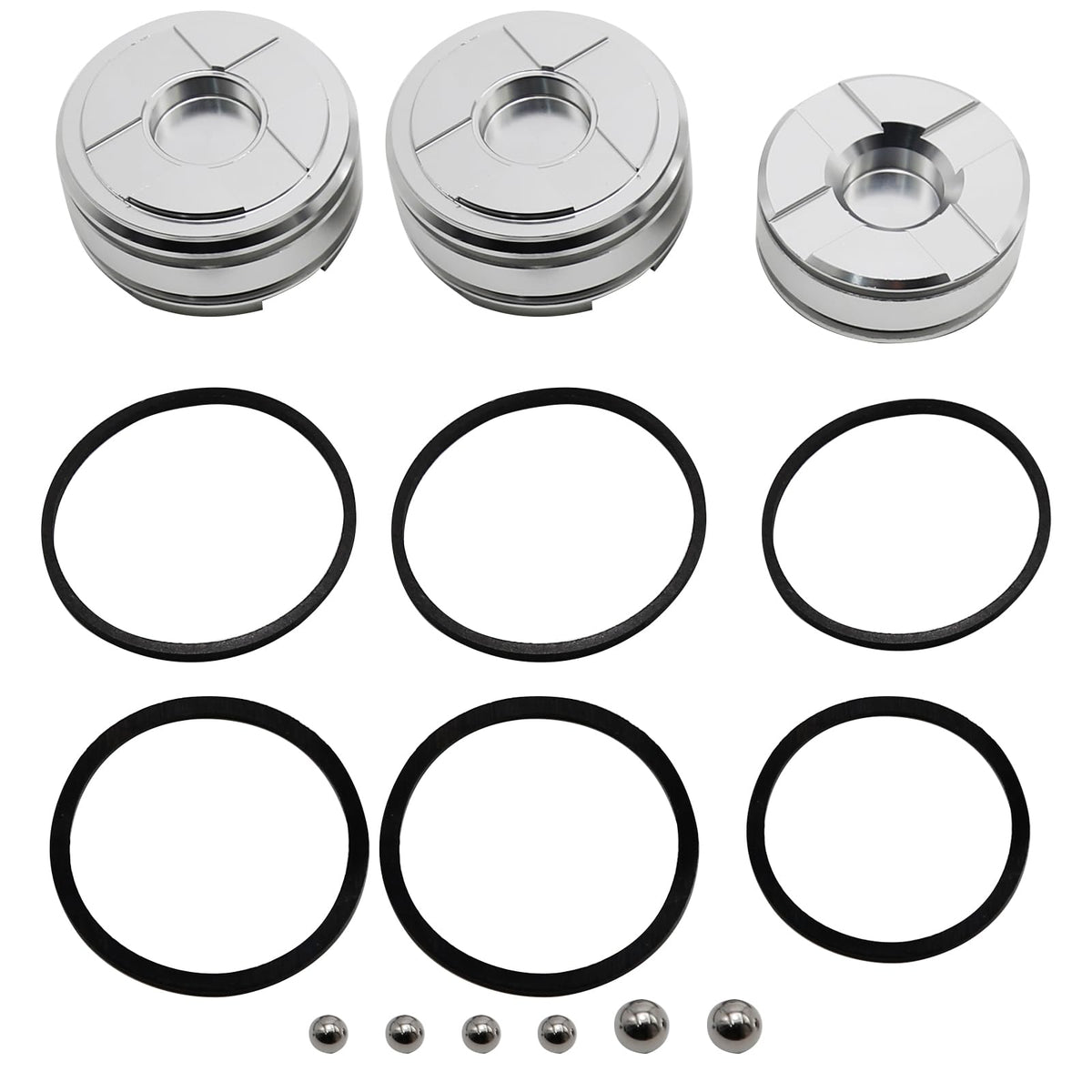

What components and protection does the kit provide?

The kit includes pinless accumulator pistons with dual sealing lips and steel balls to plug any existing pin bores in the case or cover. The dual seals stabilize piston movement and retain hydraulic pressure even after thousands of cycles, reducing the chance of repeat failures.

• Dual-seal pistons for enhanced bore sealing and long life.
• Pinless construction to remove the source of pin-bore wear.
• Steel plugs/balls to close off old pin bores and prevent leaks.

Will installing this kit prevent future accumulator piston failures?

While no repair can guarantee future failure won’t occur, the design addresses the principal causes of common accumulator piston problems: pin-bore wear and piston cocking. By sealing the bore and stabilizing the piston, the kit significantly reduces the mechanisms that lead to fluid loss and clutch slippage.

• Stops pin-bore leakage, a major cause of forward clutch slip.
• Prevents piston cocking that can gall the accumulator bore.
• Designed to hold sealing performance after extensive cycles.

Who is this for: This EATAKWARD accumulator piston kit is intended for technicians, rebuilders and DIY mechanics servicing GM 4L60-E/4L65-E/4L70-E transmissions or converting 200-4R units in the specified 3-4 location. Choose this kit when you encounter delayed engagements, slipping forward clutch behavior, burnt bands or visible piston damage, and when you want a durable, pinless sealing solution to reduce repeat failures.
