Electric Fuel Pump Relay Kit for 12V System 40 AMP

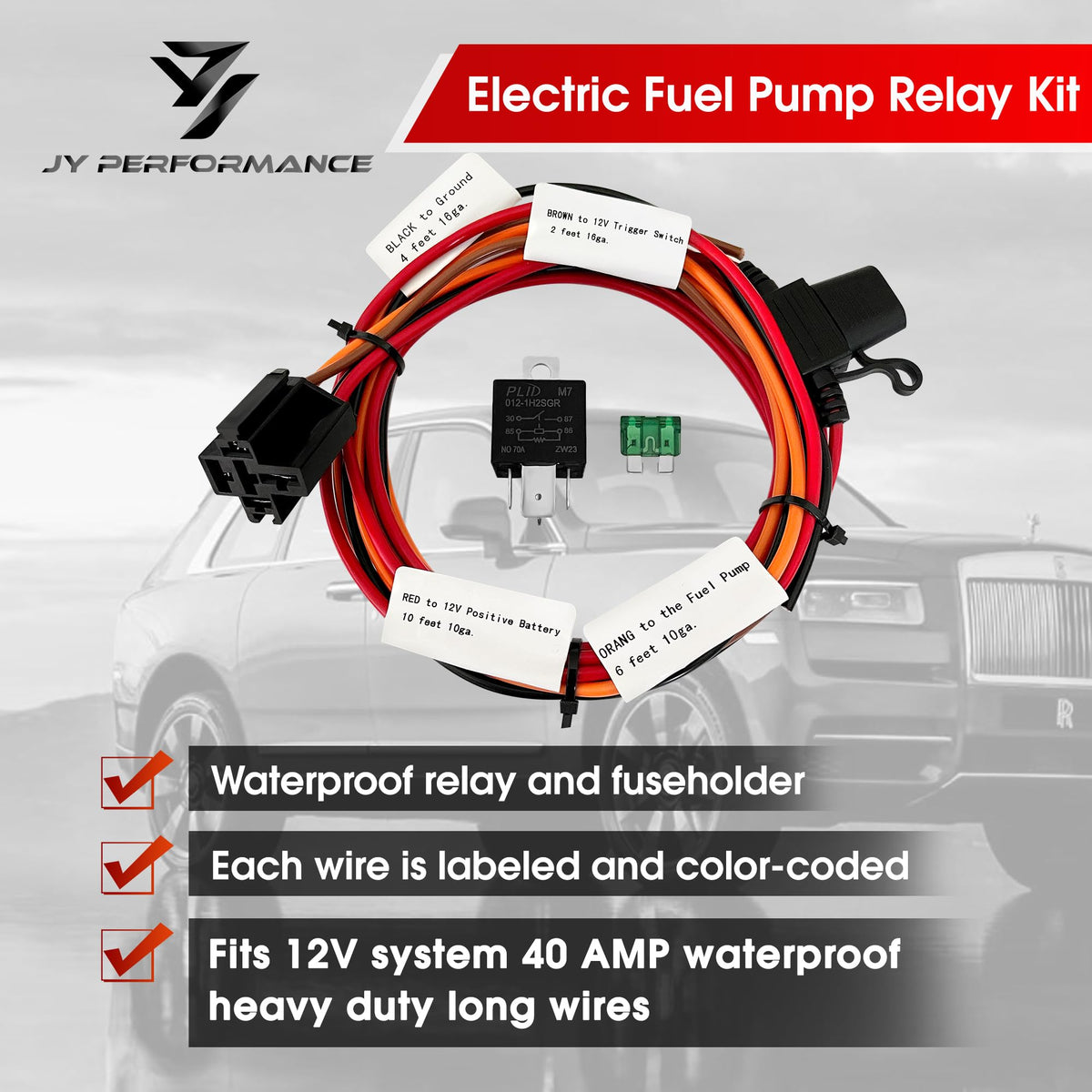

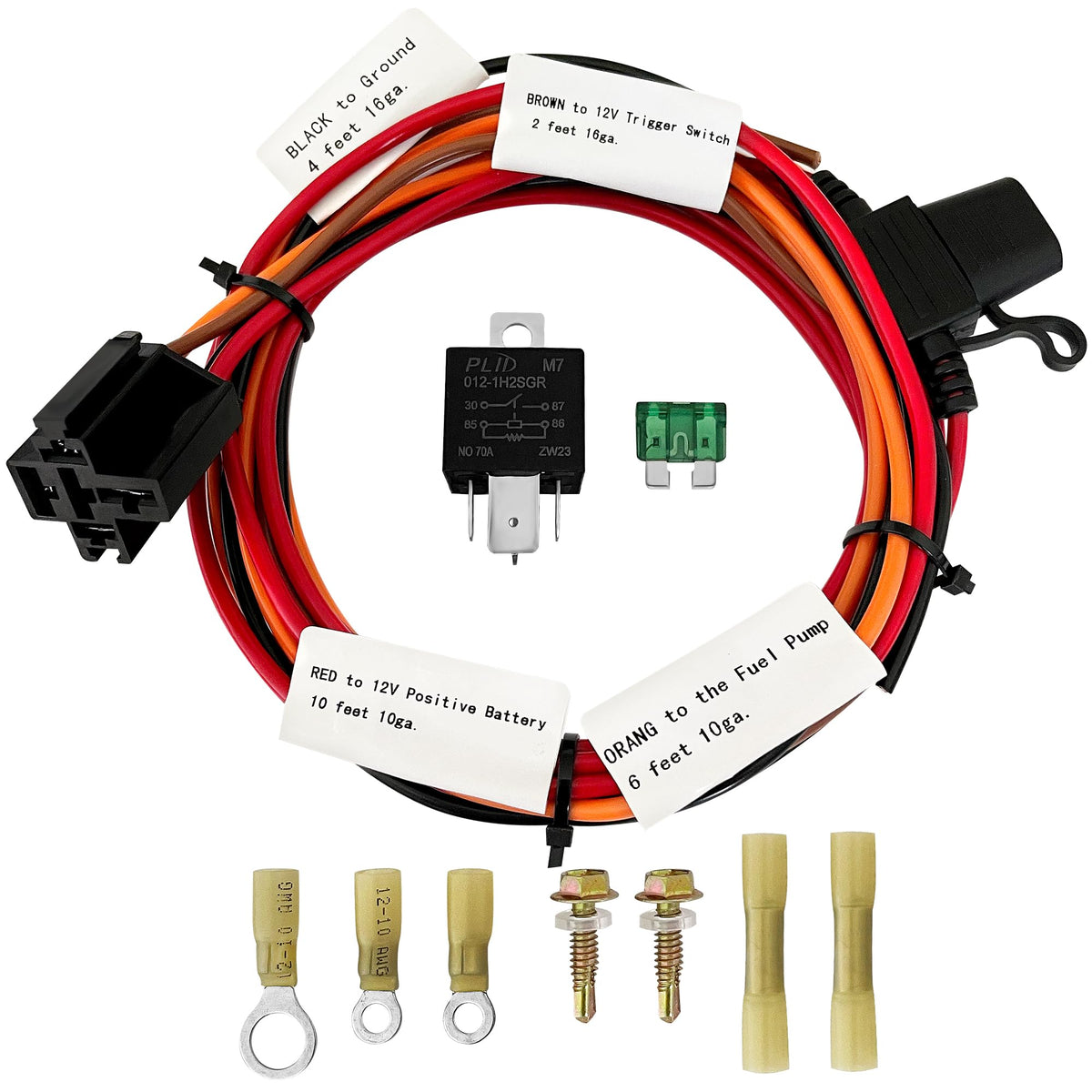

This kit provides a complete relay harness engineered to control fuel pumps safely and cleanly on 12V automotive electrical systems. Designed for durability and straightforward installation, it bundles a waterproof relay, an inline waterproof fuse box, and heavy-gauge wires that are color-coded and labeled for easier wiring. The kit helps isolate the pump circuit from factory wiring, reducing voltage drop and protecting delicate switch contacts while supporting up to 40 amps of continuous current.

How does this kit improve fuel pump performance?

By supplying a dedicated, heavy-gauge power path directly to the fuel pump, the relay kit reduces electrical resistance and heat. That stable supply minimizes voltage loss at the pump, helping it run at consistent power when needed and protecting factory circuits from overload.

• 40 amp relay supports higher continuous current without overheating
• Heavy-duty wires reduce voltage drop to the pump
• Dedicated fused circuit protects wiring and pump
• Color-coded, labeled leads simplify correct connections

What makes the components weatherproof and durable?

The relay and inline fuse box are built with waterproof housings and abrasion-resistant materials to resist moisture and road debris. Sealed connectors and robust insulation help maintain electrical integrity in wet or harsh environments.

• IP-style sealed relay housing to keep out water and dirt
• Inline waterproof fuse holder protects the circuit from moisture damage
• Abrasion-resistant sheathing on wires to prevent chafing
• Quality terminals soldered/crimped for reliable contact

How easy is installation for DIYers or installers?

The harness arrives with clearly labeled and color-coded wires plus a wiring diagram to guide connections to the battery, pump, and ignition switch. Basic automotive electrical skills are usually sufficient, though complex vehicles or tight engine bays may benefit from professional installation.

• Labeled leads for pump, ignition trigger, ground, and battery
• Color coding reduces risk of miswiring during installation

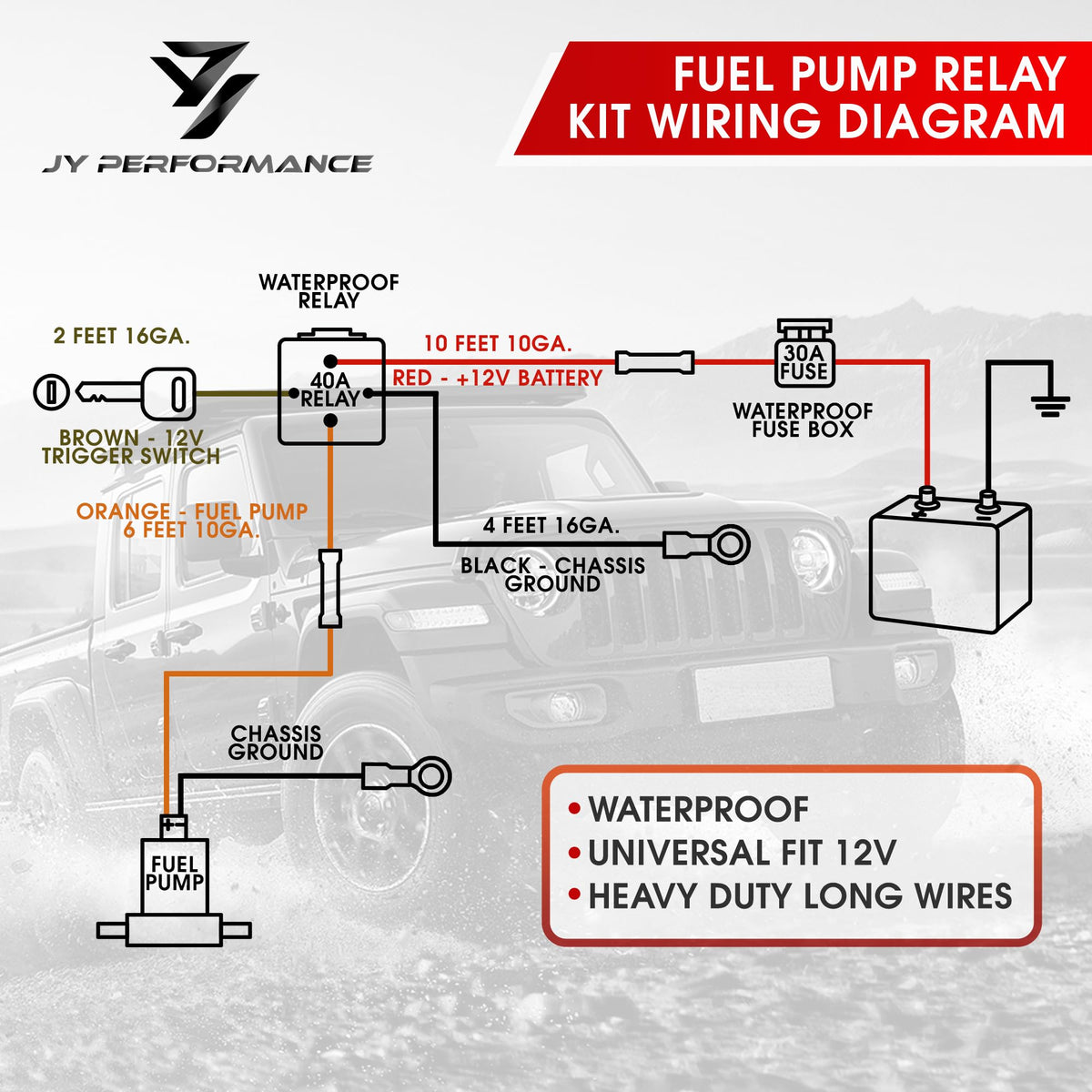

• Included wiring diagram illustrates typical hookup locations
• Compact relay and fuse box fit many mounting points under-hood or near the frame

Which vehicles and setups is this relay kit compatible with?

Engineered for 12V systems, the kit works across most cars, trucks, SUVs, and many aftermarket fuel pump applications that require up to 40 amps. It’s a versatile choice whether you’re replacing a worn harness, upgrading an OEM relay, or installing an aftermarket pump.

• Standard 12V passenger vehicles and light trucks
• Aftermarket mechanical and electric fuel pump installations
• Applications requiring up to 40A continuous current
• Can be used to protect factory circuits when adding accessories

Who is this for: This JY PERFORMANCE relay kit suits DIY mechanics, independent installers, and enthusiasts upgrading fuel delivery—especially when reliability, waterproofing, and a simple, labeled harness are priorities. If you prefer plug-and-play ease with durable components that reduce electrical strain on factory wiring, this kit provides a compact, serviceable solution. For unfamiliar electrical work or vehicles with complex factory modules, consider professional installation to ensure correct integration and safety.
