Elitech LMG-10 HVAC Manifold Gauge Set — 2-Way with Wired Temp Clamps, Auto Superheat/Subcooling

The Elitech LMG-10 is a compact two-way HVAC manifold gauge set with wired temperature clamps for accurate pressure readings plus temperature-compensated superheat and subcooling calculations.

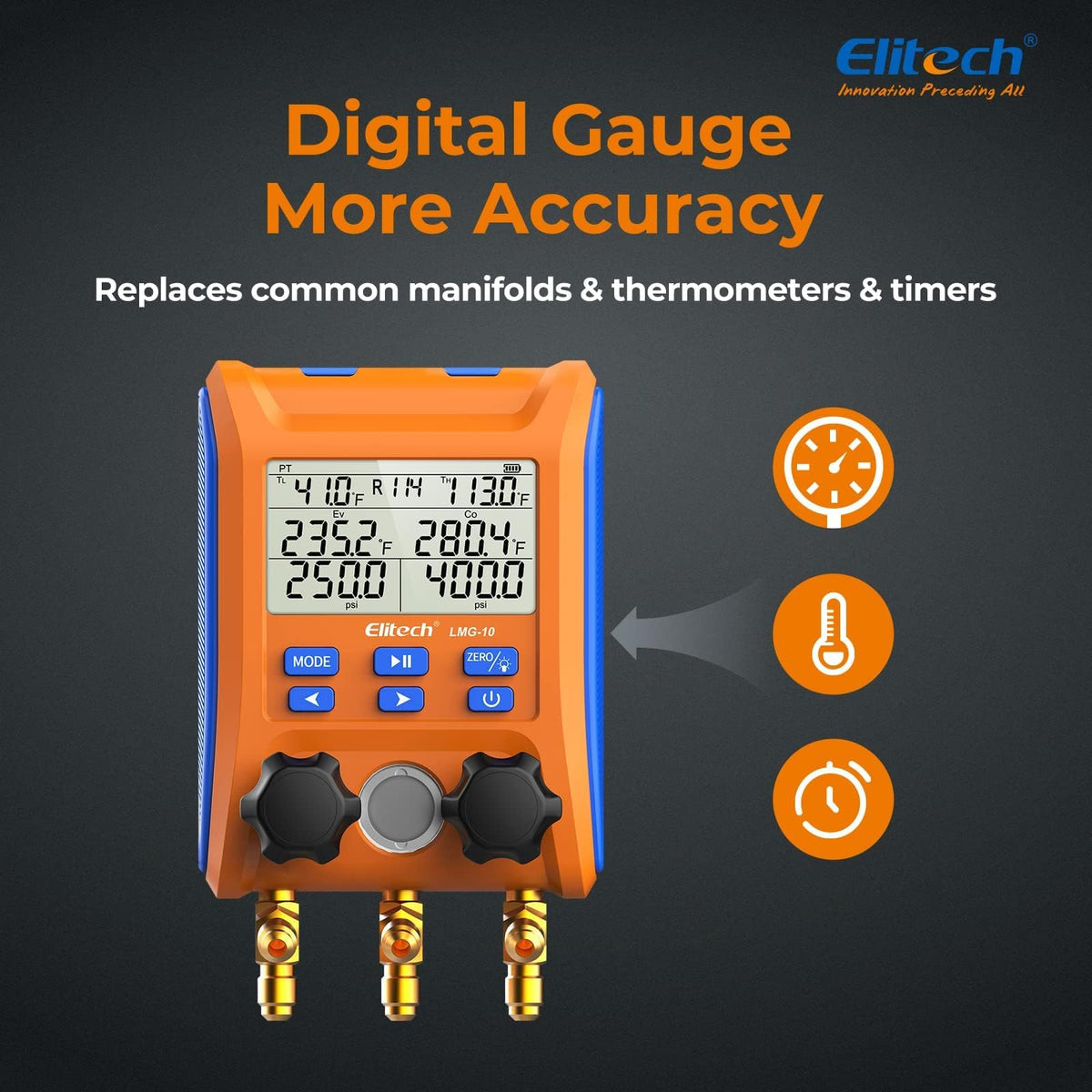

The Elitech LMG-10 combines a two-valve manifold, digital pressure sensors and two wired temperature clamps into a single portable tool for service technicians and contractors. Built to work with a wide range of refrigerants and to run for long shifts on a replaceable battery, this unit is designed for routine diagnostics, leak testing and refrigeration maintenance where reliable pressure and temperature data are needed.

How does the LMG-10 help me diagnose refrigeration and air-conditioning systems?

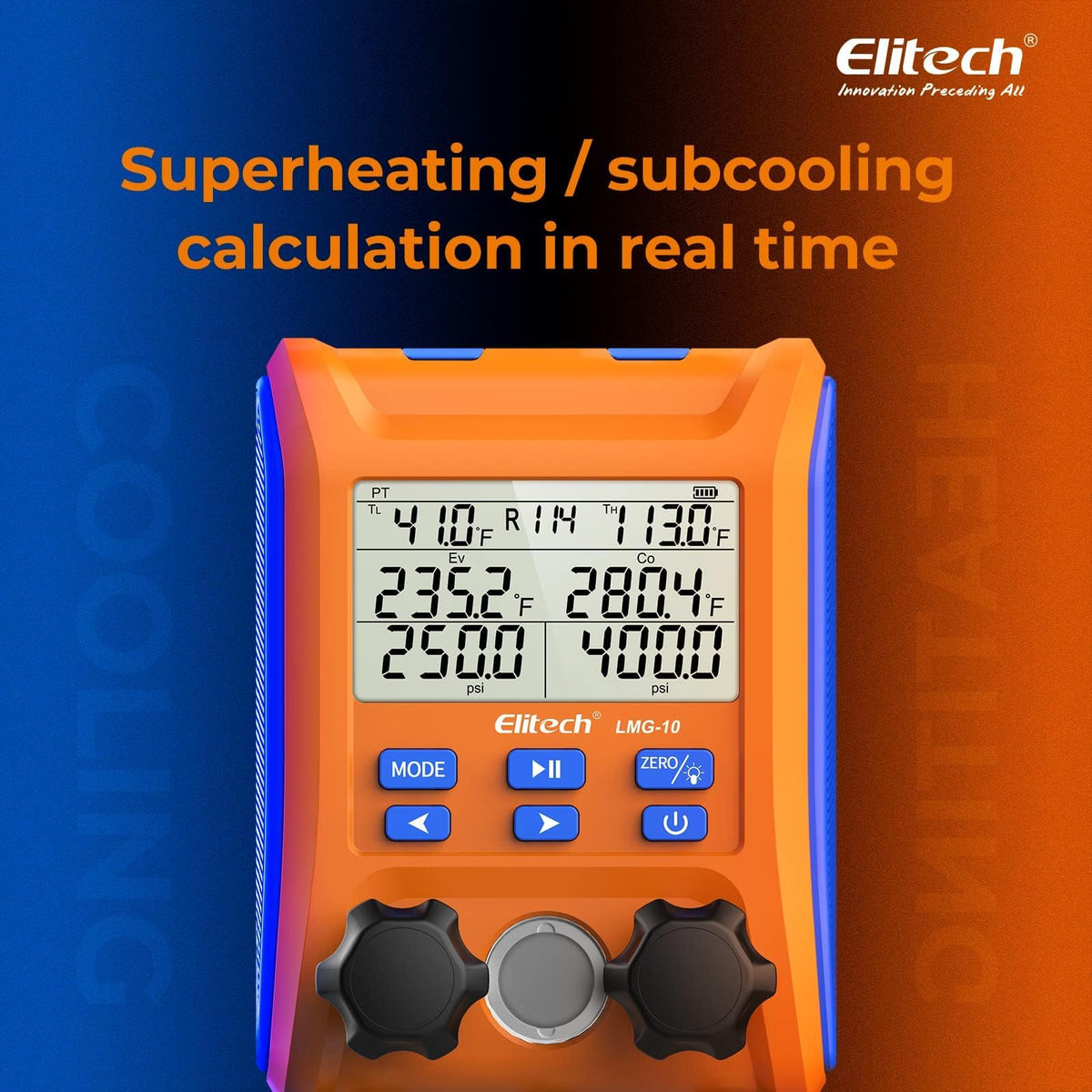

The LMG-10 displays both pressure and temperature simultaneously, then calculates overheating (superheat) and subcooling automatically using the selected refrigerant table. That speeds up troubleshooting by removing manual calculations and reducing errors from mismatched readings.

• Reads pressures from two service ports with clear digital values

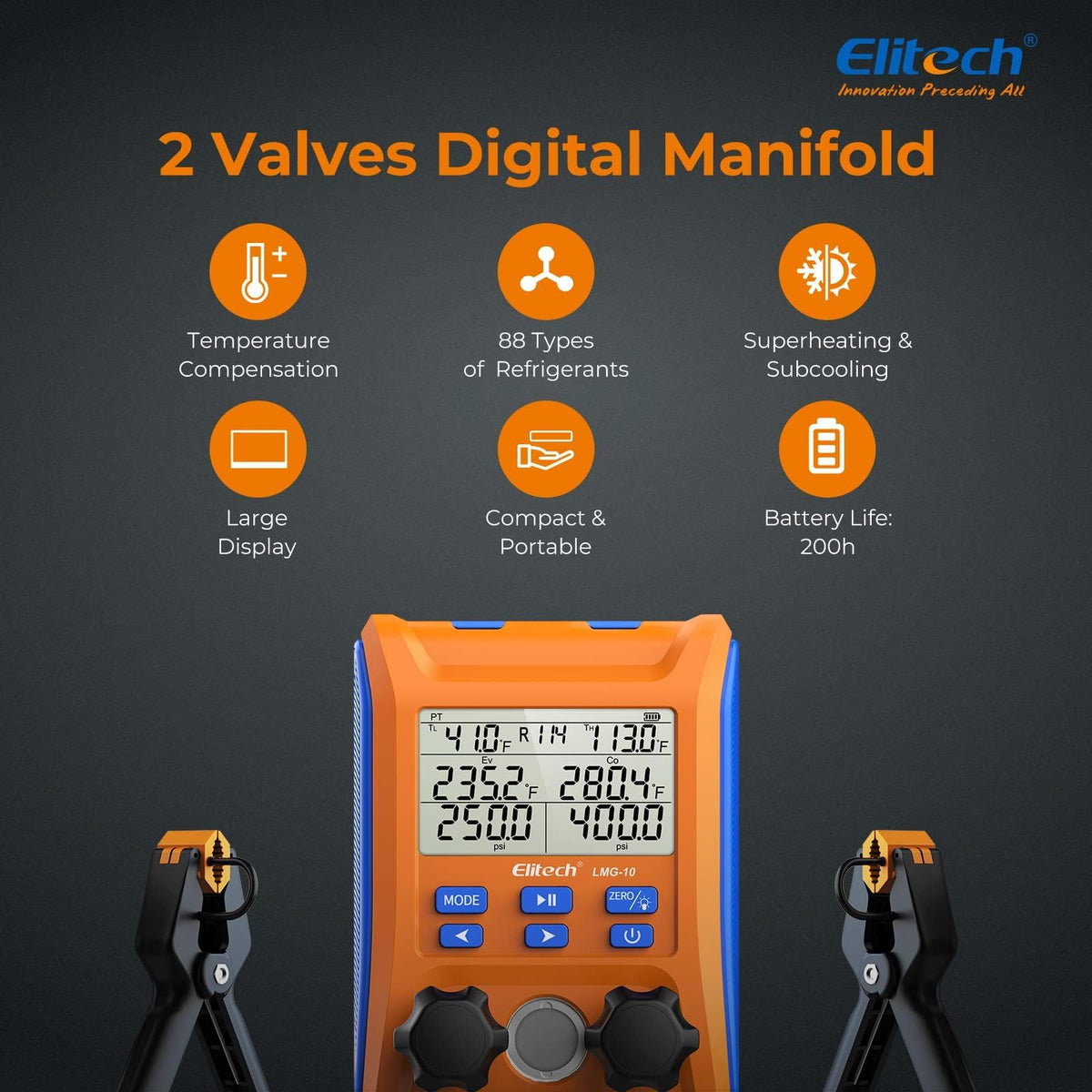

• Includes two wired temperature clamps for accurate pipe temperature
• Auto-calculates superheat and subcooling for up to 88 refrigerants
• Selectable pressure and temperature units for international jobs

What accuracy and features should I expect during leak or vacuum testing?

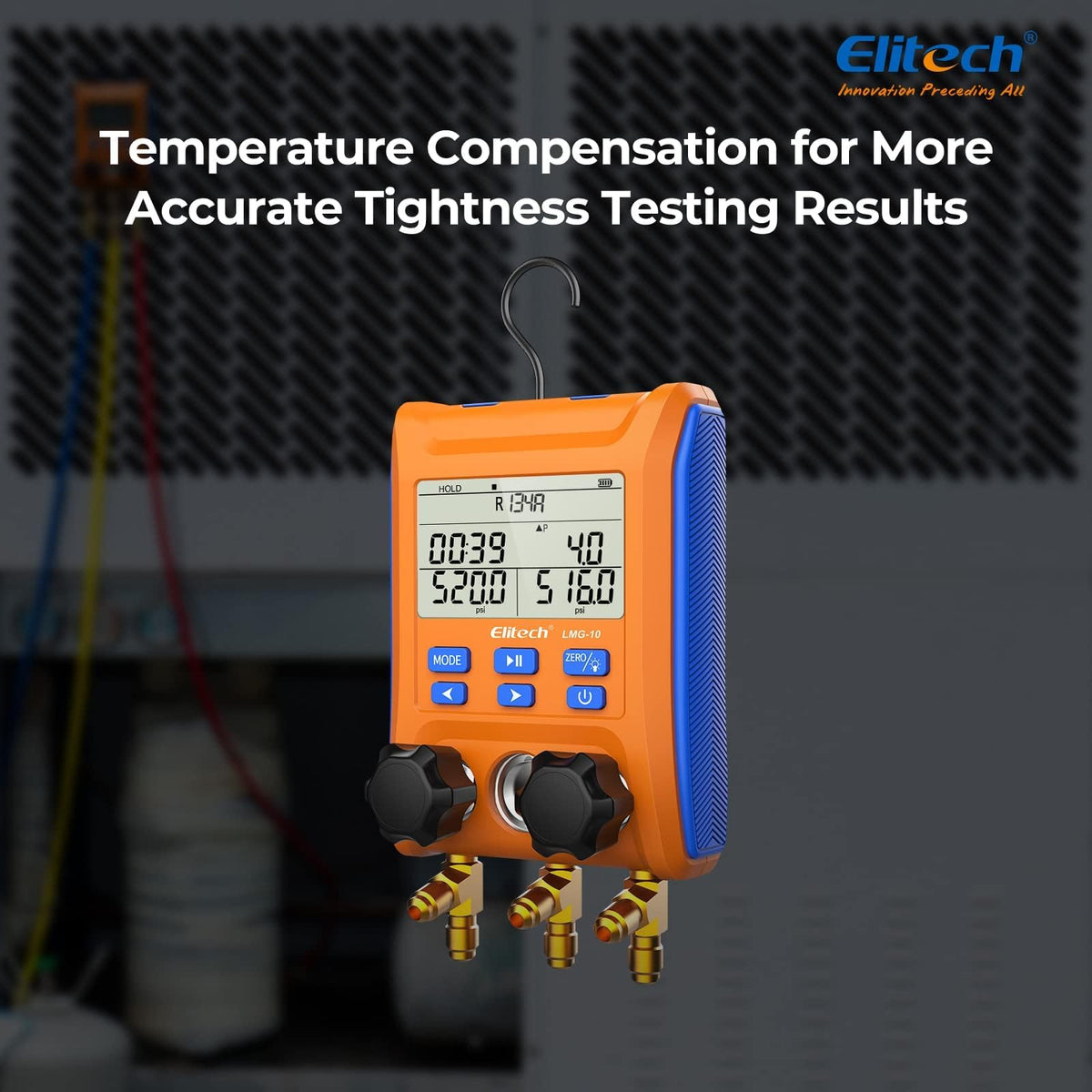

The LMG-10 supports pressure-hold and vacuum leak checks with temperature compensation to give more consistent results across changing ambient conditions. Its low power draw and long battery life mean it will stay on during extended diagnostic sessions.

• Temperature-compensated pressure readings for better stability
• Pressure unit options: psi, kg/cm², kPa, MPa, and bar
• Ultra-low power consumption with about 200 hours battery life
• Auto-off function and replaceable battery for field convenience

Which refrigerants and measurement modes does the Elitech LMG-10 support?

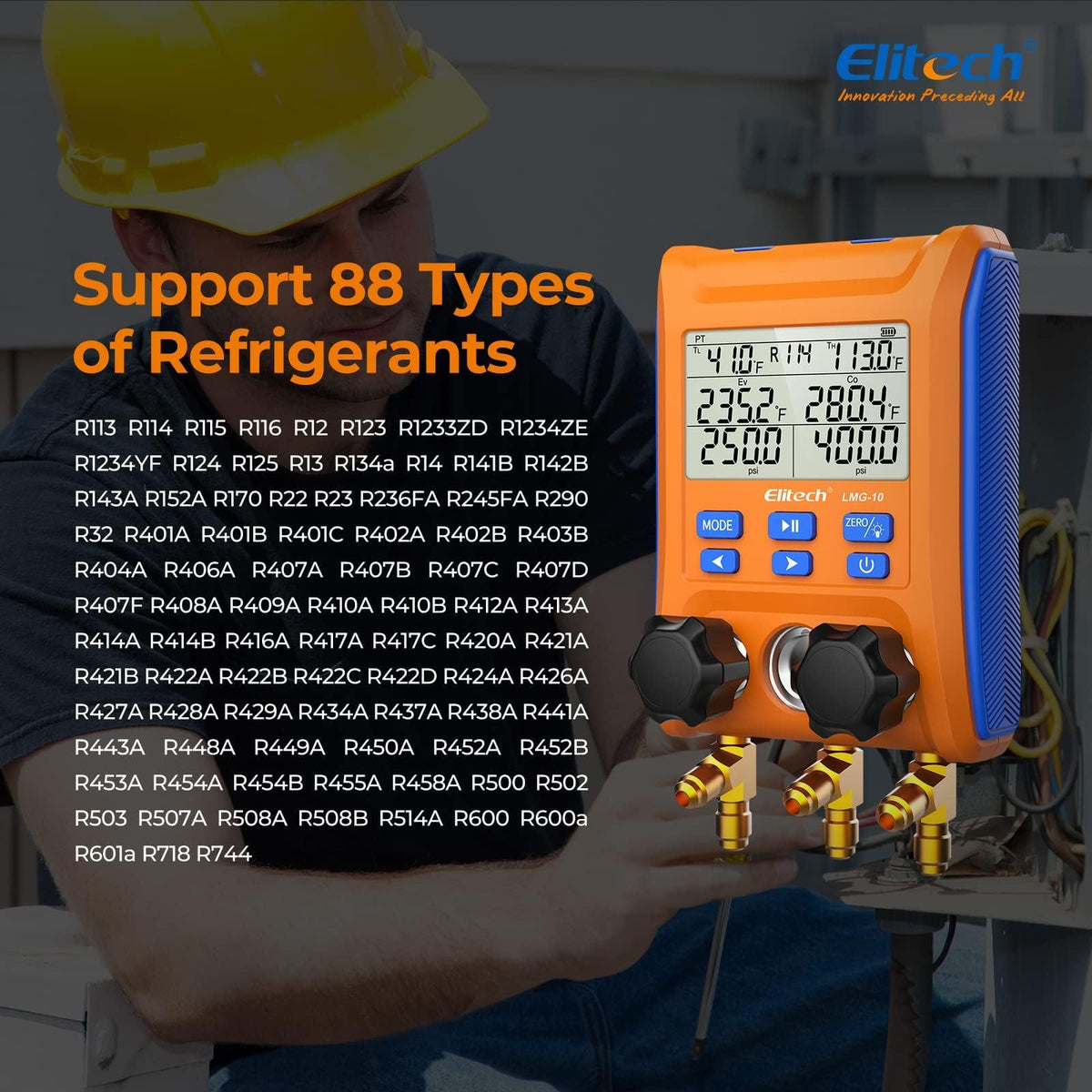

The instrument has built-in refrigerant tables covering 88 types, allowing technicians to switch refrigerants and get immediate property lookups for accurate thermodynamic calculations. It also offers multiple display and unit configurations to match the equipment being serviced.

• Preloaded data for 88 common refrigerants
• Temperature units in °F or °C and selectable pressure units
• Auto-calculation of superheat and subcooling using clamp temperatures
• Large display and simple controls for quick setup on the job

How durable and serviceable is the LMG-10 for daily field use?

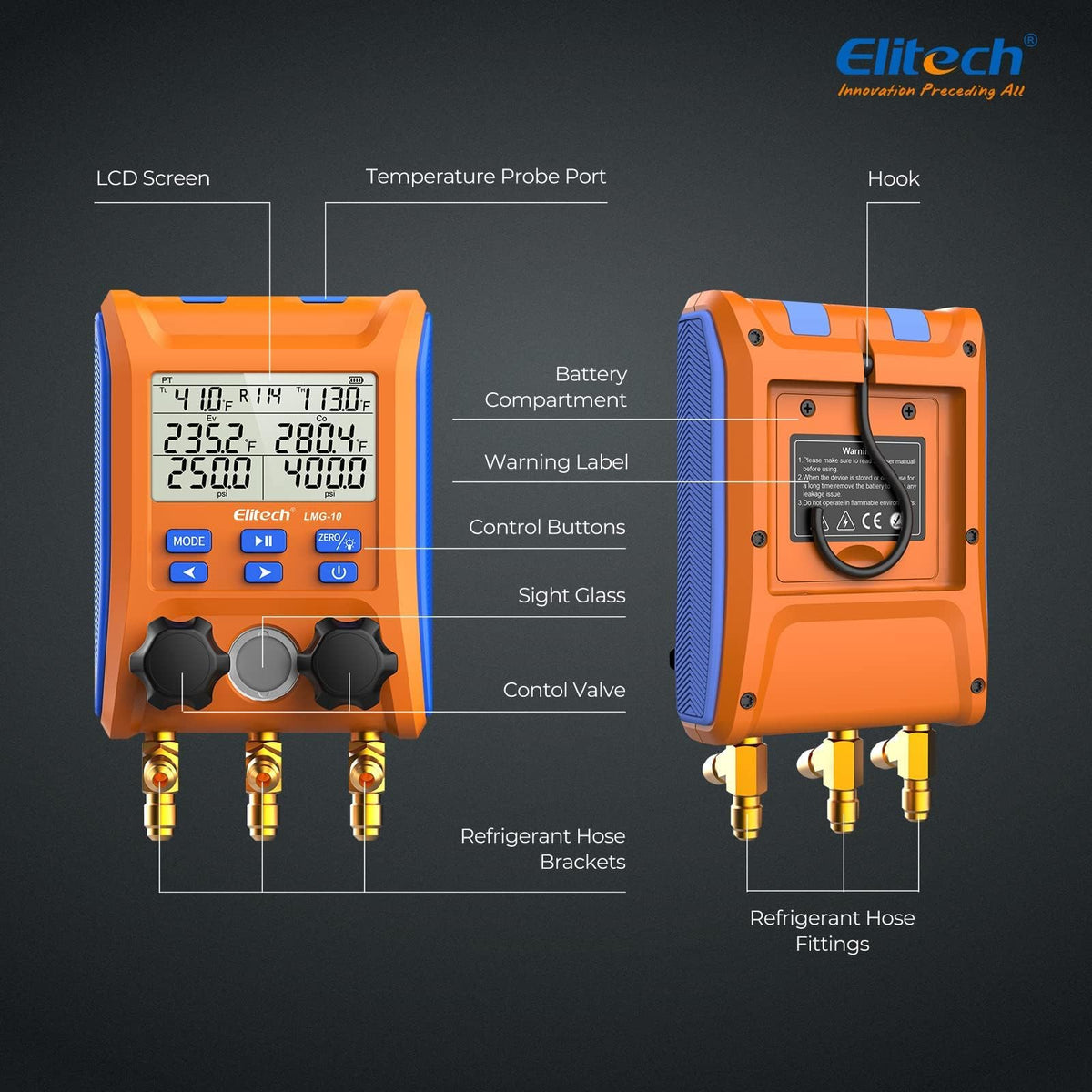

The LMG-10 is engineered for portability and routine workshop demands: a rugged housing, hanging hook for hands-free viewing, and replaceable battery extend usable life. Elitech also provides access to technical support to help with configuration or troubleshooting.

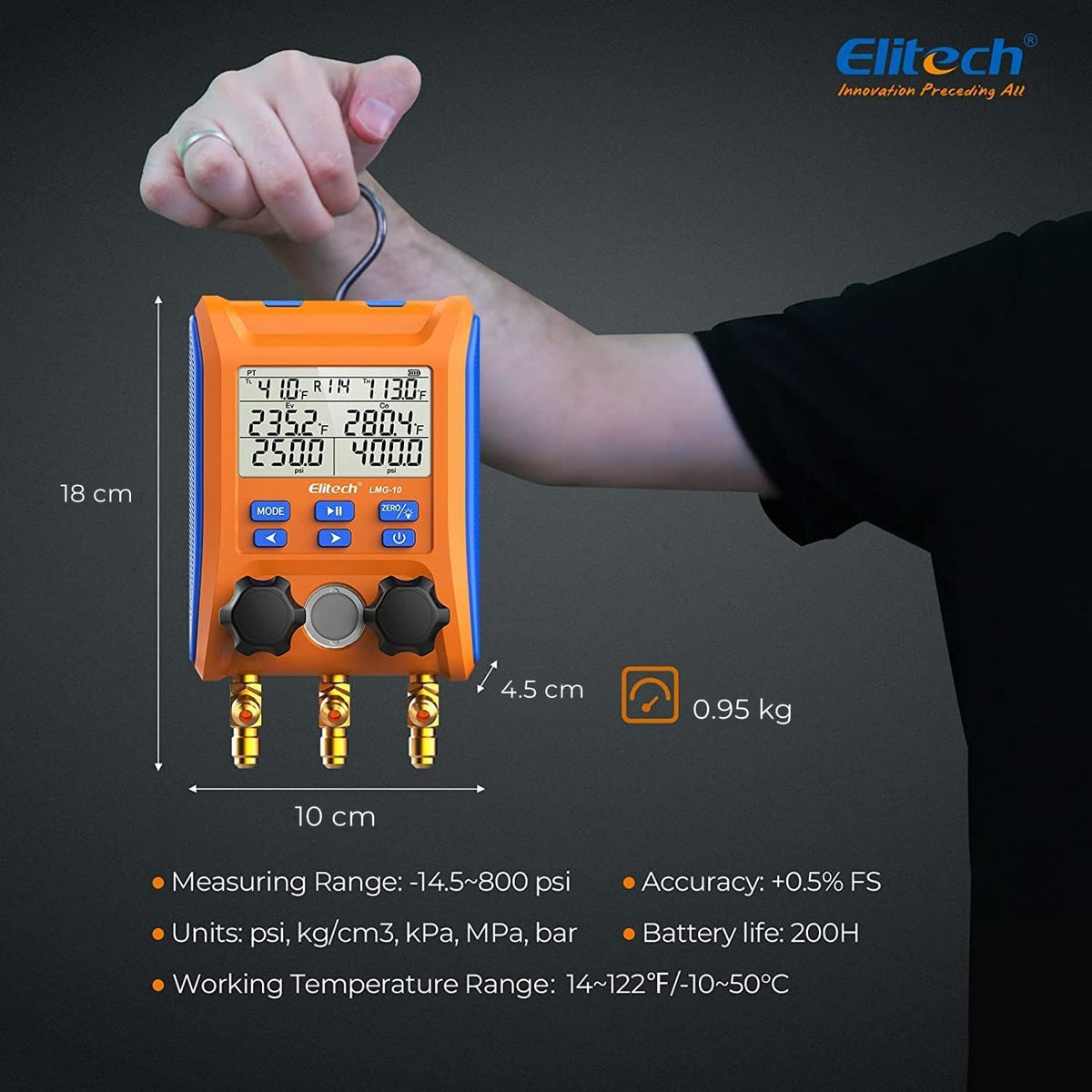

• Compact, lightweight design with a hanging hook for convenience
• Replaceable battery and extended battery life (about 200 hours)

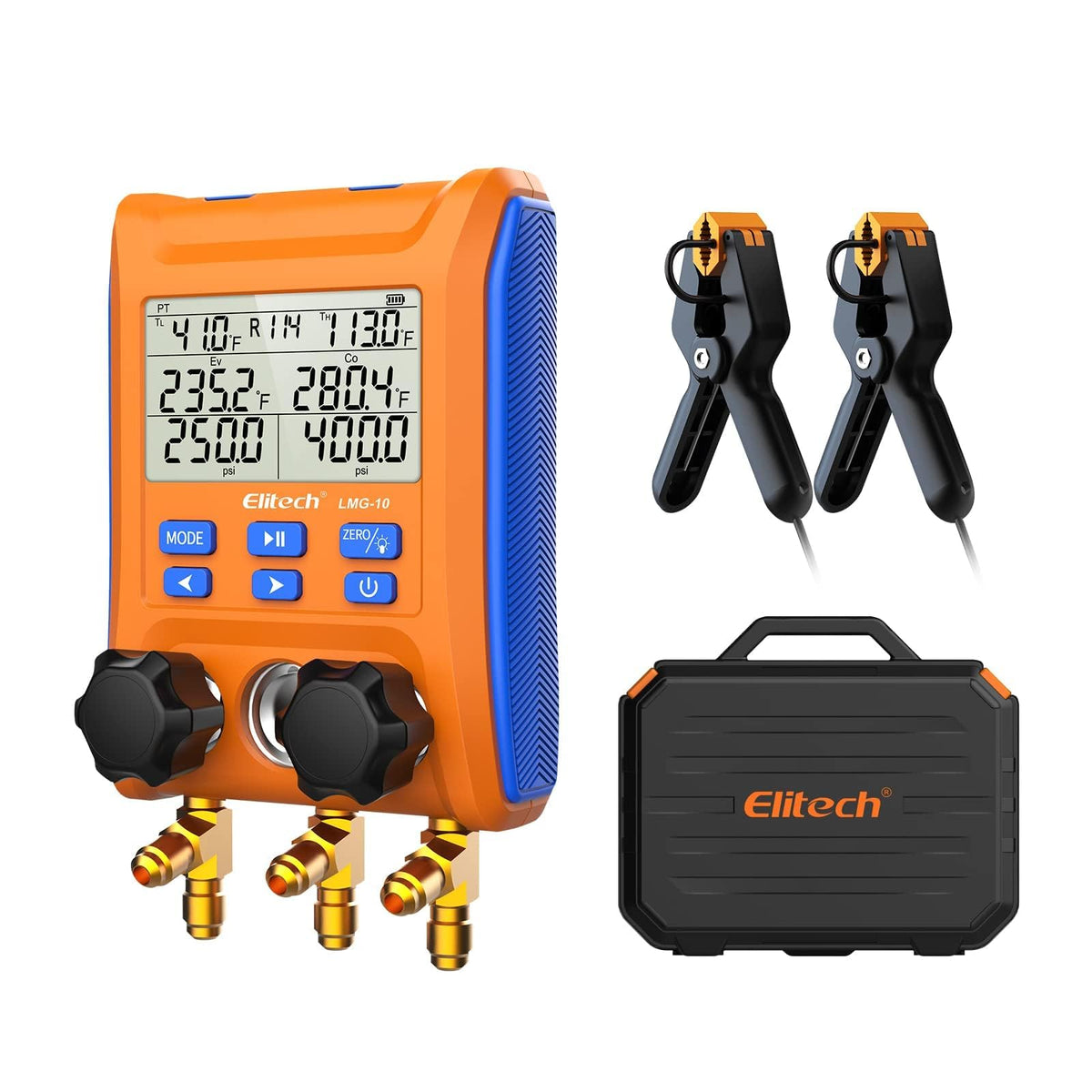

• Two wired temperature clamps included for immediate use
• 24/7 US-based technician support via email and phone

Who is this for: The Elitech LMG-10 suits HVAC technicians, refrigeration service contractors and building maintenance teams who need a cost-conscious but capable digital manifold for diagnostic checks, leak and vacuum testing, and accurate superheat/subcooling calculations. It’s ideal for professionals who value portability, clear digital readouts and support for many refrigerants without investing in separate temperature probes or more complex systems.
