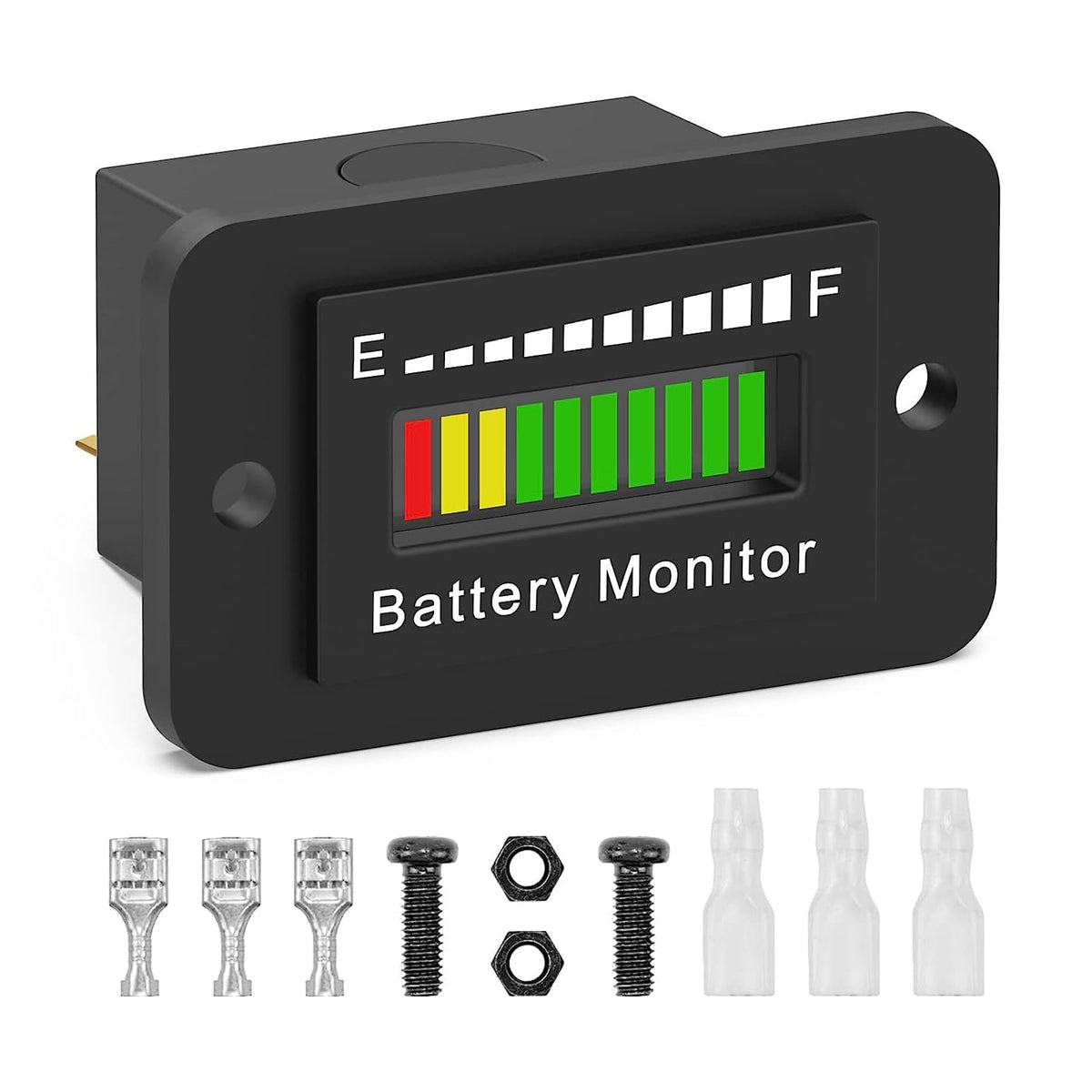

ELMCONFIG BM210 LED Battery Monitor for 12V–72V Systems — IP65 Water‑Resistant, 10‑Segment Fuel Gauge

The ELMCONFIG BM210 is an LED battery monitor that shows remaining charge for 12V–72V lead‑acid and lithium batteries used in golf carts, motorcycles, and utility vehicles.

Designed to give a quick, at‑a‑glance readout of battery capacity, the BM210 uses a stacked LED bar to represent battery percentage and supports common system voltages from 12V up to 72V. It’s built for outdoor use with IP65 water resistance, has built‑in protection against reverse and over‑voltage connections, and offers a DIP switch to select the correct voltage. That combination makes it a practical add‑on for owners who want clearer fuel‑level feedback than a simple low‑battery lamp provides.

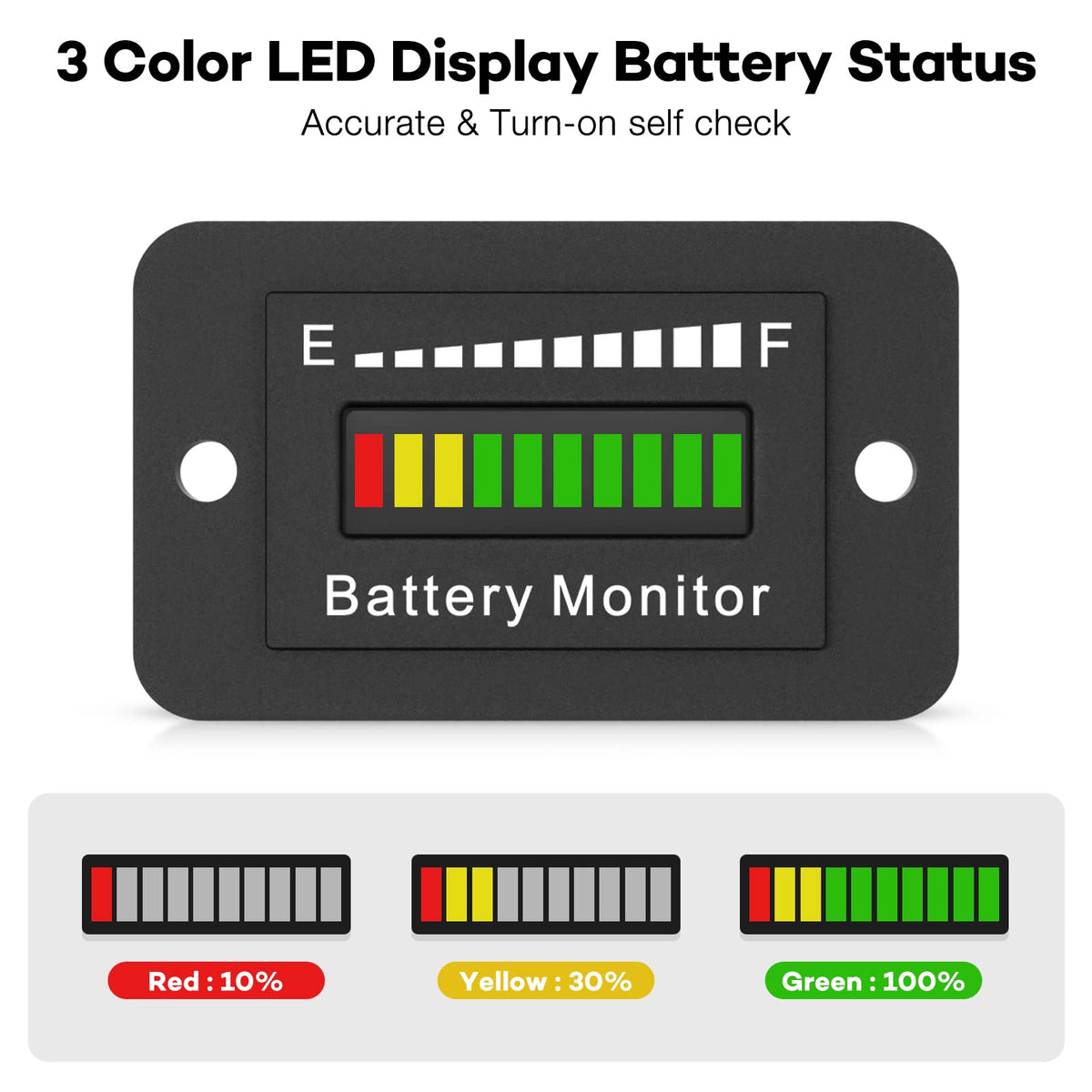

How does the BM210 show how much battery is left?

The meter uses a 10‑segment LED display arranged as 1 red, 2 yellow, and 7 green LEDs where each segment represents roughly 10% of battery capacity. As charge decreases, LEDs extinguish from green to yellow to red, giving an intuitive visual estimate of remaining energy.

• 1 red, 2 yellow, 7 green LEDs = 10% increments
• Simple visual bar readout for fast checks on the go
• Works with both lead‑acid and lithium chemistries

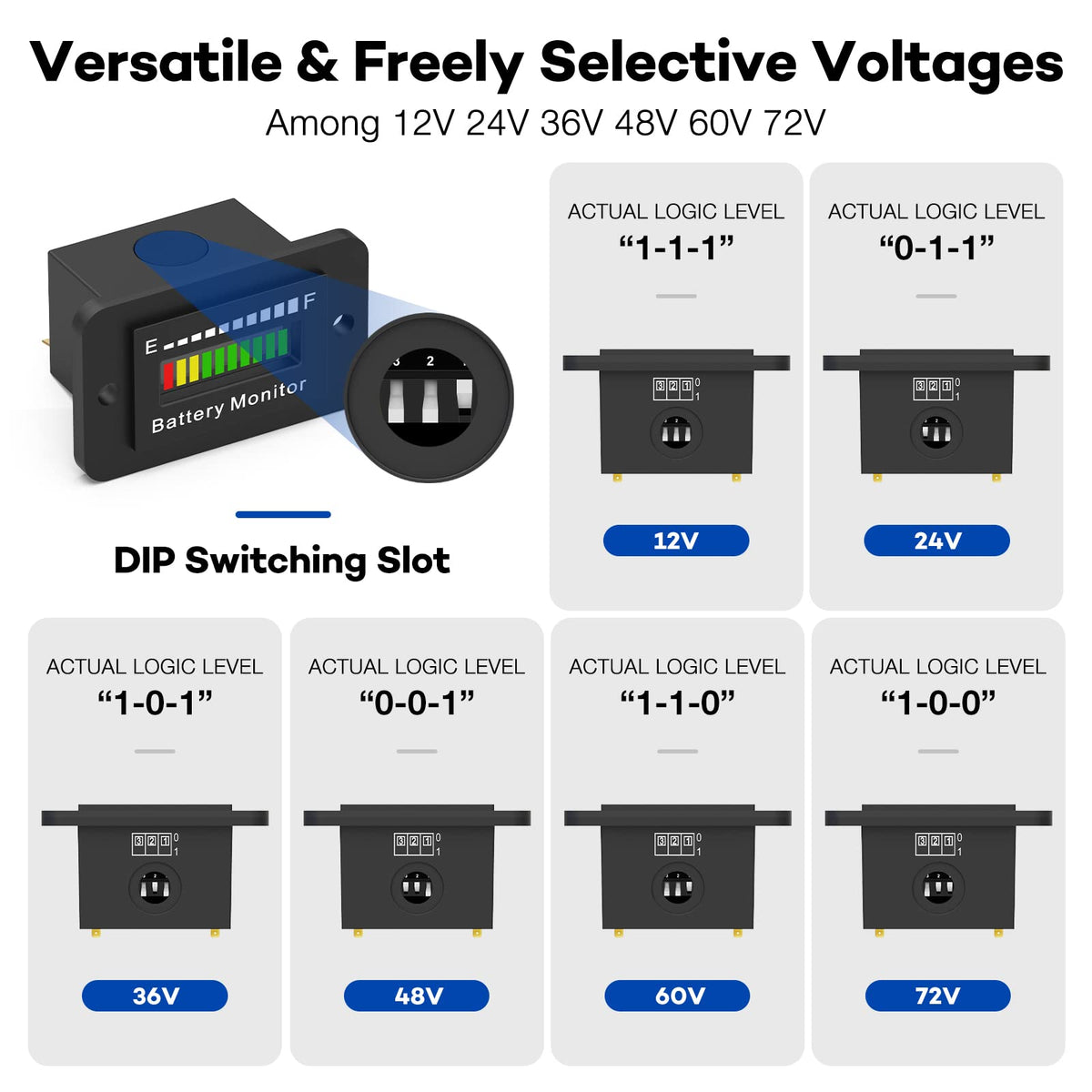

Can I use this on different vehicle voltages and battery types?

Yes — the BM210 supports selectable system voltages (12V, 24V, 36V, 48V, 60V, 72V) via onboard DIP switches so it can match a wide range of carts, bikes, and utility vehicles. It is calibrated to read typical lead‑acid and lithium voltage profiles used in these systems.

• DIP switch selection for 6 common system voltages
• Compatible with lead‑acid and lithium ion battery packs
• Recommended for Yamaha, Club Car, EZGO, motorcycles and electric mowers

Is the BM210 durable enough for outdoor and mobile use?

The meter is rated IP65, meaning it resists rain and mist and is protected against dust intrusion, which suits it for mounted installations on carts and outdoor equipment. It is not meant to be submerged; the enclosure and connectors are designed to withstand typical wet conditions encountered while operating a vehicle outdoors.

• IP65 tested for water spray and dust resistance
• Robust housing for vehicle mounting and field use
• Do not submerge the unit in water

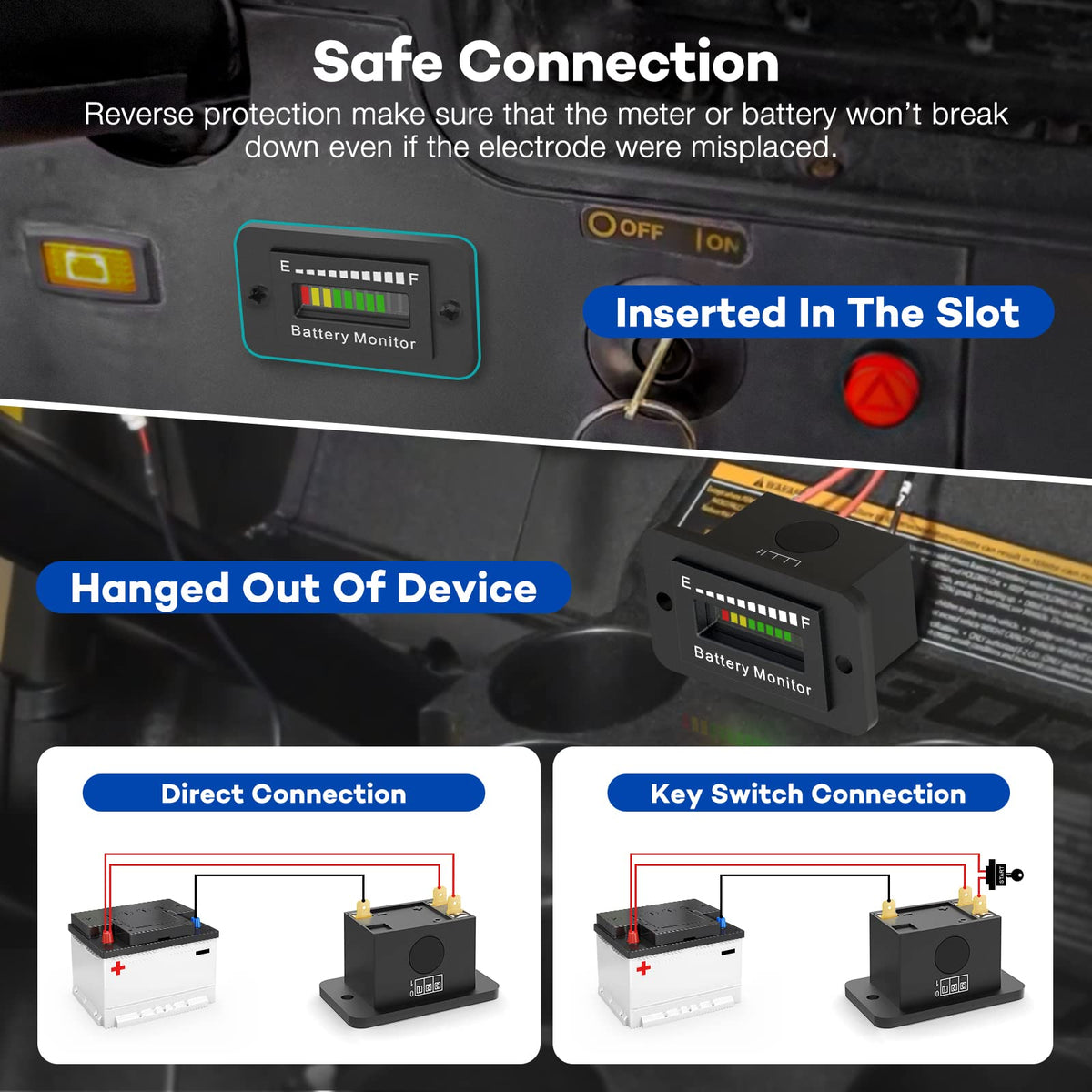

How safe and easy is installation?

Installation is straightforward: attach the meter to the battery terminals and set the voltage with the DIP switches according to the included instructions. The BM210 includes reverse‑polarity and over‑voltage protections to reduce risk from incorrect connections, making it more forgiving for DIY installations.

• Clear user guide for DIP switch voltage setup
• Reverse connection protection prevents damage from swapped leads
• Over‑voltage protection protects the meter and battery system

Who is this for? The BM210 is aimed at golf‑cart owners, fleet managers, and recreational vehicle users who want a reliable, simple indicator of remaining battery capacity across a range of system voltages. It’s also a good fit for lawn‑care and light industrial equipment operators who need a rugged, visible gauge to plan charging and prevent unexpected downtime.
